| System Specifications |
| Model |
| Model |

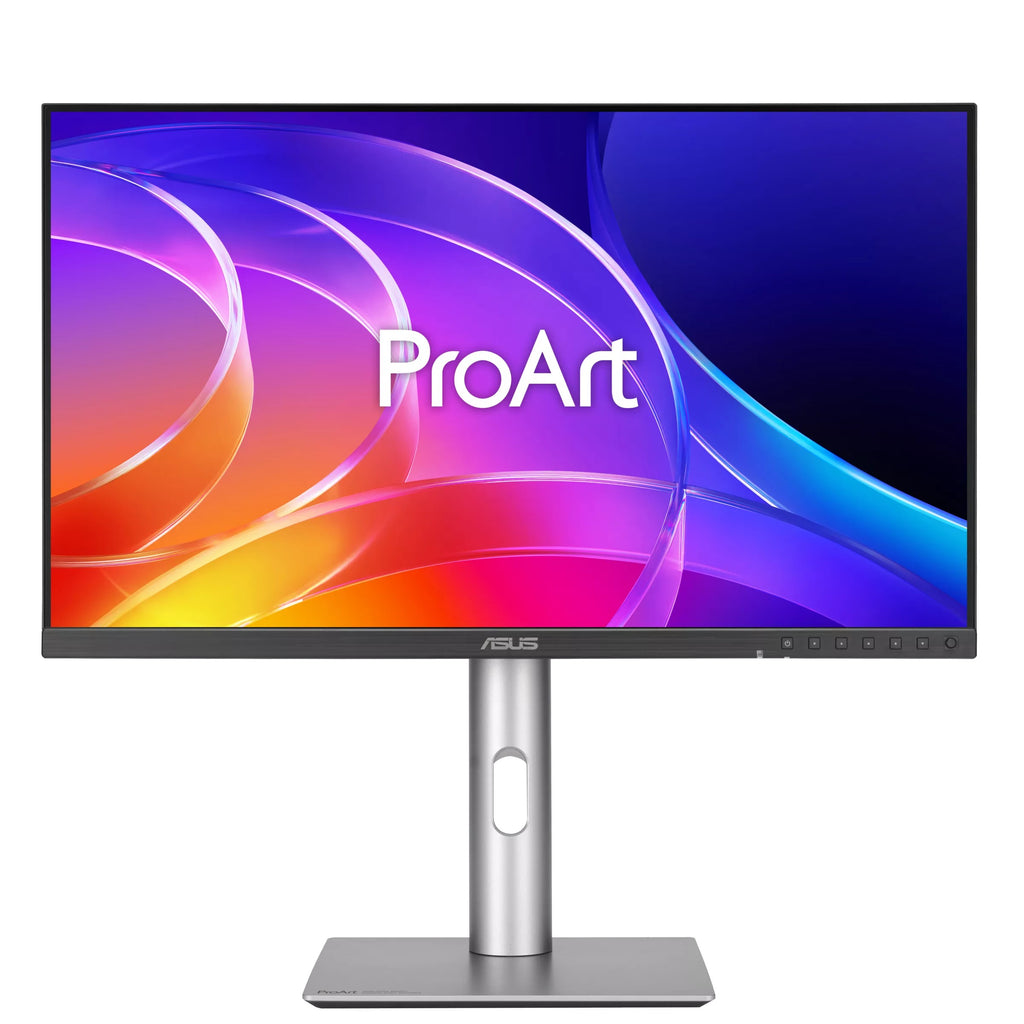

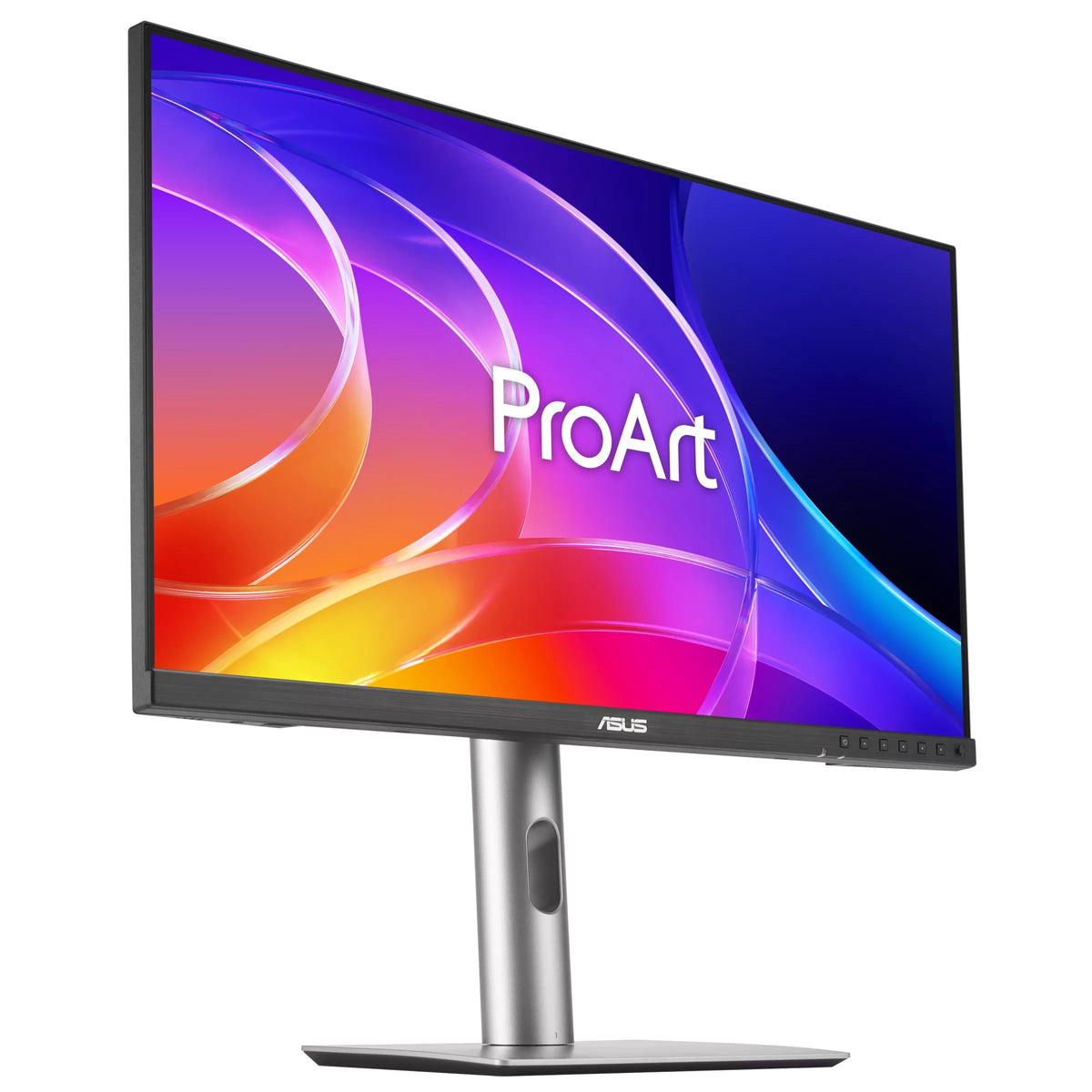

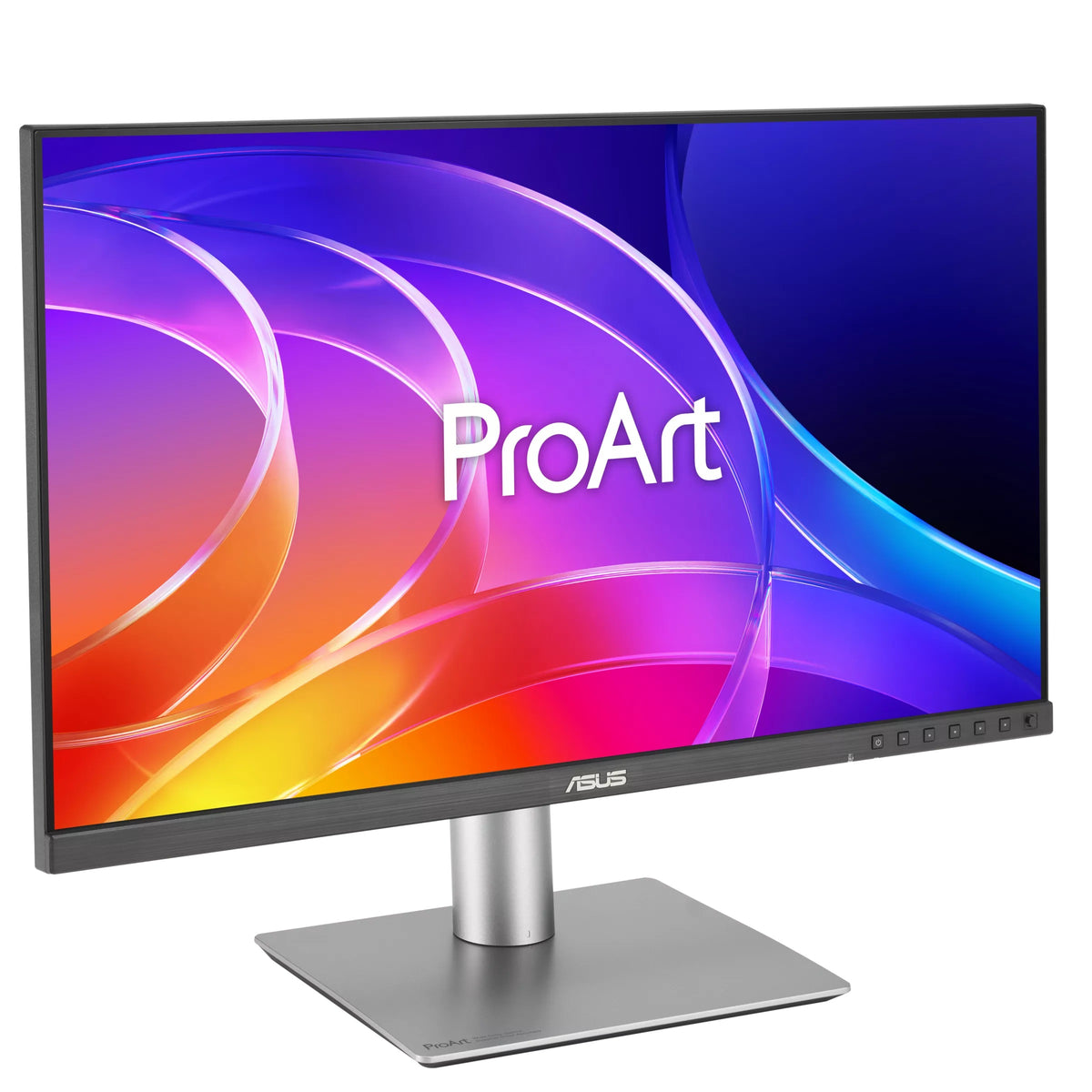

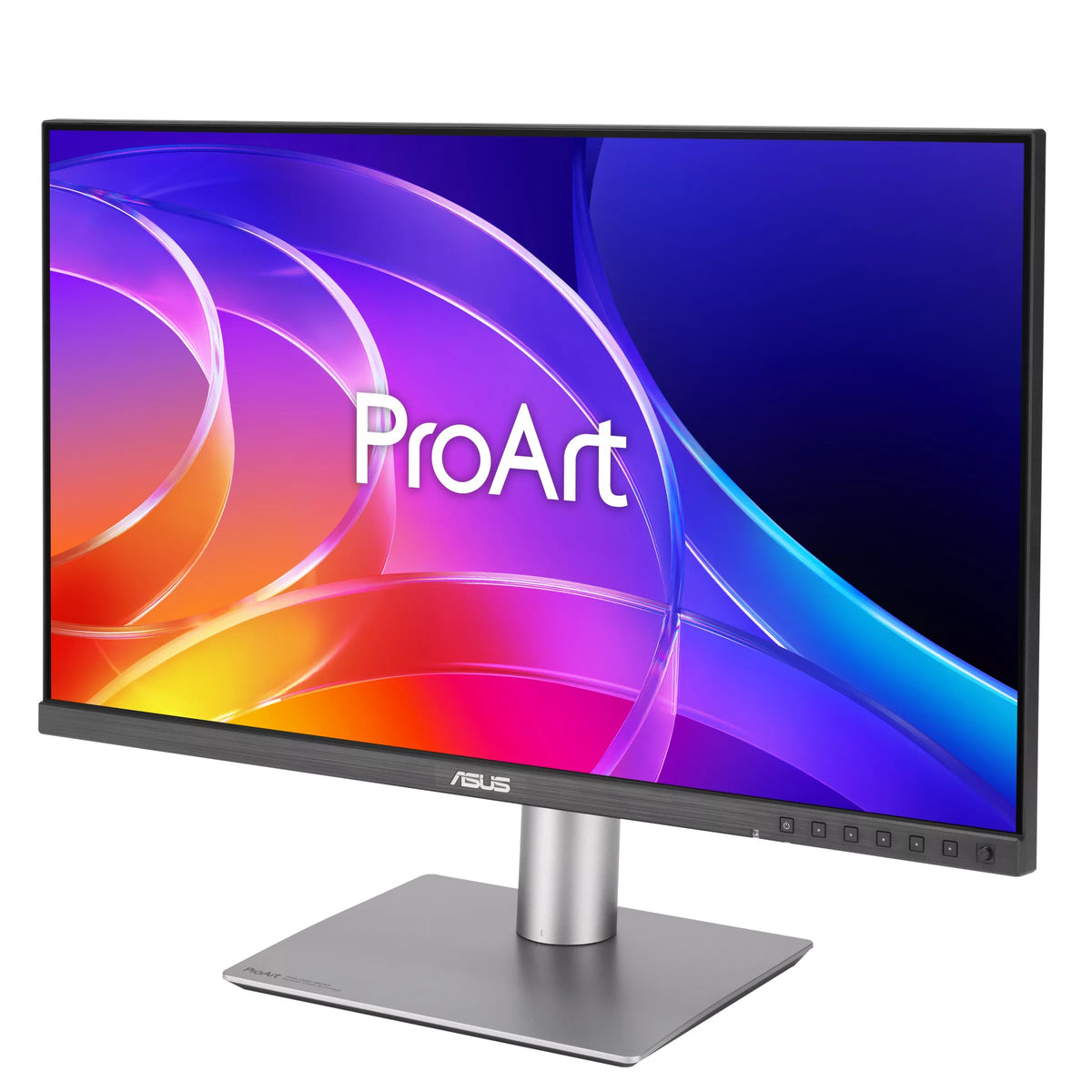

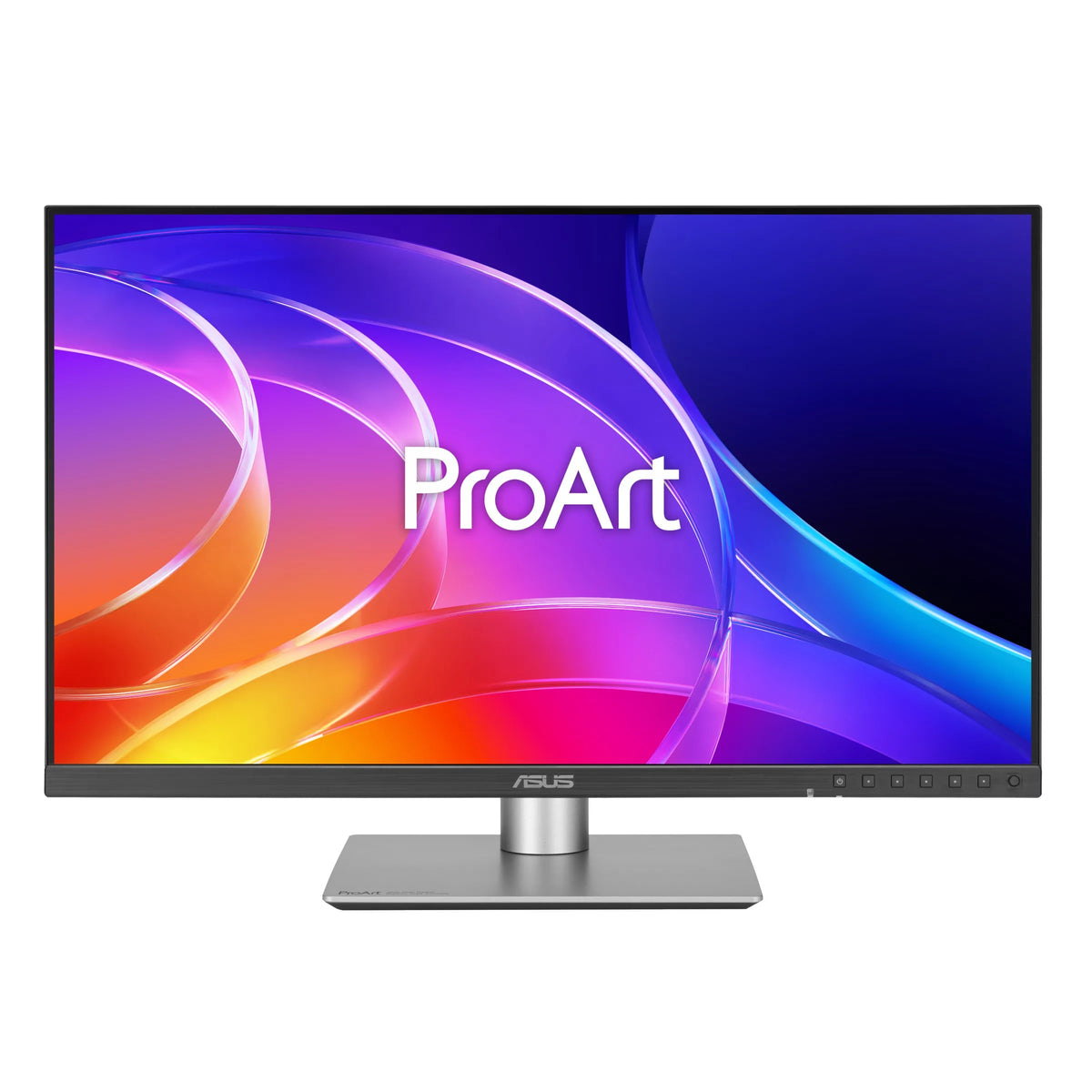

ProArt Display PA249CGV |
| Display |
| Panel Size (inch) |
23.8 |
| Aspect Ratio |
16:9 |
| Display Viewing Area (H x V) |
527.04 x 296.46 mm |
| Display Surface |
Anti-Glare |
| Backlight Type |
LED |
| Panel Type |
IPS |
| Viewing Angle (CR≥10, H/V) |
178°/ 178° |
| Pixel Pitch |
0.275mm |
| Resolution |
1920x1080 |
| Color Space (sRGB) |
100% |
| Color Space (DCI-P3) |
95% |
| Brightness (Typ.) |
350cd/㎡ |
| Contrast Ratio (Max) |
3000:1 |
| Contrast Ratio (Typ.) |
1500:1 |
| Display Colors |
16.7M |
| Response Time |
5ms(GTG) |
| Refresh Rate (Max) |
144Hz |
| HDR (High Dynamic Range) Support |
HDR10 |
| Flicker-free |
Yes |
| LCD ZBD Warranty |
Yes(3 yr) |
| Features |
| Trace Free Technology |
Yes |
| ProArt Preset |
User mode2 / User mode1 / HDR PQ / DICOM / BT.2020 / P3 / Adobe RGB / BT.709 / sRGB / Native |
| Color Temp. Selection |
Yes (9300K, 6500K, 5500K, 5000K, DCI-P3, M Model) |
| Color Adjustment |
RGB Tuning (Gain / Offset) |
| Gamma Adjustment |
Yes (Support Gamma 1.8/2.0/2.2/2.4/2.6) |
| Auto Rotation |
Yes, supported by DisplayWidget Center |
| Color Accuracy |
ΔE< 2 |
| ProArt Palette |
Yes |
| QuickFit Plus |
Yes |
| HDCP |
Yes, 1.4 |
| VRR Technology |
Yes (Adaptive-Sync) |
| ProArt Chroma Tune |
Yes |
| DisplayWidget |
Yes, DisplayWidget Center |
| Low Blue Light |
Yes |
| KVM Switch |
Yes |
| ASUS Power Sync |
Yes |
| Audio |
| Speaker |
Yes(2Wx2) |

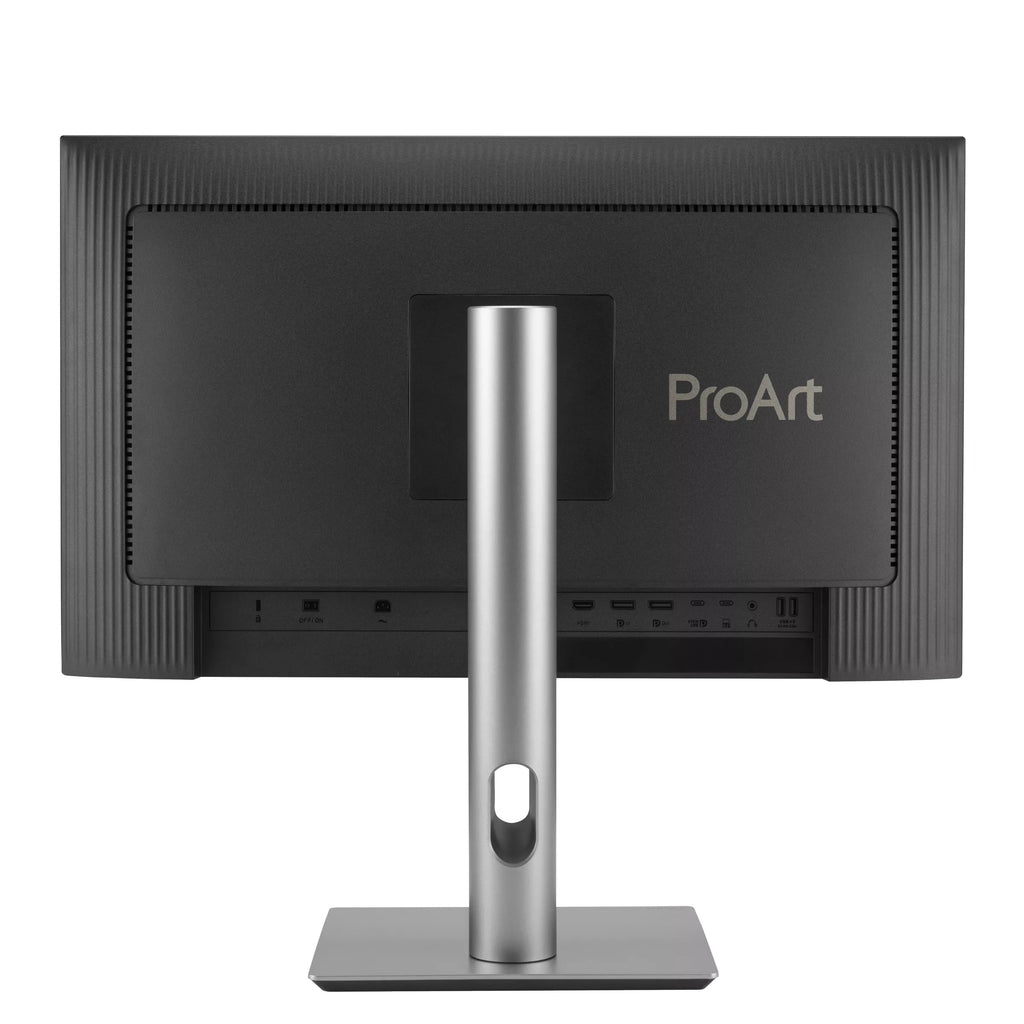

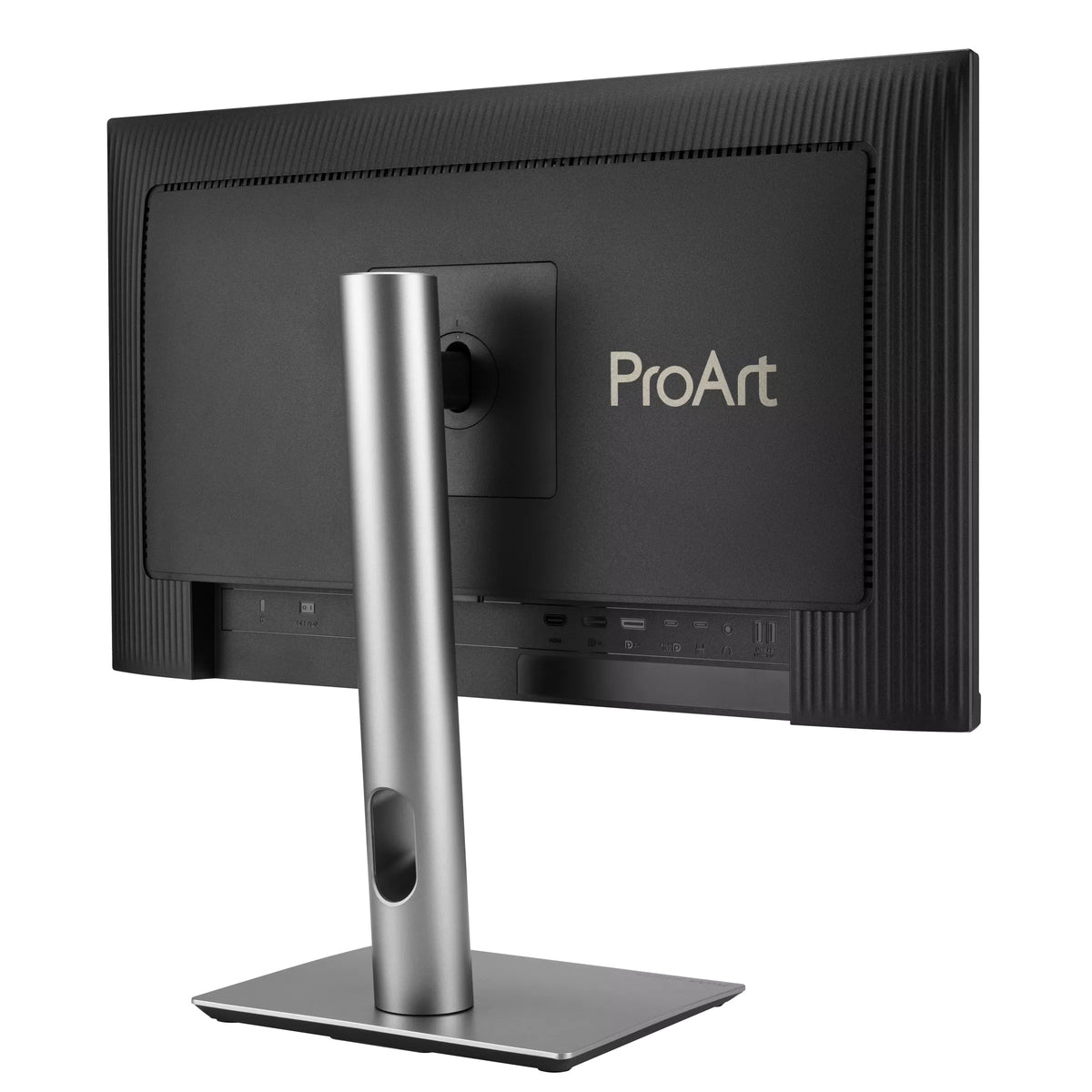

| I/O Ports |
| I/O Ports |

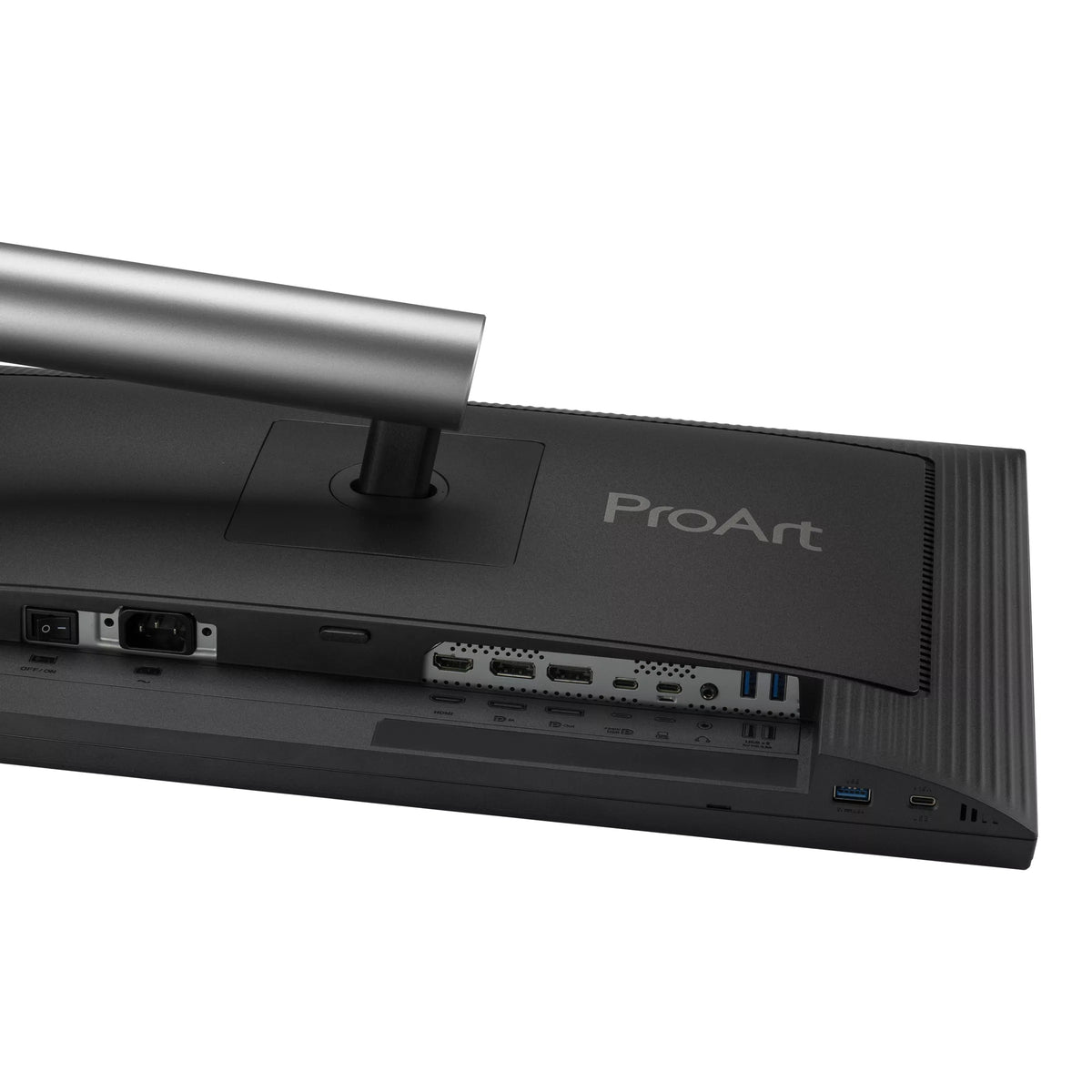

USB-C x 1 (DP Alt Mode), DisplayPort 1.4 x 2 (Daisy Chain), HDMI(v2.1) x 1 (TMDS) |
| USB Hub |
1x USB 3.2 Gen 1 Type-C, 3x USB 3.2 Gen 1 Type-A |
| Earphone Jack |
Yes |
| USB-C Power Delivery |
96W |
| USB 3.2 (Signal) |
x 1 USB Type-C (For KVM Switch) |
| Signal Frequency |
| Digital Signal Frequency |
31~223 KHz (H) / 48~144 Hz (V) |
| Power Consumption |
| Power Consumption |
<13.71W |
| Power Saving Mode |
<0.5W |
| Power Off Mode |
0W (hard switch) |
| Voltage |
100-240V, 50/60Hz |

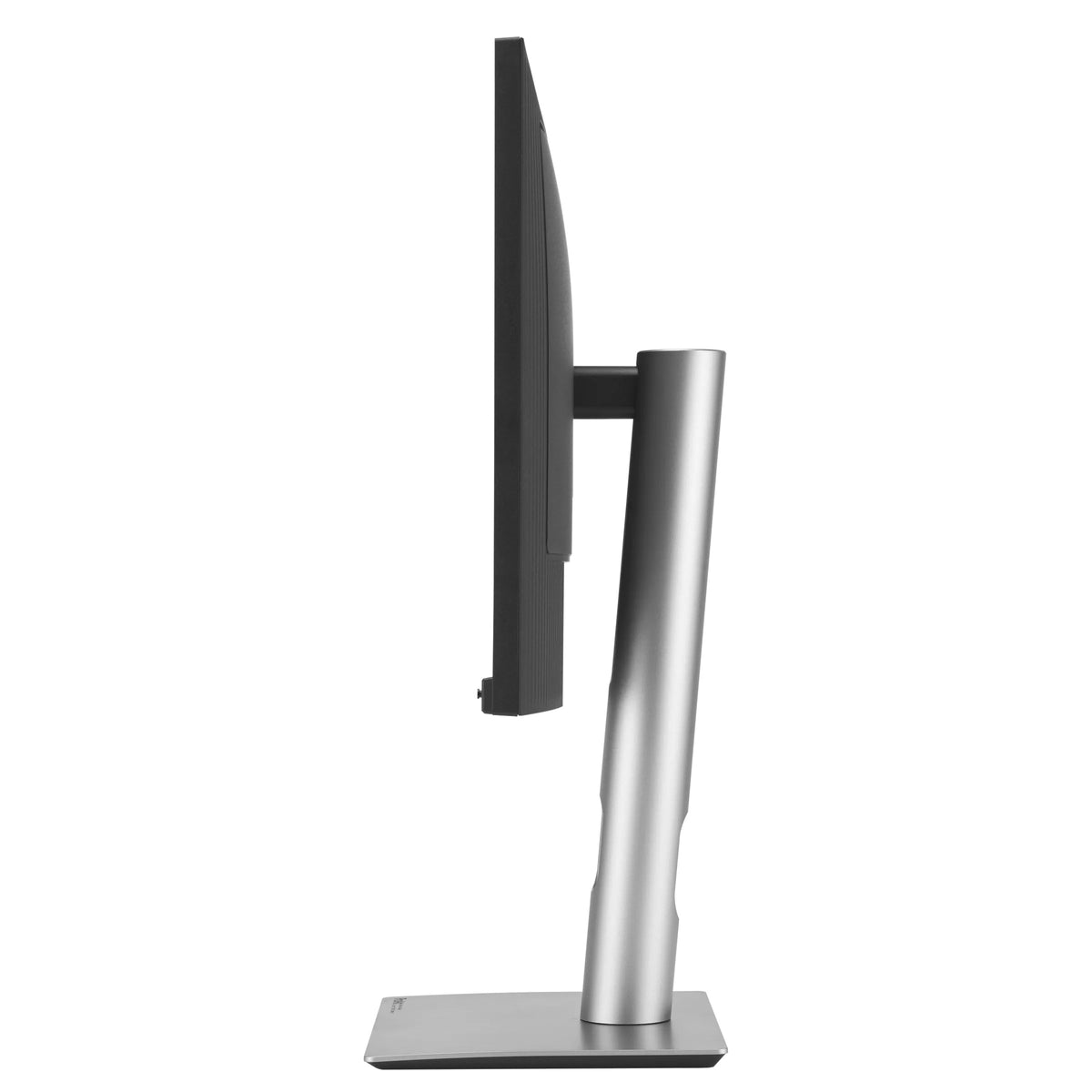

| Mechanical Design |

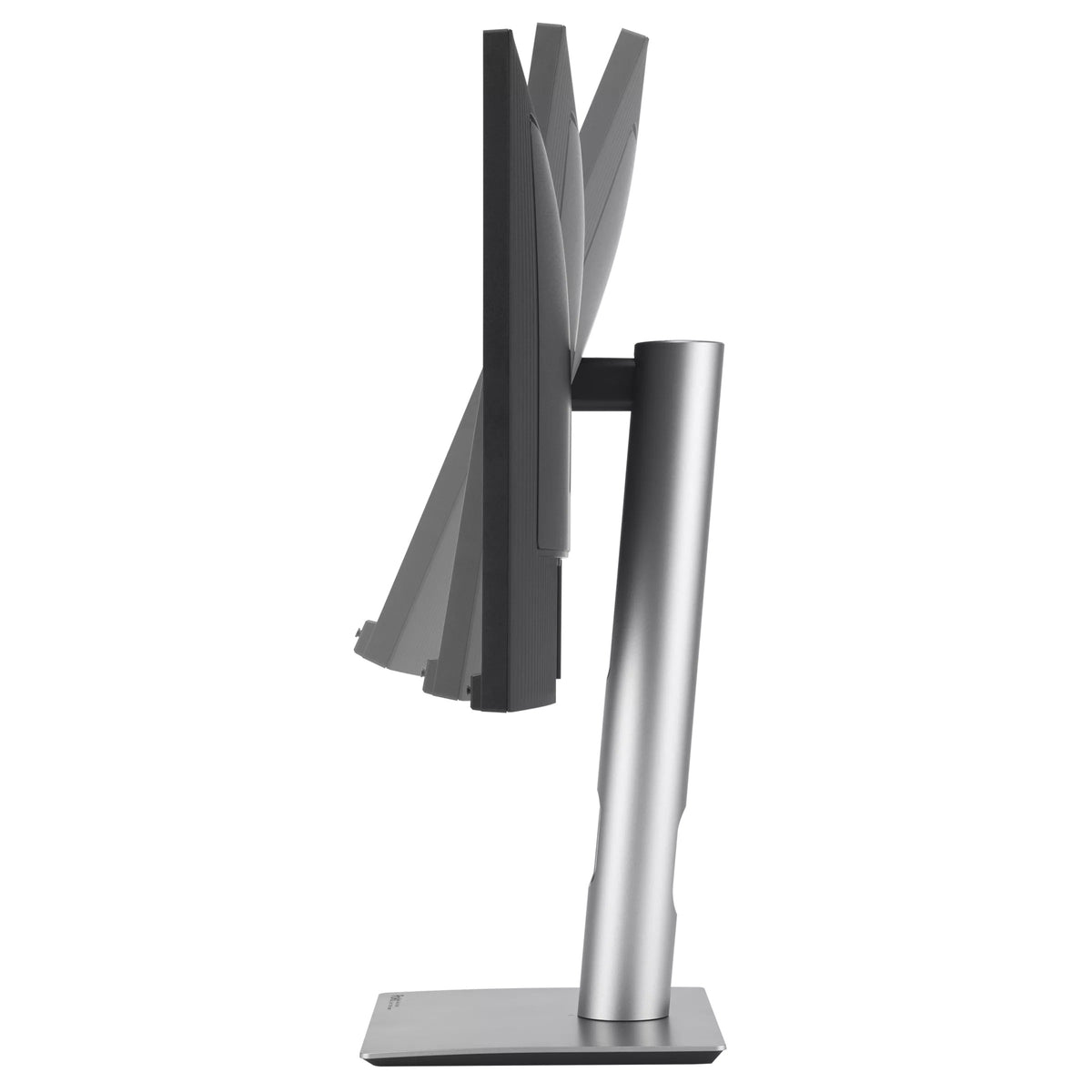

| Tilt |
Yes (+23° ~ -5°) |
| Swivel |
Yes (+30° ~ -30°) |
| Pivot |

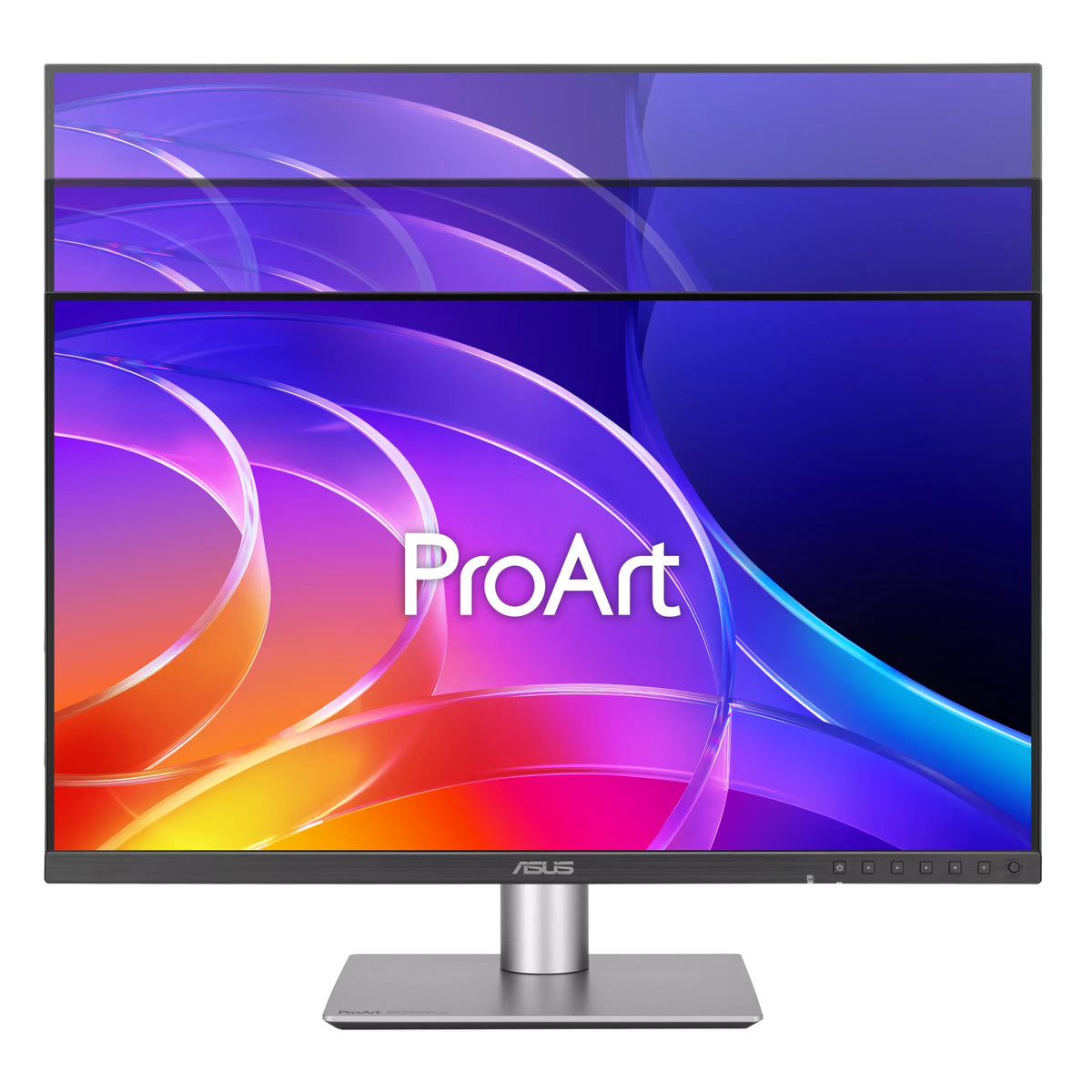

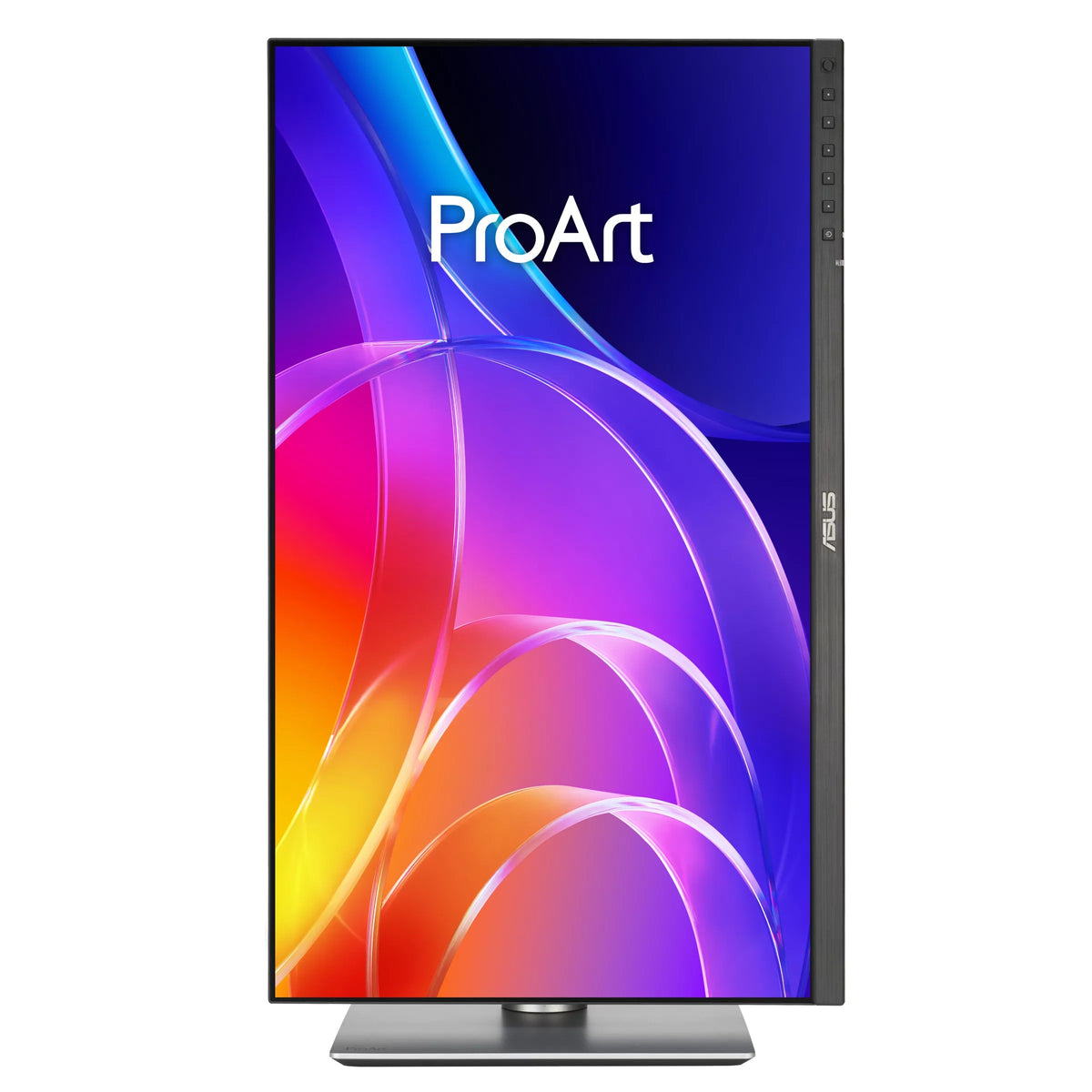

Yes (+90° ~ -90°) |
| Height Adjustment |
0~130mm |
| Ambient Light Sensor |
Yes |
| VESA Wall Mounting |
100x100mm |
| Kensington Lock |
Yes |
| Dimensions (Esti.) |
| Phys. Dimension (W x H x D) |
54.02 x 51.54 x 19.04 cm (21.27" x 20.29" x 7.50") |
| Phys. Dimension without Stand (W x H x D) |
54.02 x 32.38 x 4.44 cm (21.27" x 12.75" x 1.75") |
| Box Dimension (W x H x D) |
61.90 x 41.60 x 14.30 cm (24.37" x 16.38" x 5.63") |
| Weight (Esti.) |
| Net Weight |
5.3 kg (11. |
