Description

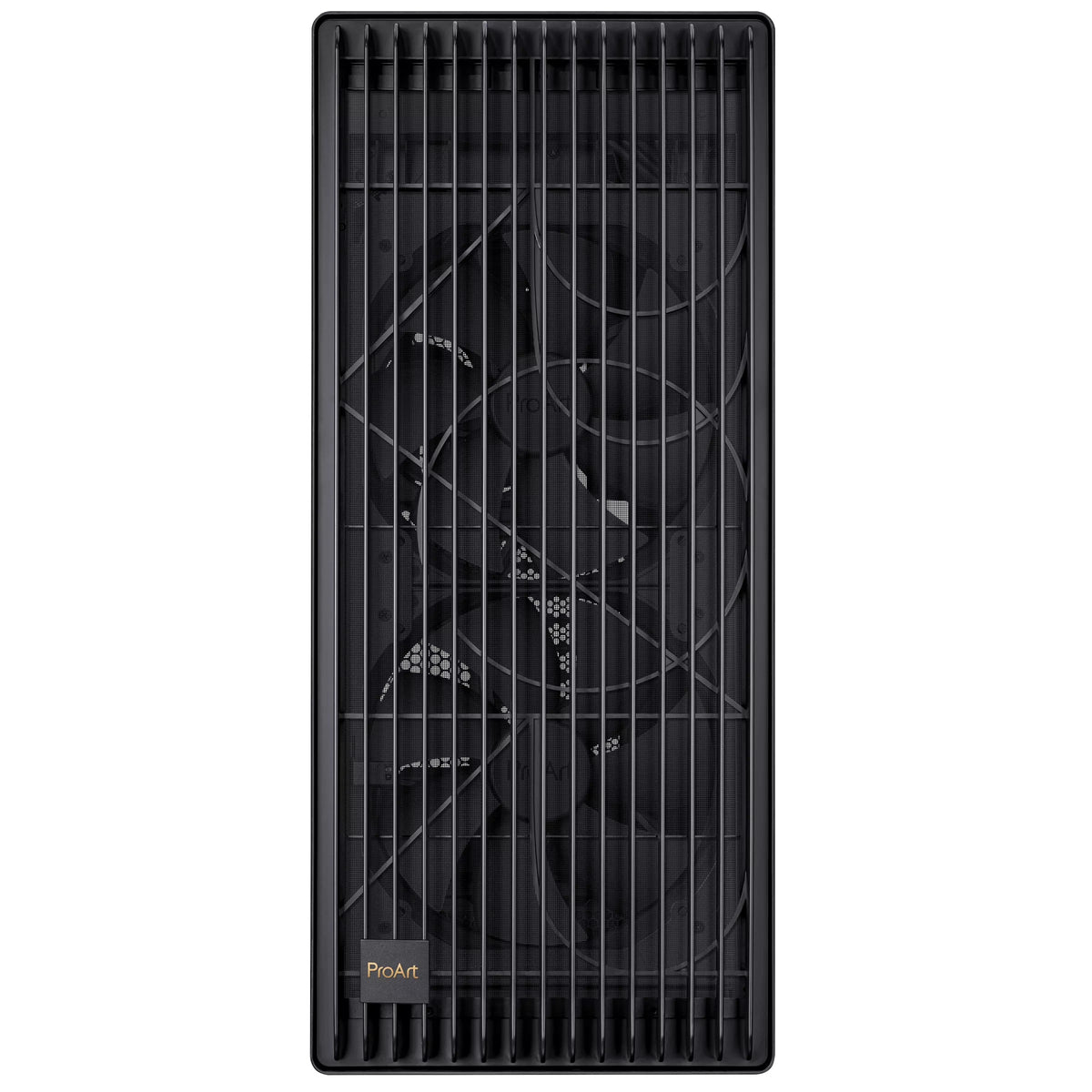

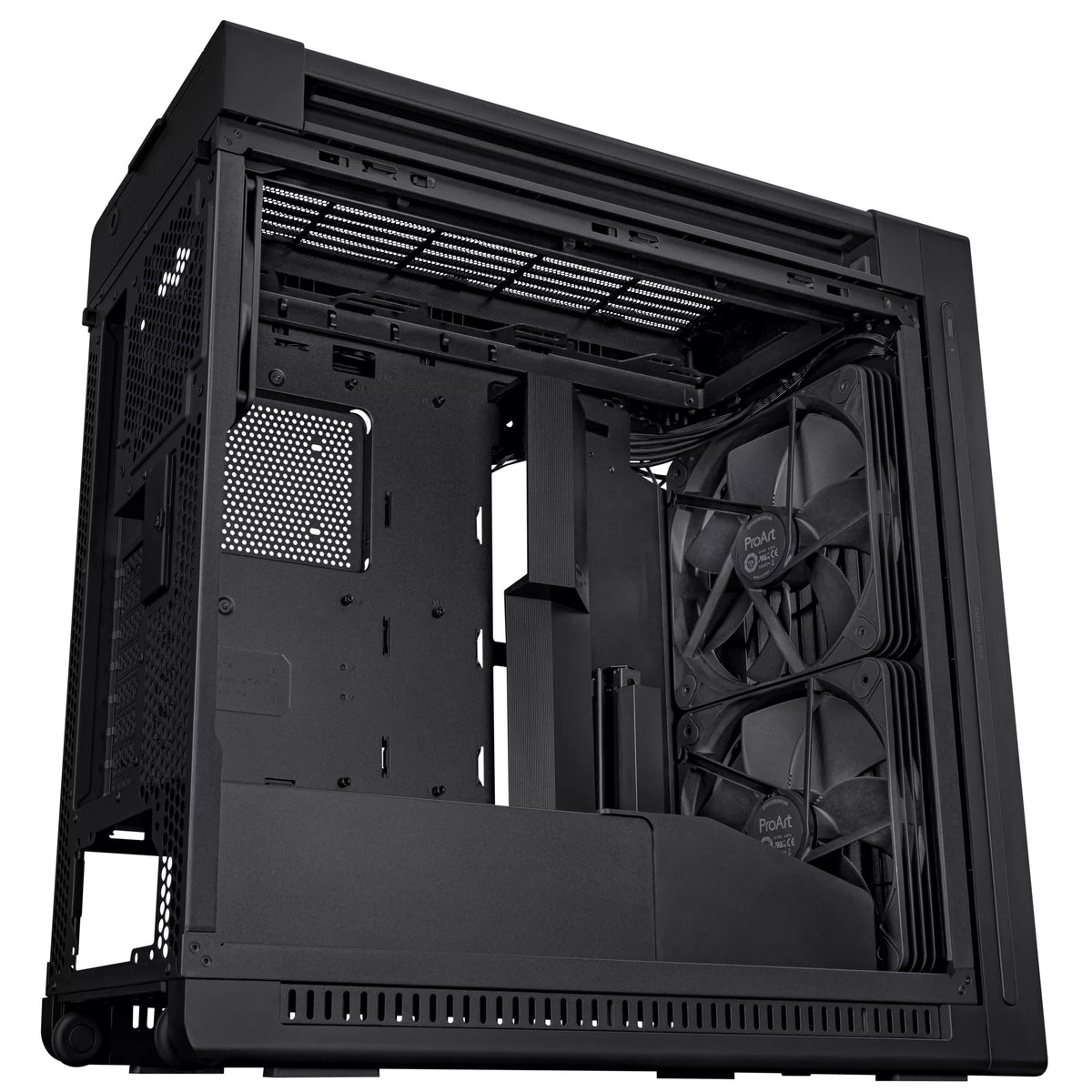

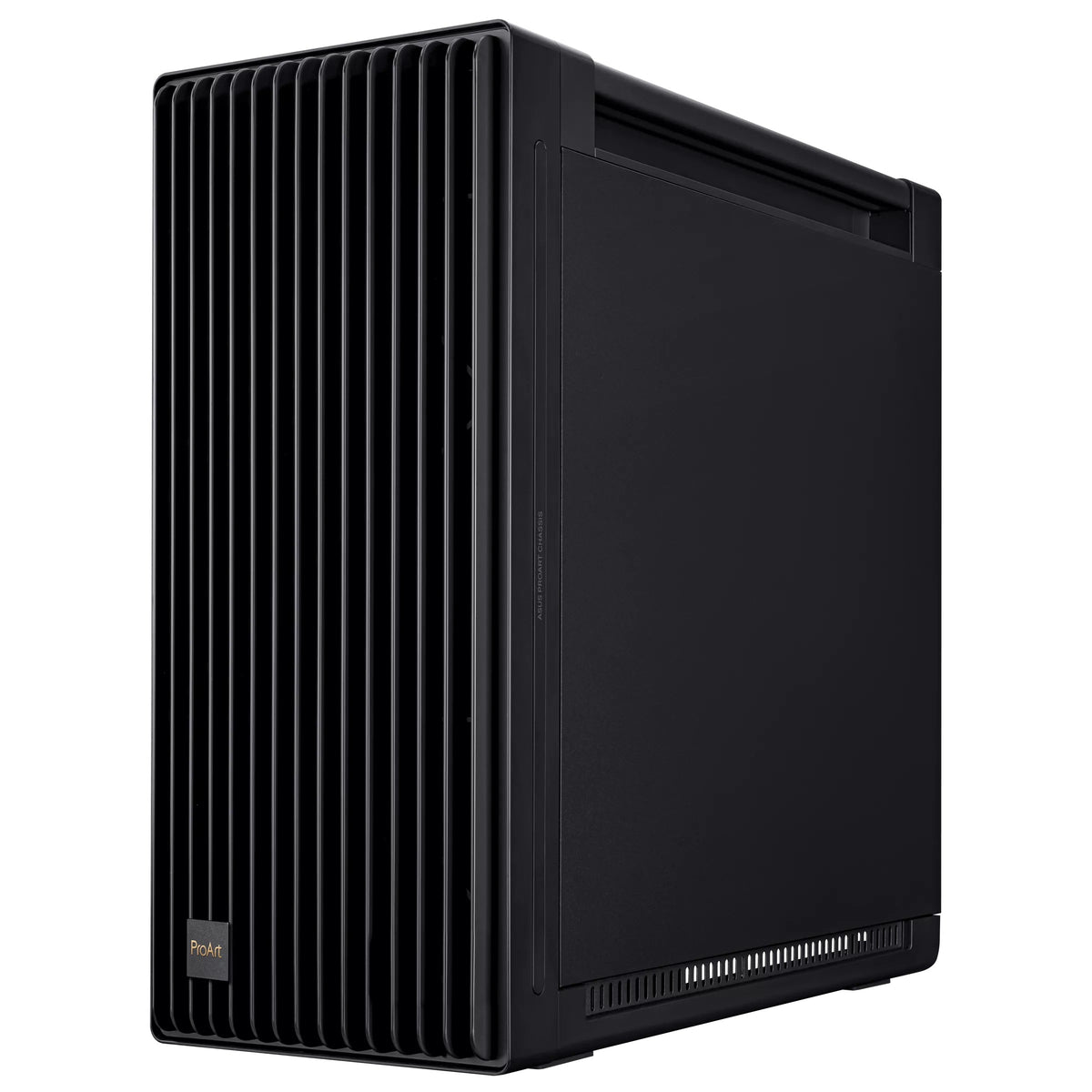

- Superior Airflow: 15.5 mm front panel grill with 45% porosity, two extra-thick 200 x 38 mm front fans for maximum air intake, and a 140 mm rear exhaust fan
- Superior Thermals: Two deflectors send incoming air towards the motherboard and other internal components to optimize temperatures
- Ample Space: Supports one 420 mm radiator for AIO cooling or custom liquid-cooling loops and the most robust graphics card get ample room for horizontal or vertical mounting

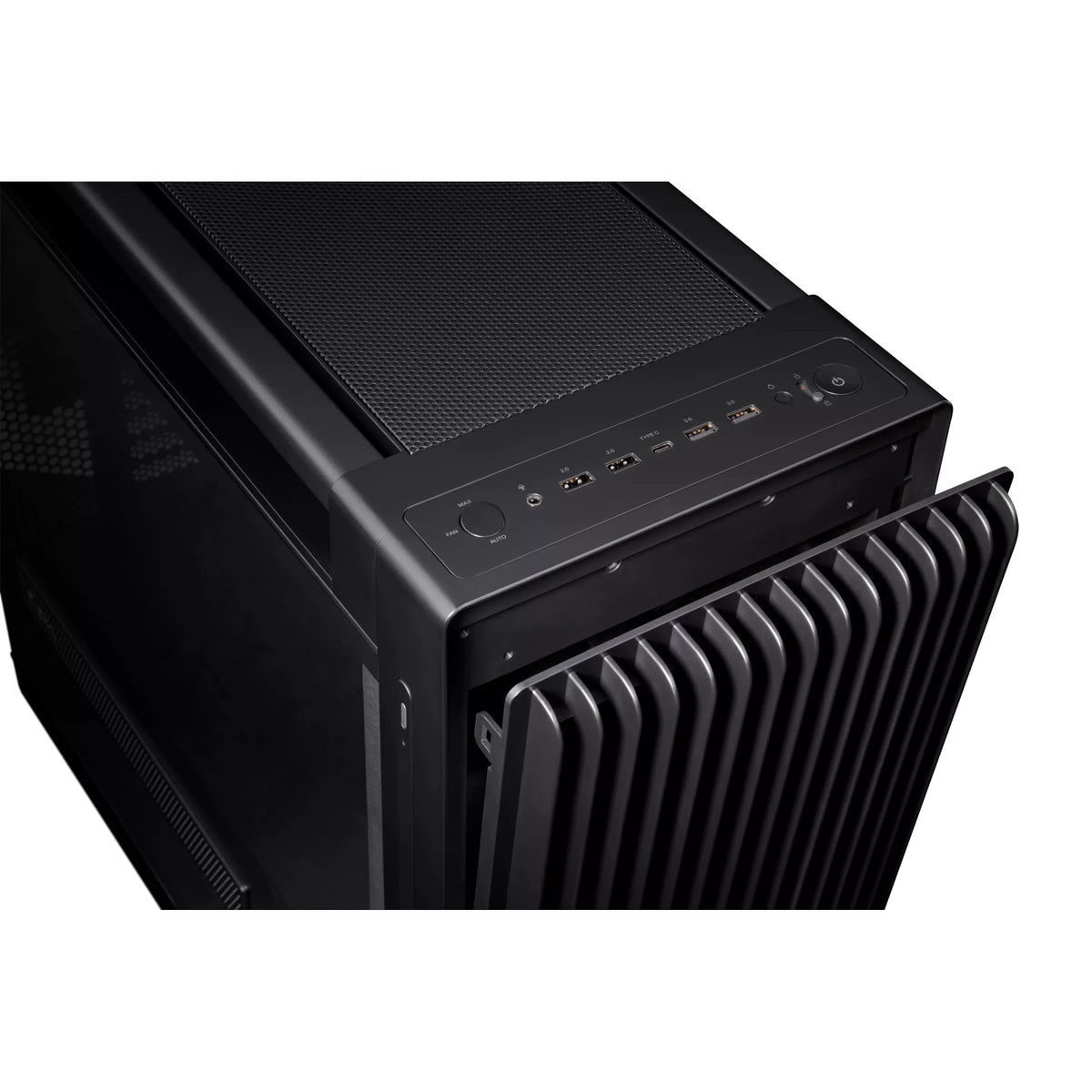

- Extensive I/O: Power Lock Latch and 2-section PWM control; USB Type-C 20Gbps port

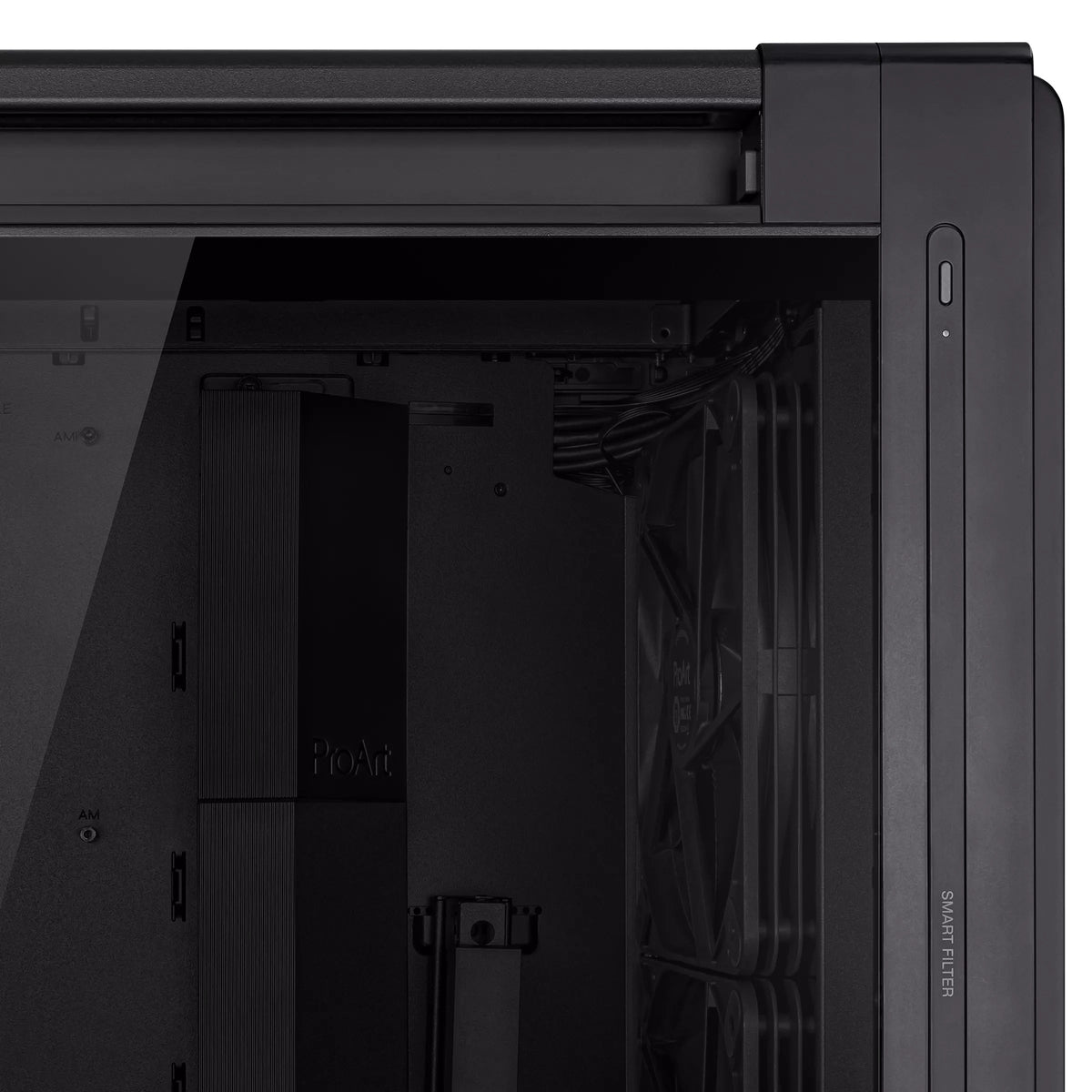

- Front Panel IR Dust Indicator: Timely reminders to clean the filter to maintain top-tier airflow

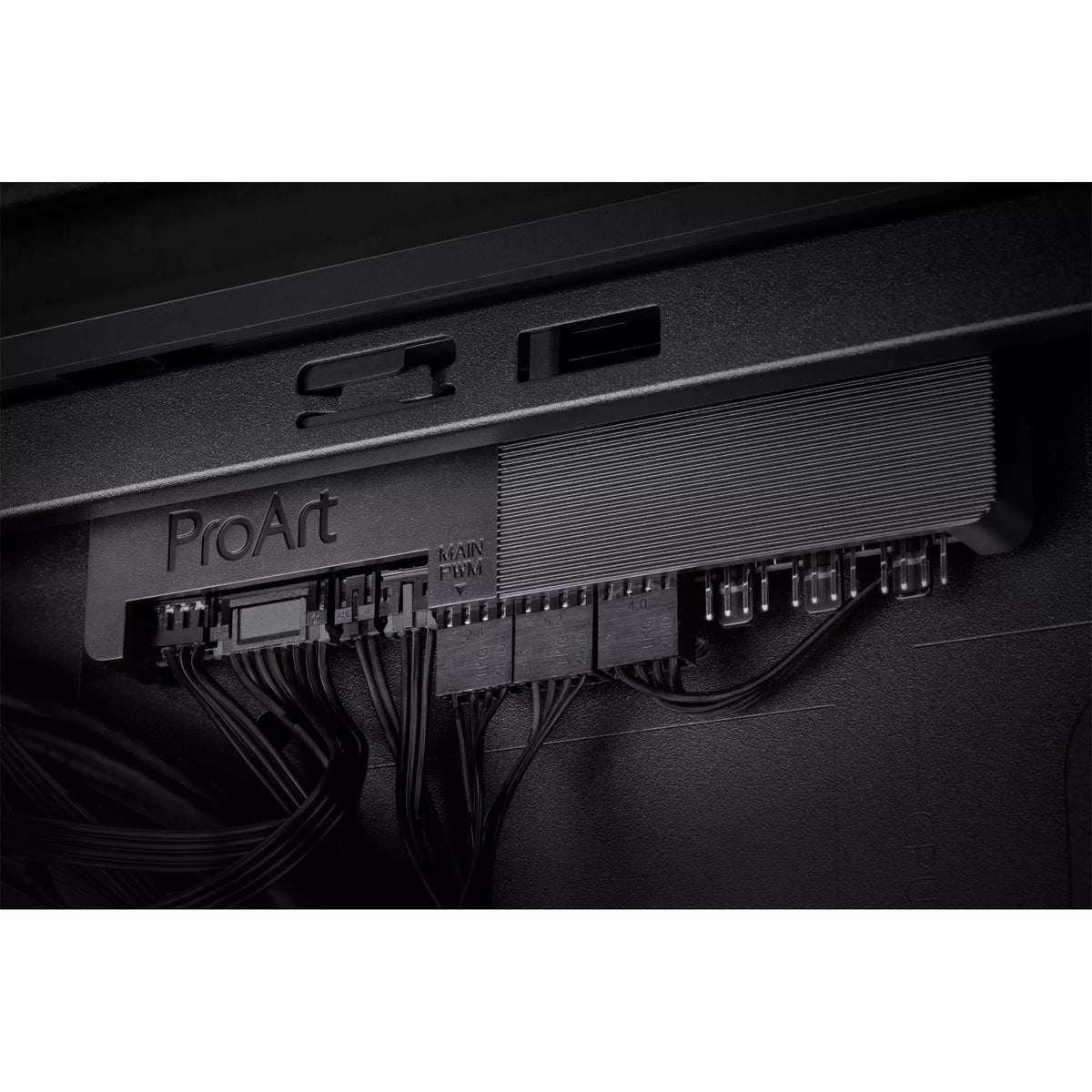

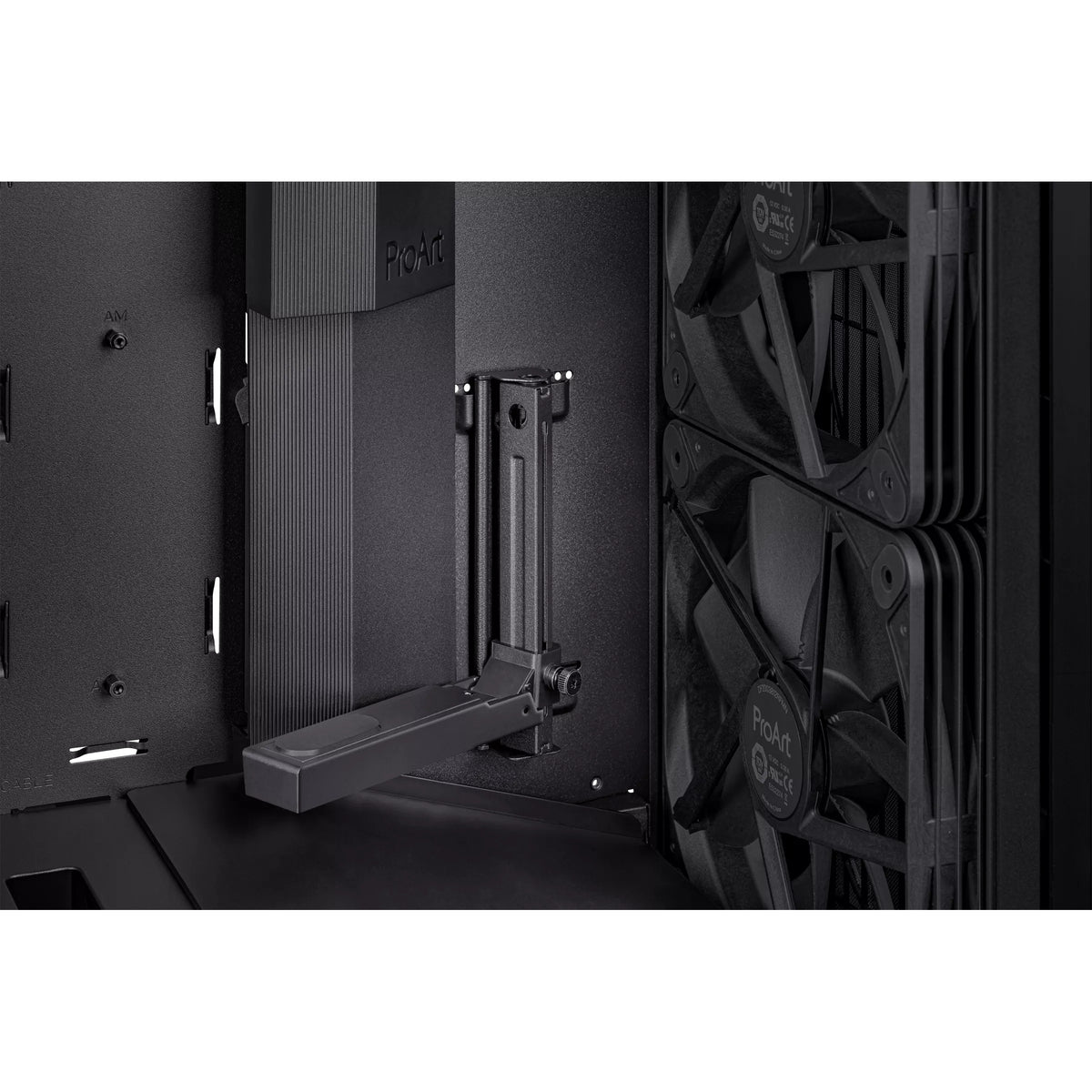

- Creator-Friendly Design: Tool-less graphics card mounting, integrated graphics card holder and built-in fan hub come together to amp up the building experience

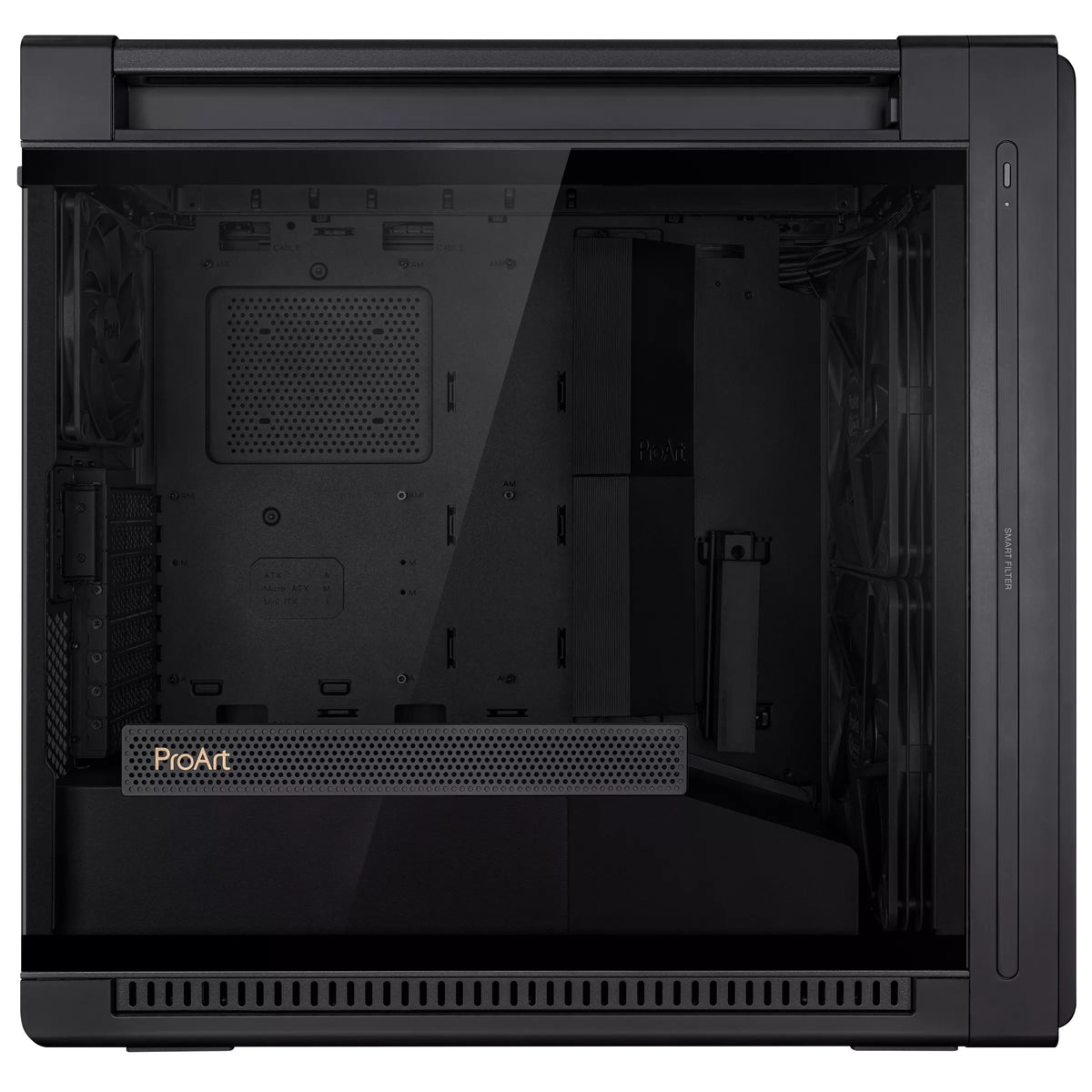

- Elegant aesthetics: Minimalist case adorned with ProArt themed design
SPECIFICATION
| Model | ProArt PA602 |
| Case Size | Mid Tower |
| Motherboard Support | EATX (12"x10.9") ATX Micro-ATX Mini-ITX DTX Mini-DTX |
| Drive Bays |
4 x 2.5" Bay 4 x 2.5"/3.5" Combo Bay |
| Expansion Slots | 8 2 (additional vertical) |

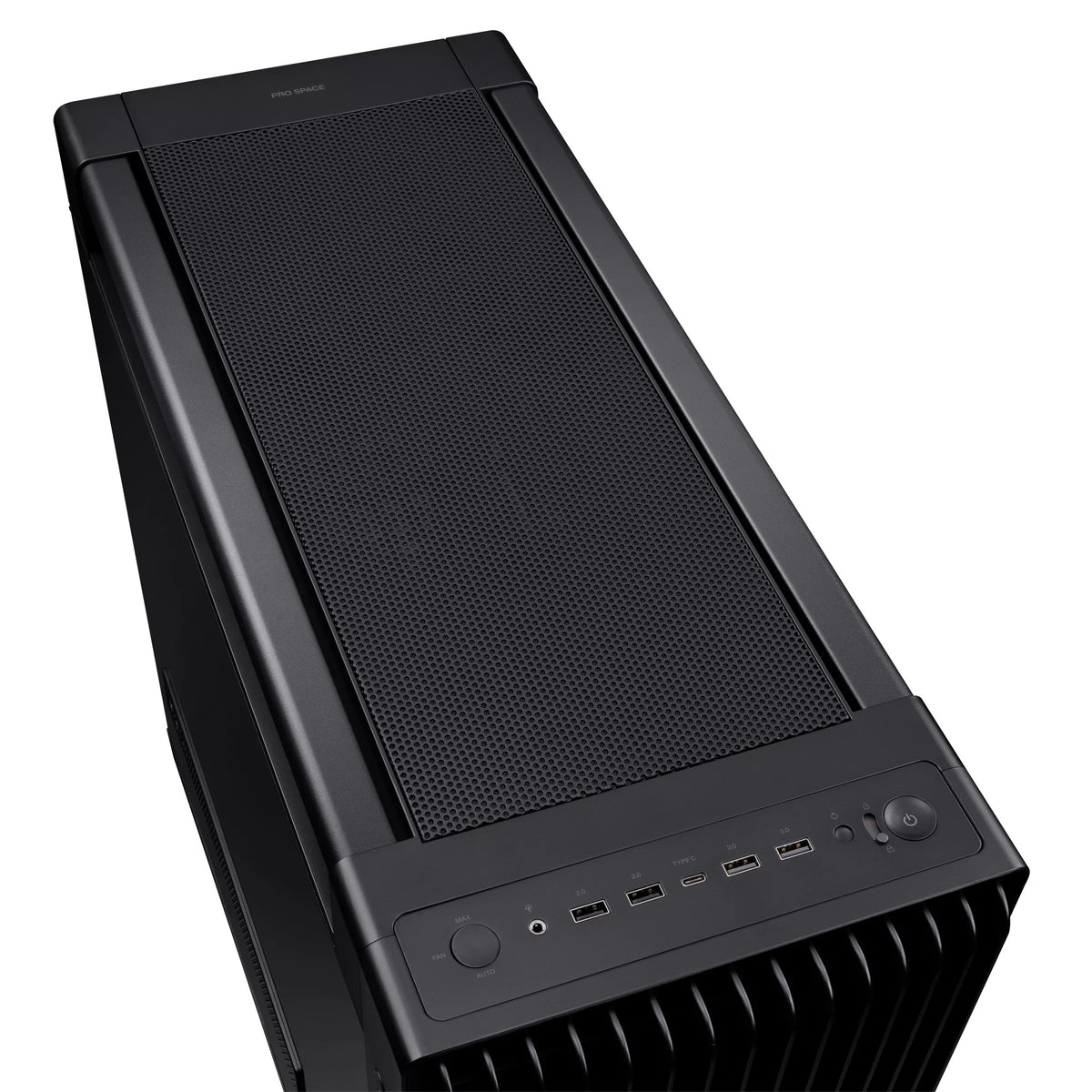

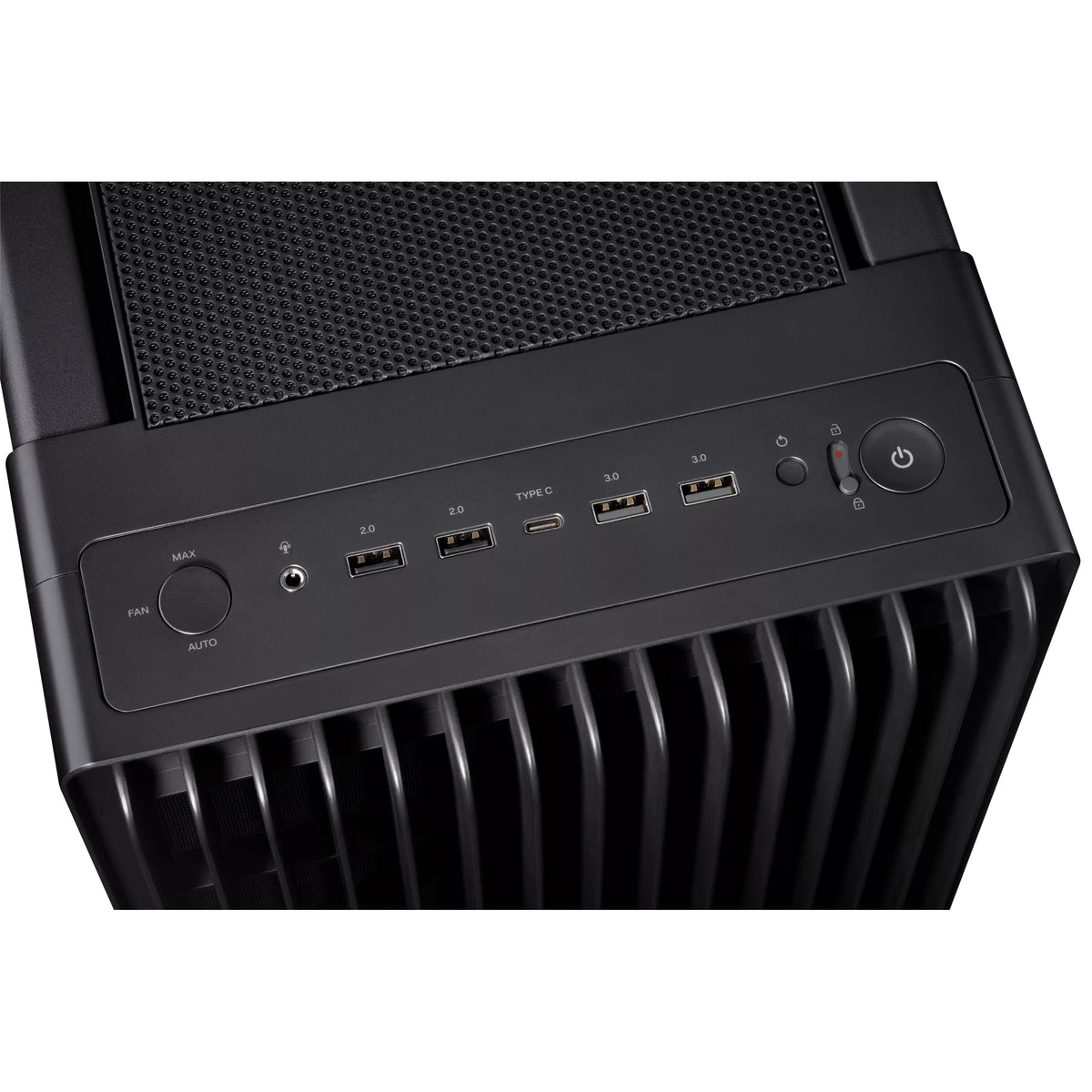

| Front I/O Port | 2 x USB 3.2 Gen1 1 x UBS 3.2 Gen 2x2 Type C 2 x USB 2.0 Fan Control Button Reset Button |
| Tempered Glass | Left Side |
| Radiator Support (Top) | 120 mm 140 mm 240 mm 280 mm 360 mm 420 mm |
| Cooling Support (Front) | 2 x 200 mm |
| Cooling Support (Top) | 3 x 120 mm 3 x 140 mm |
| Cooling Support (Rear) | 1 x 120 mm 1 x 140 mm |
| Pre-installed Fans (Front) | 2 x 200 mm |
| Pre-installed Fans (Rear) | 1 x 140 mm PWM |
| Maximum CPU Cooler Height | 190 mm |
| Maximum GPU Length | 450 mm |
| Maximum PSU Length | 190 mm |

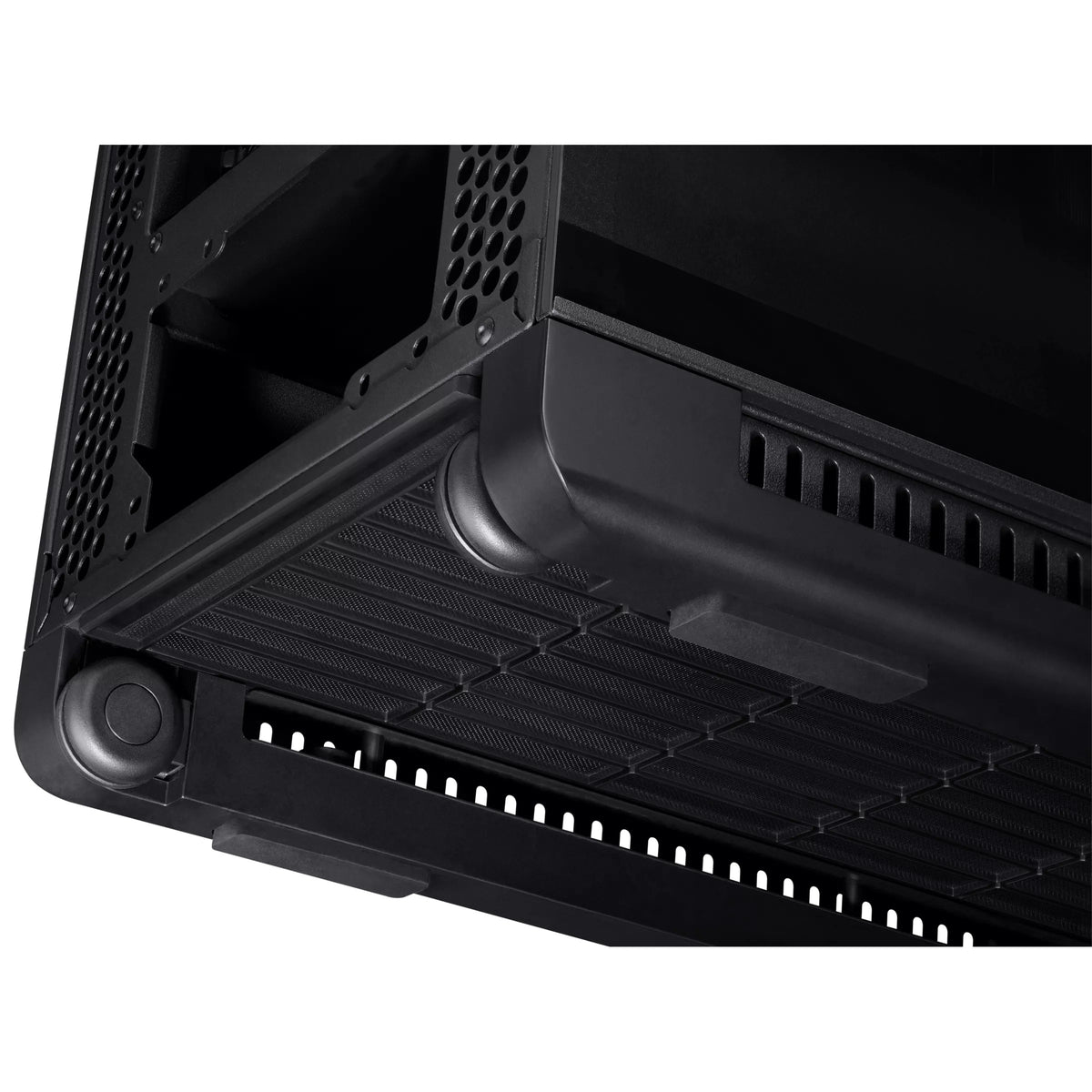

| Removable Dust Filters | Front Top Bottom |
| Maximum Cable Management Space | 30 mm |
| Dimensions | 593 x 560 x 245 mm |
| Weight | 15.8 kg |
Customer Reviews

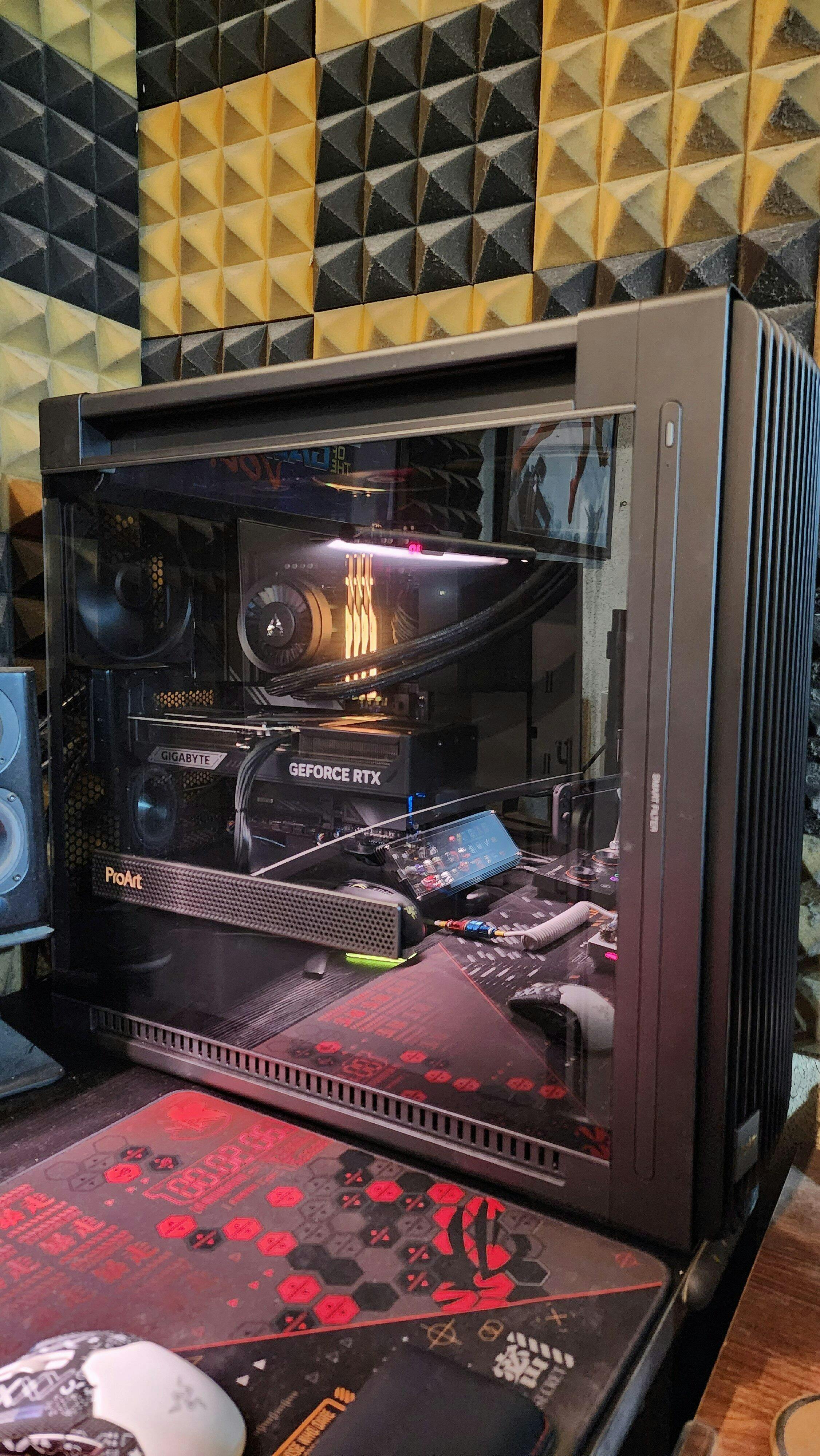

Perfect for my build, no RGB
First of all this is a pc case for those who doesn't like or are sick of RGB lights. If you like a stealth all black build this is the perfect case for you.

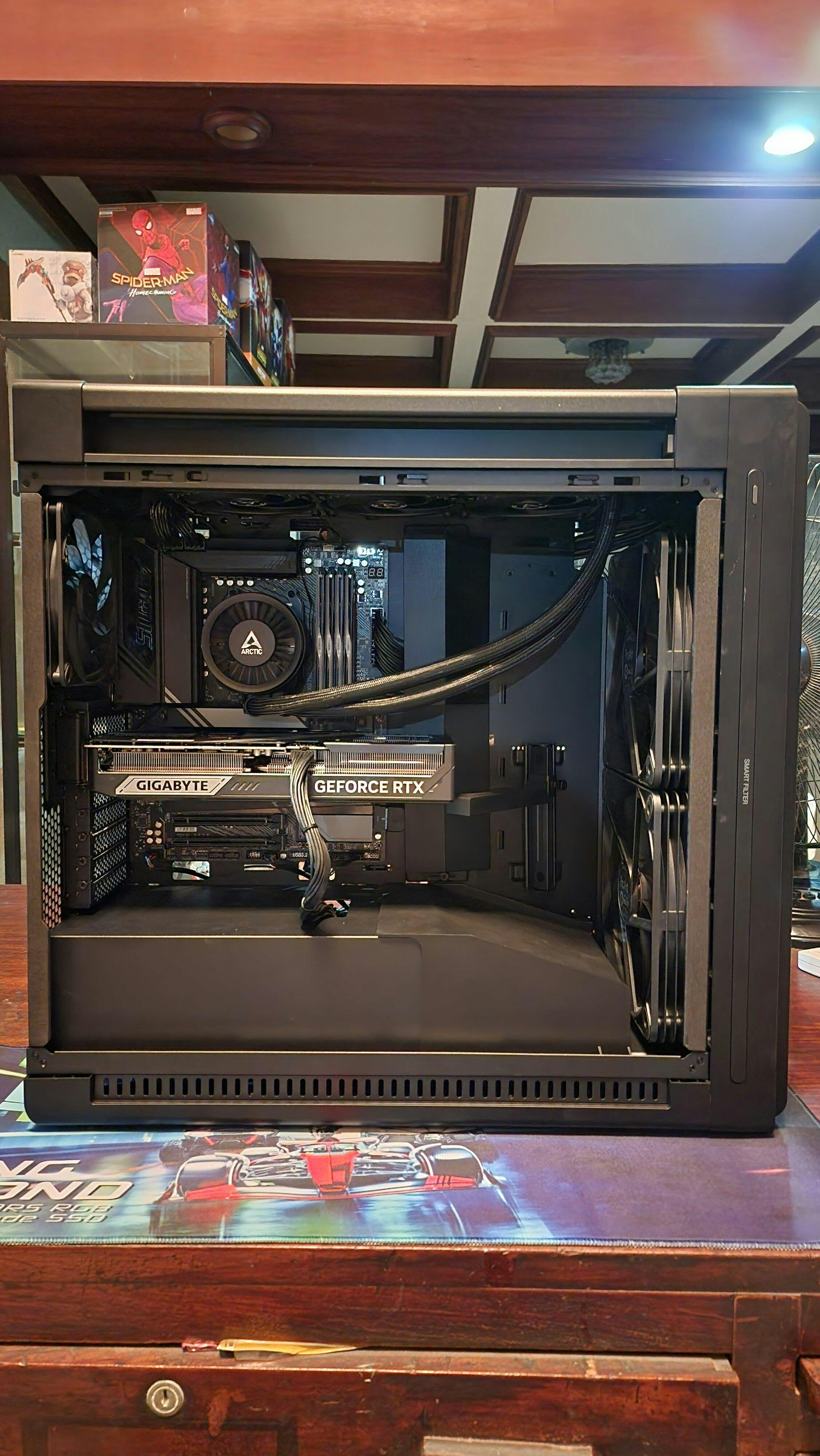

Internals are the same with the Asus Helios case with some overall improvements. Front intake has two 200mm fans which is the biggest difference. Real panel is made of metal instead of tempered glass. It has a IR detector for the front panel that detects if your front dust filter is too dirty. There's 2 dust filters. The front and the bottom. Both can be accessed by removing the front panel.
My only problem with this case is the top mounting bracket for AIO. It has a really low headroom. I used an artic liquid freezer iii and it wont fit on top unless you place the mounting bracket in between the fans and the radiator.

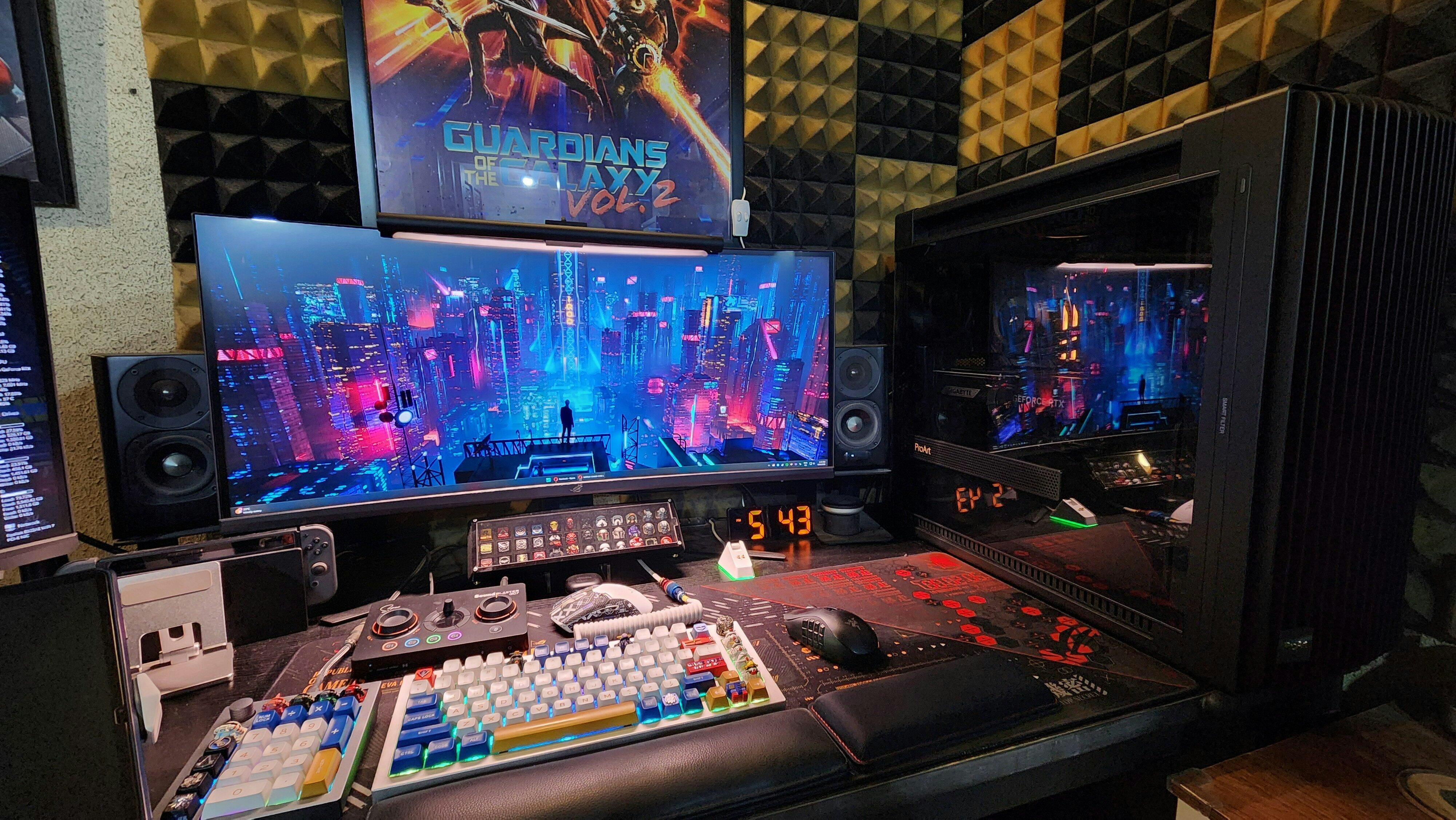

Overall its a pretty good design. Spacious and easy to build with. It looks simple and classy on top of my table and doesn't shout gamer when you first look at it.
