Description

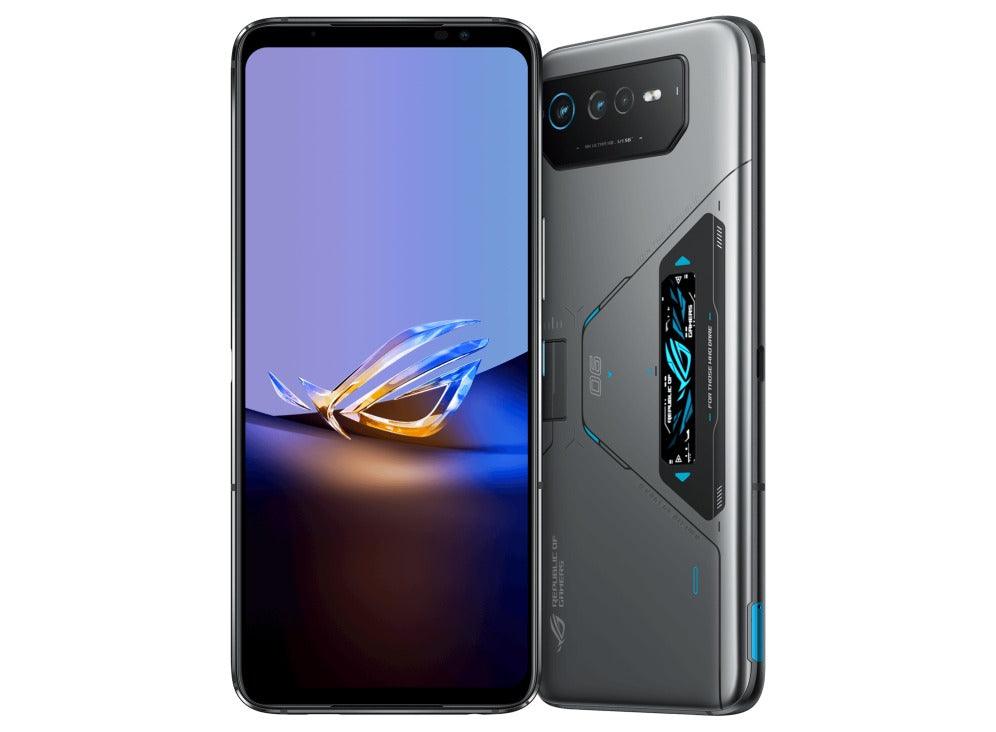

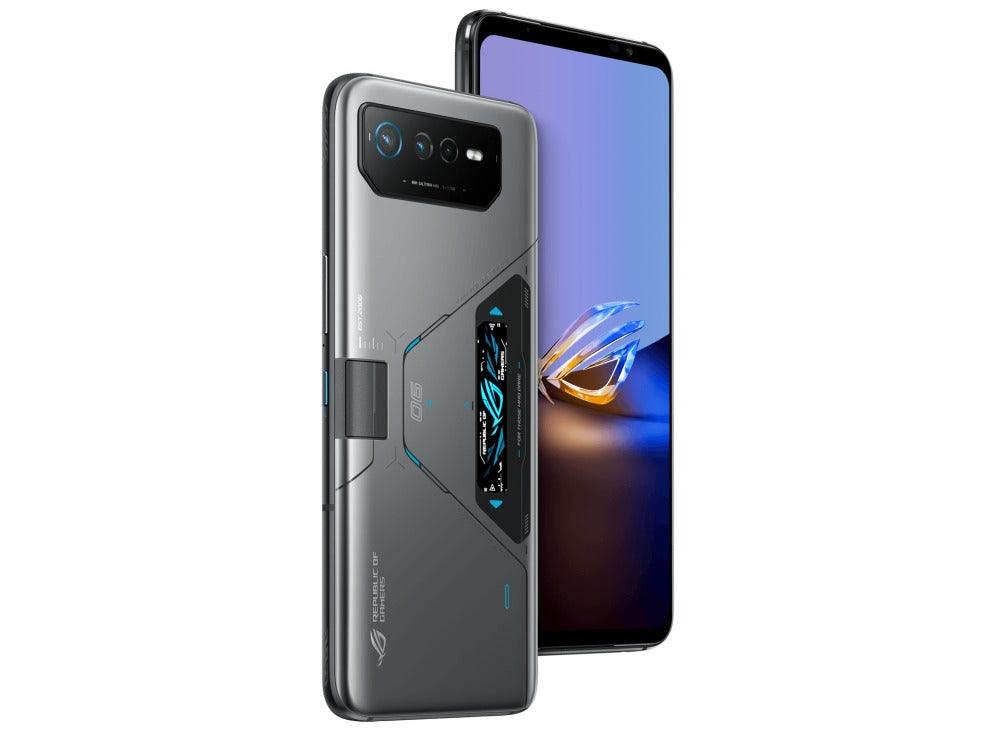

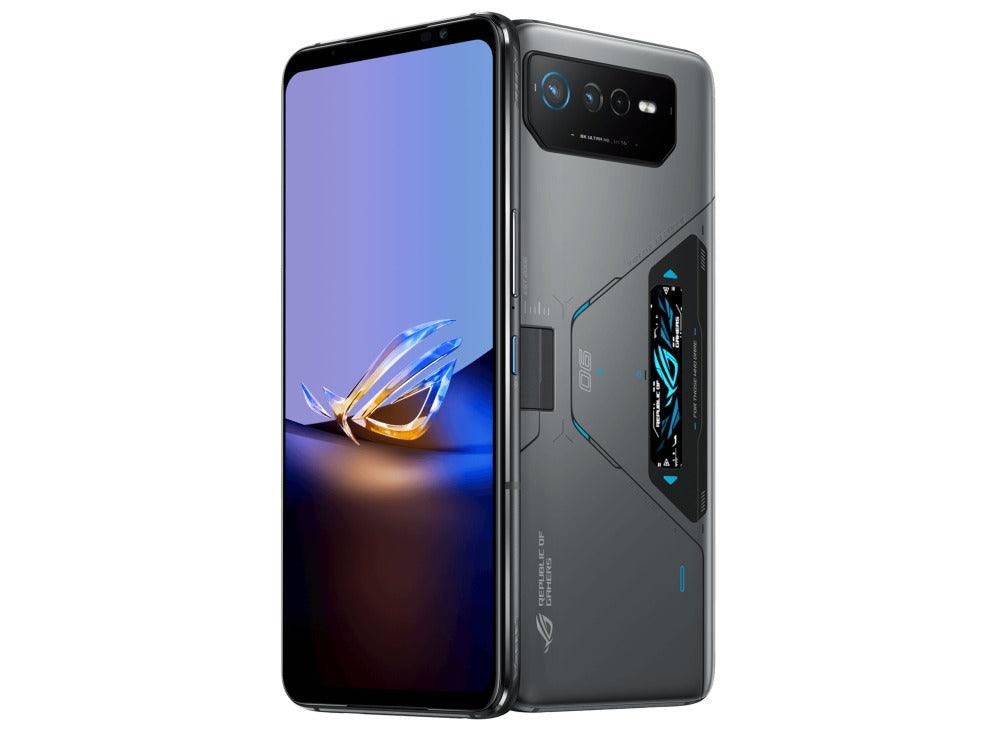

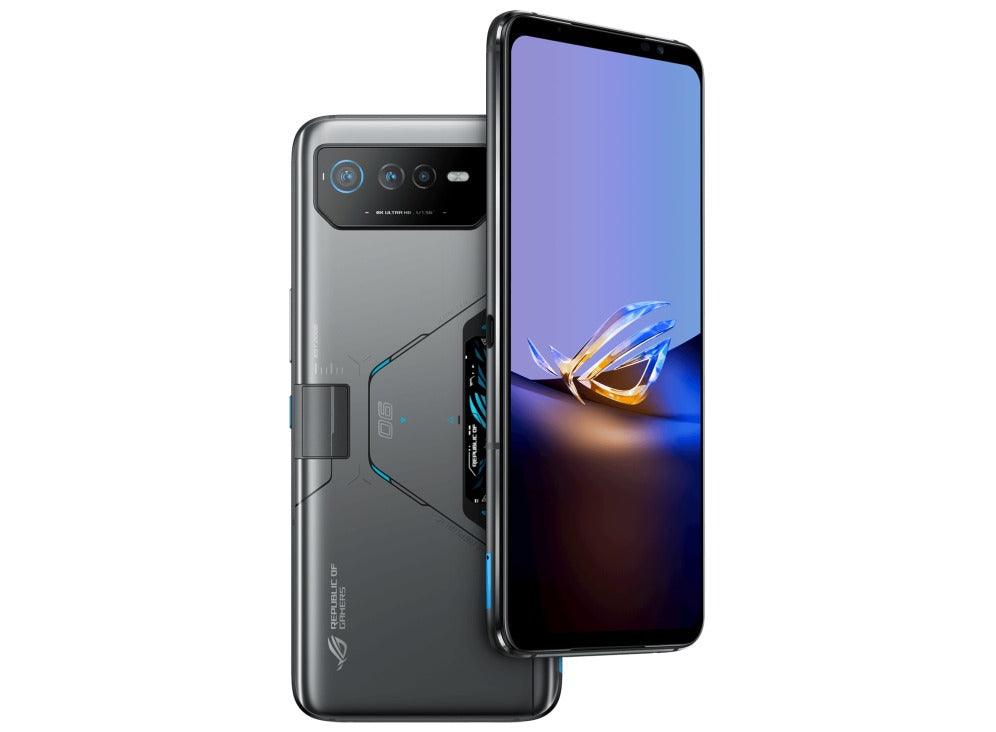

Say hello to the ROG Phone 6D Ultimate, which features the unparalleled performance of the latest MediaTek Dimensity 9000+ processor. Its super-efficient GameCool 6 thermal system and innovative AeroActive Portal raise your game into a different league, and the 165 Hz display will revolutionize your visual experience. The AirTrigger 6 system and the Armoury Crate app put you in total control, and the monster 6000 mAh1 battery lets you play for longer. Are you ready for awesome? Say yes to the ROG Phone 6D Ultimate, and prepare to change your gaming experience forever!
Specifications :
| Design |
Space Gray IPX4* * The device has been tested for water resistance using the IEC 60529 standard and has achieved an IPX4 rating. IPX4 resistance protects against splashing water. Water splashed against the enclosure from any direction will have no harmful effects. (https://www.iec.ch/ip-ratings) The water repellency may deteriorate over time under normal conditions of use, or if the unit is damaged, repaired or disassembled or not observe the correct precautions. The IPX4 water-repellent function of this device is only suitable for general tap water or freshwater, and not for contact with other types of water or liquids (e.g. seawater, salt water, chlorinated water and beverages). In addition, do not immerse the unit in any water or liquid, and please note that this device has a USB-C® charging port, and the USB-C® port must be thoroughly dried before charging. Note: The water repellency of this device is tested by using a flow rate of 0.1 l/min per hole (the number of holes depends on the size of the swing tube), a water spray angle of ±180° and a pressure of 80~100 kPa; the device is rotated 90° horizontally after 5 minutes, and the water flow continues for a total of 10 minutes. After the test, the device is removed, fully dried, and then checked for normal operation. |
| Weight and Dimension | 247g, 173 x 77x 10.4 mm |
| Operating System | Android 12 |
| Processor | MediaTek Dimensity 9000+ Mobile Platform Mali-G710 |
| Memory | LPDDR5X 16GB |
| Storage | UFS3.1 512GB |
| Display | 6.78" 20.4:9 (2448 x 1080) 165Hz / 1ms Samsung AMOLED. Corning® Gorilla® Glass Victus. Delta-E < 1 |
| Rear Camera | Main Rear Camera: Sony® flagship IMX766 50 MP image sensor - 1/1.56” large sensor size, 1 µm pixel size. F1.9 aperture, 23.8mm equivalent focal length in 35mm film camera Second Rear Camera: 13 MP, Ultrawide-angle camera, 12.5mm equivalent focal length in 35mm film camera Third Rear Camera: 5 MP, Macro |
| Front Camera | 12 MP, 27.5mm equivalent focal length in 35mm film camera |
| Audio | Speaker: Symmetrical dual front-facing speakers with Dirac HD Sound 5-magnet stereo speaker with Cirrus Logic amplifier for louder, deeper and less distorted sound effect Audio Output: Hi-Res Audio up to 192 kHz / 24-bit for 3.5mm output AudioWizard with multiple listening profiles Microphone: Tri-microphones with ASUS Noise Reduction Technology 3.5mm Headphone Jack |
| Video Recording | 8K UHD (7680 x 4320) video at 24 fps for main rear camera (Only support H.265) 4K UHD (3840 x 2160) video at 30 / 60 fps for main rear camera, at 30 fps for second rear camera 1080p FHD video recording at 30 / 60 fps 720p HD video recording at 30 / 60 fps 3-axis electronic image stabilization for rear cameras HDR10+ video recording (4K UHD video) for main 50MP and ultra-wide 13MP camera Time Lapse (4K UHD video) Slow Motion video (1080p at 240 / 120 fps; 720p at 480 fps) Take still photo while recording video |
| Wireless Technology | Integrated WiFi 6E* (802.11a/b/g/n/ac/ax, 2x2 MIMO) Supports 2.4GHz/ 5GHz/ 6GHz WiFi Bluetooth® 5.3 (HFP + A2DP + AVRCP + HID + PAN + OPP) Wi-Fi Direct NFC * WiFi 6E availability and features are dependent on regulatory limitations. |
| Navigation | GNSS support GPS (L1/L5), Glonass (L1), Galileo (E1/E5a), BeiDou(B1i/B1c/B2a), QZSS (L1) and NavIC |
| SIM Cards | Dual slots: 5G*+5G or 4G dual-SIM / dual-standby support Slot 1: 5G/4G/3G/2G Nano SIM card Slot 2: 5G/4G/3G/2G Nano SIM card * 5G services are only supported in 5G network-enabled locations in 5G-ready countries. |
| Network Standard |
* ASUS phone 5G/4G band compatibility varies by region, please check compatibility with local carriers. A version: GSM/GPRS/EDGE; WCDMA/HSPA+/DC-HSPA+; FDD-LTE; TD-LTE; 5G Sub 6 SA/NSA Supports EN-DC (5DL+FR1, 4DL+2FR1) FR1: DL 5.67 Gbps (3DL+2FR1), UL 836 Mbps LTE: DL 5CA Cat19 up to 1.6 Gbps / UL 2CA Cat18 up to 211 Mbps Gigabit LTE DC-HSPA+: DL 42 Mbps / UL 11.5 Mbps 4x4 MIMO 5G SA & NSA: N1,N2,N3,N5,N7,N8,N12,N18,N20,N26,N28,N38,N40,N41,N48,N77,N78,N79 FDD-LTE: band 1(2100), 2(1900), 3(1800), 4(1700/2100), 5(850), 7(2600), 8(900), 12(700), 17(700), 18(800), 19(800), 20(800), 26(850),28(700), 32(1500) TD-LTE: 34(2000), 38(2600), 39(1900), 40(2300), 41(2500),42(3500), 43(3700), 48(3600) WCDMA: 19(800), 5/6(850) , 8(900), 4(1700), 2(1900), 1(2100) EDGE/GPRS/GSM (850, 900, 1800, 1900 MHz) Supported 4×4 MIMO | HPUE B version: GSM/GPRS/EDGE; CDMA/WCDMA/HSPA+/DC-HSPA+; FDD-LTE; TD-LTE; 5G Sub 6 SA/NSA Supports EN-DC (5DL+FR1, 4DL+2FR1) FR1: DL 5.67 Gbps (3DL+2FR1), UL 836 Mbps LTE: DL 5CA Cat19 up to 1.6 Gbps / UL 2CA Cat18 up to 211 Mbps Gigabit LTE DC-HSPA+: DL 42 Mbps / UL 11.5 Mbps 4x4 MIMO 5G SA-only: N1/N3/N5/N8/N28 5G SA & NSA: N41/N77/N78/N79 FDD-LTE: band 1(2100), 2(1900), 3(1800), 4(1700/2100), 5(850), 7(2600), 8(900),18(800),19(800),26(850), 28(700) TD-LTE: 34(2000), 38(2600), 39(1900), 40(2300), 41(2500), 42(3500), 48(3600) WCDMA: 19(800), 5/6(850) , 8(900), 4(1700), 2(1900), 1(2100) EDGE/GPRS/GSM (850, 900, 1800, 1900 MHz) CDMA Bands: BC0 (800MHz) (No support CDMA2000 EVDO) Supported 4×4 MIMO | HPUE |
| Sensor | In-display fingerprint sensor, face recognition, accelerometer, e-compass, gyroscope, proximity sensor, ambient-light sensor, ultrasonic sensors for AirTrigger 6 and grip press |
| Battery | Equivalent 6000 mAh (typical) high-capacity battery, supports PD Charging |
| Power Adapter | USB power adapter (65-Watt) Output: 3.3-21V 3.25A, supports up to 65W PD 3.0 / Direct Charge adapter |
