Description

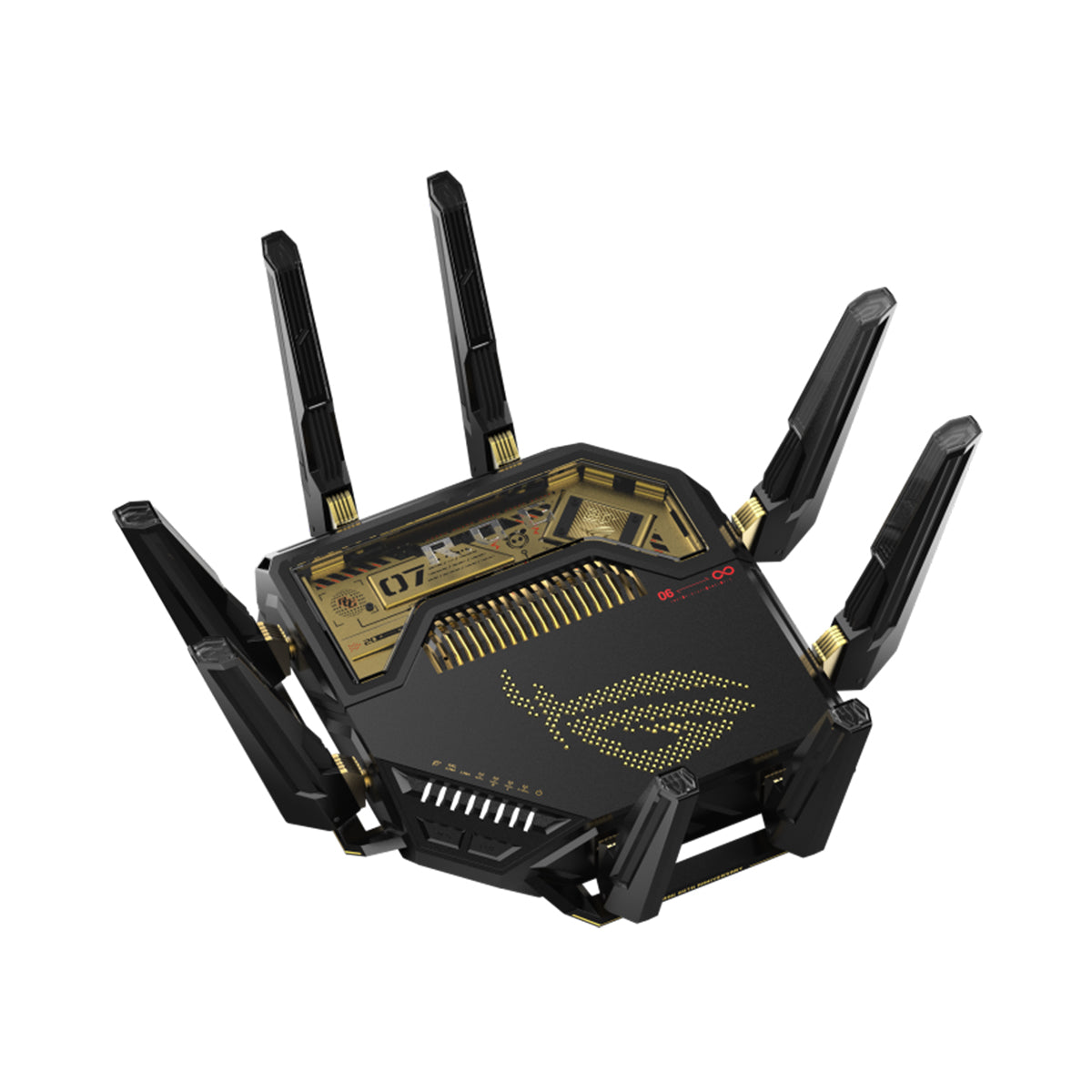

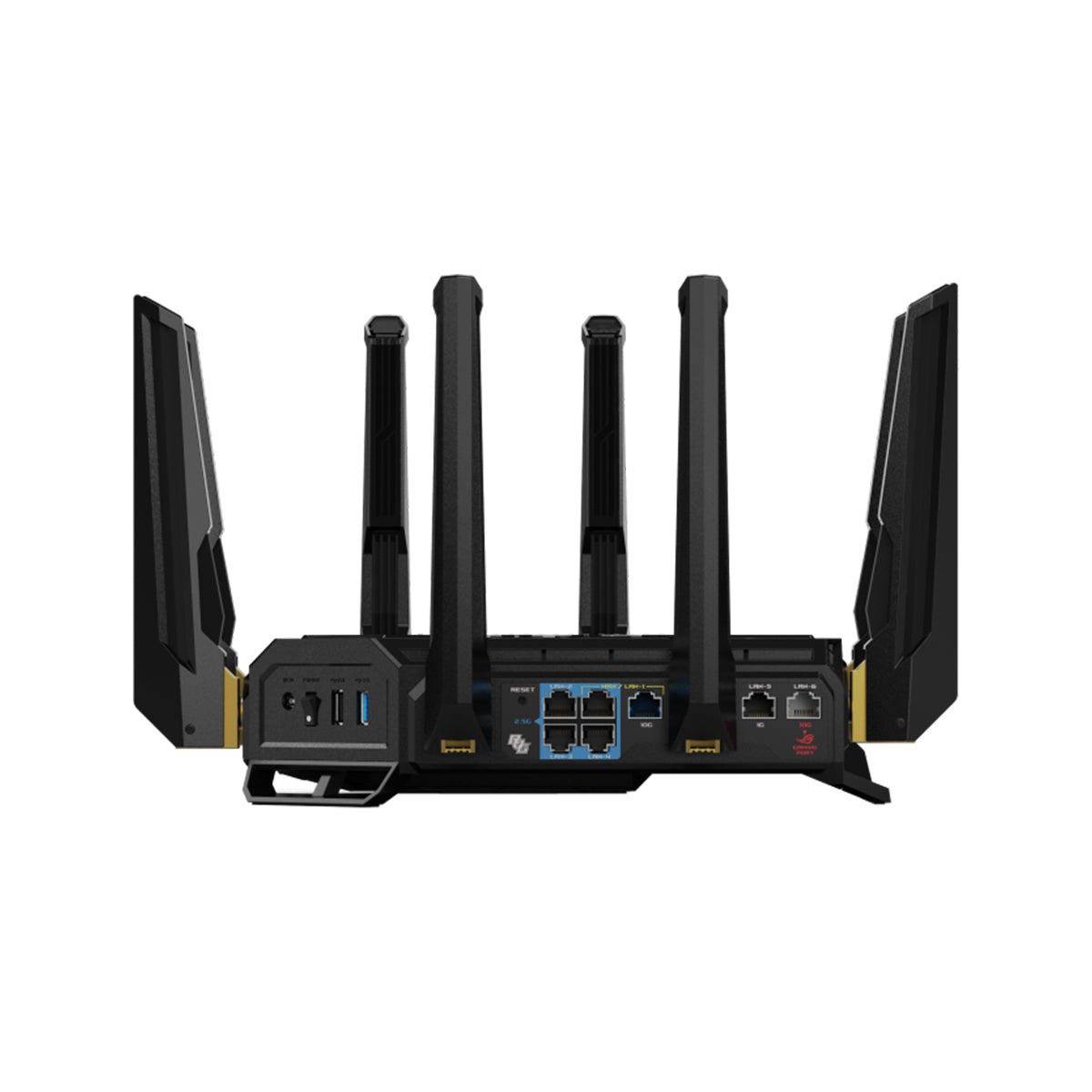

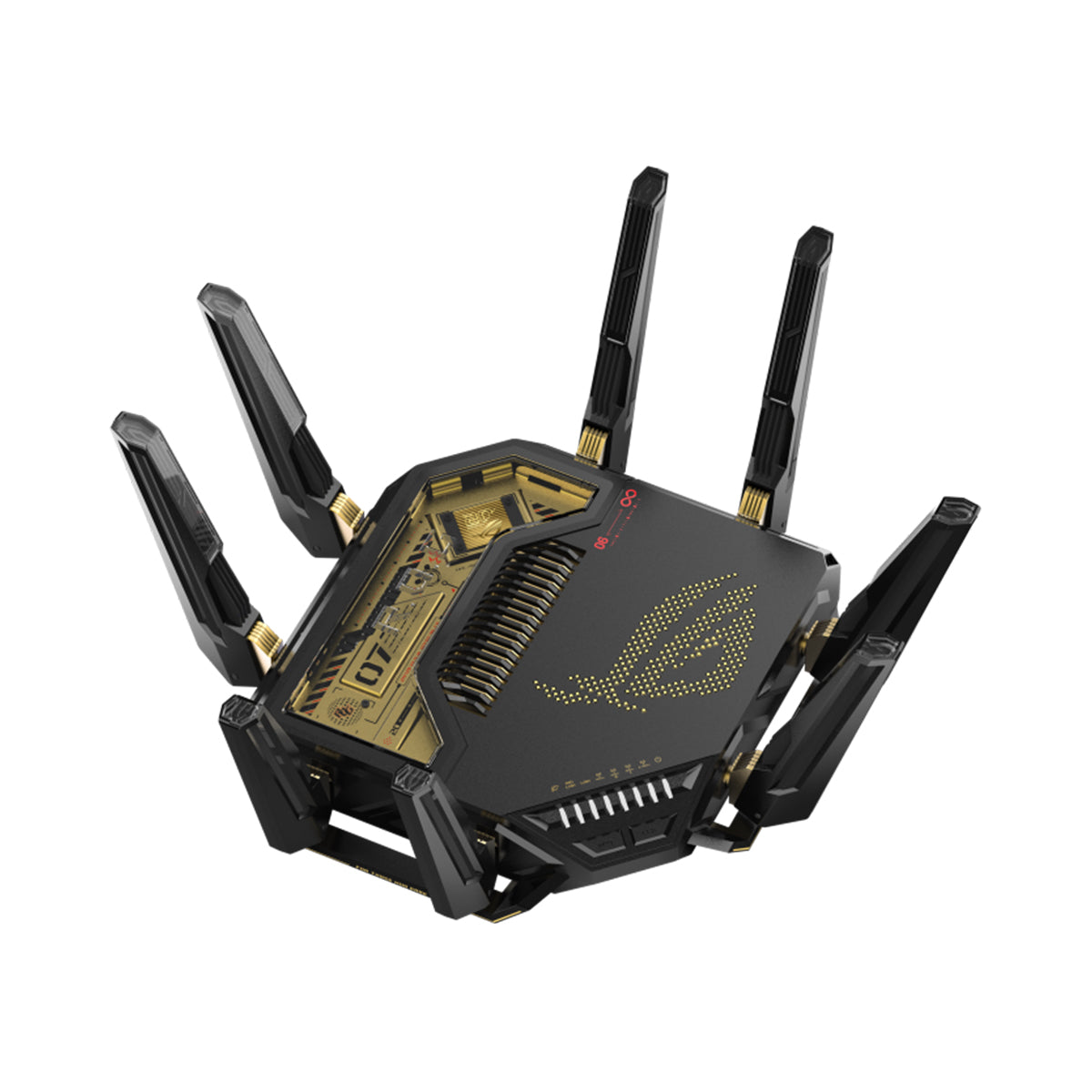

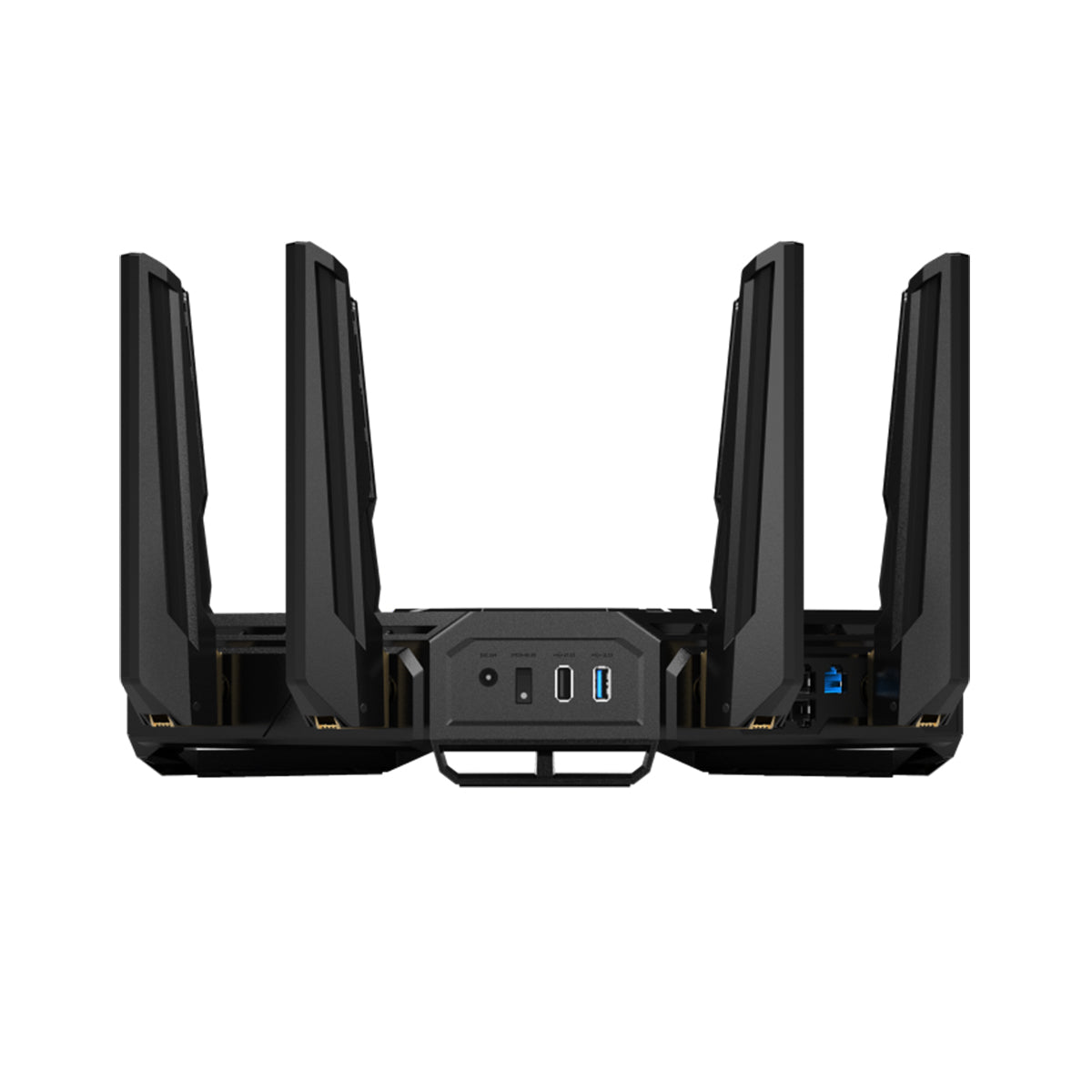

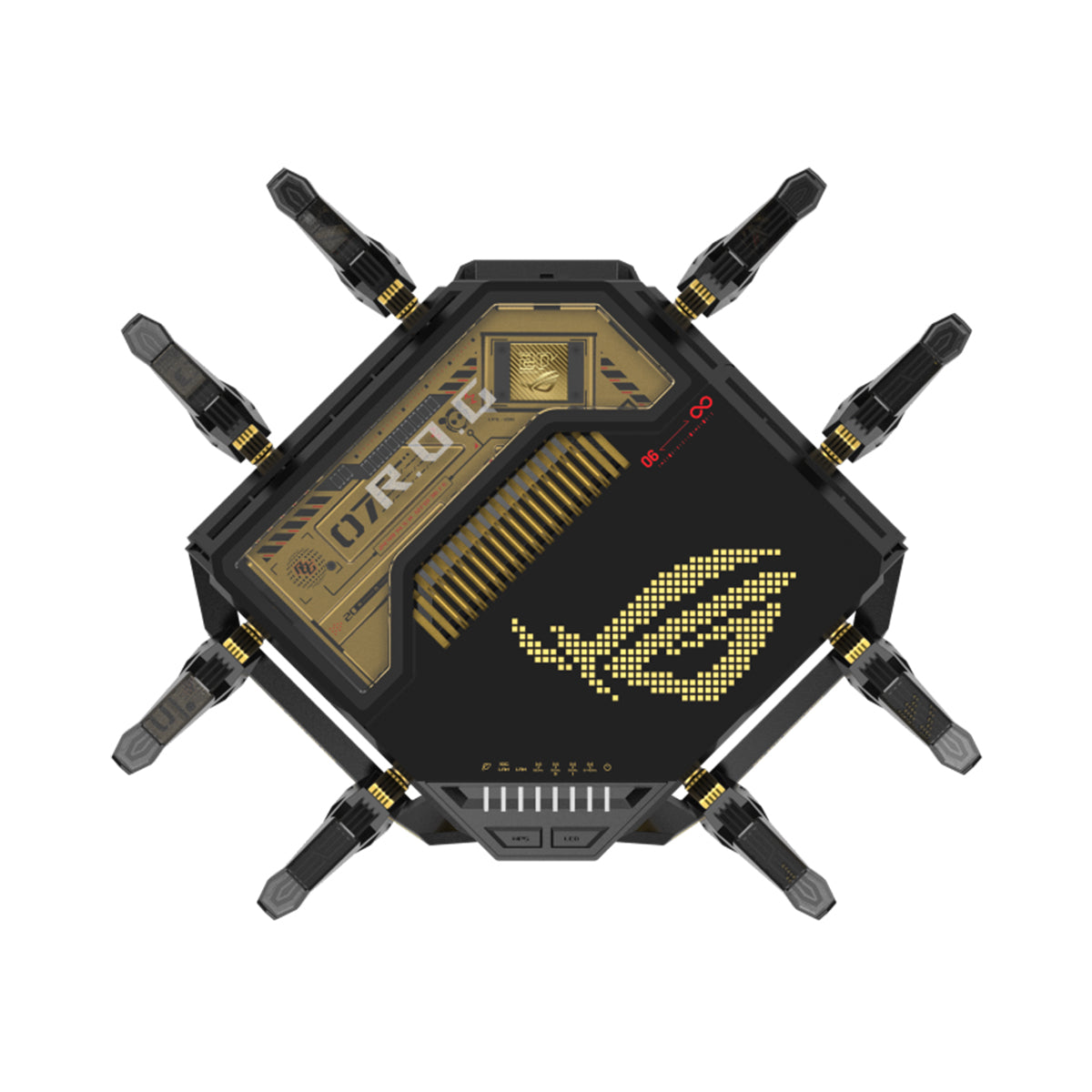

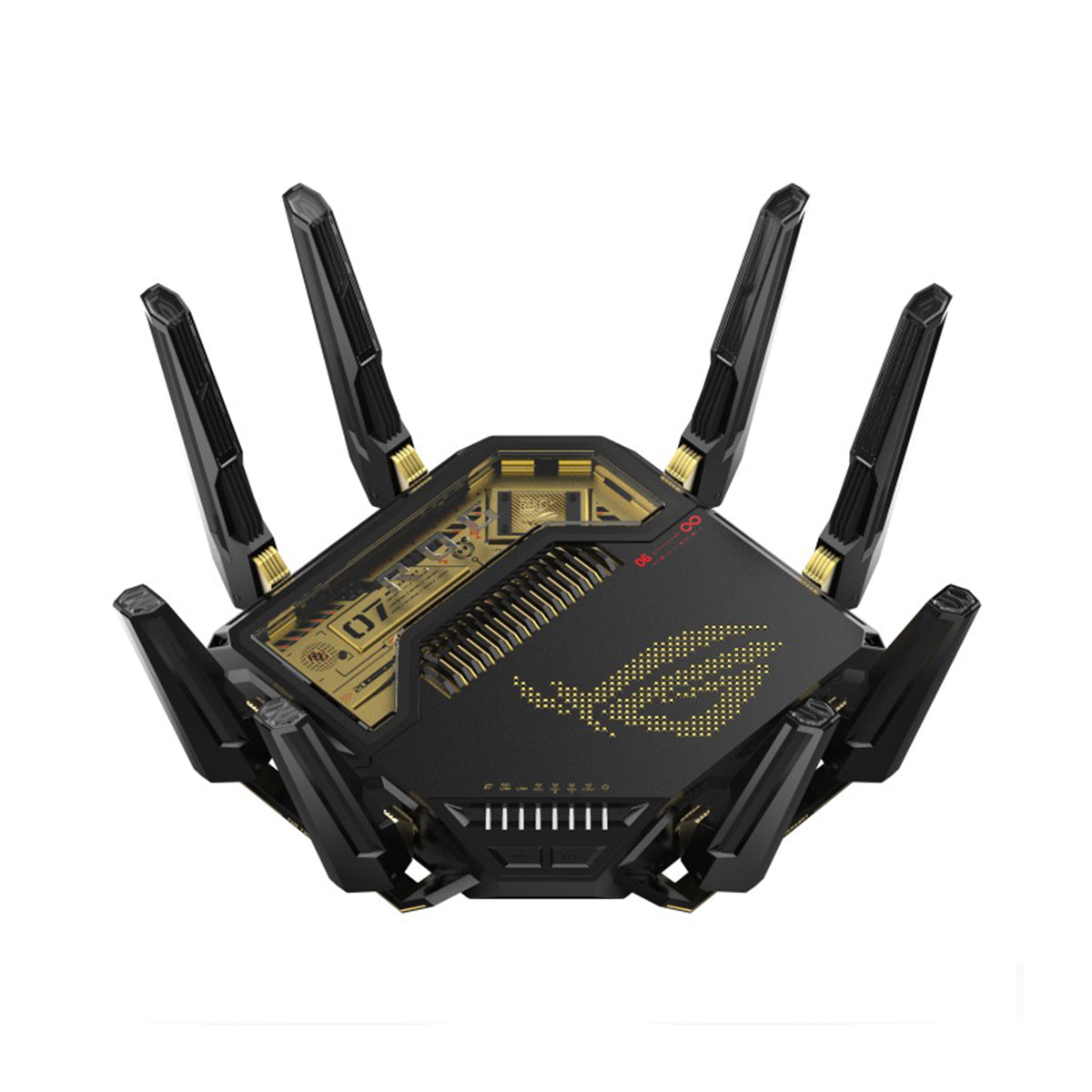

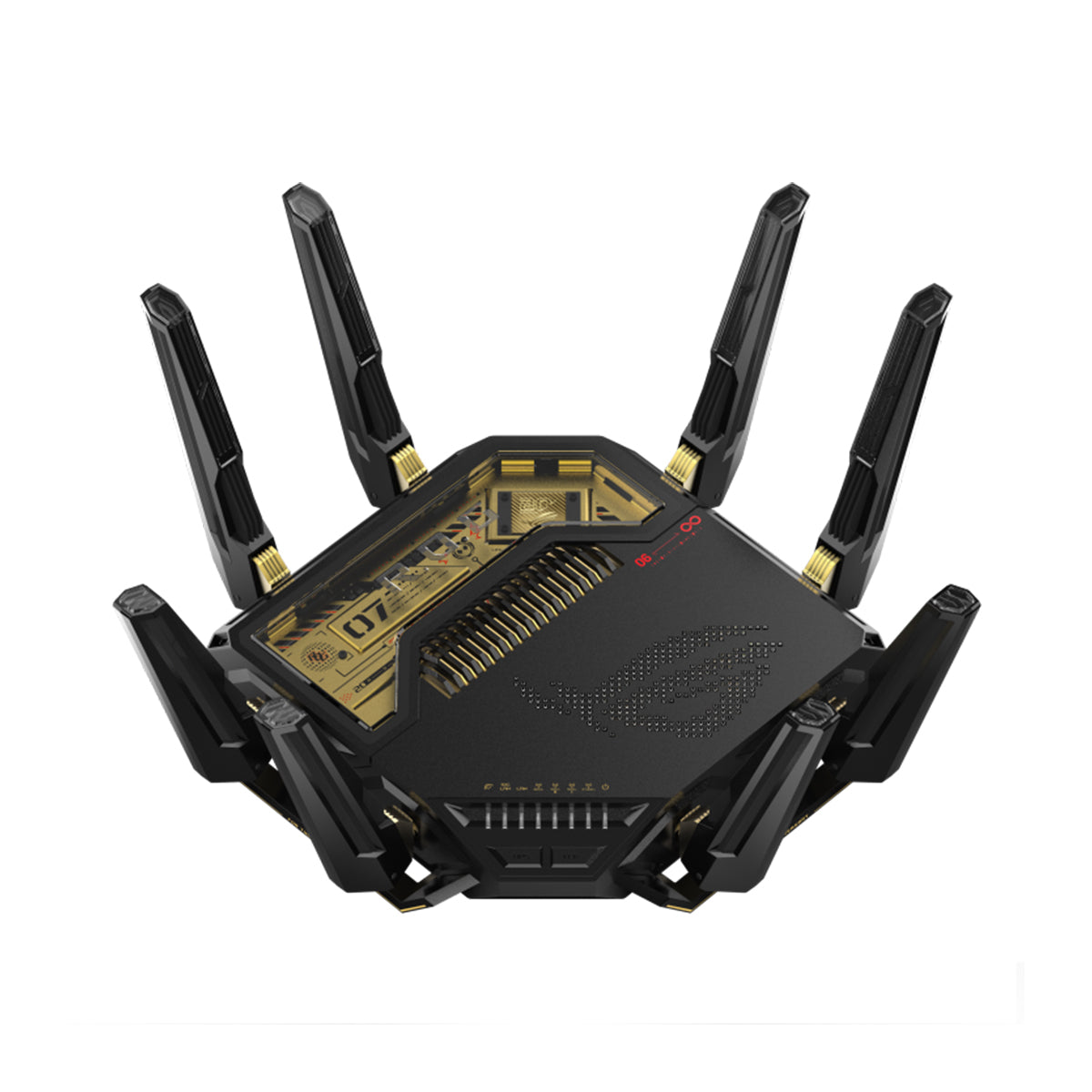

ROG GT-BE98 EDITION 20
Innovate. Perform. Dominate.
The limited-edition GT-BE98 Edition 20 inherits two decades of ROG innovation and pushes the boundaries of high-performance networking. This router features ultra-fast connectivity, advanced performance technologies, and a premium anniversary design that stands as a bold expression of the ROG tradition.
For two decades, ROG has stood at the forefront of gaming innovation, pushing boundaries and defining excellence. To commemorate this monumental 20th anniversary, ROG proudly unveils a special selection of limited-edition ROG components and gear featuring an alternative colorway and leading innovations. More than an aesthetic, this colorway reflects core values that are a testament to an enduring legacy.
Specifications:
| Model | ROG Rapture GT-BE98 Edition 20 |
| Model Name | GT-BE98 |
| Network Standard | WiFi 6 (802.11ax) WiFi 7 (802.11be) IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11n IEEE 802.11ac IPv4 IPv6 |
| Product Segment | BE25000 ultimate BE performance : 1376+5764+5764+11529 Mbps |
| WiFi Data Rate | 2.4GHz BE: 4x4 (Tx/Rx) 4096 QAM 20/40MHz, up to 1376Mbps 5G-1Hz BE: 4x4 (Tx/Rx) 4096 QAM 20/40/80/160MHz, up to 5764Mbps 5G-2Hz BE: 4x4 (Tx/Rx) 4096 QAM 20/40/80/160MHz, up to 5764Mbps 6GHz BE: 4x4 (Tx/Rx) 4096 QAM 20/40/80/160/320MHz, up to 11529Mbps |
| Antenna | External antenna x 8 |
| Transmit / Receive | 2.4GHz 4x4 5GHz-1 4x4 5GHz-2 4x4 6GHz 4x4 |
| Processor | 2.6GHz quad-core processor |
| Memory | 256 MB Flash and 2 GB RAM |
| Boosts Speed | OFDMA (Orthogonal Frequency Division Multiple Access) 4096-QAM high data rate 20/40/80/160/320 MHz bandwidth |
| Operating Frequency | 2.4 GHz / 5 GHz / 6 GHz |
| Operating Mode | Router(AiMesh router), AiMesh node, Access point, Repeater, Media bridge |
| I/O Ports | 1 x 10Gbps for WAN/LAN 1 x 2.5Gbps for WAN/LAN 1 x 10Gbps for LAN 3 x 2.5Gbps for LAN 1 x RJ45 10/100/1000Mbps for LAN 1 x USB 3.2 Gen1 1 x USB 2.0 |
| Buttons | WPS Button, Reset Button, Power Switch, LED control Button |
| LED Indicator | WAN(Internet) x1 10G LAN x1 1G/2.5G LAN x1 6GHz x1 5GHz-1 x 1 5GHz-2 x 1 2.4GHz x1 Power x1 |
| Power Supply | AC Input : 110V~240V(50~60Hz) DC Output : 19.5 V with max. 3.33 A current |
| Package Content | GT-BE98 quad-band gaming router RJ-45 cable Power adapter Quick Start Guide Warranty card |
| Product Weight (g) | 2000 g |
| Product Dimensions | 350.41 x 350.41 x 220.6 mm |
| AiMesh | AiMesh • Primary AiMesh Router • AiMesh Node |
| Game | Game Boost / Acceleration WTFast ROG_First OpenNAT (Game Profile) Gaming Port |
| Parental Control | Allow you to block access to unwanted websites and apps. Parental Control Customized Internet Schedule • Maximum Parental Control Profile : 64 • Maximum Parental Control Content Filter Rule : 64 |
| Guest Network | The Guest Network provides Internet connection for guests but restricts access to your local network. • Maximum Guest Network Rule : 2.4 GHz + 5 GHz : 5 Guest Network Connection time limit Guest Network Encryption : Open system, WPA/WPA2/WPA3 Personal |
| Security | WiFi Encryption : WPA/WPA2/WPA3 Personal WPA/WPA2/WPA3 Enterprise Open System & OWE WPS Let's Encrypt DNS-over-TLS SSH Security Scan Firewall • Maximum Firewall Keyword Filter : 64 • Maximum Firewall Network Service Filter : 32 • Maximum Firewall URL Filter : 64 |
| AiProtection | AiProtection Pro • Router Security Assessment • Malicious Site Blocking • Two-Way IPS • Infected Device Prevention and Blocking |
| VPN | Instant Guard VPN Client L2TP VPN Client Open VPN VPN Client PPTP VPN Client WireGuard VPN Server IPSec VPN Server Open VPN VPN Server PPTP VPN Server WireGuard VPN Fusion |
| Traffic Control | Adaptive QoS • Bandwidth Monitor • Bandwidth Limiter -- Maximum Bandwidth Limiter Rule : 32 Traditional QoS Traffic Monitor • Real-time Traffic Monitor • Wired Traffic Monitor • Wireless Traffic Monitor Traffic Analyzer • Traffic Analysis Period : Daily, Weekly, Monthly • Website History |
| WAN | Internet Connection Type : Automatic IP, Static IP, PPPoE, PPTP, L2TP Dual WAN 3G / 4G LTE Dongle 4G / 5G Auto Mobile Tethering Port Forwarding • Maximum Port Forwarding Rule : 64 Port Triggering • Maximum Port Triggering Rule : 32 DMZ DDNS NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay |
| LAN | DHCP Server IPTV LAN Link Aggregation Manually Assign IP Address • Maximum Manually Assign IP Address Rule : 128 Wake on LAN (WOL) |
| Wireless | MU-MIMO UTF-8 SSID WiFi MAC Address Filter • Maximum MAC Filters : 64 Wireless Scheduler Airtime Fairness RADIUS Client |
| USB application | 4G / 5G Auto Mobile Tethering File System : HFS+, NTFS, vFAT, ext2, ext3, ext4 Safely Remove Disk Download Master Media Server Time Machine Samba Server FTP Server Shared Folder Privileges |
| User Interface | Operating system : ASUSWRT |
| Administration | Configuration Backup and Restore Diagnosis Tools Feedback System System Log New Device Connect Notification Login Captcha Connection Diagnosis Auto Firmware Update |
