Asus ROG Rapture GT6
Choose Your Style

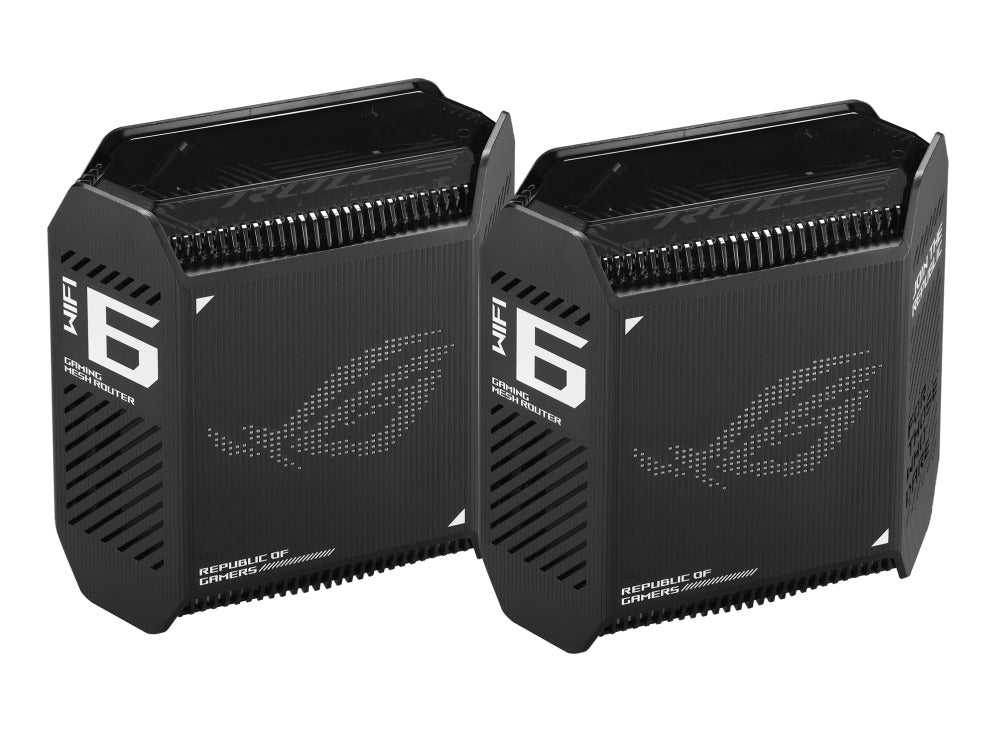

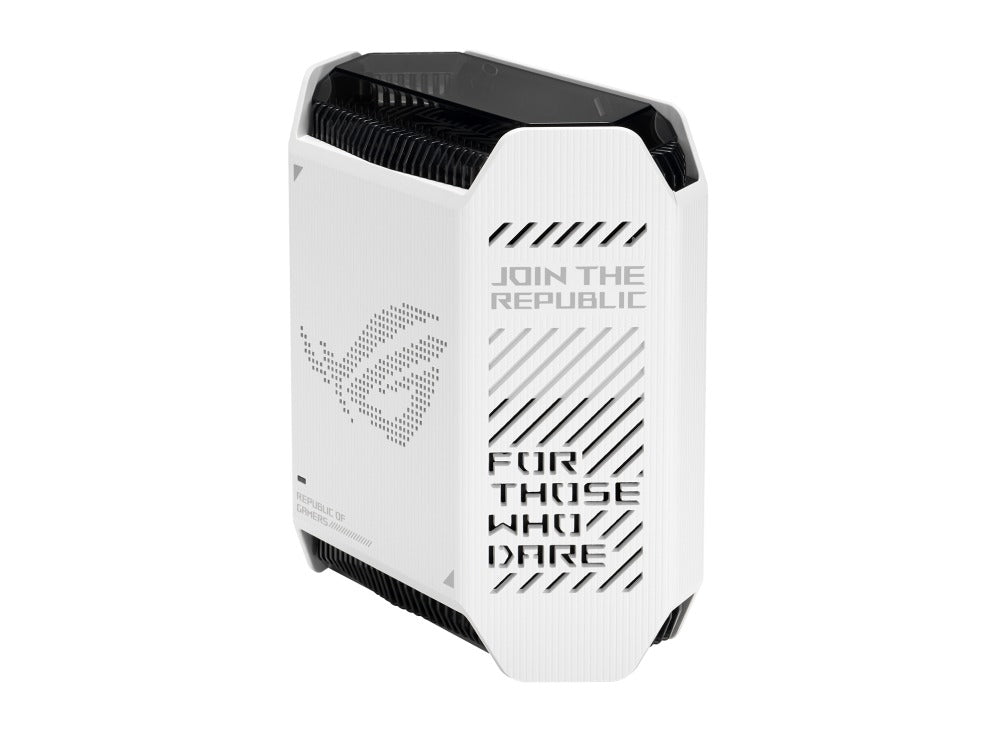

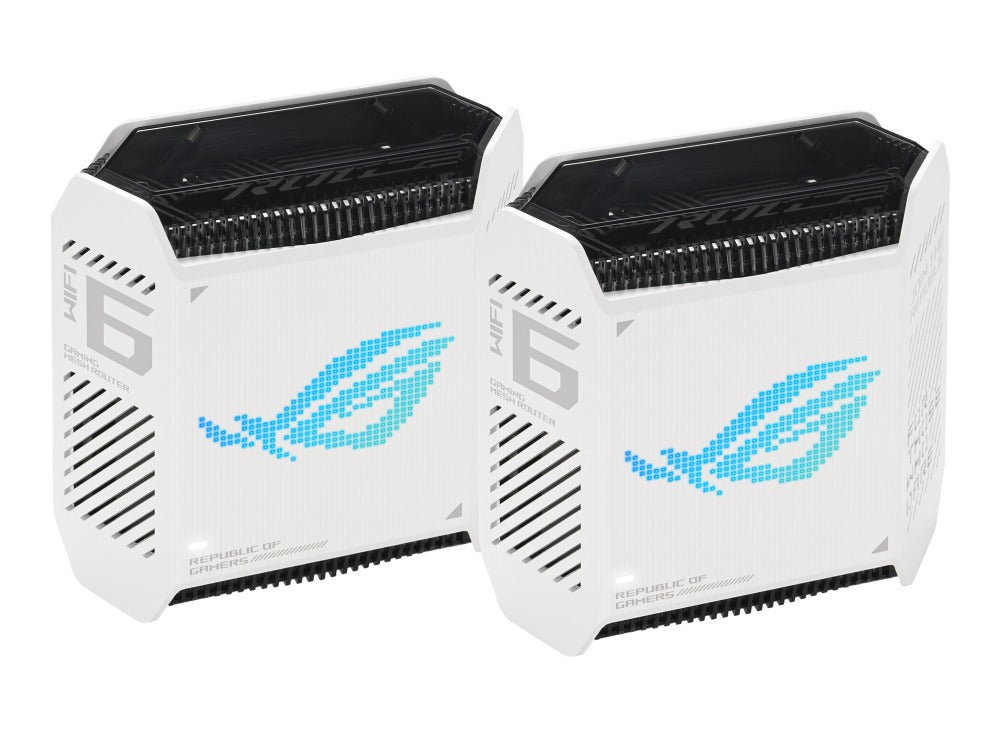

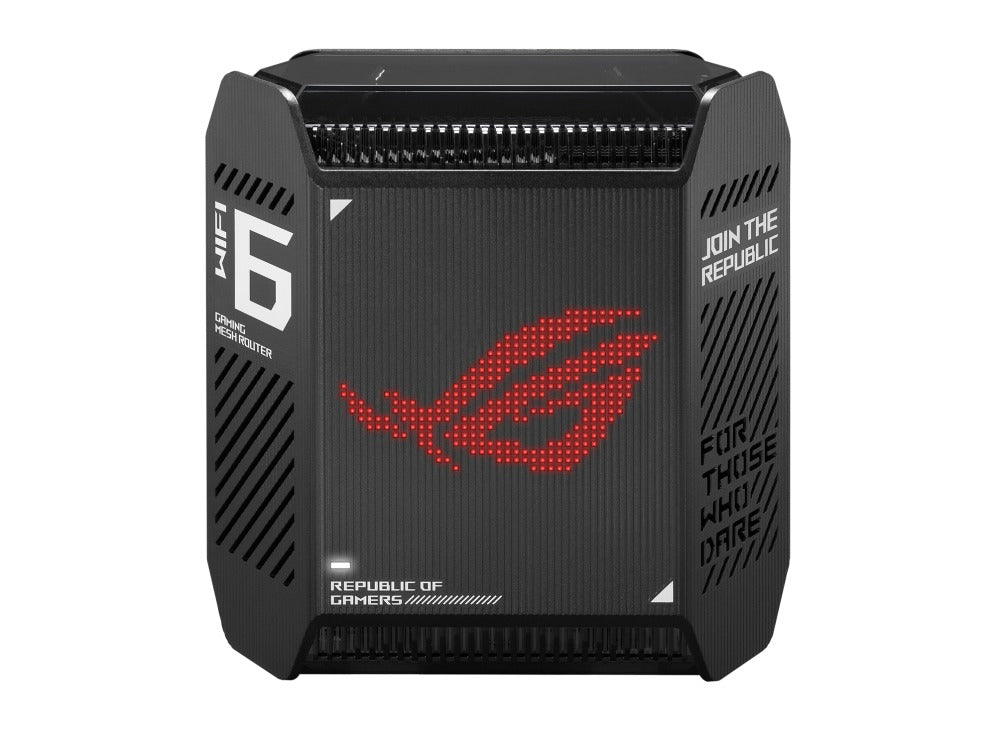

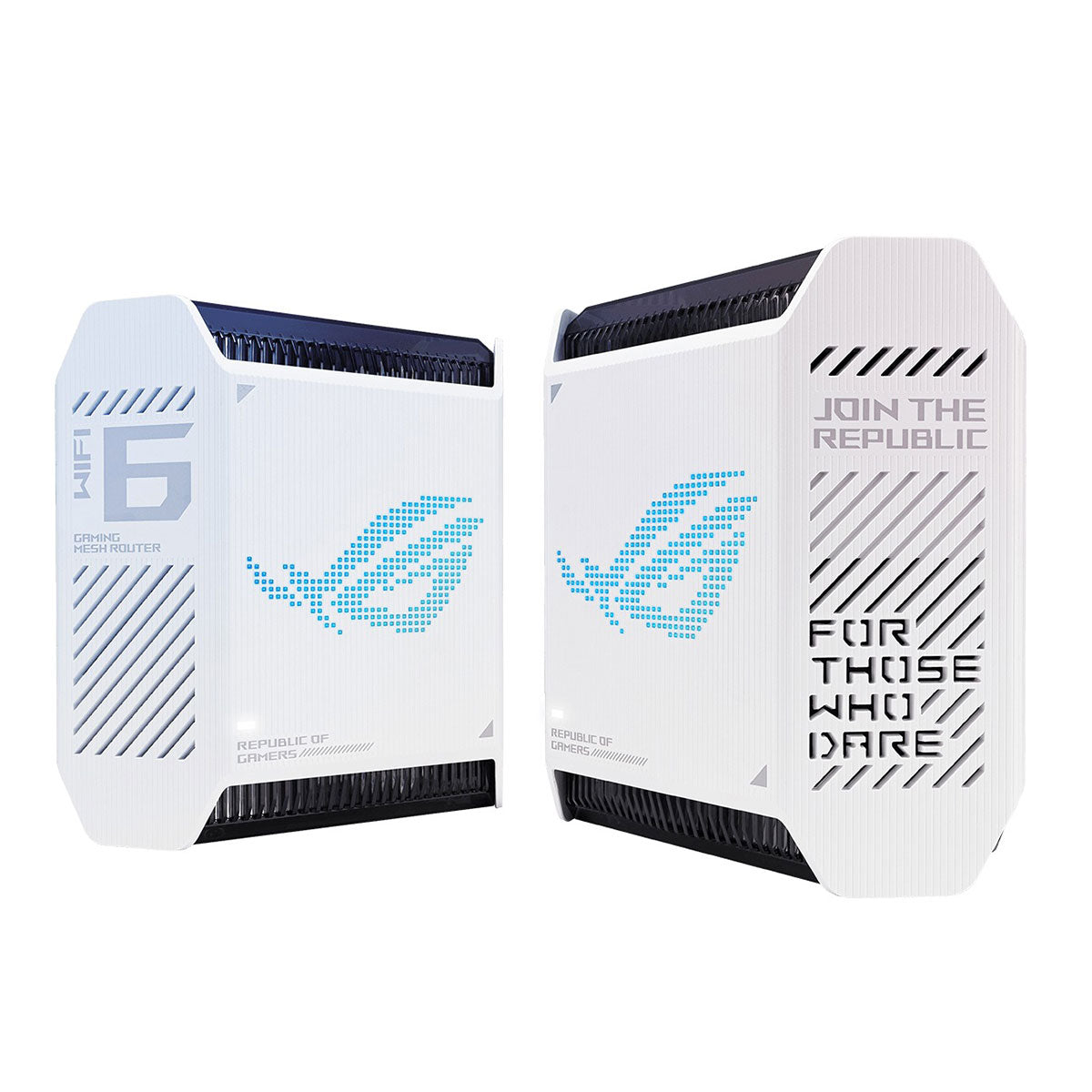

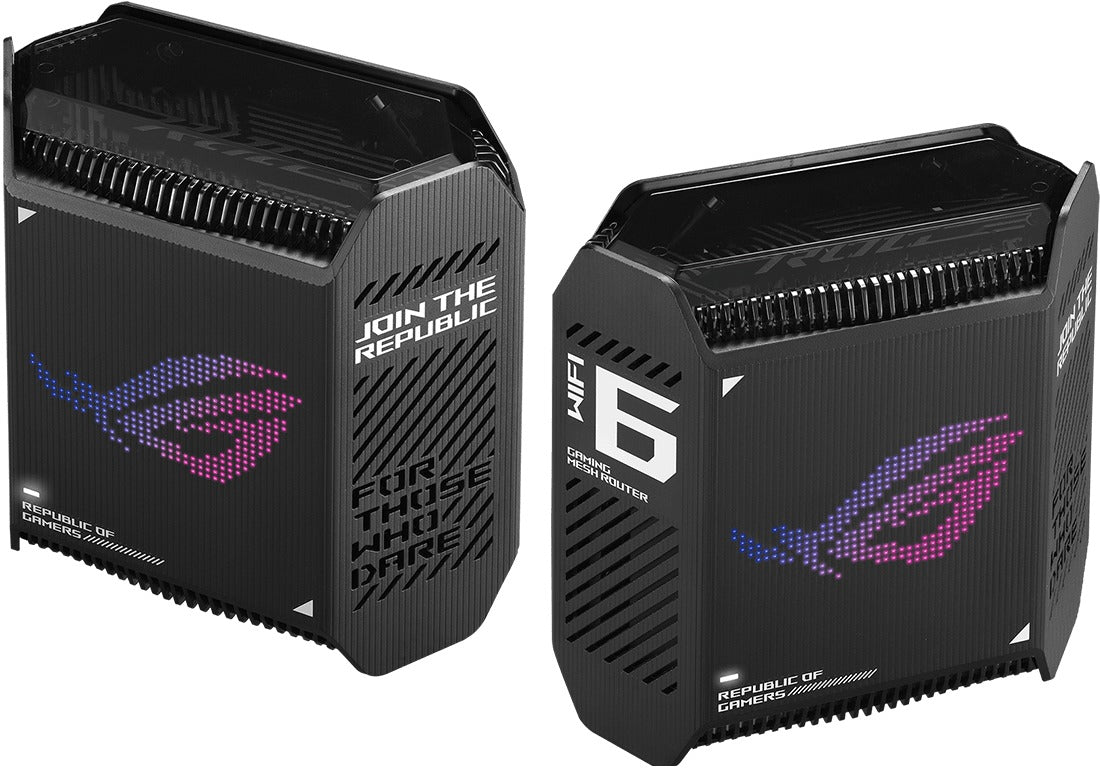

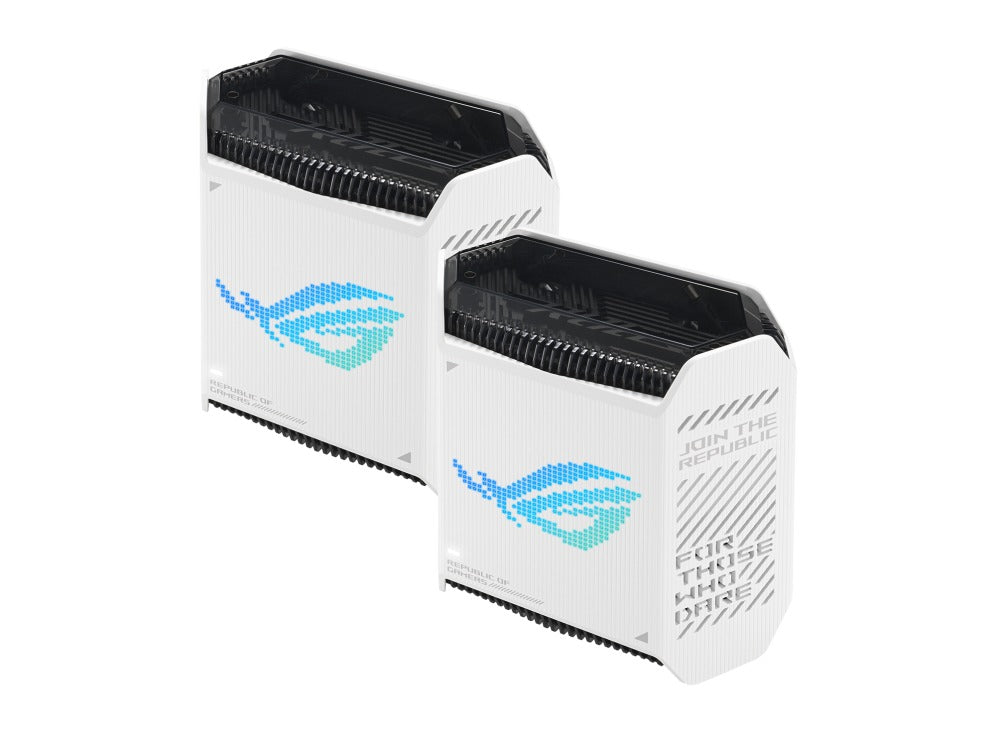

Designed with the spirit of innovation, the ROG Rapture GT6 draws inspiration from the ROG aesthetic and features distinctive hexagonal patterns throughout. It comes in two colors – Black or Moonlight White. The black version's matte finish and sleek angles offer a futuristic appearance. Meanwhile, the Moonlight White Edition offers a pristine and minimalist look. With both versions, ROG’s famous tagline – “For Those Who Dare” – is prominently displayed.
Made For Gamers
To enjoy the full speed of your internet, whether connecting to a router or its nodes, the backhaul connection is the most important to ensure maximum WiFi performance throughout a home. With dedicated mesh backhaul and the new technology that improves backhaul capacity and performance, the GT6 provides seamless online gameplay.
Expanded Coverage with RangeBoost Plus
ASUS RangeBoost Plus is the latest, most powerful version of our renowned RangeBoost technology, which can improve the coverage and WiFi performance significantly compared to other models without RangeBoost.
Outstanding WiFi Efficiency
In a router this small, most competing devices have a maximum of eight antennas. To prevent signal drops and inconsistent speeds across nodes, the GT6 embeds nine internal antennas at different angles, effectively limiting dead zones. The additional horizontal antenna provides more options for optimal signal direction.
SPECIFICATION
Network Standard
WiFi 6 (802.11ax)
IPv4
IPv6
Backwards compatible with 802.11a/b/g/n/ac Wi-Fi
Product Segment
AX10000 ultimate AX performance
Data Rate
2.4GHz AX: 2x2 (Tx/Rx) 1024 QAM 20/40MHz, up to 574Mbps
5G-1Hz AX: 4x4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps
5G-2Hz AX: 4x4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps
Transmit/Receive
2.4GHz 2x2
5GHz-1 4x4
5GHz-2 4x4
Processor
1.7GHz tri-core processor
Memory
256MB Flash 512MB DDR4 RAM
Boosts speed
OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 1024-QAM high data rate 20/40/80/160 MHz bandwidth * The 160MHz bandwidth may be unavailable in the 5GHz band in some regions / countries due to regulatory restrictions.
Ports

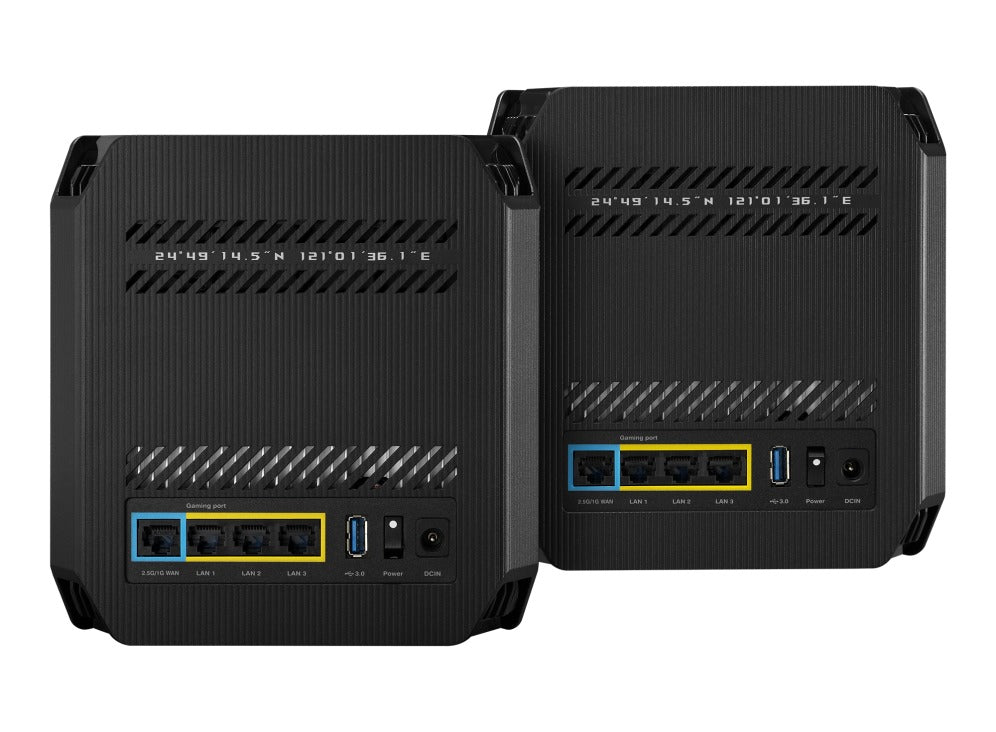

1 x 2.5 Gigabit WAN Port 3 x Gigabit LAN Ports 1 x USB 3.2 Gen 1x1 Port
Button
WPS Button Reset Button Power Switch
Power Supply
AC Input : 110V~240V(50~60Hz) DC Output : 19 V with max. 2.37 A current / 19.5 V with max. 2.31 A current
Package content
ROG Rapture GT6 RJ-45 Cable Power Adapter Quick Start Guide Warranty Card
AiMesh
AiMesh
Primary AiMesh router
AiMesh node
Game
Game Boost/acceleration
Game Radar
WTFast
ROG_First
OpenNAT (Game Profile)
Gaming port
AiProtection
AiProtection Pro
Router Security Assessment
Malicious site blocking
Two-Way IPS
Infected Device Prevention and Blocking
Parental Control
Parental Control
Parental Control Customized Internet schedule
Traffic Control
Adaptive QoS
Bandwidth Monitor
Bandwidth limiter
Traditional QoS
Traffic Monitor
Real-time traffic monitor
Wired Traffic Monitor
Wireless Traffic Monitor
Traffic Analyzer
Traffic analysis period : Daily, Weekly, Monthly
Website history
Wireless
IPv6
MU-MIMO
WiFi Encryption : WPA3 Personal, WPA2 Personal, WPA Personal, WPA Enterprise, WPA2 Enterprise, Open System
UTF-8 SSID
Guest Network
Guest Network Connection time limit
WPS
Wi-Fi MAC address filter
Maximum MAC filters : 64
Wireless scheduler
Wi-Fi Radar
Airtime fairness
RADIUS Client
Universal beamforming
WAN
Explicit beamforming
Dual WAN
3G/4G LTE dongle
Android tethering
Port forwarding
Maximum port forwarding rule : 64
Port triggering
Maximum port triggering rule : 32
DMZ
DDNS
NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough, PPPoE relay
Let's Encrypt
Safe browsing
DNS-over-TLS
LAN
DHCP Server
IGMP snooping
IPTV
LAN Link Aggregation
Manually assign IP address
VPN
VPN Client L2TP
VPN Client OVPN
VPN Client PPTP
VPN Client WireGuard
VPN Server IPSec
VPN Server OVPN
VPN Server PPTP
VPN Server WireGuard
VPN Fusion
USB application
File System : HFS+, NTFS, vFAT, ext2, ext3, ext4
Safely Remove disk
AiCloud
Download master
AiDisk
Media Server
Time Machine
Samba Server
FTP Server
Shared Folder privileges
