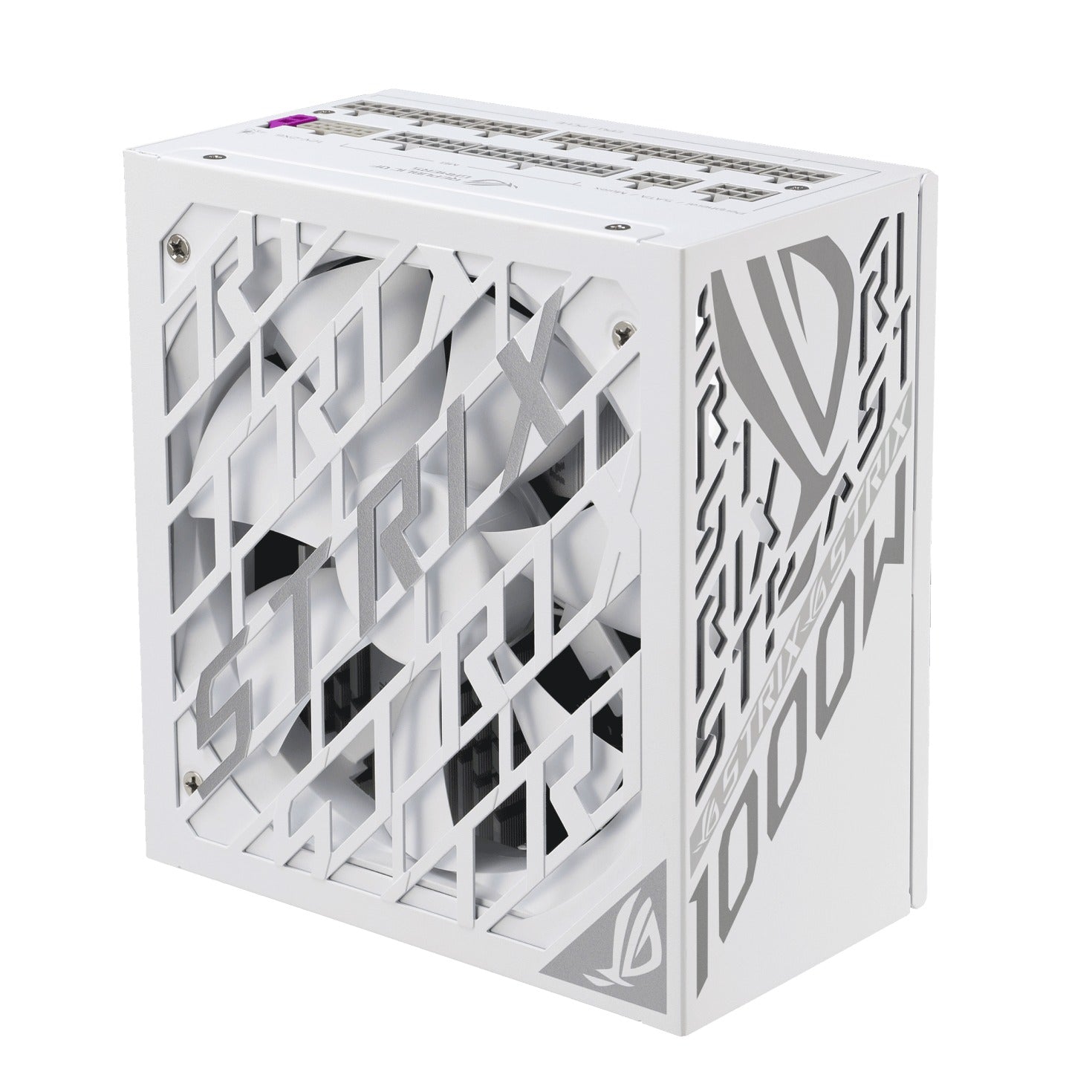

Asus ROG Strix 1000W Platinum PCIe 5.0 ATX 3.1 Gaming Power Supply (White)
Description

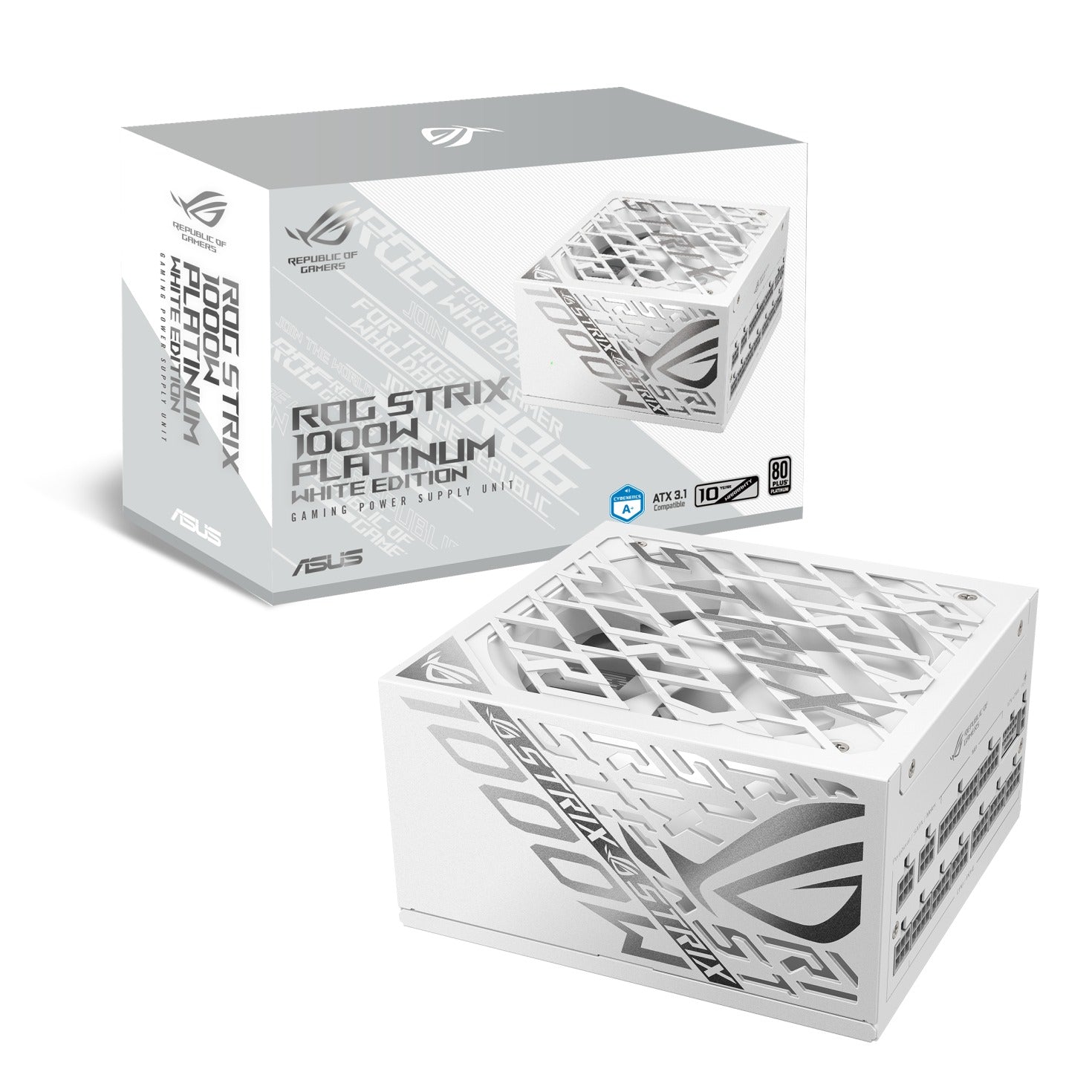

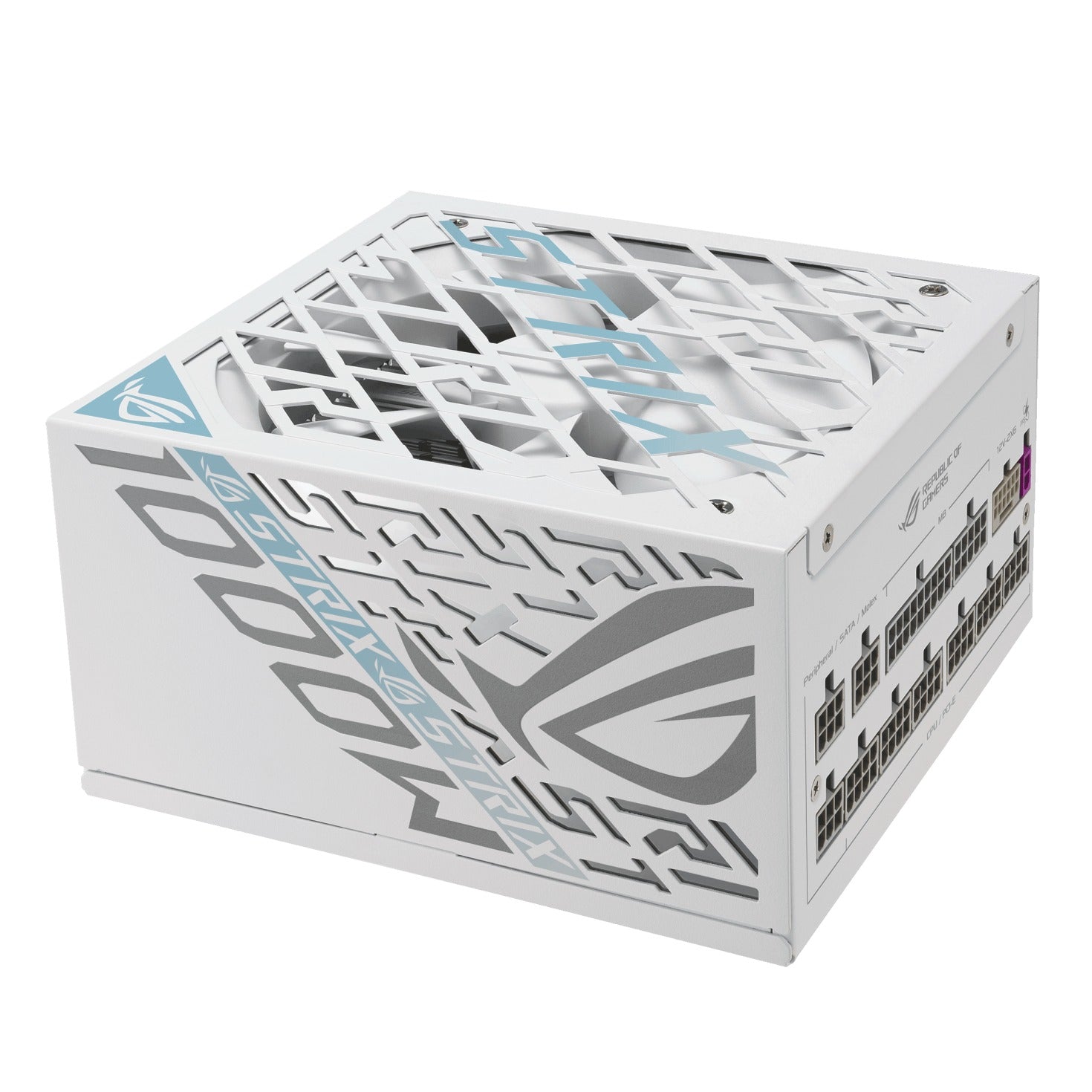

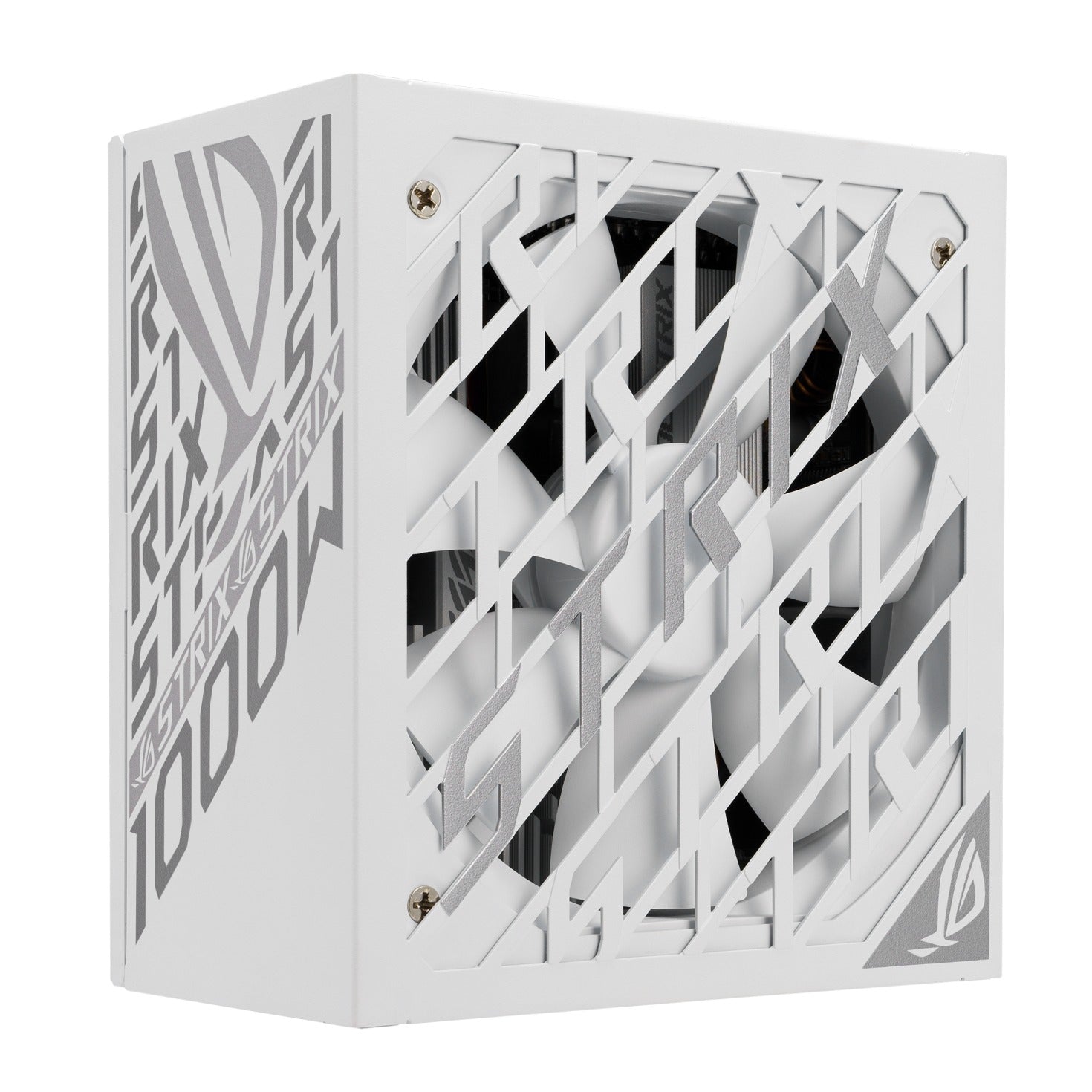

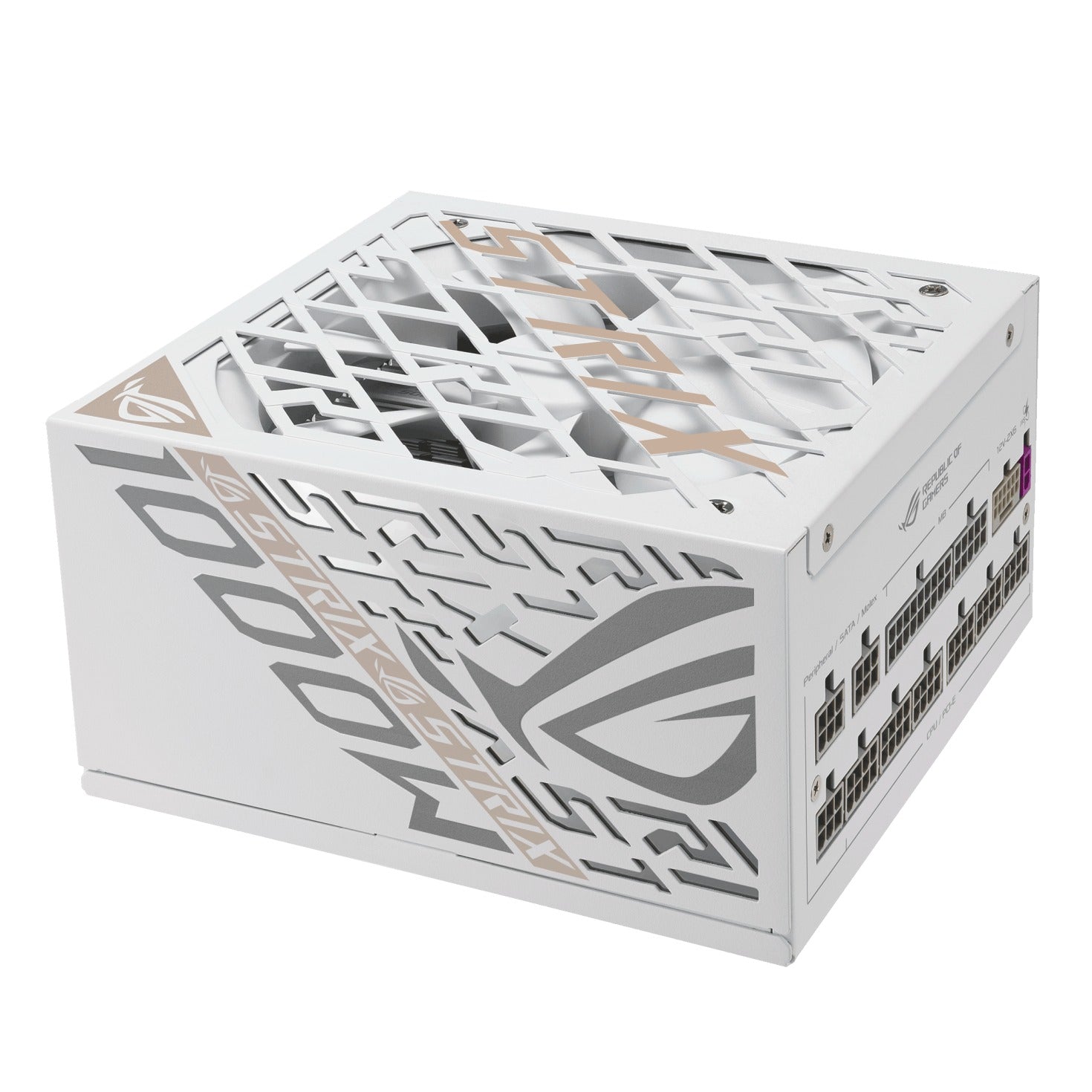

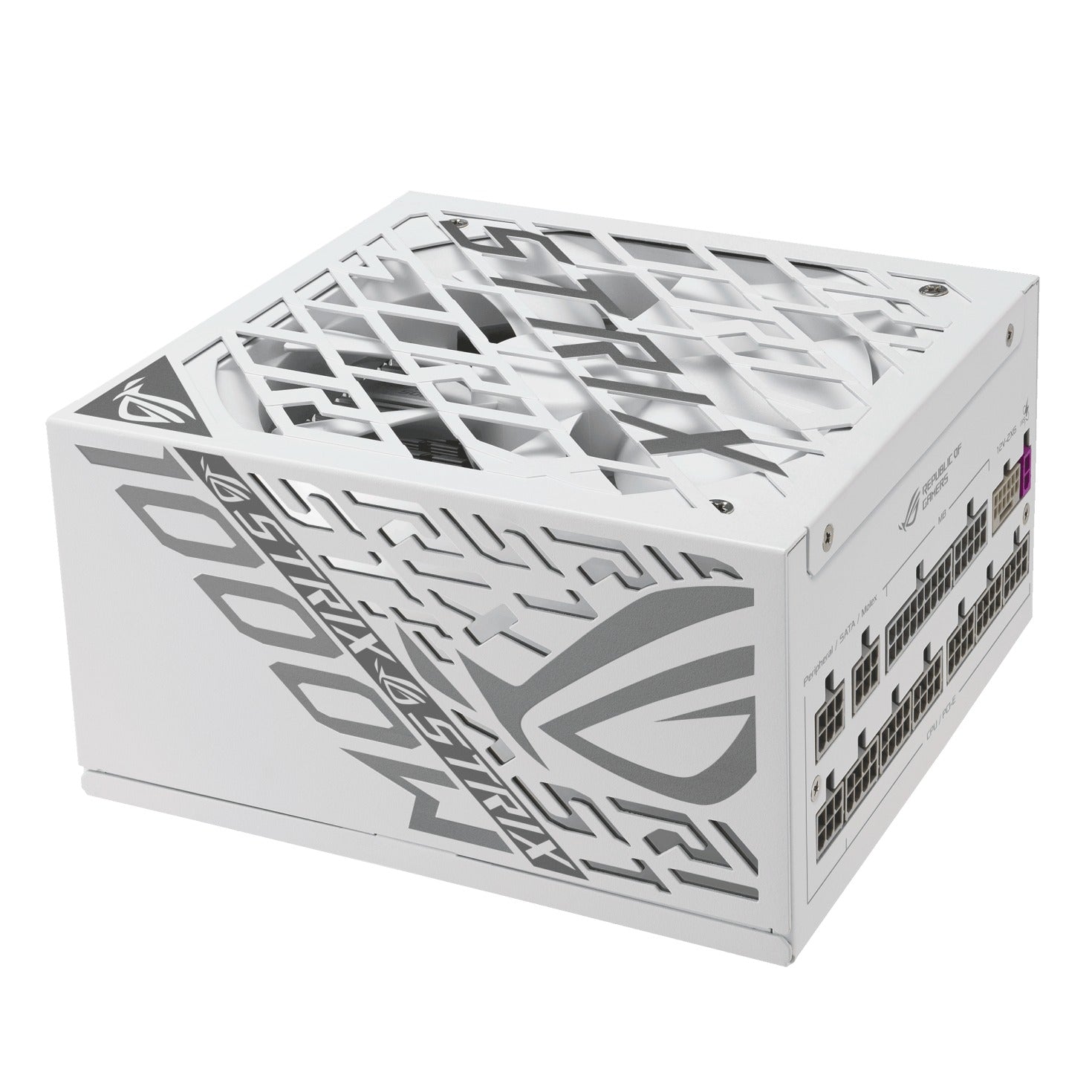

ROG Strix 1000W Platinum White Edition
ROG Strix 1000W Platinum White Edition is a cool and quiet PSU with stable power delivery, engineered for efficiency with GaN MOSFET and “GPU-FIRST” intelligent voltage stabilizer in striking style.
- GaN MOSFET delivers superior power efficiency by up to 30% and a more organized internal layout for cooler operation.
- "GPU-FIRST" voltage sensing with patented-intelligent voltage stabilizer enhances voltage delivery by up to 45% to your graphics card for smoother gameplay and unwavering performance.
- Large ROG heatsinks cover critical components, delivering lower temperatures and noise than reference designs.
- Dual ball fan bearings can last up to twice as long as sleeve bearing designs.
- 0dB technology lets you enjoy light gaming in relative silence.
- ATX 3.1 compatible: ROG Strix Platinum White Edition is compliant with ATX 3.1 standard, ensuring enhanced voltage and current regulation.
- PCIe 5.1 Ready: ROG Strix Platinum White Edition features a native 12V-2x6 connector for next-gen graphics card power.
- Lambda A+ Certification: Certified low noise levels, below 20 dB
- 80 PLUS & Cybenetics Platinum certified: ROG Strix Platinum White Edition leverages low-ESR capacitors and premium components for industry-leading power efficiency.
Specification:
| Model | ROG Strix 1000W Platinum White Edition |
|---|---|
| Intel Form Factor | ATX12V |
| PFC Type | Active PFC |
| ATX Standard | ATX 3.1 |
| Dimensions | 160 x 150 x 86 mm |
| Efficiency | 80Plus Platinum |
| MTBF | >120,000 hrs @ 25°C |
| Protection Features | OPP/OVP/UVP/SCP/OCP/OTP |
| Hazardous Materials | ROHS |
| AC Input Range | 100-240Vac |
| DC Output Voltage | +3.3V +5V +12V -12V +5Vsb |
| Maximum Load | 25A 25A 83.3A 0.3A 3A |
| Combined Load | 130W 130W 1000W 3.6W 15W |
| Total Output | 1000W |

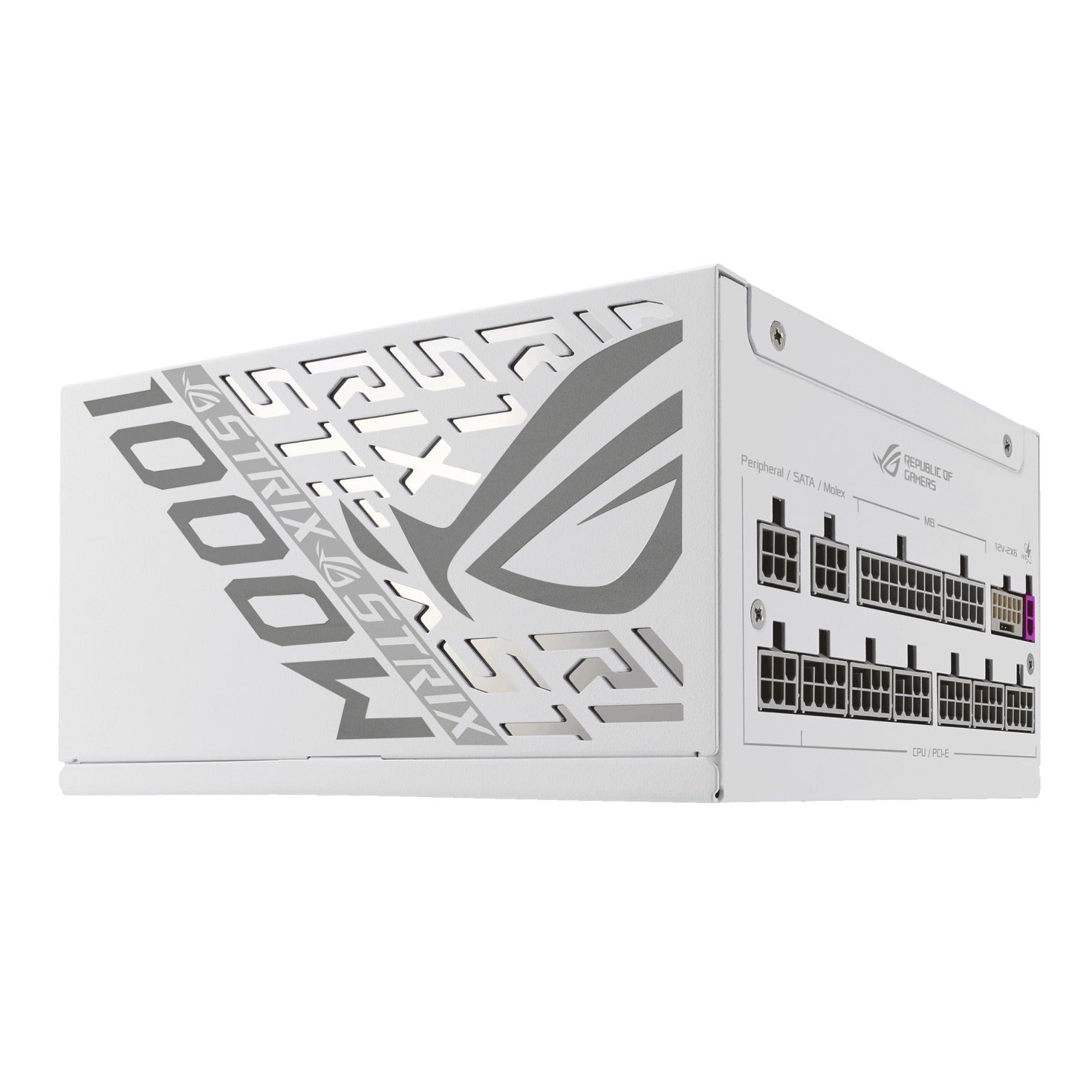

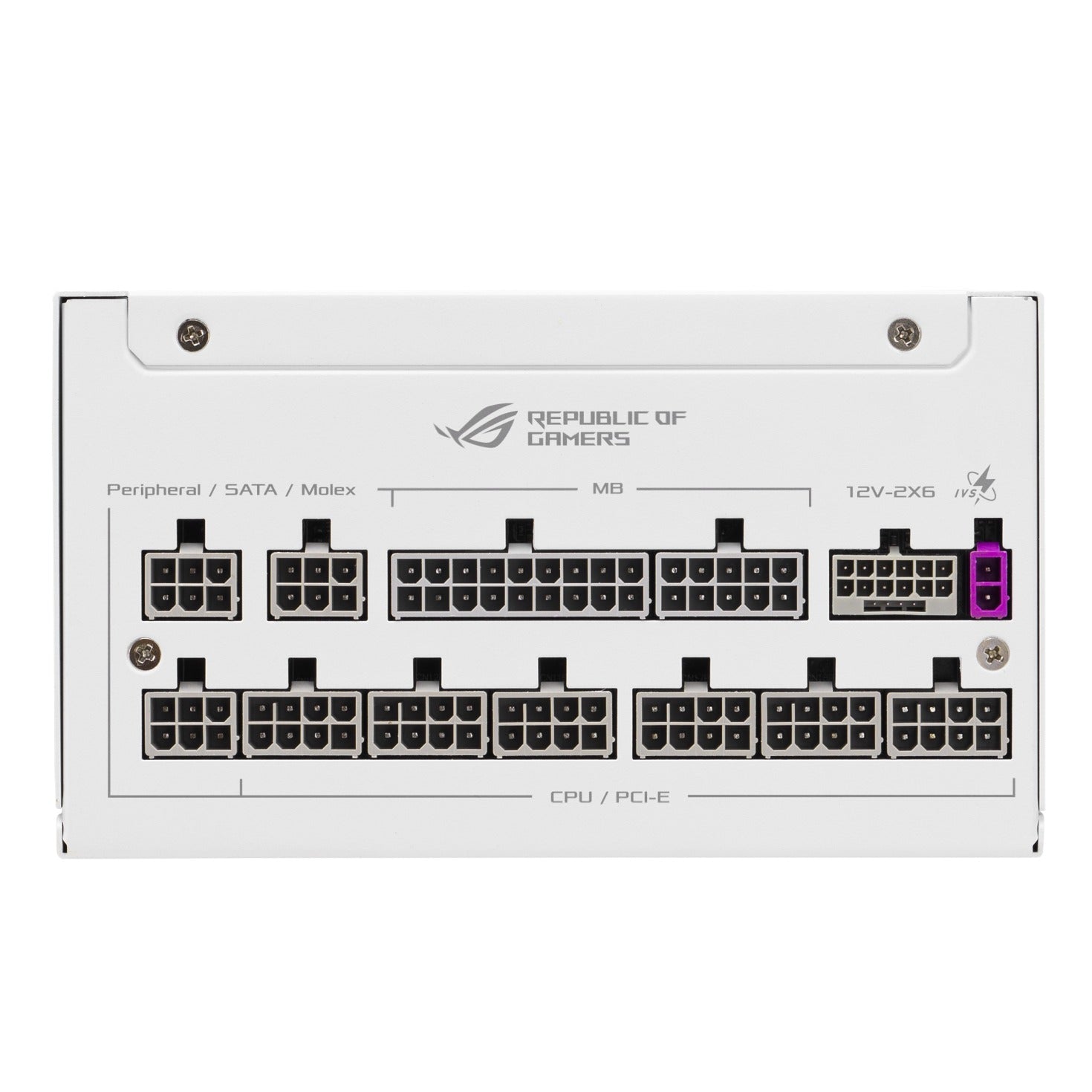

| Cable Connectors | MB 24/20-pin x 1 CPU 4+4-pin x 2 PCI-E 16-pin x 1 (both PSU & component side) PCI-E 6+2-pin x 4 SATA x 6 PERIPHERAL x 3 |

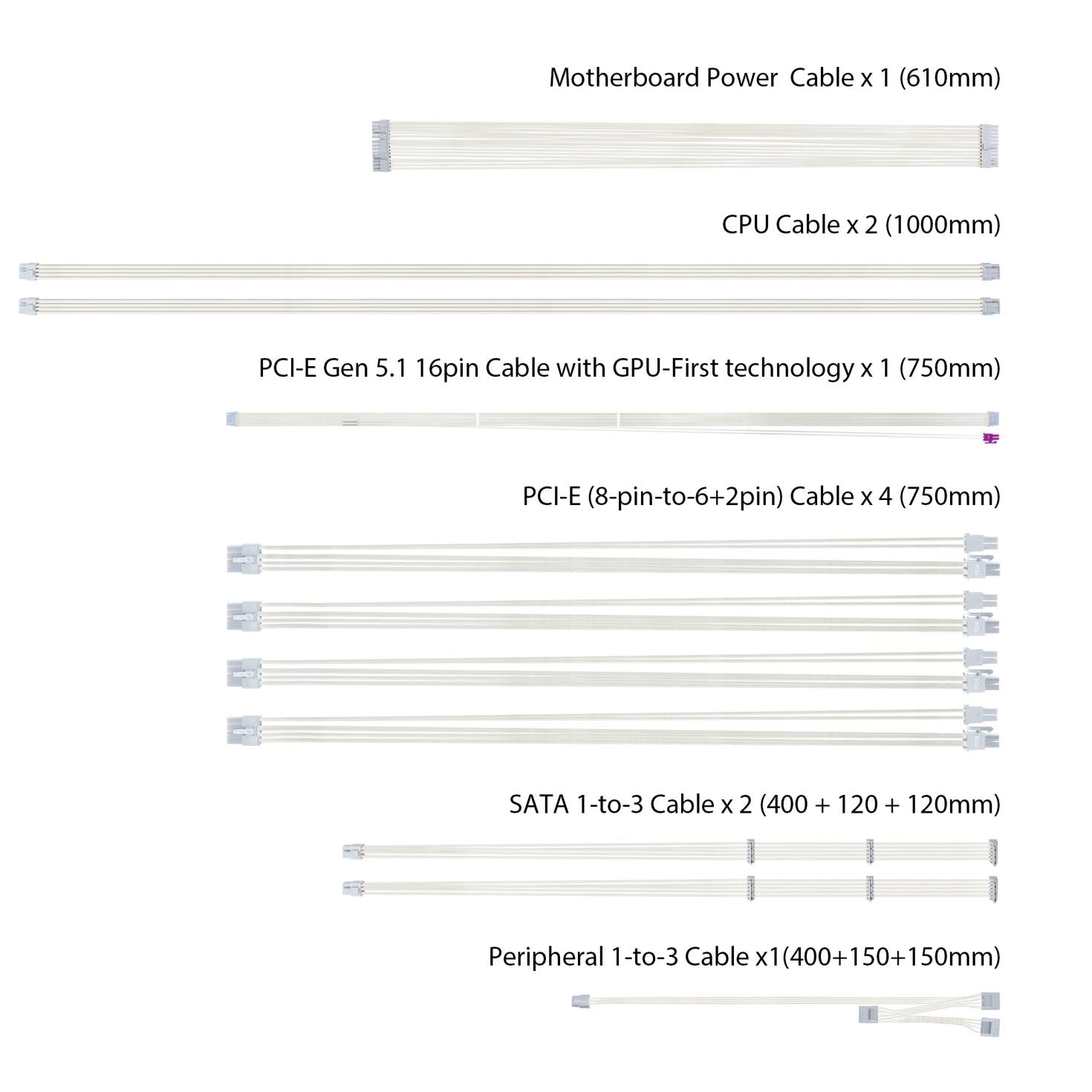

| Package Contents | Power Cord x 1 Motherboard Power Cable x 1 (610mm) CPU Cable x 2 (1000mm) PCI-E Gen 5.1 (16-pin-to-16-pin) Cable x 1 (750mm) PCI-E (8-pin-to-6+2pin) Cable x 4 (750mm) SATA 1-to-3 Cable x 2 (400+120+120mm) Peripheral 1-to-3 Cabel x 1 (400+150+150mm) ROG Strix DIY sticker x 1 User Manual x 1 |
| Weight | 1.81 kg (single PSU) |
| Cybenetics Noise Level Certification | A+ |
| 0dB Technology | Supported. The fan shuts off entirely when the PSU is under certain load |

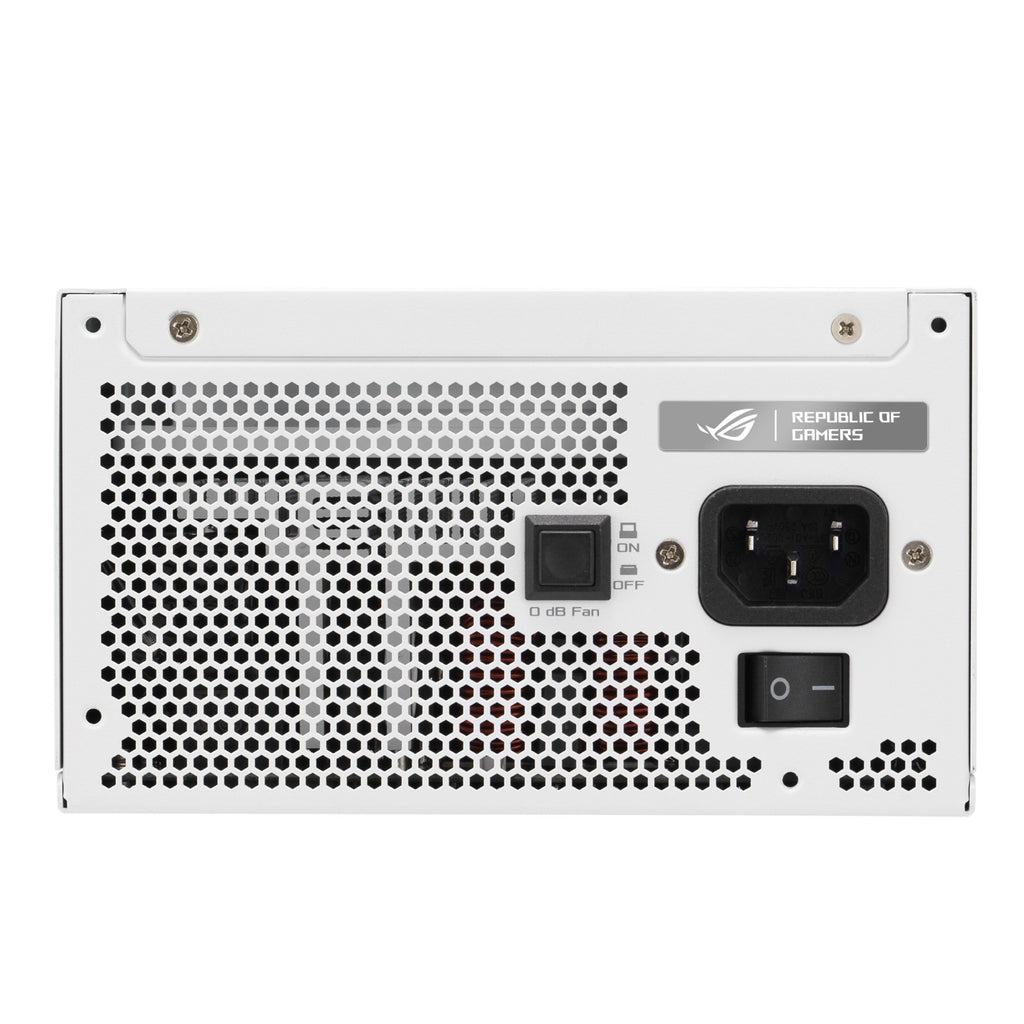

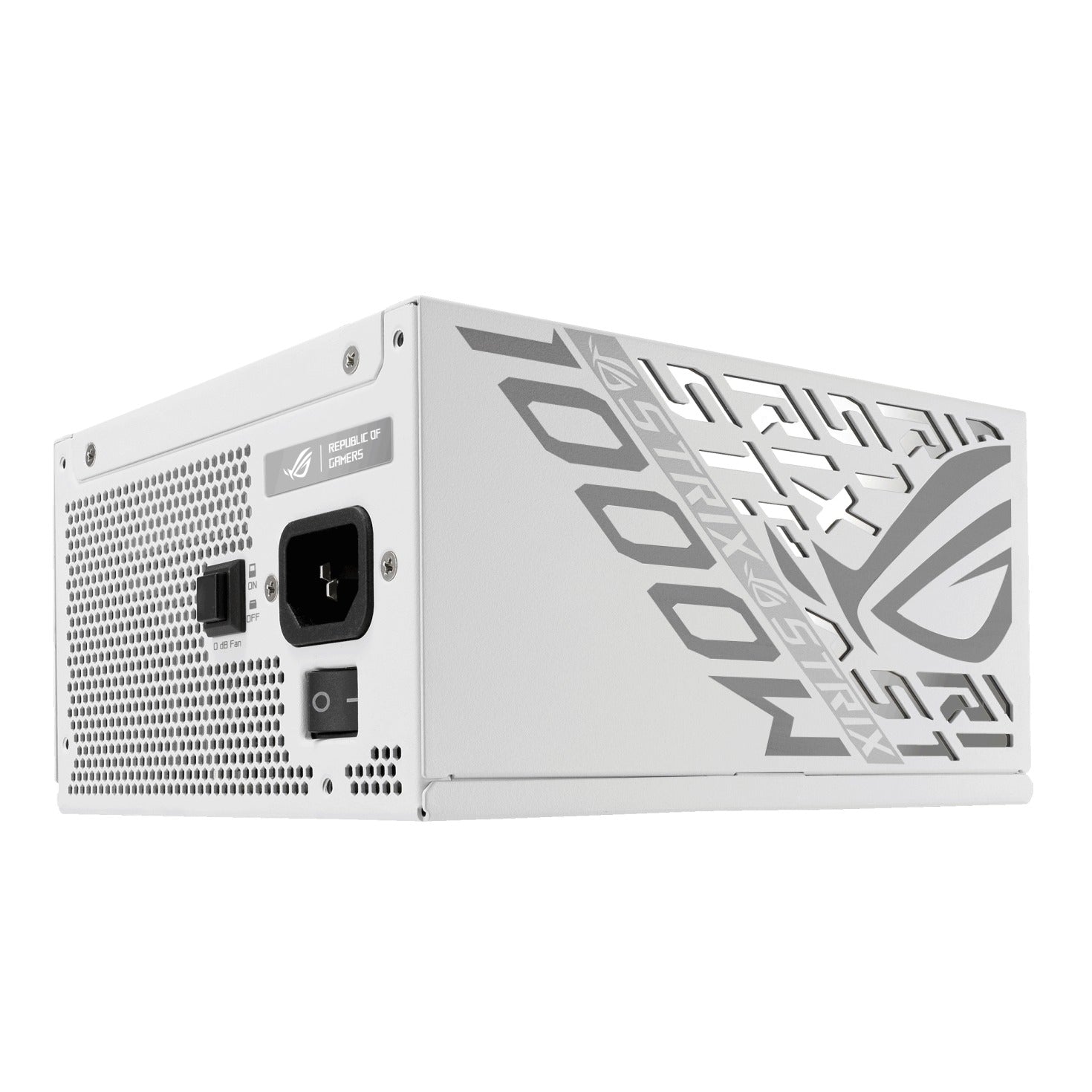

| 0dB Fan Button | Yes. When the Button is ON, the fan will only spin up when the system reaches a certain load. When the Button is OFF, the fan will continuously spin at all load levels. |
