Description

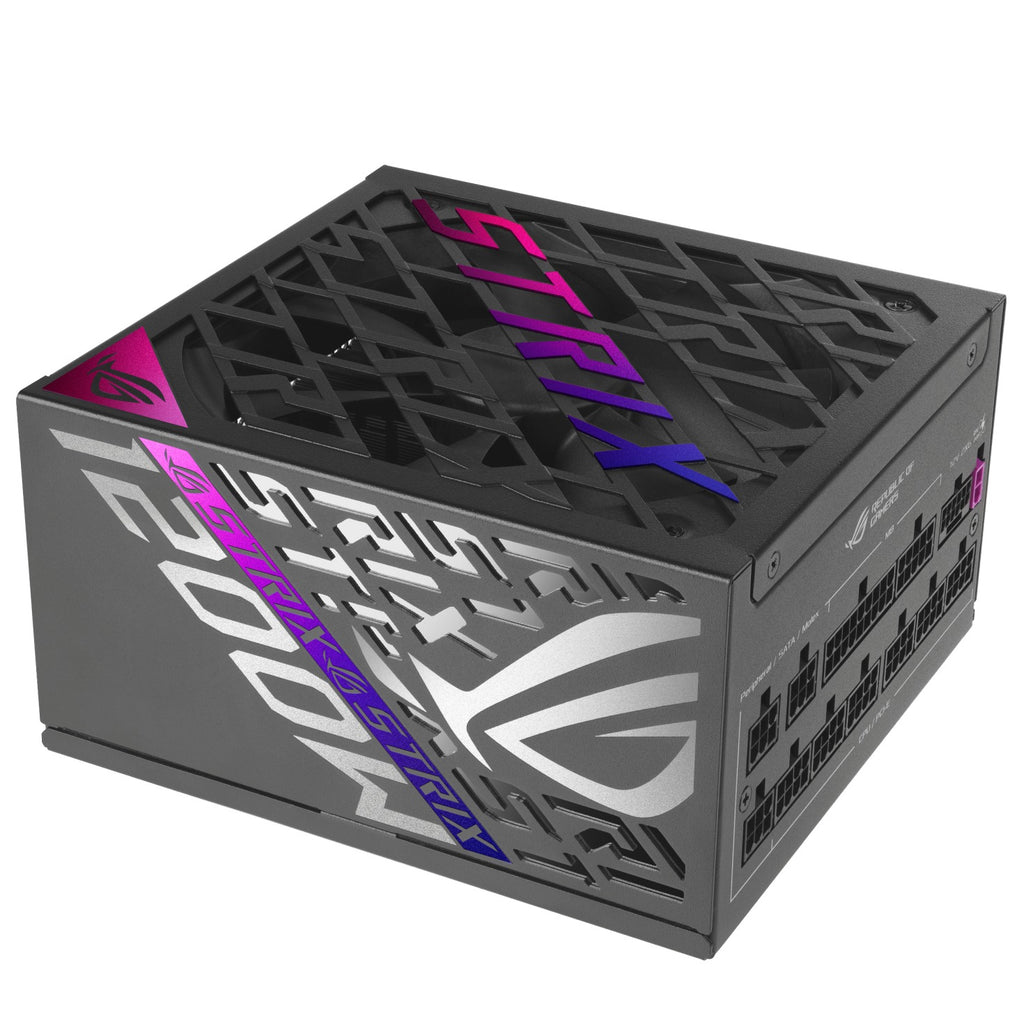

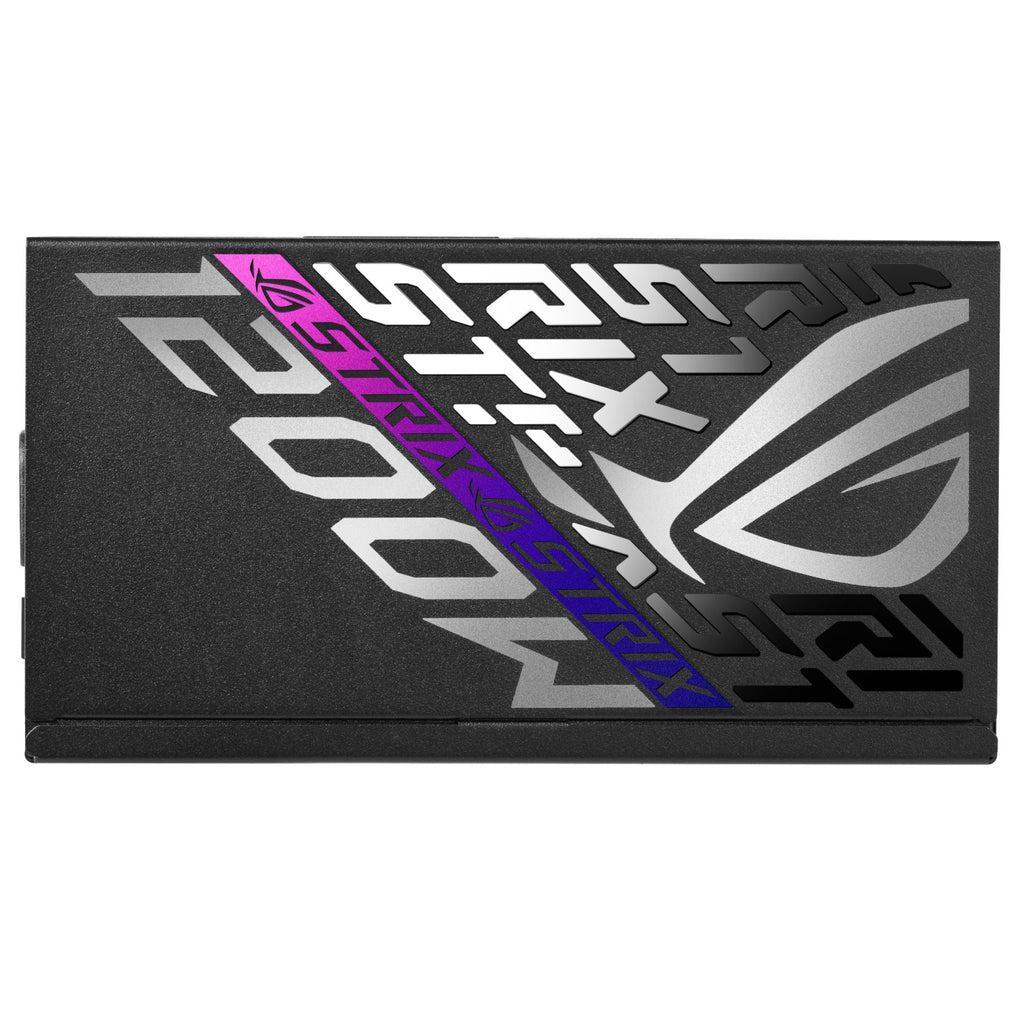

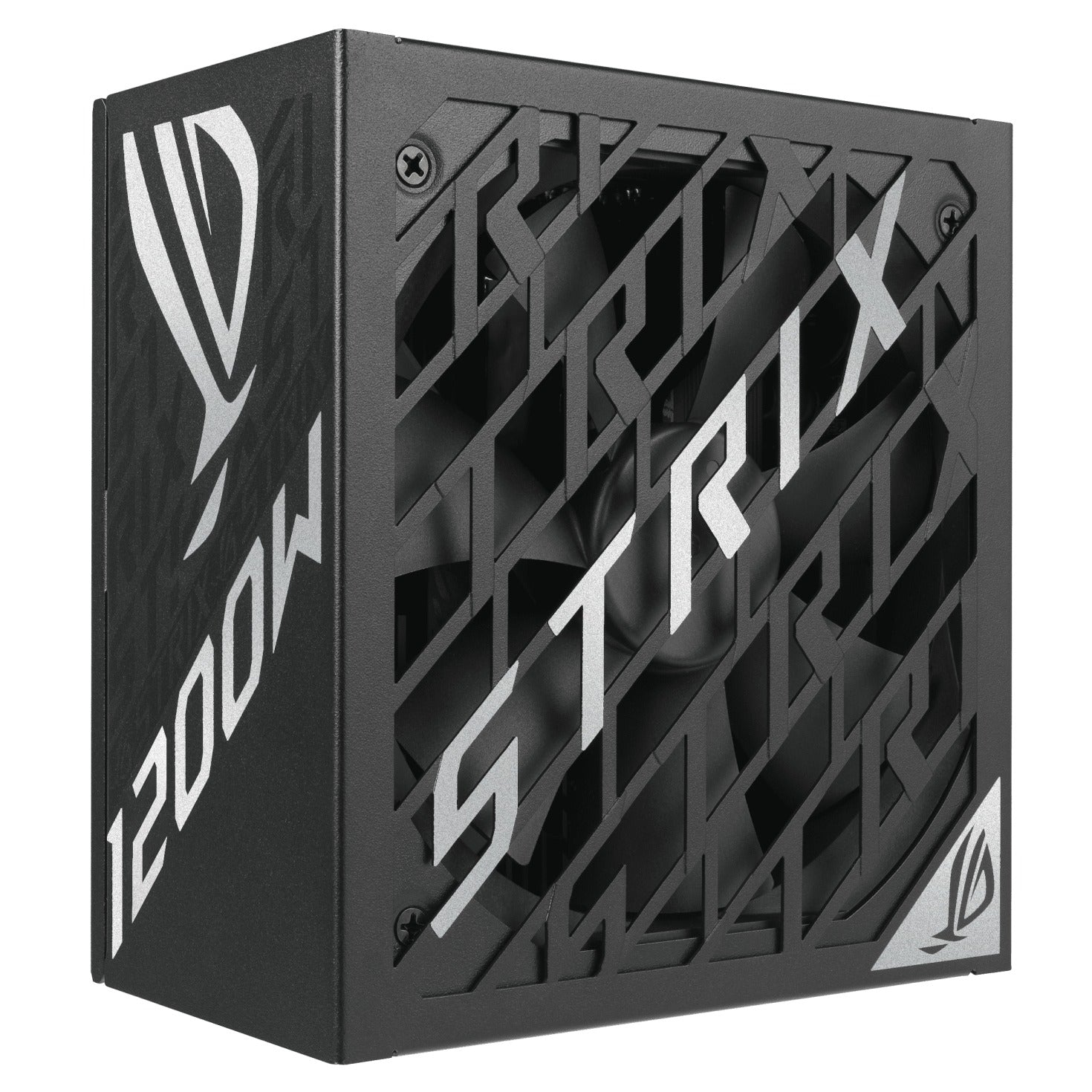

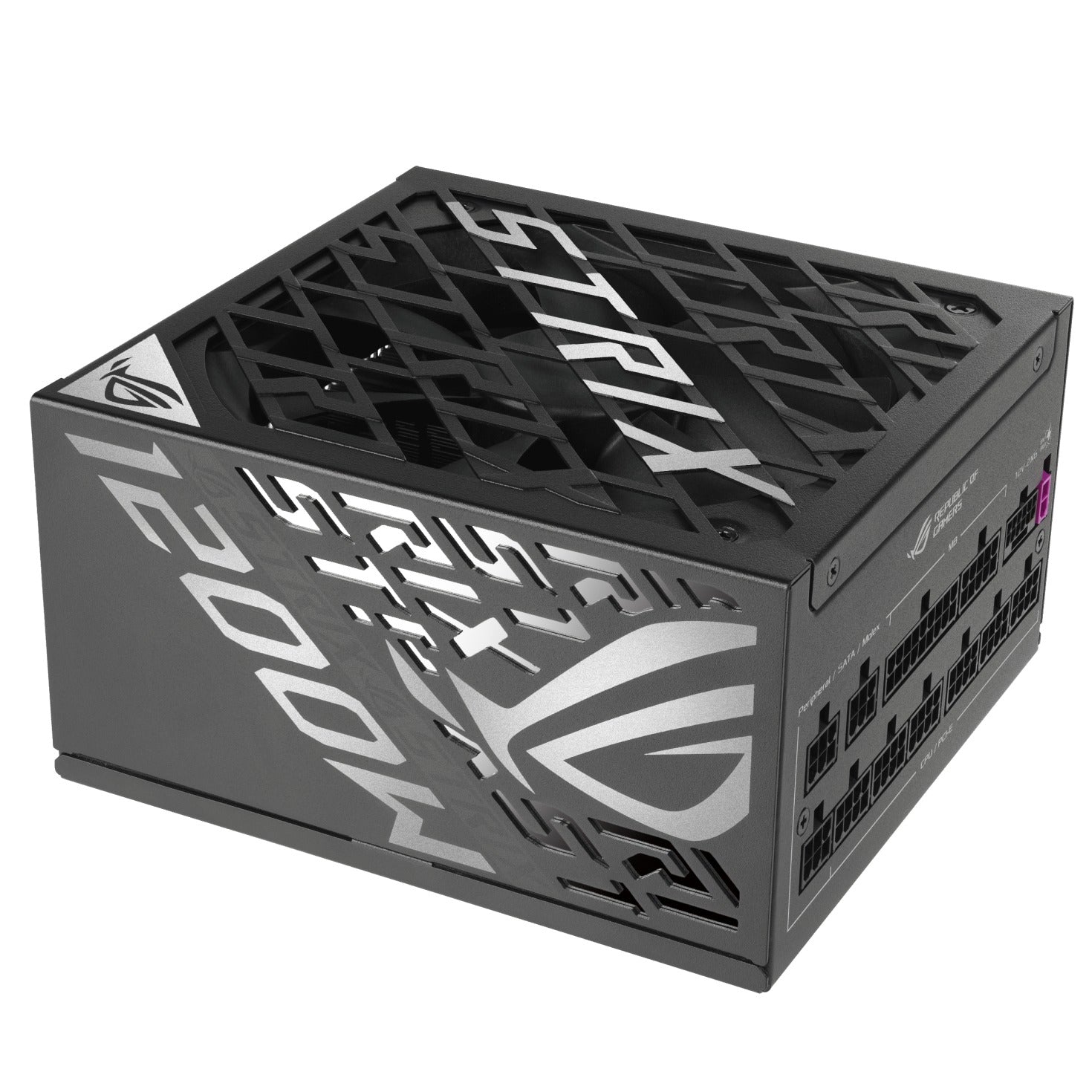

| Model | ROG Strix 1200W Platinum (ROG Equalizer) |
| Intel Form Factor | ATX12V |
| PFC Type | Active PFC |
| ATX Standard | ATX 3.1 |
| Dimensions | 160 x 150 x 86 mm |
| Efficiency | 80Plus Platinum |
| MTBF | >120,000 hrs @ 25°C |
| Protection Features | OPP/OVP/UVP/SCP/OCP/OTP |
| Hazardous Materials | ROHS |
| AC Input Range | 100-240Vac |
| DC Output Voltage | +3.3V +5V +12V -12V +5Vsb |
| Maximum Load | 25A 25A 100A 0.3A 3A |
| Combined Load | 130W 130W 1200W 3.6W 15W |
| Total Output | 1200W |

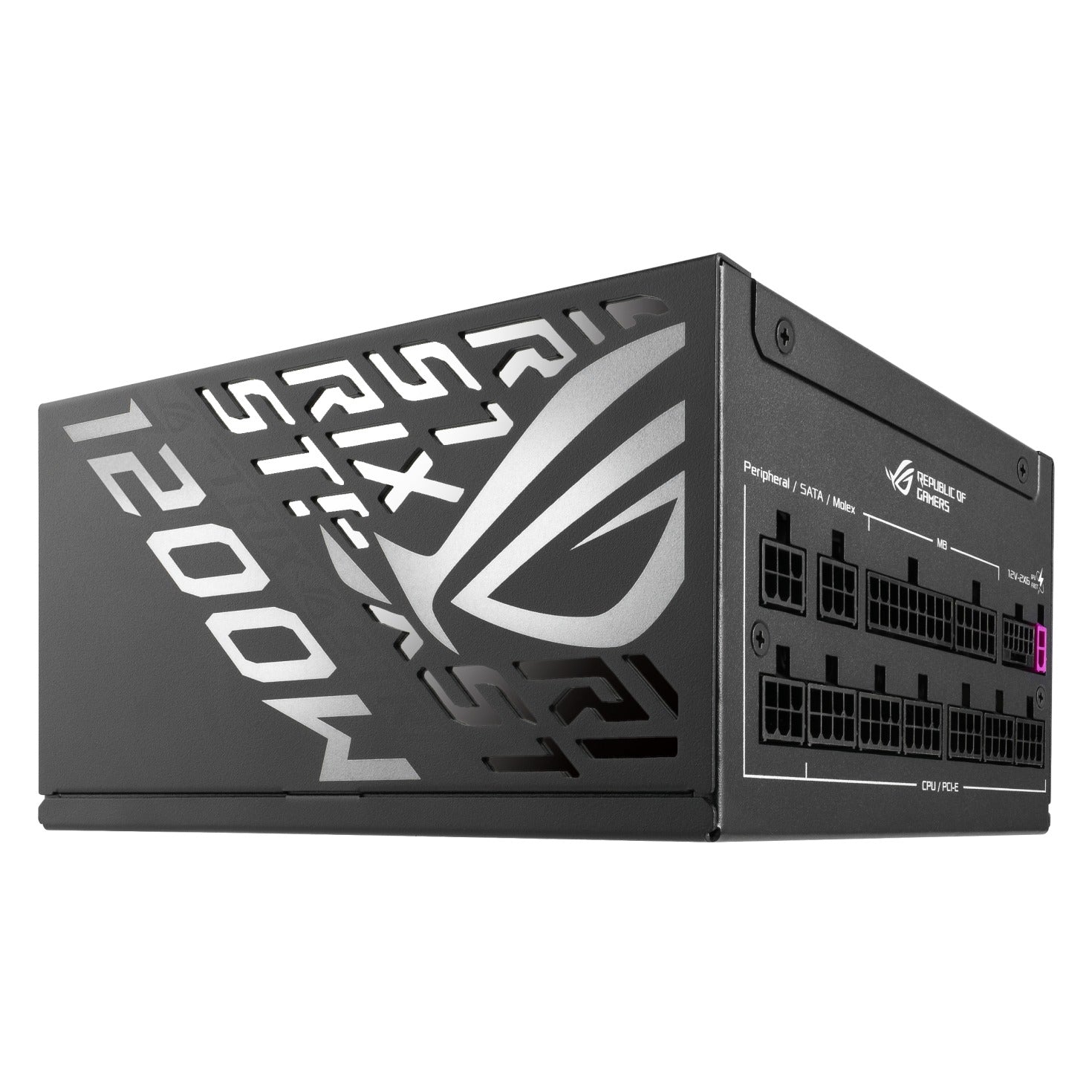

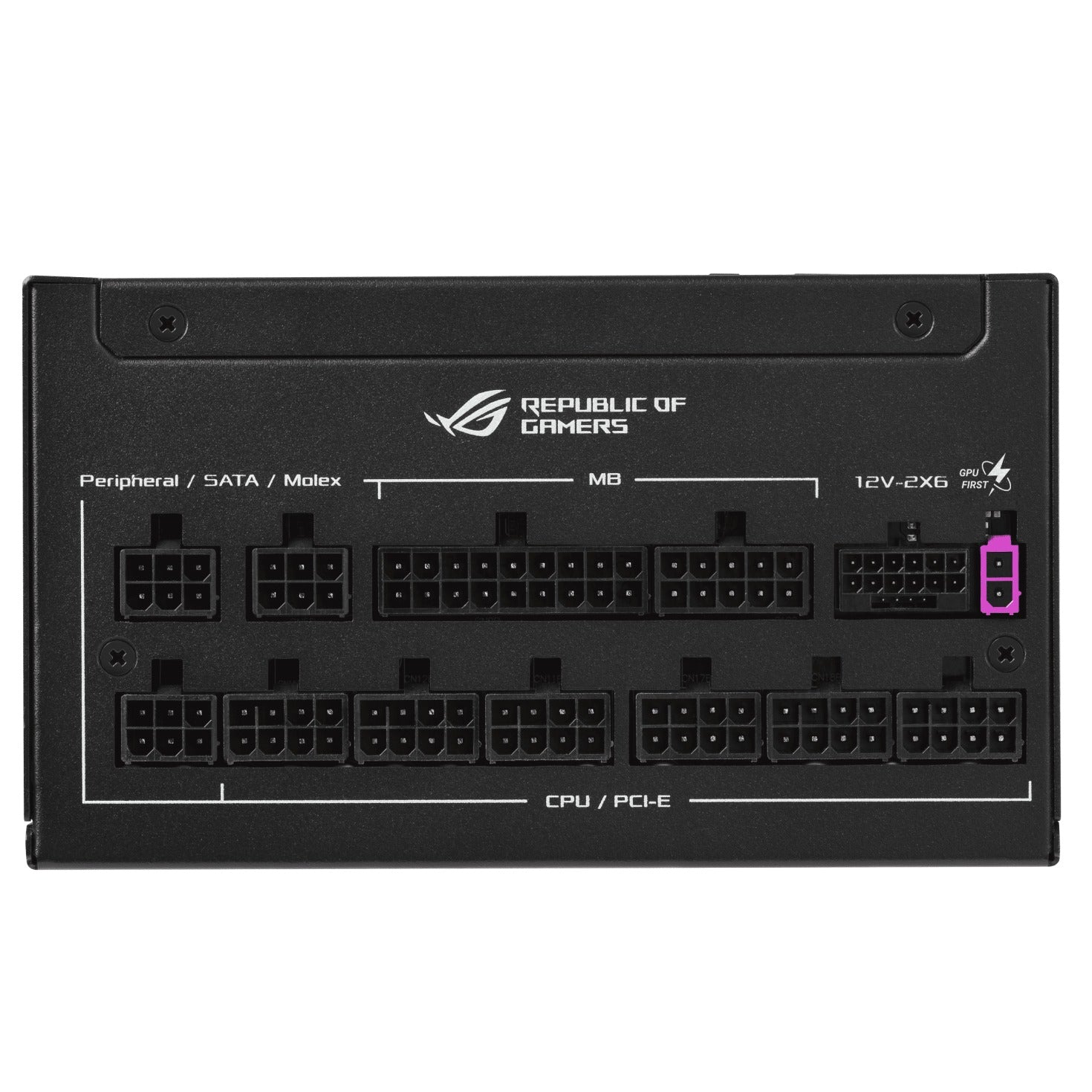

| Cable Connectors | "MB 24/20-pin x 1 CPU 4+4-pin x 2 PCI-E 16-pin x1 (12V-2x6) PCI-E 6+2-pin x 4 SATA x 6 Peripheral x 3" |

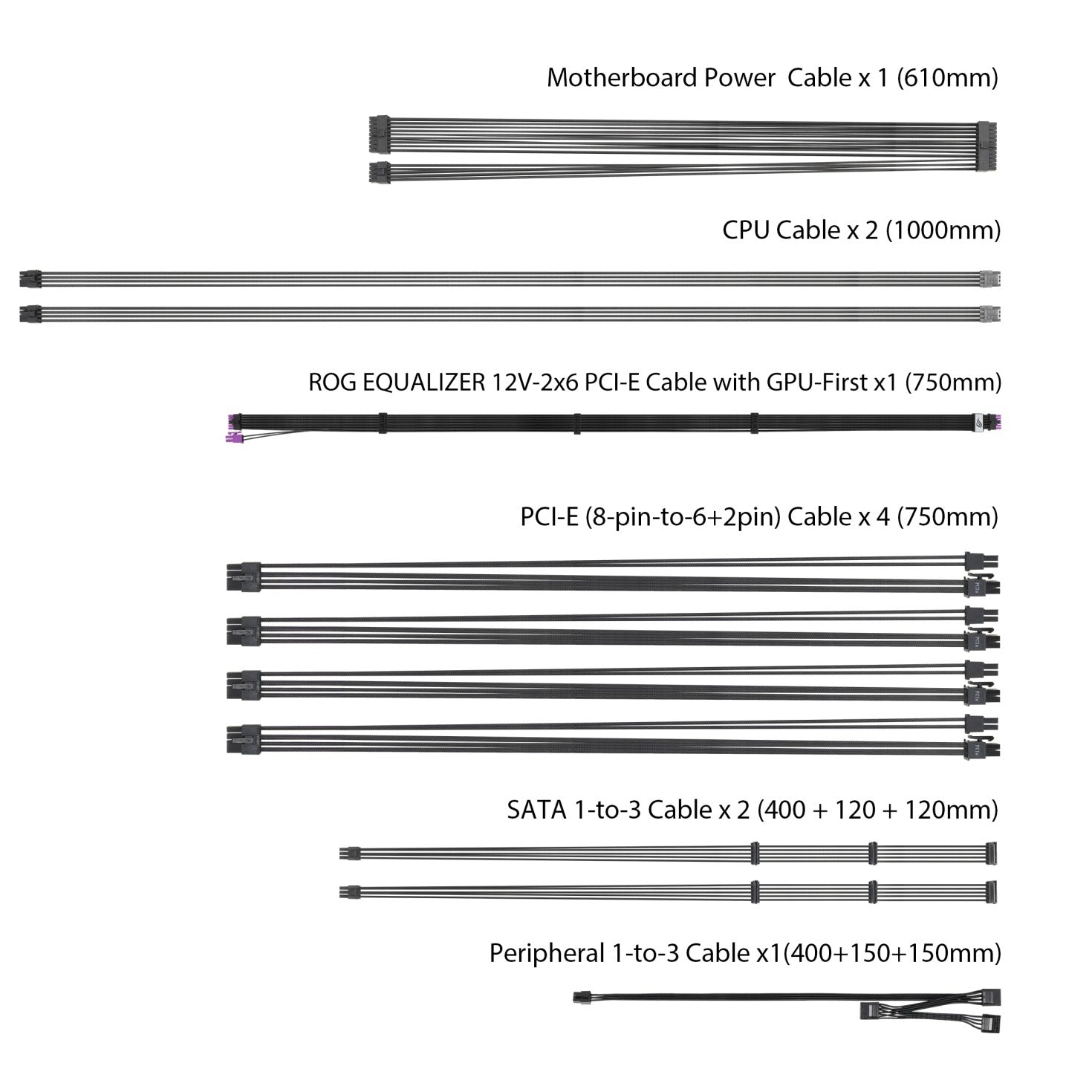

| Package Contents | "Power Cord x 1 Motherboard Power Cable x 1 (610mm) CPU Cable x 2 (1000mm) ROG EQUALIZER 12V-2x6 PCI-E Cable with GPU-First x1 (750mm) PCI-E (8-pin-to-6+2pin) Cable x 4 (750mm) SATA 1-to-3 Cable x 2 (400+120+120mm) Peripheral 1-to-3 Cabel x 1 (400+150+150mm) ROG Strix DIY sticker x 1 User Manual x 1" |
| Weight | 1.84 kg (single PSU) |
| Cybenetics Noise Level Certification | A |

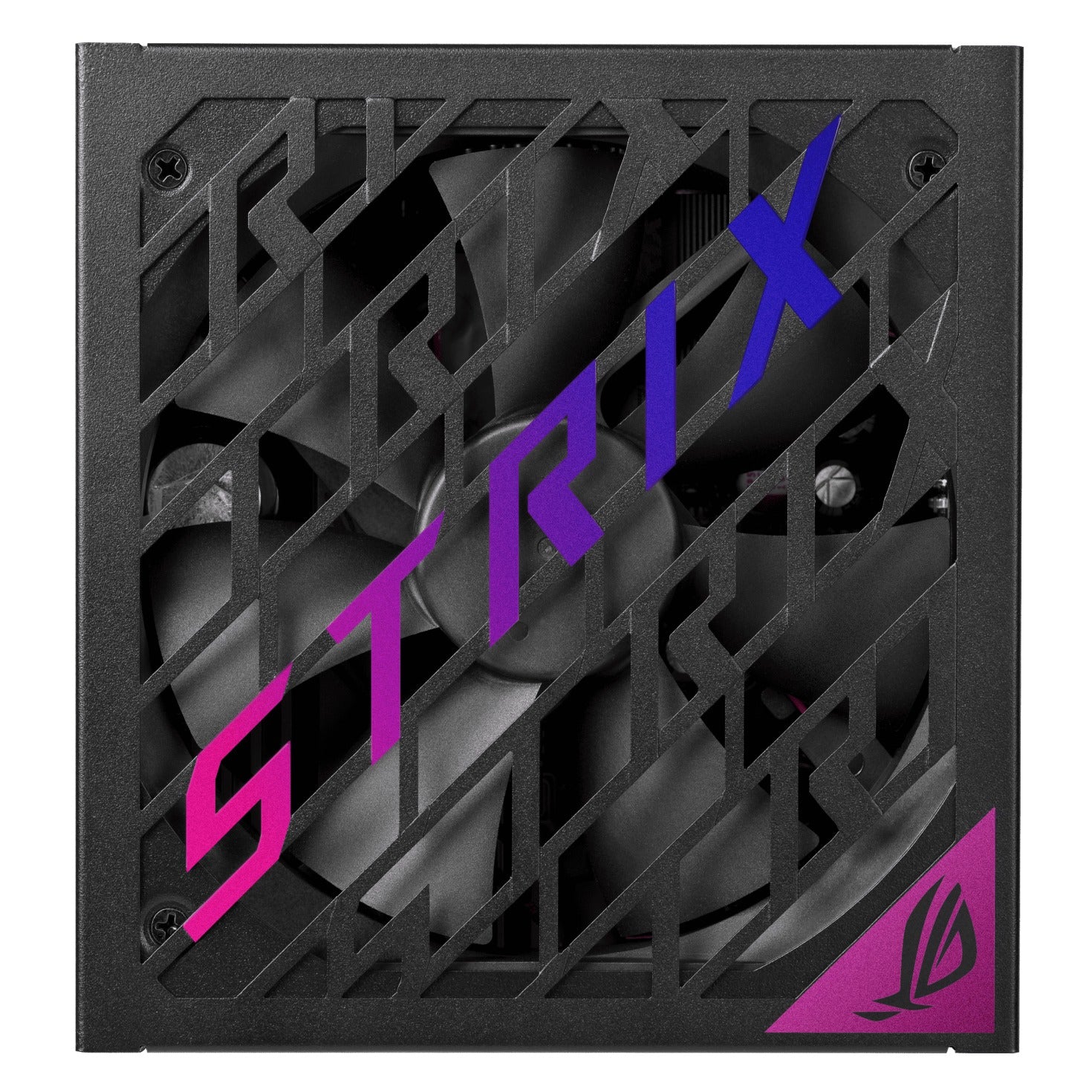

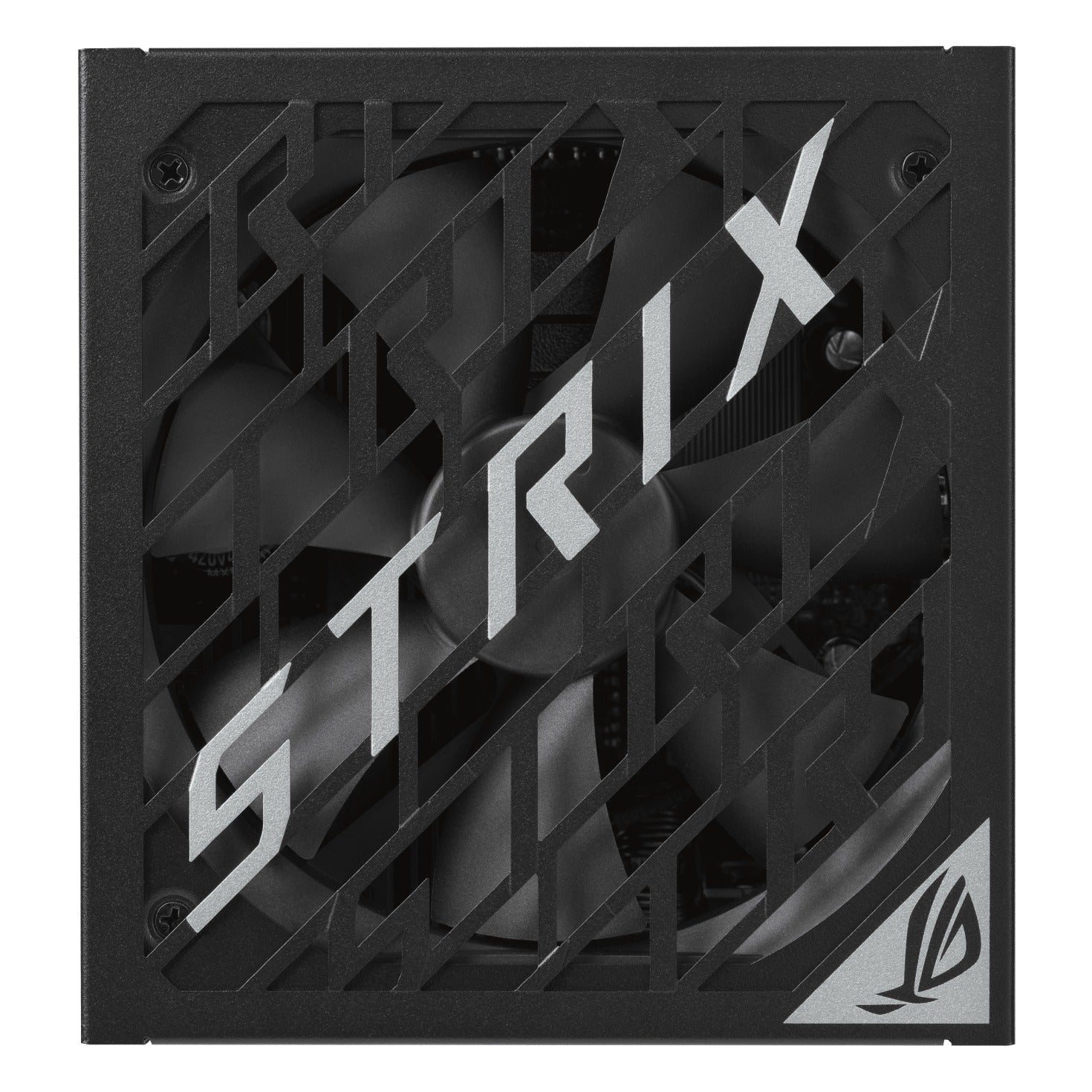

| 0dB Technology | Supported. The fan shuts off entirely when the PSU is under certain load |

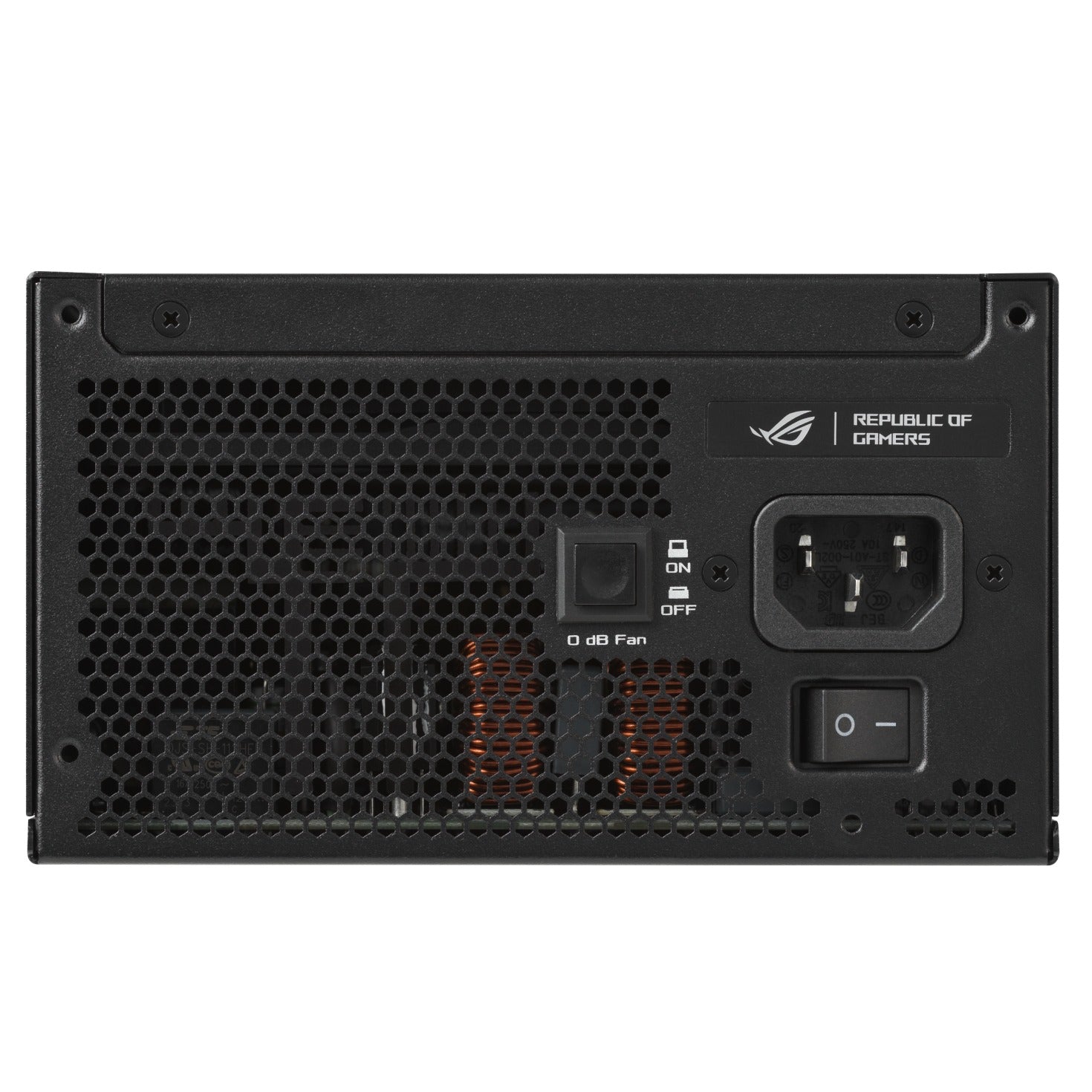

| 0dB Fan Button | Yes. When the Button is ON, the fan will only spin up when the system reaches a certain load. When the Button is OFF, the fan will continuously spin at all load levels. |
