Description

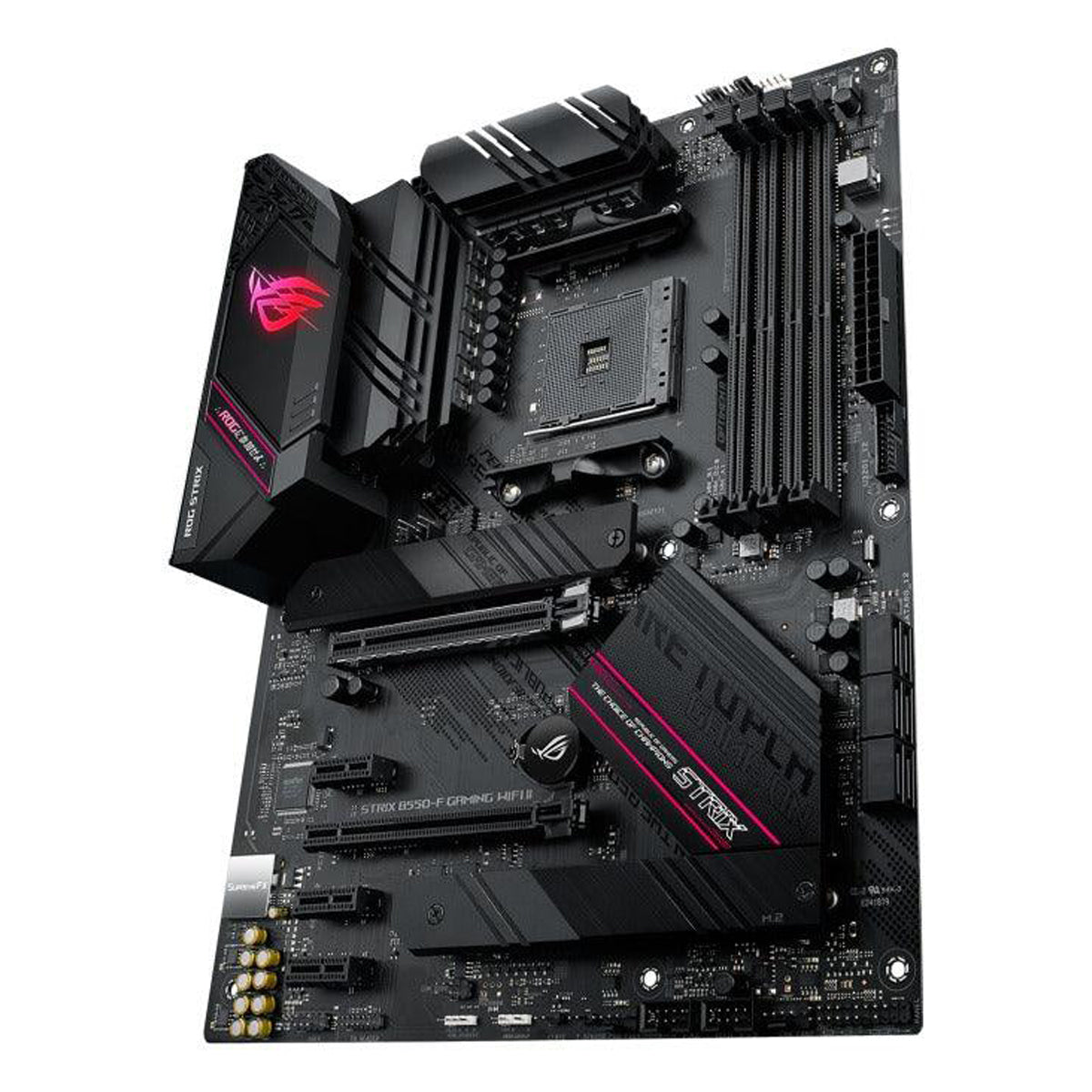

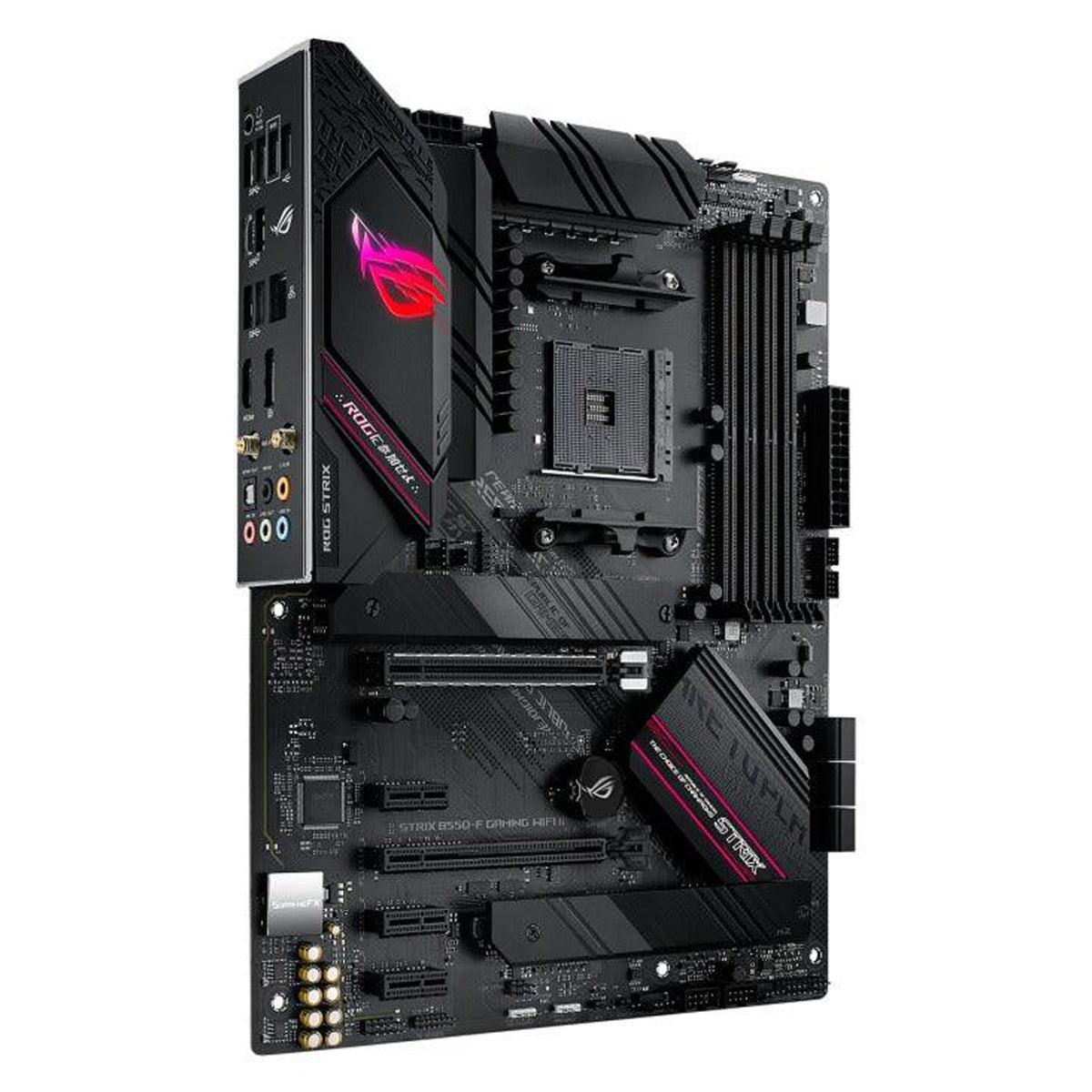

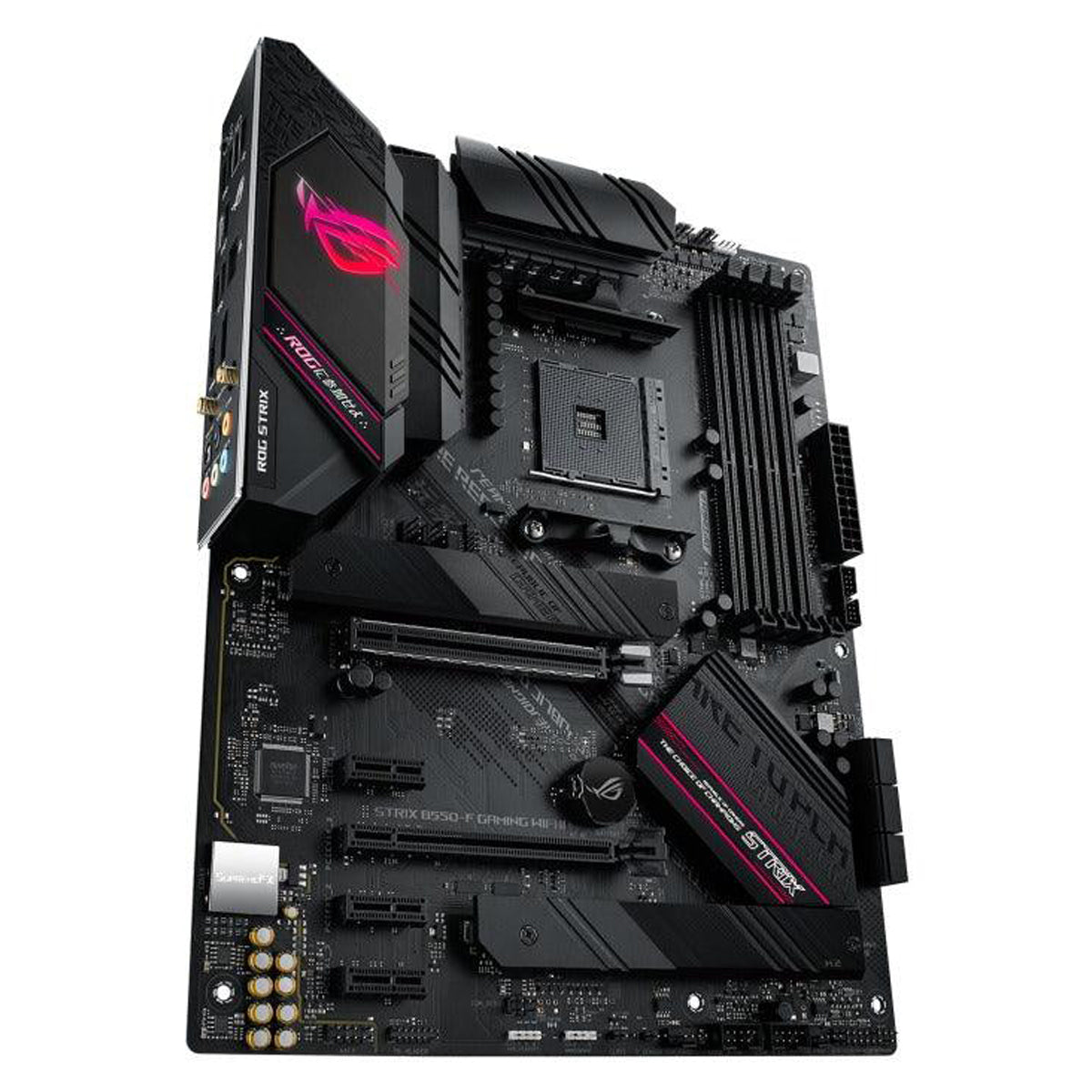

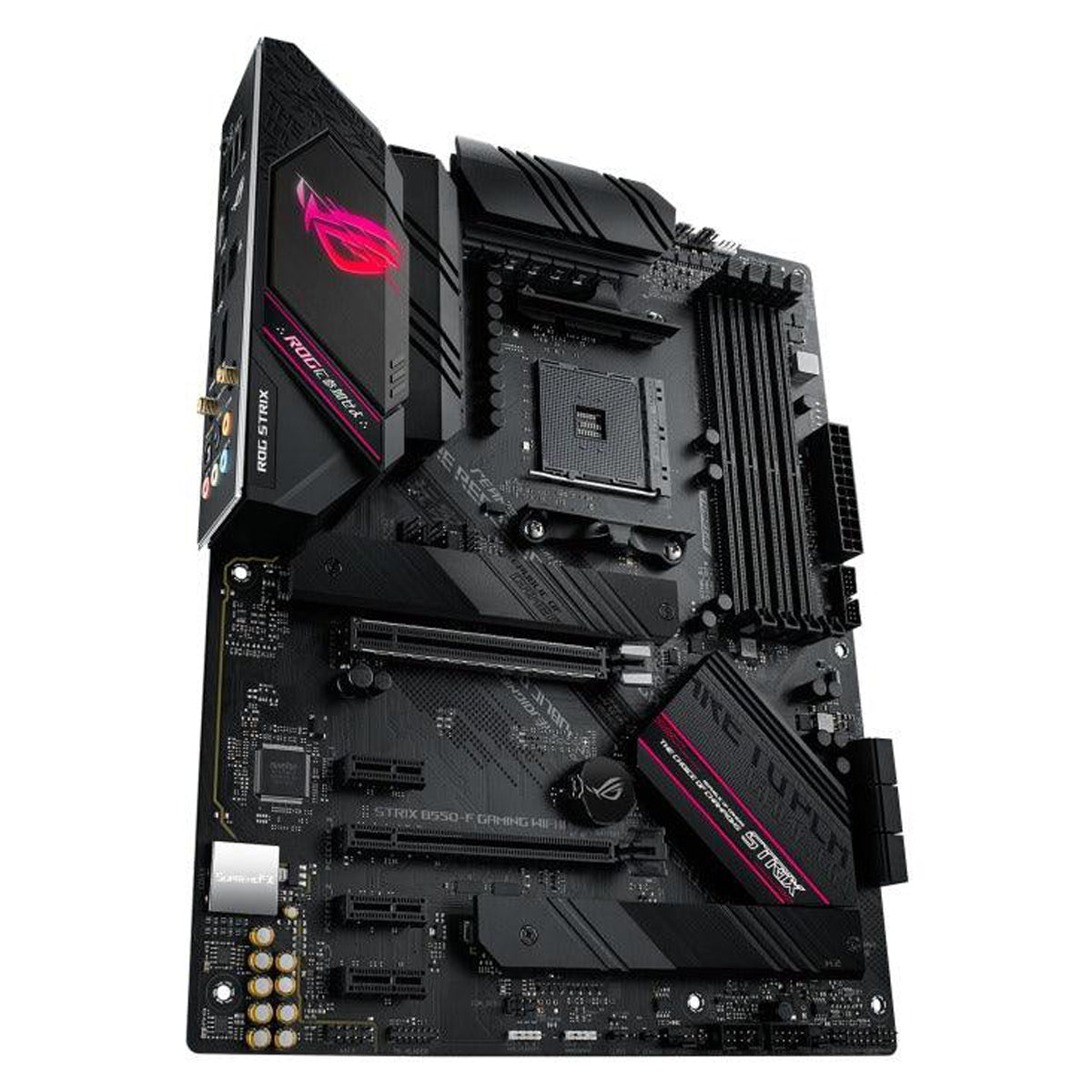

ROG STRIX B550-F GAMING WIFI II
AMD B550 Ryzen AM4 Gaming ATX motherboard with PCIe® 4.0, 12+2 teamed power stages, Intel® 2.5 Gb Ethernet, WiFi 6E, Two-Way AI Noise Cancelation, dual M.2 slots with heatsinks, SATA 6 Gbps, USB 3.2 Gen 2 and Aura Sync RGB lighting
- AM4 socket: Ready for AMD Ryzen™ 3000 and 5000 series, plus 5000 and 4000 G-series desktop processors
- Best gaming connectivity: PCIe® 4.0-ready, dual M.2 slots, USB 3.2 Gen 2 Type-C®, plus HDMI® 2.1 and DisplayPort™ 1.2 output
- Smooth networking: On-board WiFi 6E (802.11ax) and Intel® 2.5 Gb Ethernet with ASUS LANGuard
- Robust power solution: 12+2 teamed power stages with ProCool power connector, high-quality alloy chokes and durable capacitors
- Renowned software: Intuitive dashboards for UEFI BIOS and ASUS AI Networking for easy configuration
- DIY-friendly design: Includes pre-mounted I/O shield, BIOS FlashBack™, Q-LEDs and SafeSlot
- Unmatched personalization: ASUS-exclusive Aura Sync RGB lighting, including Aura RGB and addressable Gen 2 RGB headers
- Industry-leading gaming audio: Two-Way AI Noise Cancelation, SupremeFX S1220A codec, DTS® Sound Unbound™ and Sonic Studio III for immersive sound
Specifications:
CPU
- AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
- *Refer to www.asus.com for the AMD® CPU support list.
Chipset
- B550
Memory
- AMD Ryzen™ 5000 and 3000 Series Desktop Processors
- 4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4666(O.C.)/4600(O.C.)/4400(O.C.)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz, Un-buffered Memory *
- AMD Ryzen™ 5000 and 4000 G-Series Processors
- 4 x DIMM, Max. 128GB, DDR4 5100(O.C)/4866(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz, Un-buffered Memory *
- ECC Memory (ECC mode) support varies by CPU.
- * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Graphics
- 1 x DisplayPort 1.2
- 1 x HDMI® 2.1
- *Graphics specifications may vary between CPU types.
Expansion Slots
- AMD Ryzen™ 5000 and 3000 Series/ 5000 and 4000 G-Series Desktop Processors
- 1 x PCIe 4.0 x16 SafeSlot (supports x16 mode)
- AMD B550 chipset
- 1 x PCIe 3.0 x16 slot (supports x4 mode)*
- 3 x PCIe 3.0 x1 slots
- *Share bandwidth with PCIe3.0 x1_1, PCIe3.0 x1_2, PCIe3.0 x1_3
Storage
- Supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
- Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
- AMD Ryzen™ 5000 and 3000 Series/ 5000 and 4000 G-Series Desktop Processors
- M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
- AMD B550 Chipset:
- M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)*
- 6 x SATA 6Gb/s ports
- Support RAID 0, 1, 10
- * When the M.2_2 Slot is populated , SATA6G_5/6 ports will be disabled.
Ethernet
- 1 x Intel® I225-V 2.5Gb Ethernet
- ASUS LANGuard
Wireless & Bluetooth
- Wi-Fi 6E
- 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
- Supports 2.4/5/6GHz frequency band*
- Bluetooth v5.2
- * WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later.
USB
- Rear USB:Total 8 ports
- 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®)
- 4 x USB 3.2 Gen 1 ports (4 x Type-A)
- 2 x USB 2.0 ports
- Front USB:Total 6 ports
- 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio
- ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A
- - Impedance sense for front and rear headphone outputs
- - Jack-detection, Multi-streaming, Front Panel Jack-retasking
- - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- - Supports up to 32-Bit/192kHz playback*
- Audio Features
- - SupremeFX Shielding Technology
- - Dual OP Amplifiers
- - Premium audio capacitors
- - Audio cover
- * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 8-Channel audio.
Back Panel I/O Ports
- 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®)
- 4 x USB 3.2 Gen 1 ports (4 x Type-A)
- 2 x USB 2.0 ports
- 1 x Wi-Fi Module
- 1 x DisplayPort
- 1 x HDMI® port
- 1 x Intel® I225-V 2.5G Ethernet
- 1 x Optical S/PDIF out
- 5 x Audio jacks
- 1 x BIOS FlashBackTM button
Internal I/O Connectors
- Fan and cooling related
- 1 x 4-Pin AIO_Pump header
- 1 x 4-Pin CPU fan header
- 1 x 4-Pin CPU_OPT fan header
- 3 x 4-Pin Chassis fan headers
- Power related
- 1 x 24-pin main power connector
- 1 x 8-pin +12V power connector
- 1 x 4-pin +12V power connector
- Storage related
- 2 x M.2 slots (Key M)
- 6 x SATA 6Gb/s ports
- USB ports
- 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support additional 4 USB 2.0 ports
- Miscellaneous
- 1 x Addressable Gen 2 header
- 2 x AURA RGB headers
- 1 x Clear CMOS header
- 1 x Front panel audio header (AAFP)
- 1 x 20-3 pin System Panel header with Chassis intrude function
- 1 x Thermal sensor header
- 1 x Thunderbolt™ header
Special Features
- ASUS Q-Design
- - ASUS Q-DIMM
- - ASUS Q-LED (DRAM [yellow],CPU [red], VGA [white], Boot Device [yellow green)
- - ASUS Q-Slot
- ASUS Thermal Solution
- - M.2 heatsink
- AURA Sync
- - AURA RGB headers
- - Addressable Gen 2 RGB headers
- ASUS EZ DIY
- - BIOS FlashBack™ button
- - BIOS FlashBack™ LED
- - Clear CMOS header
- - ProCool
- - Pre-mounted I/O shield
- - SafeSlot
Software Features
- ROG Exclusive Software
- - RAMCache III
- - ROG CPU-Z
- - GameFirst VI
- - Sonic Studio III + Sonic Studio Virtual Mixer
- - Sonic Radar III
- - DTS® Sound Unbound
- - Overwolf
- - Anti-virus software
- ASUS Exclusive Software Features
- Armoury Crate
- - AIDA64 Extreme (60 days free trial)
- - Aura Creator
- - Aura Sync
- - Two-Way AI Noise Cancelation
- AI Suite 3:
- - Performance And Power Saving Utility
- EPU
- DIGI+ VRM
- Fan Xpert 4
- TurboV EVO
- - EZ update
- WinRAR
- DAEMON Tools
- Norton Anti-virus software (Free Trial version)
- UEFI BIOS
- ASUS EZ DIY
- - ASUS CrashFree BIOS 3
- - ASUS EZ Flash 3
- - ASUS UEFI BIOS EZ Mode
BIOS
- 256 Mb Flash ROM, UEFI AMI BIOS
Manageability
- WOL by PME, PXE
Accessories
- Cables
- 1 x Addressable RGB extension cable
- 4 x SATA 6Gb/s cables
- Miscellaneous
- 1 x ASUS Wi-Fi moving antennas
- 1 x Cable ties pack
- 1 x M.2 Rubber Package
- 1 x M.2 SSD screw package
- 1 x ROG key chain
- 1 x ROG Strix stickers
- 1 x ROG Strix thank you card
- Installation Media
- 1 x Support DVD
- Documentation
- 1 x User manual
Form Factor
- 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
