Description

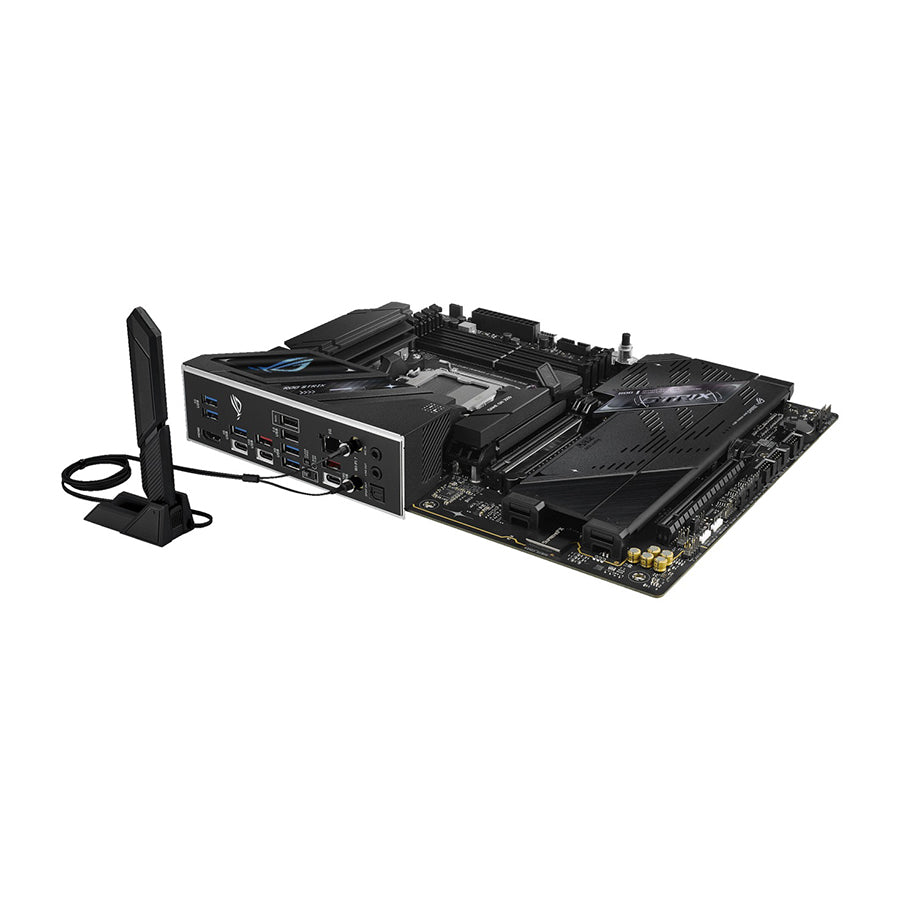

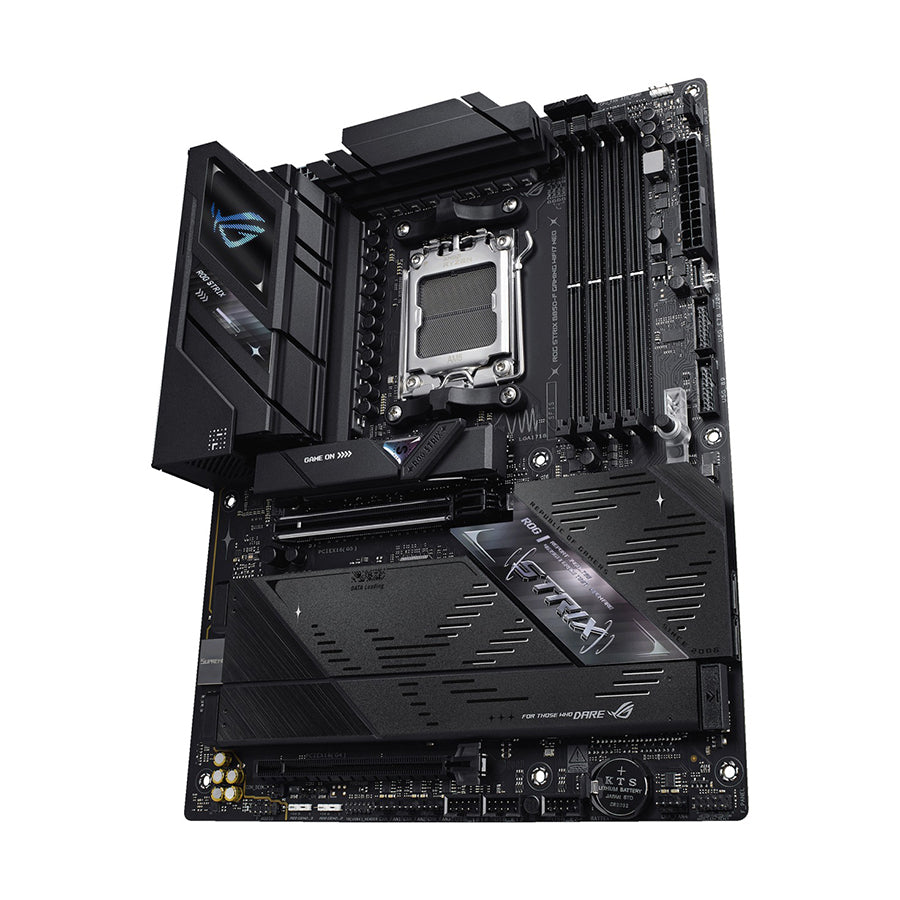

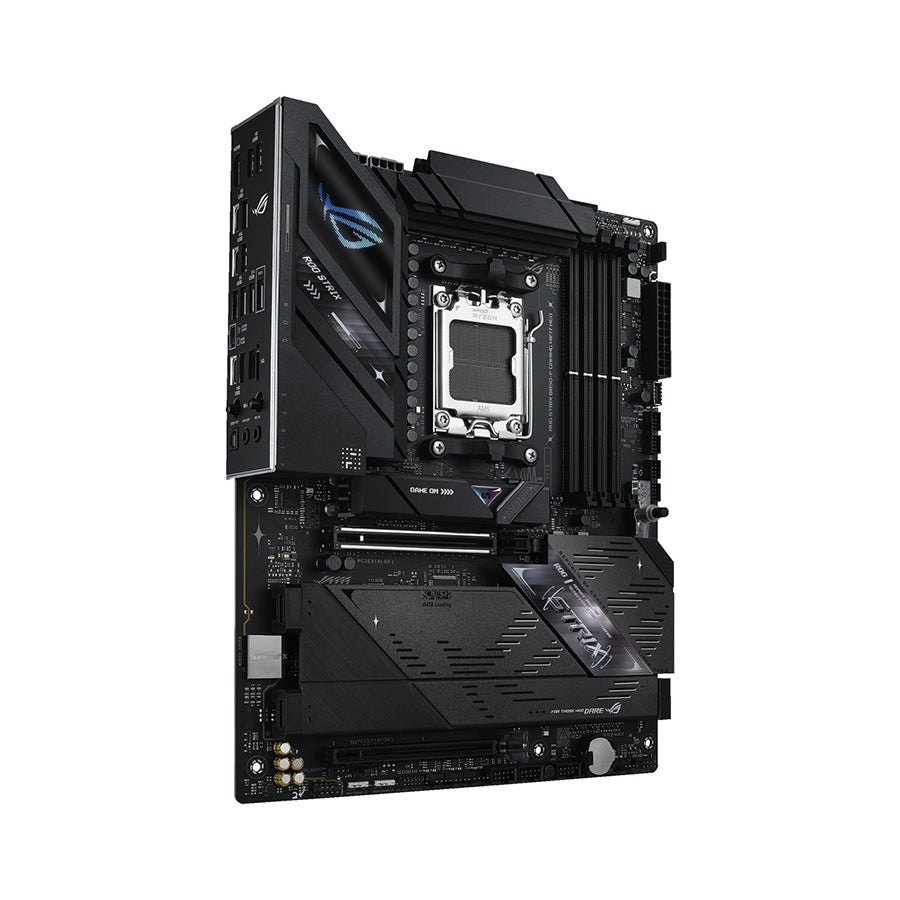

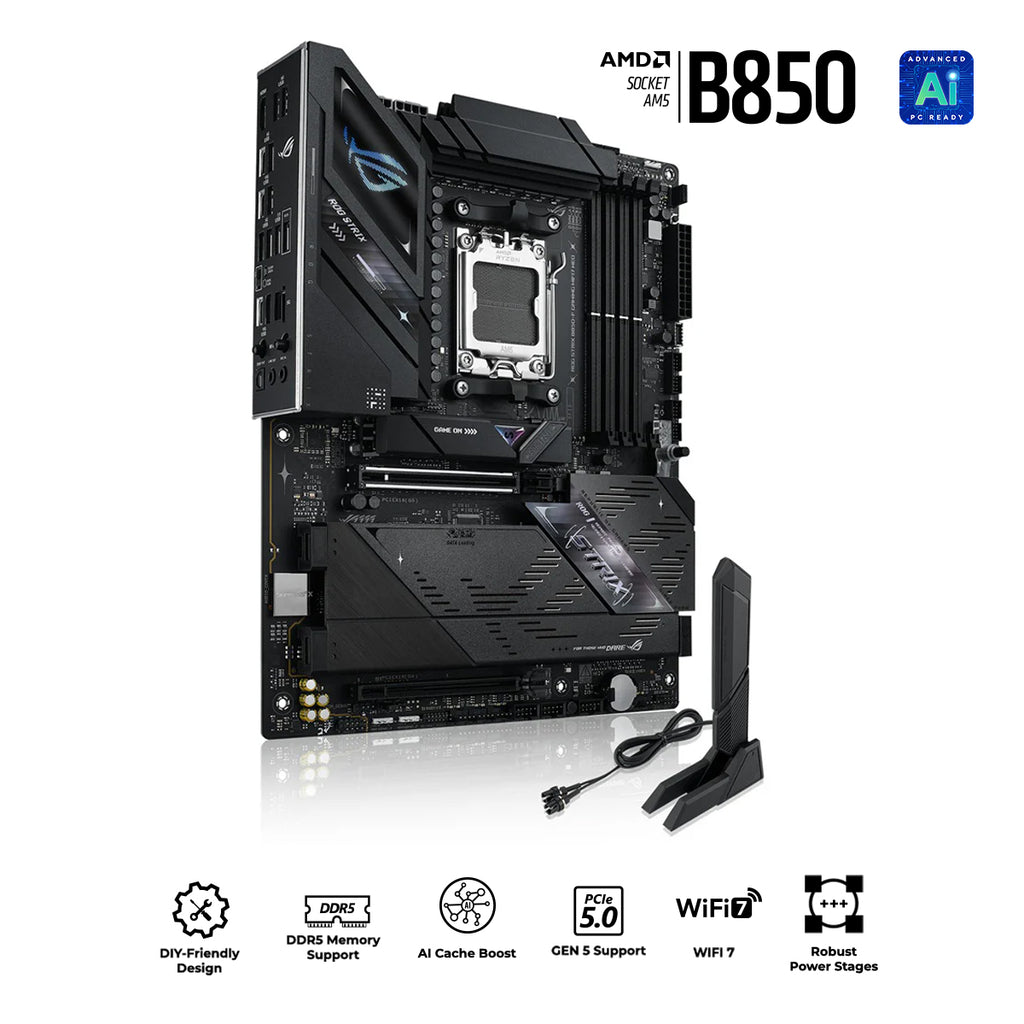

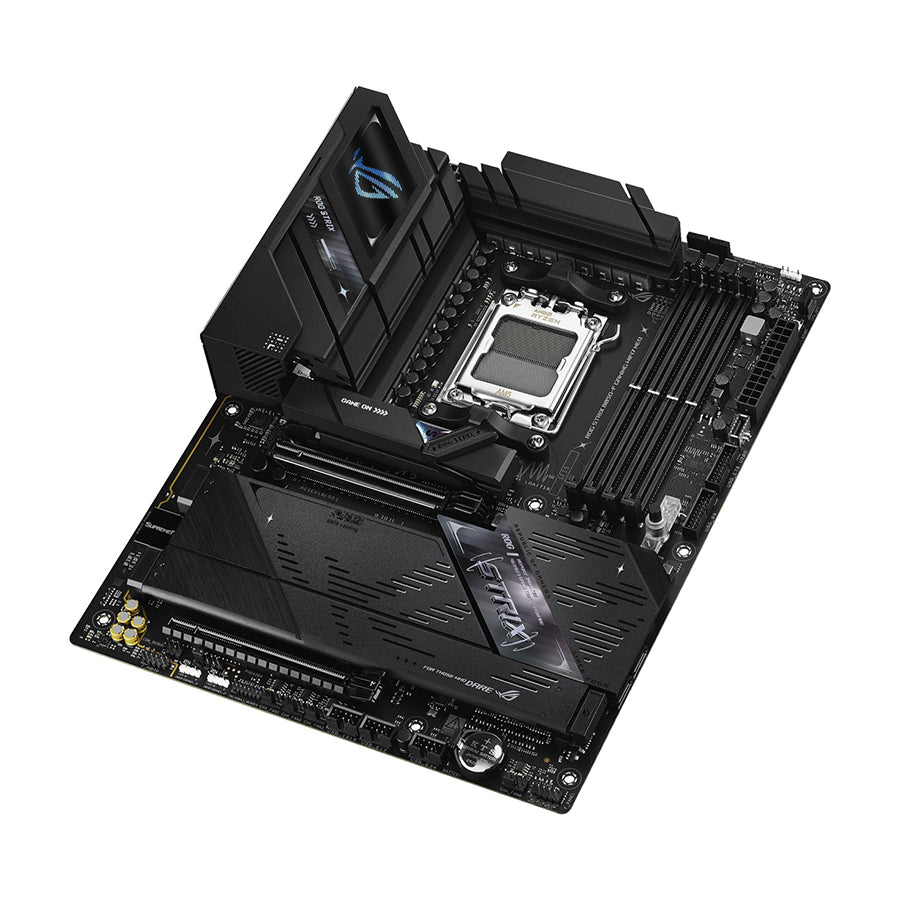

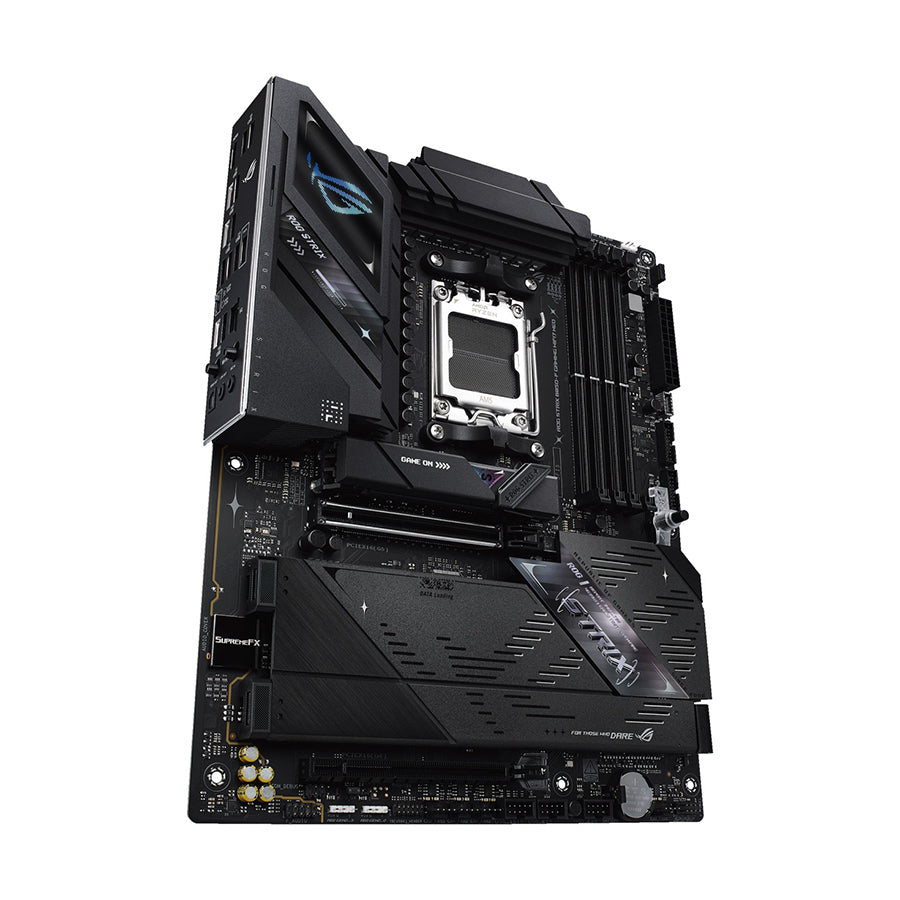

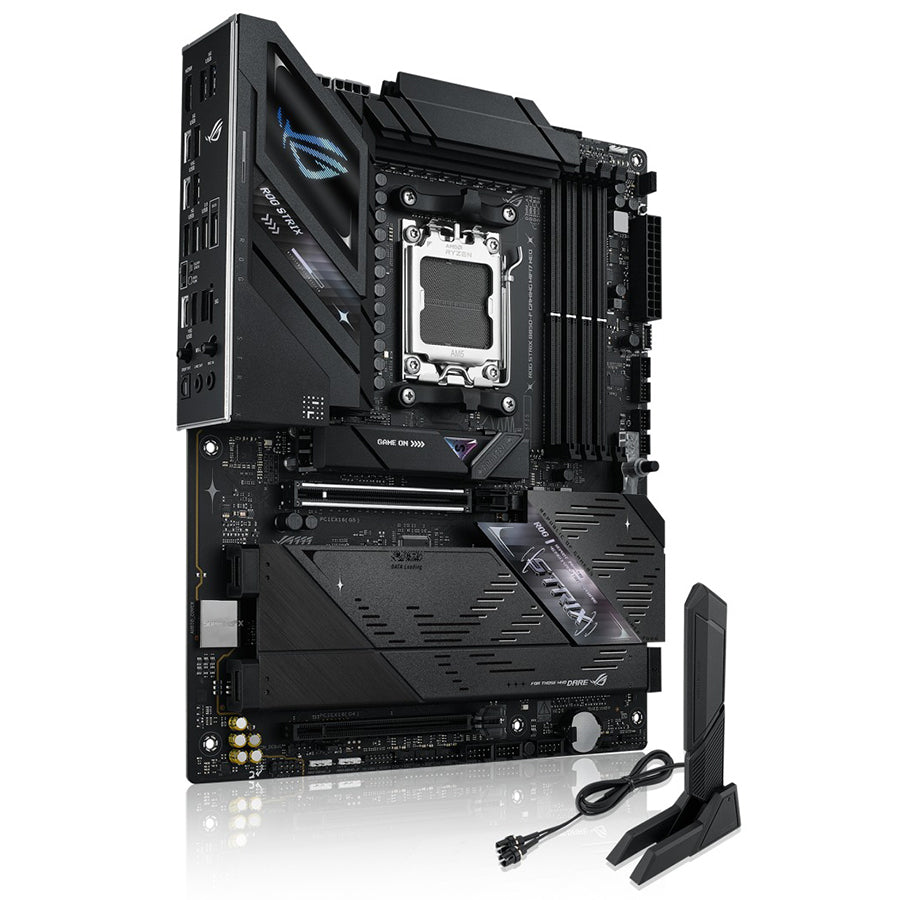

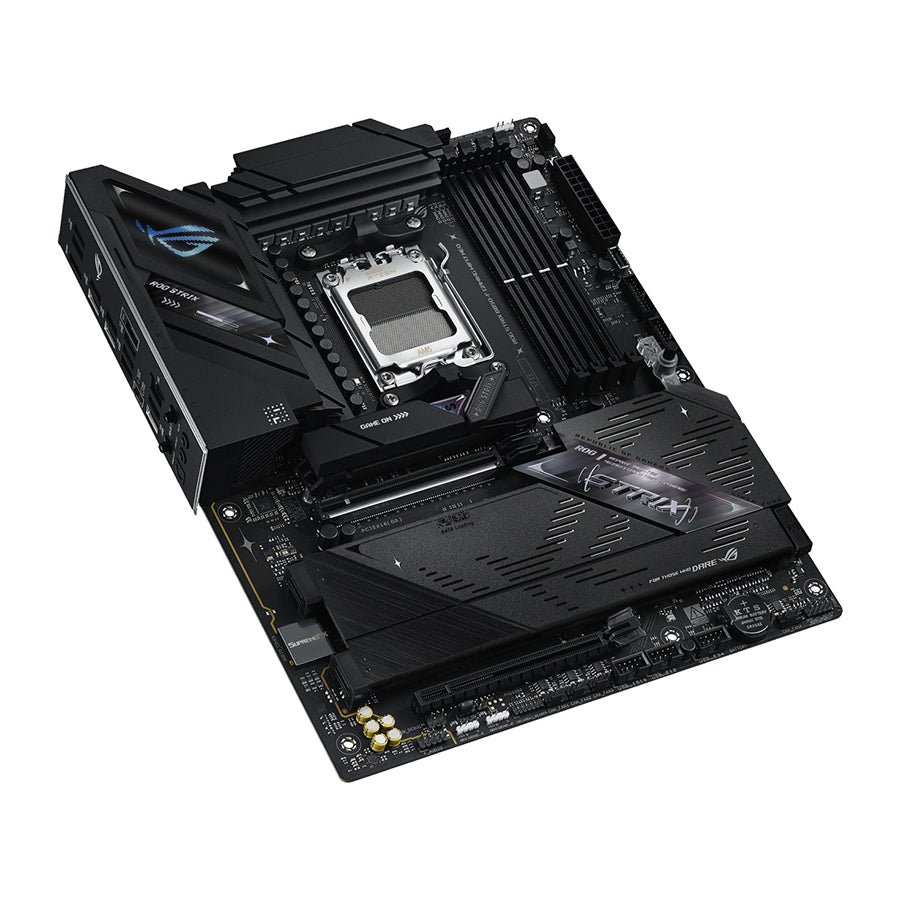

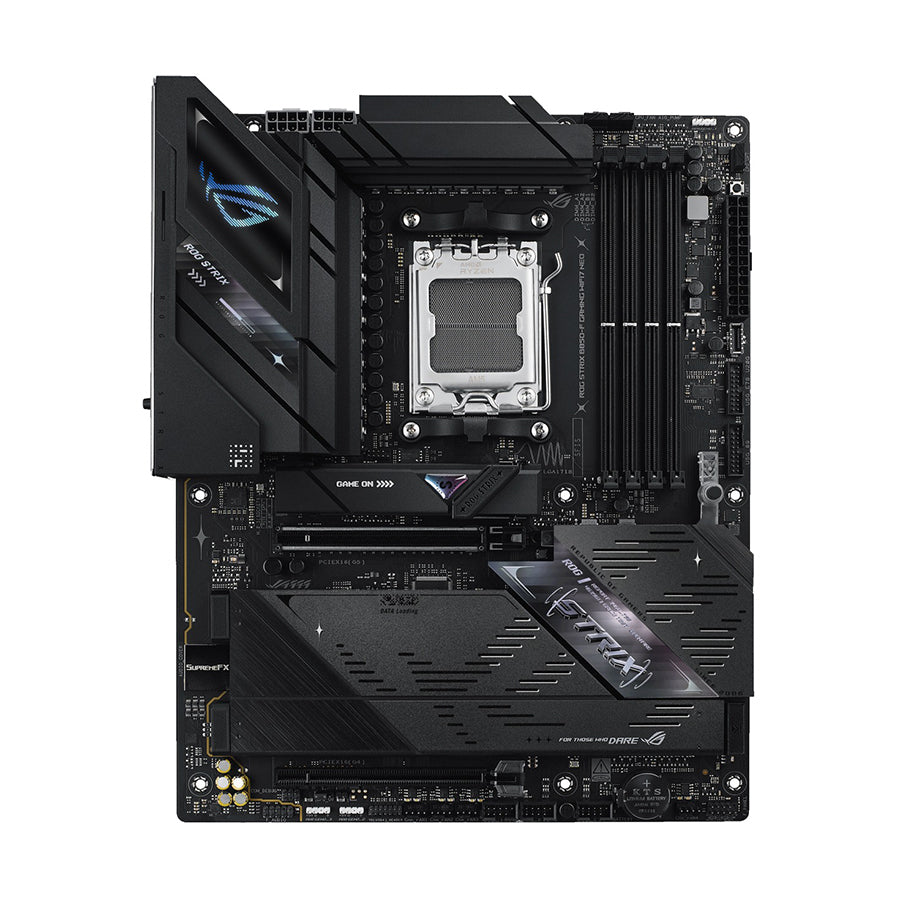

The ROG STRIX B850-F GAMING WIFI7 Neo is engineered to dominate. Built to unleash the full potential of AMD Ryzen™ 9000, 8000, and 7000 Series processors, this motherboard combines advanced power design with AI technologies to ensure peak performance. It delivers the uncompromised speed and stability essential for elite gaming and the demands of next-gen AI PC applications.
Specifications:
| Model | ROG STRIX B850-F GAMING WIFI7 NEO |
| CPU Support | AMD Socket AM5 for Ryzen™ 9000, 8000, & 7000 Series |
| Chipset | AMD B850 |
| Memory | 4 x DIMM, Max. 256GB, DDR5 (Supports up to 9000+MT/s OC) |
| Graphics | 1 x HDMI™ 2.1 (Supports 4K@60Hz) |
| Expansion Slots | 1 x PCIe 5.0 x16 (Ryzen™ 9000/7000) 1 x PCIe 4.0 x16 (supports x4 mode) |
| Storage | 4 x M.2 slots (Up to PCIe 5.0 x4 support depending on CPU) 2 x SATA 6Gb/s ports |
| Ethernet | 1 x Realtek® 5Gb Ethernet (ASUS LANGuard) |
| Wireless & Bluetooth | Wi-Fi 7 (2x2, 160MHz), Bluetooth® v5.4 |

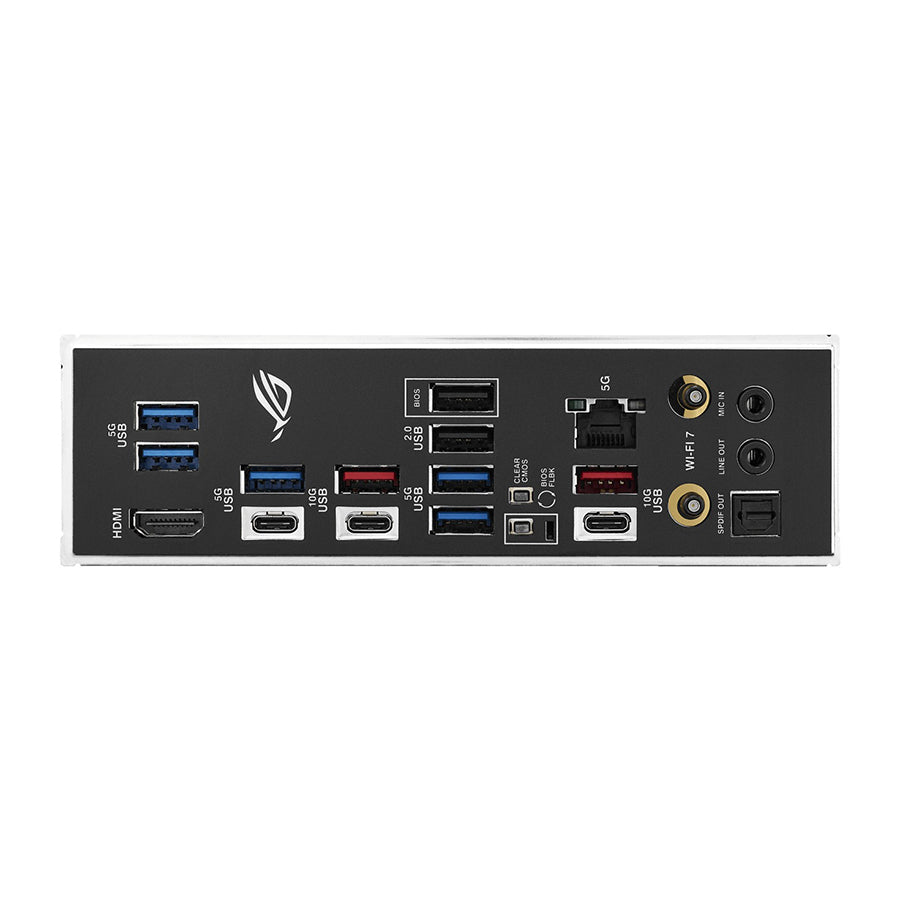

| Rear USB Ports | 4 x USB 10Gbps (2 x Type-A + 2 x Type-C) 6 x USB 5Gbps (5 x Type-A + 1 x Type-C) 2 x USB 2.0 (Type-A) |
| Audio | ROG SupremeFX 7.1 (ALC4080) with Savitech SV3H712 AMP |
| Internal I/O Headers | 1 x USB 20Gbps (Type-C), 2 x USB 5Gbps, 3 x USB 2.0, 3 x Addressable Gen2, 1 x Thunderbolt™ (USB4®) |
| Special Features | Q-Release (PCIe & M.2), Q-Latch, BIOS FlashBack™, Clear CMOS, Wi-Fi Q-Antenna |
| Form Factor | ATX (12 inch x 9.6 inch) |
