Description

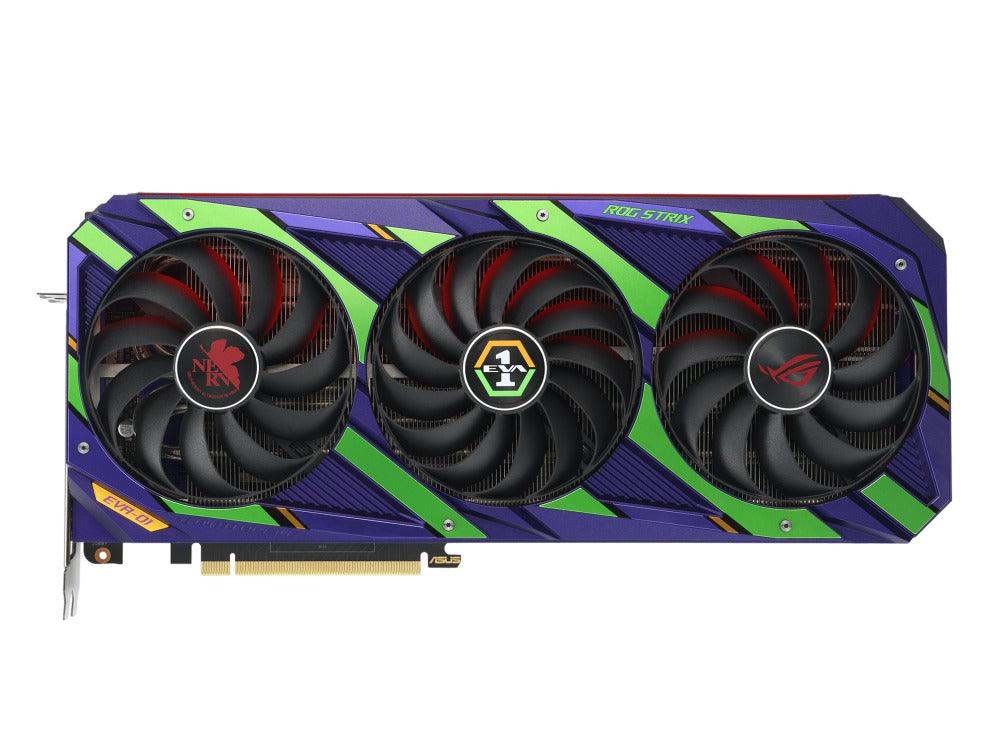

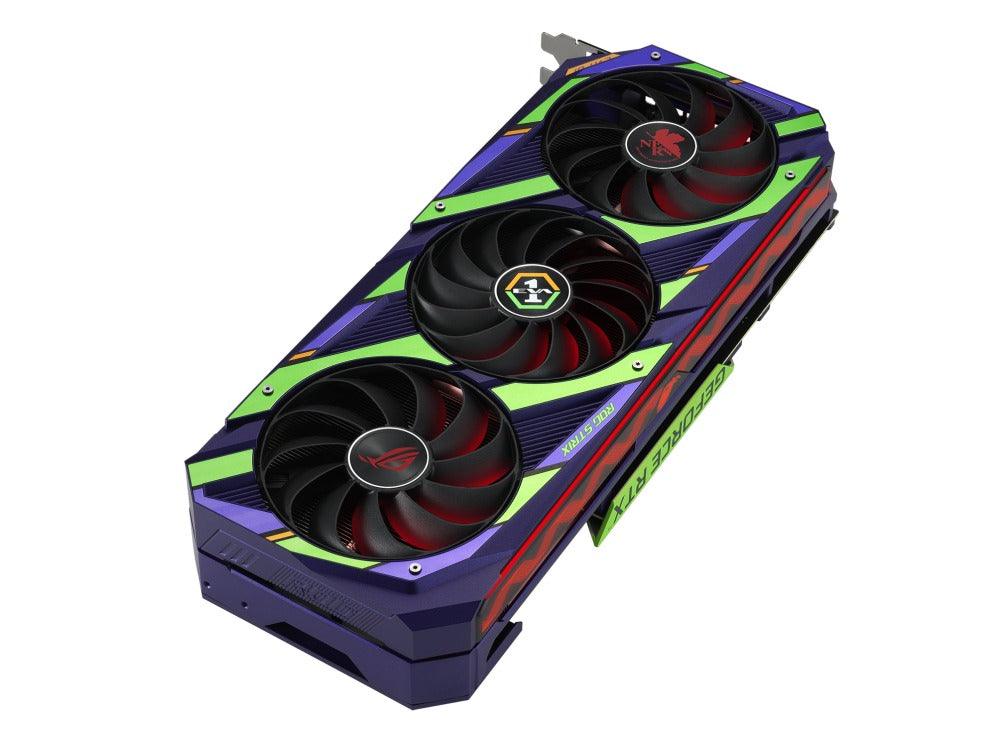

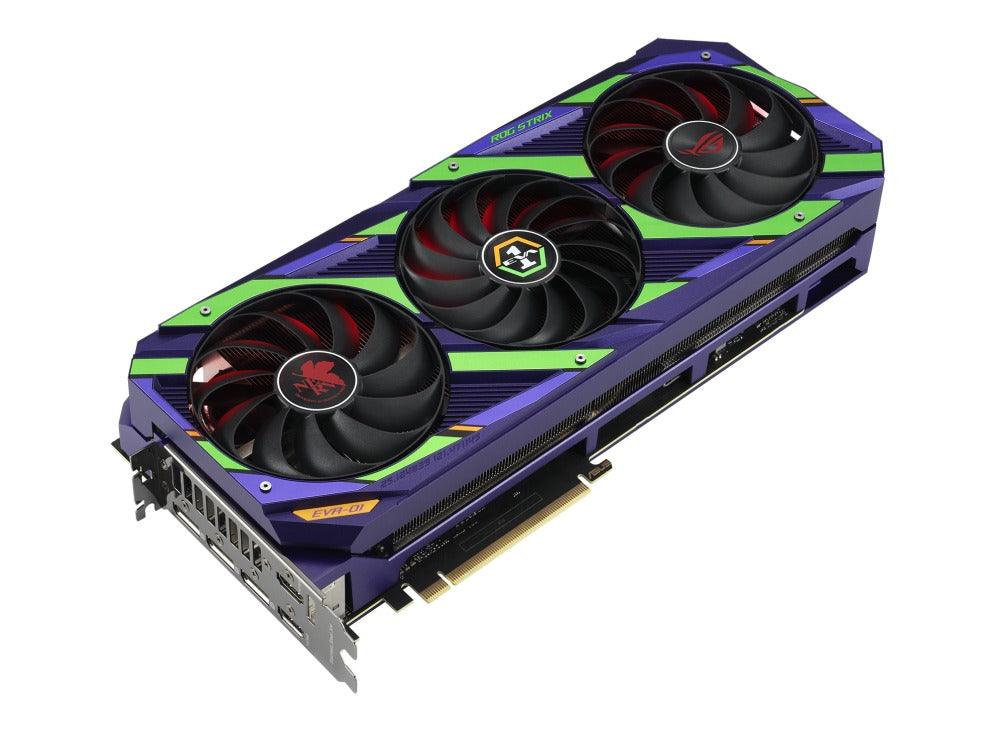

Axial-tech Upgrades
Our Axial-tech fan design has been optimized for a new, larger heatsink that features more fins and surface area than last gen. The blade count has been increased on all three fans, with 13 on the center fan and 11 on the auxiliary fans. The barrier ring on the side fans has been slimmed down to allow for more lateral intake and to provide better airflow through the cooling array. The center fan’s extra blades and full-height ring provide boosted static pressure to blast air directly onto the heat spreader.
2.9-slot Design
The heat spreader draws heat up into heatpipes that carry it through a fin stack that fills a large 2.9-slot footprint. Increasing the heatsink size compared to the last generation provides more thermal headroom to account for the new high-performance chipset.
SPECIFICATION
| Graphic Engine | NVIDIA® GeForce RTX™ 3080 |
| Bus Standard | PCI Express 4.0 |
| OpenGL | OpenGL庐4.6 |
| Video Memory | 12GB GDDR6X |
| Engine Clock | OC mode: 1890 MHz(Boost Clock) Gaming mode: 1860 MHz(Boost Clock) |
| CUDA Core | 8960 |
| Memory Speed | 19 Gbps |
| Memory Interface | 384-bit |
| Resolution | Digital Max Resolution 7680 x 4320 |
| Interface | Yes x 2 (Native HDMI 2.1) |
| Yes x 3 (Native DisplayPort 1.4a) | |
| HDCP Support Yes (2.3) | |
| Software | ASUS GPU Tweak II & GeForce Game Ready Driver & Studio Driver: please download all software from the support site. |
| Dimensions | 318.5 *140.1 *57.78 mm 12.53 *5.51 *2.27 inch |
| AURA SYNC | ARGB |
