Description

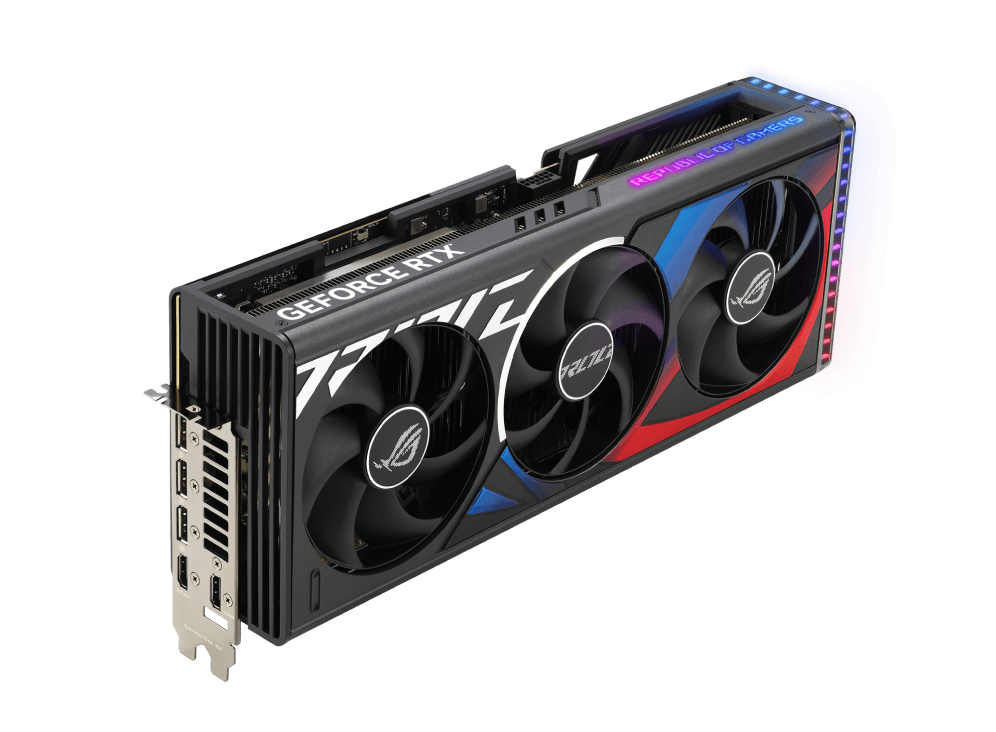

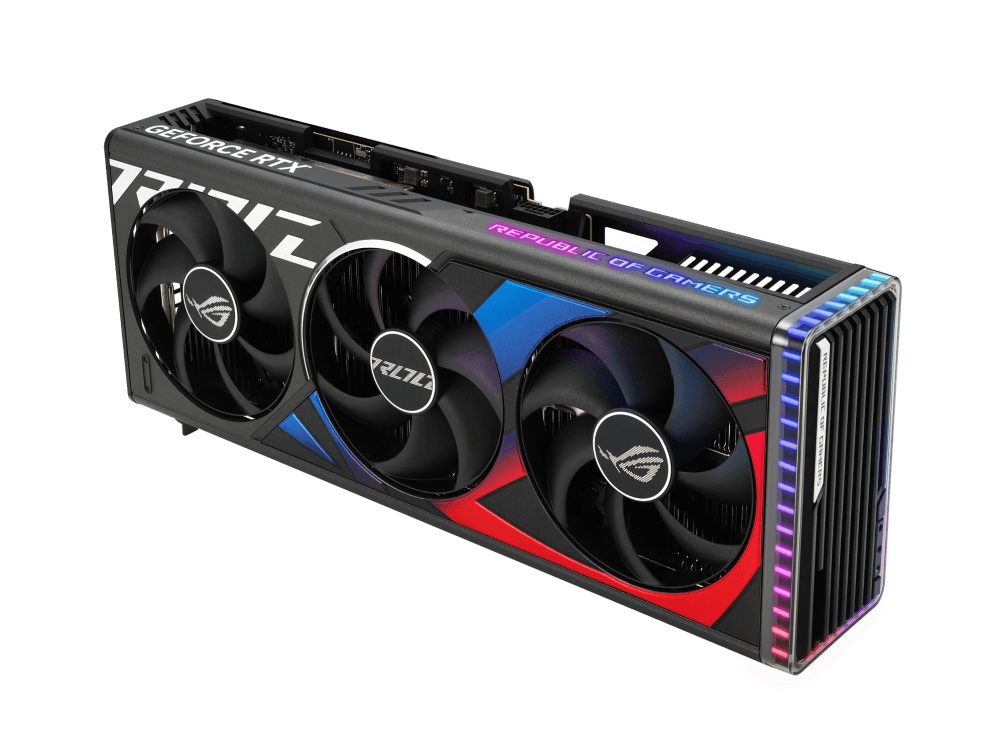

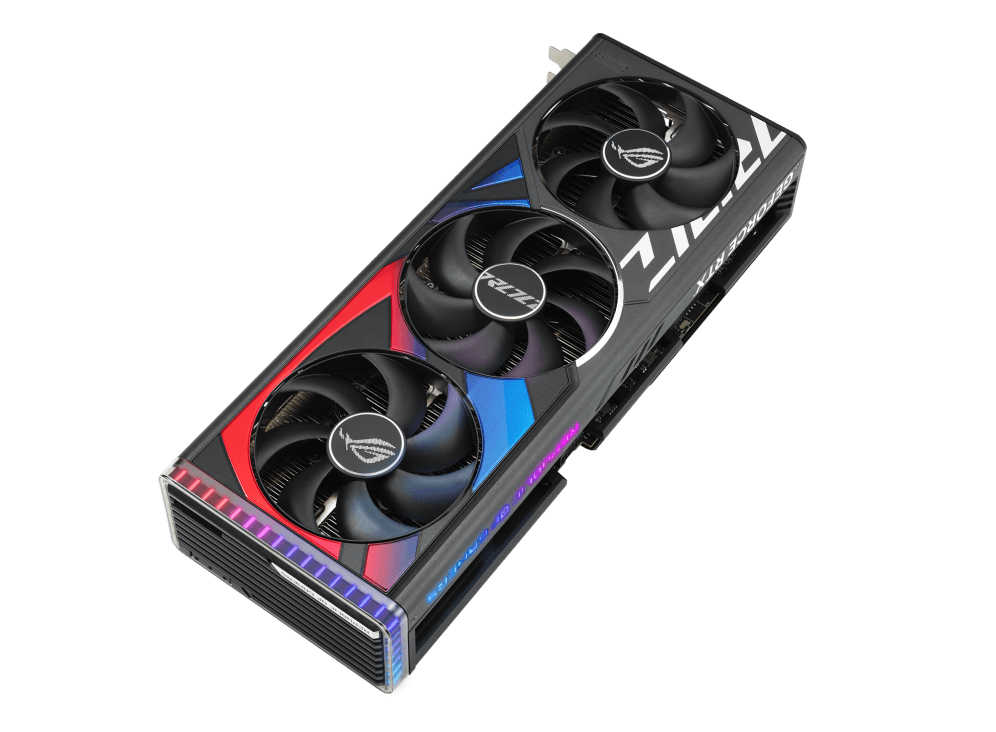

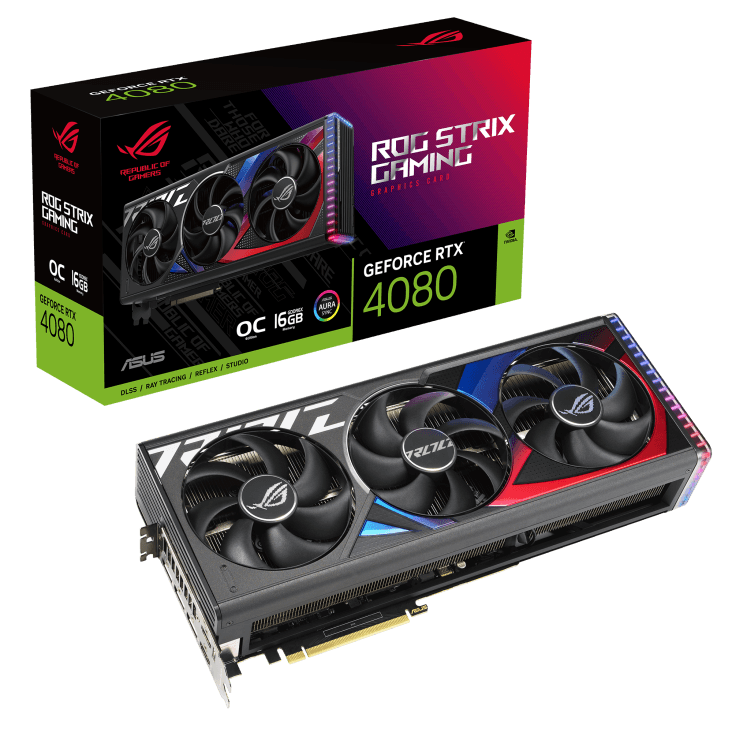

ROG Strix GeForce RTX™ 4080 16GB GDDR6X OC Edition
ROG Strix GeForce RTX™ 4080 16GB GDDR6X OC Edition buffed-up design with chart-topping thermal performance.
- NVIDIA Ada Lovelace Streaming Multiprocessors: Up to 2x performance and power efficiency
- 4th Generation Tensor Cores: Up to 2X AI performance
- 3rd Generation RT Cores: Up to 2X ray tracing performance

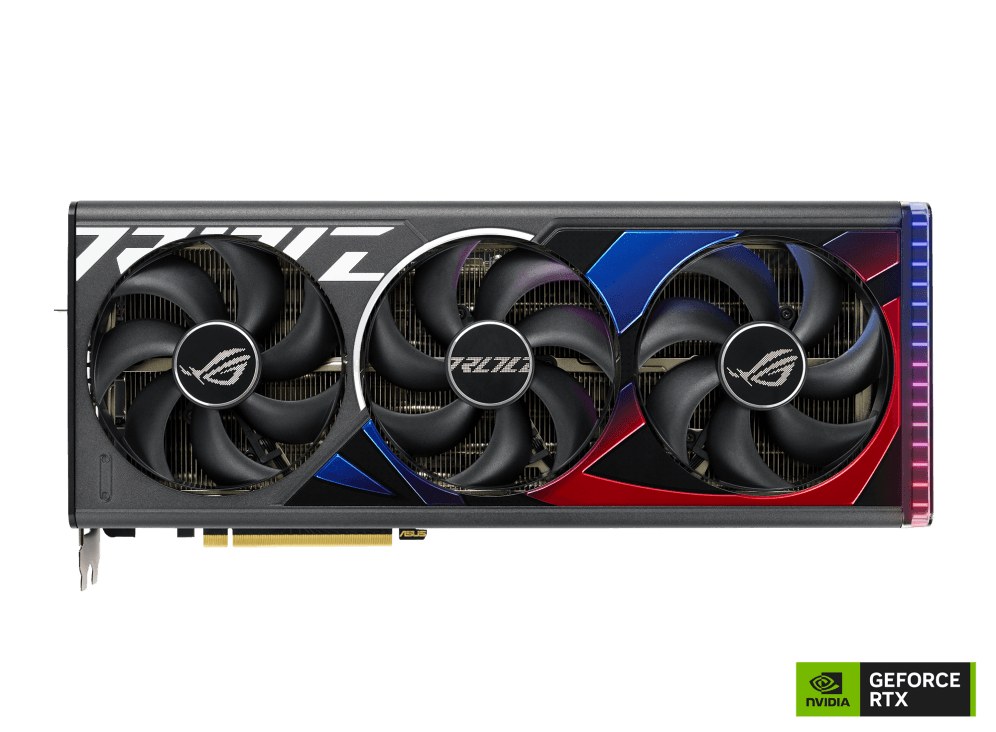

- Axial-tech fans scaled up for 23% more airflow
- New patented vapor chamber with milled heatspreader for lower GPU temps

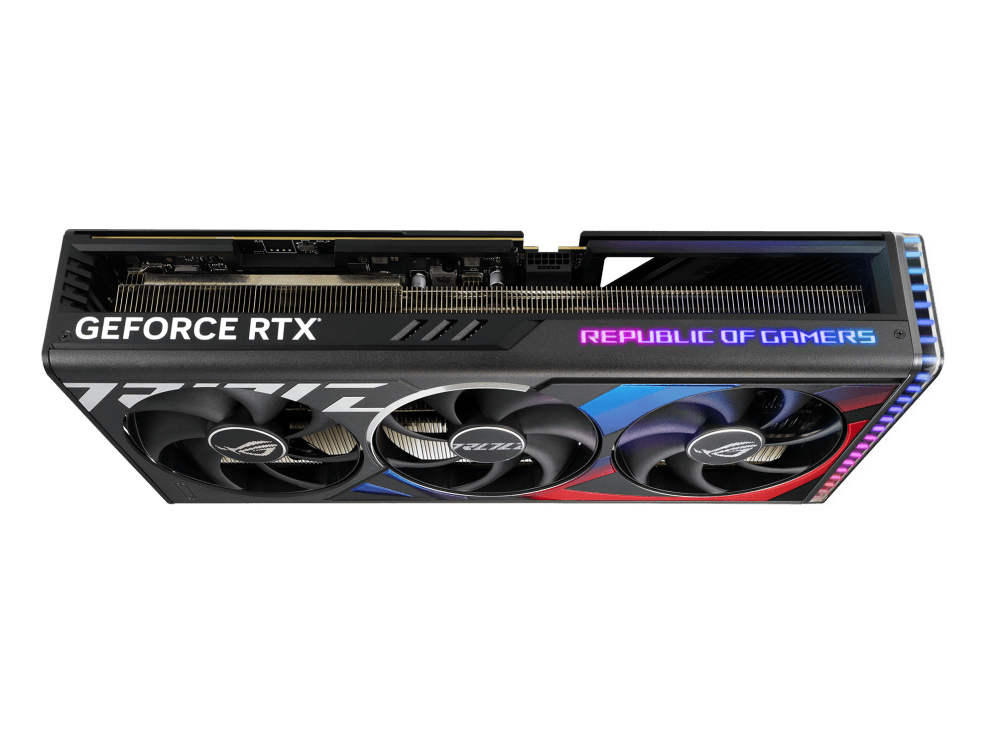

- 3.5-slot design: massive fin array optimized for airflow from the three Axial-tech fans

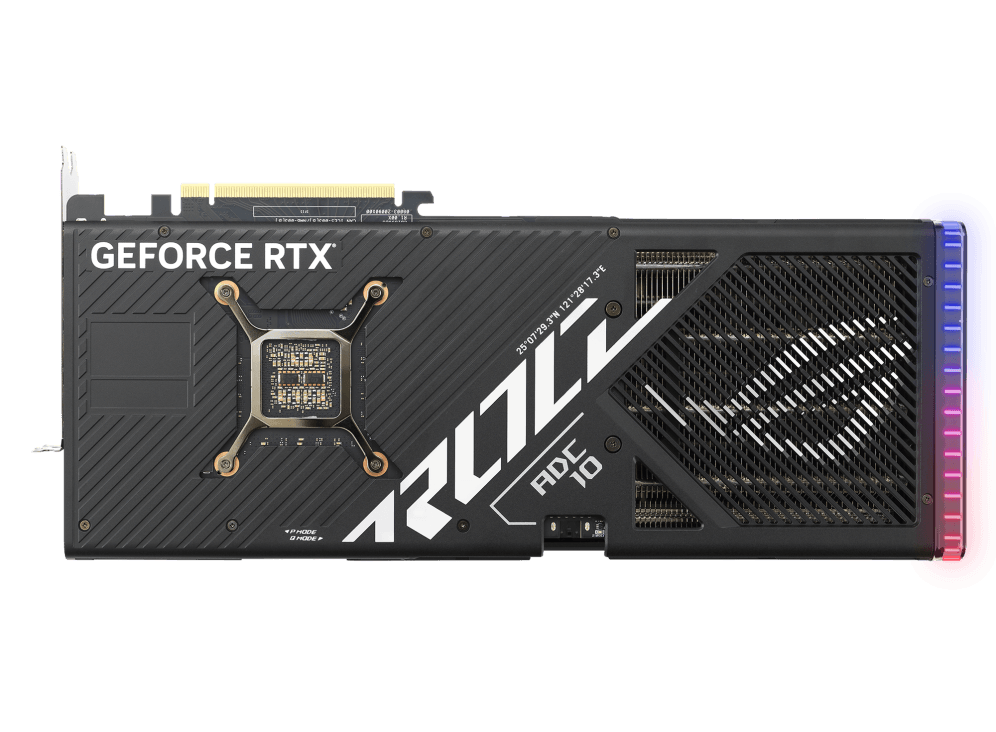

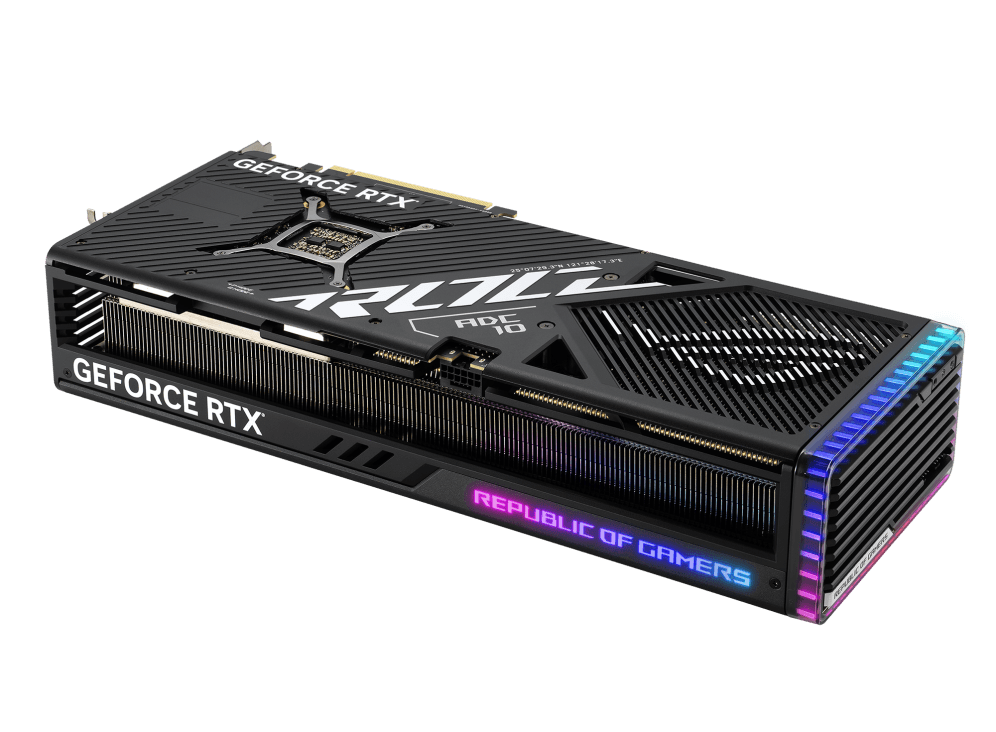

- Diecast shroud, frame, and backplate add rigidity and are vented to further maximize airflow and heat dissipation
- Digital power control with high-current power stages and 15K capacitors to fuel maximum performance
- Auto-Extreme precision automated manufacturing for higher reliability
- GPU Tweak III software provides intuitive performance tweaking, thermal controls, and system monitoring
FanConnect II
Hook up
Two PWM FanConnect headers provide additional DIY flexibility. Chassis fans can be directly attached to the card and tuned with a curve that is based on CPU and GPU temperatures, delivering extra intake or exhaust for demanding 3D tasks.
Reinforcements
Additional Perks

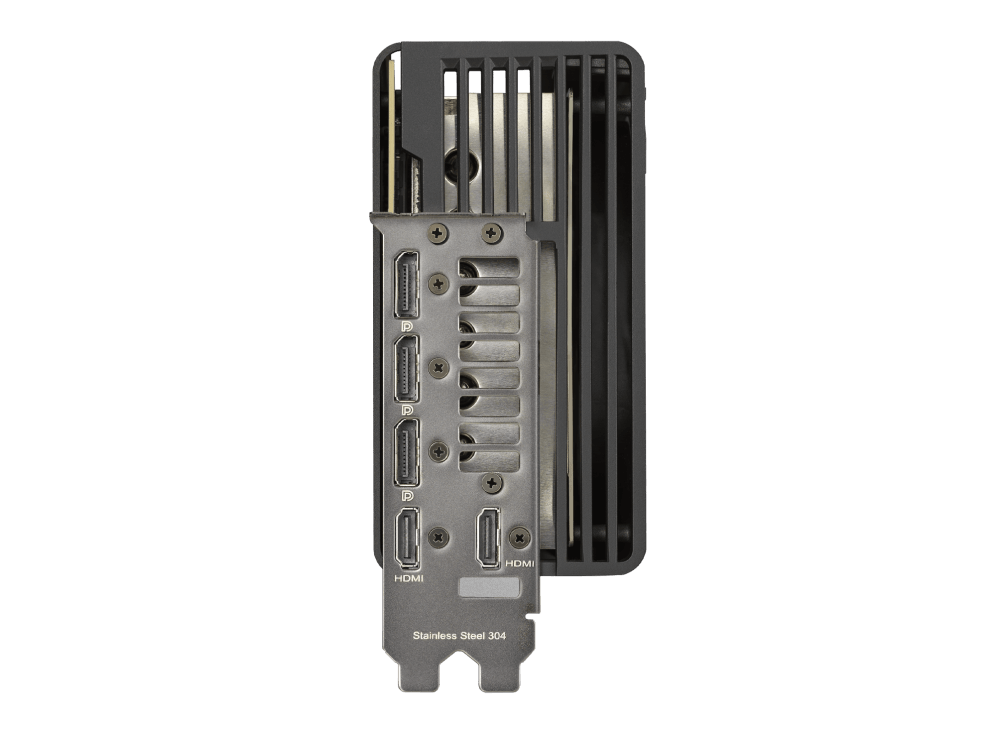

A GPU bracket provides extra stability to the critical connection between die and heat spreader. The rear I/O bracket is made from stainless steel to prevent corrosion in humid climates and provide a more resilient mount. A conveniently placed Dual Bios switch allows quick selection between “performance” and “quiet” speed profiles for the Axial-tech fans.
Auto-Extreme Technology
Reliability Boost
Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.

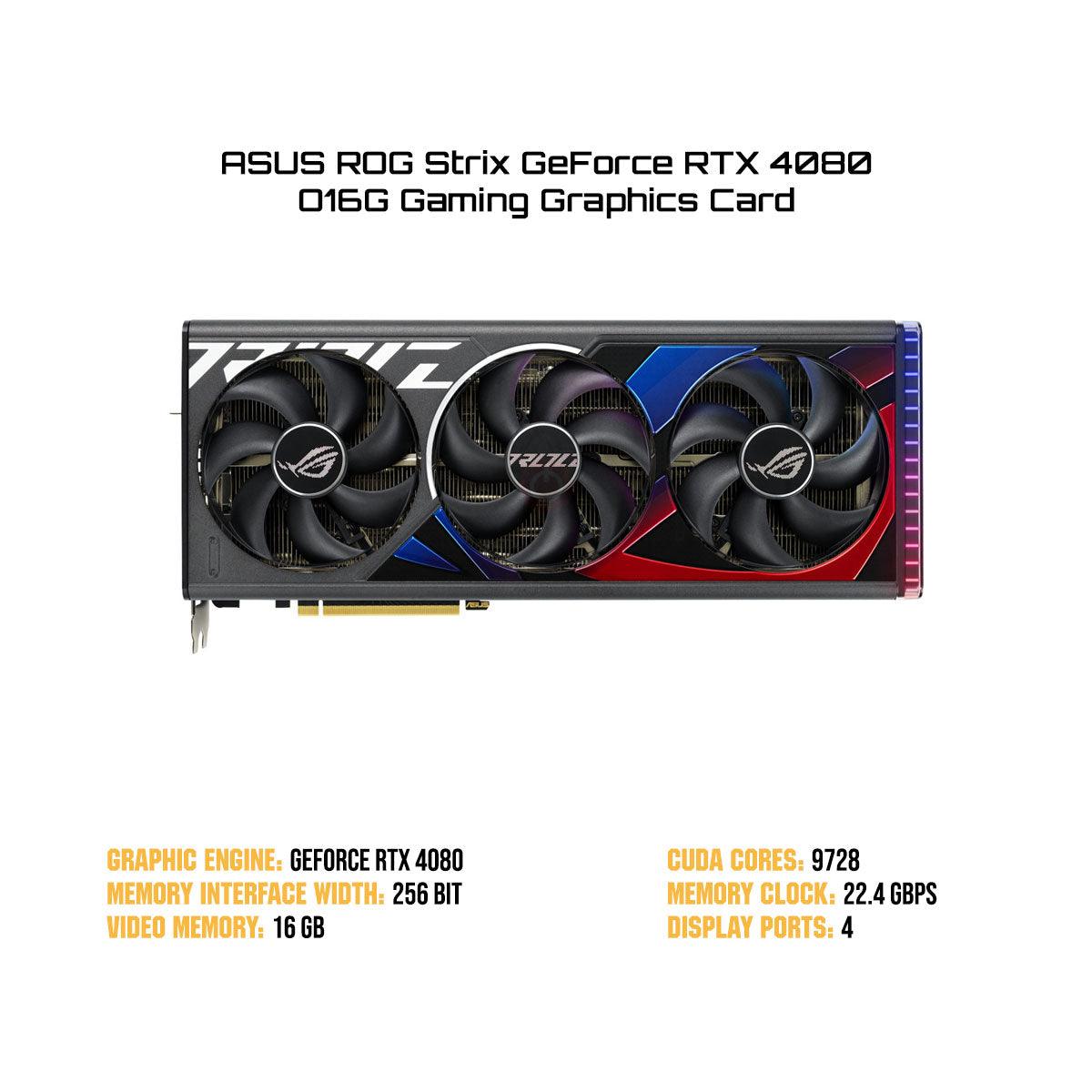

ROG Strix GeForce RTX™ 4080 16GB GDDR6X
| Graphic Engine | NVIDIA® GeForce RTX® 4080 |
| Bus Standard | PCI Express 4.0 |
| OpenGL | OpenGL®4.6 |
| Video Memory | 16GB GDDR6X |
| Engine Clock | OC mode: 2535 MHz Default mode: 2505 MHz (Boost Clock) |
| CUDA Core | 9728 |
| Memory Speed | 22.4 Gbps |
| Memory Interface | 256-bit |
| Resolution | Digital Max Resolution 7680 x 4320 |
| Interface | Yes x 2 (Native HDMI 2.1a) Yes x 3 (Native DisplayPort 1.4a) HDCP Support Yes (2.3) |
| Maximum Display Support | 4 |
| NVlink/ Crossfire Support | No |

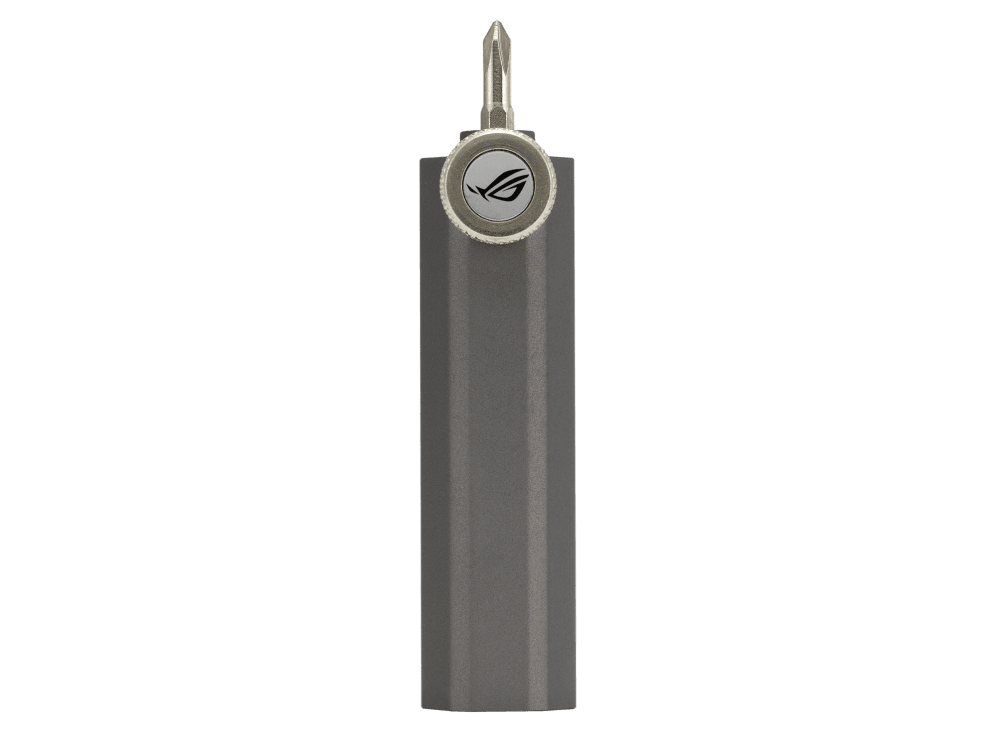

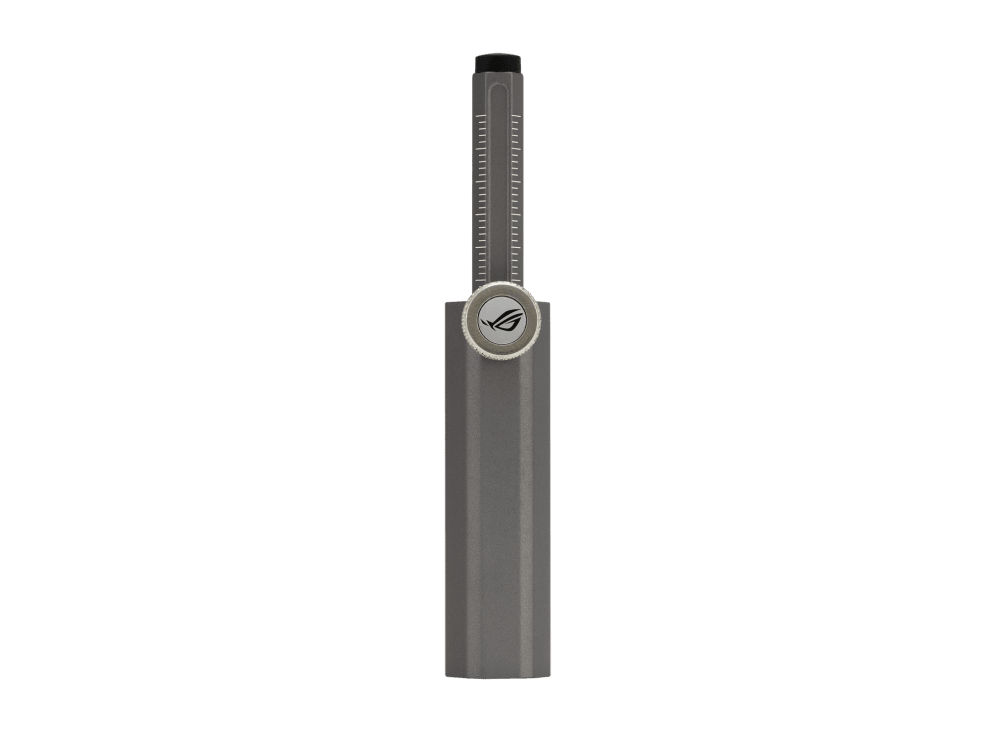

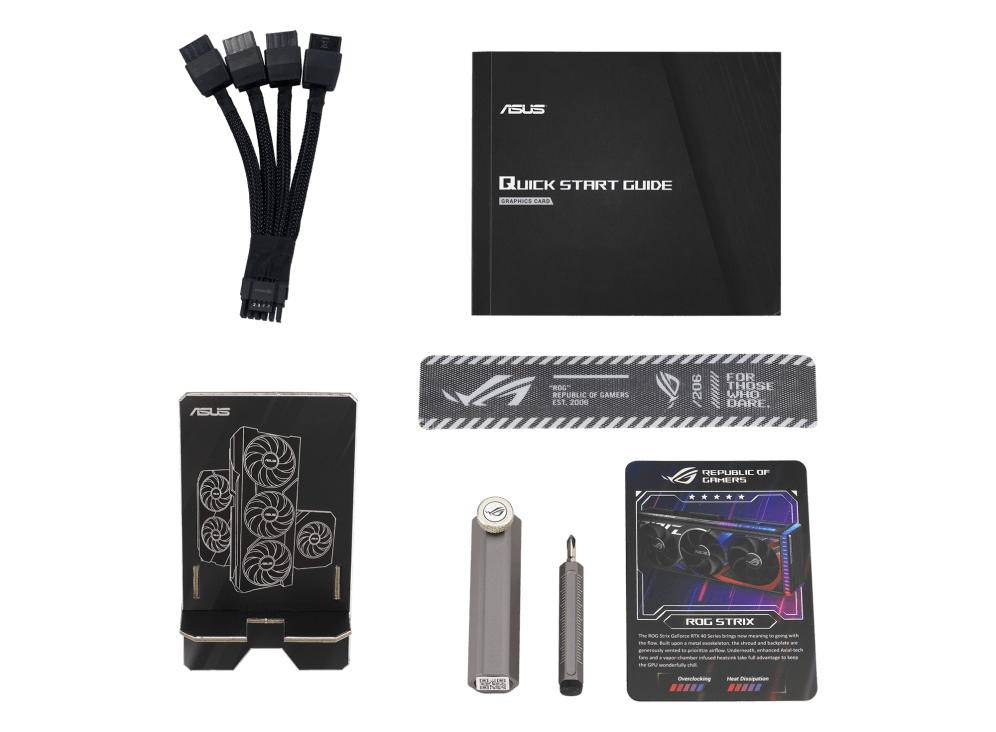

| Accessories | 1 x Collection Card 1 x Speedsetup Manual 1 x Adapter Cable 1 x ROG Graphics Card Holder 1 x ROG Velcro Hook & Loop 1 x Thank you Card |
| Software | ASUS GPU Tweak III & GeForce Game Ready Driver & Studio Driver: please download all software from the support site. |
| Dimensions | 357.6 x 149.3 x 70.1mm |
| Recommended PSU | 750W |
| Power Connectors | 1 x 16-pin |
| Slot | 3.5 Slot |
| AURA SYNC | ARGB |
