Description

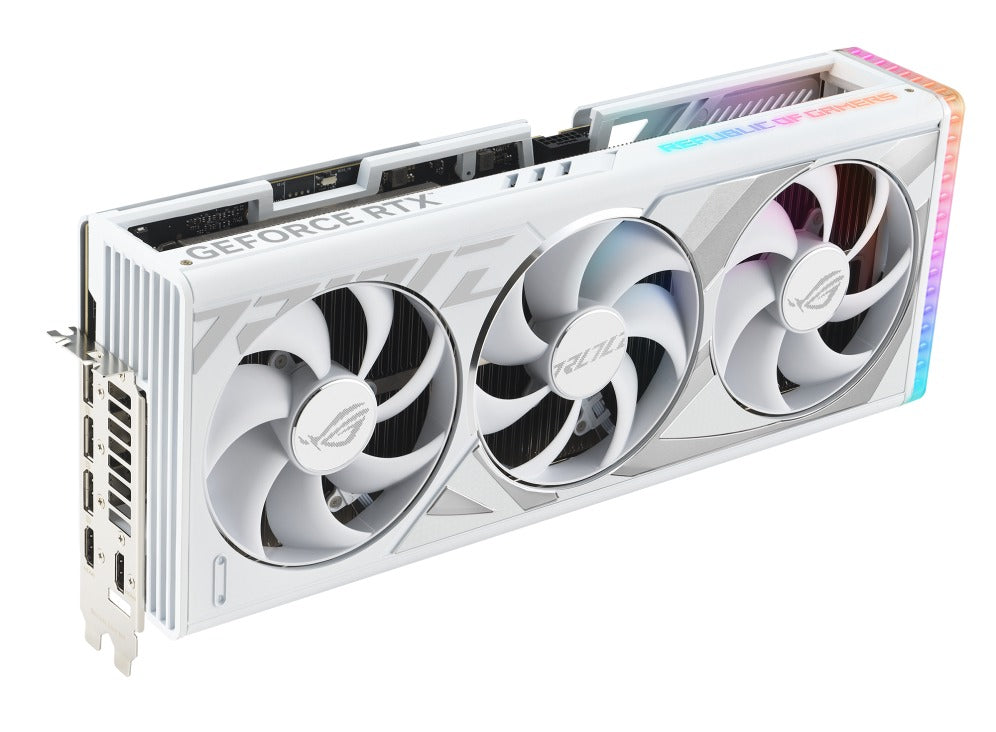

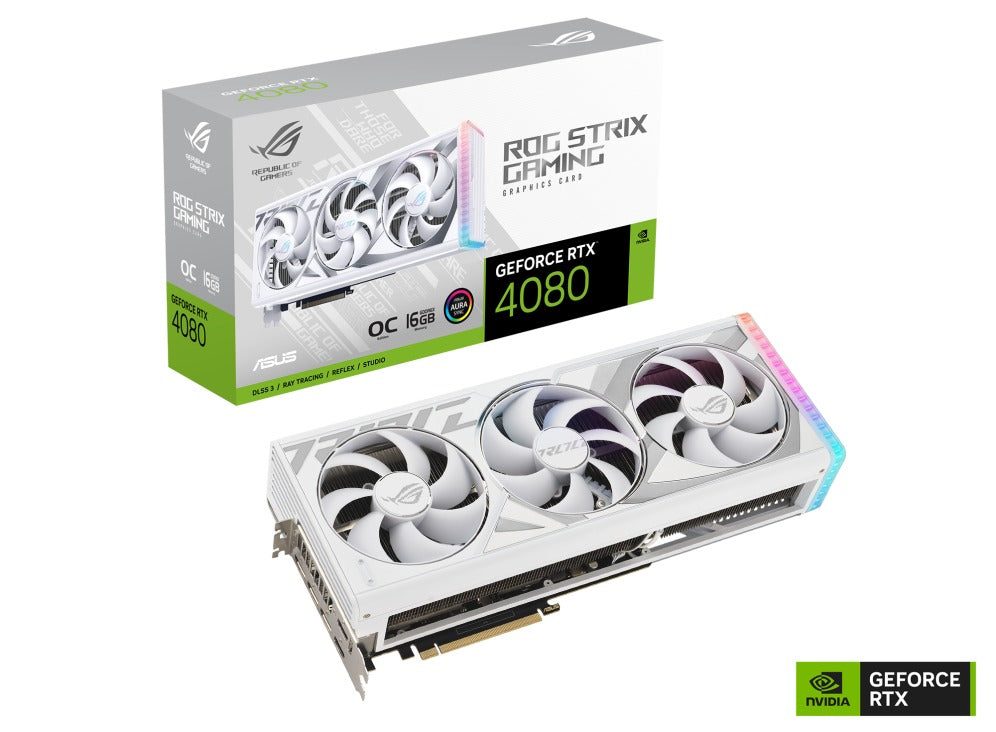

ROG Strix GeForce RTX™ 4080 16GB GDDR6X White OC Edition
ROG Strix GeForce RTX™ 4080 16GB GDDR6X White OC Edition with DLSS 3 and chart-topping thermal performance.
- NVIDIA Ada Lovelace Streaming Multiprocessors: Up to 2x performance and power efficiency
- 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
- 3rd Generation RT Cores: Up to 2X ray tracing performance
- OC mode: 2655 MHz (OC mode)/ 2625 MHz (Default mode)

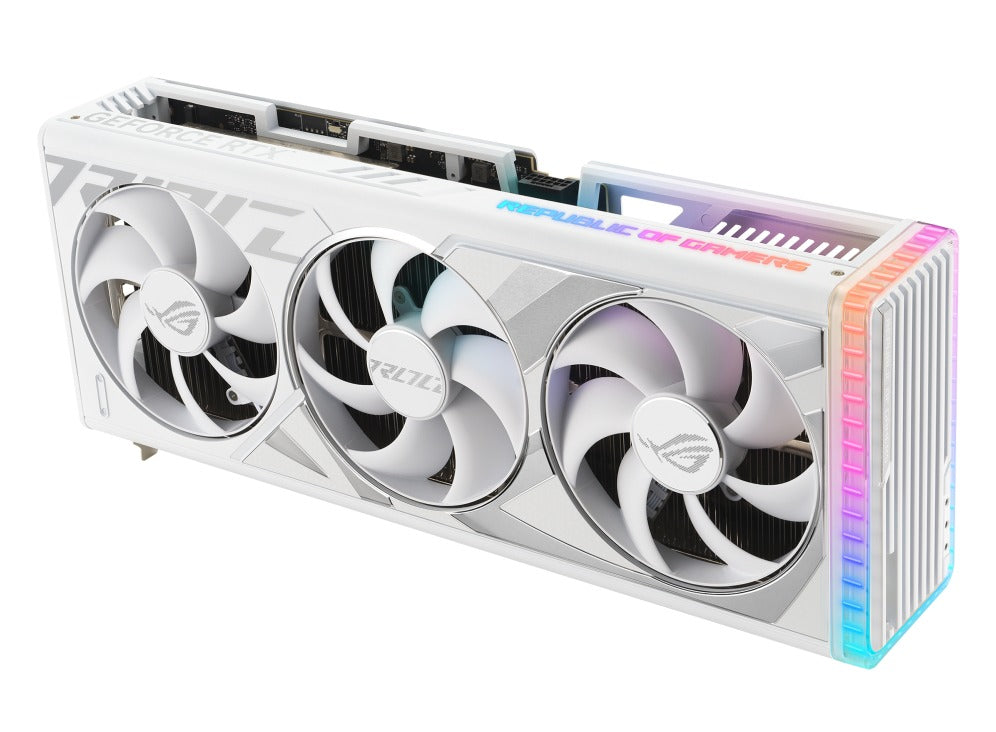

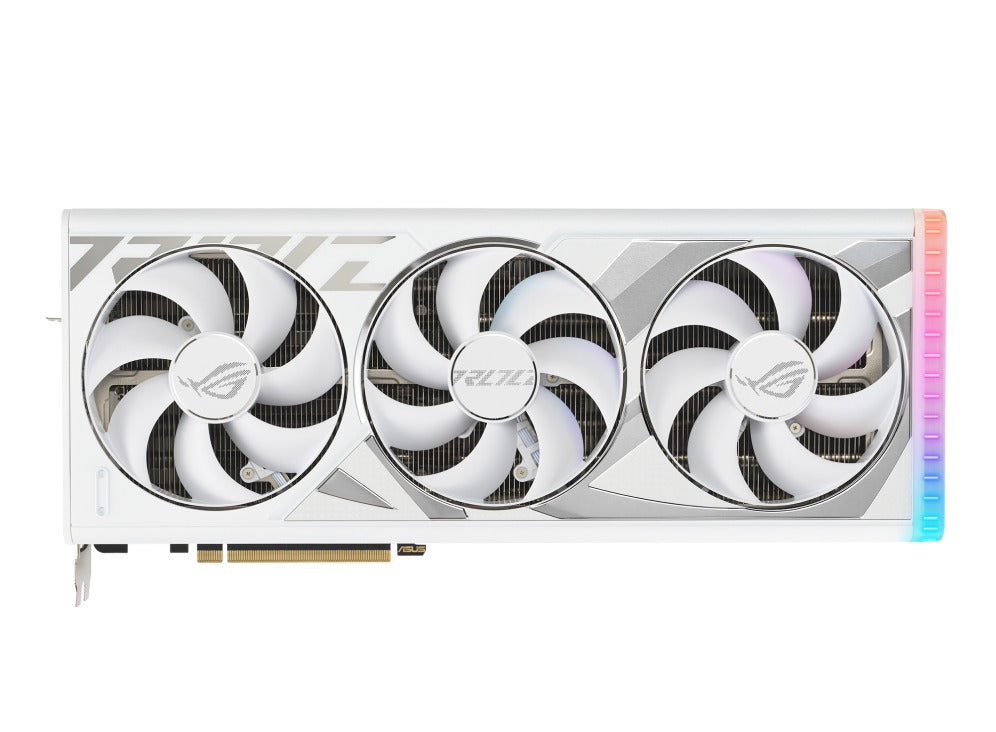

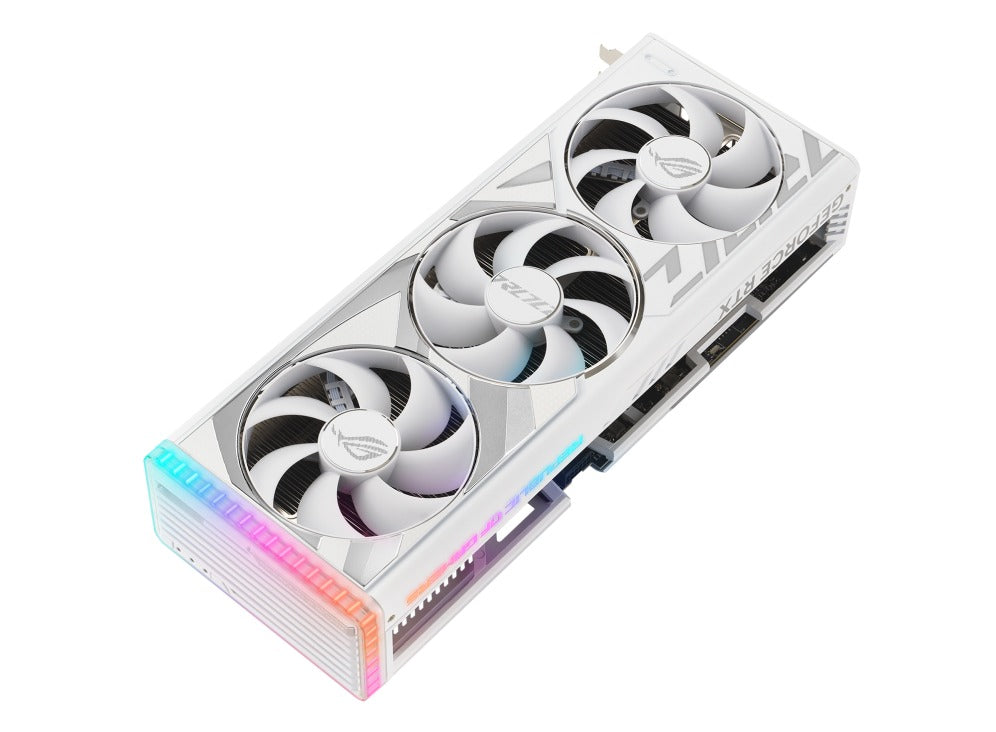

- Axial-tech fans scaled up for 23% more airflow
- New patented vapor chamber with milled heatspreader for lower GPU temps

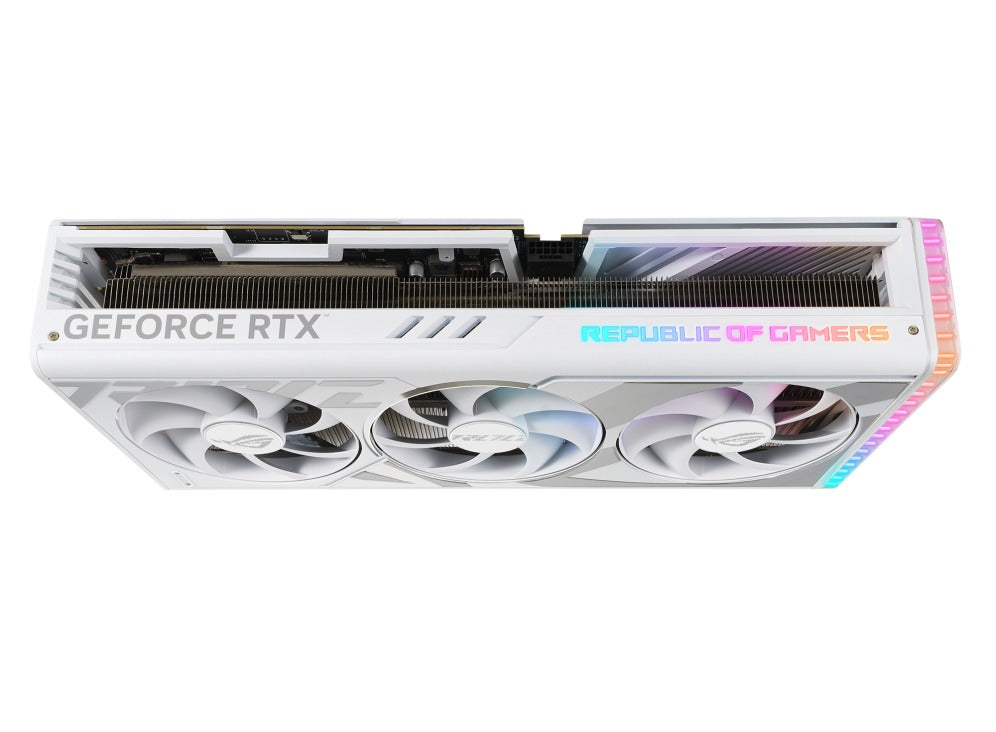

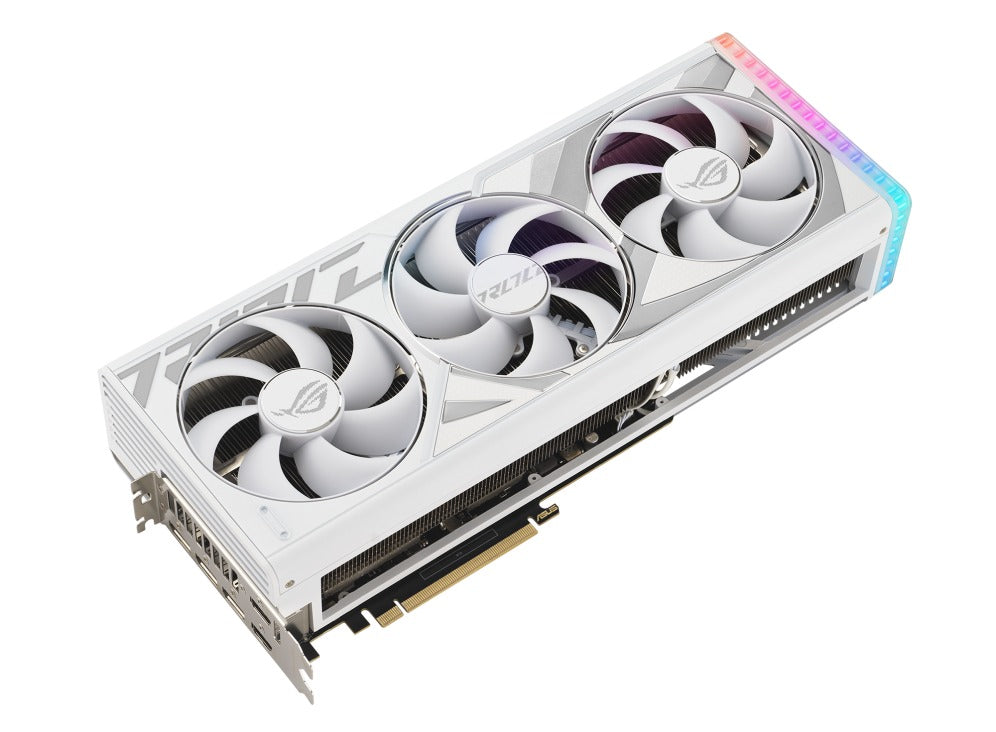

- 3.5-slot design: massive fin array optimized for airflow from the three Axial-tech fans

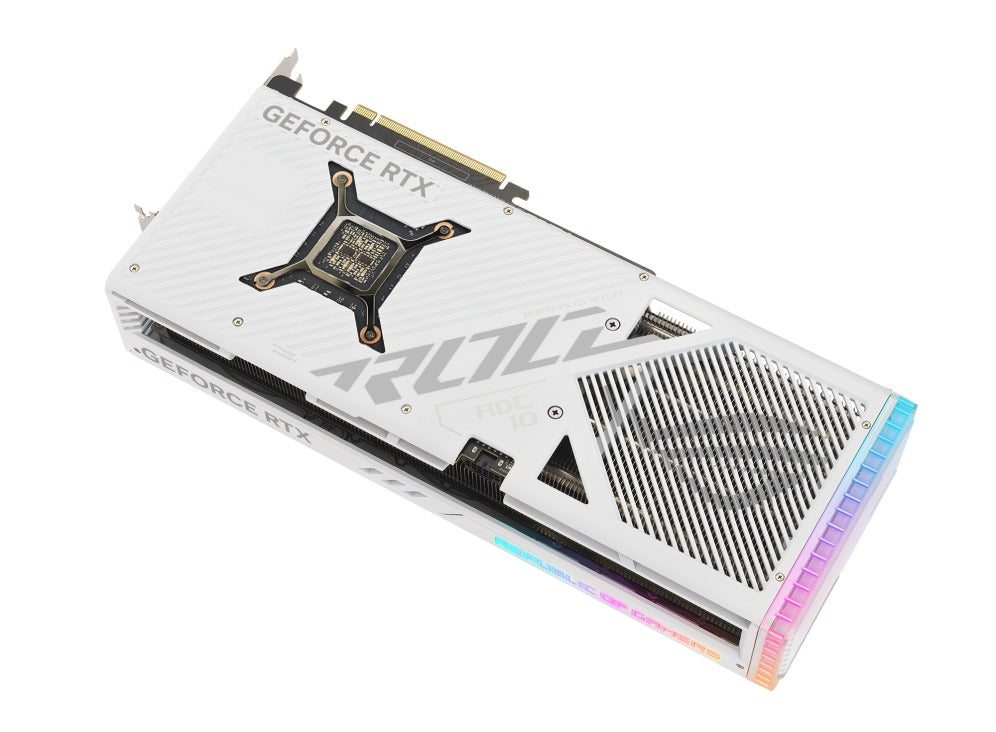

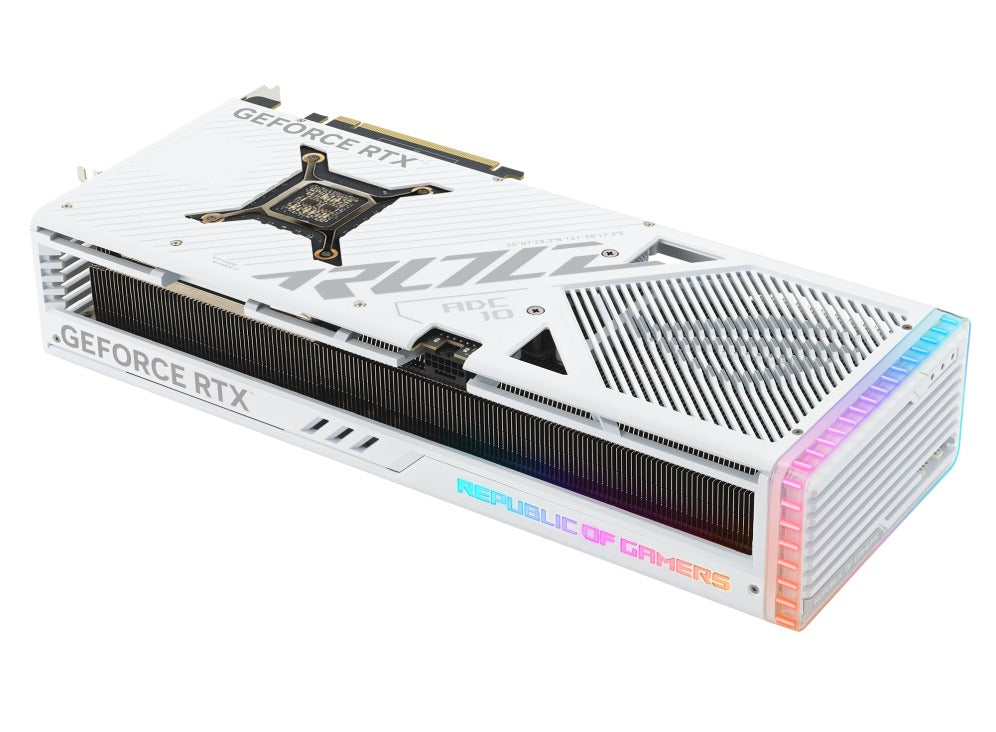

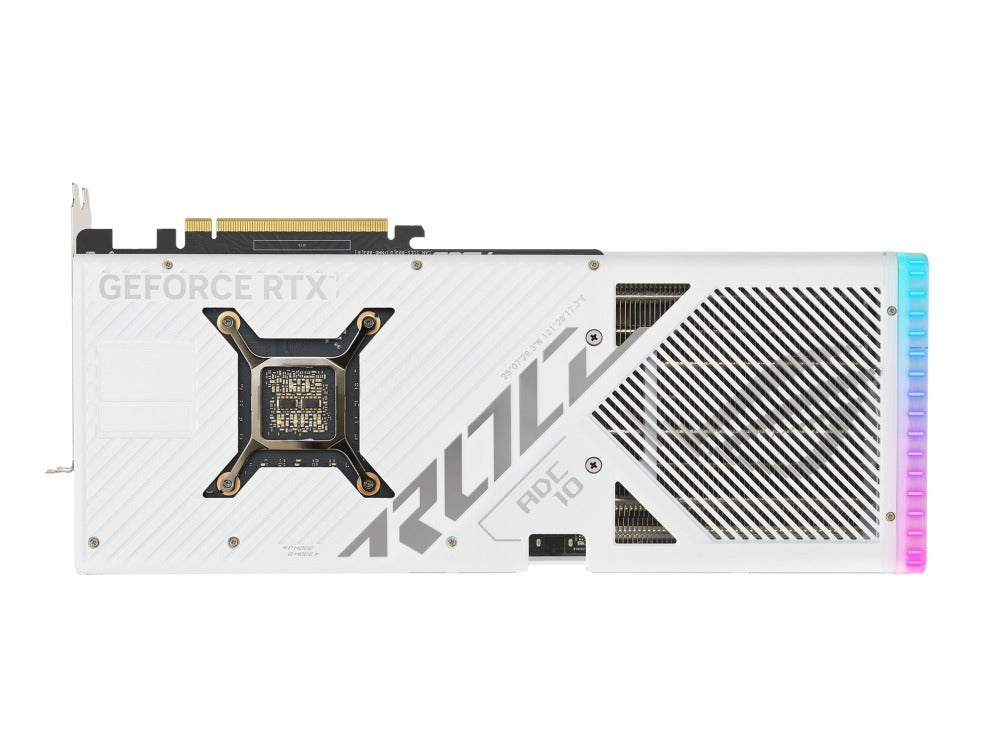

- Diecast shroud, frame, and backplate add rigidity and are vented to further maximize airflow and heat dissipation
- Digital power control with high-current power stages and 15K capacitors to fuel maximum performance
- Auto-Extreme precision automated manufacturing for higher reliability
- GPU Tweak III software provides intuitive performance tweaking, thermal controls, and system monitoring
Auto-Extreme Technology
Reliability Boost
Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.
ROG Strix GeForce RTX™ 4080 16GB GDDR6X White OC Edition
SPECIFICATIONS:
| Graphic Engine | NVIDIA® GeForce RTX™ 4080 |
| Bus Standard | PCI Express 4.0 |
| OpenGL | OpenGL®4.6 |
| Video Memory | 16GB GDDR6X |
| Engine Clock | OC mode: 2655 MHz Default mode: 2625 MHz (Boost Clock) |
| CUDA Core | 9728 |
| Memory Speed | 22.4 Gbps |
| Memory Interface | 256-bit |
| Resolution | Digital Max Resolution 7680 x 4320 |

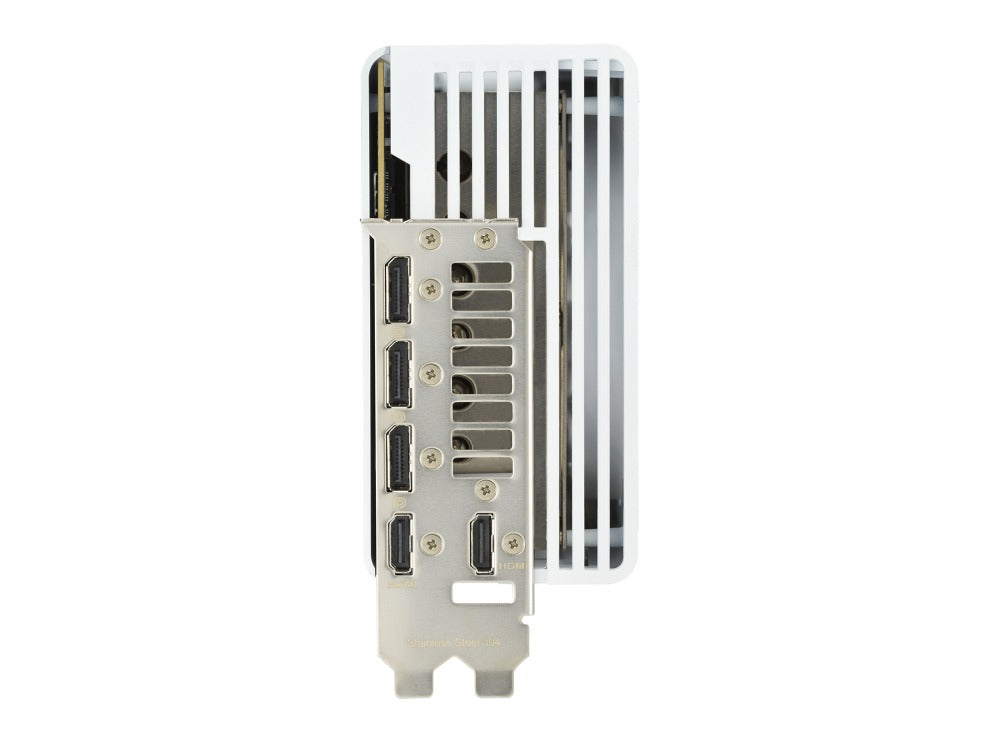

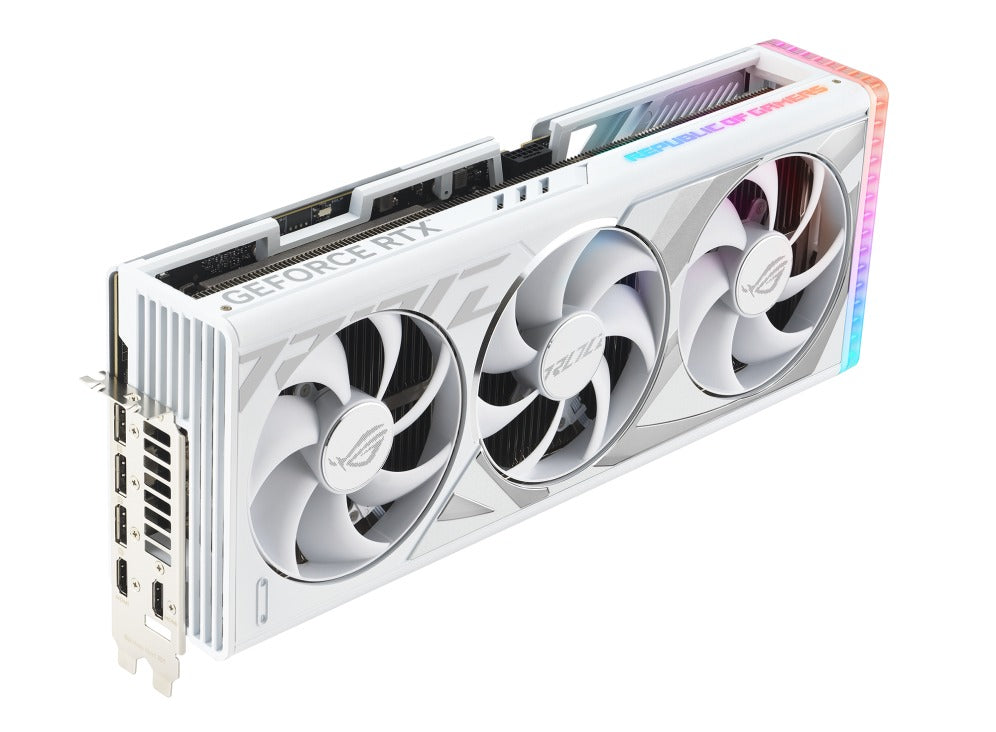

| Interface | Yes x 2 (Native HDMI 2.1a) Yes x 3 (Native DisplayPort 1.4a) HDCP Support Yes (2.3) |
| Maximum Display Support | 4 |
| NVlink/ Crossfire Support | No |

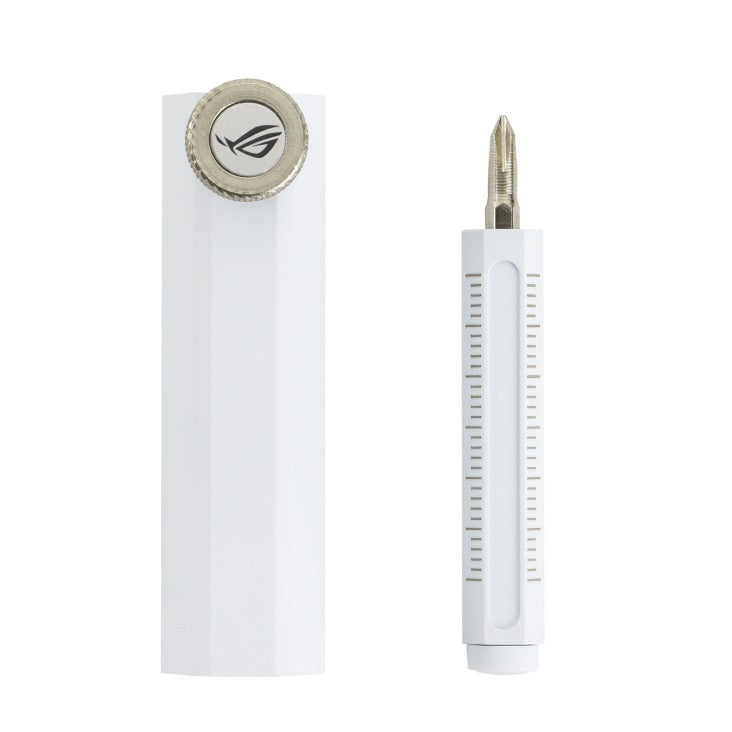

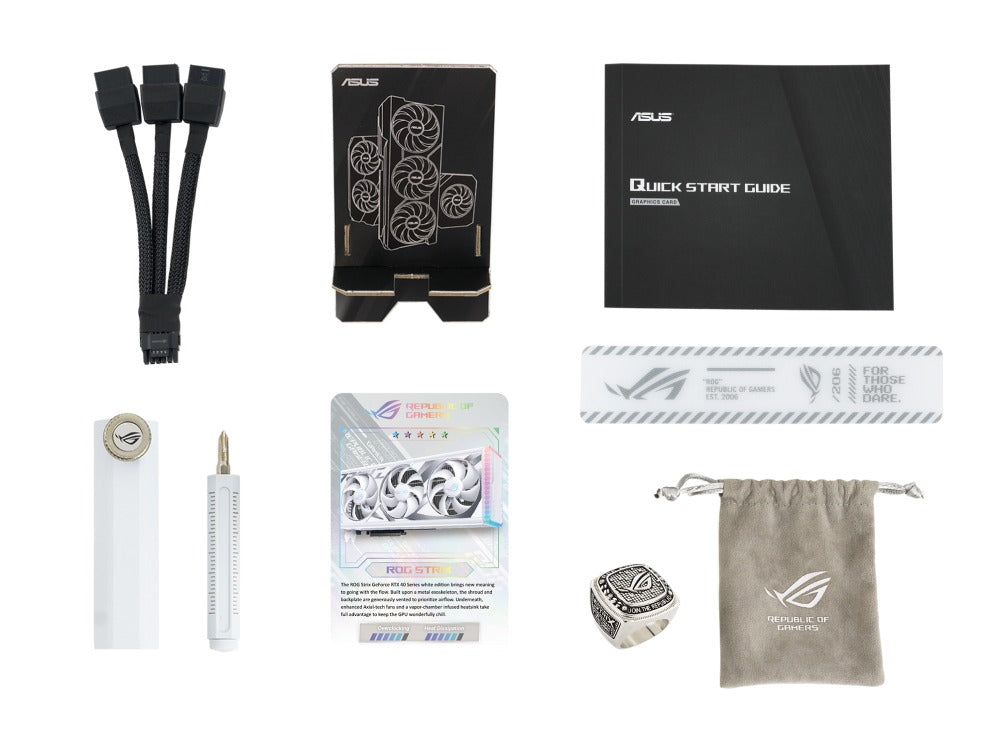

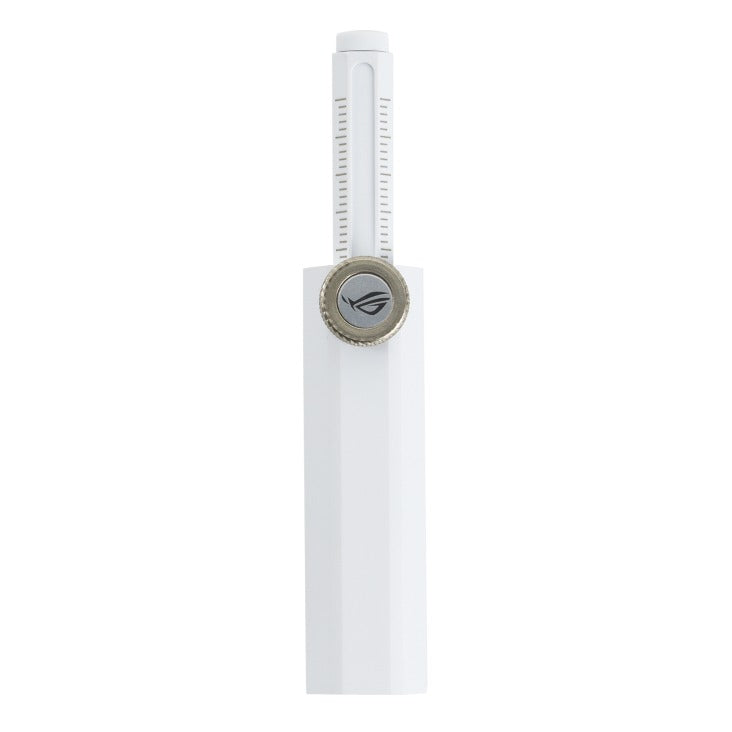

| Accessories | 1 x Collection Card 1 x Speedsetup Manual 1 x Adapter Cable (1 to 3) 1 x ROG Graphics Card Holder 1 x ROG Velcro Hook & Loop 1 x Thank you Card 1 x ROG Ring |
| Software | ASUS GPU Tweak III & GeForce Game Ready Driver & Studio Driver: please download all software from the support site. |
| Dimensions | 357.6 x 149.3 x 70.1mm |
| Recommended PSU | 750W |
| Power Connectors | 1 x 16-pin |
| Slot | 3.5 Slot |

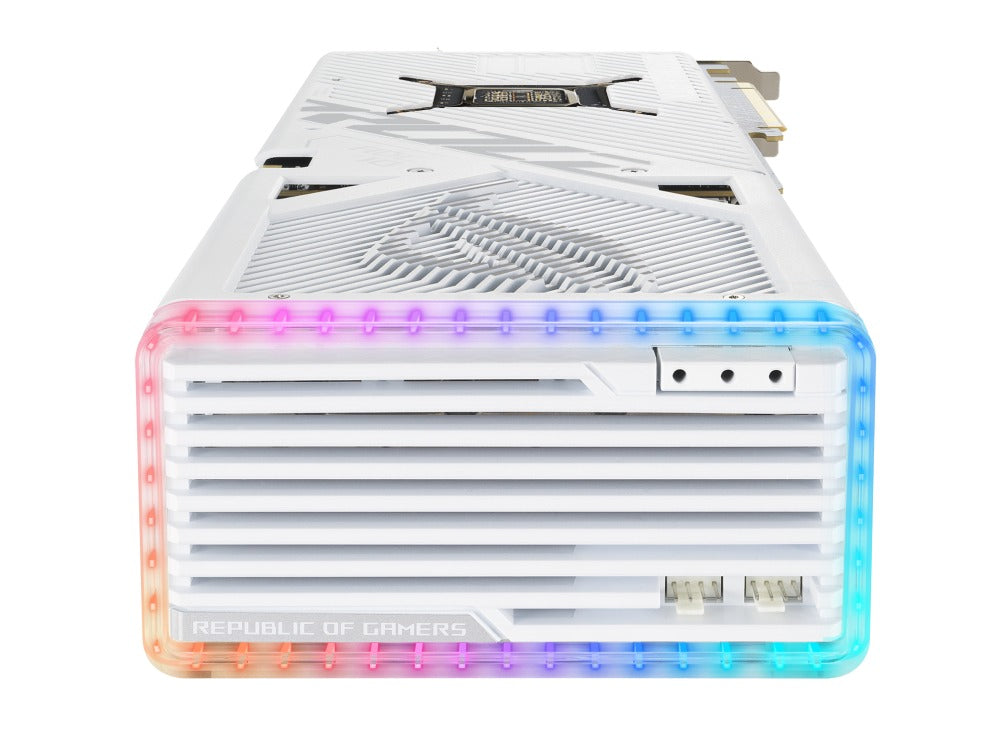

| AURA SYNC | ARGB |
| Note | * Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html * All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by third party to ASUS based on false advertising or any other issues caused from using false specifications of ASUS products. |
