Description

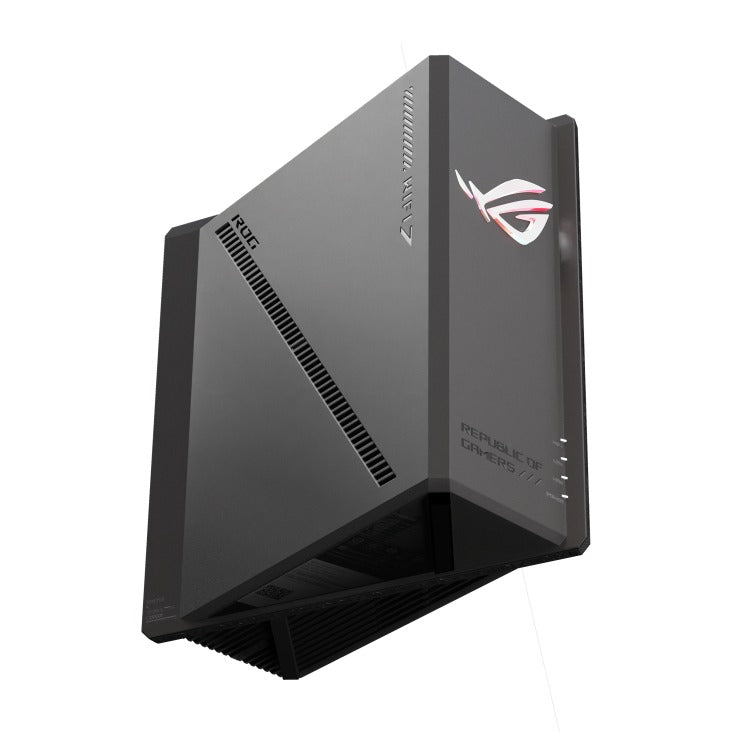

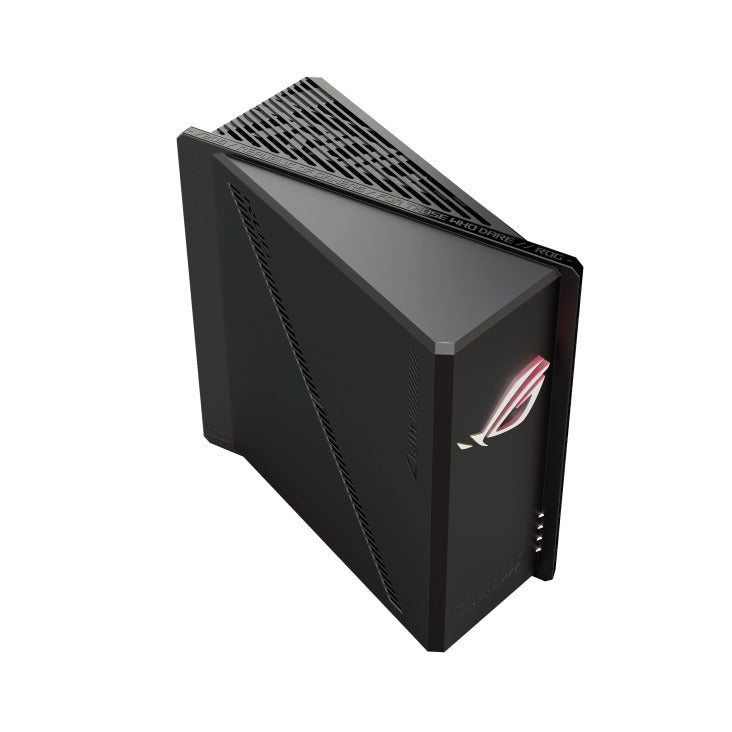

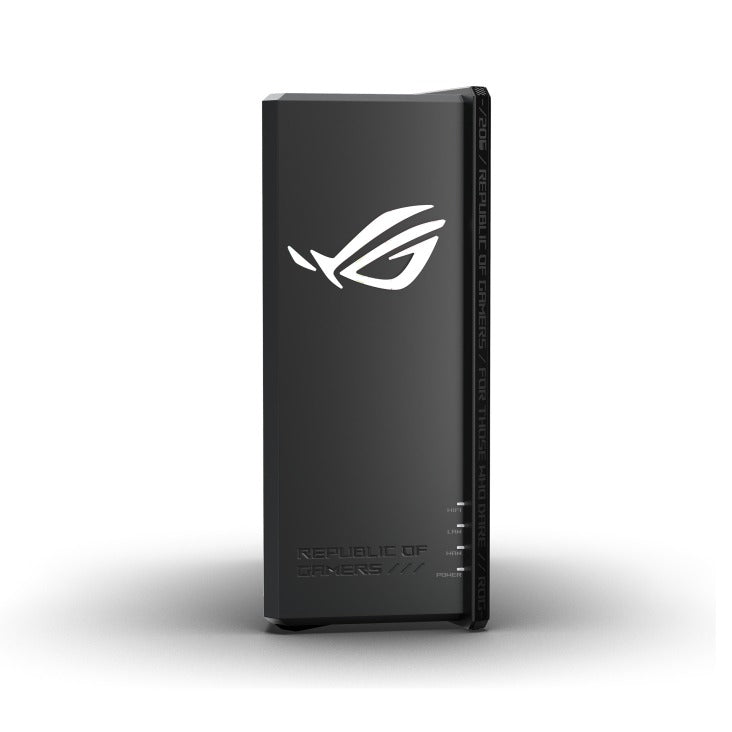

ROG Strix GS-BE7200X
GS-BE7200X Dual-band WiFi 7 (802.11be) Gaming Router, support new 4096-QAM, 10G port, Mobile Game Mode, AURA RGB, AiMesh support, subscription-free network security and comprehensive VPN features
- Beyond-fast WiFi 7 (802.11be) with 4096-QAM significantly increases network capacity and throughput, with speeds of up to 7.2 Gbps.
- Boost your wired network capacity to 16.5G with a 10G WAN port, one 2.5G LAN port, and four 1G LAN ports.
- Boost and secure all your gaming devices with Gaming Network, a single dedicated SSID that combines our gaming features, including triple-level game acceleration, without the need for device-by-device configuration.
- Easily establish SSIDs with Smart Home Master for easy IoT device setup and management, instant VPN connections, and convenient parental controls.
- Ensure seamless connectivity for all devices with a feature-rich whole-home network powered by AiMesh connection.
Specifications:
| Model | ROG Strix GS-BE7200X |
| Model Name | GS-BE7200X |
| Network Standard | WiFi 7 (802.11be) IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11n IEEE 802.11ac IEEE 802.11ax IEEE 802.11be IPv4 IPv6 |
| Product Segment | BE7200 ultimate BE performance : 1376+5764 Mbps |
| WiFi Data Rate | 2.4GHz BE: 4x4 (Tx/Rx) 4096 QAM 20/40MHz, up to 1376Mbps 5GHz BE: 4x4 (Tx/Rx) 4096 QAM 20/40/80/160MHz, up to 5764Mbps |
| Antenna | internal antenna x 8 |
| Transmit / Receive | 2.4GHz 4x4 5GHz 4x4 |
| Processor | 1.8GHz Tri-core processor |
| Memory | 128 MB Flash DDR4 1 GB RAM |
| Boosts Speed | OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 4096-QAM high data rate 20/40/80/160 MHz bandwidth |
| Operating Frequency | 2.4GHz and 5GHz 2.4 GHz 5 GHz |
| Operating Mode | Wireless Router Mode AiMesh Node Mode Access Point Mode Media Bridge Mode Repeater Mode |

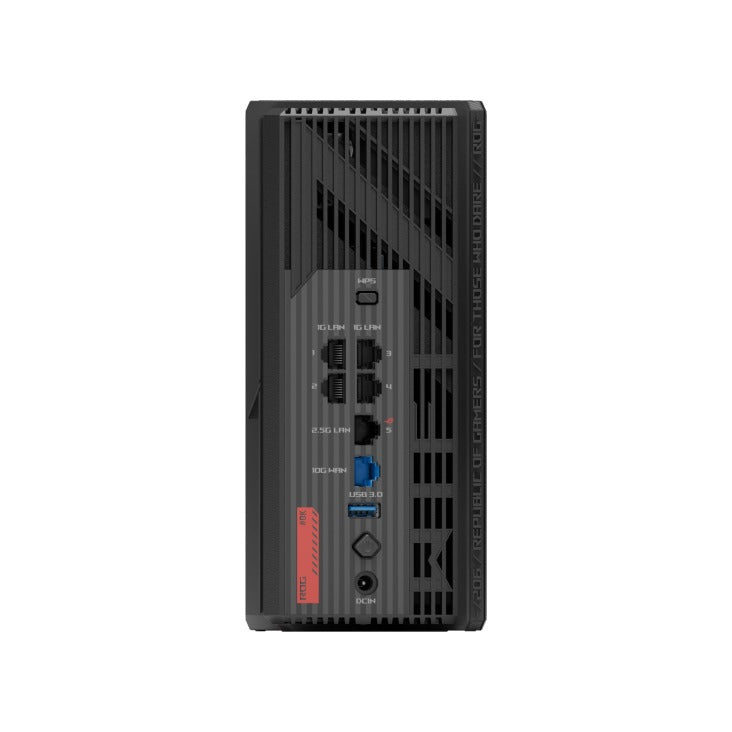

| I/O Ports | 1 x 10G for WAN 1 x 2.5G for LAN 4 x 1G for LAN USB 3.2 Gen1 x1 |
| Buttons | Power, WPS, Reset |
| LED Indicator | Internet (WAN) WiFi LAN Power |
| Power Supply | AC Input : 110V~240V (50~60Hz) DC Output : 12V with max. 3A current |
| Package Content | WiFi7 Dual-Band router ROG RJ-45 cable Power adapter Quick Start Guide Warranty card |
| Product Weight (g) | 811 |
| Product Dimensions | 225 x 90 x 225 |
| AiMesh | • Primary AiMesh Router • AiMesh Node |
| Game | Game Boost / Acceleration Mobile Game Mode Gear Accelerator UU boost ROG_First OpenNAT (Game Profile) Gaming Port Gaming Network |
| Parental Control | Allow you to block access to unwanted websites and apps. Time Scheduling Reward Parental Control Customized Internet Schedule • Maximum Parental Control Profile : 64 |
| Guest Network | The Guest Network provides Internet connection for guests but restricts access to your local network. Support Guest Network • Maximum Guest Network Rule : 2.4 GHz + 5 GHz : 3 Guest Network Connection time limit Guest Network Encryption : Open system, WPA/WPA2/WPA3-Personal |
| Security | AiProtection VPN WiFi Encryption : WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise WPS Let's Encrypt DNS-over-TLS SSH Security Scan Firewall • Maximum Firewall Keyword Filter : 64 • Maximum Firewall Network Service Filter : 32 • Maximum Firewall URL Filter : 64 |
| AiProtection | AiProtection Pro • Router Security Assessment • Malicious Site Blocking • Two-Way IPS • Infected Device Prevention and Blocking |
| VPN | Instant Guard VPN Client L2TP VPN Client Open VPN VPN Client PPTP VPN Client WireGuard VPN Server IPSec VPN Server Open VPN VPN Server PPTP VPN Server WireGuard VPN Fusion Support Surfshark |
| Traffic Control | Adaptive QoS • Bandwidth Monitor • Bandwidth Limiter -- Maximum Bandwidth Limiter Rule : 32 Traditional QoS Traffic Monitor • Real-time Traffic Monitor • Wired Traffic Monitor • Wireless Traffic Monitor Traffic Analyzer • Traffic Analysis Period : Daily, Weekly, Monthly • Website History |
| WAN | Internet Connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP, IPSec 4G / 5G Auto Mobile Tethering NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE Relay |
| LAN | DHCP Server IGMP Snooping IPTV Manually Assign IP Address • Maximum Manually Assign IP Address Rule : 128 Wake on LAN (WOL) |
| Wireless | MU-MIMO |
| USB Application | 4G / 5G Auto Mobile Tethering File System : HFS+, NTFS, vFAT, ext2, ext3, ext4 Safely Remove Disk AiCloud Download Master Media Server Time Machine Samba Server FTP Server Shared Folder Privileges |
| User Interface | WEB: ASUSWRT APP: ASUS Router APP |
| Administration | Configuration Backup and Restore Diagnosis Tools Feedback System System Log New Device Connect Notification Login Captcha Connection Diagnosis Auto Firmware Update |
