Specification:
|
News & Updates |
2024/10/24: A new BIOS has been released addressing various bugs, including no display from the graphics card when installing Windows 11 24H2. It is recommended to use the new EZ Flash tool to update directly using the ZIP file downloaded from the ASUS site. |
|
CPU |
Intel® Socket LGA1851 for Intel® Core™ Ultra Processors(Series 2) Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to https://www.asus.com/support/download-center/ for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
|
Chipset |
Intel® Z890 Chipset
|
|
Memory |
4 x DIMM slots, max. 192GB, DDR5 |
|
Graphics |
1 x DisplayPort** 1 x HDMI® port*** 2 x Intel® Thunderbolt™ 4 support DisplayPort and Thunderbolt™ video outputs**** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 8K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. **** In ThunderboltTM 4 mode, supports up to 8K@60Hz x1 with DSC or 4K@60Hz x 2, maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs. ***** In DP alt mode, Only one USB Type-C® port supports up to UHBR20 at a time. ****** VGA resolution support depends on processors' or graphic cards' resolution. *******While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.
|
|
Expansion Slots |
Intel® Core™ Ultra Processors(Series 2)* |
|
Storage |
Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports* |
|
Ethernet |
1 x Realtek 5Gb Ethernet |
|
Wireless & Bluetooth
|
Wi-Fi 7* |
|
USB |
Rear USB (Total 14 ports) |
|
Audio |
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080* |
|

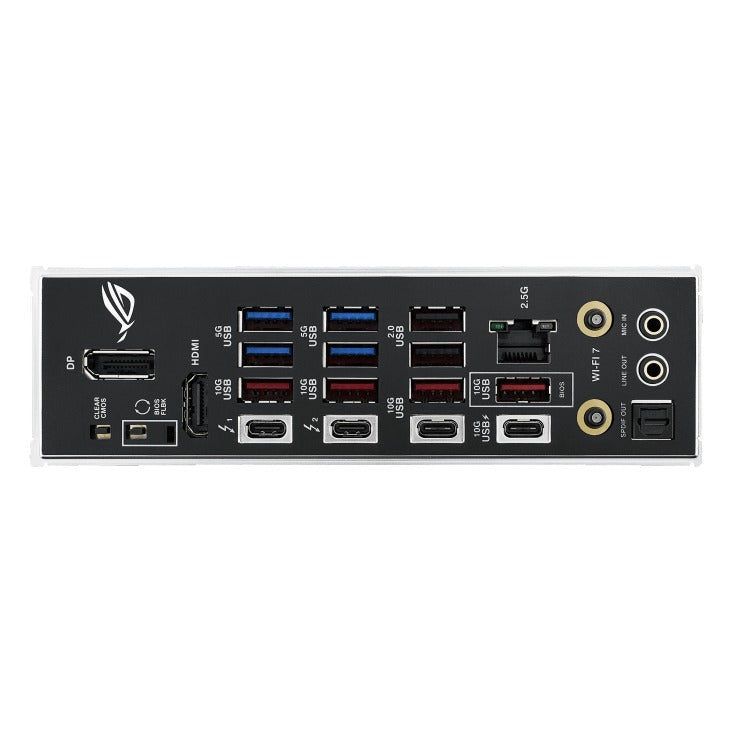

Back Panel I/O Ports |
2 x Thunderbolt™ 4 (2 x USB Type-C®) |
|
Internal I/O Connectors |
Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors Storage related 5 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C®) 2 x USB 5Gbps headers support additional 4 USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen2 headers 1 x Chassis Intrusion header 1 x CPU Over voltage jumper 1 x Front Panel Audio header (F_AUDIO) 1 x Start button 1 x 10-1 pin Front System Panel header 1 x Thermal Sensor header 1 x Thunderbolt™ (USB4®) header |
|
Special Features
|
Extreme Engine Digi+ - 5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch - M.2 Q-Release - M.2 Q-Slide - PCIe Slot Q-Release Slim (with PCIe SafeSlot) - Q-Antenna - Q-Code - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsinks - M.2 heatsink backplate - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Clear CMOS button - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM Aura Sync - Addressable Gen2 headers |
|
Software Features
|
ROG Exclusive Software |
|
BIOS |
256 Mb Flash ROM, UEFI AMI BIOS
|
|
Manageability |
WOL by PME, PXE
|
|
Accessories |
Cables 2 x SATA 6Gb/s cables Additional Cooling Kit 1 x Thermal pad for M.2 22110 Miscellaneous 1 x ASUS Wi-Fi Q-Antenna 1 x Cable ties pack 1 x M.2 Q-Latch package 1 x ROG key chain 1 x ROG Strix stickers 3 x M.2 rubber packages Documentation 1 x Quick start guide |
|
Operating System |
Windows 11 (22H2 & later)
|
|
Form Factor |
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
|
