Description

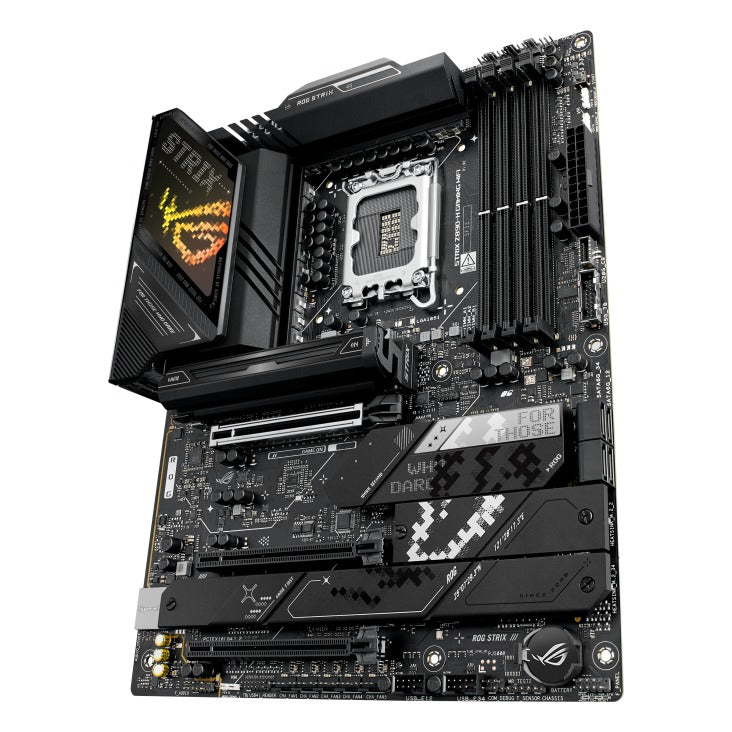

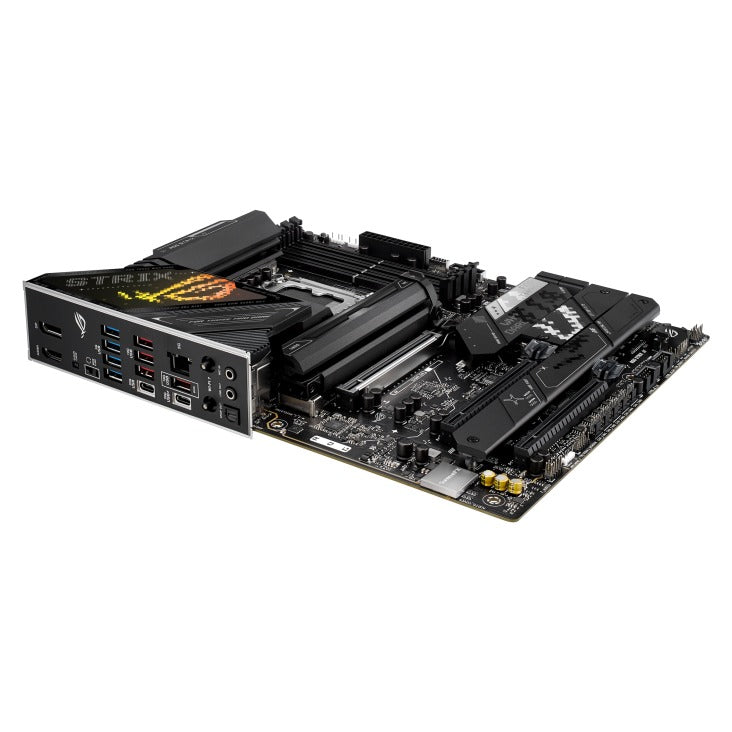

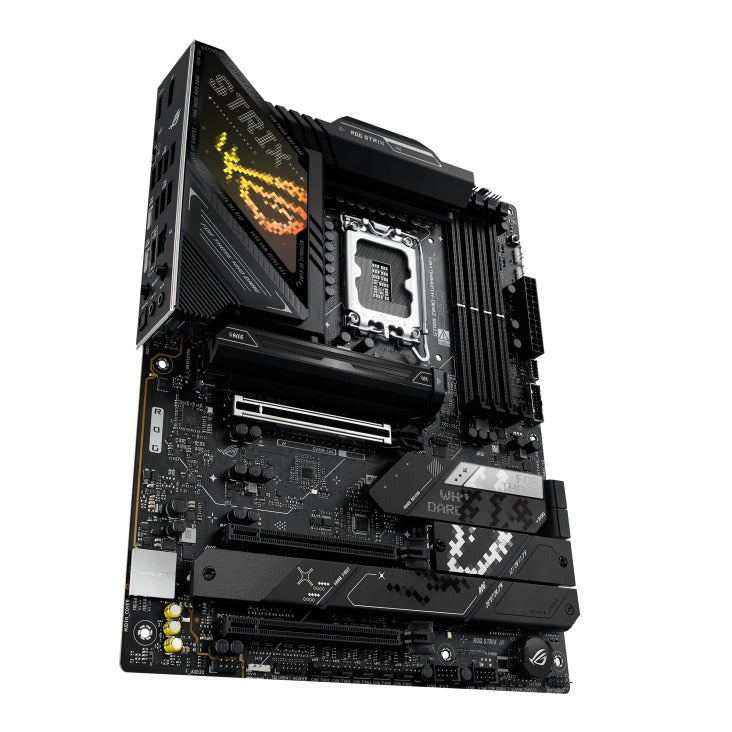

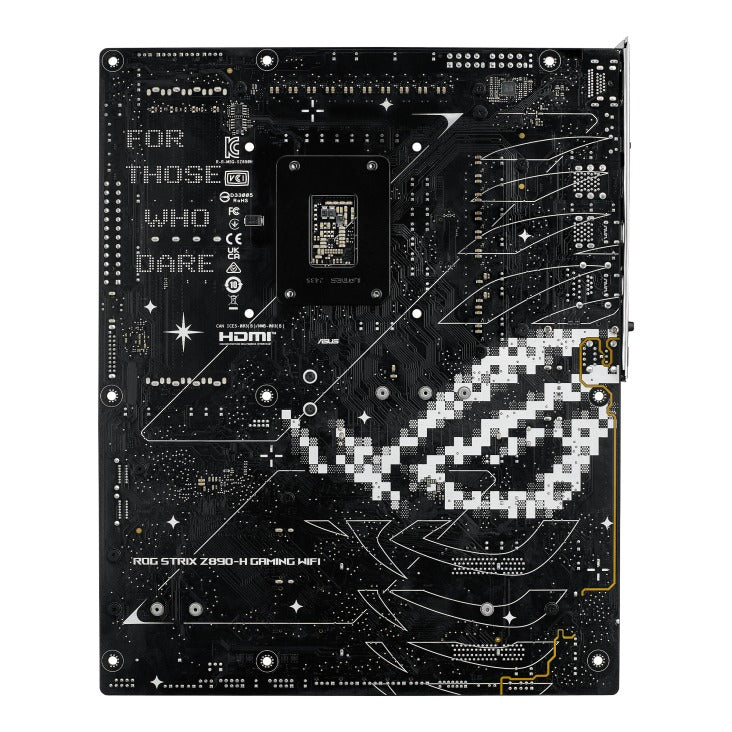

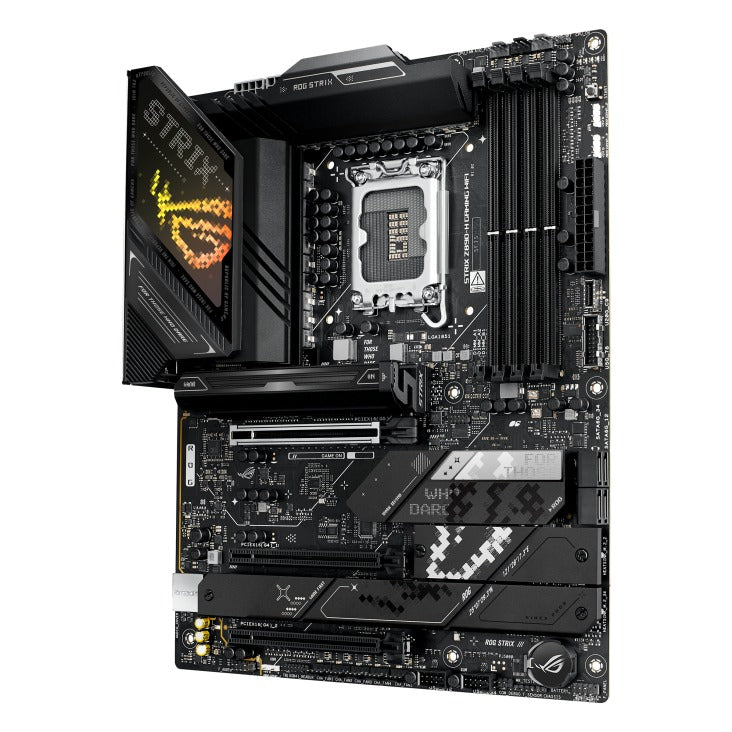

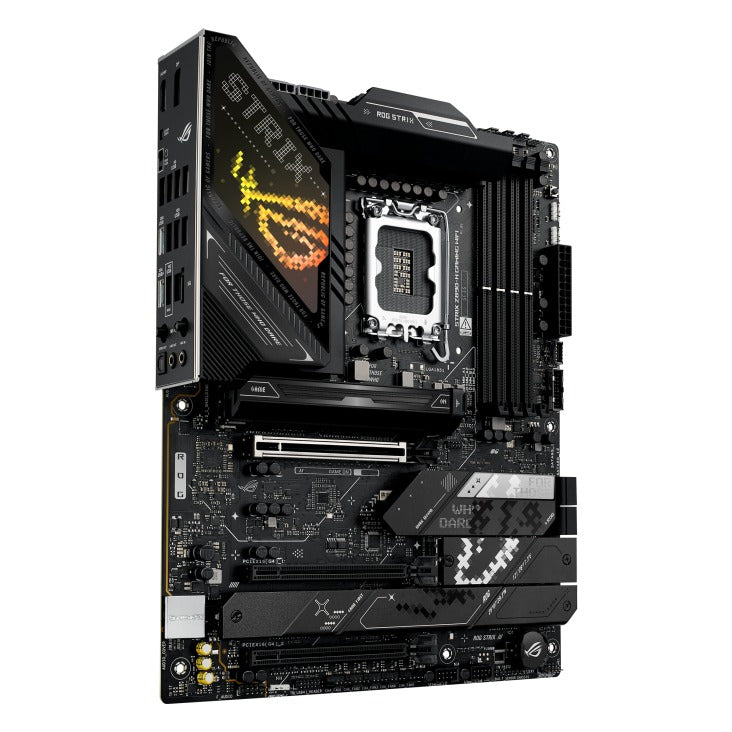

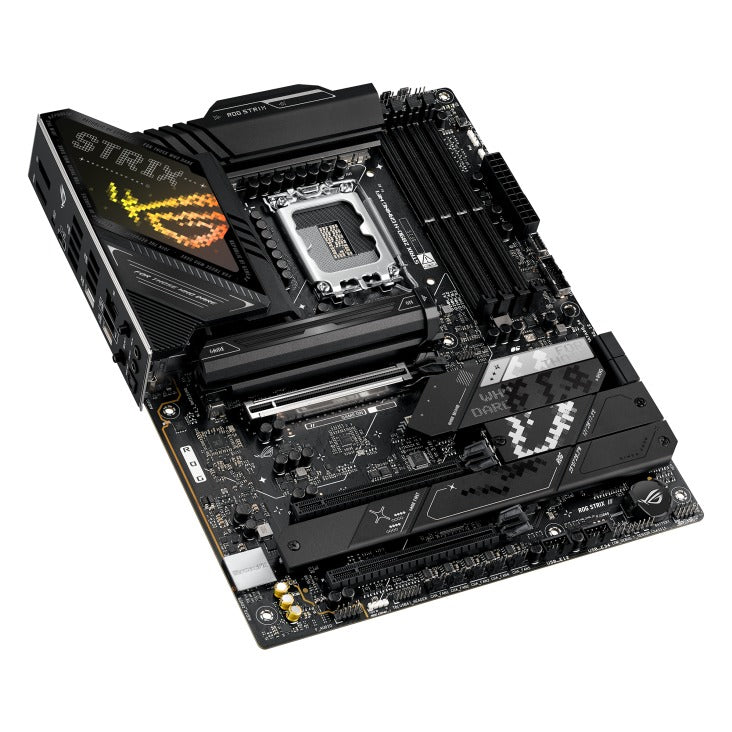

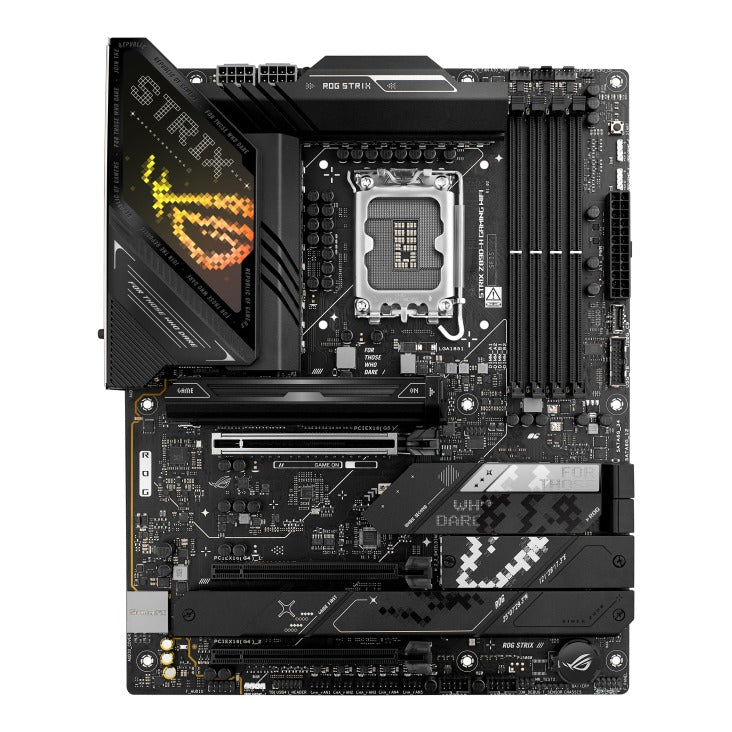

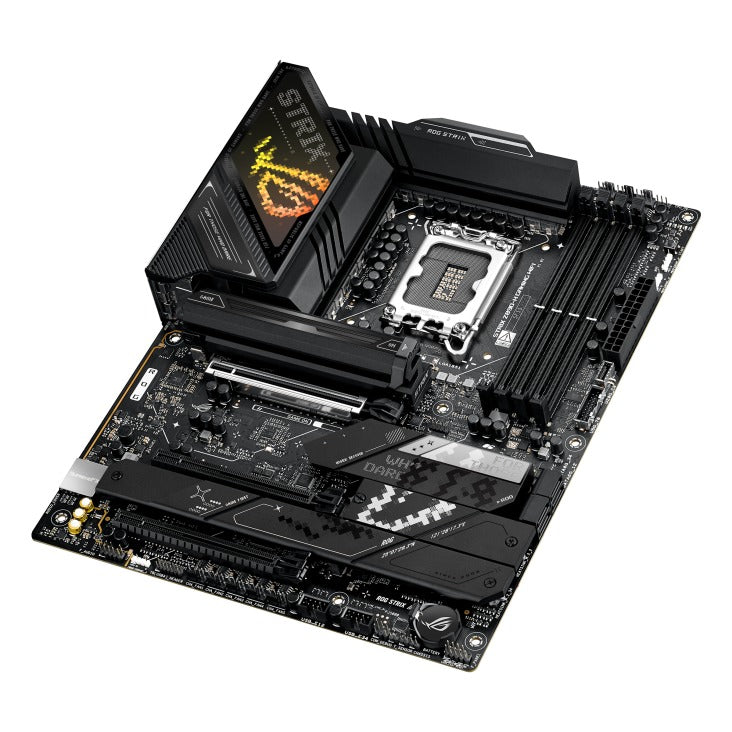

ROG STRIX Z890-H
gaming wifi
Powered by advanced AI technologies and compatible with Intel processors featuring a Neural Processing Unit, the ROG STRIX Z890-H Gaming WiFi enables advanced AI PC applications. It features a USB 20Gbps Type-C® rear I/O port with up to 30-watt Power Delivery for fast charging, PCIe® 5.0 support, and Aura lighting. These capabilities provide ultra-fast data transfers, exceptional connectivity and customizable lighting that can be understated or striking.
Specifications:
| CPU | Intel® Socket LGA1851 for Intel® Core™ Ultra Processors (Series 2) Supports Intel® Turbo Boost 2.0 & Max 3.0 |
| Chipset | Intel® Z890 |
| Memory | 4 x DDR5 DIMM slots, up to 256GB Up to 9066+MT/s (OC), Dual channel Non-ECC, Un-buffered CUDIMM Supports XMP, DIMM Flex, DIMM Fit, AEMP III |
| Graphics | 1 x DisplayPort 1.4 (8K@60Hz) 1 x HDMI 2.1 (4K@60Hz) * Depends on CPU |
| Expansion Slots | CPU: 1 x PCIe 5.0 x16 (x16 or x8/x4/x4) Chipset: 2 x PCIe 4.0 x16 (x4) |
| Storage | 4 x M.2 Slots: - M.2_1 (PCIe 5.0 x4) - M.2_2 (PCIe 4.0 x4) - M.2_3 (PCIe 4.0 x4) - M.2_4 (PCIe 4.0 x4 & SATA) 4 x SATA 6Gb/s Ports Supports PCIe RAID 0/1/5 and SATA RAID 0/1/5/10 |
| Ethernet | 1 x Realtek 5G Ethernet with ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 7 (2x2, 2.4/5/6GHz, up to 2.9Gbps) Bluetooth® v5.4 |
| USB Ports |
Rear (10 ports) - 2 x USB 20Gbps Type-C (1 with 30W PD) - 4 x USB 10Gbps Type-A - 4 x USB 5Gbps Type-A Front (7 ports) - 1 x USB 20Gbps Type-C - 1 x USB 5Gbps header (2 ports) - 2 x USB 2.0 headers (4 ports) |
| Audio | Realtek ALC1220P 7.1 HD Audio CODEC Savitech SV3H712 AMP, SupremeFX shielding Optical S/PDIF out, gold-plated jacks 120 dB SNR playback, 113 dB recording |
| Internal I/O | 1 x 24-pin ATX, 2 x 8-pin CPU 4 x M.2, 4 x SATA Multiple fan headers USB headers (20Gbps, 5Gbps, USB 2.0) RGB, Thunderbolt™, Audio, Debug, Start button, TPM, etc. |

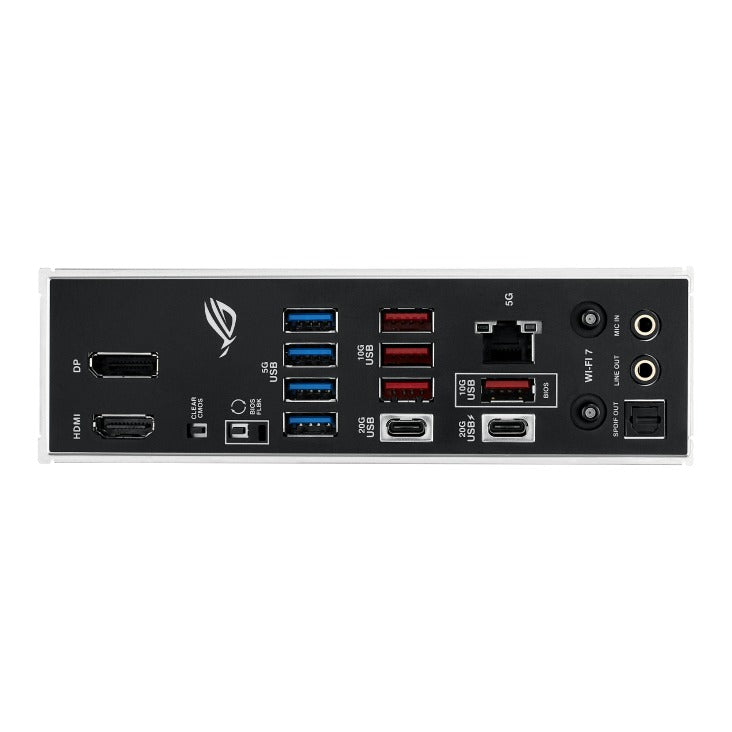

| Rear I/O | 2 x USB-C 20Gbps (1 with PD), 4 x USB-A 10Gbps 4 x USB-A 5Gbps, 1 x DP, 1 x HDMI 1 x 5G LAN, 1 x Optical S/PDIF, Audio jacks 1 x BIOS FlashBack™, 1 x Clear CMOS |
| Special Features | ASUS Q-Design (Q-LED, Q-Latch, Q-Release) AI Overclocking & Cooling, BIOS FlashBack™ Aura Sync, SafeDIMM, SafeSlot, Digi+ VRM |
| Bundled Software | Armoury Crate, AIDA64 (60-day), Aura Sync/Creator ROG CPU-Z, Dolby Atmos, HWiNFO, USB Wattage Watcher Norton 360 (60-day), WinRAR (40-day), Adobe CC Trial |
| BIOS | 256Mb UEFI AMI BIOS, ASUS EZ Flash, CrashFree BIOS 3 |

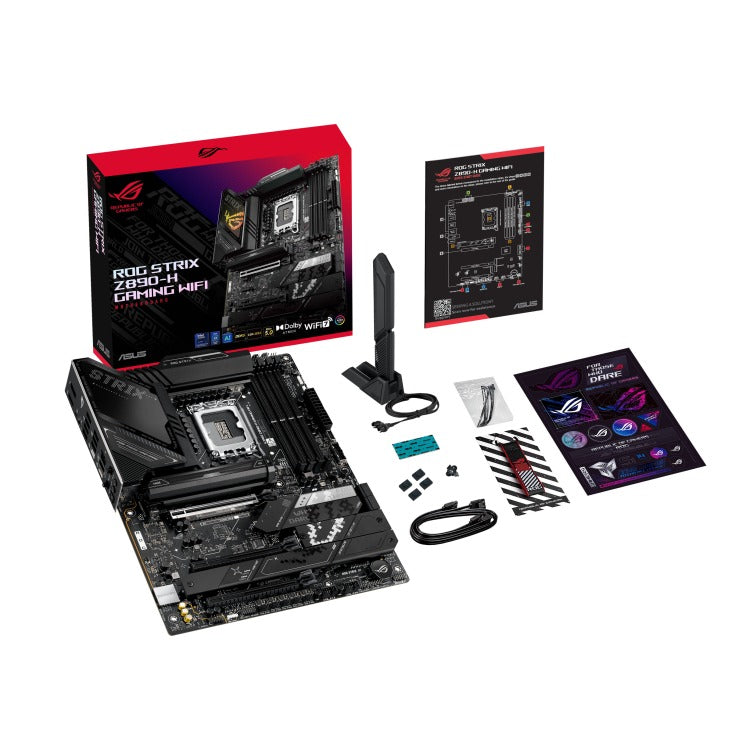

| Accessories | 2 x SATA Cables, 1 x WiFi Q-Antenna M.2 Q-Latch Kit, Cable ties, ROG stickers, Keychain |
| Form Factor | ATX (30.5 x 24.4 cm) |
| OS Support | Windows® 11 (22H2 & later) |
