Description
Magnetic OLED DisplayThis detachable magnetic OLED display showcases real-time power draw, providing insights to your system's performance and efficiency. The magnetic attachment can be swapped to either side of the unit for fan-up or fan-down PSU installation, depending on the design of your case, so you can maintain optimal airflow without compromising monitoring. |
Premium Copper PinsUpgraded copper PCIe connectors feature advanced thermal conductivity to help ensure cool operation and efficient power delivery. This translates to a significant 29% reduction in connector temperatures (up to 12.28°C), promoting optimal performance and stability for even the most demanding graphics cards. |
 |
|
|
Dual-Ball Fan BearingsDual-ball bearings boast a remarkable lifespan of up to 80,000 hours, lasting up to twice as long as sleeve bearings and even exceeding fluid dynamic bearings. This helps ensure long-lasting, reliable cooling with minimal noise for the ROG Thor Platinum III series. |
ROG HeatsinksROG heatsinks facilitate lower temperatures, longer component lifespan, and extended 0dB operation. |
 |
|
|
0dB TechnologyTo reduce noise output, the PWM-controlled fan shuts off entirely when the PSU load is 30% or below. |
Specification:
| Intel Form Factor | ATX12V |
|---|---|
| PFC Type | Active PFC |
| ATX Standard | ATX 3.1 |
| 80 PLUS Efficiency | 80Plus Platinum |
| Cybenetics Efficiency | Platinum (230V) ; Platinum (115V) |
| Protection Features | OPP/OVP/UVP/SCP/OCP/OTP |
| Hazardous Materials | ROHS |
| AC Input Range | 100-240Vac |
| DC Output Voltage | +3.3V +5V +12V -12V +5Vsb |
| Maximum Load | 30A 25A 100A 0.3A 3A |
| Combined Load | 125W 125W 1200W 3.6W 15W |
| Total Output | 1200W |

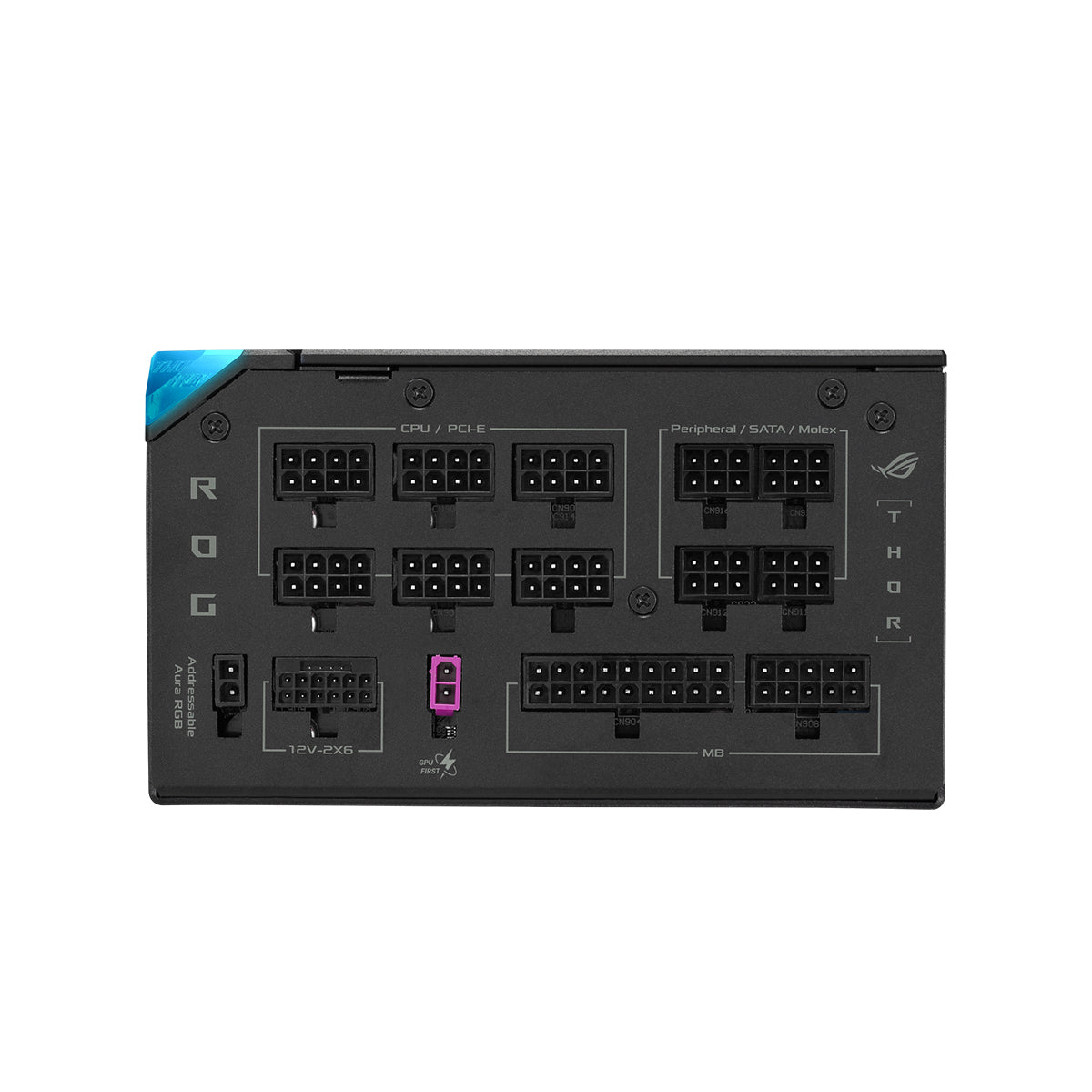

| Cable Connectors |
MB 24/20-pin x 1 CPU 4+4-pin x 2 PCI-E 16-pin x 1 (12V-2x6) PCI-E 6+2-pin x 4 SATA x 7 PERIPHERAL x 6 |
| Package Contents |
Power Cord x 1 Motherboard Power Cable x 1 (610mm) CPU Cable x 2 (1000mm) ROG EQUALIZER 12V-2x6 PCI-E Cable with GPU-First x1 (750mm) PCI-E Cable 1-to-1 x 4 (750mm) SATA Cable 1-to-4 x 1 (400+120+120+120mm) SATA Cable 1-to-3 x 1 (400+120+120mm) Peripheral 1-to-3 x 2 (400+150+150mm) Addressable RGB Cable x 1 (800mm) ROG sticker x 1 ROG cable tie x 6 Chassis Screws Package x 1 Cable Tie x 12 User Manual x 1 |
| Dimensions | 190 x 150 x 86 mm |
| Weight | 2.37 KG (single PSU) |
| Cybenetics Noise Level Certification | A++ |
| AURA SYNC | Yes |
| MTBF | >120,000 hrs @ 25°C |
| 0dB Fan Button | Yes. When the Button is ON, the fan will only spin up when the system reaches a certain load. When the Button is OFF, the fan will continuously spin at all load levels. |
| Warranty | 10-year limited(Core product operation is guaranteed for 10 years. The RGB LEDs are subject to a 3-year warranty.) |
