Description
SPECIFICATION
PROCESSOR: Ryzen AI 9 HX 370
DISPLAY: 14" WQXGA (2560x1600) IPS 165Hz
MEMORY: 16GB RAM
STORAGE: 1TB SSD
GPU: NVIDIA® GeForce RTX™ 4060 Laptop GPU
OS: WINDOWS 11 HOME
0DB Ambient Cooling
Enjoy truly silent cooling under light workloads with 0dB Ambient Cooling technology. In the Silent operating mode, the cooling system switches off all fans during everyday tasks to dissipate heat passively. This lets you concentrate on your work and immerse yourself in movies with less distraction. If CPU or GPU temperatures increase, the fans automatically switch on again.

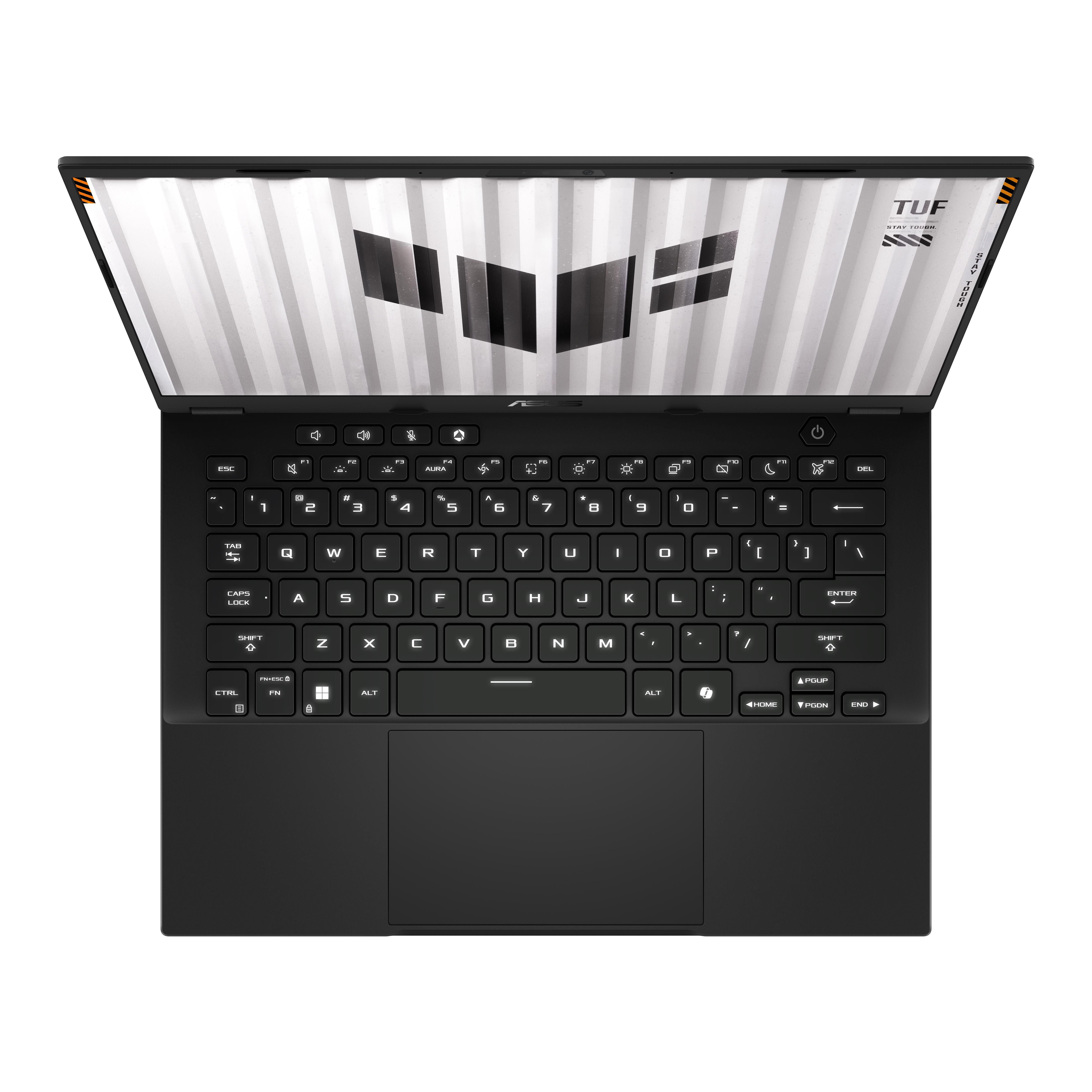

Redesigned keyboard
Previous keyboard designs focused on keeping the chassis temperatures cool, keeping your fingers comfortable during long gaming sessions. The newly redesigned keyboard not only keeps your hands comfortable on the trackpad and keyboard deck, but increases air intake for the main system components as well, boosting the A14’s cooling performance without increasing weight or chassis size.
Fluid Dynamic Bearing
Both fans have a fluid bearing design, which is a tried and tested style that will keep the A14 operating at peak performance for years to come.
89-blade fans
The dual fans come with 89 ultra-thin blades, just 0.1mm thick, enabling high airflow and static pressure without bothersome acoustics or whine.
Inward airflow
Not all air needs to be sent to the copper heatsinks. The fan shrouds have precisely calculated cutouts to direct airflow toward internal components like memory and VRM modules, keeping them cooler and operating at peak efficiency.
0.1mm Ultra-Thin Fins
The A14’s thermal energy is dissipated by two heatsinks, each lined with ultra-thin copper fins as slim as 0.1 mm.
Higher density fins allow for increased heat dissipation and lower air resistance for smoother flow.
Higher density fins allow for increased heat dissipation and lower air resistance for smoother flow.

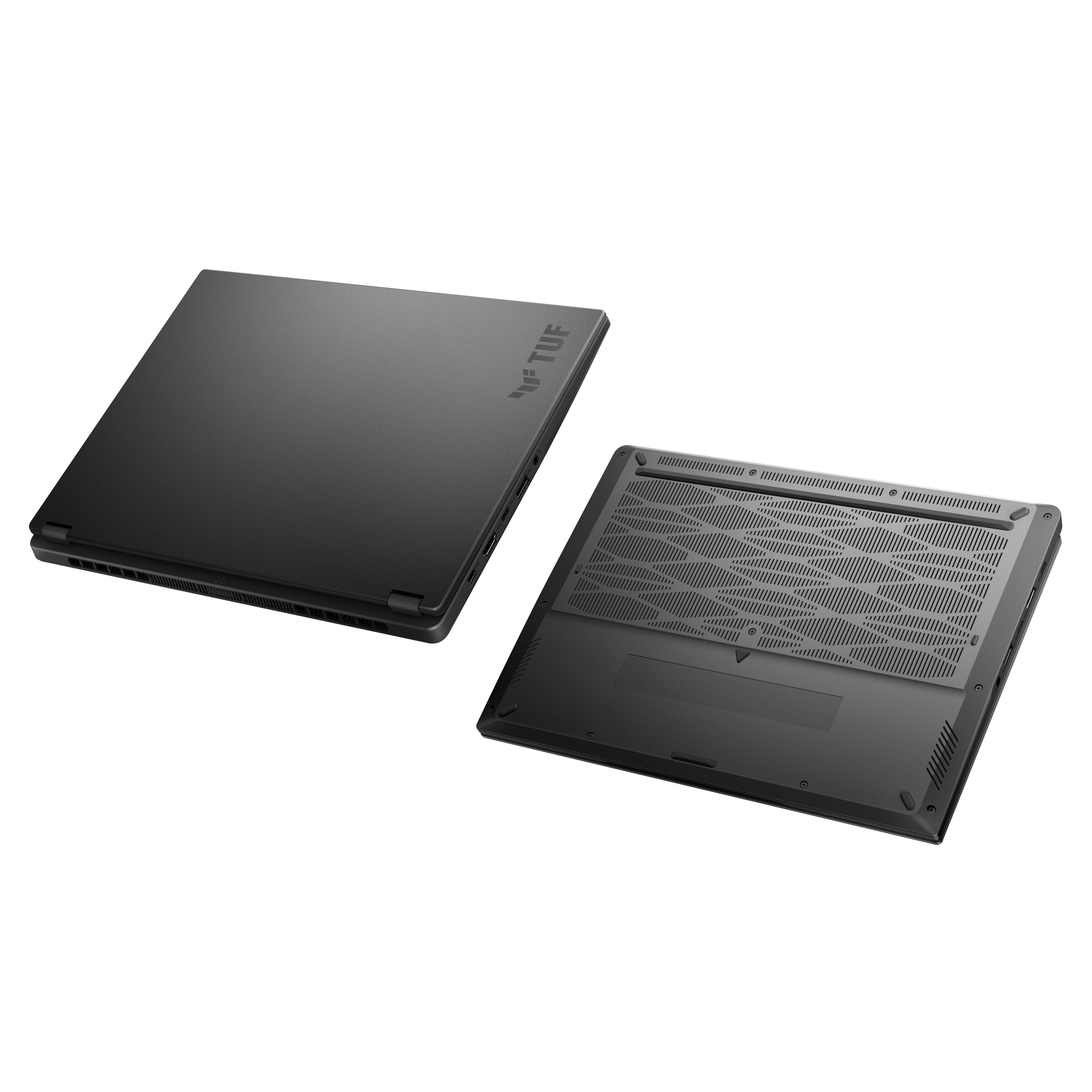

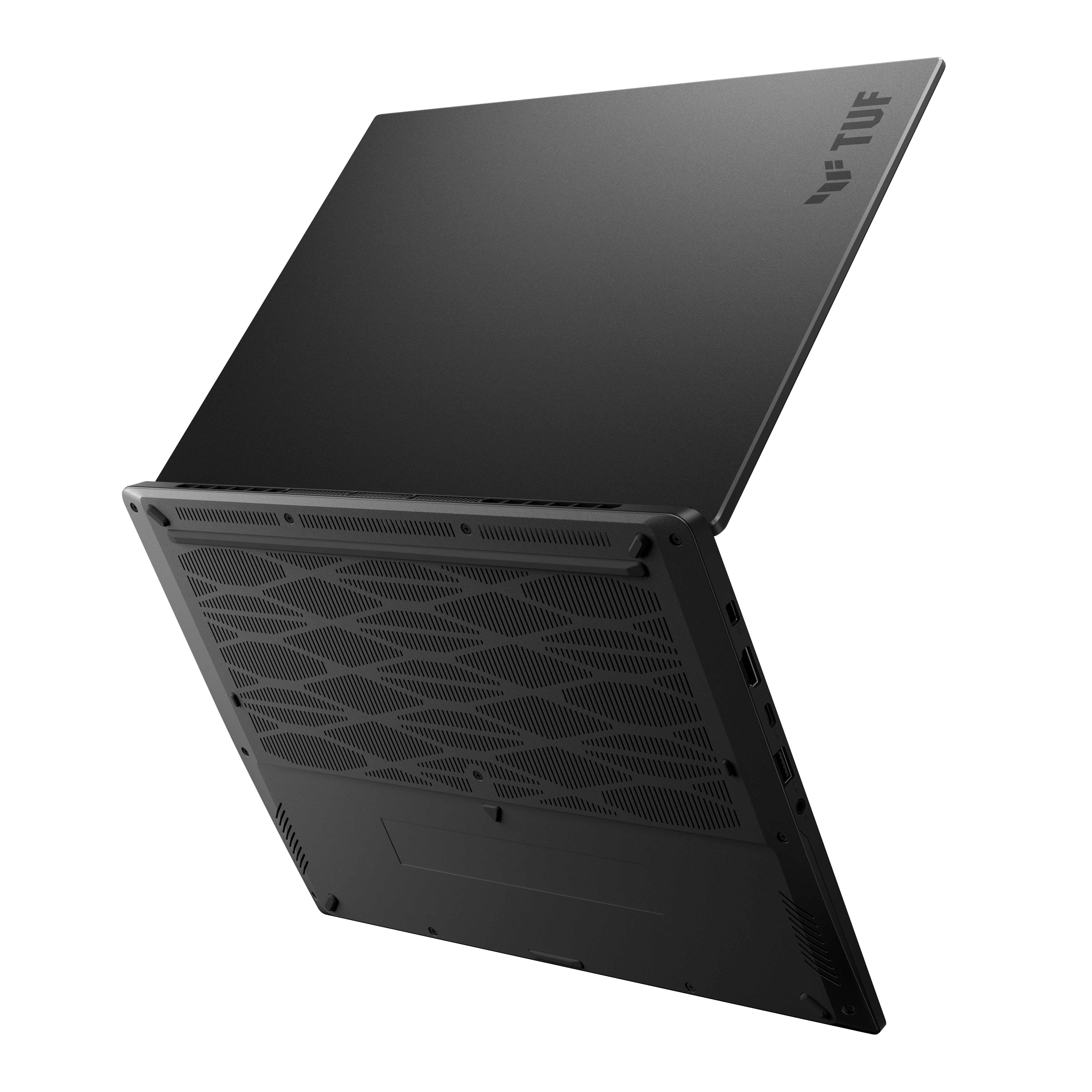

Dust Filter
When dust and fibers collect inside a machine, heat can get trapped, causing degraded performance over time. A filter over the A14’s air intakes helps keep dust out, allowing the CPU and GPU to breathe easier for years of smooth and stable operation.

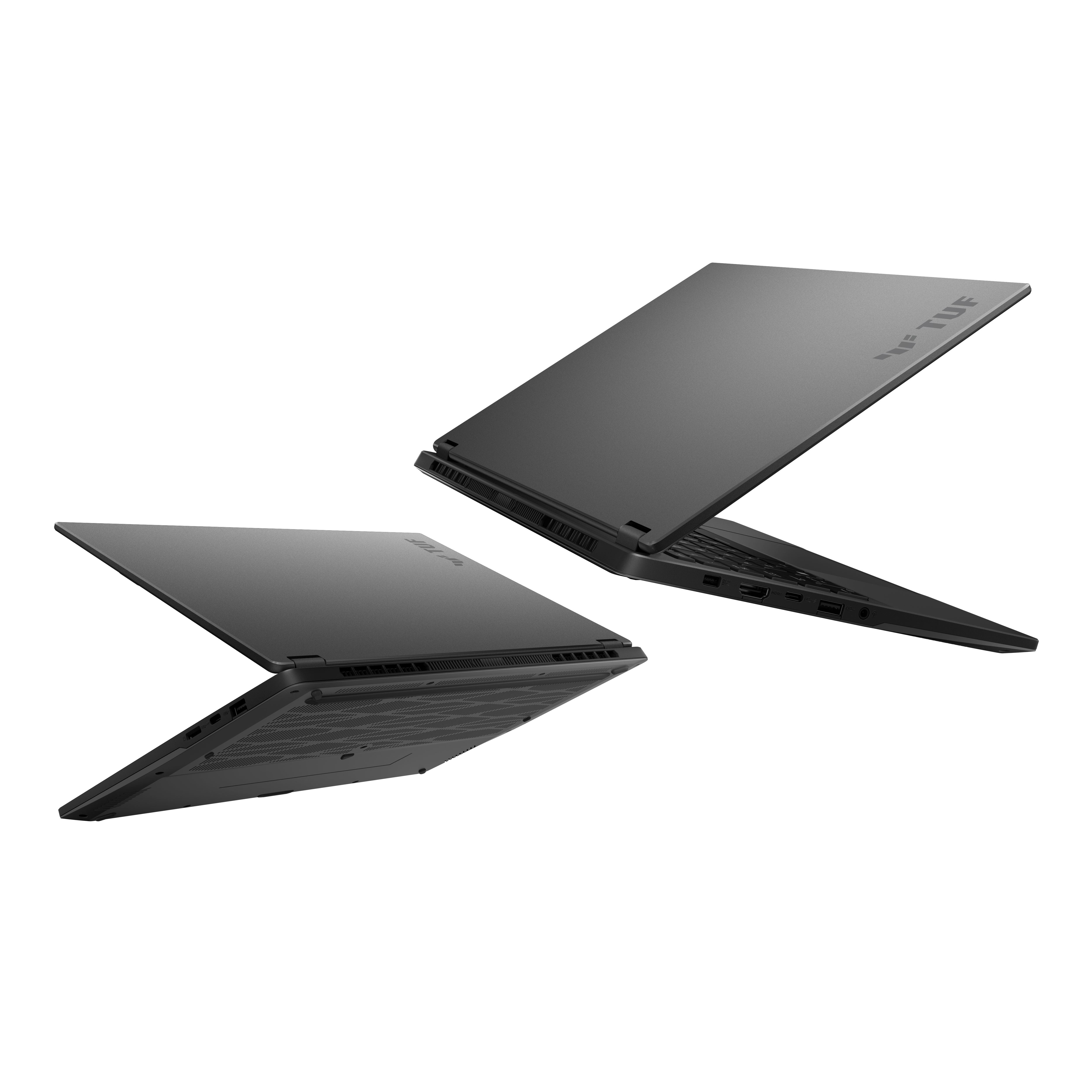

Exhaust Vents

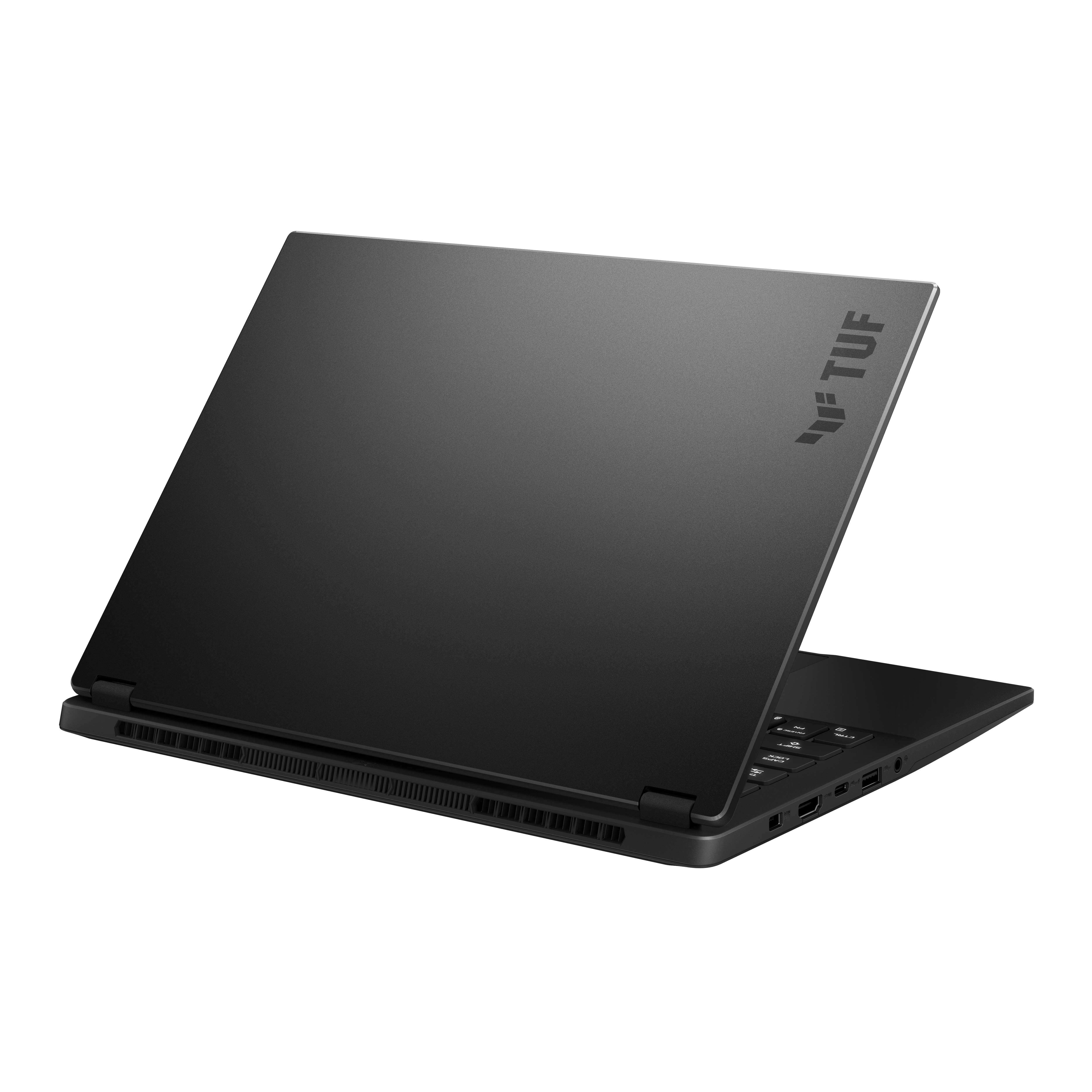

The TUF Gaming A14 features a large rear heatsink, making the most of its 14-inch frame. This rear exhaust keeps hot air and fan noise pointed away from you and your hands for a cooler and quieter experience.
Specifications:
| Model Name | FA401WV-RG024W |
| EAN Code | 4711387698334 |
| UPC Code | 197105698338 |
| WEEE | 2.128 |
| BASE UNIT | VSNR0J41-BU1000 |
| Marketing Name | ASUS TUF Gaming |
| Operating System | Windows 11 Home |
| Color | Jaeger Gray |
| Dimension (W x D x H) | 31.1 x 22.7 x 1.69 ~ 1.99 cm (12.24" x 8.94" x 0.67" ~ 0.78") |
| Weight | 1.46 Kg (3.22 lbs) |
| Processor | AMD Ryzen™ AI 9 HX 370 Processor 2.0GHz (36MB Cache, up to 5.1GHz, 12 cores, 24 Threads); AMD XDNA™ NPU up to 50TOPS |
| Chipset | N/A |
| Intergrated GPU | AMD Radeon™ Graphics |
| Discrete/Optimus | MUX Switch + NVIDIA® Advanced Optimus |
| Graphic | NVIDIA® GeForce RTX™ 4060 Laptop GPU (233 AI TOPs) |
| Graphic Wattage | 2225Mhz* at 100W(2175MHz Boost Clock+50MHz O.C.,75W+25W Dynamic Boost) |
| Graphic Memory | 8GB GDDR6 |
| Neural Processor | AMD XDNA™ NPU up to 50TOPS |
| Panel Size | 14-inch |
| Resolution | 2.5K (2560 x 1600, WQXGA) 16:10 aspect ratio |
| Refresh Rate | 165Hz |
| Viewing Angle | 85/85/85/85 |
| Panel Tech | IPS-level |
| Brightness | 400nits |
| Contrast Ratio | 1000:1 |
| SRGB % | 100.00% |
| Glare | Anti-glare display |
| Adaptive-Sync technology | G-Sync |
| Pantone | N/A |
| Support Dolby Vision HDR | N/A |
| On board memory | 8GB*2 LPDDR5X 7500 on board |
| Total System Memory | LPDDR5X 16GB |
| Memory Slot | N/A |
| Memory Max. | 16GB |
| How to upgrade memory | Not Available |
| Storage | 1TB PCIe® 4.0 NVMe™ M.2 SSD |
| M.2 slots support either SATA or NVMe | 2 |
| M.2 SSD Support List | 1TB PCIe® 4.0 NVMe™ M.2 SSD |
| Expansion Slot (includes used) | 2x M.2 PCIe |
| LAN | N/A |
| Wireless | Wi-Fi 6E(802.11ax) (Triple band) 2*2 + Bluetooth® 5.3 Wireless Card (*Bluetooth® version may change with OS version different.) |

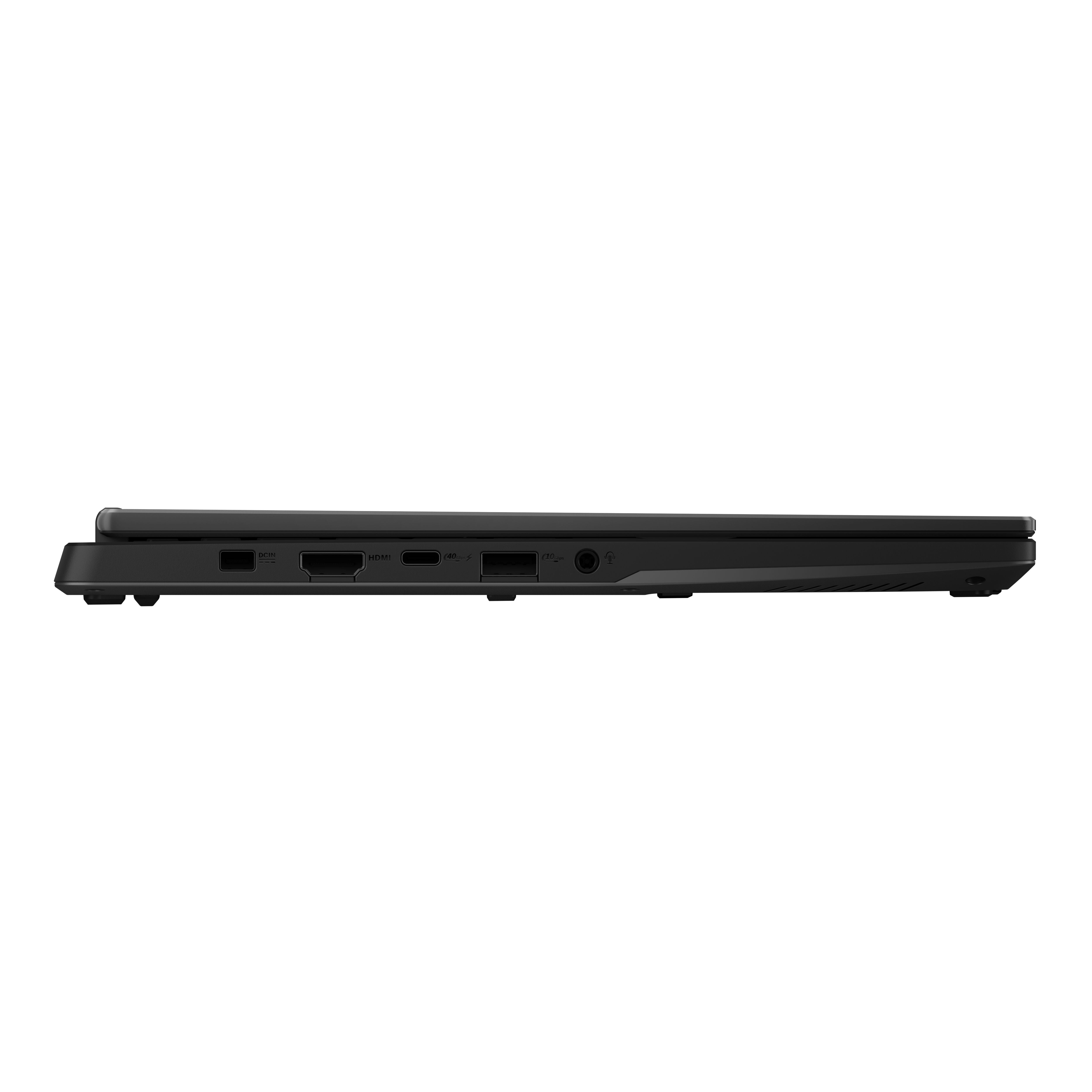

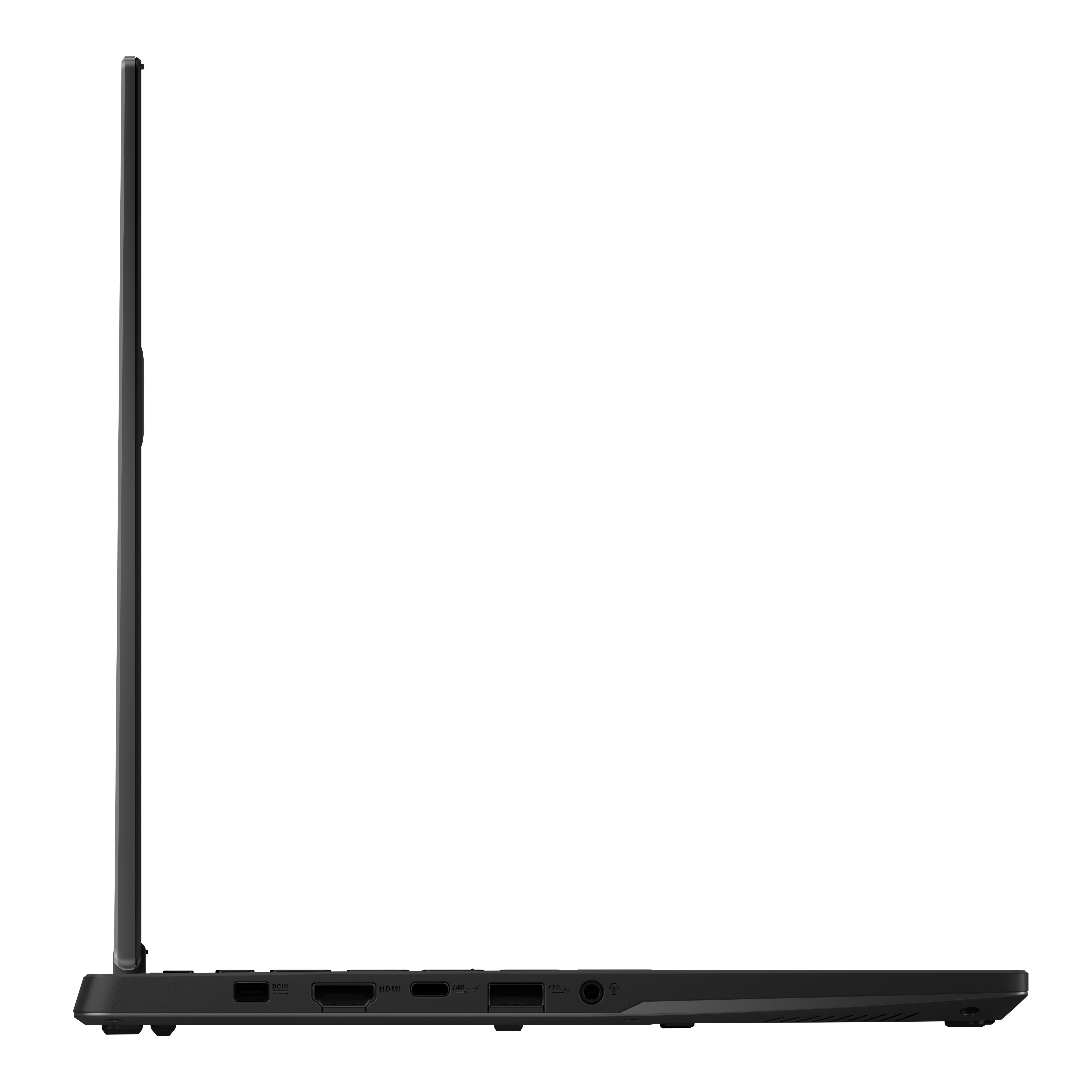

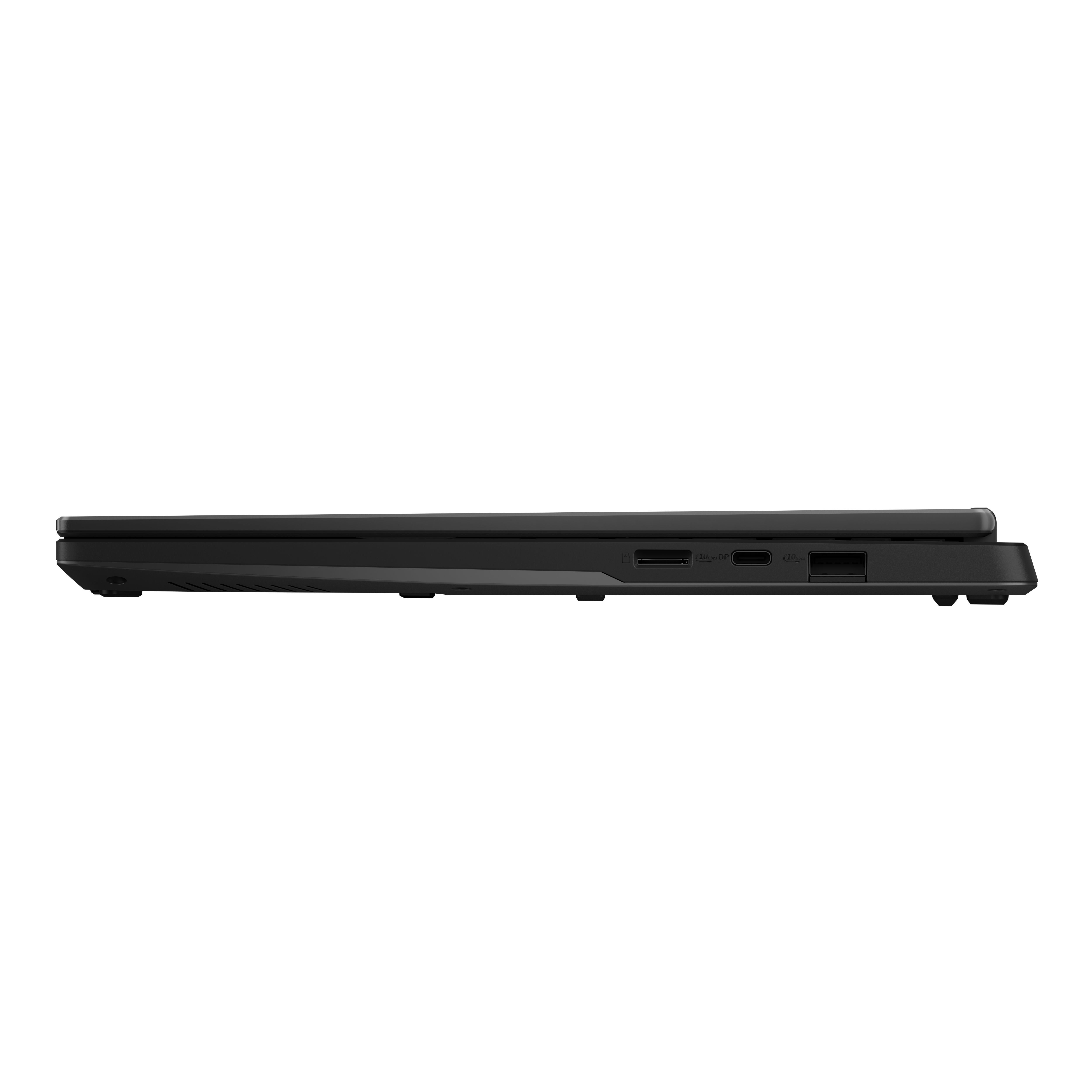

| I/O Ports | 1x Type-C USB 4 support DisplayPort™ / power delivery 1x USB 3.2 Gen 2 Type-C support DisplayPort™ 2x USB 3.2 Gen 2 Type-A 1x card reader (microSD) (UHS-II) |
| Display output | 1x HDMI 2.1 FRL |
| Camera | 1080P FHD IR Camera for Windows Hello |
| Mic | Built-in array microphone |
| Keyboard Type | Backlit Chiclet Keyboard Single Light With Copilot key *Copilot in Windows (in preview) is rolling out gradually within the latest update to Windows 11 in select global markets. Timing of availability varies by device and market. Learn more: https://www.microsoft.com/en-us/windows/copilot-ai-features?r=1#faq |
| Aura Sync | N/A |
| Touchpad | Touchpad N/A |
| Speakers | 2-speaker system |
| Audio | 1x 3.5mm Combo Audio Jack Built-in array microphone |
| Audio Tech | AI noise-canceling technology Dolby Atmos Hi-Res certification (for headphone) Support Microsoft Cortana near field/far field |
| Security | BIOS Administrator Password and User Password Protection Pluton Security Processor Secured-core PC (Level 3) |
| Antivirus | McAfee® 30 days free trial |
| Battery | 73WHrs, 4S1P, 4-cell Li-ion |
| Fast charging | Recharge from 0-50% in 30 minutes |
| Power | Rectangle Conn, 200W AC Adapter, Output: 20V DC, 10A, 200W, Input: 100-240V AC, 50/60Hz universal |
| Xbox Game Pass | Xbox Game Pass for PC_3 months (*Terms and exclusions apply. Offer only available in eligible markets for Xbox Game Pass for PC. Eligible markets are determined at activation. Game catalog varies by region, device, and time.) |
| Ecolabels & Compliances | ENERGY STAR® EPEAT Silver |
