Description
Protective PCB CoatingA protective conformal coating envelops the circuit board to help protect against short-circuits caused by moisture, dust or debris. |
Dual-ball Fan BearingsDual-ball bearings offer an extensive lifespan of up to 80,000 hours, double the longevity of sleeve bearings and surpassing fluid dynamic bearings. This helps ensure long-lasting, reliable and quiet cooling. |
MaxContact DesignMaxContact is a special ASUS manufacturing process that effectively expands the surface area of the heat spreader that sits atop the GPU by 5%, compared to traditional designs. This improves temperatures by up to 2°C, in concert with an extensive heatsink array and powerful Axial-tech fans. |
|

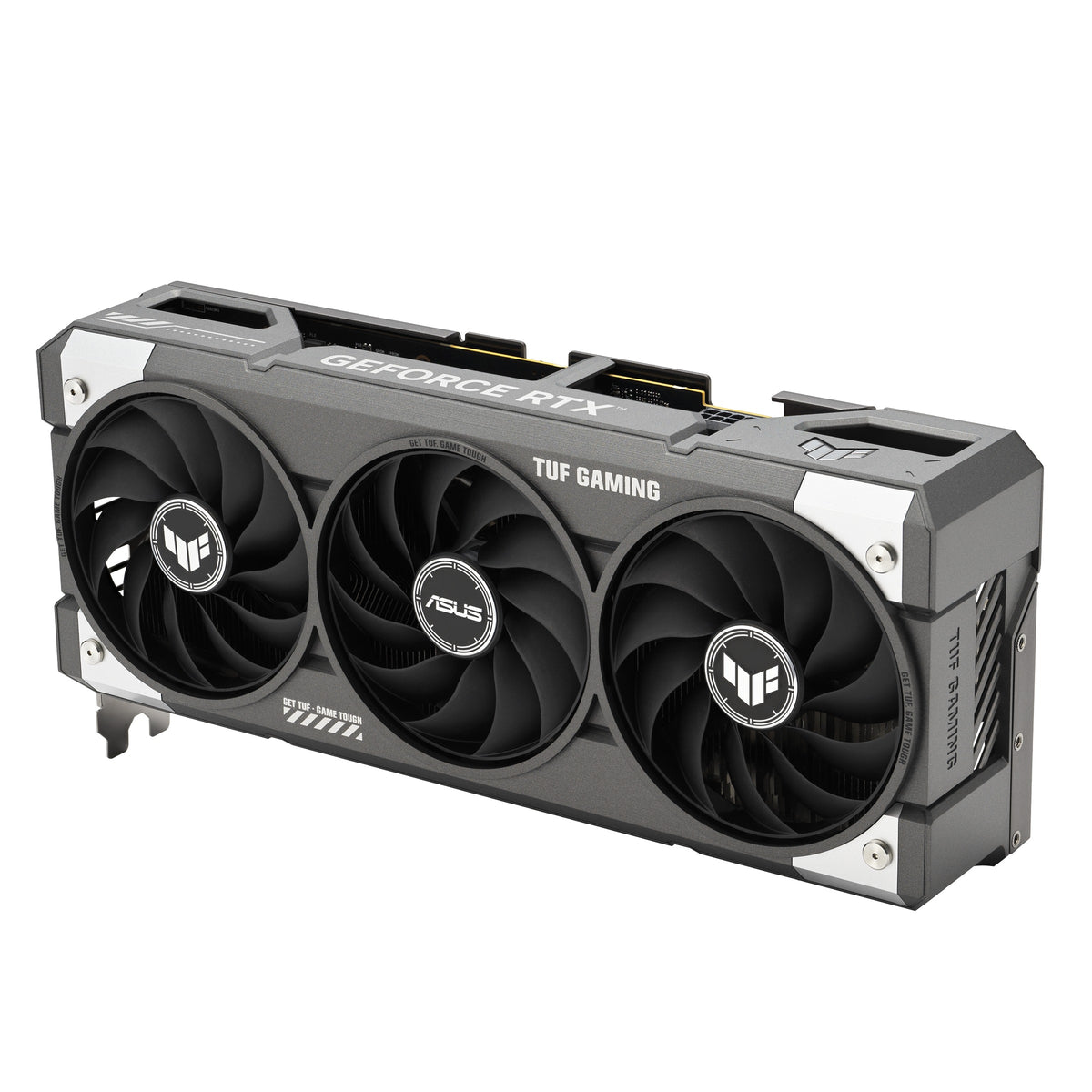

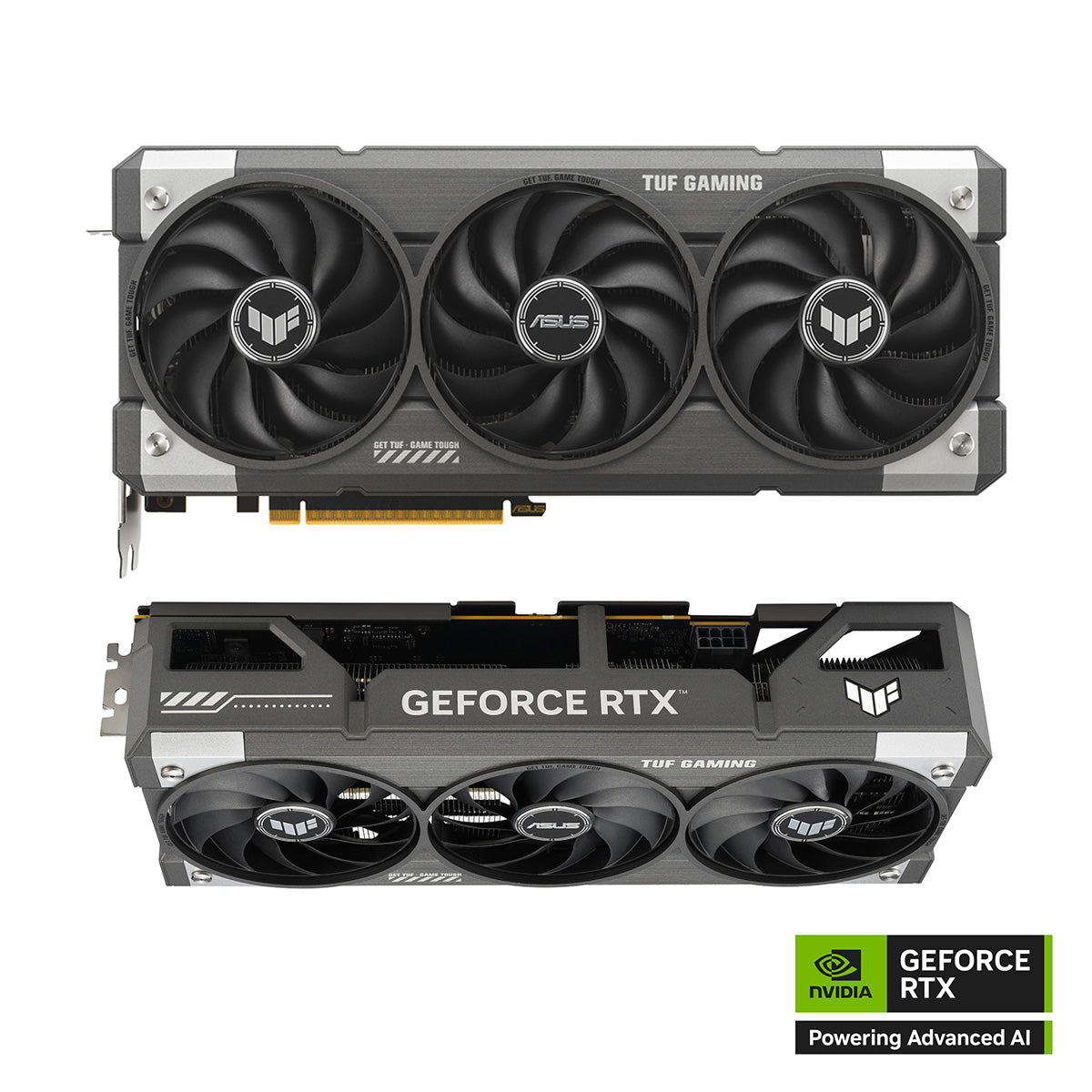

Axial-tech UpgradesAxial-tech fans spin on dual-ball bearings and propel more air than standard fans. |
 |
|
|

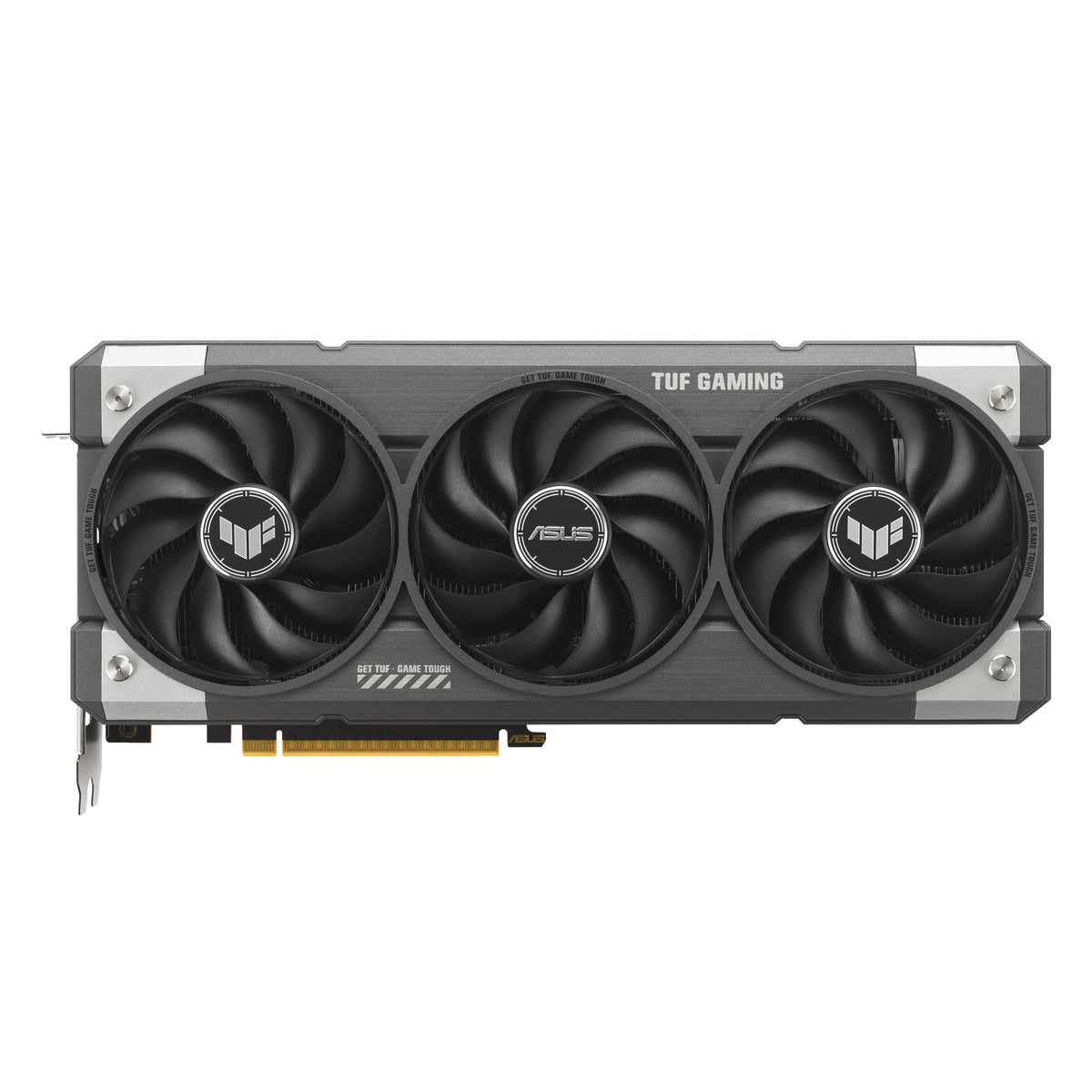

New DirectionsThe two outer fans spin counterclockwise to reduce turbulence and enhance air dispersion. All three fans stop when GPU temps are below 50°C, for quieter operation during light tasks. They restart above 55°C, following a speed curve that balances performance and acoustics. |

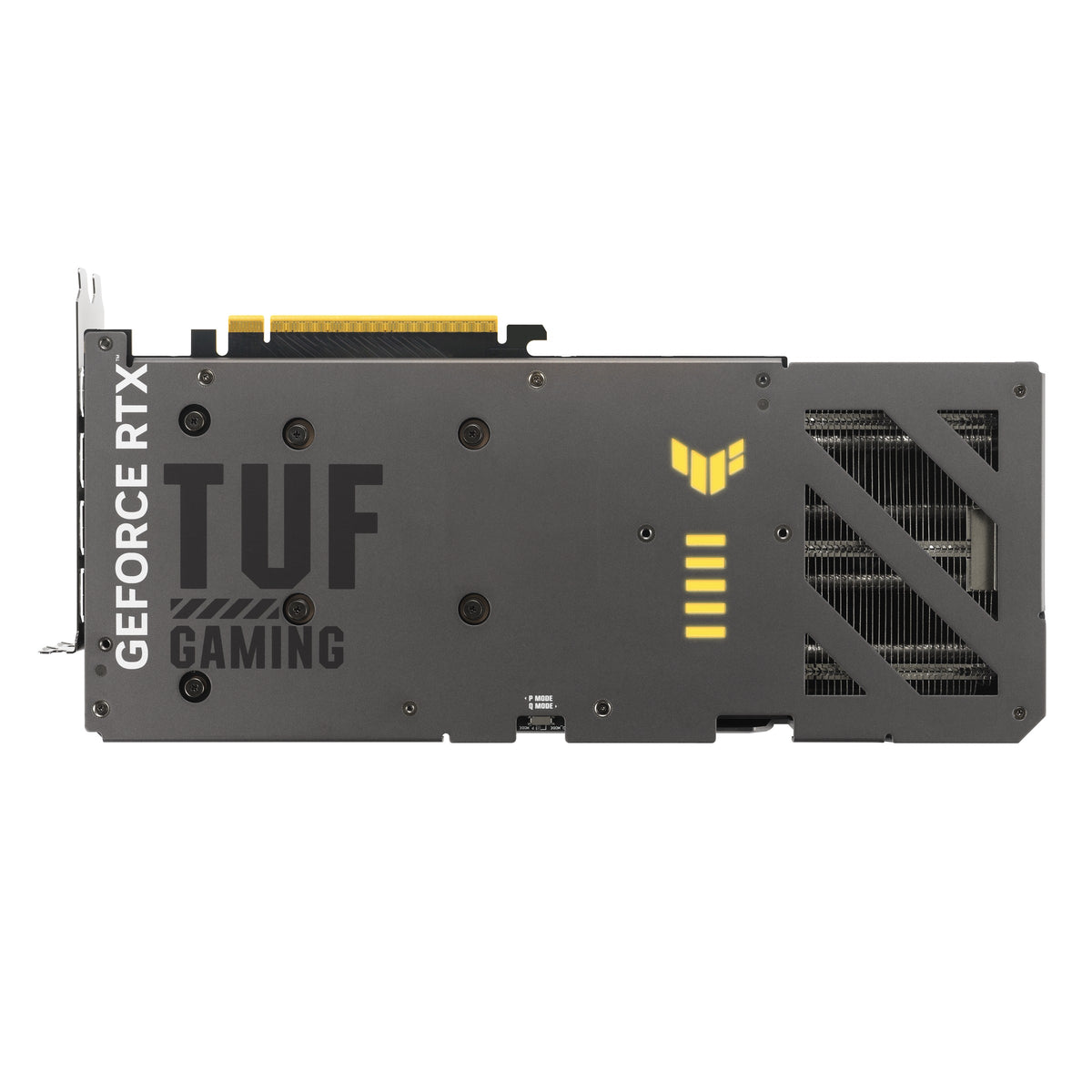

Vented ExoskeletonA high-quality diecast shroud and aluminum backplate help prevent PCB flex and feature large vents to further increase heat dissipation. |
|
Specification:
| TUF-RTX5060-O8G-GAMING Specifications | |
|---|---|
| Model | TUF-RTX5060-O8G-GAMING |
| Graphic Engine | NVIDIA® GeForce RTX™ 5060 |
| AI Performance | 648 TOPs |
| Bus Standard | PCI Express 5.0 |
| OpenGL | OpenGL® 4.6 |
| Video Memory | 8GB GDDR7 |
| Engine Clock | OC mode: 2677MHz Default mode: 2640MHz (Boost Clock) |
| CUDA Core | 3840 |
| Memory Speed | 28 Gbps |
| Memory Interface | 128-bit |
| Resolution | Digital Max Resolution 7680 x 4320 |

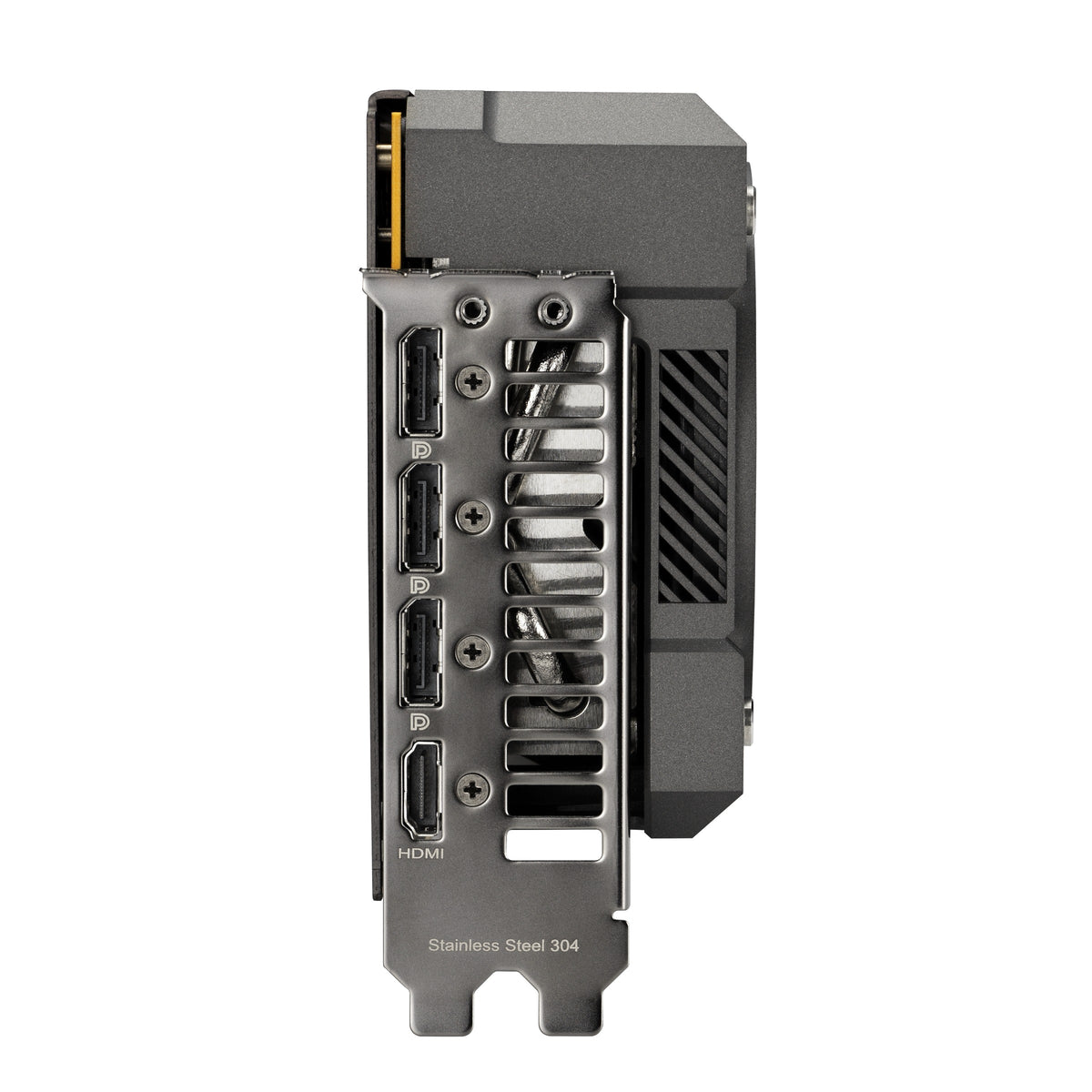

| Interface | Yes x 1 (Native HDMI 2.1b) Yes x 3 (Native DisplayPort 2.1b) HDCP Support Yes (2.3) |
| Maximum Display Support | 4 |
| NVlink / Crossfire Support | No |
| Accessories | 1 x Speedsetup Manual 1 x TUF Velcro Hook & Loop 1 x TUF Gaming Certificate 1 x Thank You Card |
| Software | ASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver Please download all software from the support site. |
| Dimensions | 302 x 133.5 x 62mm |
| Recommended PSU | 550W |
| Power Connectors | 1 x 8-pin |
| Slot | 3.1 slot |
| AURA SYNC | ARGB |
| Note | * Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. * For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: ASUS PSU Product Page * All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by third party to ASUS based on false advertising or any other issues caused from using false specifications of ASUS products. |
