Description

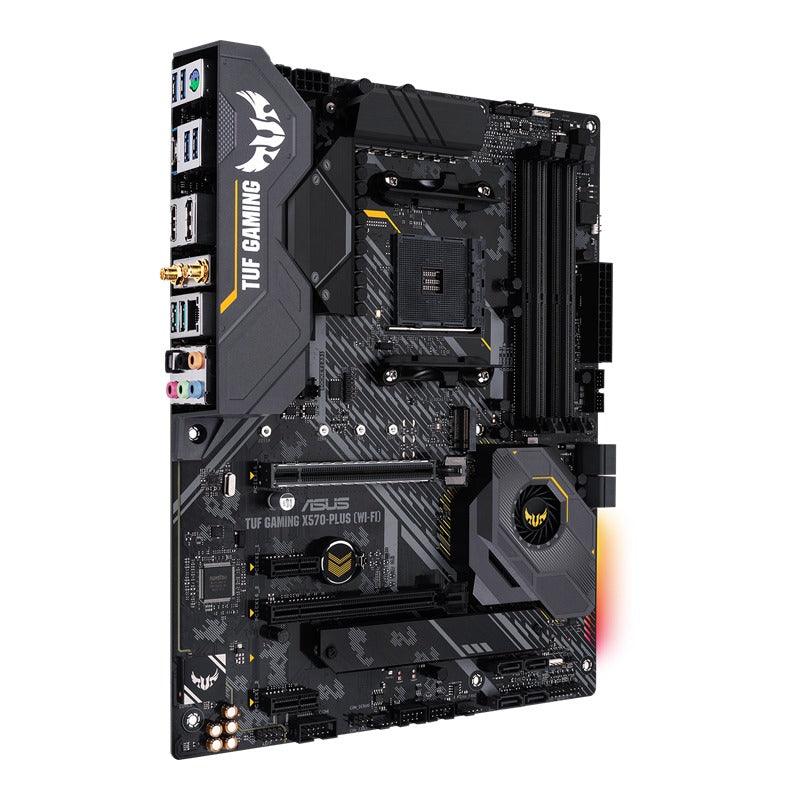

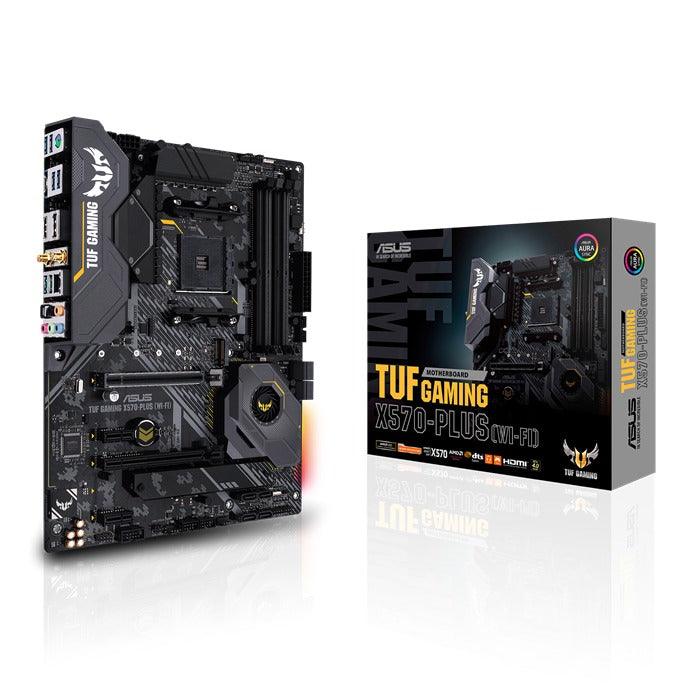

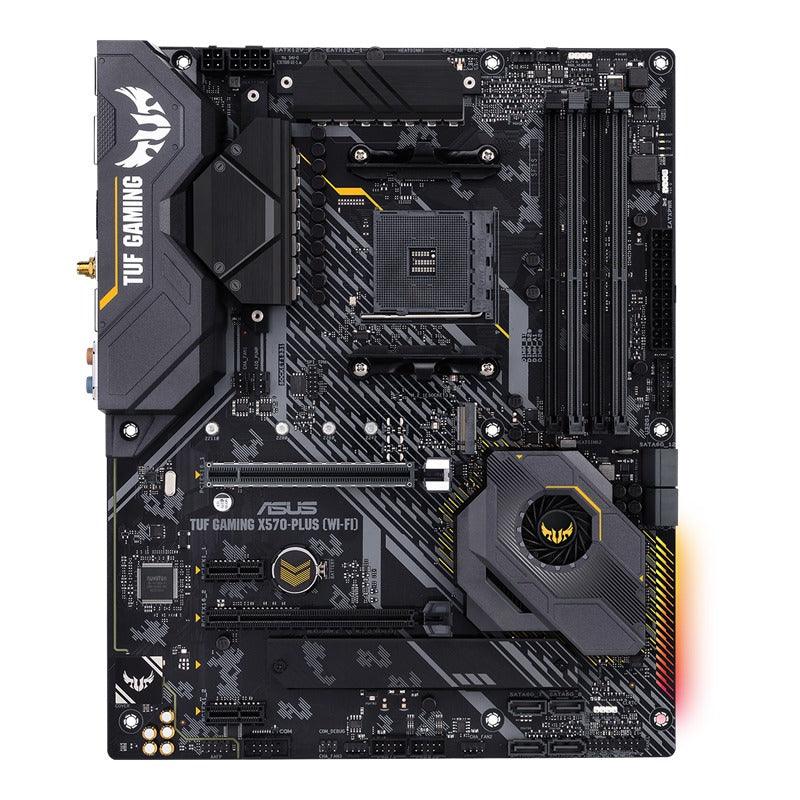

ASUS TUF Gaming X570-Plus (Wifi)
- AMD AM4 socket: Ready for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series desktop processors
- Enhanced Power Solution: 12+2 Dr. MOS power stages, 6-layer PCB, ProCool sockets, military-grade TUF components, and Digi+ VRM for maximum durability
- Comprehensive Cooling: Active chipset heatsink, VRM heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 4
- Next-Gen Connectivity: Dual PCIe 4.0 M.2 and USB 3.2 Gen 2 Type-A /Type-C
- Gaming Networking: Exclusive Realtek® L8200A Gigabit Ethernet, Intel 2x2 802.11ac Wi-Fi with MU-MIMO support, Bluetooth 5.0, TUF LANGuard and TurboLAN technology
- Realtek S1200A Codec: Pristine audio quality with unprecedented 108dB signal-to-noise ratio for stereo line-out and 103dB SNR for line-in
- Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear, including addressable RGB strips
- TUF Gaming Alliance: ASUS hardware ecosystem ensures the best compatibility and complementary aesthetics from components to case
SPECIFICATION
| CPU | AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors |
| Chipset | AMD X570 |
| Memory | 4 x DIMM, Max. 128GB, DDR4 5100(O.C)/5000(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Un-buffered Memory |
| Dual Channel Memory Architecture | |
| Graphic | Integrated Graphics in AMD Ryzen™ 5000 G-Series/ 4000 G-Series/ 3000 G-Series/ 2000 G-Series Desktop Processors |
| Multi-VGA output support : HDMI/DisplayPort ports | |
| - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz | |
| - Supports DisplayPort with max. resolution 4096 x 2160 @ 60 Hz | |
| Multi-GPU Support | Supports AMD CrossFireX Technology |
| Expansion Slots | AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors |
| 1 x PCIe 4.0 x16 (x16 mode) | |
| AMD Ryzen™ 5000 G-Series/ 4000 G-Series/ 2000 Series Desktop Processors | |
| 1 x PCIe 3.0 x16 (x16 mode) | |
| AMD RyzenTM 3000 G-Series / 2000 G-Series Processors | |
| 1 x PCIe 3.0/2.0 x16 (x8 mode) | |
| AMD X570 chipset | |
| 1 x PCIe 4.0 x16 (max at x4 mode) | |
| 2 x PCIe 4.0 x1 | |
| Storage | AMD Ryzen 5000 Series/ 3000 Series Desktop Processors : |
| 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support | |
| AMD Ryzen 5000 G-Series/ 4000 G-Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors : | |
| 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support | |
| AMD X570 chipset : | |
| 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support | |
| 8 x SATA 6Gb/s port(s) | |
| Support Raid 0, 1, 10 | |
| LAN | Realtek L8200A |
| ASUS Turbo LAN Utility | |
| TUF LANGuard | |
| Wireless Data Network | Intel庐 Wireless-AC 9260 |
| Wi-Fi 802.11 a/b/g/n/ac | |
| Supports dual band frequency 2.4/5 GHz | |
| Supports MU-MIMO | |
| Supports channel bandwidth: HT20/HT40/HT80/HT160. Up to 1.73Gbps transfer speed | |
| Bluetooth | Bluetooth庐 5.0 |
| Audio | Realtek庐 ALC S1200A8-Channel High Definition Audio CODEC |
| Audio Feature : | |
| - Exclusive DTS Custom for GAMING Headsets. | |
| - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference | |
| - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals | |
| - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity | |
| - Audio Cover: Effective shielding preserves the integrity of audio signals to ensure best quality. | |

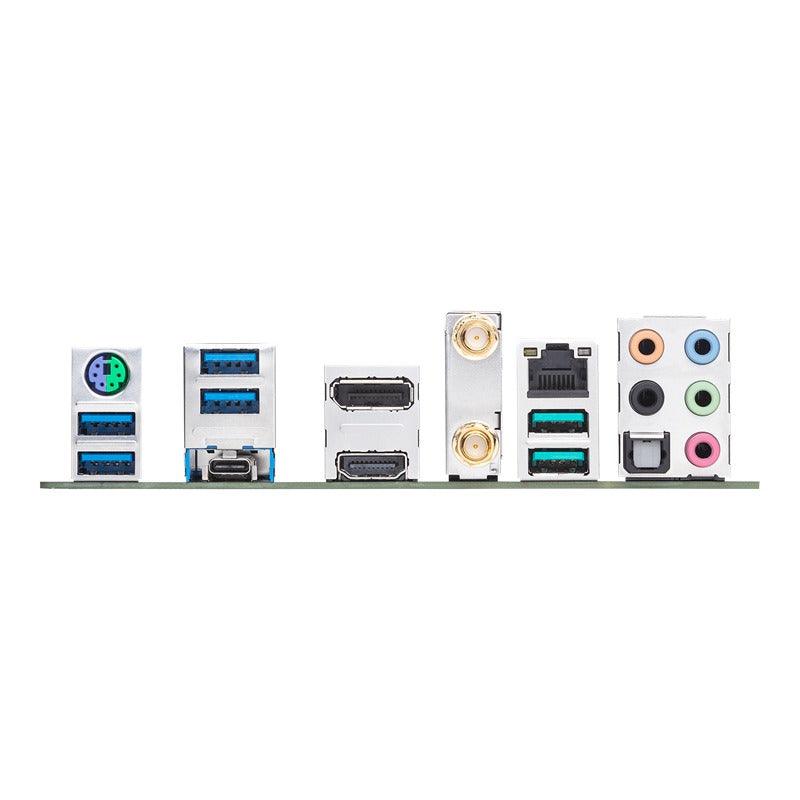

| USB Ports | AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors : |
| 4 x USB 3.2 Gen 1 port(s) (4 at back panel, ) | |
| AMD X570 chipset : | |
| 3 x USB 3.2 Gen 2 port(s) (3 at back panel, , 2 x Type-A+1 x USB Type-Cﾂｮ) | |
| AMD X570 chipset : | |
| 2 x USB 3.2 Gen 1 port(s) (2 at mid-board) | |
| AMD X570 chipset : | |
| 4 x USB 2.0 port(s) (4 at mid-board) | |
| Operating System | Windows 10 64-bit |
| Form Factor | ATX Form Factor |
| 12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
