Description
- NVIDIA Ampere Streaming Multiprocessors: The building blocks for the world’s fastest, most efficient GPUs, the all-new Ampere SM brings 2X the FP32 throughput and improved power efficiency.
- 2nd Generation RT Cores: Experience 2X the throughput of 1st gen RT Cores, plus concurrent RT and shading for a whole new level of ray tracing performance.
- 3rd Generation Tensor Cores: Get up to 2X the throughput with structural sparsity and advanced AI algorithms such as DLSS. These cores deliver a massive boost in game performance and all-new AI capabilities.
- Axial-tech fan design has been newly tuned with a reversed central fan direction for less turbulence.
- Dual ball fan bearings can last up to twice as long as sleeve bearing designs.
- An all-aluminum shroud and metal backplate enhance durability.
-
GPU Tweak II provides intuitive performance tweaking, thermal controls, and system monitoring.
TUF Gaming
GeForce RTX™ 3060
BUILT TUF

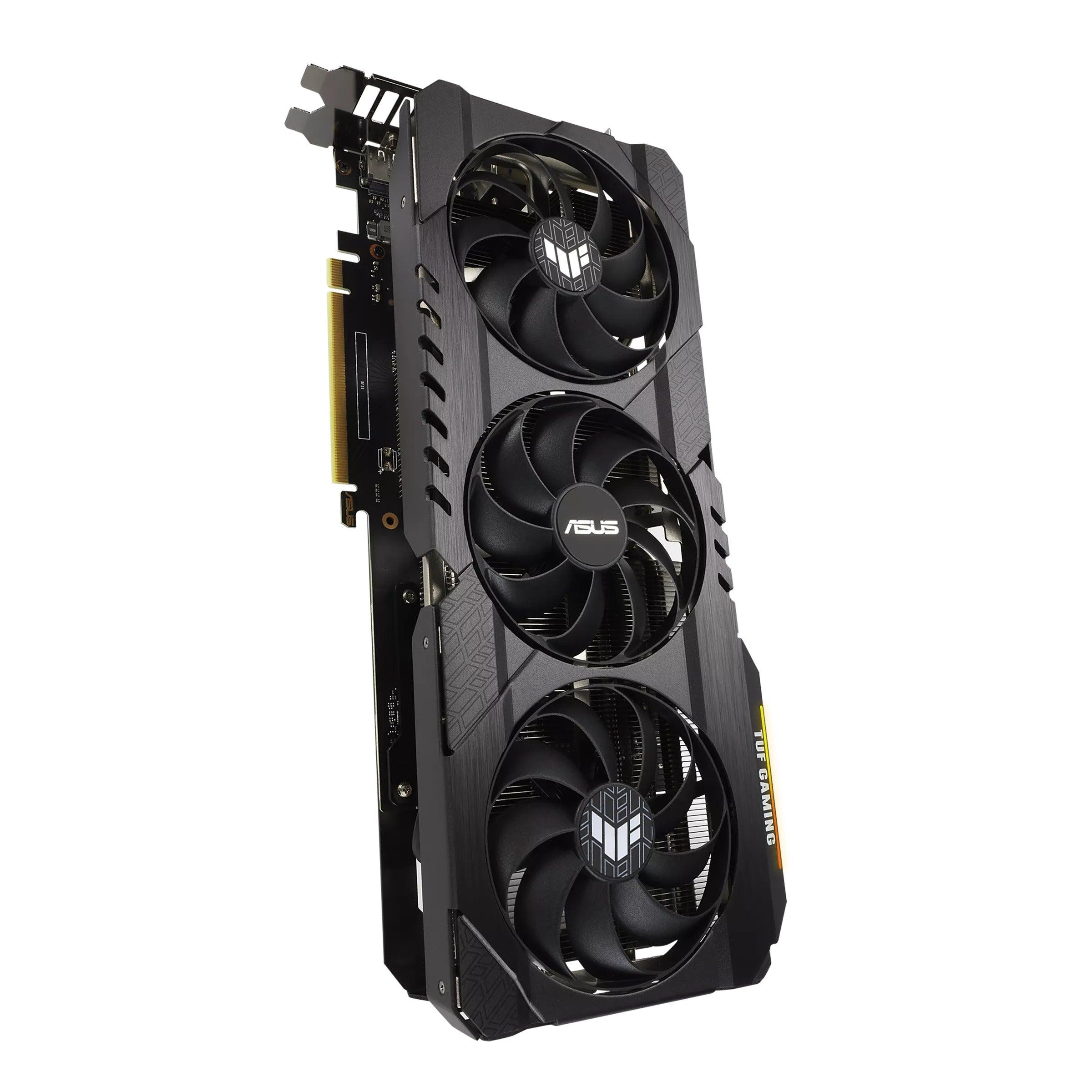

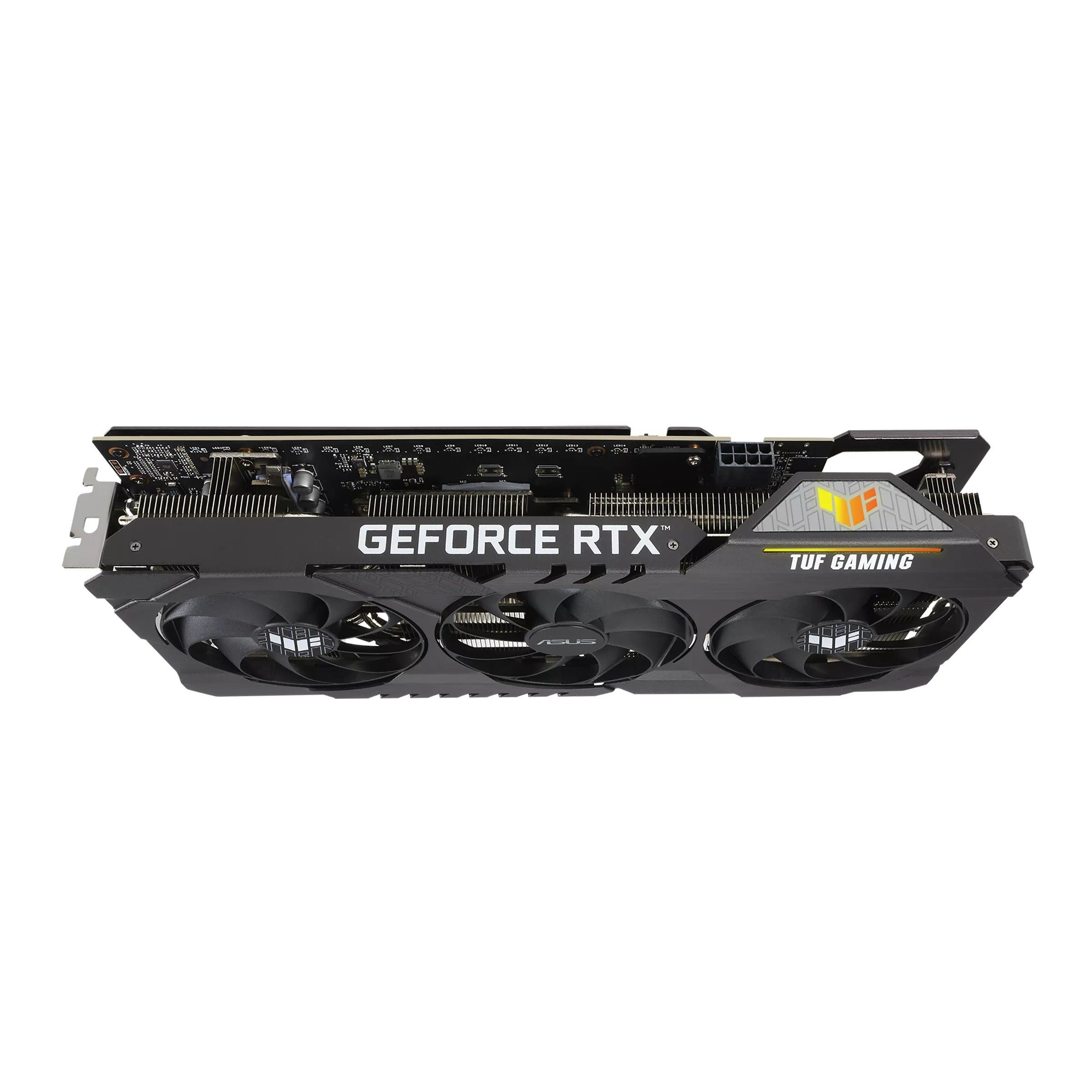

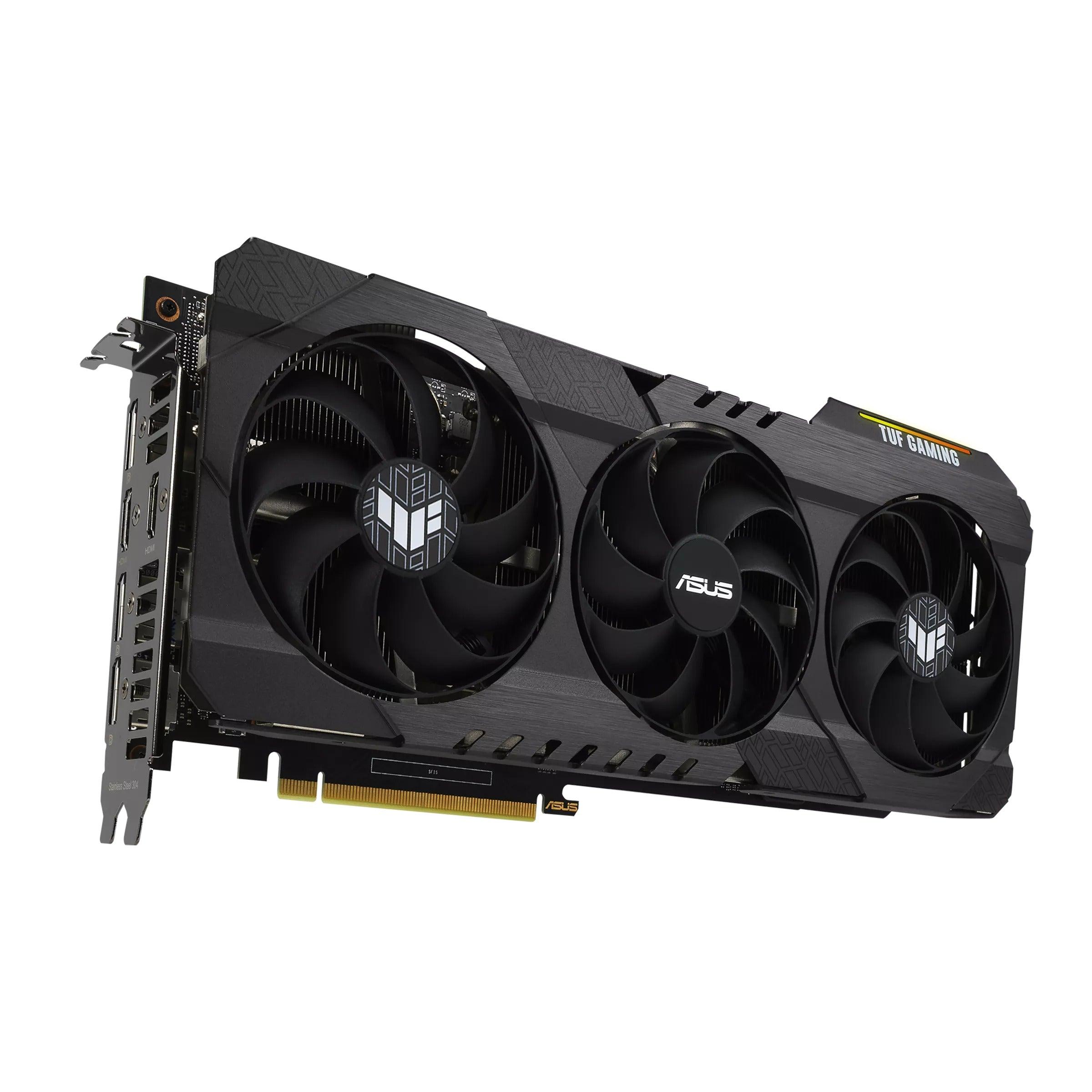

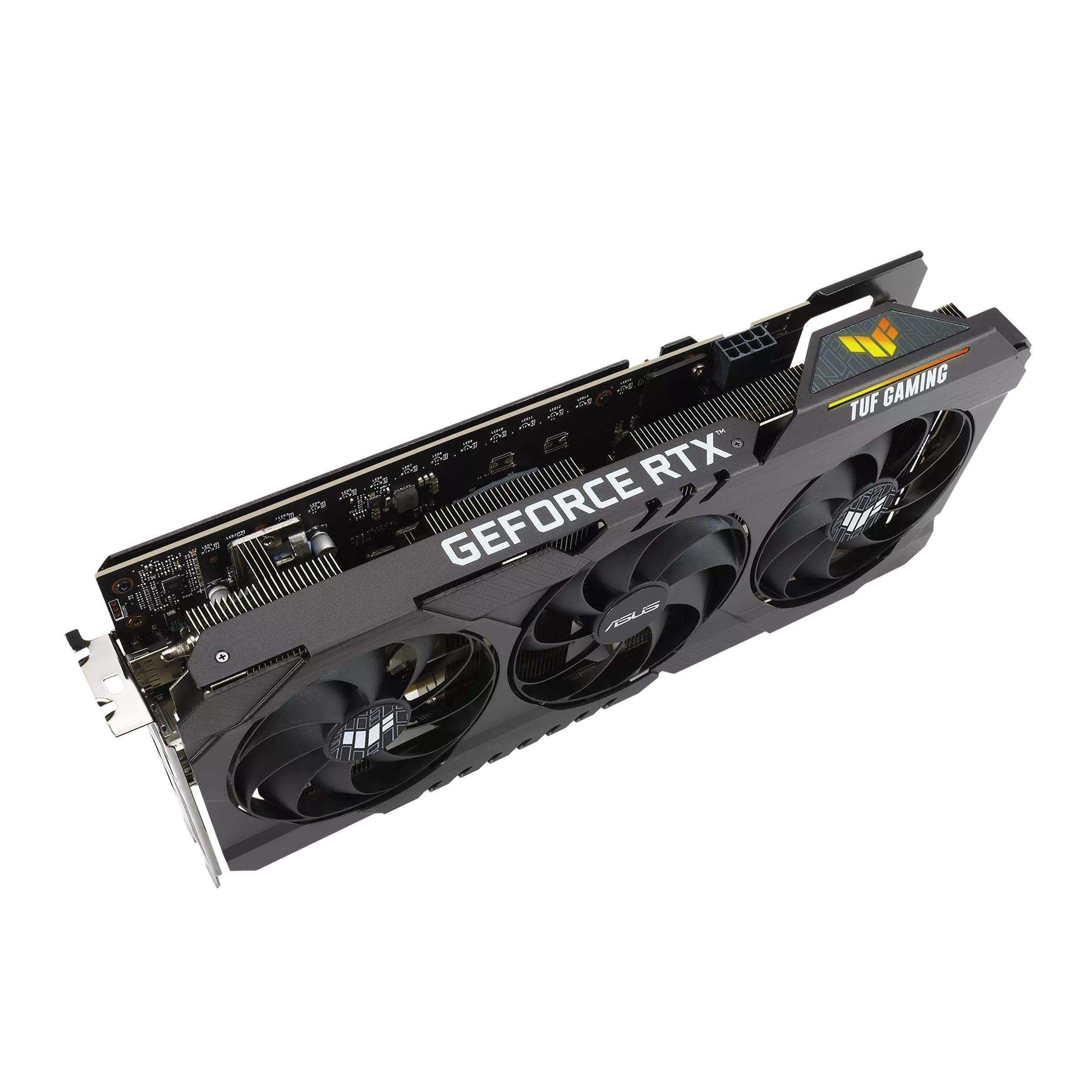

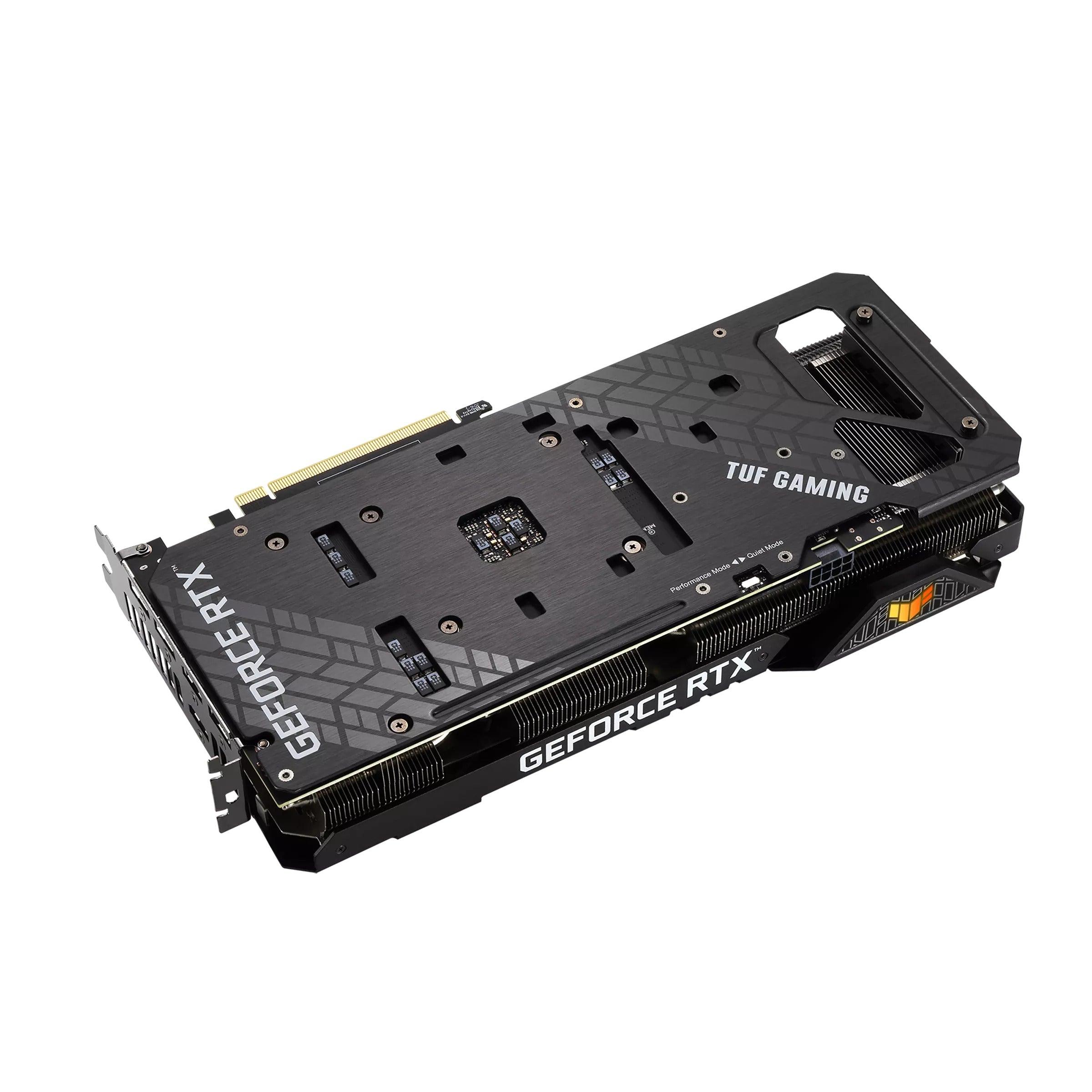

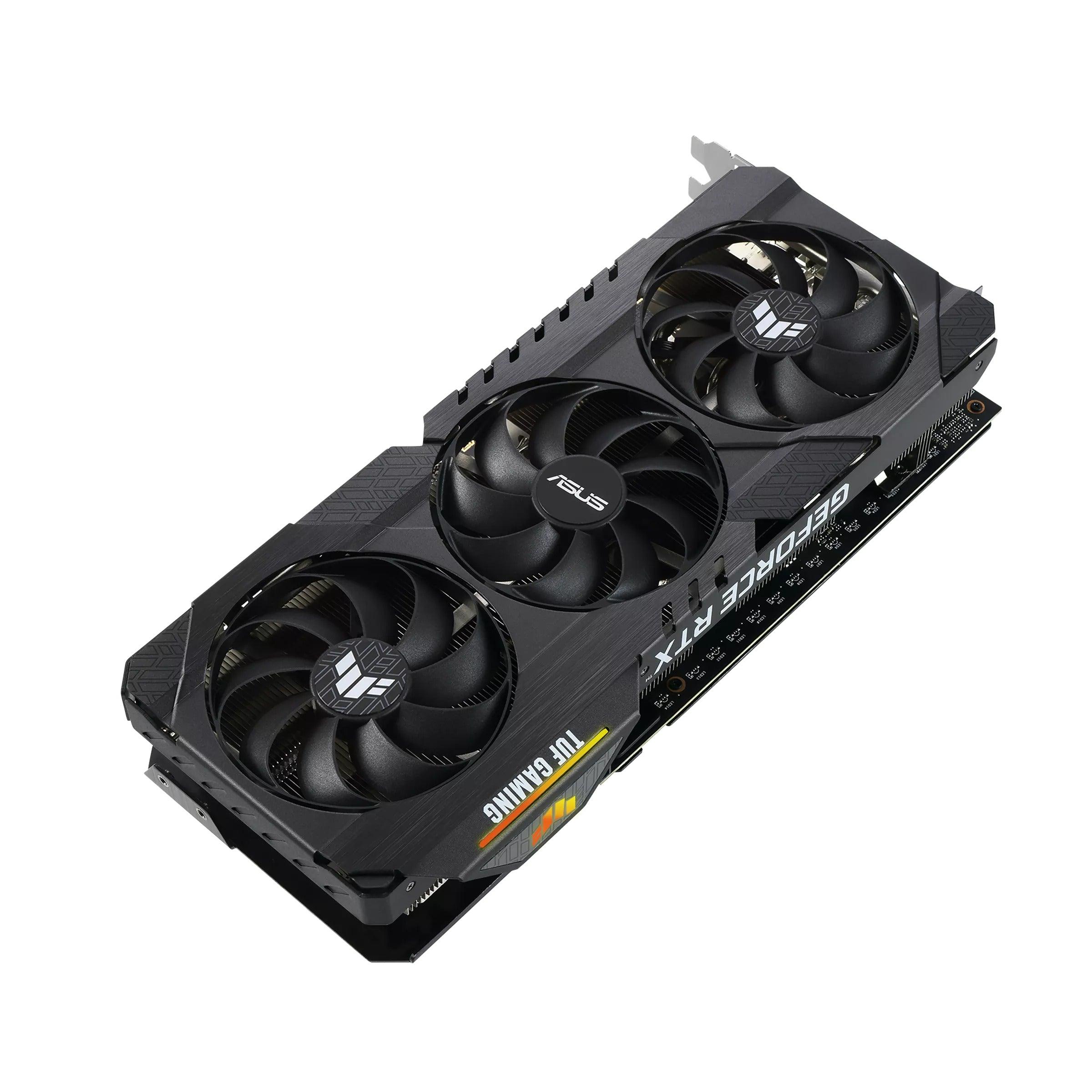

The TUF GAMING GeForce RTX™ 3060 has been stripped down and built back up to provide more robust power and cooling. A new all-metal shroud houses three powerful axial-tech fans that utilize durable dual ball fan bearings. Fan rotation has been optimized for reduced turbulence, and a stop mode brings all three fans to a halt at low temps. Beneath, a thick heatsink keeps thermals under tight control. Additional features, including TUF components, Auto-Extreme Technology, and a backplate vent make the TUF a proper powerhouse. For builders looking for a new “old faithful”, this card has your back.
FANS
AXIAL-TECH UPGRADES

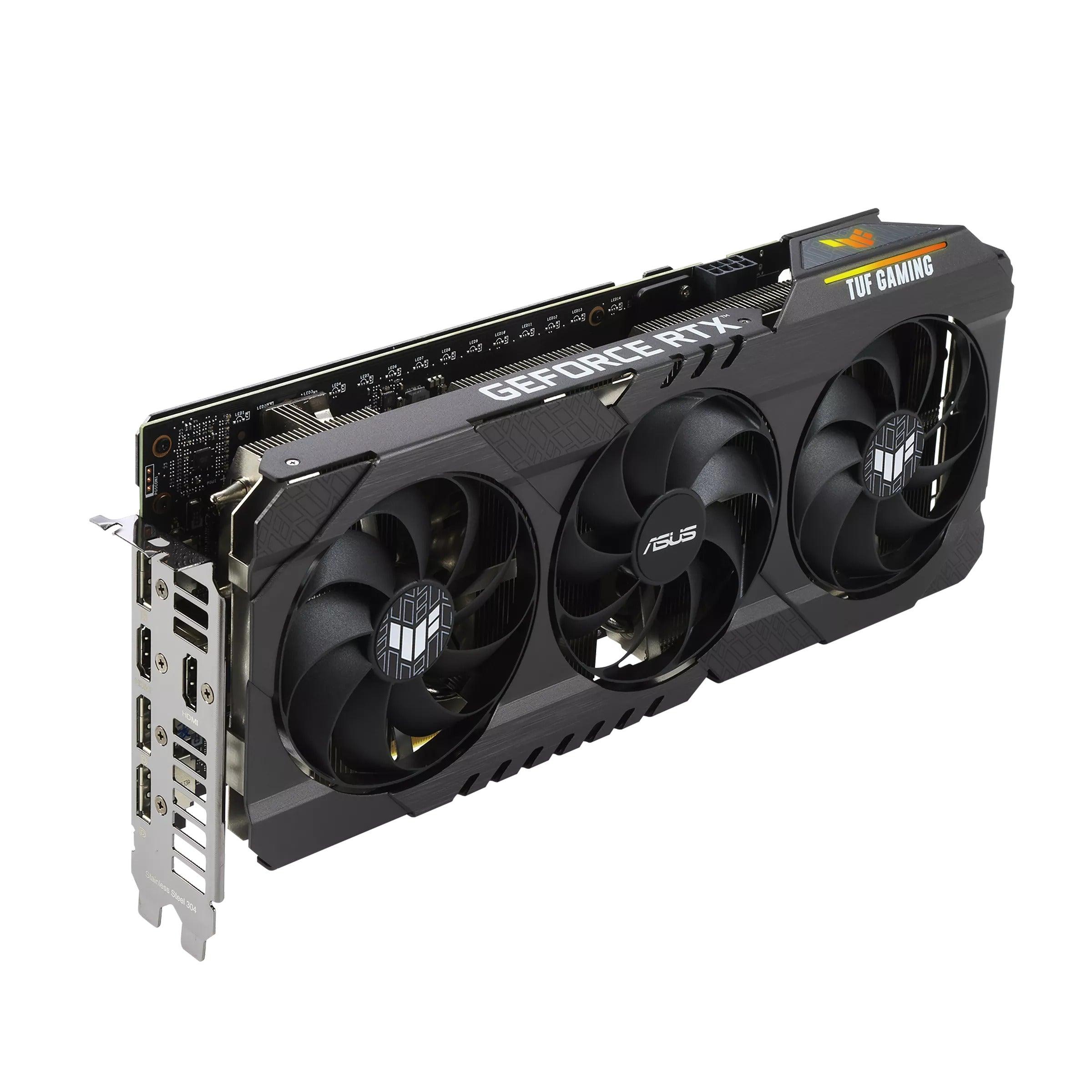

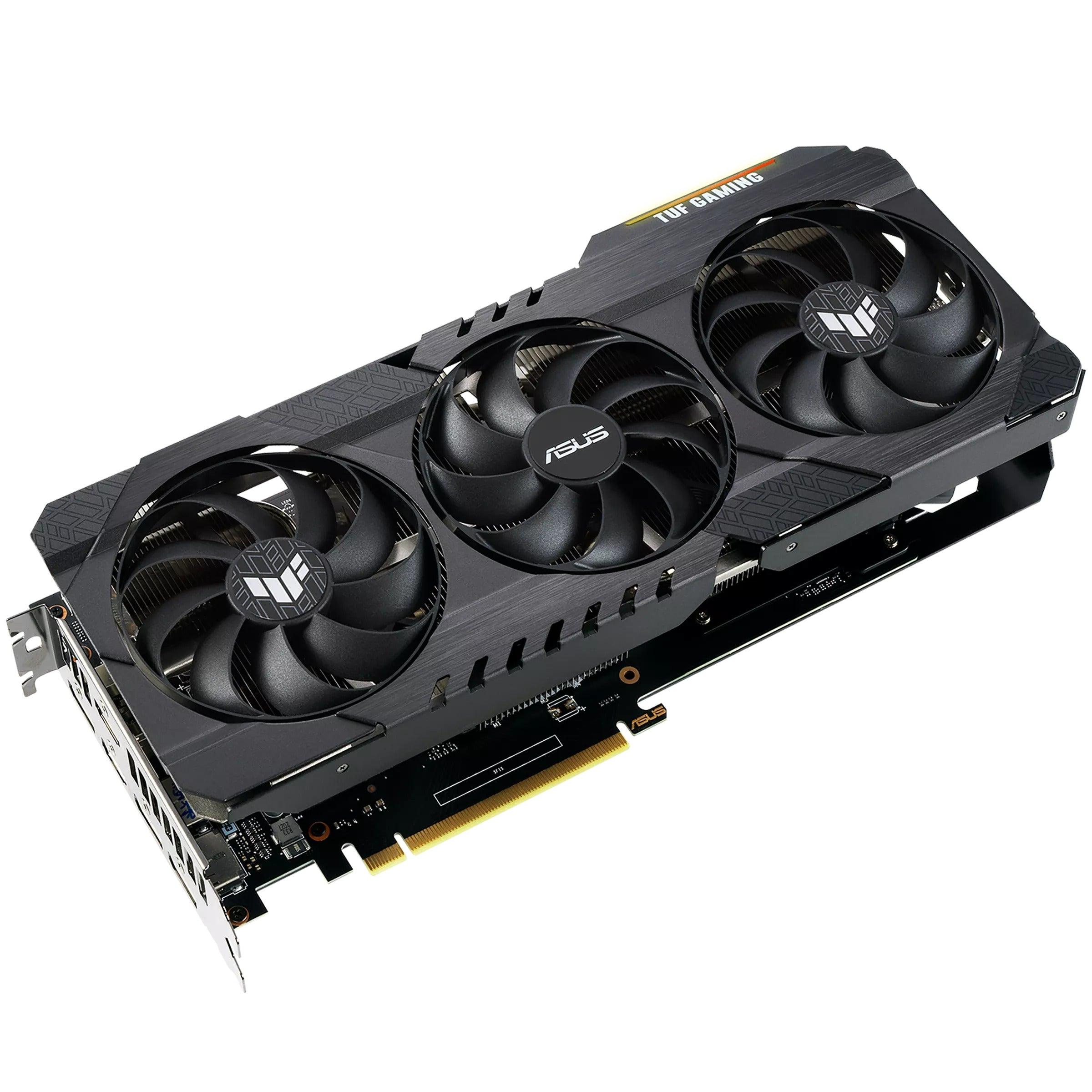

TUF Gaming cards leverage our tried-and-true Axial-tech fan design, with three fans working in tandem to satisfy the thermal demands of NVIDIA’s new high-octane design. The fans rely on dual ball fan bearings to ensure consistent performance and increased longevity compared to sleeve bearings and other bearing types.

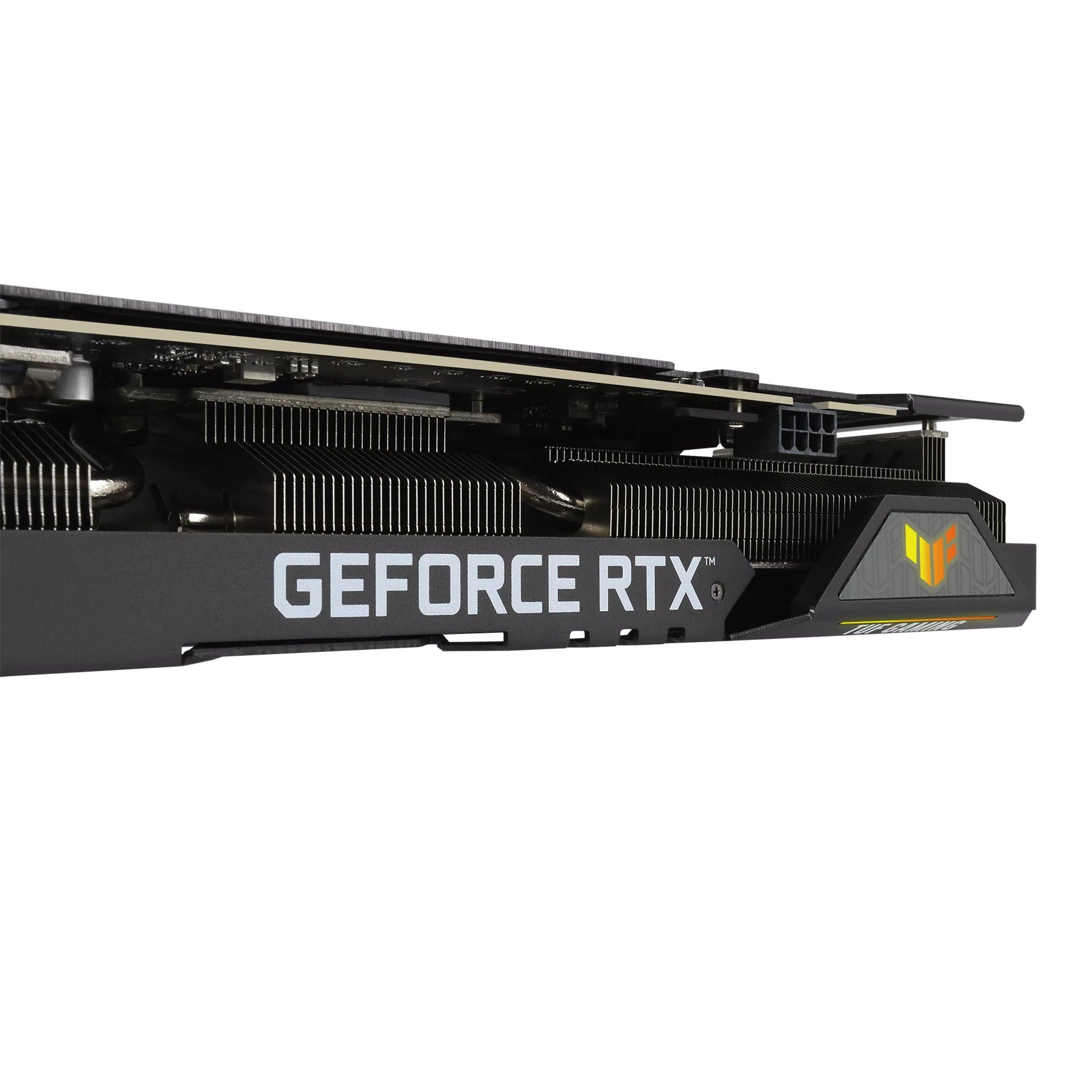

HEATSINK
MAXCONTACT
To get heat up off the die and into the heatsink array, we’ve engaged MaxContact technology to polish the surface of the heat spreader and improve smoothness at the microscopic level. The extra flatness allows for better contact with the die for enhanced thermal transfer.
| Graphic Engine | NVIDIA® GeForce RTX™ 3060 |
| Bus Standard | PCI Express 4.0 |
| OpenGL | OpenGL®4.6 |
| Video Memory | 12GB GDDR6 |
| Engine Clock | OC Mode - 1807 MHz (Boost Clock) Gaming Mode - 1777 MHz (Boost Clock) |
| CUDA Core | 3584 |
| Memory Speed | 15 Gbps |
| Memory Interface | 192-bit |
| Resolution | Digital Max Resolution 7680 x 4320 |

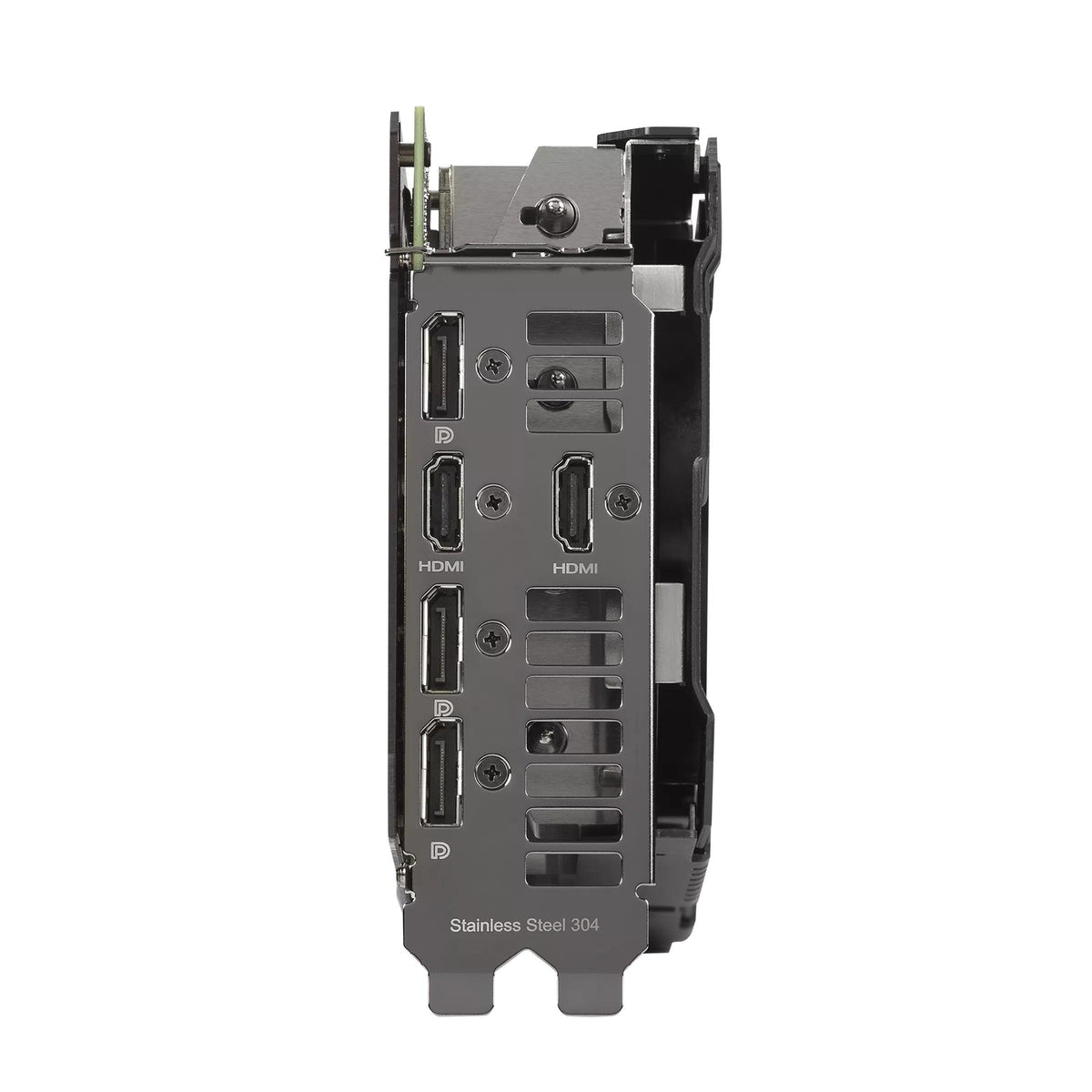

| Interface | Yes x 2 (Native HDMI 2.1) Yes x 3 (Native DisplayPort 1.4a) HDCP Support Yes (2.3) |
| Maximum Display Support | 4 |
| NVlink/ Crossfire Support | No |
| Accessories | 1 x TUF certificate of Reliability 1 x Collection card 1x Speedsetup Manual |
| Software | ASUS GPU Tweak II & GeForce Game Ready Driver & Studio Driver: please download all software from the support site. |
| Dimensions | 11.81 " x 5.63 " x 2.13 " Inch 30.1 x 14.3 x 5.4 Centimeter |
| Recommended PSU | 650W |
| Power Connectors | 1 x 8-pin |
| Slot | 2.7 Slot |
| AURA SYNC | ARGB |
