Description
Productivity at the tip of your stylus
ASUS ZenScreen Ink MB14AHD is a 14-inch IPS FHD portable monitor with 10-point touch functionality and ASUS Pen (SA201H)* that allows users to write, draw anytime and anywhere. The included ASUS Pen features MPP 2.0 and 4096 pressure level for precise and lag-free writing and drawing experiences. It even features an integrated stepless kickstand, enabling ZenScreen Ink to be used in almost any position.
*10-point touch and stylus only works in Windows
The ultimate portable touchscreen and pen combination
With the MPP 2.0-compliant ASUS Pen, 10-point touch functionality and portable design, ZenScreen Ink is the perfect companion for taking notes, drawing or even signing documents – anywhere, anytime. Use it as an extended display to work more efficiently on the go, or simply kick back for hands-free tasks.
Take note of every creative idea
ASUS Pen is the perfect accessory for ZenScreen Ink, empowering you to write, draw or annotate in any supported app. It features Microsoft Pen Protocol (MPP) 2.0 technology and 4096-level sensitivity for low latency and fast response, enabling smooth, natural writing experiences. With built-in magnets securing it to the top of the monitor, and lasting up to a year on a single battery charge*, ASUS Pen is ready to use whenever and wherever you want.
*Based on average daily use of two hours.
Compatible software
ZenScreen Ink is designed for productivity and is fully compatible with numerous writing software and other tools including Microsoft Windows Ink, Whiteboard and OneNote.
Tap into productivity
With its interactive 10-point touchscreen, ZenScreen Ink offers highly-accurate, responsive and seamless touch experiences*, enabling you to edit documents, draw on slides or play games with your fingertips. It is Windows 10/11 compatible, allowing you to work smarter and more efficiently.
Flexible viewing positions

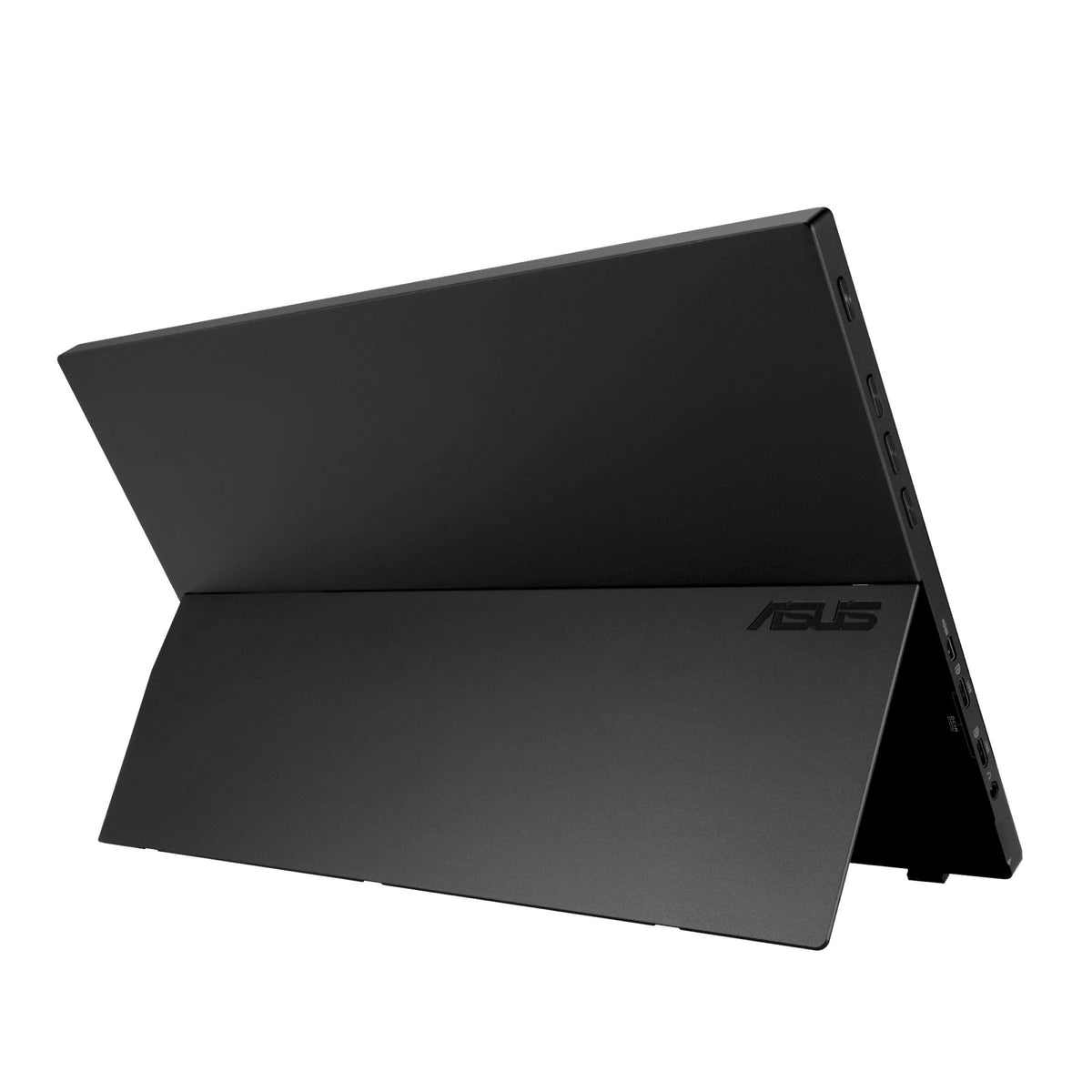

The built-in stepless kickstand supports both landscape and portrait modes. It offers up to 150° of hinge movement, so it’s easy to use and flexible for all kinds of touch or writing scenarios. There’s also an integrated tripod socket, enabling ZenScreen Ink to be elevated and oriented into any position.
Automatic screen orientation
When connected to a Windows PC, the ASUS DisplayWidget Lite tool* enables ZenScreen Ink to sense its orientation and automatically switches the display between landscape and portrait modes. Landscape mode is ideal for presentations and spreadsheets, while portrait style provides the perfect long view for documents, books or websites.
Rich connectivity

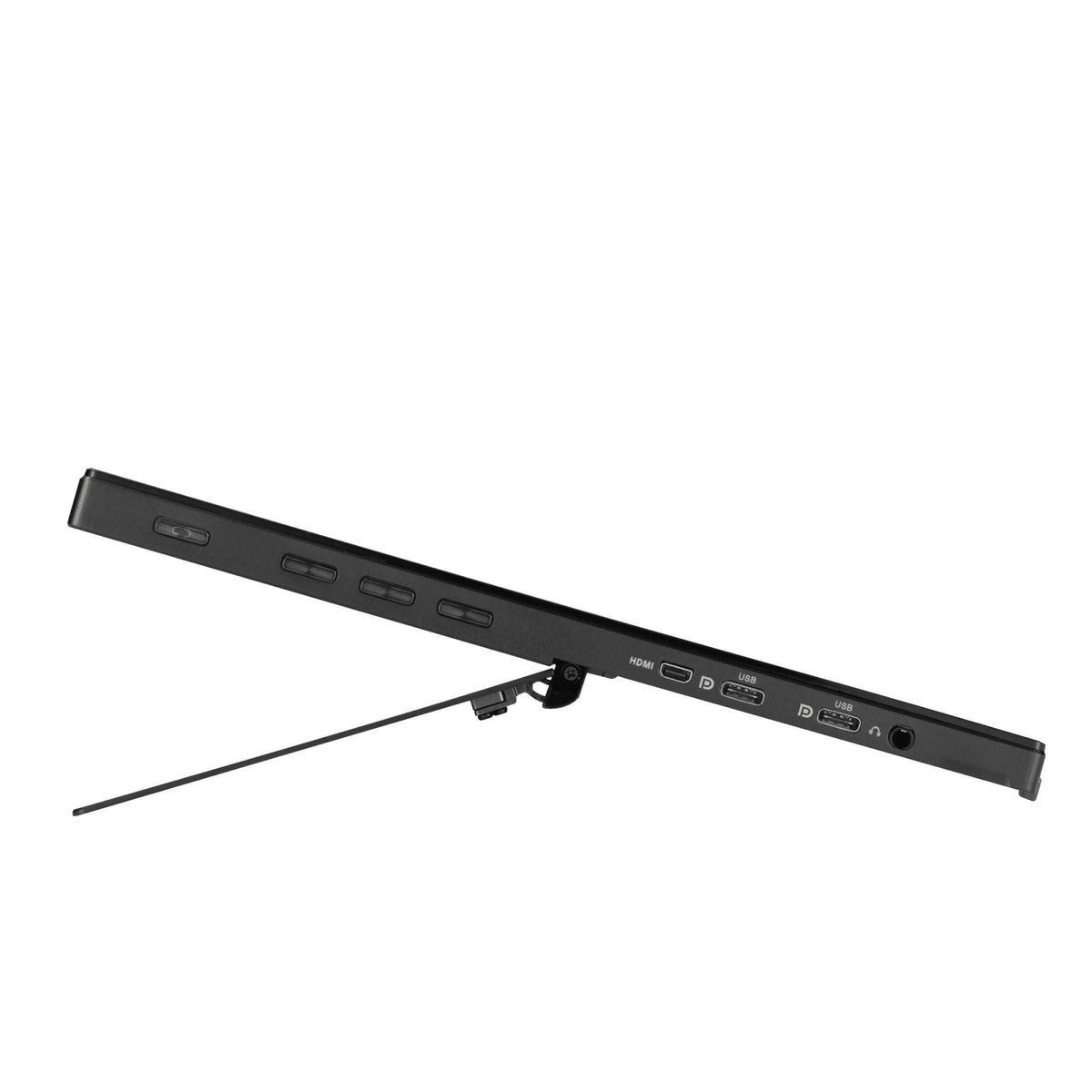

ZenScreen Ink includes a Micro HDMI® port and two USB-C® ports with DisplayPort™ Alt Mode for quick connections to compatible devices. The USB-C ports can also be used for power input.
ASUS Blue Light Filter
The TÜV Rheinland-certified ASUS Blue Light Filter protects you from harmful blue light. It's easy to access, intuitive and flexible with seamless adjustment (0 to Maximum) via the OSD menu. ASUS displays has undergone stringent performance tests and has been certified by TÜV Rheinland laboratories, a global provider of technical, safety, and certification services.
Specifications :
| Display | Panel Size (inch) : 14 Aspect Ratio : 16:9 Display Viewing Area (H x V) : 309.37 x 174.02 mm Display Surface : Glare Backlight Type : LED Panel Type : IPS Viewing Angle (CR≧10, H/V) : 170°/ 170° Pixel Pitch : 0.161mm Resolution : 1920x1080 Brightness (Typ.) : 220cd/㎡ Contrast Ratio (Typ.) : 800:1 ASUS Smart Contrast Ratio (ASCR) : 100,000,000:1 Display Colors : 262K Response Time : 5ms(GTG) Refresh Rate (Max) : 60Hz Touch : PCT + MPP2.0 Active Pen Protection Glass : Yes Flicker-free : Yes |
| Video Feature | Trace Free Technology : Yes SPLENDID Technology : Yes Color Temp. Selection : Yes(4 modes) GamePlus : Yes QuickFit : Yes HDCP : Yes HDCP : Yes, 1.4 DisplayWidget : Yes Low Blue Light : Yes |
| Audio Feature | Speaker : No |
| I/O Ports | USB-C x 2 Micro HDMI x 1 Earphone Jack : Yes |
| Signal Frequency | Digital Signal Frequency : HDMI：24Khz~83KHz USB-C: 83KHz |
| Power Consumption | Power Consumption : <10W Power Saving Mode : <0.5W Power Off Mode : <0.3W Power Off Mode : <0.5W Voltage : 100-240V, 50/60Hz |
| Mechanical Design | Height Adjustment : No Tripod Socket : Yes |
| Dimensions (Esti.) |
Phys. Dimension without Stand (W x H x D) : 324.2 x 201.2 x 12.5 mm
Box Dimension (W x H x D) : 454 X 310 x 78 mm |
| Weight (Esti.) | Net Weight without Stand : 0.87 kg Gross Weight : 2.64 kg |
