Description
| Model | ASUS ZenWiFi BD4 |
| Network Standard | "IPv6 IPv4 WiFi 7 (802.11be) WiFi 6 (802.11ax) WiFi 5 (802.11ac) WiFi 4 (802.11n) IEEE 802.11g IEEE 802.11b IEEE 802.11a" |
| WiFi Data Rate | "WiFi 7 (802.11be) (5GHz): up to 2882 Mbps WiFi 7 (802.11be) (2.4GHz): up to 688 Mbps" |
| Antenna | Internal antennas x 4 |
| Transmit / Receive | "5GHz 2x2 2.4GHz 2x2" |
| Processor | 1.5GHz quad-core processor |
| Memory | RAM 512MB , Flash 128MB |
| Boosts Speed | "OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 4096-QAM high data rate 20/40/80/160 MHz bandwidth" |
| Operating Frequency | "5 GHz 2.4 GHz" |
| Operating Mode | "Access Point Mode AiMesh Node Mode Wireless Router Mode" |

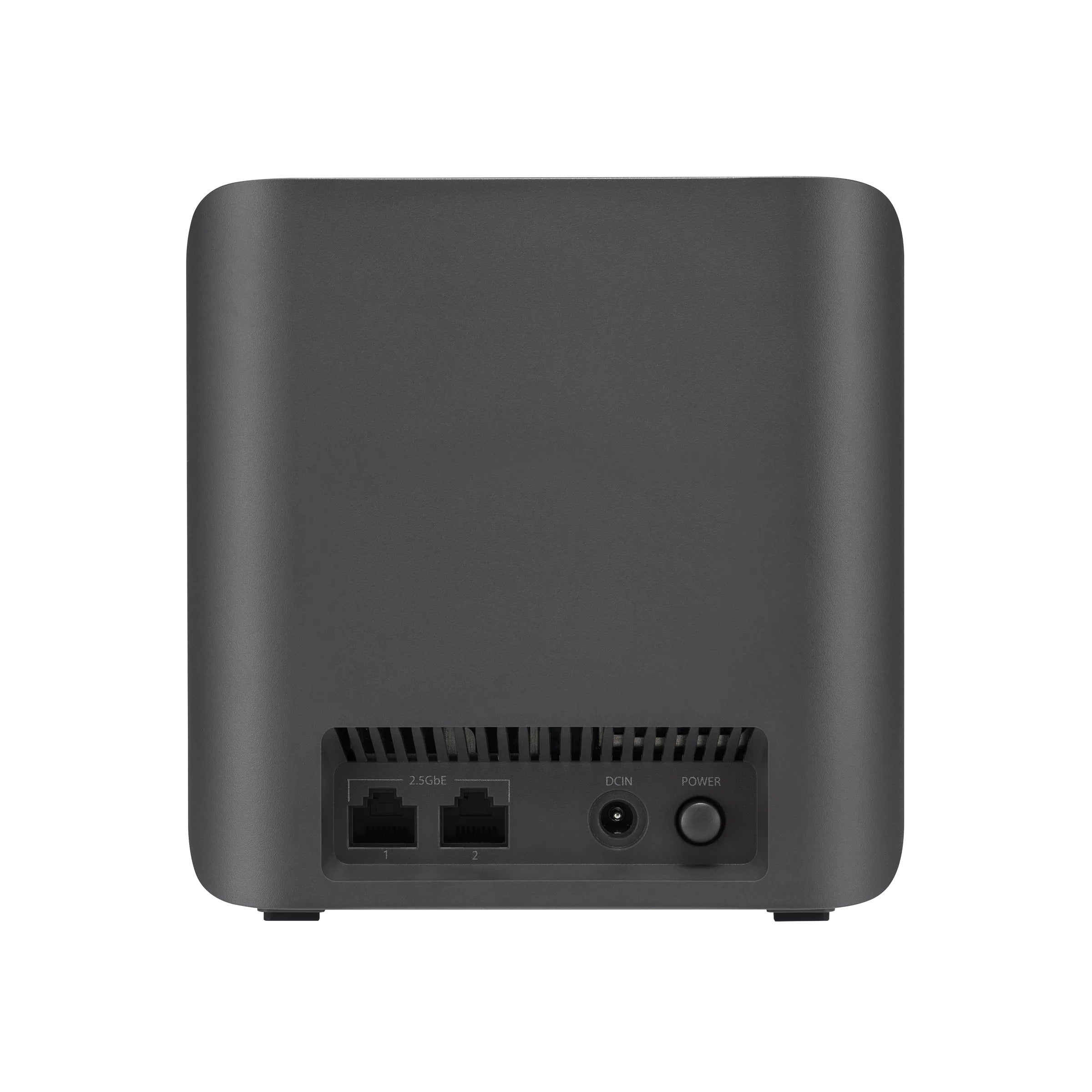

| I/O Ports | 2.5G x 2 (WAN/LAN auto detecting) |
| Buttons | WPS button, Reset button, Power switch |
| LED Indicator | Power x 1 |
| Power Supply | "AC Input : 110V~240V(50~60Hz) DC Output : 12V with max 1.5A current" |
| Package Content | "ZenWiFi BD4 RJ45 cable Power adapter Warranty card Quick start guide" |
| Product Dimensions | 140 x 70 x 140 mm |
| Remark | Content may vary in different regions and packages. |
| AiMesh | AiMesh, • Primary AiMesh Router, • AiMesh Node |
| Parental Control | "Allow you to block access to unwanted websites and apps., Web & Apps Filters, Time Scheduling, Reward, Parental Control - Safe Browsing, Customized Internet Schedule" |
| Router APP | APP: ASUS Router APP |
| Guest Network | "The Guest Network provides Internet connection for guests but restricts access to your local network., Support Guest Network" |
| Security | AiProtection, VPN, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise, WPS, Let's Encrypt, DNS-over-TLS, Security Scan, Firewall |
| AiProtection | AiProtection Pro, • Router Security Assessment, • Malicious Site Blocking, • Two-Way IPS, • Infected Device Prevention and Blocking |
| VPN | Instant Guard, VPN Client L2TP, VPN Client Open VPN, VPN Client PPTP, VPN Client WireGuard, VPN Server IPSec, VPN Server Open VPN, VPN Server PPTP, VPN Server WireGuard, VPN Fusion |
| Traffic Control | Adaptive QoS, • Bandwidth Monitor, • Bandwidth Limiter, Traditional QoS, Traffic Monitor, Traffic Analyzer, • Website History |
| WAN | Port Forwarding, Port Triggering, DMZ, DDNS |
| LAN | DHCP Server, IGMP Snooping, IPTV, Manually Assign IP Address, Wake on LAN (WOL) |
| Wireless | MU-MIMO, UTF-8 SSID, WiFi MAC Address Filter, Wireless Scheduler, Airtime Fairness, RADIUS Client, Universal Beamforming, Explicit Beamforming |
| Administration | Diagnosis Tools, Feedback System, System Log, New Device Connect Notification, Login Captcha, Connection Diagnosis, Auto Firmware Update |
| Smart Home | Support Google Assistant |
