Description
Dual-band WiFi 7 (802.11be) AiMesh Extendable Router, up to 3600 Mbps, Coverage up to 2530 sq. ft., Dual 2.5G Ports, PoE Powered, IP65 Weather Resistance, Wall & Pole Mounts, up to 3 SSIDs for IoT Devices, Parental Controls & VPNs, Advanced Network Security

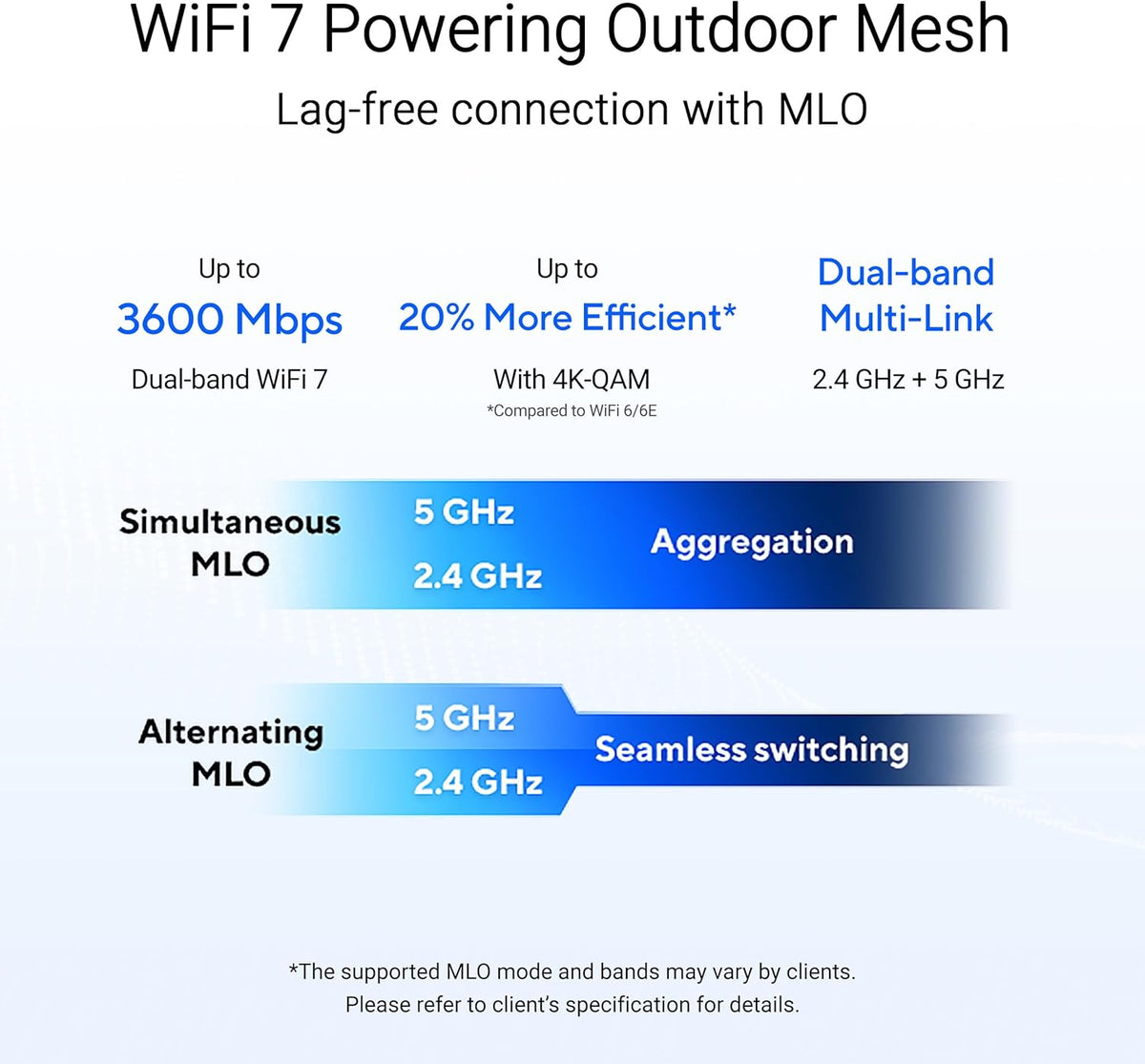

- Dual-band WiFi 7 speeds up to 3600 Mbps with MLO and 4K-QAM.

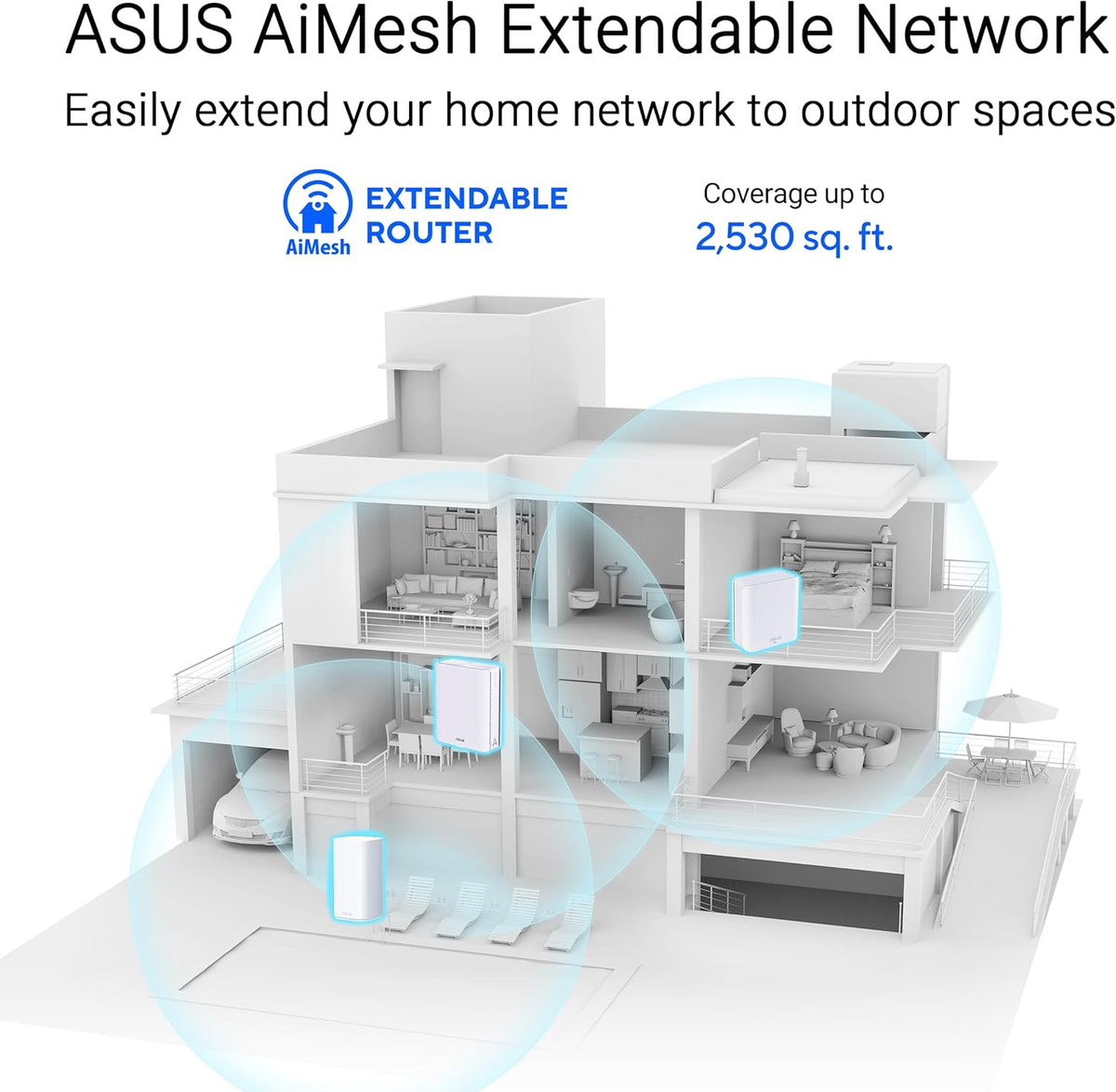

- WiFi 7 powering AiMesh technology boosts coverage up to 2530 ft², with easy extendibility and seamless connectivity for compatible ASUS routers, indoors and outdoors.
- Built for durability with ESD and surge protection, an IP65 certified water-resistant and dustproof enclosure, and a wide operating range from -30°C to 60°C, making it ideal for outdoor environments.

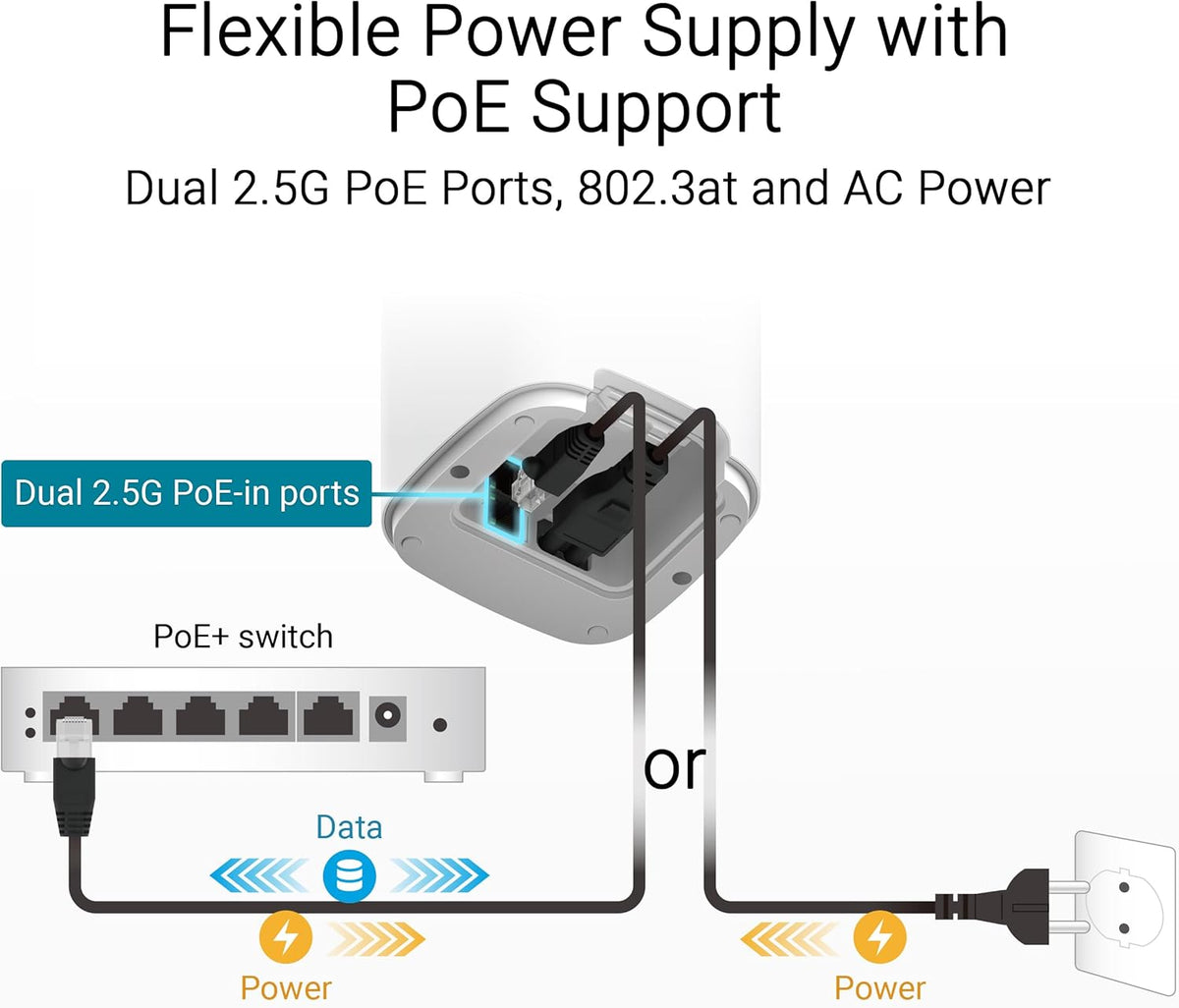

- Supports both Power over Ethernet and AC power for streamlined installation options, with two 2.5G PoE-in ports featuring auto WAN detection.

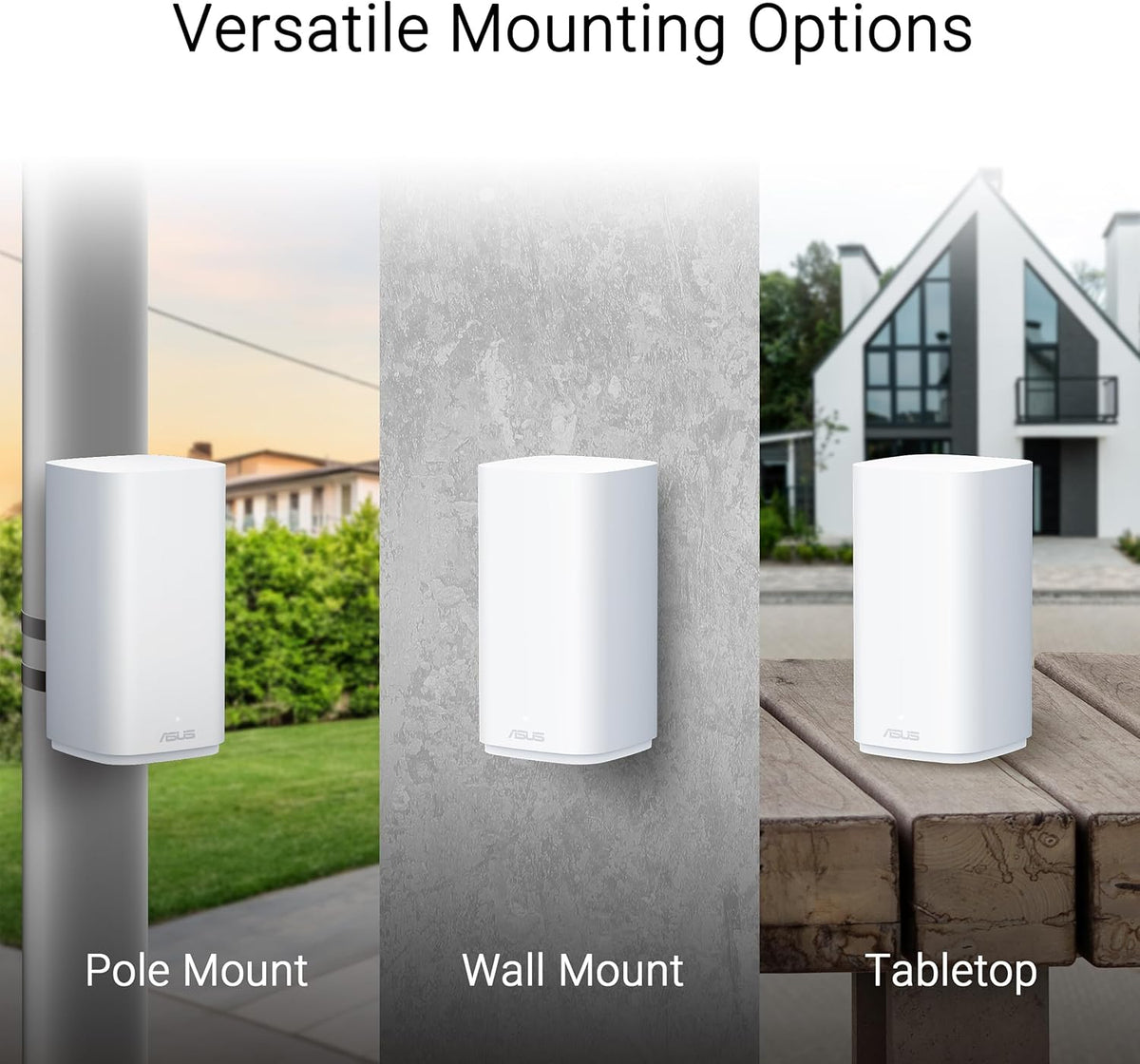

- Versatile mounting options provide easy deployment in various outdoor scenarios, whether wall-mounted, pole-mounted, or placed on a flat surface.

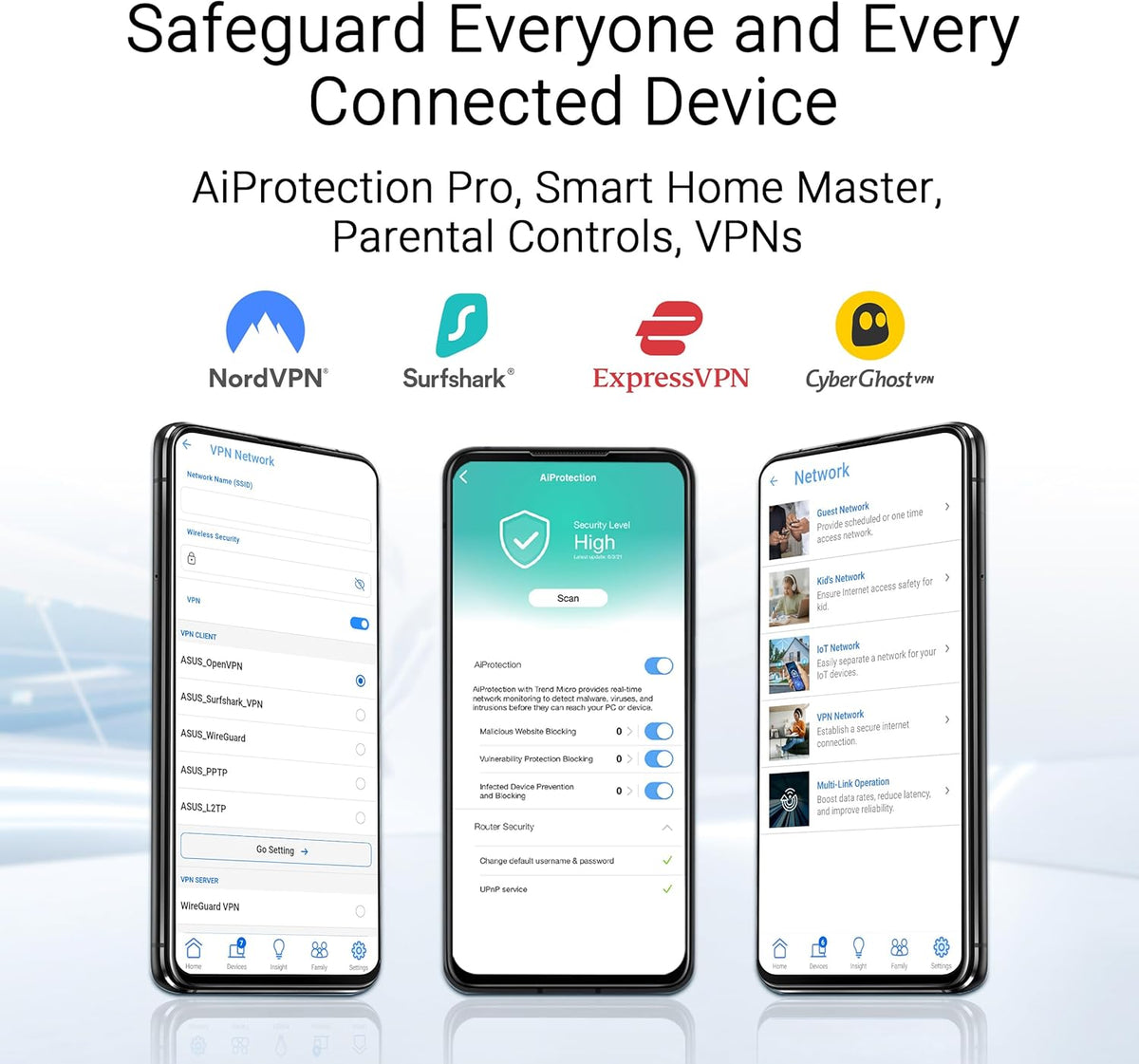

- 24/7 end-to-end protection with commercial-grade AiProtection Pro and advanced VPNs
- Establish up to three SSIDs for IoT devices and parental controls with the Smart Home Master Network
Specifications:
| Model | ASUS ZenWiFi BD4 Outdoor |
| Model Name | BD4 OUTDOOR (W-1-PK) |
| Network Standard | IEEE 802.11a IEEE 802.11b IEEE 802.11g WiFi 4 (802.11n) WiFi 5 (802.11ac) WiFi 6 (802.11ax) WiFi 7 (802.11be) IPv4 IPv6 |
| Product Segment | BE3600 ultimate BE performance : 688+2882 Mbps |
| WiFi Data Rate | WiFi 7 (802.11be) (2.4GHz): up to 688 Mbps WiFi 7 (802.11be) (5GHz): up to 2882 Mbps |
| Antenna | Internal antennas x 2 |
| Transmit / Receive | 2.4GHz 2x2 5GHz 2x2 |
| Processor | 1.5GHz quad-core processor |
| Memory | RAM 512MB , Flash 128MB |
| Boosts Speed | OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 4096-QAM high data rate 20/40/80/160 MHz bandwidth |
| Operating Frequency | 2.4 GHz 5 GHz |
| Operating Mode | Wireless Router Mode AiMesh Node Mode |
| I/O Ports | 2.5G x 2 (WAN/LAN auto detecting) |
| Buttons | Reset button |
| LED Indicator | Power x 1 |
| Power Supply | AC Input : 100V~240V(50~60Hz), 2A |
| Package Content | ZenWiFi BD4 Outdoor RJ45 cable Power cord Warranty card Quick start guide Mounting kit |
| Product Weight (g) | 1040 |
| Product Dimensions | 106 x 106 x 200 |
| Remark | Content and coverage may vary in different region. |
| AiMesh | AiMesh • Primary AiMesh Router • AiMesh Node |
| Parental Control | Allow you to block access to unwanted websites and apps. Web & Apps Filters Time Scheduling Reward Parental Control - Safe Browsing Customized Internet Schedule |
| Router APP | APP: ASUS Router APP |
| Guest Network | The Guest Network provides Internet connection for guests but restricts access to your local network. Support Guest Network |
| Security | AiProtection VPN WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise WPS Let's Encrypt DNS-over-TLS Security Scan Firewall |
| AiProtection | AiProtection Pro • Router Security Assessment • Malicious Site Blocking • Two-Way IPS • Infected Device Prevention and Blocking |
| VPN | Instant Guard VPN Client L2TP VPN Client Open VPN VPN Client PPTP VPN Client WireGuard VPN Server IPSec VPN Server Open VPN VPN Server PPTP VPN Server WireGuard VPN Fusion |
| Traffic Control | Adaptive QoS • Bandwidth Monitor • Bandwidth Limiter Traditional QoS Traffic Monitor Traffic Analyzer • Website History |
| WAN | Port Forwarding Port Triggering DMZ DDNS |
| LAN | DHCP Server IGMP Snooping IPTV Manually Assign IP Address Wake on LAN (WOL) |
| Wireless | MU-MIMO UTF-8 SSID WiFi MAC Address Filter Wireless Scheduler Airtime Fairness RADIUS Client Universal Beamforming Explicit Beamforming |
| Administration | Diagnosis Tools Feedback System System Log New Device Connect Notification Login Captcha Connection Diagnosis Auto Firmware Update |
| Smart Home | Support Google Assistant |
