Description

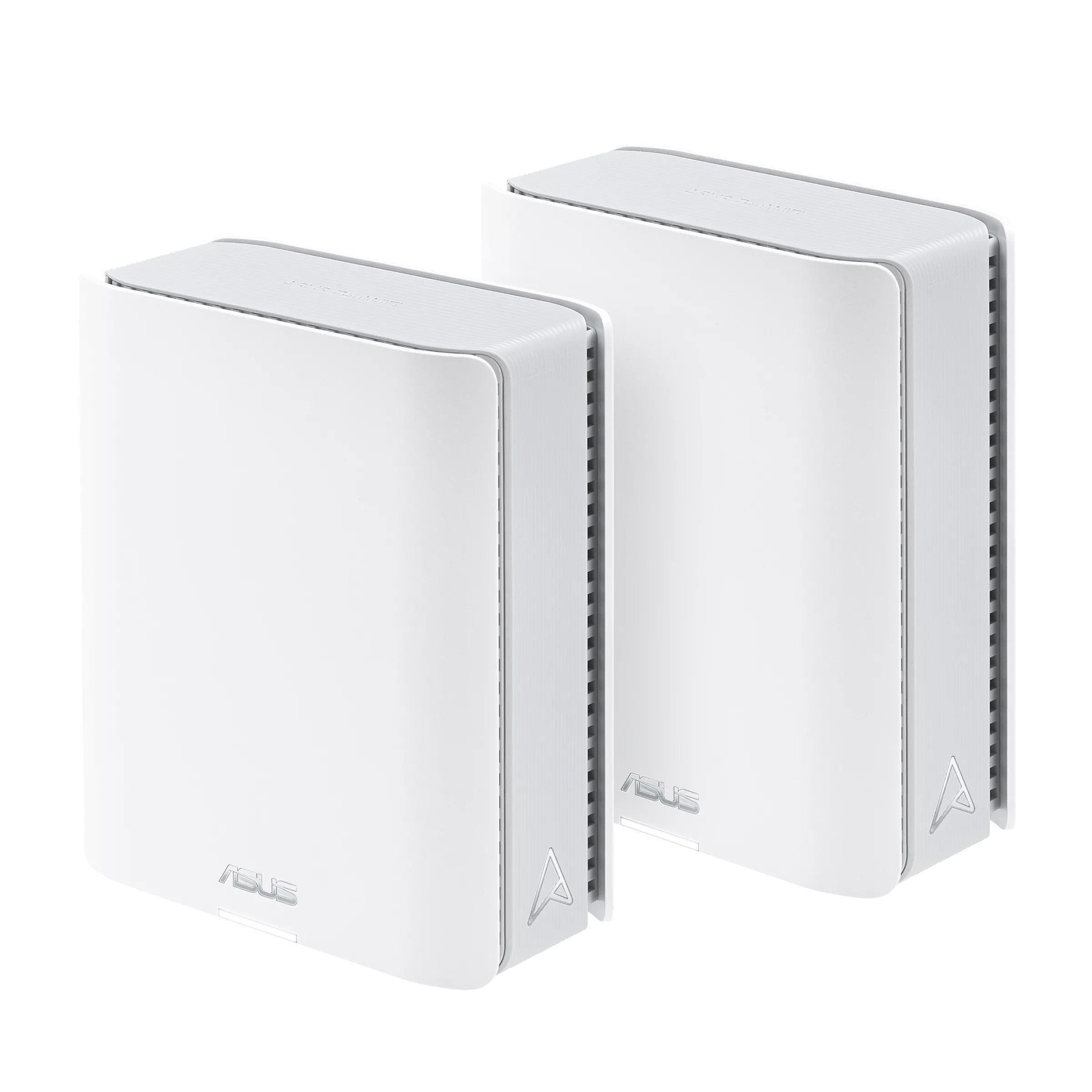

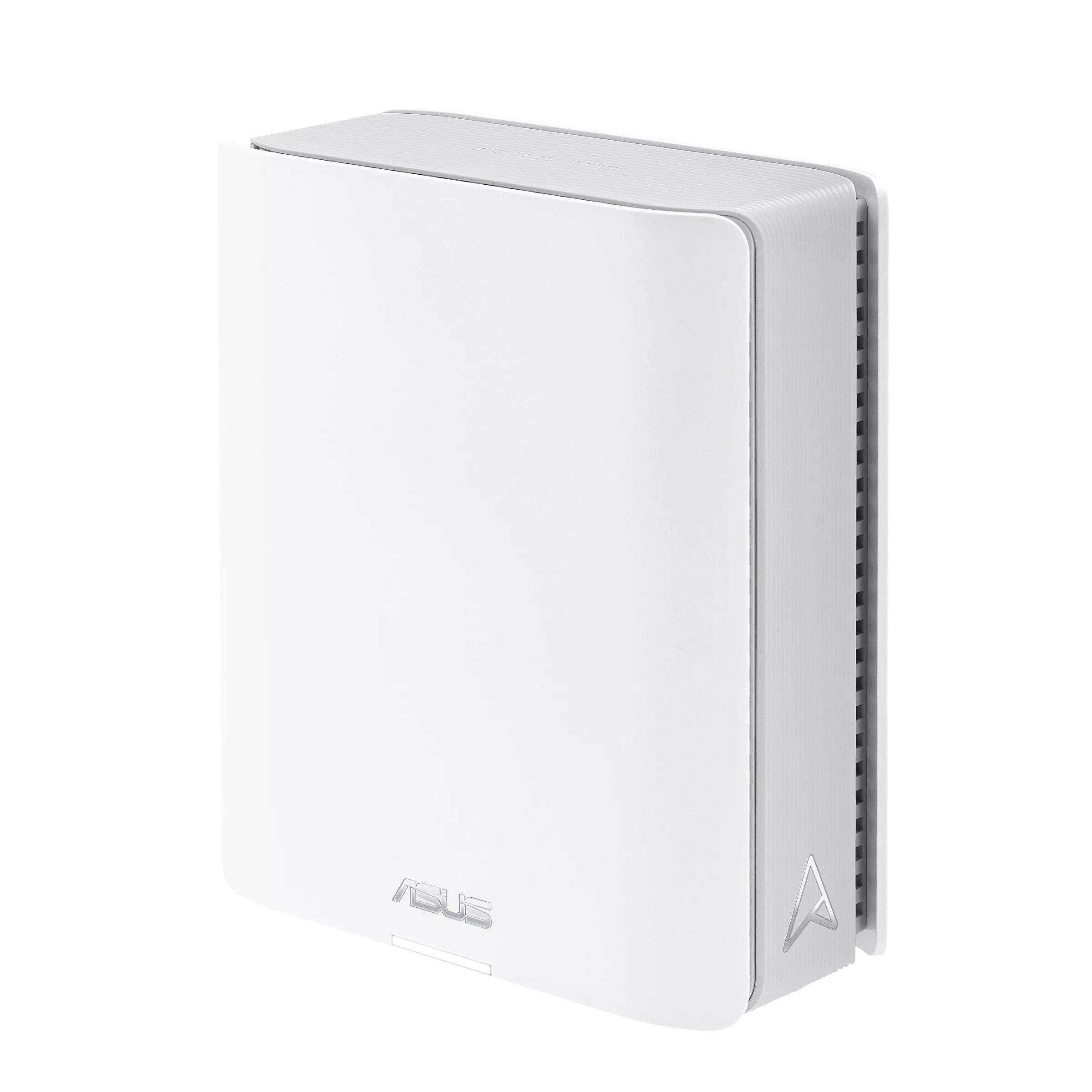

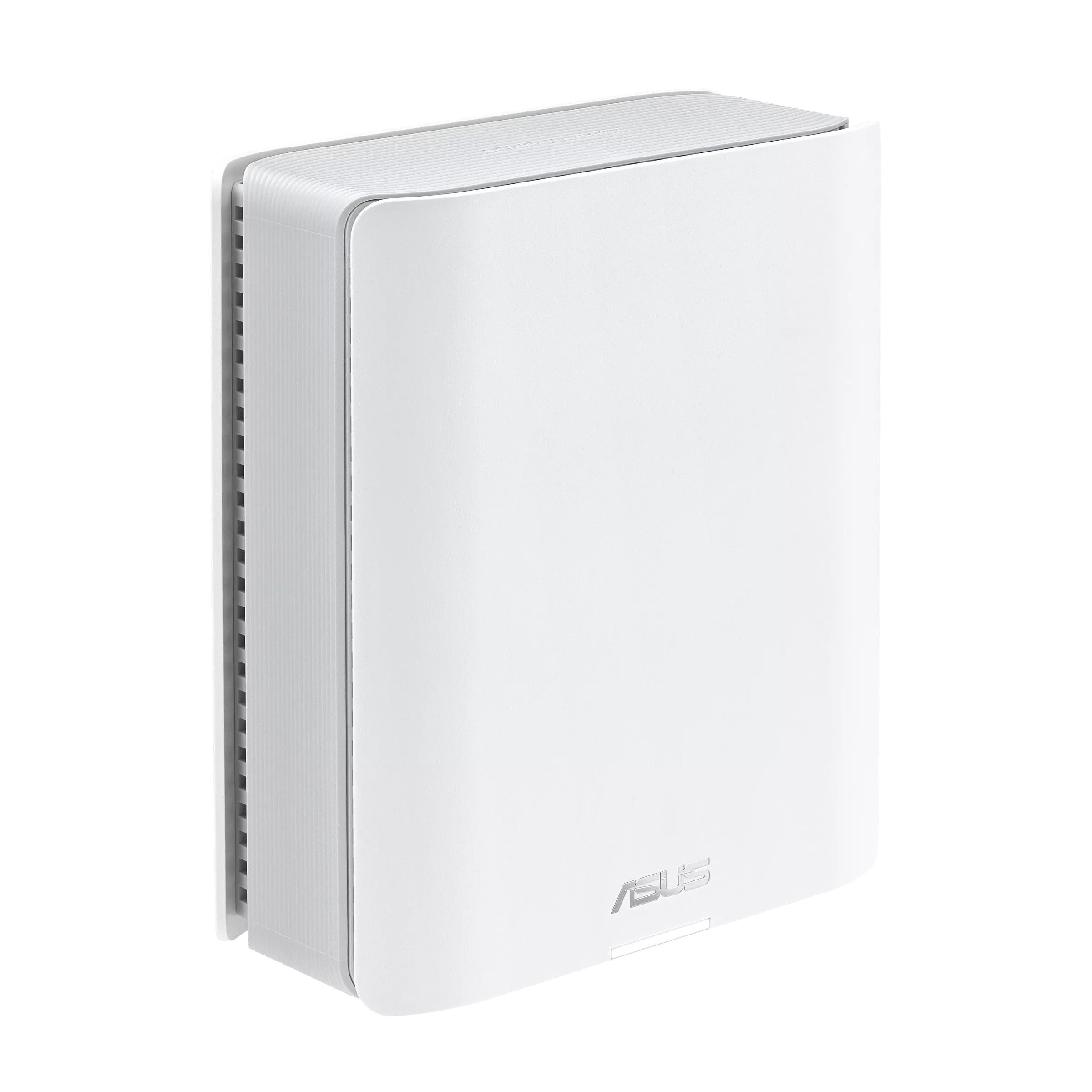

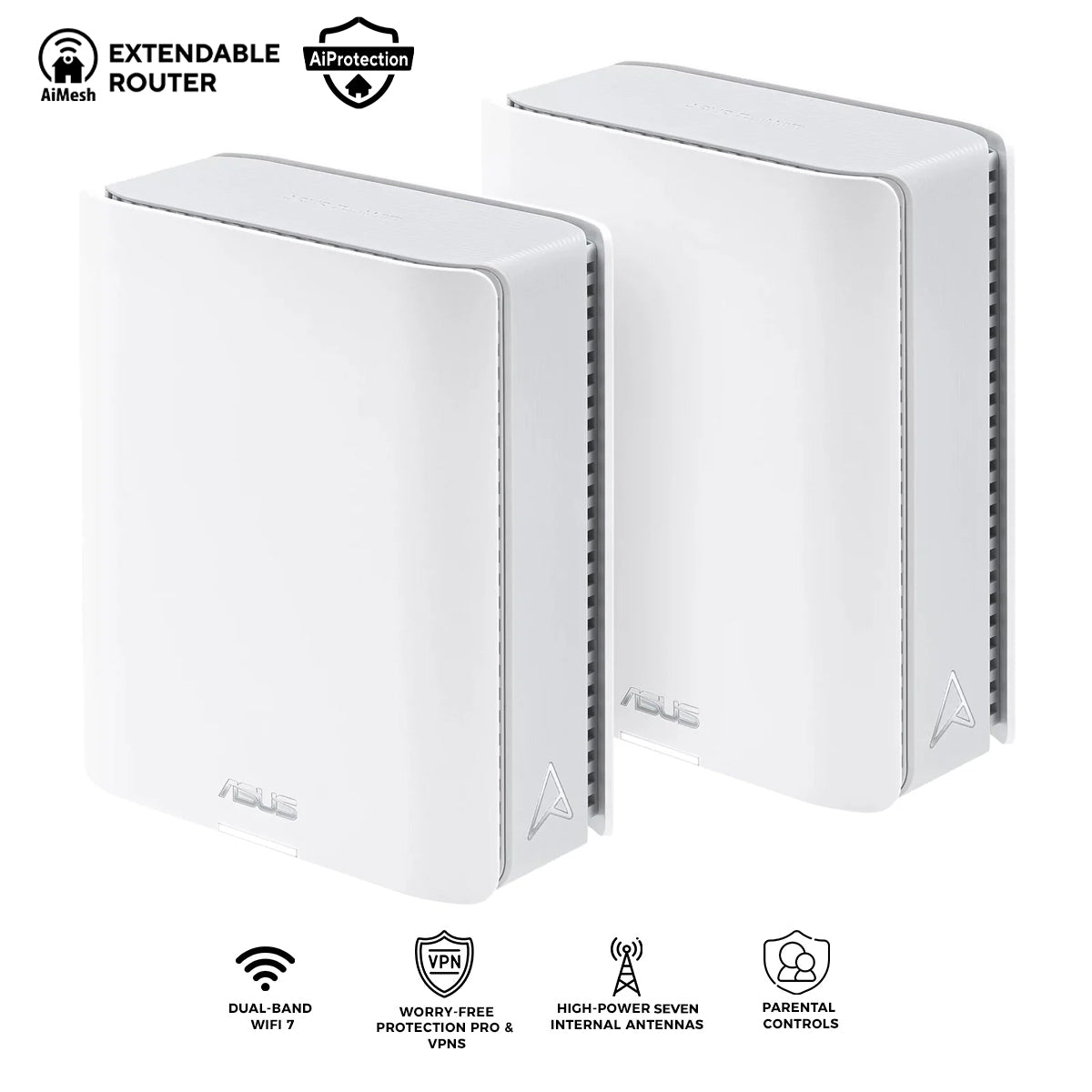

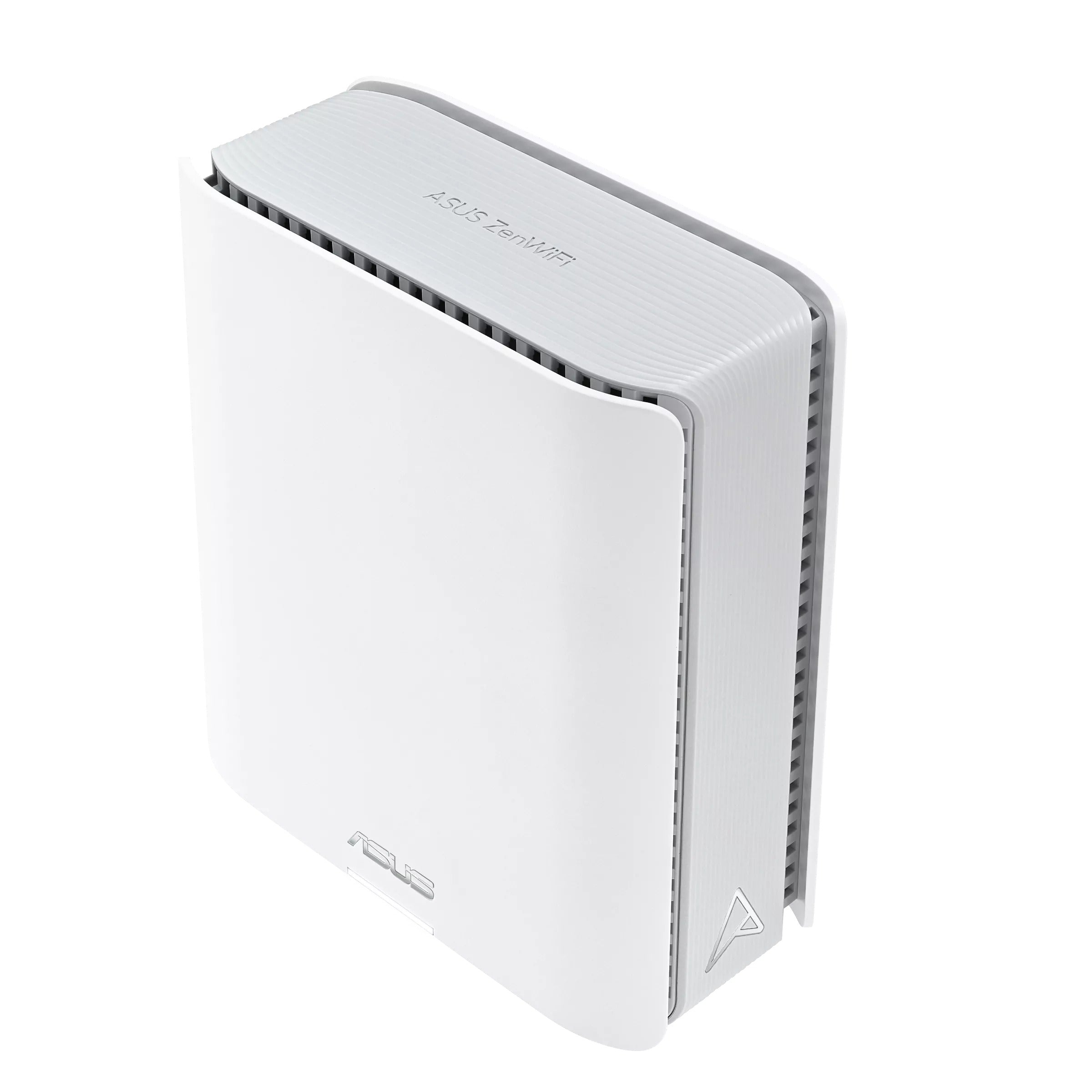

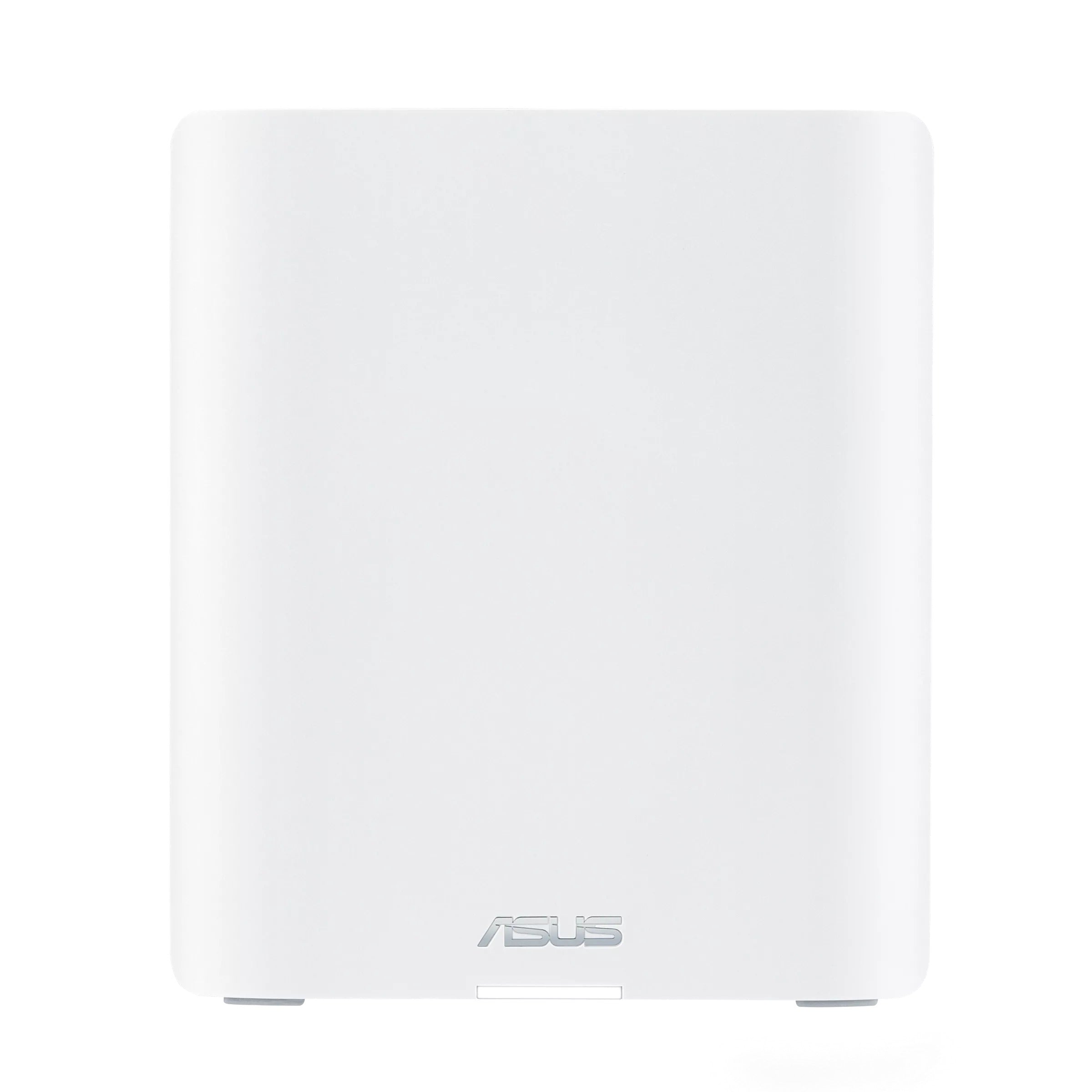

Tri-band WiFi 7 (802.11be) Smart AiMesh Extendable Router, 6 GHz WiFi, 14 Gbps, Coverage up to 5900 sq. ft. (2pk), Dual 2.5G Ports, Up to 3 SSIDs for IoT Devices, Parental Controls & VPNs, Advanced Network Security
- Tri-band WiFi 7 speeds up to 14 Gbps with 6 GHz WiFi, MLO, and 4K-QAM
- AI-powered Smart AiMesh boosts coverage up to 5900 sq. ft. (2-pack) and easy extendibility with compatible ASUS routers for seamless and secure whole home WiFi
- Seven internal antennas and eight high-power front-end modules eliminates WiFi dead zones
- 24/7 end-to-end protection with commercial-grade AiProtection and advanced VPNs
- IoT Network, parental controls & VPN easy setup on multiple devices with Smart Home Master SSIDs
- Flexible dual 2.5G Ethernet ports for superfast wired backhaul
- 4G LTE/5G Mobile Tethering for always-on internet
Specification:
| Model | ASUS ZenWiFi BT8 |
|---|---|
| Model Name | BT8(W-3-PK) BT8(W-2-PK) BT8(W-1-PK) |
| Network Standard | IEEE 802.11a IEEE 802.11b IEEE 802.11g WiFi 4 (802.11n) WiFi 5 (802.11ac) WiFi 6 (802.11ax) WiFi 6E (802.11ax) WiFi 7 (802.11be) IPv4 IPv6 |
| Product Segment | BE14000 ultimate BE performance : 688+4323+8643 Mbps |
| WiFi Data Rate | WiFi 7 (802.11be) (2.4GHz): up to 688 Mbps WiFi 7 (802.11be) (5GHz): up to 4323 Mbps WiFi 7 (802.11be) (6GHz): up to 8643 Mbps |
| Antenna | Internal antennas x 7 |
| Transmit / Receive | 2.4GHz 2x2 5GHz 3x3 6GHz 3x3 |
| Memory | RAM 1GB , Flash 128MB |
| Boosts Speed | OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 4096-QAM high data rate 20/40/80/160/320 MHz bandwidth |
| Operating Frequency | 2.4 GHz 5 GHz 6 GHz |
| Operating Mode | Wireless Router Mode AiMesh Node Mode Access Point Mode |

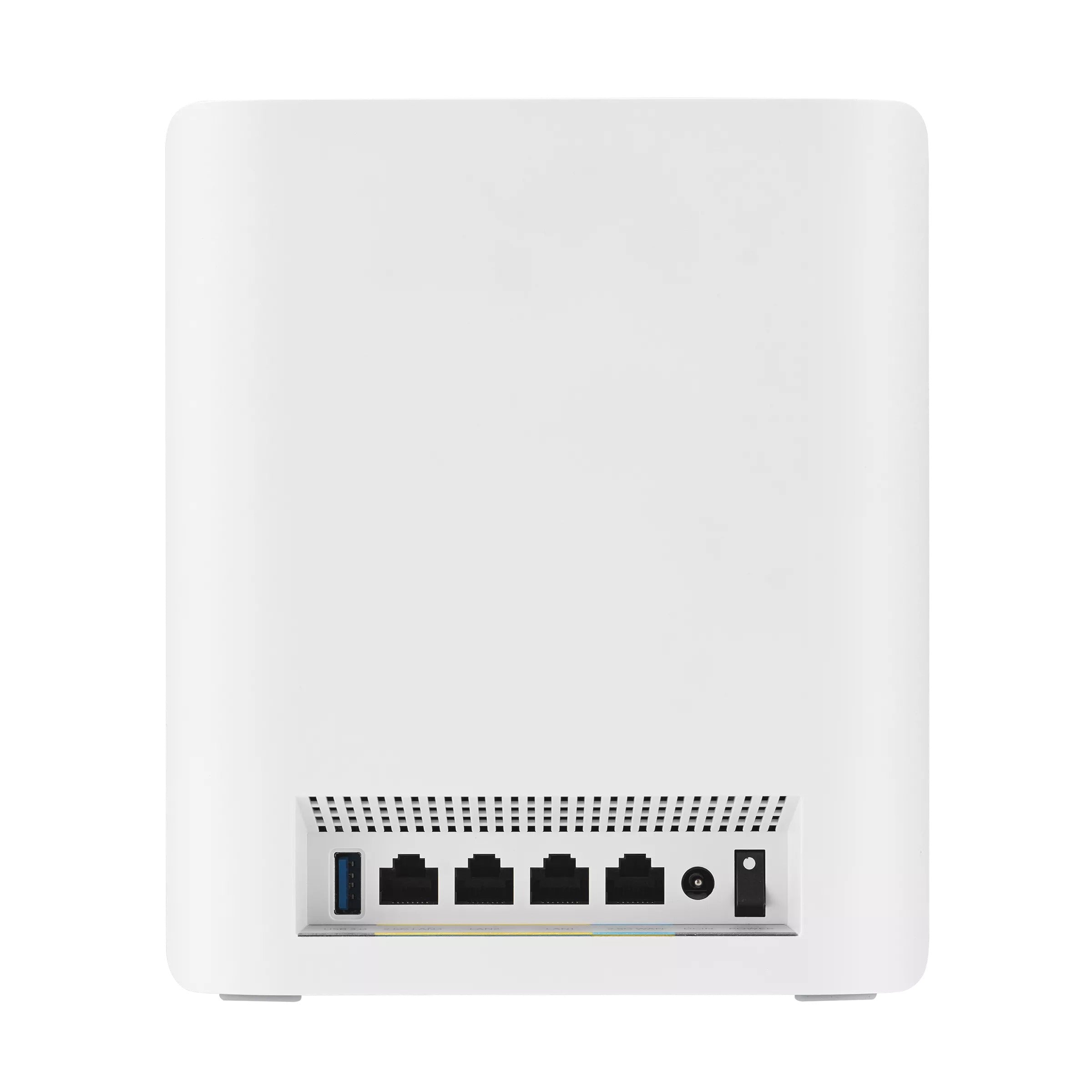

| I/O Ports | 2.5G WAN x 1 2.5G LAN x 1 1G LAN x 2 USB 3.0 x1 |
| Buttons | WPS button, Reset button, Power switch |
| LED Indicator | Power x 1 |
| Power Supply | AC Input : 110V~240V(50~60Hz) DC Output : 12V with max. 3A current |
| Package Content | ZenWiFi BT8 RJ45 cable Power adapter Warranty card Quick start guide |
| Product Dimensions | 159 x 72 x 186 mm |
| Remark | Content may vary in different regions and packages. |
| AiMesh | AiMesh • Primary AiMesh Router • AiMesh Node |
| Parental Control | "Allow you to block access to unwanted websites and apps." Web & Apps Filters Time Scheduling Reward Parental Control - Safe Browsing Customized Internet Schedule |
| Router APP | APP: ASUS Router APP |
| Guest Network | "The Guest Network provides Internet connection for guests but restricts access to your local network." Support Guest Network |
| Security | AiProtection VPN WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise WPS Let's Encrypt DNS-over-TLS Security Scan Firewall AiProtection • Router Security Assessment • Malicious Site Blocking • Two-Way IPS • Infected Device Prevention and Blocking |
| VPN | Instant Guard VPN Client L2TP VPN Client Open VPN VPN Client PPTP VPN Client WireGuard VPN Server IPSec VPN Server Open VPN VPN Server PPTP VPN Server WireGuard VPN Fusion |
| Traffic Control | Adaptive QoS • Bandwidth Monitor • Bandwidth Limiter Traditional QoS Traffic Monitor Traffic Analyzer • Website History |
| WAN | 3G / 4G LTE Dongle 4G / 5G Auto Mobile Tethering Port Forwarding Port Triggering DMZ DDNS Dual WAN |
| LAN | DHCP Server IGMP Snooping IPTV LAN Link Aggregation Manually Assign IP Address Wake on LAN (WOL) |
| Wireless | MU-MIMO UTF-8 SSID WiFi MAC Address Filter Wireless Scheduler Airtime Fairness RADIUS Client Universal Beamforming Explicit Beamforming |
| USB application | 4G / 5G Auto Mobile Tethering HDD Hibernation Safely Remove Disk AiCloud Download Master AiDisk Media Server Time Machine Samba Server FTP Server Shared Folder Privileges |
| Administration | Diagnosis Tools Feedback System System Log New Device Connect Notification Login Captcha Connection Diagnosis Auto Firmware Update |
| Smart Home | Support Google Assistant |
