Description
Whole-home Coverage

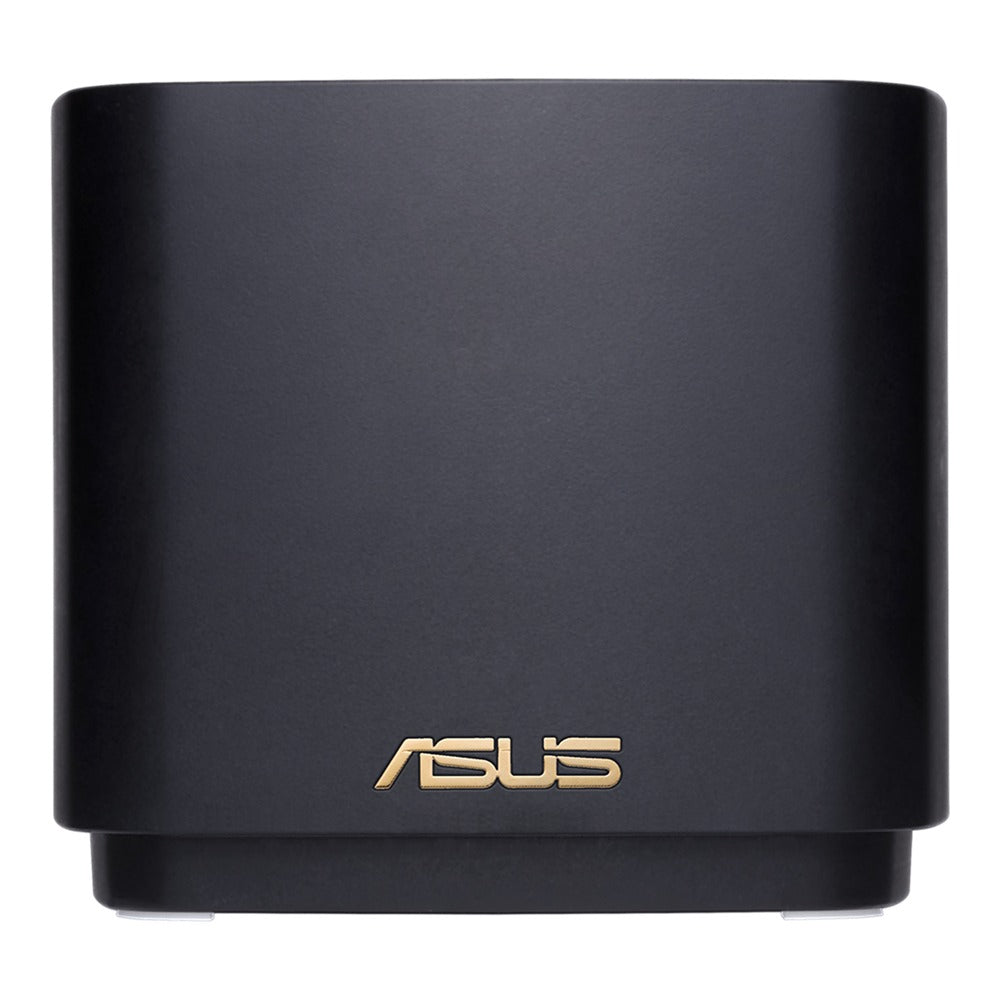

The ZenWiFi AX Mini system consists of one ASUS AX1800 WiFi 6 router and two extending node, featuring unique technologies that give you superfast, reliable and secure WiFi connections — inside or outside your home!
SPECIFICATIONS:
| Model | ASUS ZenWiFi AX Mini (XD4) |
| Model Name | XD4 (W-3-PK) XD4 (W-2-PK) |
| Network Standard | IEEE 802.11a IEEE 802.11b IEEE 802.11g WiFi 4 (802.11n) WiFi 5 (802.11ac) WiFi 6 (802.11ax) IPv4 IPv6 |
| Product Segment | AX1800 ultimate AX performance : 1201 Mbps+ 574 Mbps |
| AX technology | Yes |
| Data Rate | 802.11a : up to 54 Mbps 802.11b : up to 11 Mbps 802.11g : up to 54 Mbps WiFi 4 (802.11n) : up to 300 Mbps WiFi 5 (802.11ac) : up to 867 Mbps WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps WiFi 6 (802.11ax) (5GHz) : up to 1201 Mbps |
| Antenna | Internal dual-band antenna x 2 |
| Transmit/Receive | MIMO technology 2.4GHz 2x2 5GHz 2x2 |
| Memory | 256 MB Flash, 256 MB RAM |
| Boosts speed | MIMO technology |
| Operating Frequency | 2.4 G Hz / 5 GHz |
| Ports | RJ45 for Gigabits BaseT for WAN/LAN x 1, RJ45 for Gigabits BaseT for LAN x1 |
| Button | WPS Button, Reset Button |
| LED Indicator | Power x 1 |
| Power Supply | "AC Input : 110V~240V(50~60Hz) DC Output : 12 V with max. 1.5 A current" |
| Product Weight (g) | 295 g |
| AiMesh | AiMesh Primary AiMesh router AiMesh node |
| Router APP | ASUS Router APP |
| Alexa | Support Alexa skill |
| IFTTT | Support IFTTT |
| AiProtection | AiProtection Classic Malicious site blocking Infected Device Prevention and Blocking |
| Parental Control | Parental Control Parental Control Customized Internet schedule |
| Traffic Control | Bandwidth Monitor Bandwidth limiter Traditional QoS Maximum Traditional QoS rule : 32 Real-time traffic monitor Wired Traffic Monitor Wireless Traffic Monitor |
| Wireless | IPv6 Wi-Fi Encryption : WPA3-Personal, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise, WPS support UTF-8 SSID Guest Network Maximum Guest Network rule : 9 Guest Network Connection time limit WPS |
| WAN | Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP Android tethering Port forwarding Port triggering DMZ DDNS NAT Passthrough : Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP Let's Encrypt |
| LAN | DHCP Server IGMP snooping IPTV Manually assign IP address Maximum manually assign IP address rule : 64 |
| VPN | VPN Client L2TP VPN Client OVPN VPN Client PPTP VPN Server IPSec VPN Server OVPN VPN Server PPTP |
| Administration | Operating system : ASUSWRT Free OS upgrade Firewall Maximum Firewall keyword filter : 64 Maximum Firewall network service filter : 32 Maximum Firewall URL filter : 64 Wake on LAN (WOL) SSH Configuration backup and restore Diagnosis tools Feedback system System log |
