Description
- 4Kp60 High Dynamic Range (HDR) Pass-through (For 4K, HDR or High frame rate recording only NVIDIA graphics card are supported.)
- High Refresh Rate Pass-through at Full HD up to 240Hz; 4Kp60 / 1440p144 / 1080p240
- Max Recording: 4Kp30 / 1440p60 / 1080p120 / 1080p60HDR
- Ultra low latency: enjoy playing uncompressed video straight on their PC monitor with virtually no latency
- Plug and play right out of box. Mac system requirement - Operating System :Windows 10 (64bits) (Support UVC Protocol),MacOS High Sierra 10.13
- Cyber link Power Director 15 included for 4K video editing
- Recommended to use with Intel chipset.
Specifications

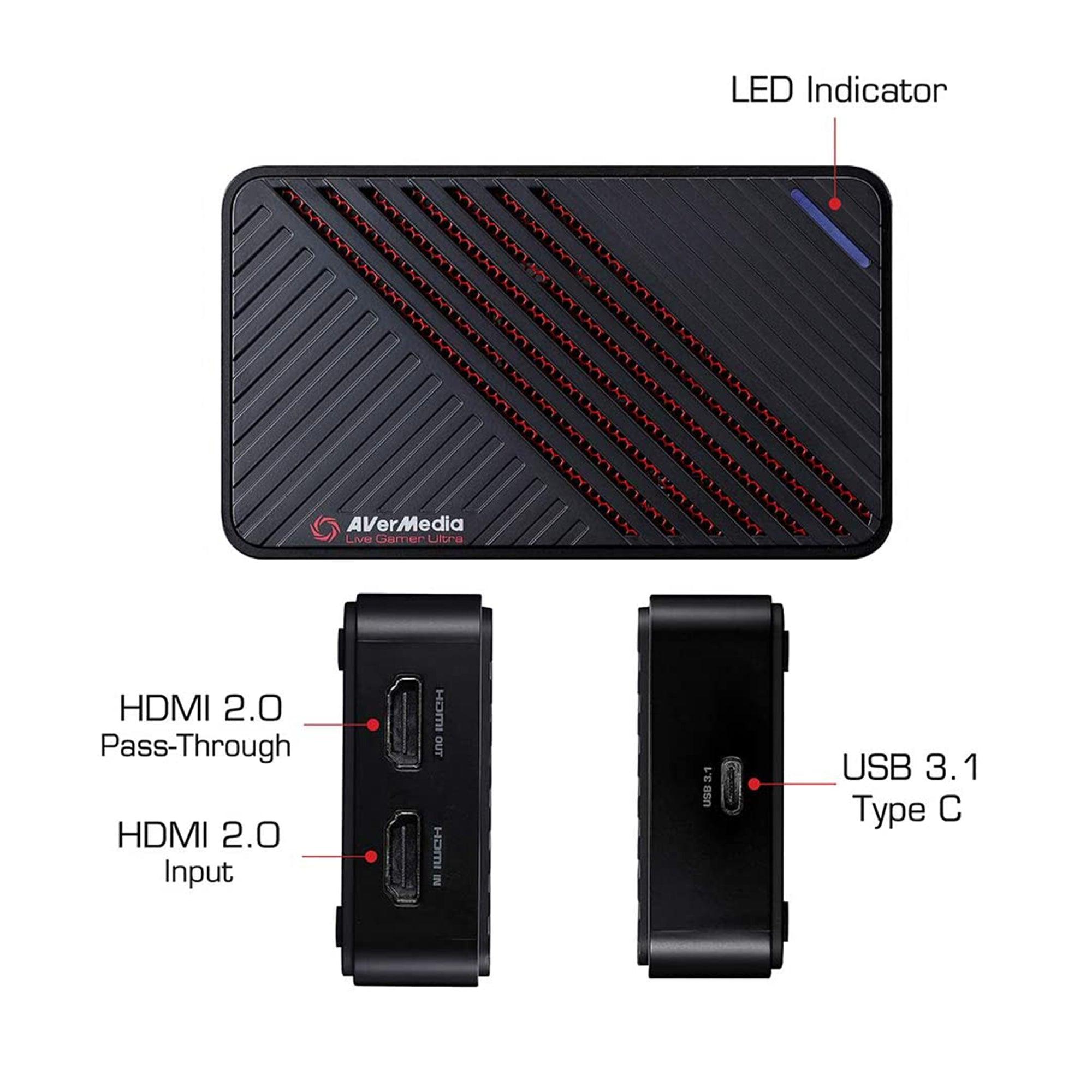

• Interface:USB 3.1 (Gen 1) Type C
• Video Input:HDMI 2.0
• Video Output (Pass-Through):HDMI 2.0
• Audio Input:HDMI 2.0
• Audio Output (Pass-Through):HDMI 2.0
• Max Pass-Through Resolutions:2160p60 HDR /1440p144 / 1080p240
• Max Record Resolutions:2160p30 / 1440p60 / 1080p120 / 1080p60 HDR
• Supported Resolutions (Video input):2160p, 1440p, 1080p, 1080i, 720p, 576p, 480p
• Record Format:MPEG 4 (H.264+AAC) or (H.265+AAC)*
• Dimension (W x D x H):112.6 x 66.2 x 26 mm (4.43 x 2.6 x 1.02 in)
• Weight:116 g (4.09 oz.)
Notes:
*H.265 Compression and HDR are supported by RECentral
1. LGU does not support viewing/recording/streaming of HDCP protected signals
System Requirements (For dedicated streaming PC)
Operating system: Windows® 10 x64 (Support UVC Protocol)
For 4Kp30 or 1080p120 (4Kp60 HDR pass-through supported)
Desktop:
- Intel® Core™ i5-6XXX or above
- NVIDIA® GeForce® GTX 1060 or above
- 8 GB RAM (*Dual-channel)
Laptop:
- Intel Core i7-7700HQ or above
- NVIDIA® GeForce® GTX1050 Ti or above
- 8 GB RAM (*Dual-channel) *You have to set your memory on dual channel mode in your computer system. Please see attachment: attachment (Link)
For 1080p60 (4Kp60 HDR pass-through supported)
Desktop:
- Intel® Core™ i5-4440 3.10 GHz or above
- NVIDIA® GTX 660
- 4 GB RAM (8 GB recommended)
Laptop:
- Intel Core i7-4810MQ
- NVIDIA® GeForce® GTX 870M or above
- 4 GB RAM (8GB Recommended)
Mac system requirement : Operating system: MacOS High Sierra 10.13
Requires an Apple Thunderbolt 3 (USB‑C) Cable (0.8 m)
For 4Kp30 or 1080p120 (4Kp60 HDR pass-through supported)
iMac:
- 3.6GHz quad-core Intel Core i7
- Radeon Pro 555 with 2GB of VRAM
- 16GB of 2400MHz DDR4 memory
MacBook Pro:
- 2.8GHz quad-core Intel Core i7
- Radeon Pro 555X with 2GB of GDDR5 memory
- 16GB 2133MHz LPDDR3 memory
For 1080p60 (4Kp60 HDR pass-through supported) :
iMac:
- 3.6GHz quad-core Intel Core i7
- Radeon Pro 555 with 2GB of VRAM
- 16GB of 2400MHz DDR4 memory
MacBook Pro:
- 2.6GHz quad-core Intel Core i7
- Radeon Pro 450 with 2GB of GDDR5 memory
- 16GB of 2133MHz LPDDR3 onboard memory
Notes:
1. LGU does not support USB 2.0
2. LGU does not support USB 3.1 Gen 2
3. We strongly recommended to use Intel chipset.
4. For 4K, HDR or High frame rate recording only NVIDIA graphics card are supported.
What's in the box:

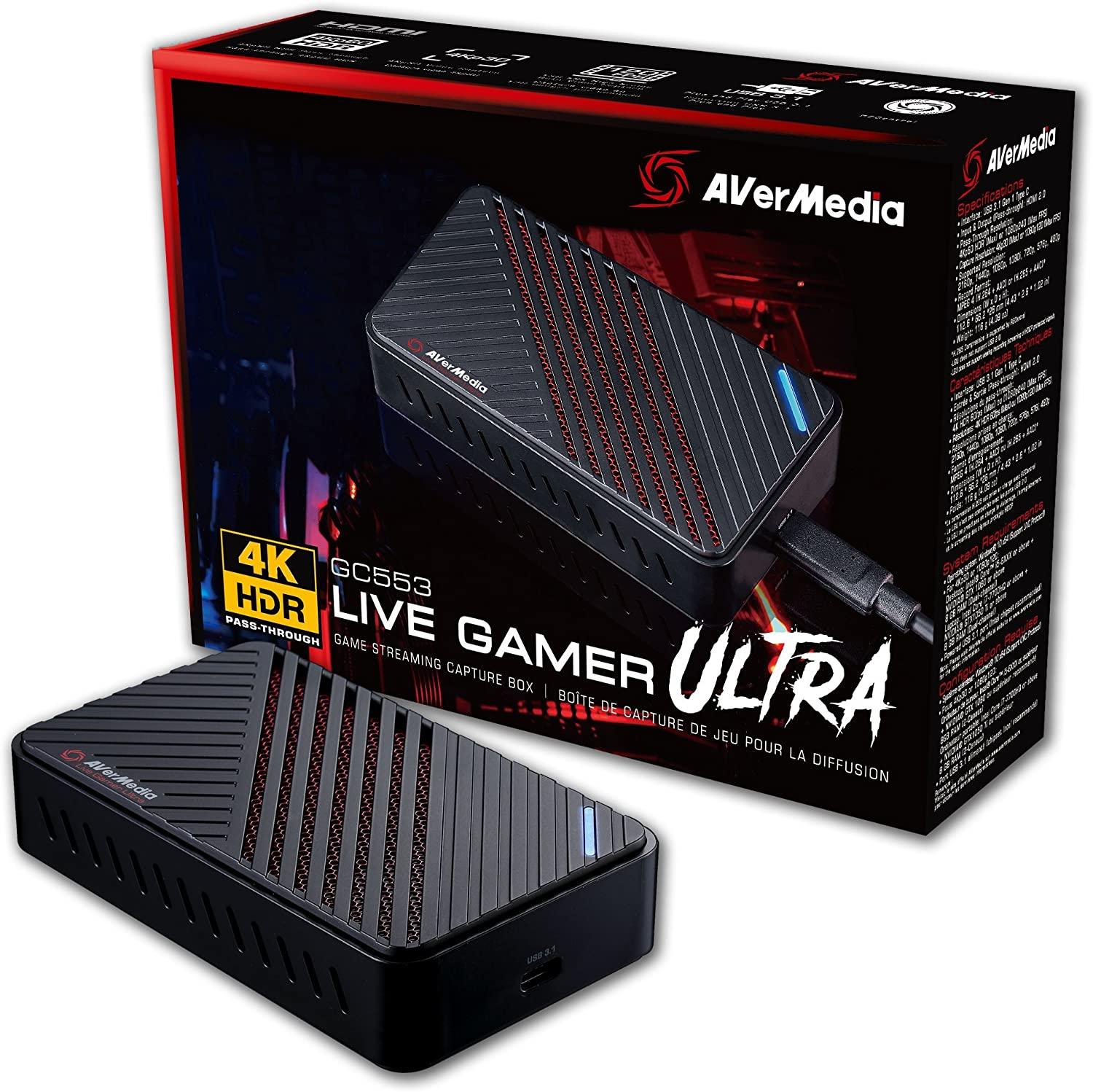

• Live Gamer Ultra (GC553)
• HDMI 2.0 cable
• Type C to Type A Cable
• Quick guide
