Description

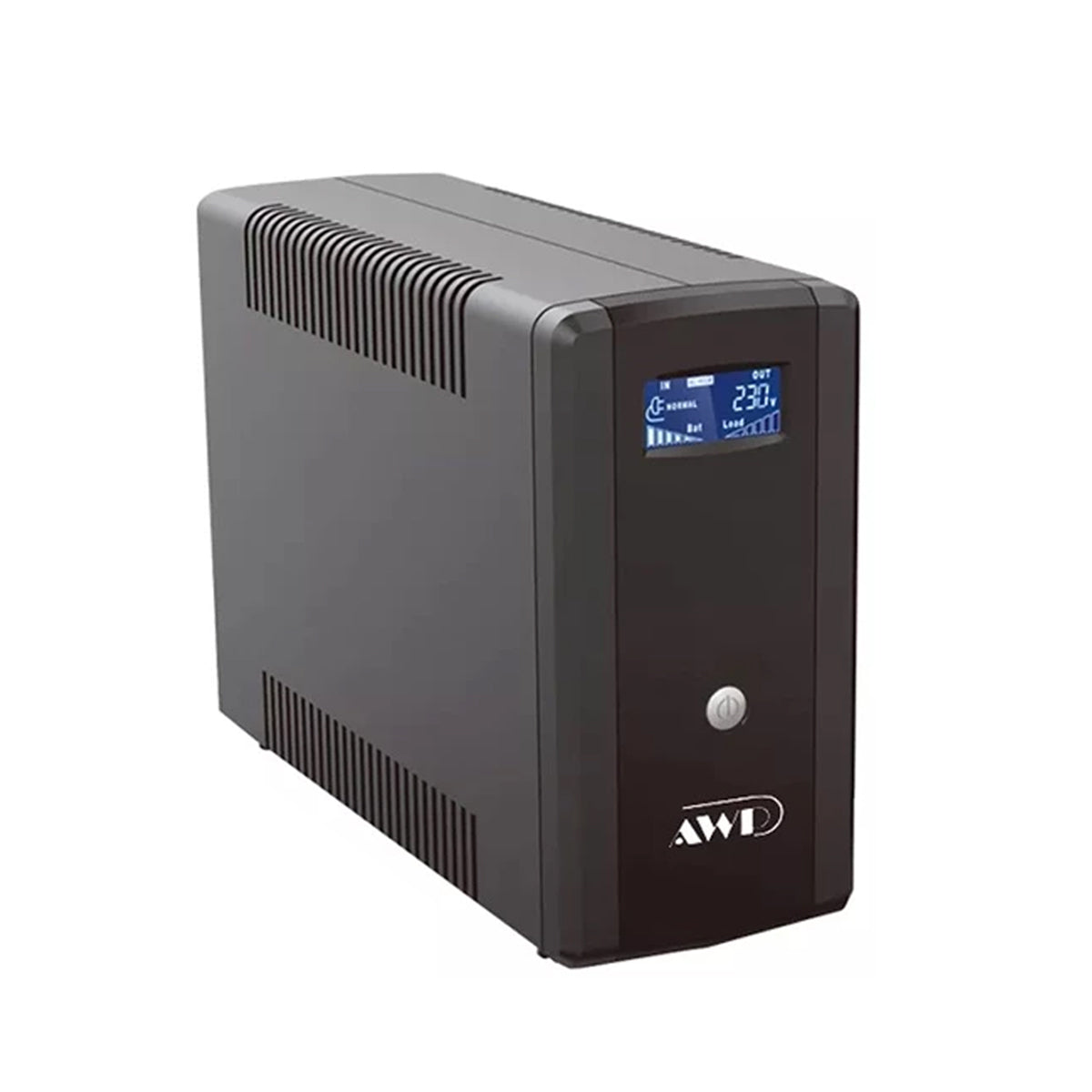

The AWP AID1500 Pro LCD is a tower-type UPS with a power rating of 1500VA / 900W, designed to provide stable and reliable power protection for various applications. It is equipped with 2 × 12V / 8Ah batteries and offers 6 universal sockets for flexible connectivity. With a compact design and dimensions of 90 × 305 × 165 mm weighing just 10.7 kg, it fits seamlessly into both home and office environments. The unit features Automatic Voltage Regulation (AVR), a microprocessor-based digital control system, and a wide input voltage range with auto-sensing frequency to ensure consistent performance. It supports LED or LCD display options, auto restart when mains power is restored, and auto phase tracking, which aligns the inverter output with the utility voltage to reduce transfer time and peak surge. Its intelligent battery management system includes temperature compensation for extended battery life and a three-stage charging system for faster recharge. For enhanced safety, the UPS provides short circuit, overcharge/overdischarge, overload, and surge protections, as well as automatic charging in OFF mode and cold start capability. Additionally, it supports optional USB and RJ45 ports and offers unattended safety shutdown with alarms and automatic power management via PC communication.

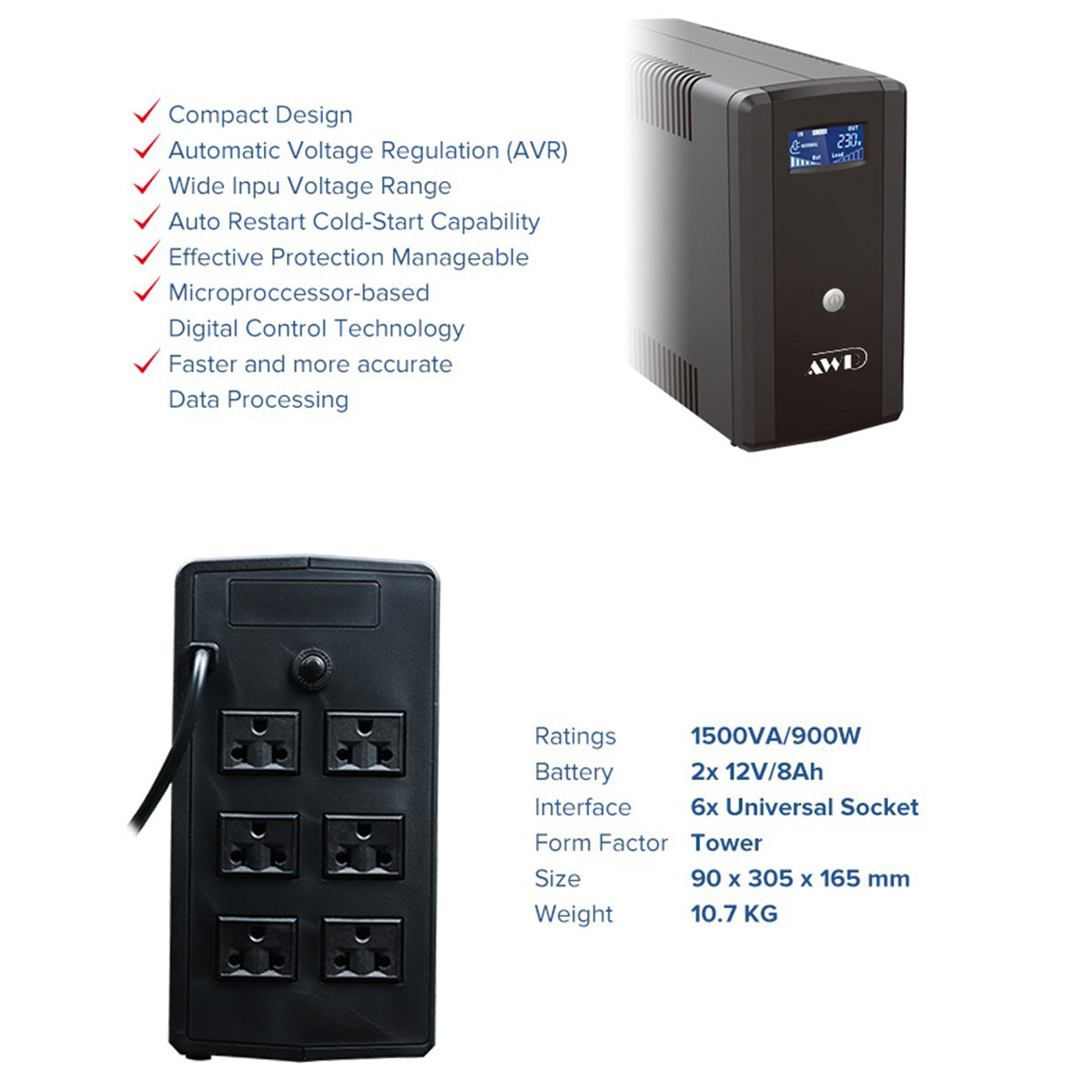

| Specification | Details |
|---|---|
| Model | AWP AID1500 Pro LCD |
| Ratings | 1500VA / 900W |
| Battery | 2 × 12V / 8Ah |
| Interface | 6 × Universal Socket |
| Form Factor | Tower |
| Size (W × D × H) | 90 × 305 × 165 mm |
| Weight | 10.7 kg |
| Design | Compact Design |
| Voltage Regulation | Automatic Voltage Regulation (AVR) |
| Display | LED display or LCD display (selectable) |
| Control | Microprocessor-based digital control |
| Frequency | Auto-sensing frequency |
| Input Range | Wide input voltage range |
| Auto Restart | Auto restart when mains power is restored |
| Phase Tracking | Auto-track mains phase to match inverter output with utility voltage, reducing transfer time and peak surge |
| Battery Management | Intelligent battery management with temperature compensation and three-stage charging |
| Protections | Short circuit, battery overcharge/overdischarge, overload, surge protections |
| Charging | Automatic charging in OFF mode |
| Cold Start | Supported |
| Optional Ports | USB & RJ45 (optional) |
| Safety | Unattended safety shutdown: system alarm and auto Power-On/Off via USB interface to PC |
