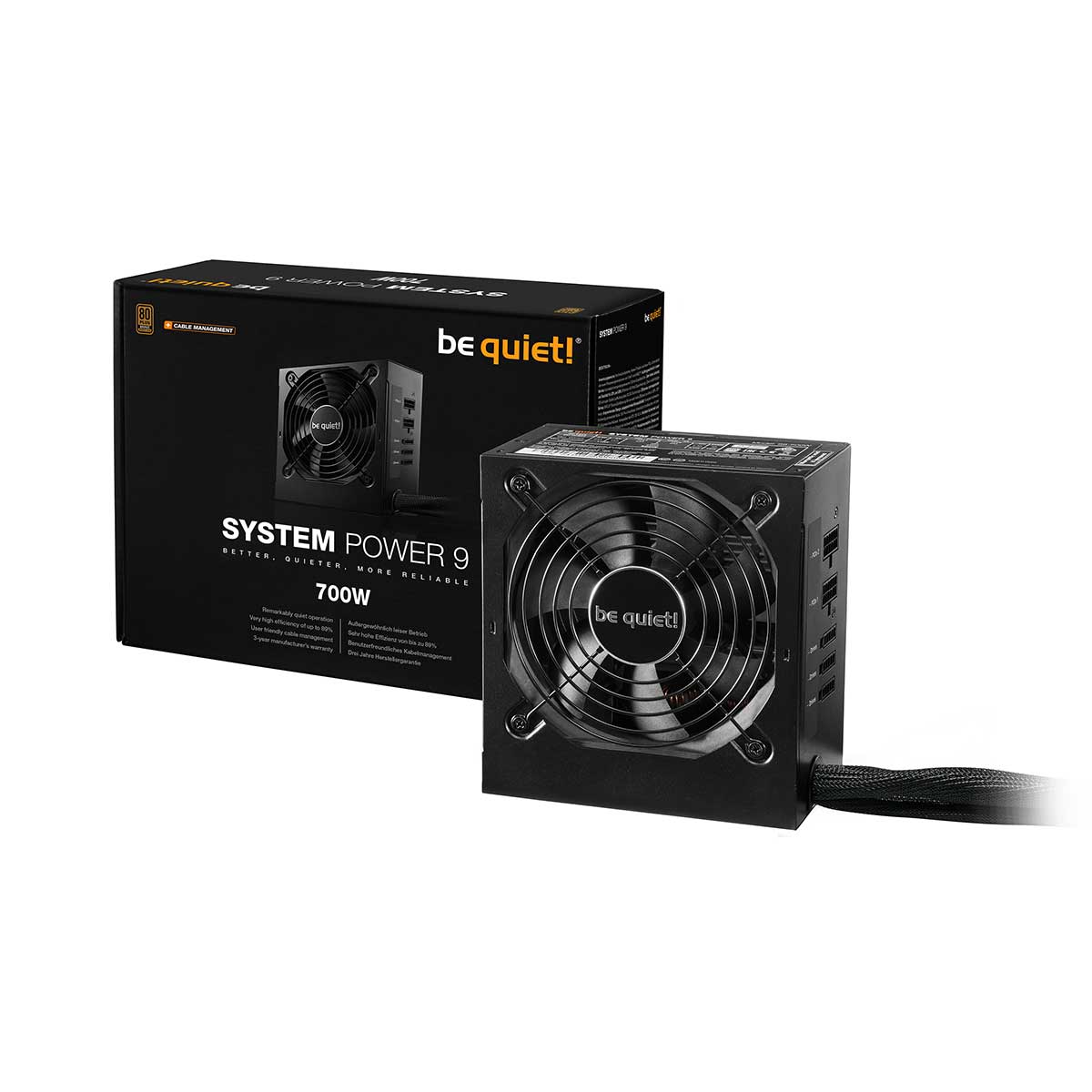

SYSTEM POWER 9 CM
700W
Proven reliability and good efficiency
be quiet! System Power 9 CM 700W offers renowned be quiet! reliability and quietness for cost-effective and reliable systems.
- Rock-solid stability with 2 strong 12V-rails
- DC-to-DC technology for tight voltage regulation
- 4 PCIe connectors for powerful GPUs
- Temperature-controlled 120mm fan reduces system noise
- Stand-by drain of less than 0.15 watts
- 80 PLUS® Bronze efficiency (up to 89%)
- Semi-modular, high-quality sleeved and flat cables
- All-in-one cable with S-ATA, HDD and FDD connectors
- Complete suite of top safety features
- Meets latest Intel® C6/C7, ErP and Energy Star 6.1 guidelines
General data
| Model | System Power 9 CM 700W |
| Continuous power (W) | 700 |
| Peak power (W) | - |
| Form factor | Version 2.51 |
| Form factor EPS 12V | Version 2.92 |
| Topology | DC/DC |
| Digitally controlled | - |
| Voltage (Vac) | 200 - 240 |
| Frequency (Hz) | 50 |
| Input current (A) | 6 |
| Power factor at 100% load | >0.95 |
| Modern standby | - |
| Power consumption in standby (W) | <0.15 |
| Average life time (h / 25°C) | 100,000 |
| Operating temperature up to (°C) | 40 |
Infographics
| |
Efficiency
| 80 PLUS certification | Bronze |
| Efficiency (%) at 230V, 2% load | - |
| Efficiency (%) at 230V, 10% load | 84.9 |
| Efficiency (%) at 230V, 20% load | 88 |
| Efficiency (%) at 230V, 50% load | 89 |
| Efficiency (%) at 230V, 100% load | 86 |
Fan and cooling technology
| Cybenetics Noise Rating | - |
| Fan | High quality fan |
| Fan size (mm) | 120 |
| Bearing technology | Sleeve |
| Motor technology | 4-pole fan motor |
| Max. fan speed (rpm) | 2100 |
| dB(A) at 10% load | 9.7 |
| dB(A) at 20% load | 9.7 |
| dB(A) at 50% load | 14.1 |
| dB(A) at 100% load | 31.7 |
Output
| Multi-rail operation (12V rails) | 2 |
| 12V single rail operation | - |
| Overclocking key | - |
| +3.3V (A) | 24 |
| +5V (A) | 15 |
| +12V1 (A) | 33 |
| +12V2 (A) | 25 |
| +12V3 (A) | - |
| +12V4 (A) | - |
| +12V5 (A) | - |
| +12V6 (A) | - |
| -12V (A) | 0.3 |
| +5Vsb (A) | 3 |
| Max. combined power 12V (W) | 672 |
| Max. combined power 12VHPWR (W) | - |
| Max. combined power 3.3V + 5V (W) | 130 |
| Hold-up time at 100% load (ms) | 17.0 |
| Hold-up time at 80% load (ms) | 22.0 |
| Power good signal (ms) | 100 - 150 |
Cables and connectors
| Modular cables | - |
| Sleeved cables | P24, P4+4 |
| Flat cables | PCIe / drives |
| Maximum cable length (cm) | 103 |
| Cable length to motherboard (cm) | 55 |
| No. of cables | 7 |
| ATX-Motherboard (20+4-pin) | 1 |
| P4+4 (CPU) | 1 |
| P8 (CPU) | - |
| P4 (CPU) | - |
| 12VHPWR cables | - |
| PCI-e 6+2-pin (GPU) | 4 |
| PCI-e 6-pin (GPU) | - |
| SATA | 10 |
| PATA | 2 |
| FDD (Floppy) | 1 |
Protection
| OTP (over temperature protection) | ✓ |
| OCP (over current protection) | ✓ |
| OPP (over power protection) | ✓ |
| SCP (short circuit protection) | ✓ |
| OVP (over Voltage protection) | ✓ |
| UVP (under Voltage protection) | ✓ |
| SIP (Surge & Inrush protection) | ✓ |
Safety certification
| BSMI | - |
| CB | ✓ |
| CCC | - |
| CE | ✓ |
| cRUus | - |
| cTUVus | - |
| CU | ✓ |
| FCC | - |
| RCM | ✓ |
| TÜV | ✓ |
| UKCA | - |
Environmental directives
| Energy Star | 6.1 |
| ErP | ✓ |
| WEEE | ✓ |
| RoHS | ✓ |
| Triman | ✓ |
Scope of delivery
| Thumb screws | - |
| Screws | ✓ |
| Cable ties | - |
| Velcro cable ties | - |
| User manual languages | DE, EN, ES, FR, PL, RU |
| OCK slot bracket with switch / OCK jumper | - |
| SFX-to-ATX adapter bracket | - |
Casing
| Dimensions without cable (L x W x H), (mm) | 140 x 150 x 86 |
| Weight (kg) | 1.69 |
| Color | Black |
