Description
Built for Reliable Everyday Performance
Designed for dependable performance and everyday computing, this motherboard combines essential connectivity, fast storage support, and enhanced hardware protection in a compact and reliable platform.
Equipped with a PCIe 3.0 x4 M.2 SSD slot, it supports high-speed storage for faster system responsiveness and improved loading performance. Two USB 3.2 Gen 1 Type-A rear ports provide convenient high-speed connectivity for your peripherals and external devices.
For networking and display connectivity, the motherboard features a Gigabit Ethernet port along with both HDMI and VGA display outputs, giving you flexible options for connecting your monitor or display.
Reliability is further enhanced with six protection technologies designed to promote stable operation and safeguard critical components. Every board undergoes 200 rigorous testing processes to ensure consistent quality and dependable performance.
The upgraded PCB atomization process further enhances manufacturing precision, resulting in a motherboard built to deliver stable performance for everyday computing.
Specifications:

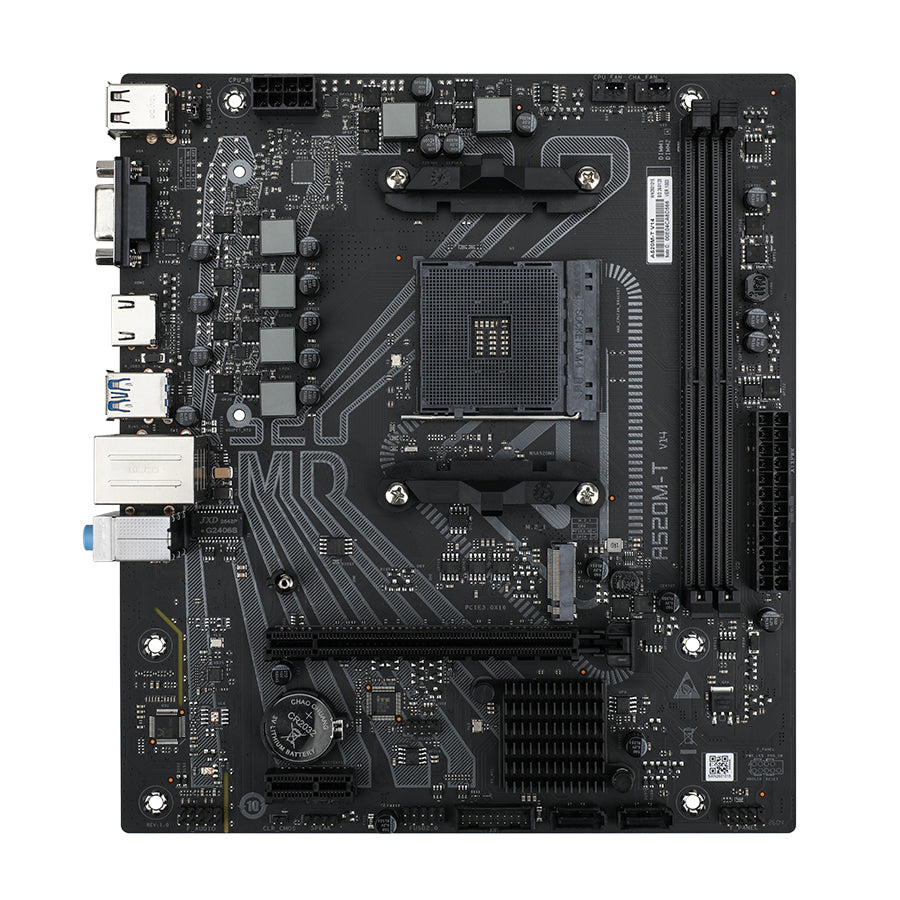

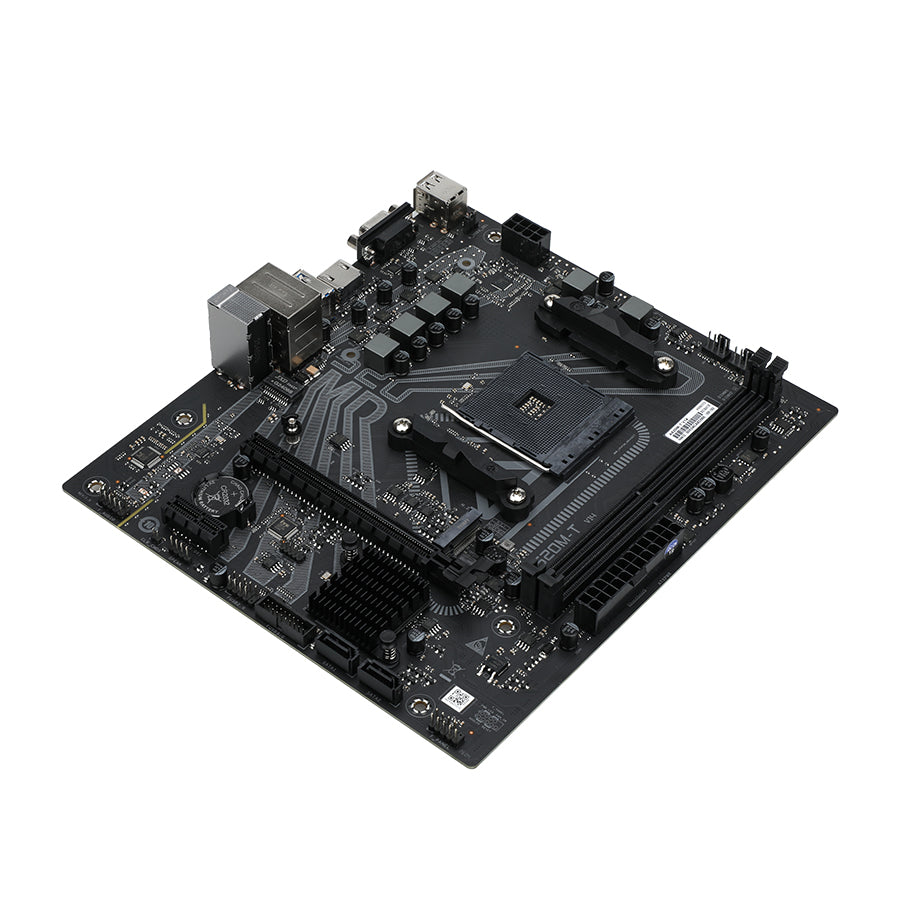

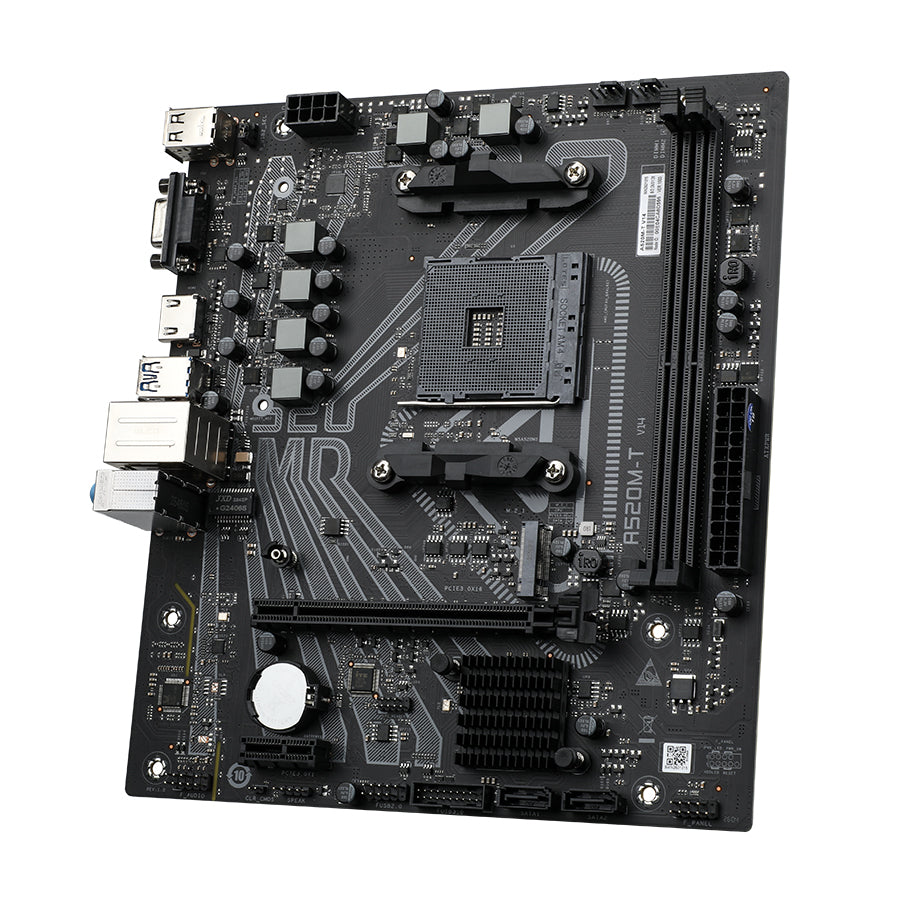

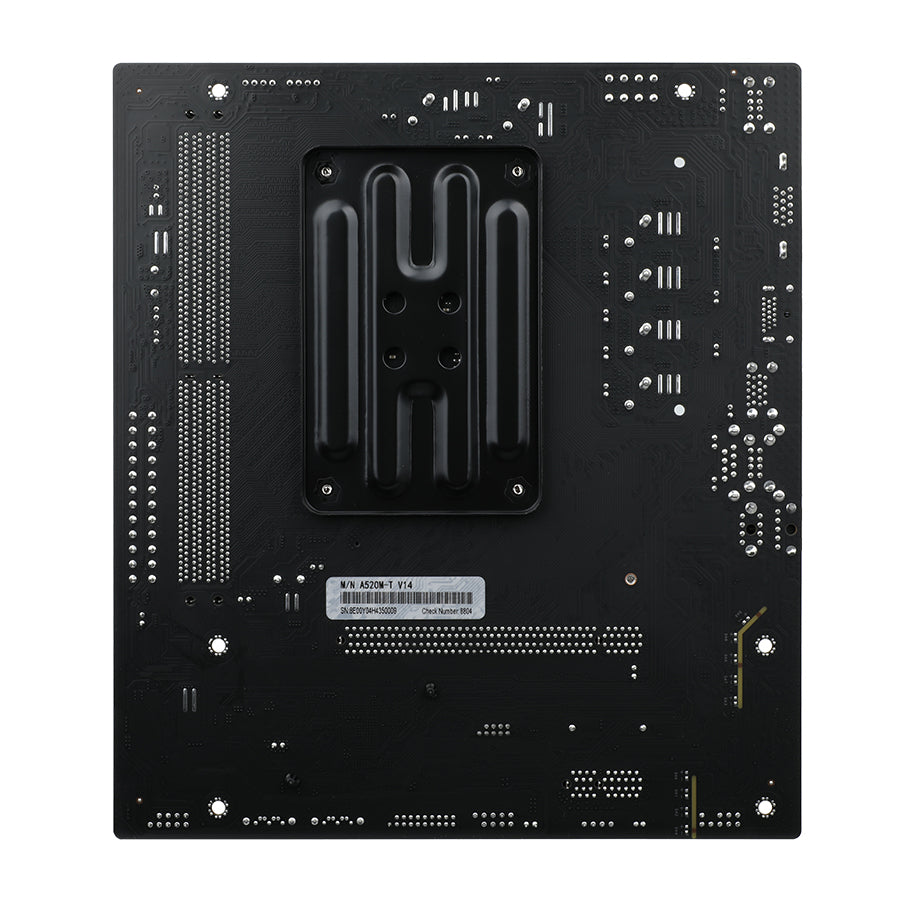

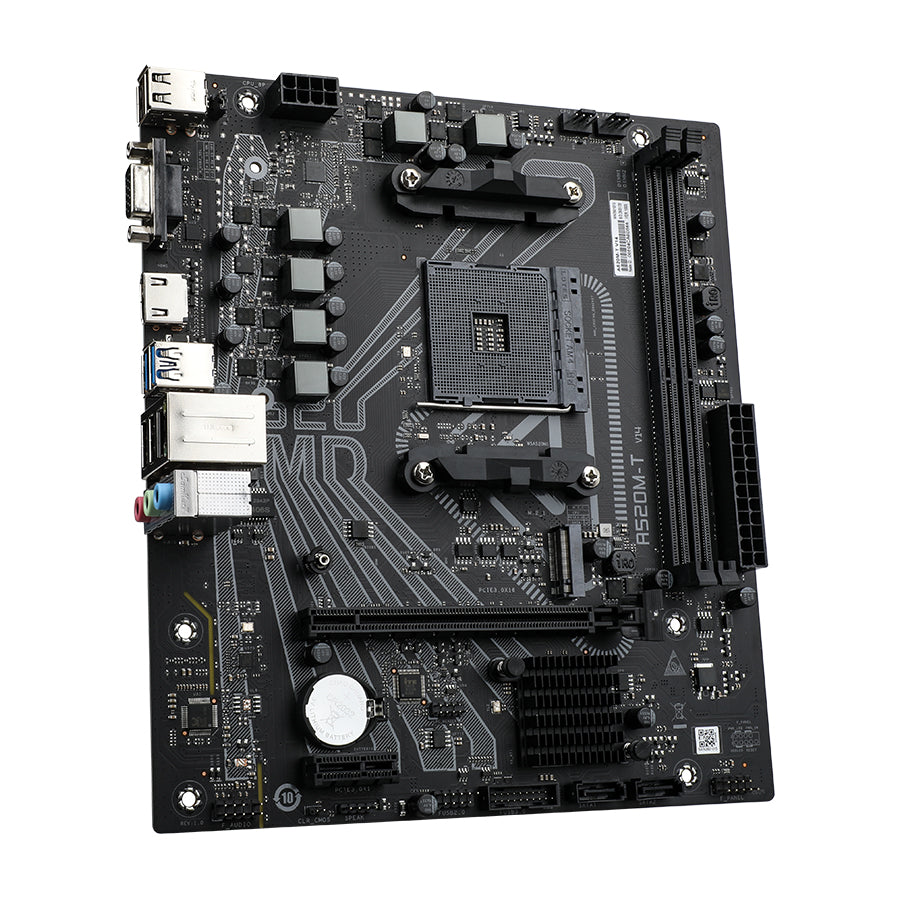

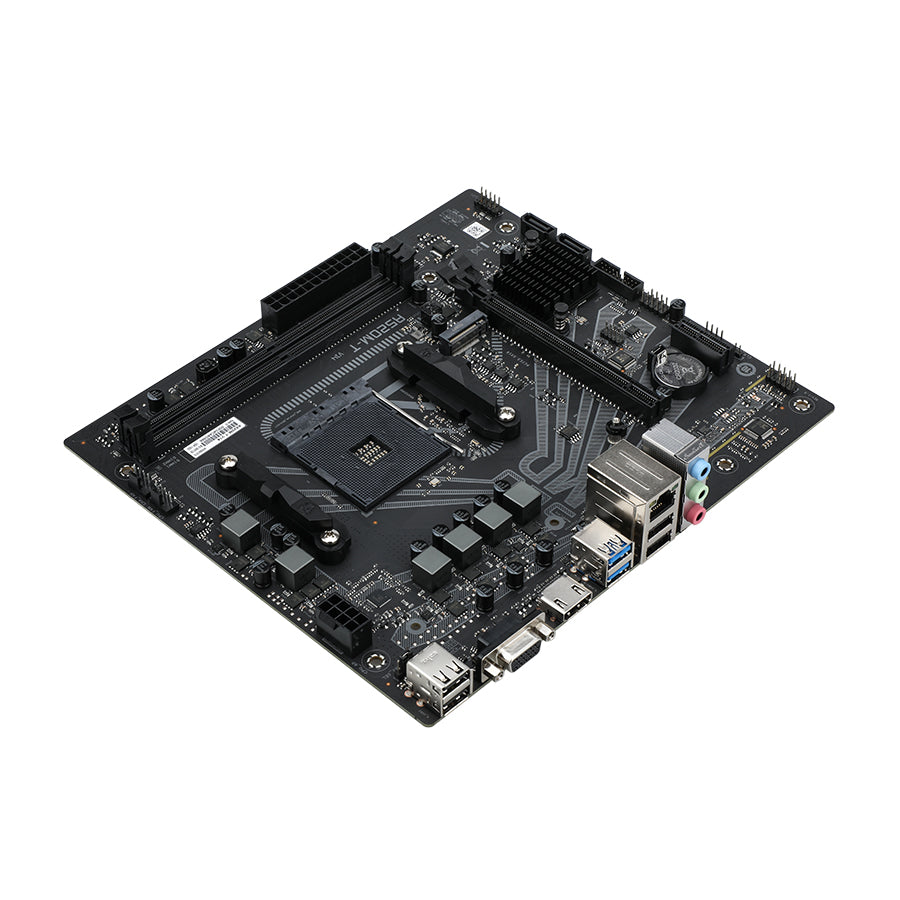

| Model | A520M-T V14 |
| Product Series | COLORFUL series |
| Chipset | AMD A520 |
| Processor | Supports AMD Ryzen series processors that fit the AMD AM4 slot of the motherboard (*Please visit the Colorful official website [www.colorful.cn](http://www.colorful.cn) for the latest processor support list) |
| Memory | 2 DDR4 memory sockets are provided, which can support up to 64GB of memory (a single socket can support up to 32 GB of memory) - Support DDR4-3600(OC)/3200/2933/2666/2400MHz memory - Support Extreme Memory Profile (XMP) memory technology - Supports dual channel memory technology (* Please visit [www.colorful.cn](http://www.colorful.cn) for the latest memory compatibility list) |
| SATA Ports | 1 M.2 slot and 2 SATA 6Gb/s hard disk interfaces, and supports creating RAID 0, RAID 1, RAID 10 disk arrays using SATA hard disk devices - M.2_1 slot: supports 2280 M.2 SSD (PCIe 3.0 x4/SATA, CPU channel) |

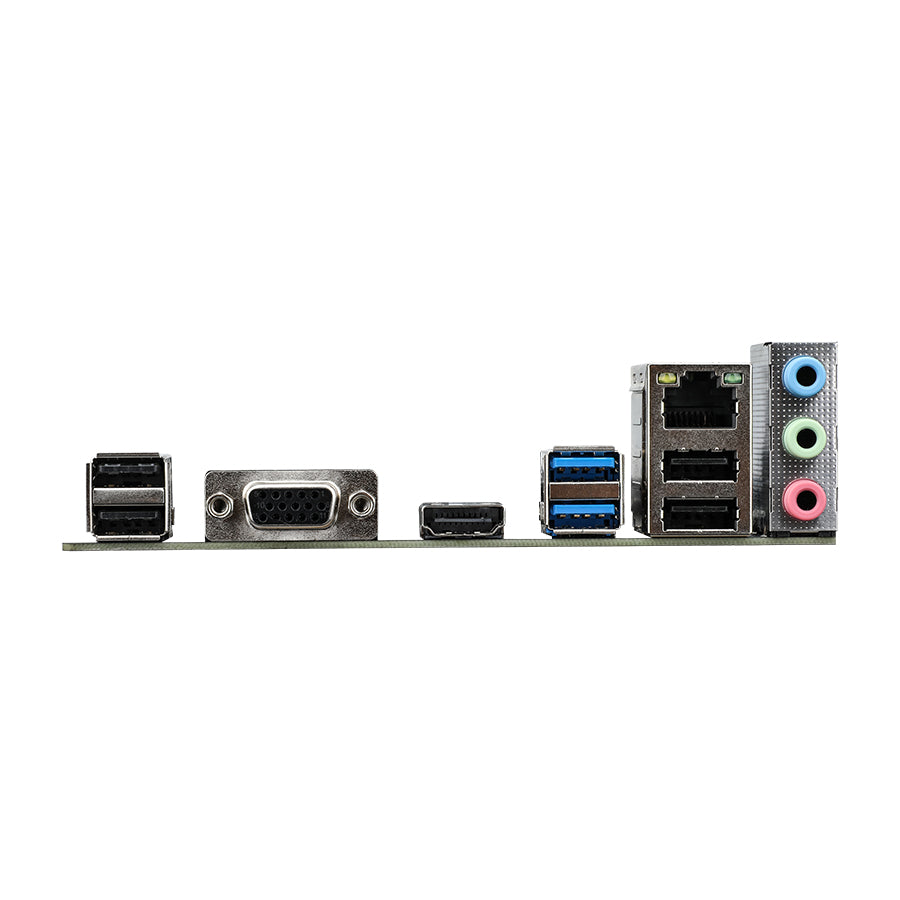

| Board I/O | Rear I/O : - 4×USB 2.0 interfaces - 2×USB 3.2 Gen 1 Type-A interfaces - 1×HDMI 2.0 interface, Supports up to 4K 60Hz resolution - 1×VGA interface - 1×Gigabit network interface - 3×Audio interfaces (audio input/audio output/microphone) On board: - 1×CPU fan pin - 1×System fan pin - 1×USB 2.0 pin expandable 2 USB 2.0 Type-A interfaces - 1×USB 3.2 Gen 1 pin expandable 2 USB 3.2 Gen 1 Type-A interfaces - 1×Front audio pin - 1×Front panel pin - 1×Speaker pin - 1×Clear CMOS jumper - 1×Debug light pin - 1×USB live control jumper |
| Expansion Slots | 1 PCIe 3.0 x16 slot 1 PCIe 3.0 x1 slot |
| BIOS | 128M UEFI, support multiple languages |
| Power Management | Support S3/S4 wake-up, network S5 wake-up, support USB wake-up, support timing boot, call boot |
| Hardware Monitor | CPU fan speed is controllable, system fan speed is controllable, CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring |
| LAN | RTL8111H/RTL8111M Gigabit Ethernet |
| Audio | Realtek ALC897 high fidelity decoding chip, Support up to 7.1 channels |
| Configuration | M-ATX |
| Dimensions | 220mm x 195mm |
