Description

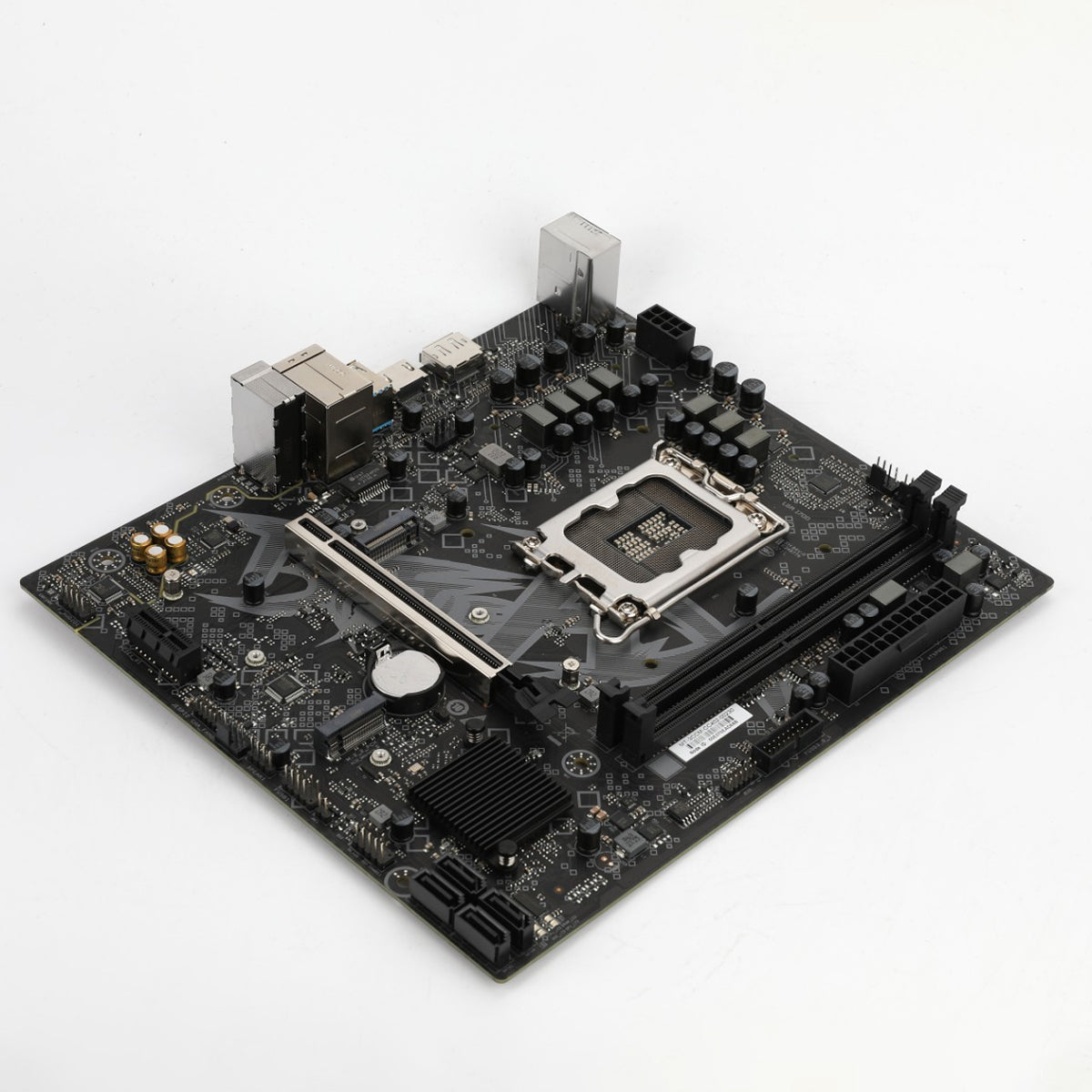

BATTLE-AX B660M-D V20
Feature Highlights:
- Supports 12th Gen Intel® Core Processors (Socket 1700)
- 2xDIMMs,supports Dual Channel DDR4 memory
- *memory overclocking also depends on the matching CPU and memory itself!
- 4xSATA3.0 ports
- 2xM.2 SSD slots
- 1000M LAN
- 6-channel audio chipset
- DP+HDMI ports
- 4*USB2.0 ports (2 rear, 1 header)
- 6*USB3.2 Gen1 ports (4 rear, 1 header)
SPECIFICATION
| Model | BATTLE-AX B660M-D V20 |
| Product Series | BATTLE-AX series |
| Chipset | Intel B660 |
| Processor | Supports 14th/13th/12th Gen Intel® Core™ Processors (Socket 1700) |
| Memory | 2 DIMM slots，support dual channel DDR4 memory |
| Graphics Support | 1xPCIe 4.0/3.0x16 slot |
| SATA Ports | 4xSATA 6Gb/s ports, Supports RAID0, 1, 5, 10 |
| Board I/O | I/O: 1xPS/2 port, 1xHDMI display port, 1xDP display port, 2xUSB 2.0 ports, 4xUSB 3.2 Gen 1 ports, three 6-channel audio interface, RJ45 LAN interface; Onboard: 1xUSB2.0 headers, 1xUSB 3.2 Gen 1 headers, 1x CPU fan headers, 2x system fan headers |
| Expansion Slots | 1xPCIe 3.0x1 slot, 2xM.2 slots |
| BIOS | 128M UEFI |
| Hardware Monitor | CPU Fan speed Controlled，SYSTEM Fan speed Monitoring,CPU Temperature Monitoring，System Temperature Monitoring，and Voltage monitoring |
| LAN | 1000M LAN |
| Audio | 6-Channel High Definition audio CODEC |
| Configuration | 235 x 207mm，M-ATX |
