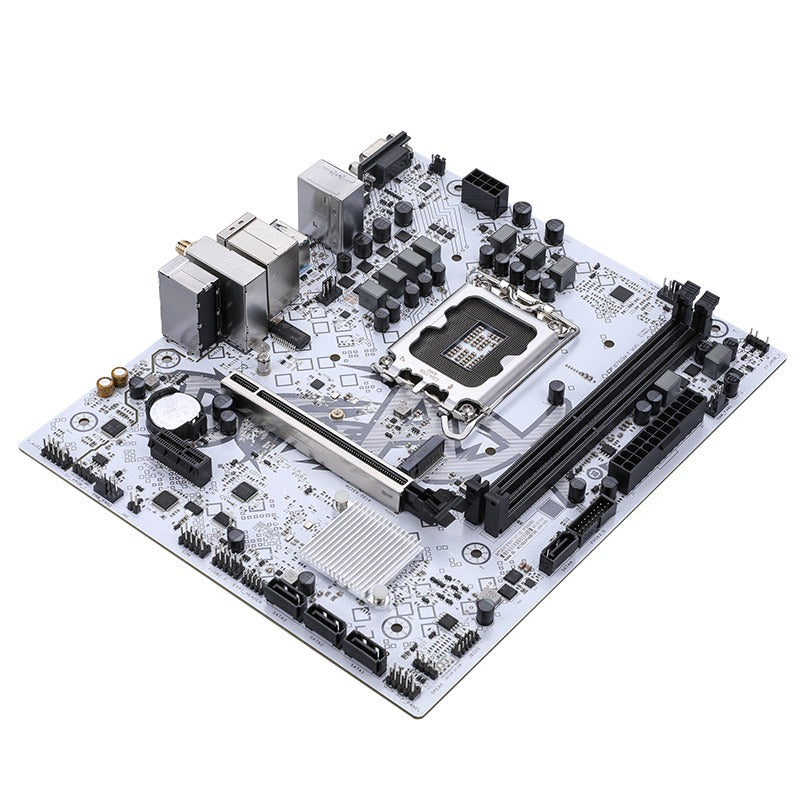

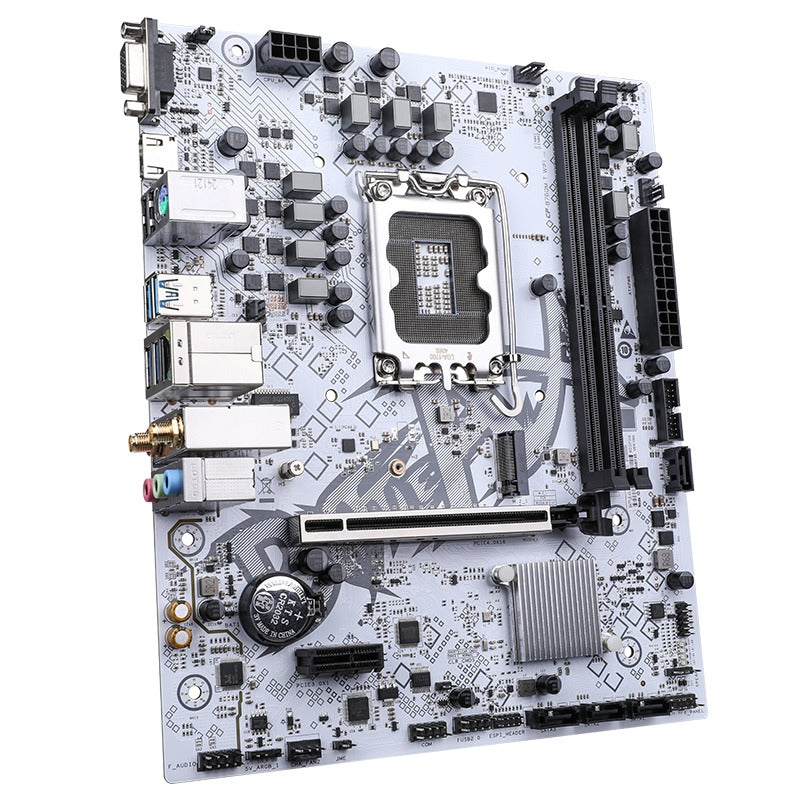

Description
- BATTLE-AX series customized white motherboard
- Provide 4 USB 3.2 Gen 1 Type-A high-speed interfaces
- Provide 2 USB 2.0 interfaces
- Provide 1 PCIe 4.0 x4 M.2 SSD slot
- Provide 2 5V 3-pin ARGB pins
- Provide HDMI+VGA display interface
- Support iGame Center light efficiency control software, which can synchronously adjust the light efficiency of heat sinks, cooling fans, and memory
- Six protection technologies, more stable product operation
- 200 processes are strictly tested with guaranteed quality
- PCB atomization process comprehensively upgraded
Specifications:
| Chipset | Intel® B760 |
| CPU | Supports 14th Gen、13th Gen and 12th Gen Intel Core™, Pentium® and Celeron® processors that fit the LGA 1700 slot of the motherboard *Please visit the official website of Colorful (www.colorful.cn) for the latest supported processor list |
| Memory | 2 DDR4 memory slots, supporting up to 64 GB of memory (a single slot can support a capacity of up to 32 GB) ●Support DDR4-4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/ 3600(OC)/3466(OC)/3200/3000/2933/2800/2666/2400/2133MHz memory ●Support Intel® Extreme Memory Profile (XMP) memory technology ●Support dual channel memory technology *Please visit the official website of Colorful (www.colorful.cn) for the latest memory compatibility list |
| Expansion slots | 1×PCIe 4.0 x16 slot 1×PCIe 3.0 x1 slot |
| Storage device interfaces |
A total of 1 M.2 slot and 4 SATA 6Gb/s hard disk interfaces are supported ●M.2_1 slot：support 2242/2280 specifications M.2 SSD （PCIe 4.0 x4，PCH channel） |

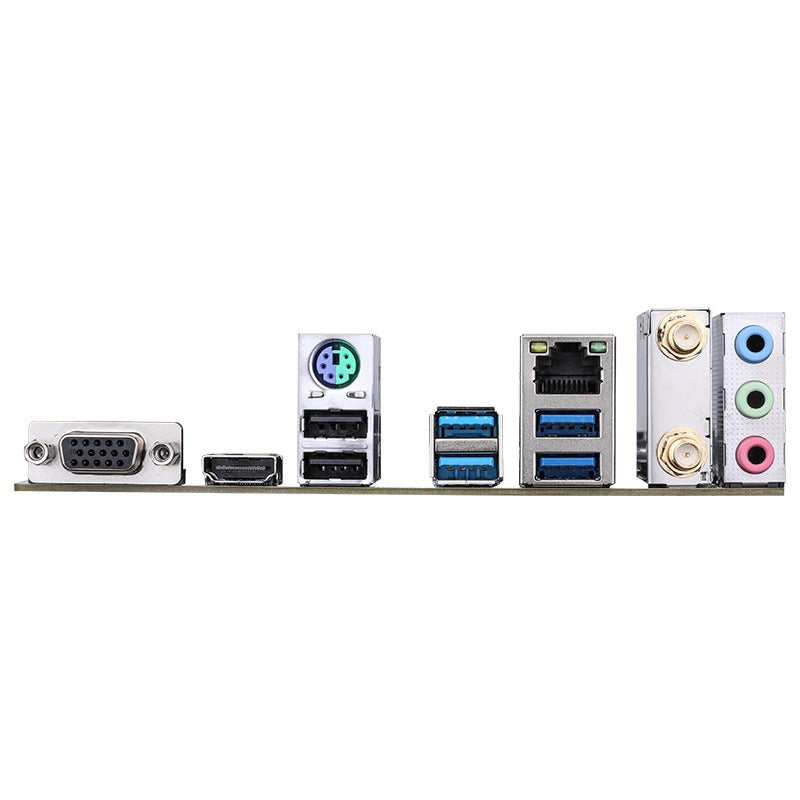

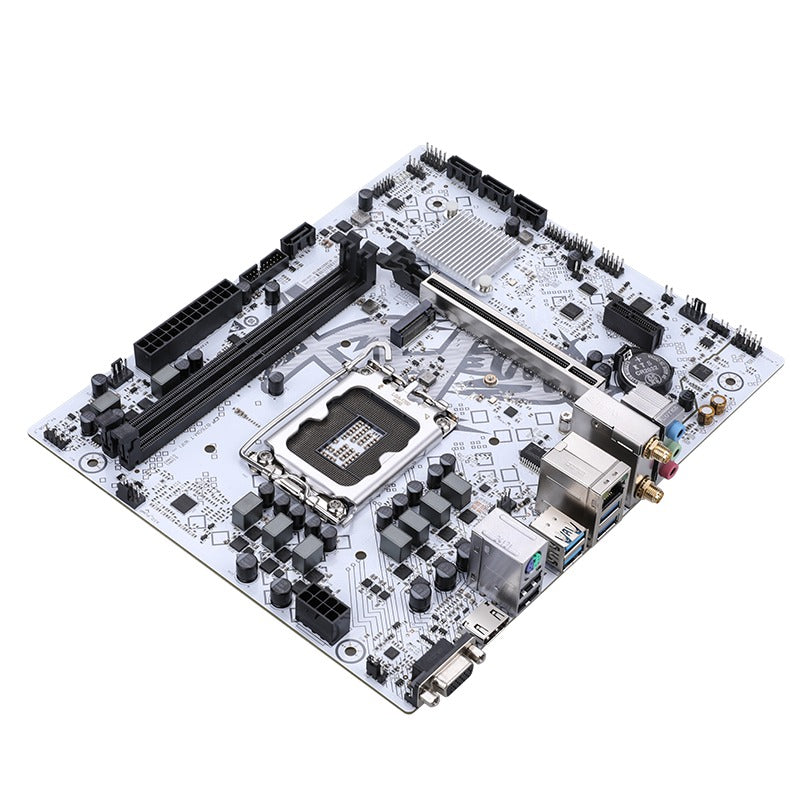

| Rear I/O interfaces | 2×USB 2.0 interfaces 4×USB 3.2 Gen 1 Type-A interfaces 1×HDMI 2.0 interface, up to 4K 60Hz resolution supported 1×VGA interface 1×PS/2 interface 1×Gigabit network interface 2×Wi-Fi 6 antenna interfaces 3×Audio interfaces (audio input/audio output/microphone) |
| Onboard pin/jumper/key |
1×CPU fan pin (CPU_FAN) 2×System fan pins (CHA_FAN1、CHA_FAN2) 1×Water cooling pump pin (AIO_PUMP) 2×5V 3-pin ARGB pins (5V_ARGB_1、5V_ARGB_2) 1×Front audio pin (F_AUDIO) 1×Front panel pin (F_PANEL) 1×Speaker pin (SPEAK) 1×COM port pin (COM) 1×ME write protection jumper (JME) 1×Clear CMOS jumper (CLR_CMOS) 1×BIOS burner pin (JBIOS) 1×POST card pin (ESPI_HEADER) 1×PS/2 Wake-up control jumper (JPS2) |
| Front USB expansion interfaces |
1×USB 2.0 pin, support additional 2 USB 2.0 Type-A interfaces (FUSB2.0) 1×USB 3.2 Gen 1 pin, support additional 2 USB 3.2 Gen 1 Type-A interfaces (FUSB3.0) |
| Audio | Realtek ALC897 High fidelity decoding chip ●Support up to 5.1 channels |
| Network function | RTL8111H Gigabit LAN controller |
| Wireless network card and Bluetooth |
Wi-Fi 6 module ●Wi-Fi 6 (support 802.11 a/b/g/n/ac/ax, support 2.4GHz/5GHz wireless frequency band) ●Bluetooth 5.2 |

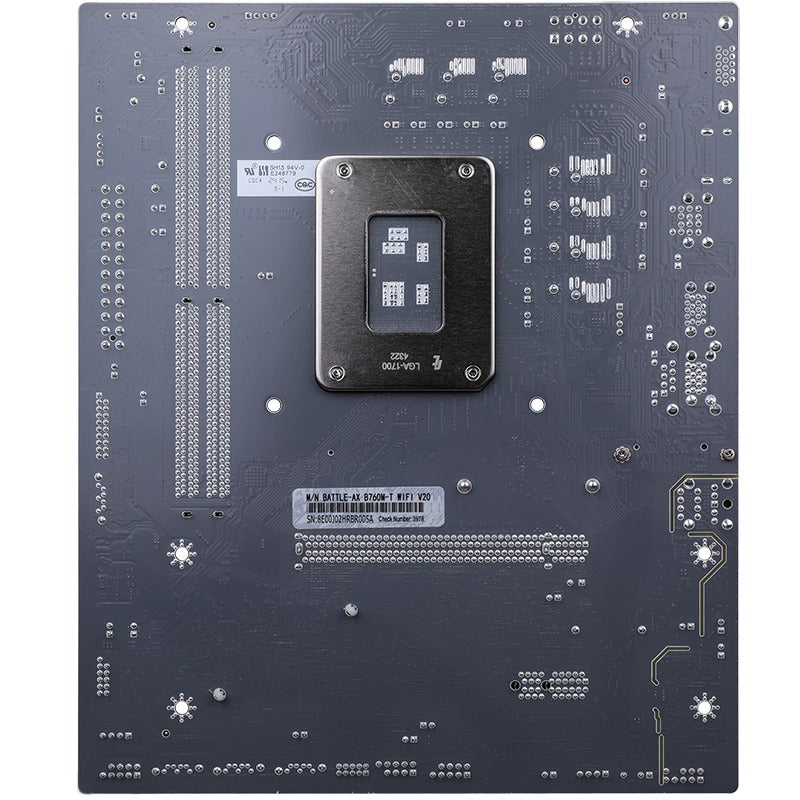

| Dimension of motherboard |
M-ATX Form Factor 235mm x 196mm |
