Description
Feature Highlights:
- Support dual-channel DDRR-5600MHz memory
- Provide 1 PCIe 3.0 x4 M.2 SSD slot
- Equipped with HDMI+2*DP display interface
- Equipped with Realtek 2.5G high-speed wired network card and AX101 WiFi 6 wireless network card, supporting Bluetooth 5.2
- Support the iGame Center light efficiency control software, which can synchronously adjust the light efficiency of the radiator, cooling fan and memory
- Six protection technologies, more stable product operation
- 200 processes are strictly tested with guaranteed quality
- PCB atomization process comprehensively upgraded
Specifications:

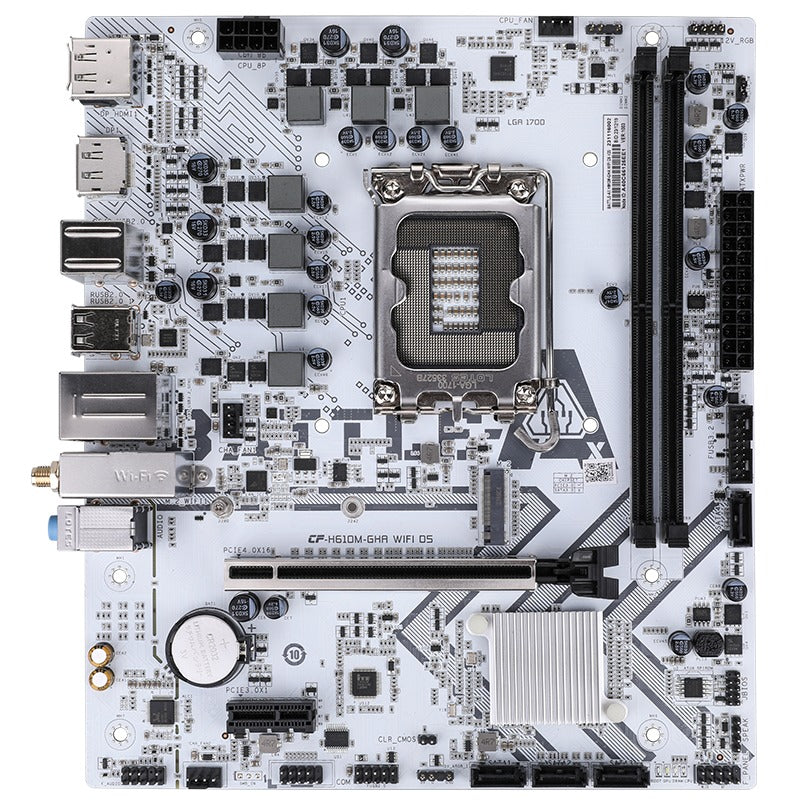

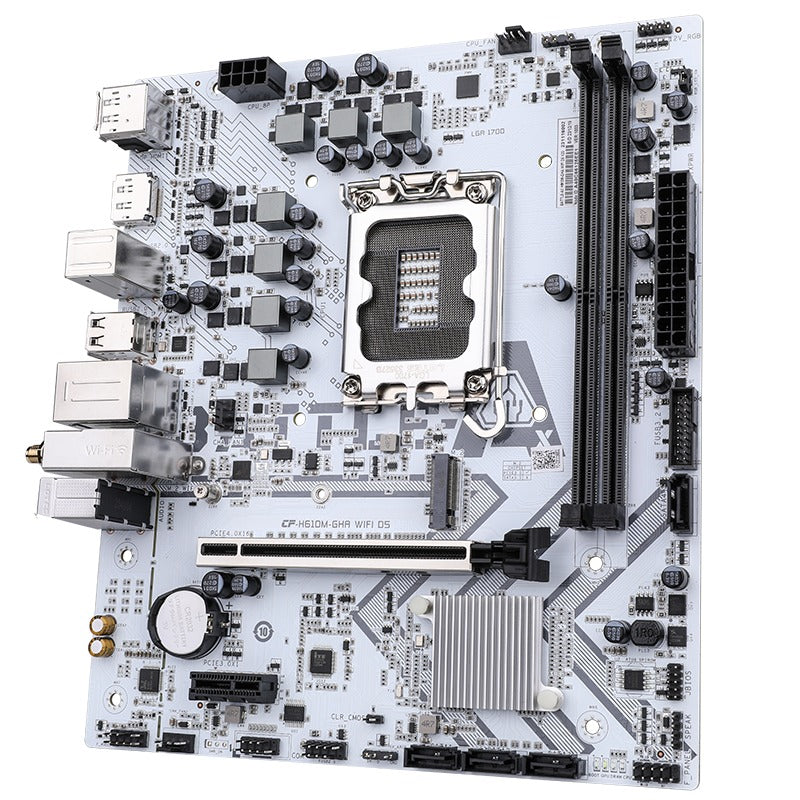

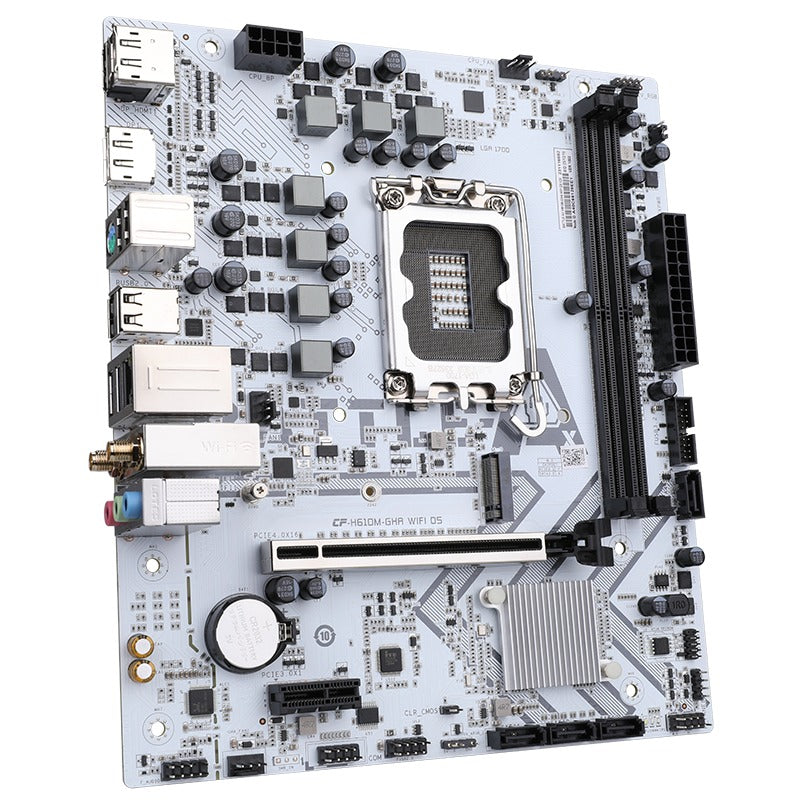

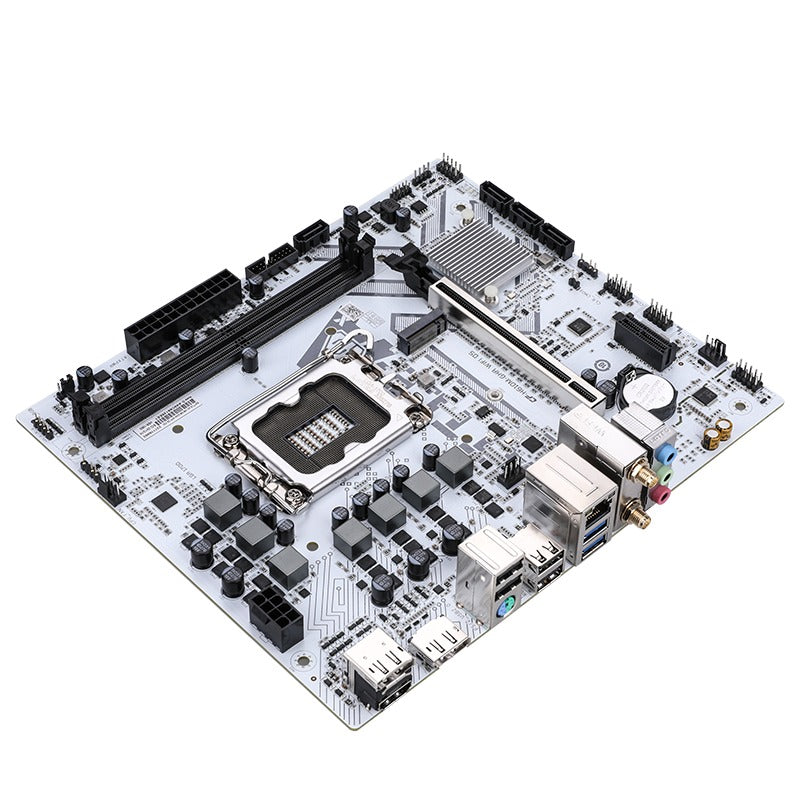

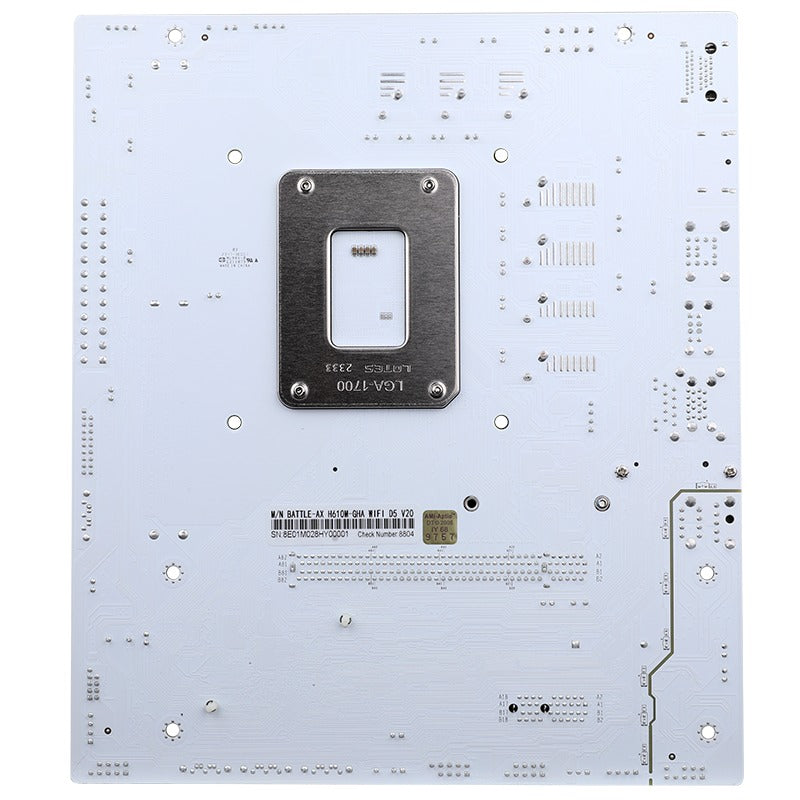

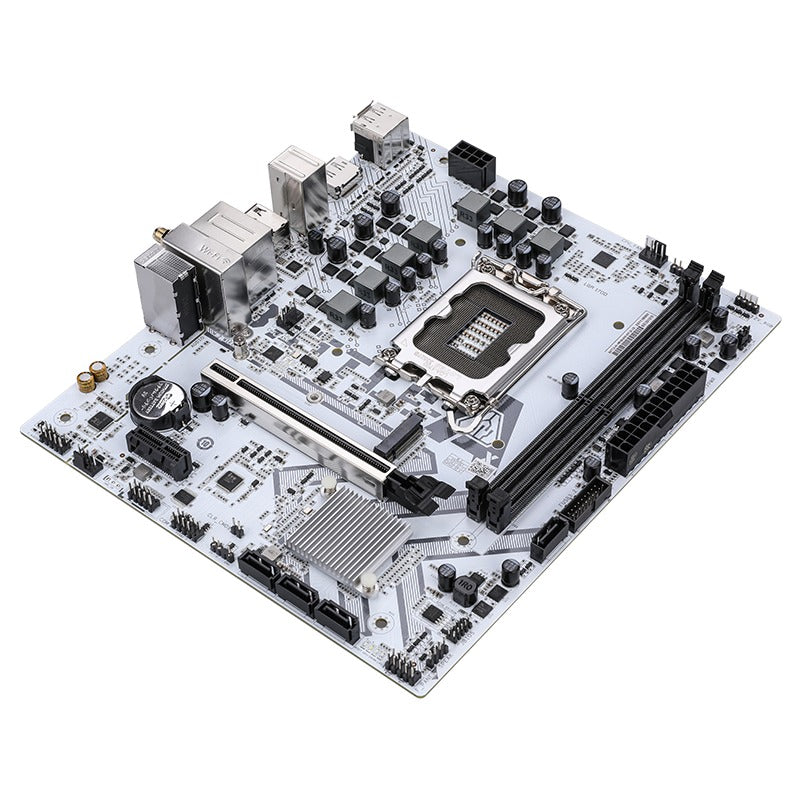

| Model | BATTLE-AX H610M-GHA WIFI D5 V20 |
| Product Series | BATTLE-AX series |
| Chipset | Intel H610 |
| Processor | Support the 14th/13th and 12th generation Intel adapting to the LGA 1700 slot of the motherboard® Core™, Pentium® and Cylon® processor (*Please visit the Colorful official website www.colorful.cn for the latest processor support list) |
| Memory | 2 DDR5 memory sockets are provided, which can support up to 96 GB of memory (a single socket can support up to 48 GB of memory) Paired with 13th generation Intel® Core™ i9/i7 processors: - Support DDR5-5600/5400/5200/5000/4800MHz memory Paired with 13th generation Intel® Core™ i5/i3 processors and 12th generation Intel® Core™, Pentium® and Cylon® processors: - Support DDR5-4800MHz memory - Supports dual channel memory technology (* Please visit www.colorful.cn for the latest memory compatibility list) |
| SATA Ports | 1 M.2 slot and 4 SATA 6Gb/s hard disk interfaces - M.2_1 slot: supports 2242/2280 M.2 SSD (PCIe 3.0 x4, PCH channel) |
| Board I/O |

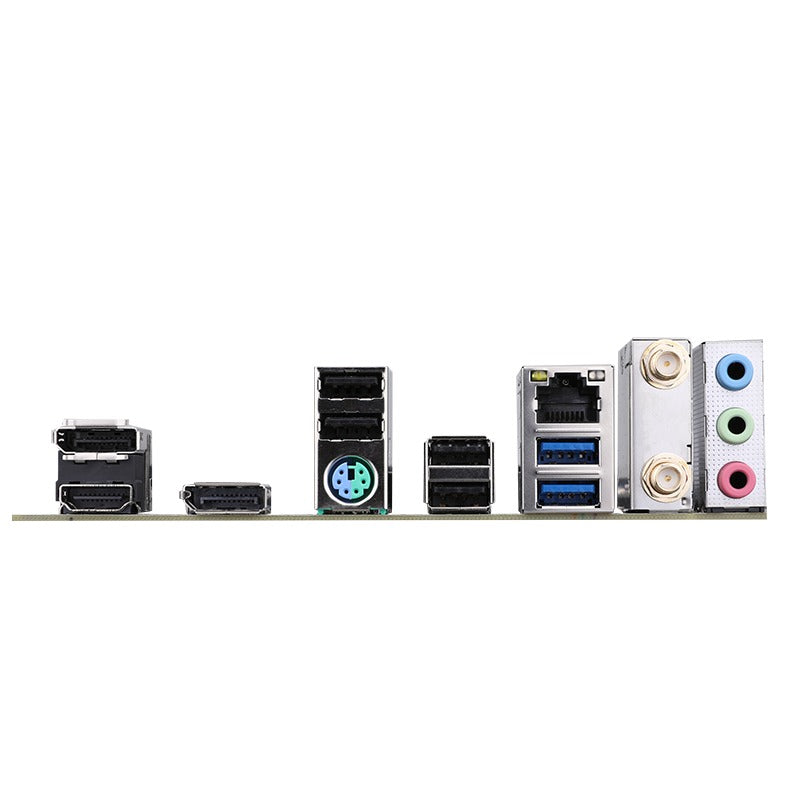

Rear I/O: - 4×USB 2.0 interfaces - 2×USB 3.2 Gen 1 Type-A interfaces - 2×DP 1.2 interfaces, supports up to 4K 60Hz resolution - 1×HDMI 2.0 interface, supports up to 4K 60Hz resolution - 1×PS/2 interface - 1×2.5G network interface - 2×Wi-Fi 6 antenna interfaces - 3×Audio interfaces (audio input/audio output/microphone) On board: - 1×CPU fan pin - 2×System fan pins - 1×USB 2.0 pin expandable 2 USB 2.0 Type-A interfaces - 1×USB 3.2 Gen 1 pin expandable 2 USB 3.2 Gen 1 Type-A interfaces - 2×5V 3-pin ARGB pins - 1×12V 4-pin RGB pin - 1×Front audio pin - 1×Front panel pin - 1×Speaker pin - 1×Clear CMOS jumper - 1×BIOS burner pin - 1×RGB light effect control jumper - 1×COM port pin |
| Expansion Slots | 1×PCIe 4.0 x16 slot 1×PCIe 3.0 x1 slot |
| BIOS | 128M UEFI, support multiple languages |
| Power Management | Support S3/S4 wake-up, network S5 wake-up, support USB wake-up, support timing boot, call boot |
| Hardware Monitor | CPU fan speed is controllable, system fan speed is controllable, CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring |
| LAN | RTL8125BG 2.5Gbit LAN, AX101 WiFi 6 wireless network card, Bluetooth 5.2 |
| Audio | Realtek ALC897 high fidelity decoding chip, Support up to 5.1 channels |
| Configuration | M-ATX 225mm x 195mm |
