Description
Feature Highlights:
- CVN series exclusive customized white motherboard
- CVN series customized frost cooling armor with full coverage condensing fins to enhance heat dissipation
- Provide 2 M.2 SSD slots
- Provide 1 USB 3.2 Gen 1 Type-C and 1 USB 3.2 Gen 1 Type-A high-speed rear interface
- Equipped with Realtek 2.5G fast wired network card
- Support iGame Center light efficiency control software, which can synchronously adjust the light efficiency of heat sinks, cooling fans, and memory
- Six major protective technologies ensure more stable product operation
- Strict testing of 200 processes with guaranteed quality
- Comprehensive upgrade of PCB atomization process
Specifications:

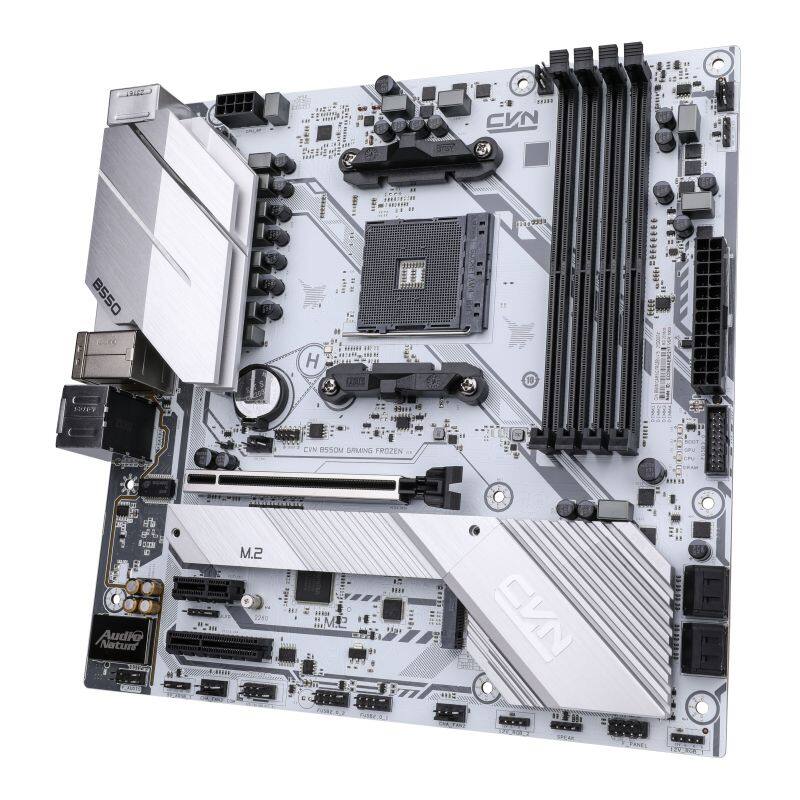

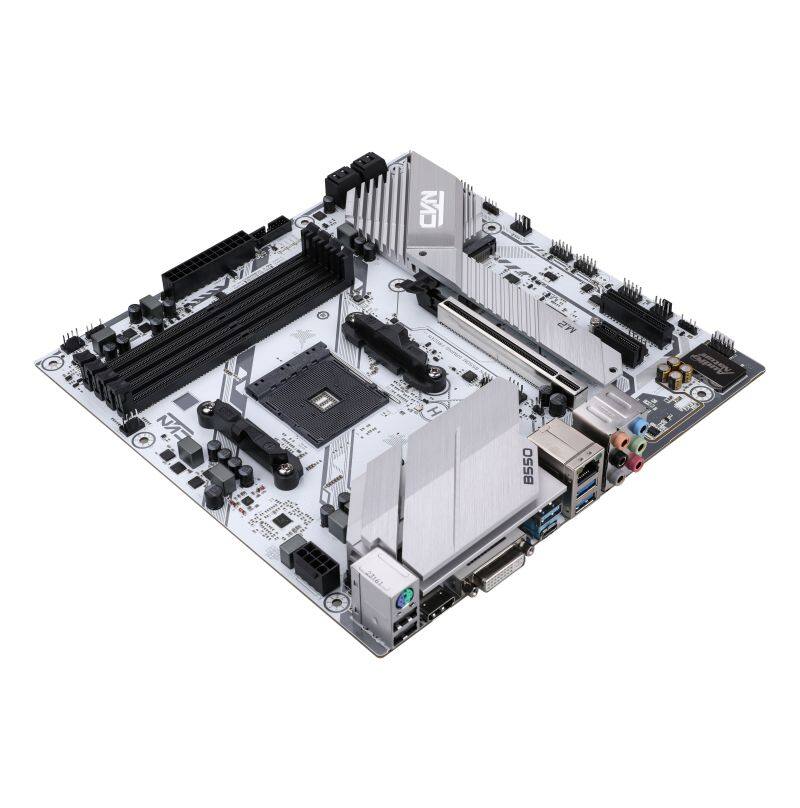

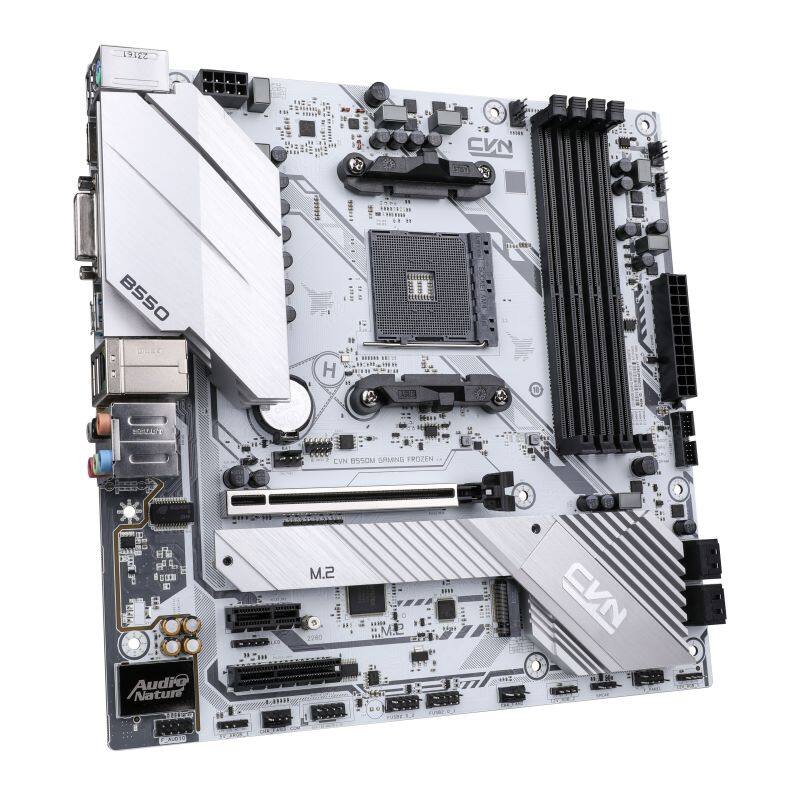

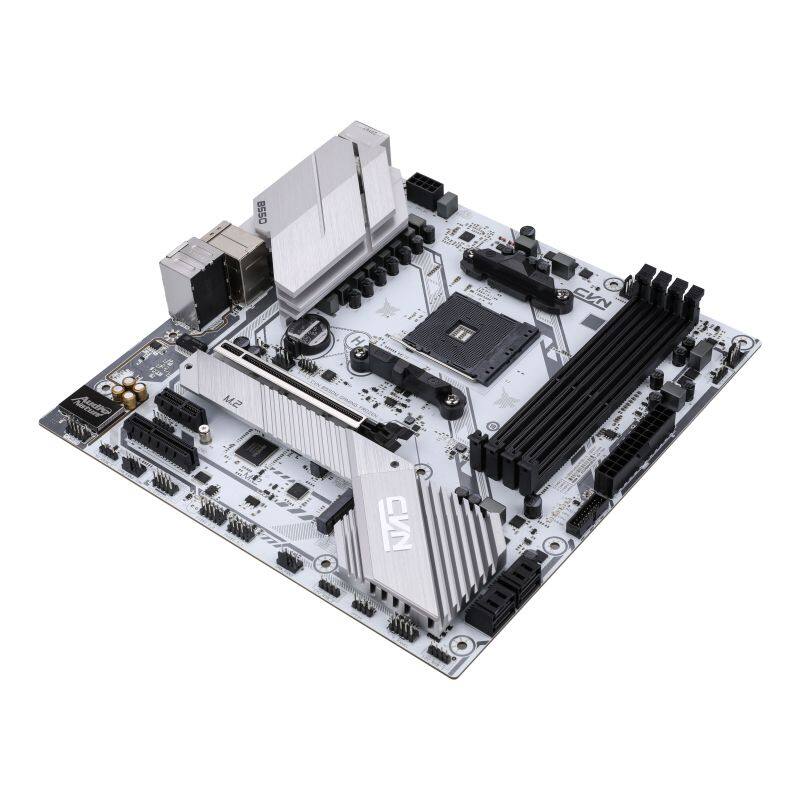

| Model | CVN B550M GAMING FROZEN V15 |
|---|---|
| Product Series | CVN series |
| Chipset | AMD B550 |
| Processor | Supports AMD Ryzen series processors that fit the AMD AM4 slot of the motherboard (* Please visit www.colorful.cn for the latest memory compatibility list) |
| Memory | 4 DDR4 memory sockets are provided, which can support up to 128 GB of memory (a single socket can support up to 32 GB of memory) - Support DDR4-4000 (OC)/3800 (OC)/3600 (OC)/3200/2933/2666/2400MHz memory - Support Extreme Memory Profile (XMP) memory technology - Supports dual channel memory technology (* Please visit www.colorful.cn for the latest memory compatibility list) |
| SATA Ports | 2 M.2 slots and 4 SATA 6Gb/s hard disk interfaces, and supports creating RAID 0, RAID 1, RAID 10 disk arrays using SATA hard disk devices - M.2_1 slot: supports 2242/2260/2280 M.2 SSD (PCIe 4.0 x4/SATA, CPU channel) - M.2_2 slot: supports 2280 M.2 SSD (PCIe 3.0 x4, PCH channel) |
| Board I/O | Rear I/O : -2×USB 2.0 interfaces -3×USB 3.2 Gen 1 Type-A interfaces -1×USB 3.2 Gen 1 Type-C interface -1×HDMI 1.4 interface, Supports up to 4K 30Hz resolution -1×DVI interface -1×PS/2 interface -1×2.5G network interface -6×Audio interfaces (audio input/audio output/microphone) On board: -1×CPU fan pin -3×System fan pins -1×Water cooling pump pin -2×USB 2.0 pins expandable 4 USB 2.0 Type-A interfaces -1×USB 3.2 Gen 1 pin expandable 2 USB 3.2 Gen 1 Type-A interfaces -2×5V 3-pin ARGB pins -2×12V 4-pin RGB pins -1×Front audio pin -1×Front panel pin -1×Speaker pin -1×Clear CMOS jumper -1×COM port pin -1×BIOS burner pin -1×USB live control jumper |
| Expansion Slots | 1×PCIe 4.0 x16 slot 1×PCIe 3.0 x4 slot 1×PCIe 3.0 x1 slot |
| BIOS | 128M UEFI, support multiple languages |
| Power Management | Support S3/S4 wake-up, network S5 wake-up, support USB wake-up, support timing boot, call boot |
| Hardware Monitor | CPU fan speed is controllable, system fan speed is controllable, CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring |
| LAN | RTL8125 2.5Gbit LAN |
| Audio | Realtek ALC897 high fidelity decoding chip, Support up to 7.1 channels |
| Configuration | M-ATX 245 x 245 mm |
