Description
CVN B660M GAMING FROZEN V20
Feature Highlights:
- Supports 12th Gen Intel® Core Processors (Socket 1700)
- 4* DIMM ,Support DDR4 4266(OC)/4000(OC) (OC support)
- *memory overclocking also depends on the matching CPU and memory itself!
- 4*SATA3.0 ports
- 2*M.2 slots
- *silk-screen"M2_KEYM1": Support PCIE Gen4 x4 SSD
- *silk-screen"M2_KEYM2": support PCIE Gen4 x4/SATA/Optane
- Intel 2.5Gbit LAN
- AX201 WiFi 6 wireless network card, support Bluetooth
- 8-Channel High Definition audio CODEC
- DP+HDMI ports
- 6*USB2.0 ports(4 rear,2 header)
- 1*USB3.2 Gen2 Type-C ports
- 4*USB3.2 Gen1 ports(2 rear,2 header)
SPECIFICATION
| Model | CVN B660M GAMING FROZEN V20 |
| Product Series | Intel chipset,CVN series |
| Chipset | Intel B660 |
| Processor | Supports 12th Gen Intel® Core™ Processors (Socket 1700) |
| Memory | 4 DIMM slots，support dual channel DDR4-4266(OC)/4000((OC)/3733(OC)/3600(OC) /3200/3000/2800/2666/2400 MHz ;(memory overclocking also depends on the matching CPU and the overclocking performance of the memory itself!) |
| Graphics Support | 1*PCI Express 5.0 x 16 slot，1*PCI Express 3.0x 4 slot，1*PCI Express 3.0 x1 slot |
| SATA Ports | 4*SATA3.0 6Gb/s ports, Supports RAID0, 1, 5, 10 |

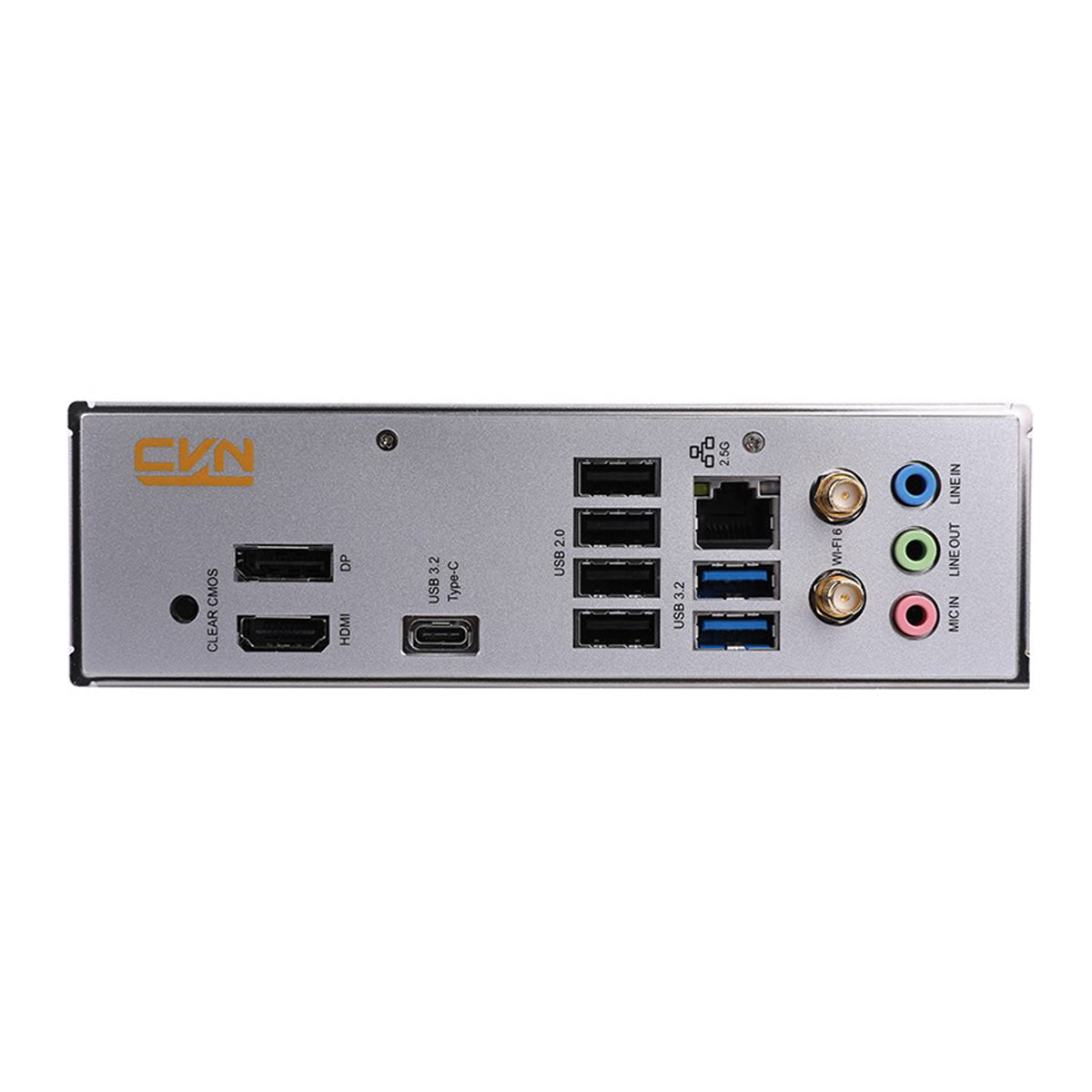

| Board I/O | 1*HDMI port,1*DP port; 4*USB 2.0 ports,1*USB 3.2 Gen 2 Type-C port ,2*USB 3.2 Gen1 ports,1*WiFi-6, 6*audio ports; |
| Expansion Slots | 1*PCI Express 5.0x16 slot,1*PCI Express 3.0x4 slot,2*M.2 slots; |
| BIOS | 128M UEFI |
| Hardware Monitor | CPU Fan speed Controlled，SYSTEM Fan speed Monitoring,CPU Temperature Monitoring，System Temperature Monitoring，and Voltage monitoring |
| LAN | Intel 2.5Gbit LAN |
| Audio | 8-Channel High Definition audio CODEC |
| Configuration | 245 x 245 mm mATX |
