Description
Feature Highlights:

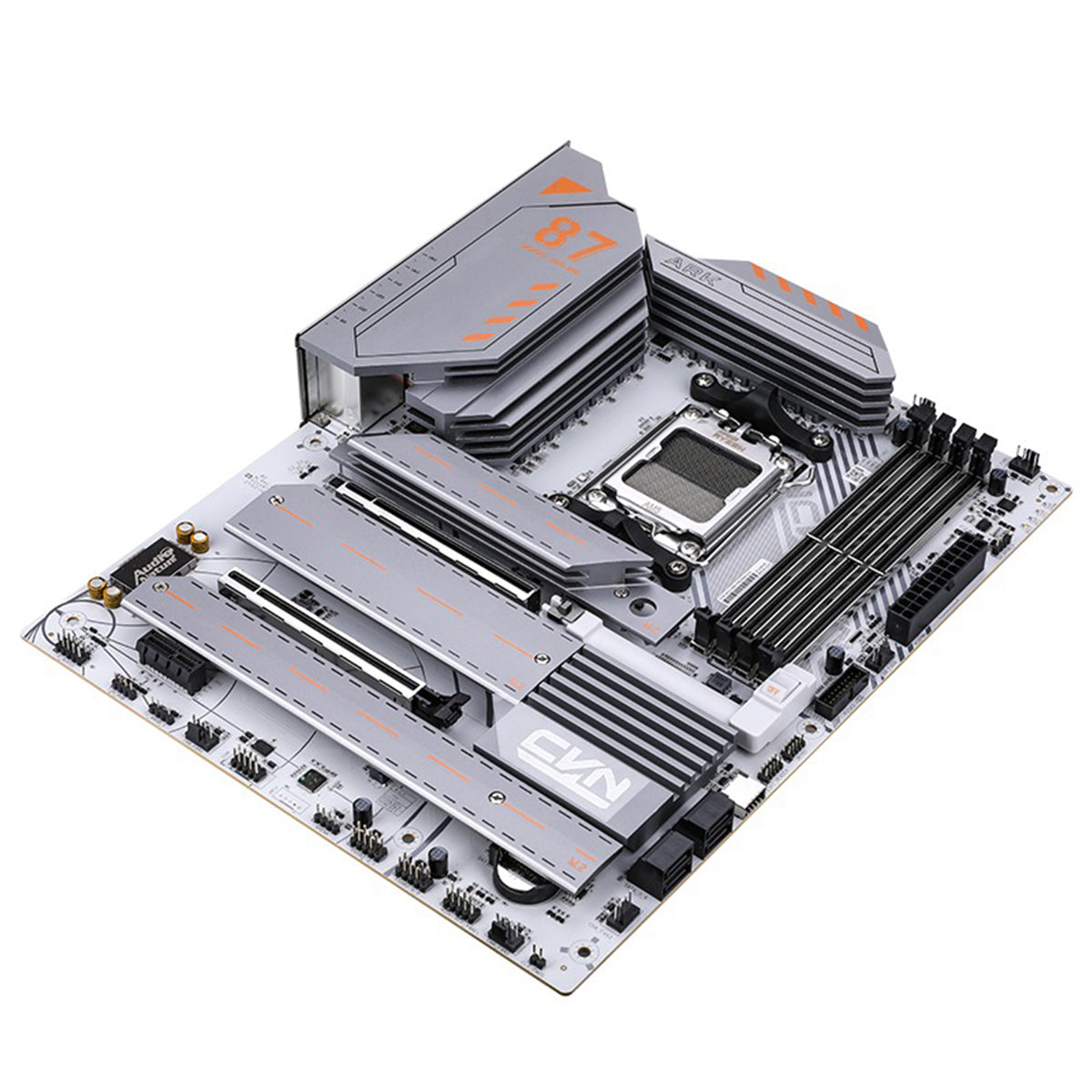

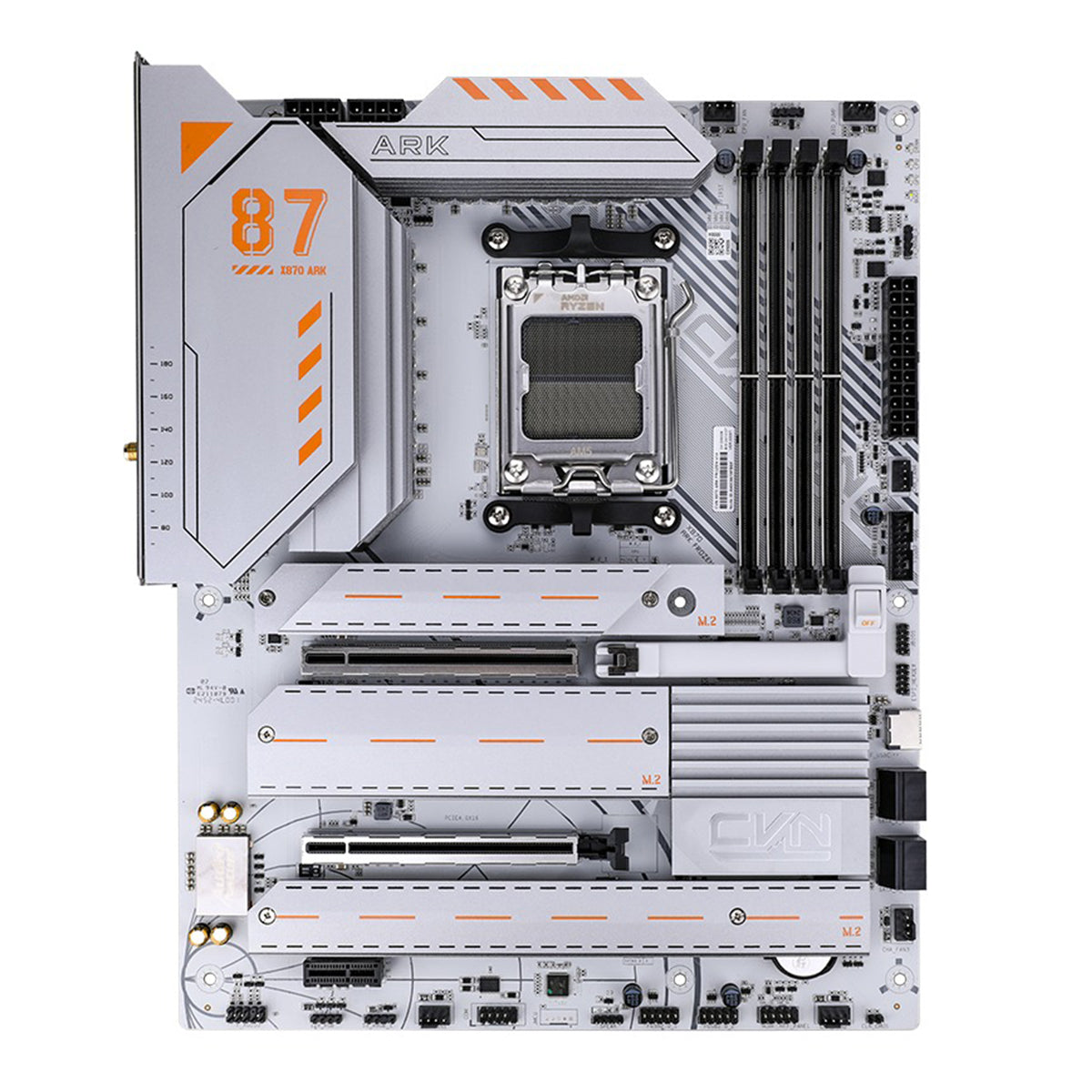

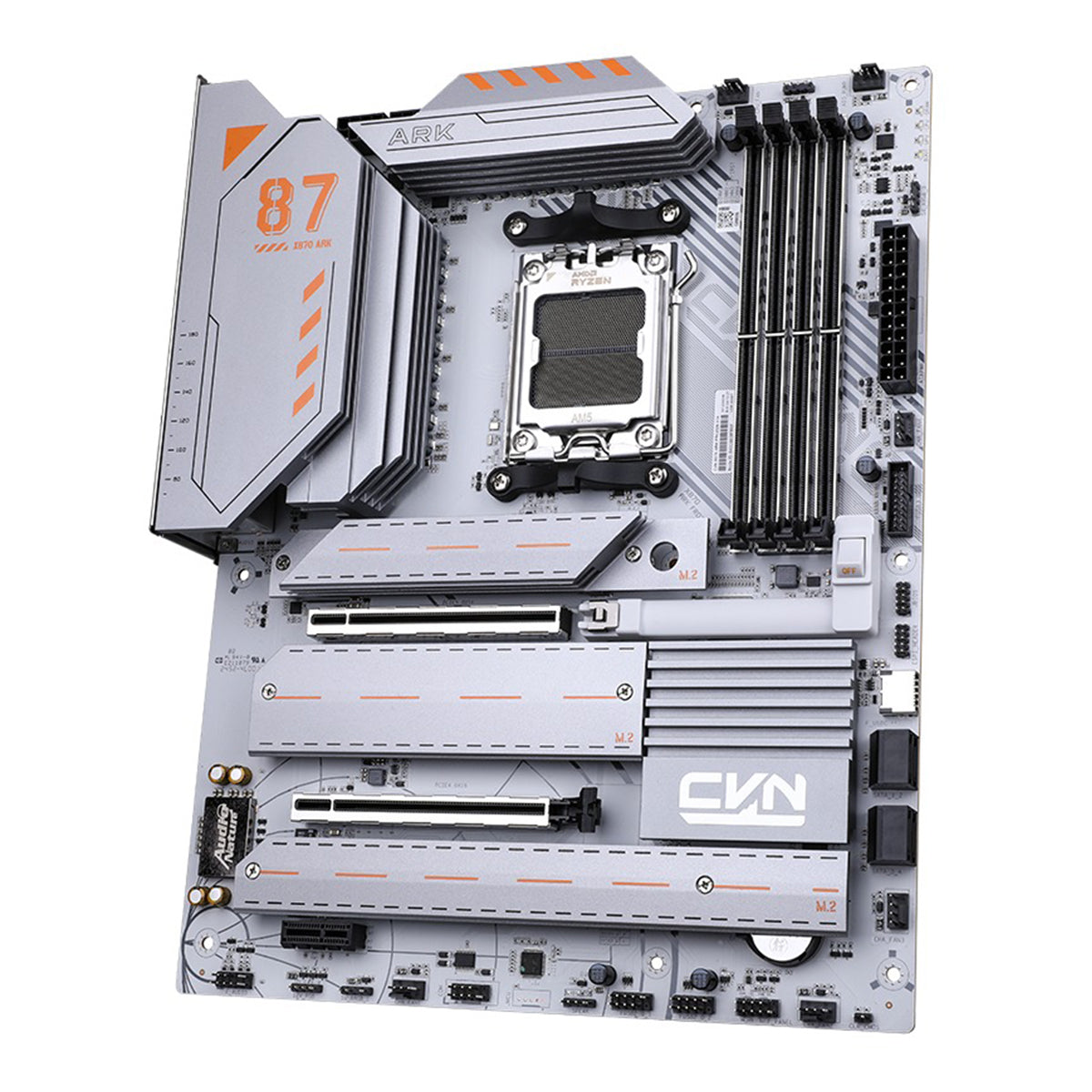

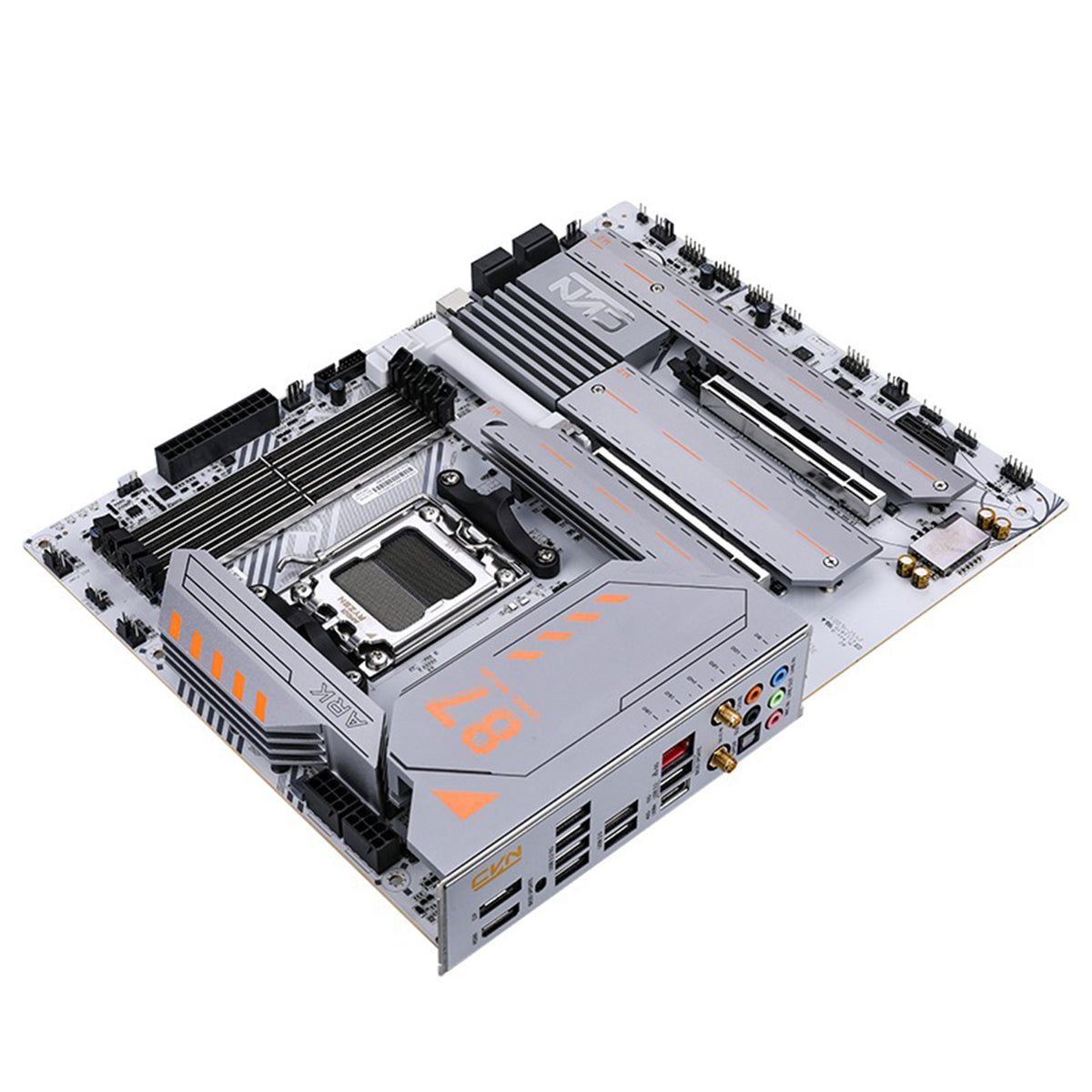

- Exclusive custom white motherboard for CVN series
- CVN series customized frost cooling armor, paired with fully covered condensing fins to enhance heat dissipation
- Adopting a 14+2+1 phase enhanced power supply design (Dr MOS 80A)
- Provide 2 PCIe 5.0 x4 M.2 SSD slots and 1 PCIe 4.0 x4 M.2 SSD slot
- Provide 1 rear USB4 40Gbps Type-C interface (supports video output, up to 4K 60Hz resolution)
- Provide 1 rear USB 3.2 Gen 2 10Gbps Type-C high-speed rear interface
- Equipped with Realtek 5G high-speed wired network card and MT7925 WiFi 7 wireless network card, supporting Bluetooth 5.4
- Support iGame Center lighting effect control software, which can synchronously adjust the lighting effects of heat sinks, cooling fans, and memory
- I/O backplane supports one click BIOS upgrade function
- Six major protective technologies for more stable product operation
- Strict testing of 200 processes ensures quality assurance
- PCB atomization process fully upgraded
- 410 provides high-quality service and guaranteed after-sales service
Specifications:
| Model | CVN X870 ARK FROZEN V14 |
| Product Series | CVN Series |
| Chipset | AMD X870 |
| Processor | Supports AMD Ryzen 7000/8000/9000 series processors that fit the AMD AM5 slot of the motherboard (*Please visit the Colorful official website www.colorful.cn for the latest processor support list) |
| Memory | 4 DDR5 memory sockets, up to 192 GB (48 GB per socket) - Supports DDR5-8200 (OC) down to 5000 MHz - XMP & EXPO support - Dual channel memory technology (* Please visit www.colorful.cn for the latest compatibility list) |
| SATA / M.2 Ports | Three M.2 slots, four SATA 6Gb/s ports - M.2_1: 2242/2260/2280/22110 (PCIe 5.0/4.0 x4, CPU channel) - M.2_2: 2242/2260/2280/22110 (PCIe 5.0/4.0 x4, CPU channel) - M.2_3: 2242/2260/2280/22110 (PCIe 4.0 x4, Chipset channel) (*M.2_3 blocked when PCIe 4.0 x4 slot used) RAID support depends on CPU: - Ryzen 9000: RAID 0/1/5/10 - Ryzen 8000: RAID 0/1 - Ryzen 7000: RAID 0/1/10 |
| Board I/O |

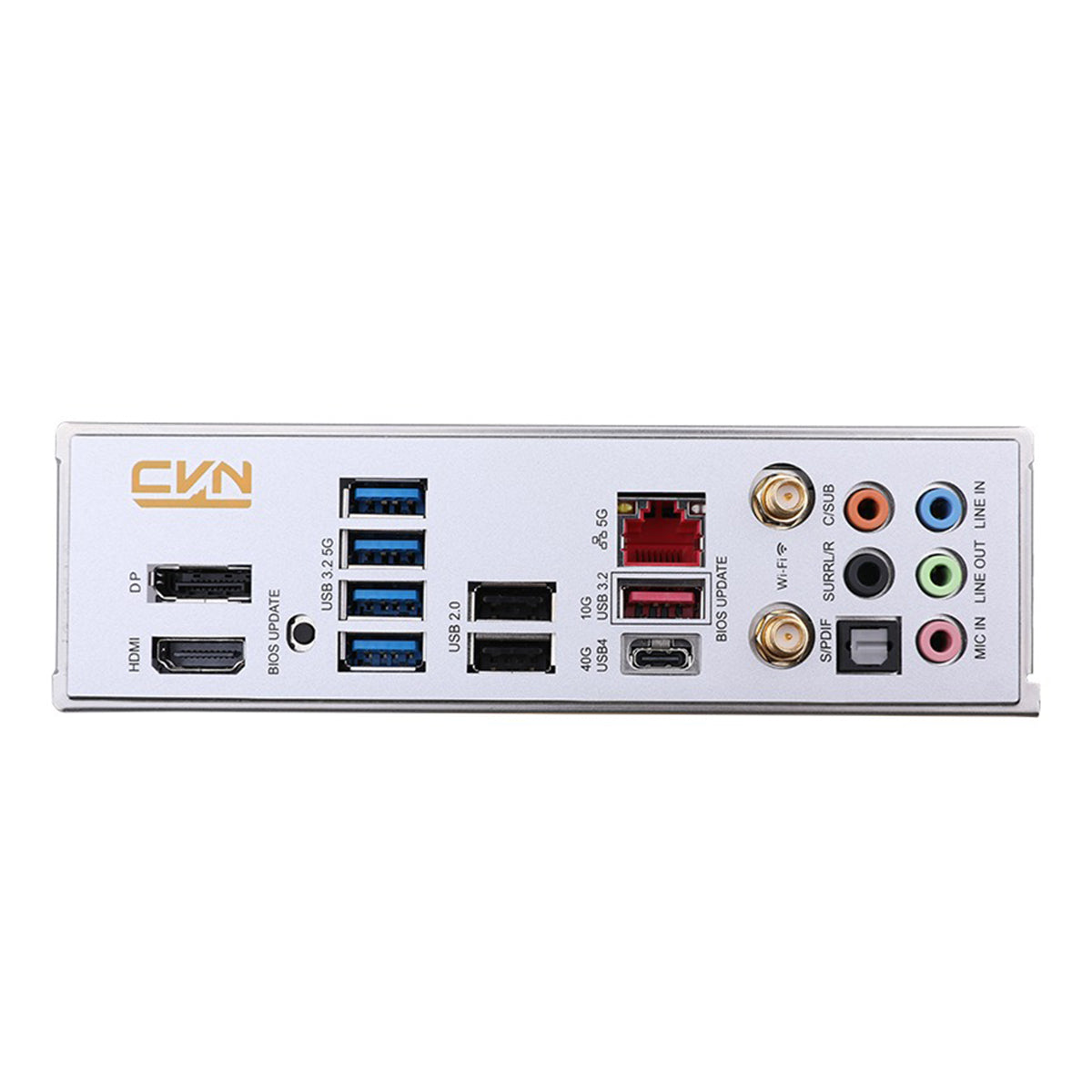

Rear I/O: - 2× USB 2.0 - 4× USB 3.2 Gen 1 Type-A - 1× USB 3.2 Gen 2 Type-A - 1× USB4 40Gbps Type-C (4K 60Hz video output) - 1× DP 1.2 (4K 60Hz) - 1× HDMI 2.0 (4K 60Hz) - 1× 5G LAN port - 2× Wi-Fi 7 antenna ports - 5× Audio jacks + 1× S/PDIF - 1× BIOS update button On-board: - USB 2.0, USB 3.2 Gen 1 & Gen 2 headers - CPU/System fan pins, water pump pin - 3× ARGB 5V, 1× RGB 12V - Front audio, front panel, speaker, COM, Clear CMOS, BIOS burner, POST card |
| Expansion Slots | - 1× PCIe 5.0 x16 - 1× PCIe 4.0 x4 (x16 slot) - 1× PCIe 3.0 x1 (* PCIe 4.0 x4 blocks M.2_3 when used) |
| BIOS | 256M UEFI, multi-language support |
| Power Management | S3/S4 wake-up, network S5 wake-up, USB wake-up, timed boot, call boot |
| Hardware Monitor | CPU/system fan speed control, CPU/system temperature, voltage monitoring |
| LAN / Wireless | - Realtek RTL8126-CG 5G LAN - MT7925 Wi-Fi 7, Bluetooth 5.4 (Wi-Fi features depend on OS: Windows 11 24H2 required for full Wi-Fi 7 support; Win 10 drivers unavailable) |
| Audio | Realtek ALC1220, 7.1 channel high-fidelity |
| Configuration | ATX (305mm × 245mm) |
