Description
Reliable Performance for Your Everyday PC Build
Build a dependable and capable Intel-based PC with the Colorful H610M-D V20A DDR4 Motherboard. Powered by the Intel H610 chipset, this motherboard provides essential features for everyday computing, productivity, entertainment, and entry-level gaming.
Supporting dual-channel DDR4 memory up to 3200MHz, the H610M-D V20A provides a solid foundation for responsive multitasking and smooth system performance. Its PCIe 3.0 x4 M.2 SSD slot allows you to add high-speed storage for faster boot times, application loading, and file access.
Flexible Display & Connectivity
Connect your display through HDMI or VGA, providing flexible options for compatible monitors. For networking, the integrated Realtek 8111H Gigabit Ethernet controller delivers reliable wired network connectivity for everyday browsing, online gaming, streaming, and file transfers.
The motherboard also features a Realtek ALC897 audio chip with support for up to 5.1-channel audio, providing an immersive audio experience for entertainment and gaming.
Convenient USB Expansion
The Colorful H610M-D V20A offers multiple USB ports for connecting keyboards, mice, storage devices, controllers, and other peripherals.
| Model | H610M-D V20A |
| Product Series | Colorful series |
| Chipset | Intel H610 |
| Processor | Support the 14th/13th and 12th generation Intel Core, Pentium, and Celeron processors adapting to the LGA 1700 slot of the motherboard (*Please visit the Colorful official website for the latest processor support list) |
| Memory | 2 DDR4 memory slots, supporting up to 64 GB memory (single slot supports up to 32 GB) - Supports DDR4-3200/2933/2666/2400/2133MHz memory - Supports dual-channel memory technology (*Please visit Colorful's official website for the latest memory compatibility list) |
| SATA Ports | 1 M.2 slot and 4 SATA 6Gb/s hard disk interfaces - M.2 slot: supports 2242/2280 specification M.2 SSD (PCIe 3.0 x4, PCH channel) |
| Board I/O |

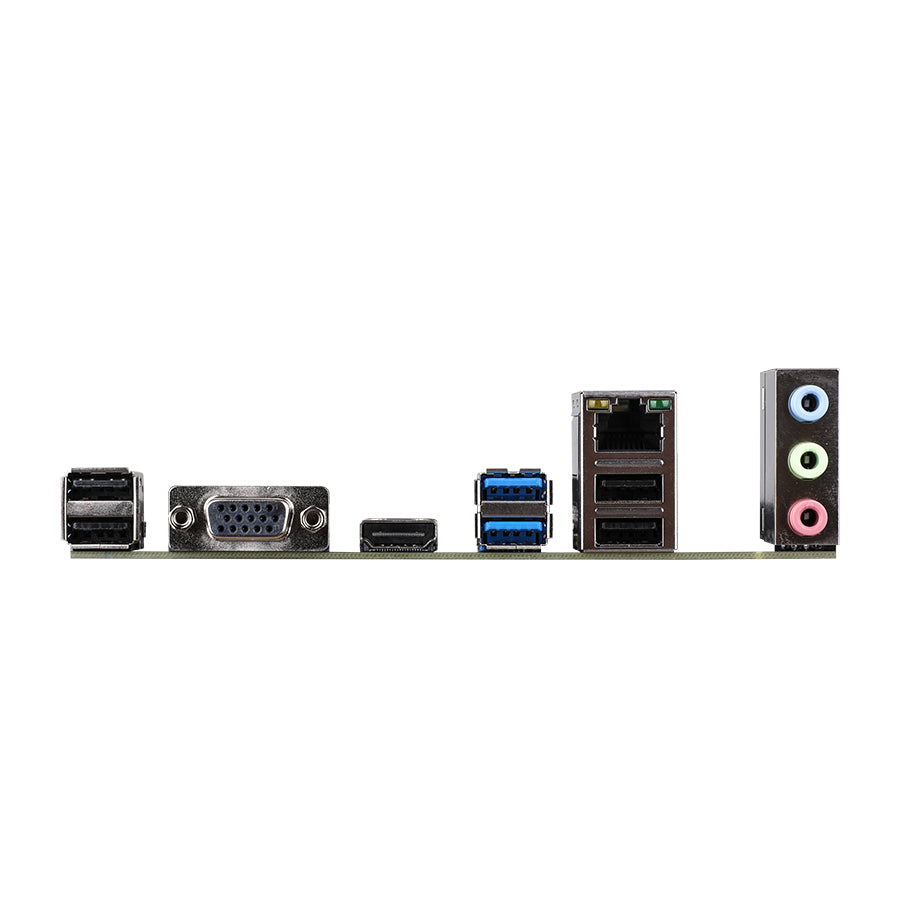

Rear I/O: - 4×USB 2.0 interfaces - 2×USB 3.2 Gen 1 Type-A interfaces - 1×HDMI 2.0 interface, supporting up to 4K 60Hz resolution - 1×VGA interface - 1×Gigabit network interface - 3×Audio interfaces (audio input/audio output/microphone) On Board: - 1×CPU fan pin - 1×System fan pin - 1×USB 2.0 pin can be expanded to 2 USB 2.0 Type-A interfaces - 1×USB 3.2 Gen 1 pin can be expanded to 2 USB 3.2 Gen 1 Type-A interfaces - 1×Front audio pin - 1×Front panel pin - 1×Speaker pin - 1×Clear CMOS jumper - 1×BIOS burner pin |
| Expansion Slots | 1 PCIe 4.0 x16 slot 1 PCIe 3.0 x1 slot |
| BIOS | 128M UEFI, support multiple languages |
| Power Management | Support S3, S4, network S5 wake-up, support scheduled startup, call startup |
| Hardware Monitor | CPU fan speed controllable, system fan speed controllable, CPU temperature monitoring, system temperature monitoring, and each group voltage monitoring |
| LAN | RTL8111H Gigabit network card |
| Audio | Realtek ALC897 high-fidelity decoding chip, supports 7.1 channels |
| Configuration | M-ATX |
| Dimensions | 225mm x 180mm |
