Description

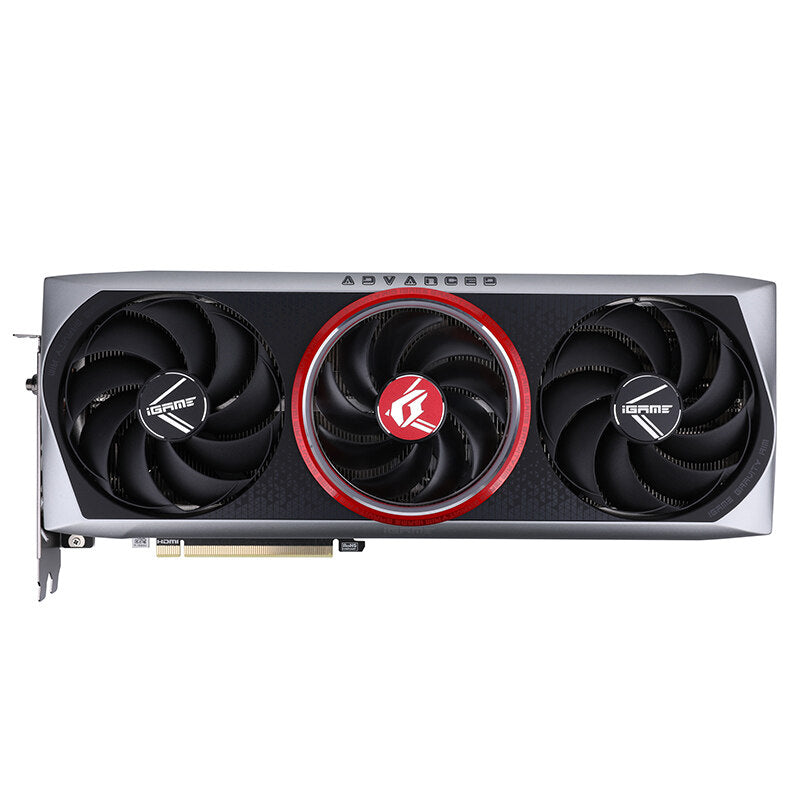

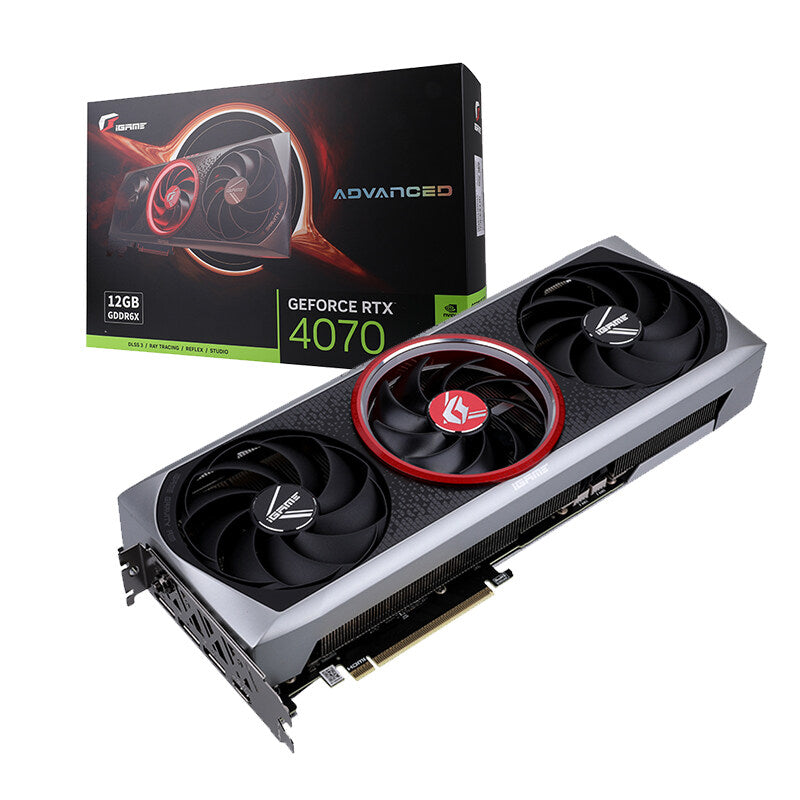

iGame GeForce RTX 4070 Advanced OC-V
Feature Highlights:
- Gravity Rim: A redesigned version of the iGame Energy Core that creates a mysterious black hole effect.

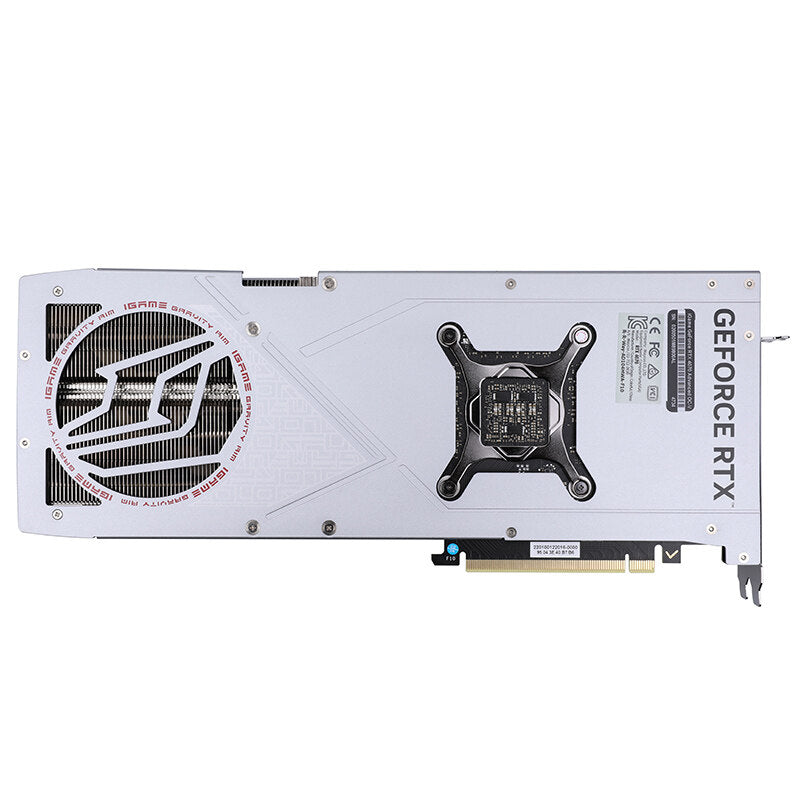

- Meteorite Backplate: A sturdy metal backplate that reduces PCB flexing. An intricate iGame grille design is added to the backplate’s hollow back to add aesthetics.
- Hollow Back Panel: A hollow back panel design that allows airflow to freely pass-through the heatsink. This design greatly improves heat dissipation compared to conventional GPU air cooling designs.
- Hurricane Scythe Blades: New fan blade design that delivers superior airflow compared to the previous-generation Storm Chaser fan design. The Advanced Series uses a triple-fan cooler design with a larger central fan with Gravity Rim.
- One-Key Overclock: A conveniently placed button located at the rear I/O that activates overclocking function for a quick and easy performance boost without opening software.
SPECIFICATION
| Model | iGame GeForce RTX 4070 Advanced OC-V |
|---|---|
| Chip Series | GeForce® RTX 4070 |
| Product Series | iGame Series |
| GPU Code Name | AD104 |
| Manufacturing Process | |
| CUDA Cores | 5888 |
| Core Clock | Base:1920Mhz; Boost:2475Mhz |
| One-Key OC | Base:1920Mhz; Boost:2610Mhz |
| Memory Clock | 21Gbps |
| Memory Size | 12GB |
| Memory Bus Width | 192bit |
| Memory Type | GDDR6X |
| Memory Bandwidth | 504GB/s |
| Power Connector | 16pin |
| Power Supply | 12+3 |
| TDP | 215W |

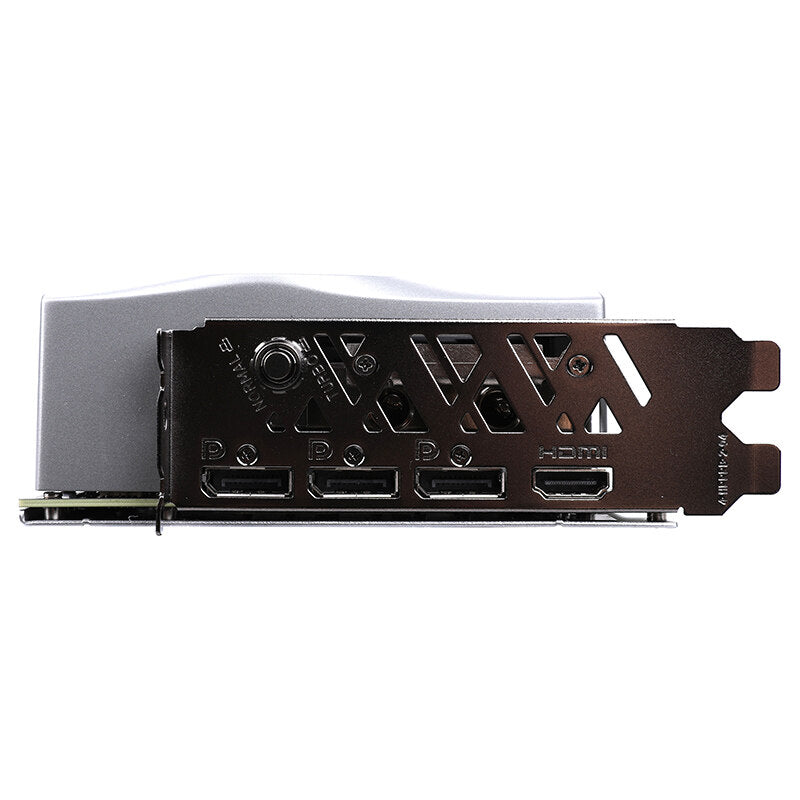

| Display Ports | 3*DP+HDMI |
| Fans Type | FAN |
| Heat Pipe Number/Spec | 4*φ8 |
| Auto Stop Technology | Y |
| Power Suggest | 650W and above |
| DirectX | DirectX 12 Ultimate/OpenGL4.6 |
| NV technology Support | NVIDIA DLSS 3, NVIDIA G-SYNC, 3rd Gen Ray Tracing Cores |
| Slot Number | over 2 slot |
| Product Size | 343.5*150.2*53.5mm |
