Description
Powering Next generation

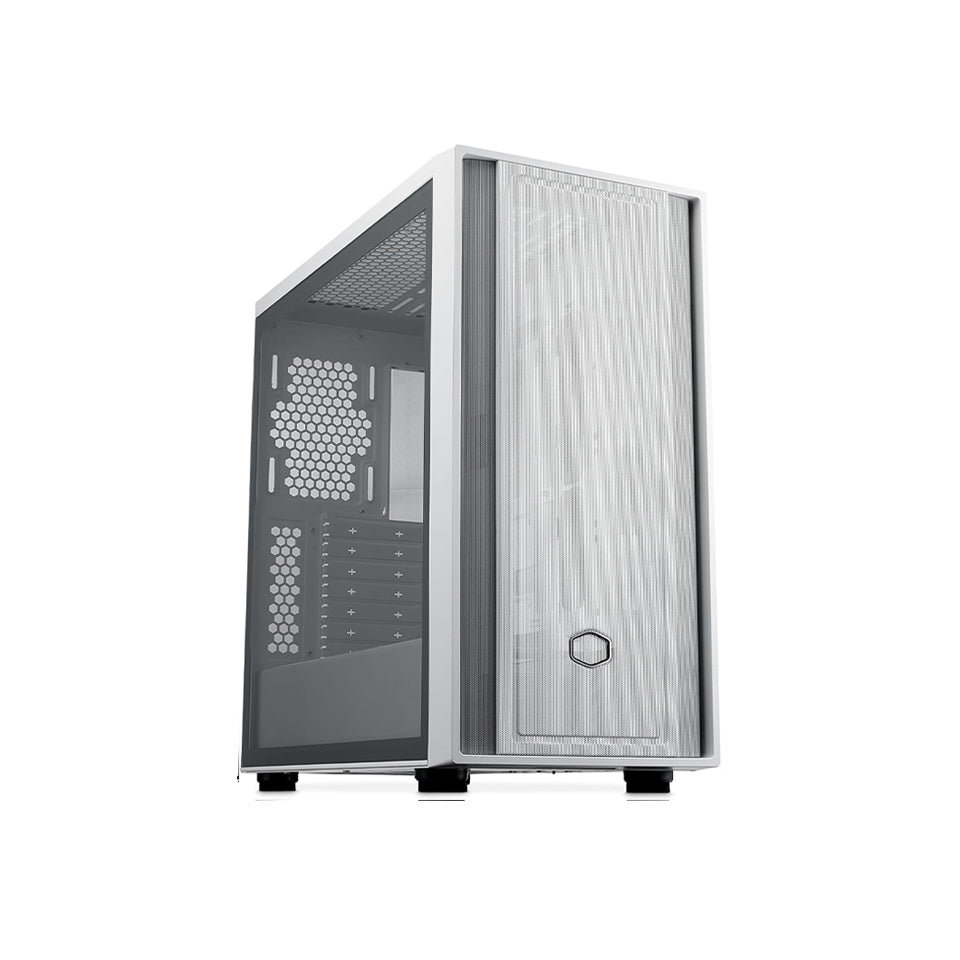

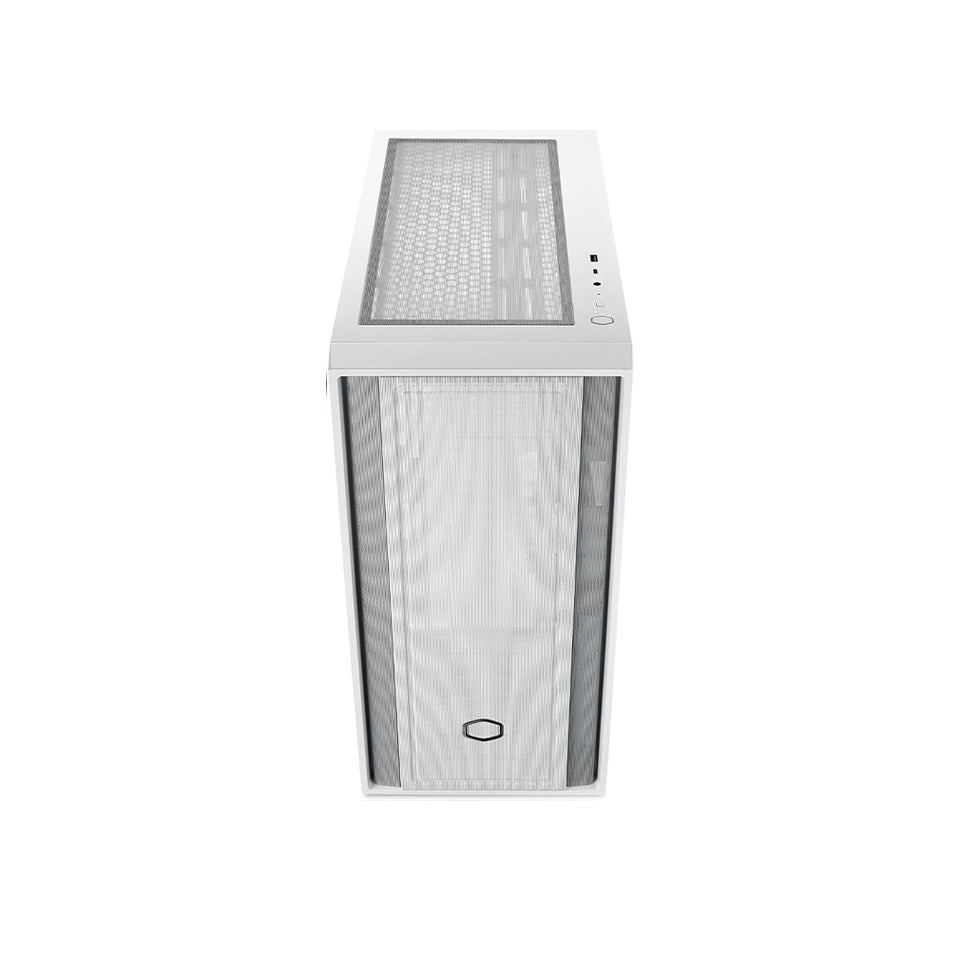

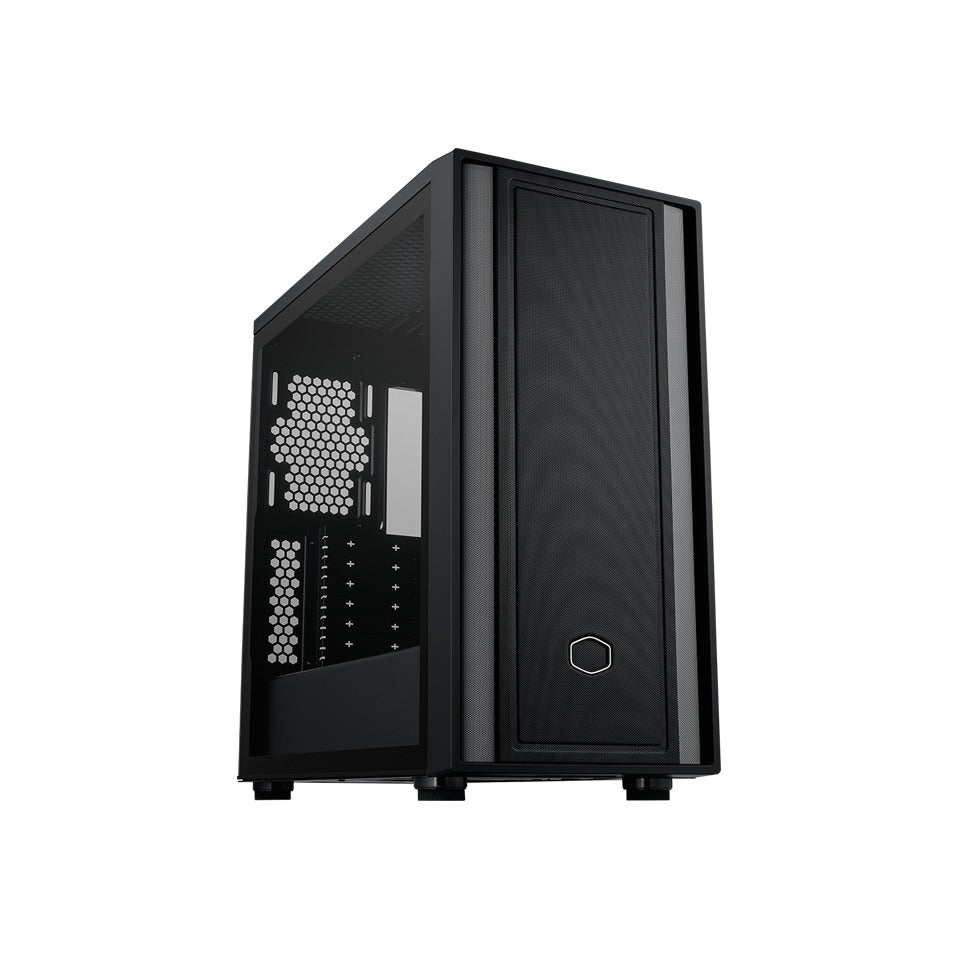

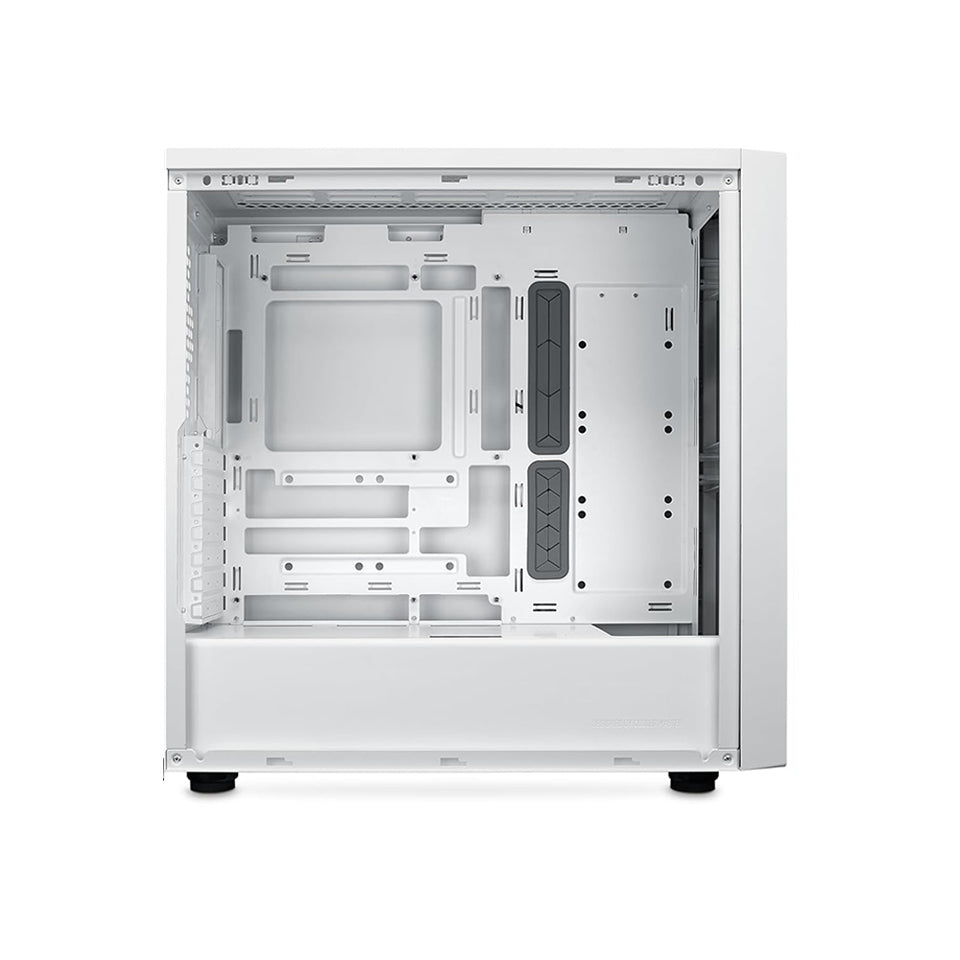

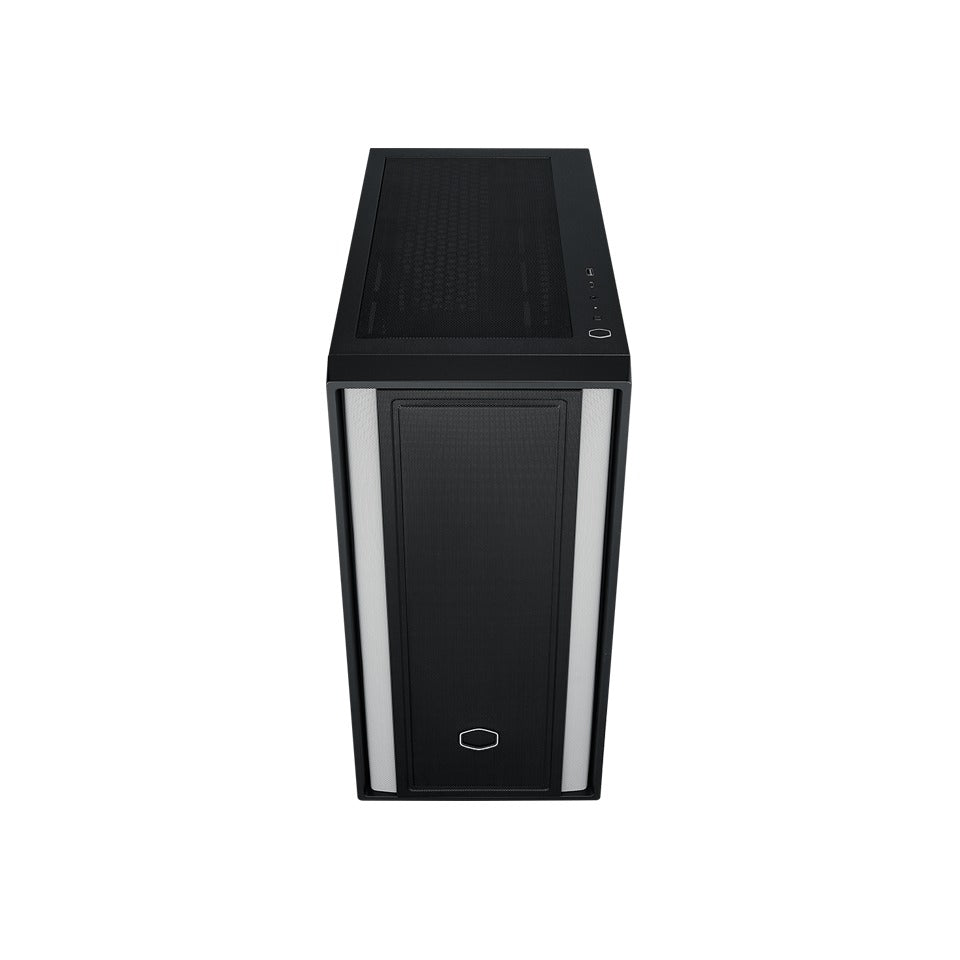

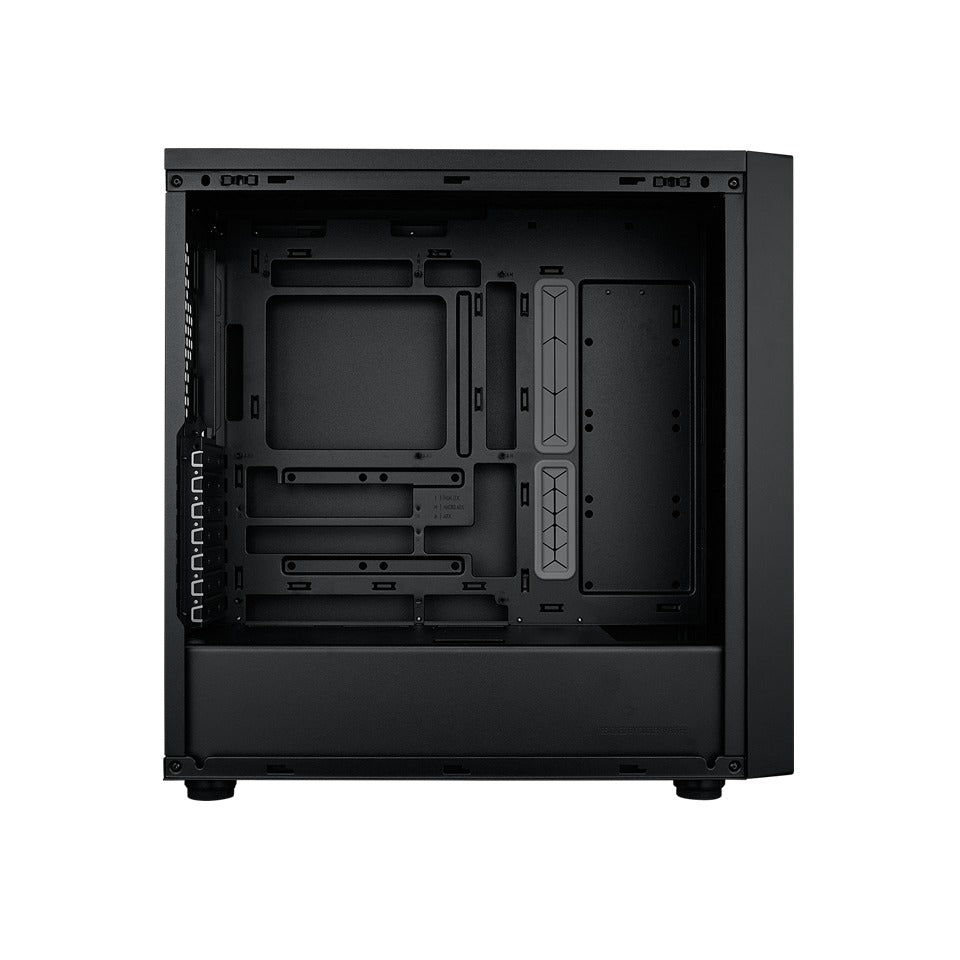

Cooler Master MasterBox 600 Lite Tempered Glass ATX Mid Tower PC Case
• Back-connected motherboard support
• Versatile Cooling Options
• FineMesh Performance Front Panel
• Room For Upgrades
• Removable HDD cage
Specification
| Model Number | MasterBox 600 Lite Black: MB600L-KGNN-S00 MasterBox 600 Lite White: MB600L-WGNN-S00 |

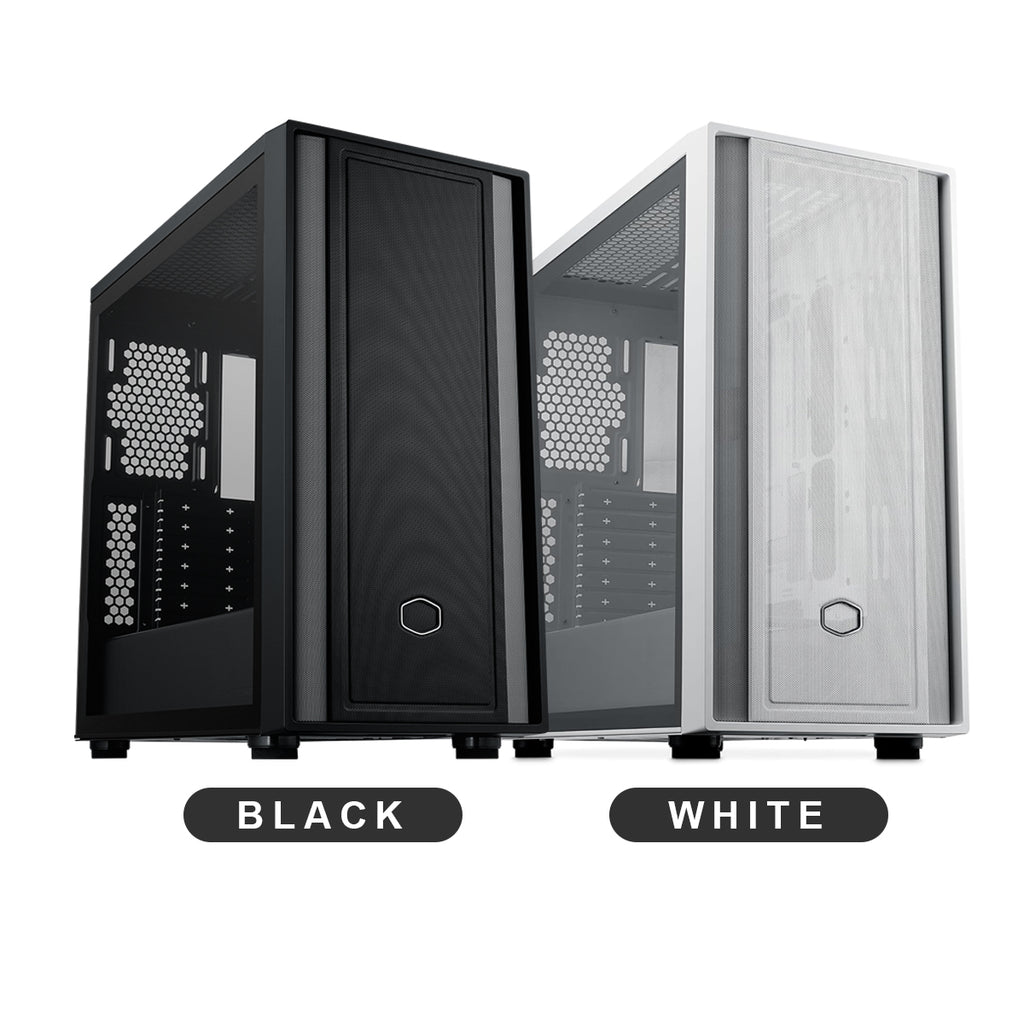

| Exterior Color | Black, White |
| Materials - Exterior | Steel, Plastic |
| Materials - Side Panel | Tempered Glass |
| Dimensions (L x W x H) | 474 x 230 x 481mm (Incl. Protrusions), 465 x 230 x 465mm (Excl. Protrusions) |
| Volume | 49.73L |
| Motherboard Support | ITX / Micro ATX / ATX (Supporting Back-connector Motherboard) / E-ATX *up to 12"x10.9" / 30.5cmx27.7cm motherboards, may impact cable management |
| Expansion Slots | 7 |
| 3.5" Drive Bays | 2 |
| 2.5" Drive Bays | 2 (Max. 6) |
| I/O Panel - USB Ports | 1x USB 3.2 Gen 1 Type A, 1x USB 3.2 Gen 1 Type C |
| I/O Panel - Audio In / Out | 1x 3.5mm Combo |
| Fan Support - Front | 3x 120/140mm |
| Fan Support - Top | 3x 120mm / 2x 140mm |
| Fan Support - Rear | 1x 120mm |
| Radiator Support - Front | 120 / 140 / 240 / 280 / 360 / 420mm (Limit: 457 × 140 × 27mm) |
| Radiator Support - Top | 120 / 140 / 240 / 280 / 360mm |
| Radiator Support - Rear | 120mm |
| Clearance - CPU Cooler | 170mm |
| Clearance - PSU | 170mm, 210mm (w/o HDD Cage) |
| Clearance - GFX | 360mm, 410mm (w/o front radiator) |
| Cable Routing - Behind Motherboard Tray | 33–35 mm |
| Dust Filters | Top, Bottom |
| Power Supply Support | ATX |
| Warranty | 2 years |
| Size | Mid Tower |
| Series | MasterBox Series |
