Description
Specifications:
|
Model Number |
TD500V2-WGNN-SRY, TD500V2-WGNN-SCL |
|
Exterior Color |
White |
|
Materials - Exterior |
Steel, Mesh, Plastic |
|

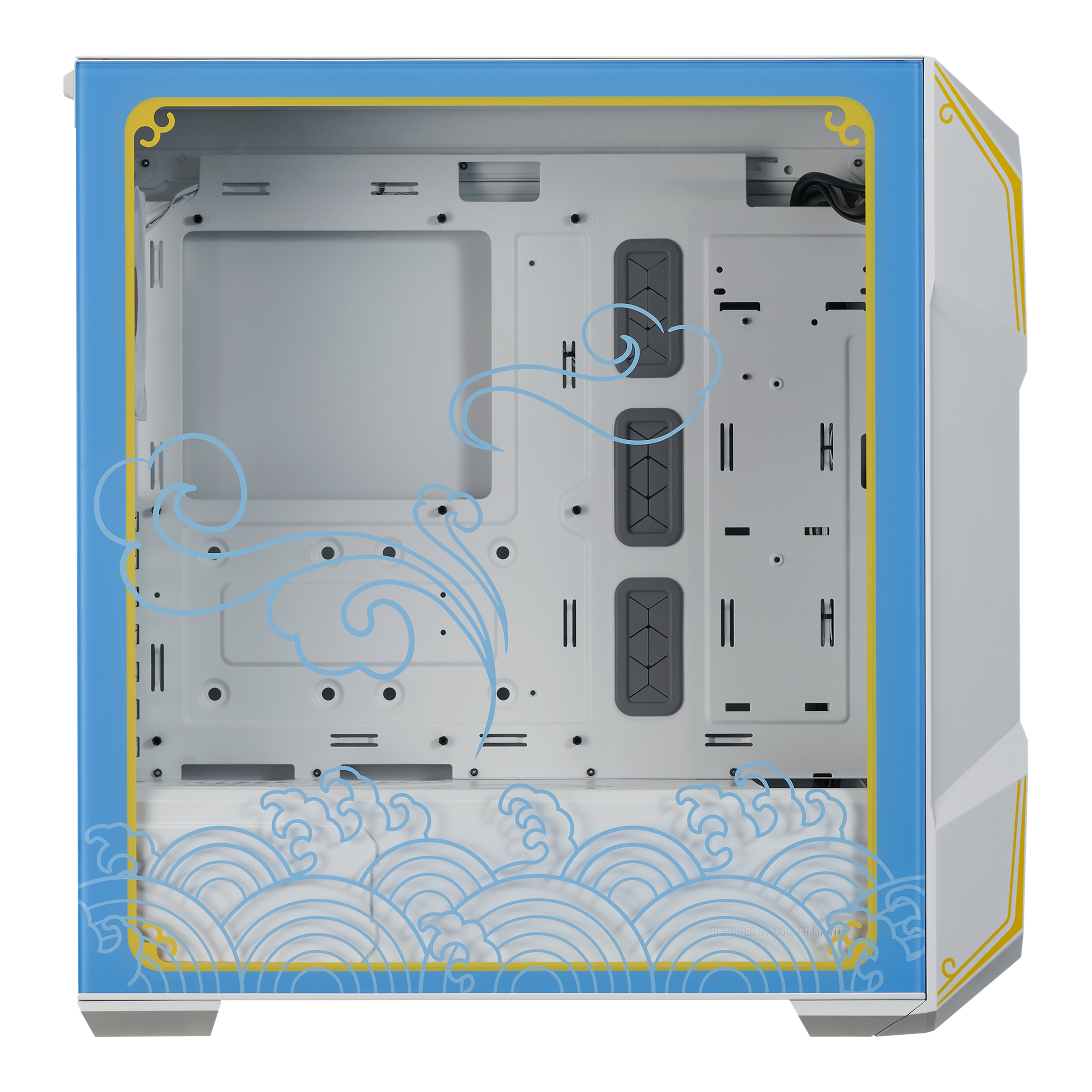

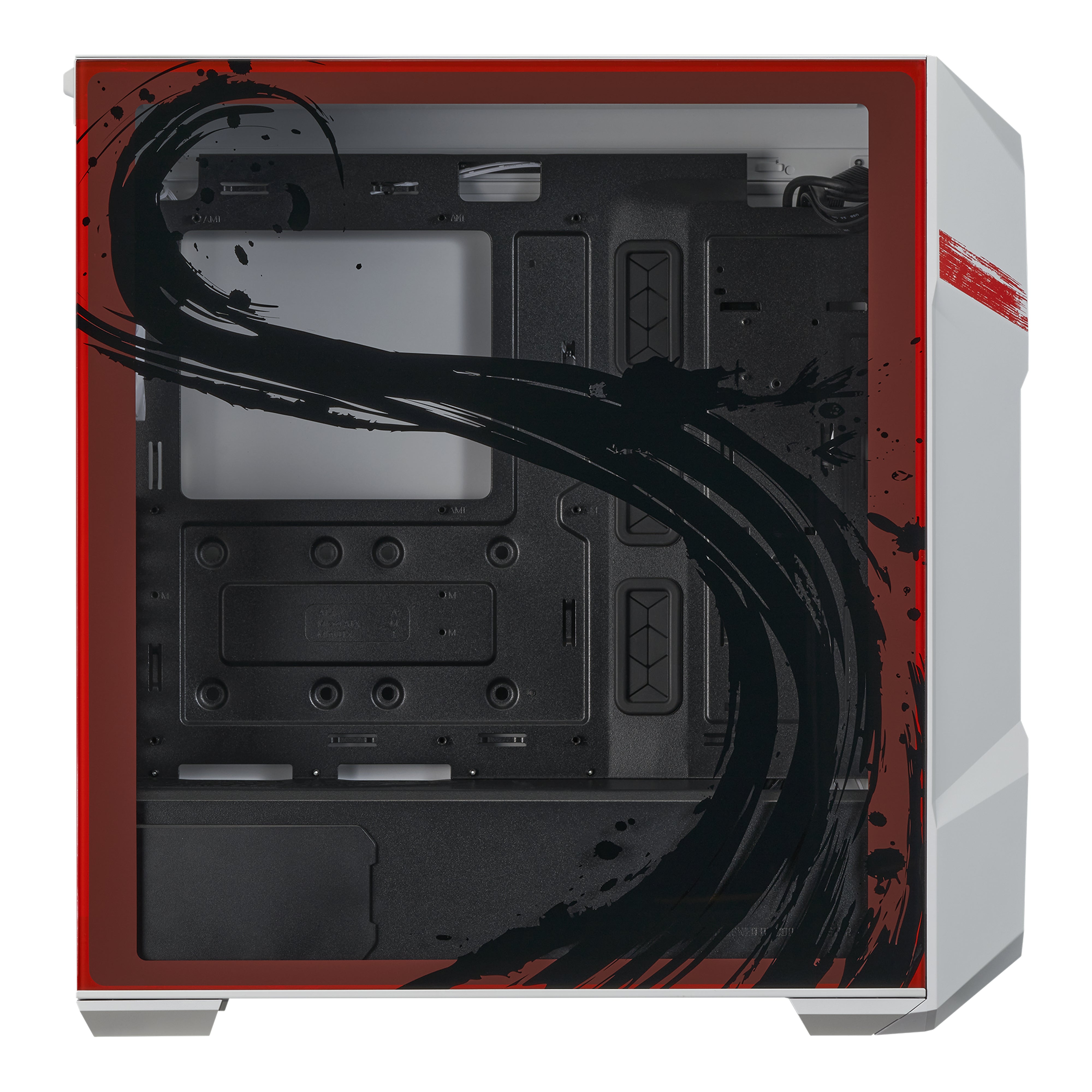

Materials - Left Side Panel |
Tempered Glass |
|
Dimensions (L x W x H) |
499 x 210 x 500mm (Incl. Protrusions), 430 x 210 x 477mm (Excl. Protrusions) |
|
Volume |
50L |
|
Motherboard Support |
Mini ITX, Micro ATX, ATX, SSI CEB, E-ATX*, (*up to 12" x 10.7" motherboards, may impact cable management feature) |
|

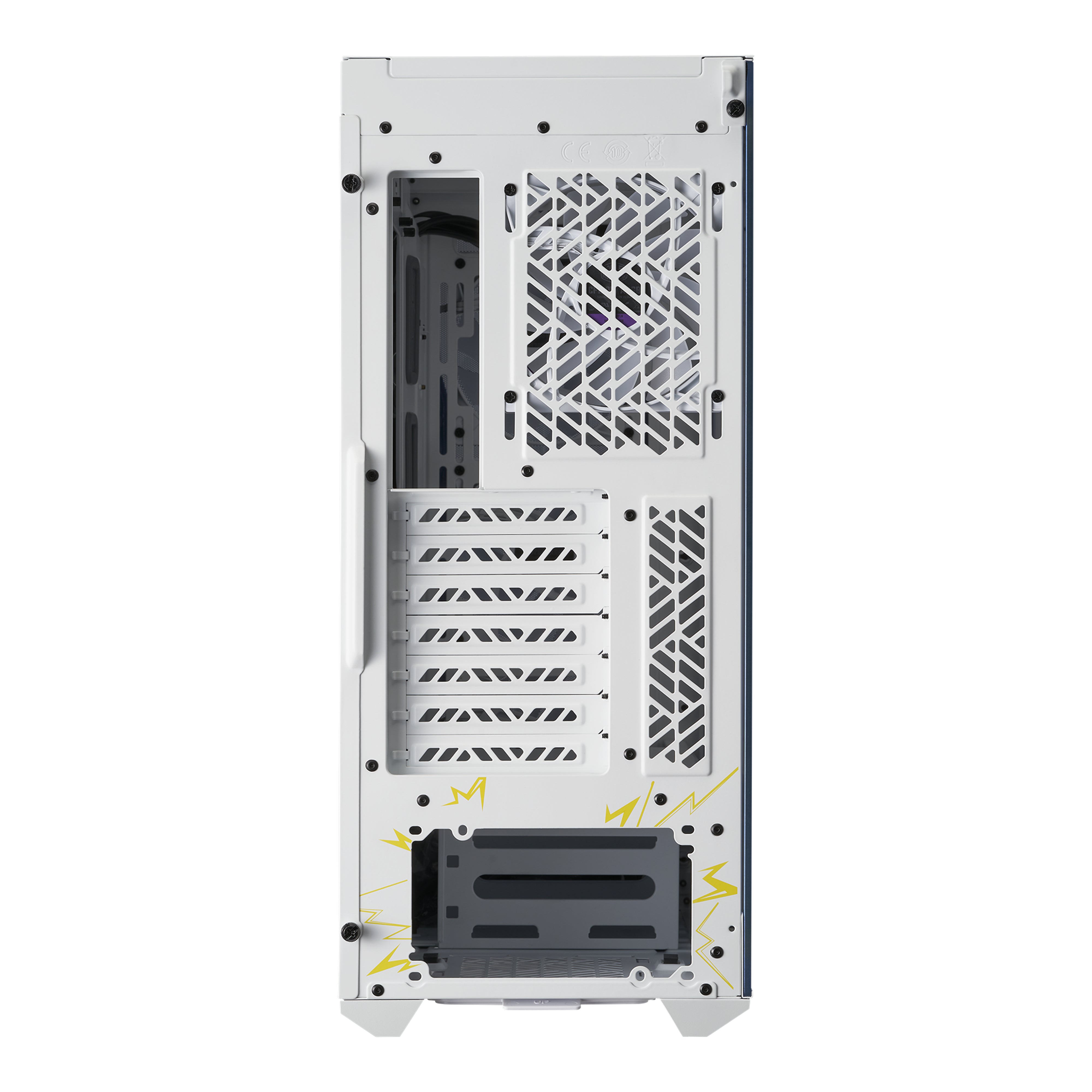

Expansion Slots |
7 |
|
3.5" Drive Bays |
2 |
|
2.5" Drive Bays |
3 |
|

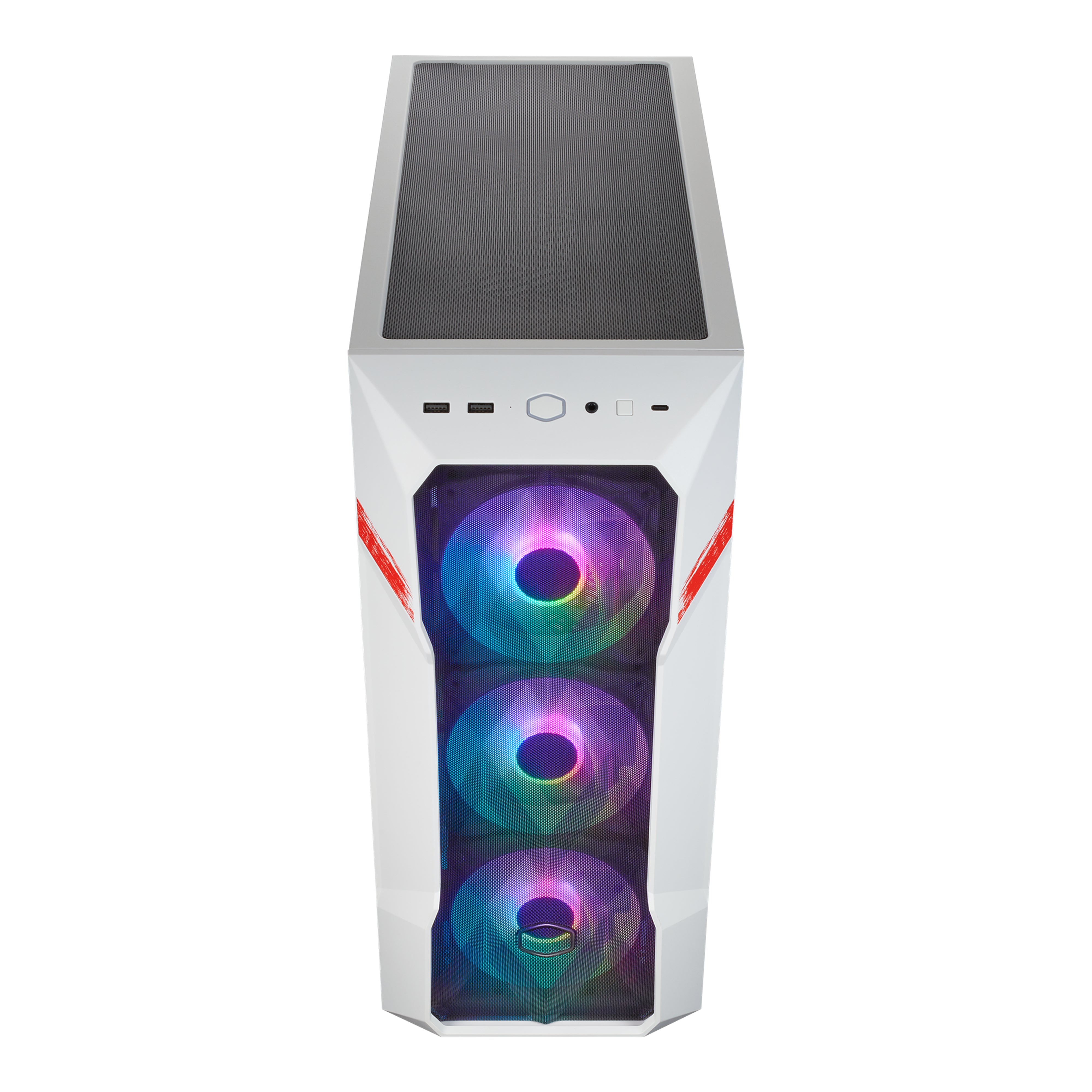

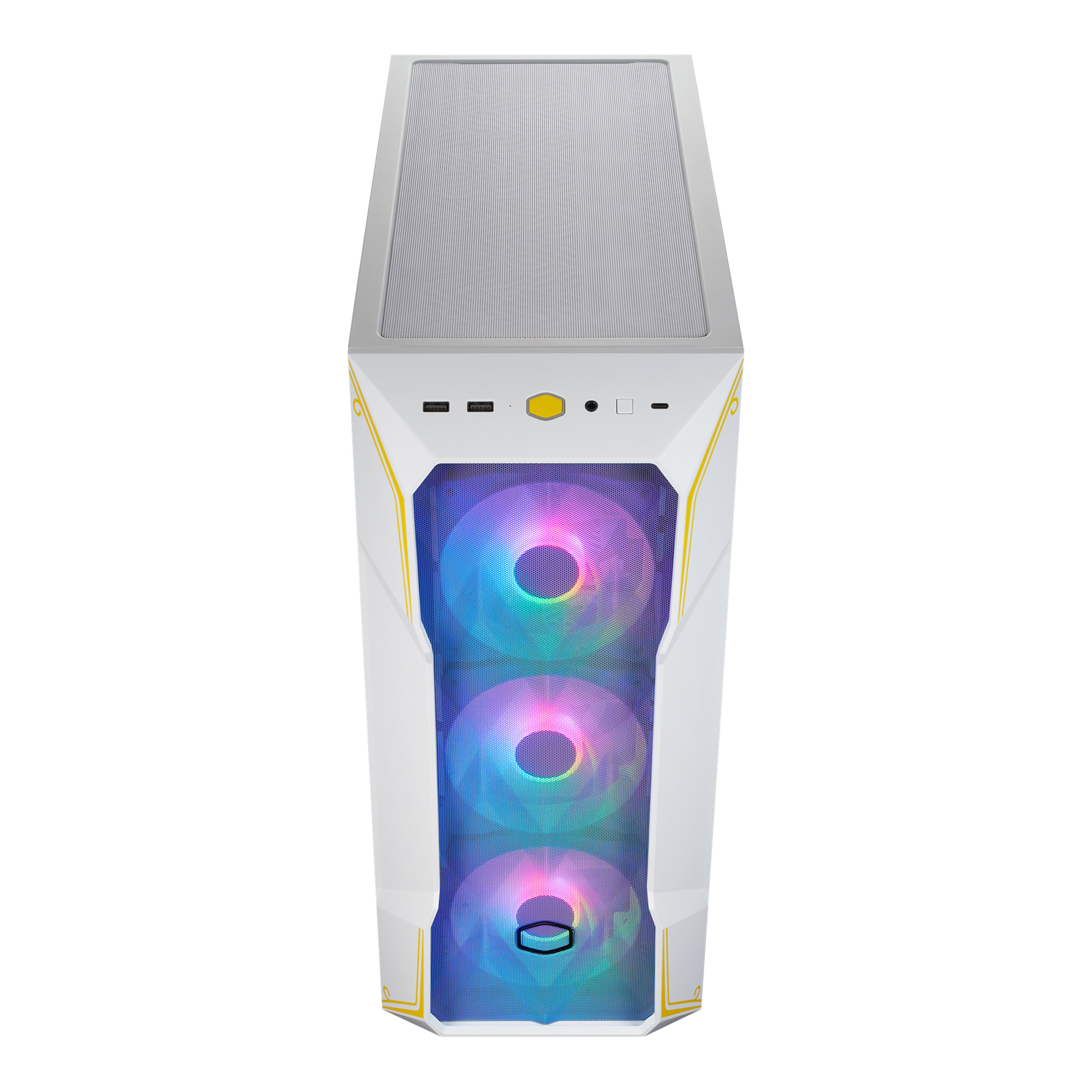

I/O Panel - USB Ports |
2x USB 3.2 Gen 1, 1x USB 3.2 Gen 2 Type C |
|
I/O Panel - Audio In / Out |
1x Audio Jack |
|
I/O Panel - Other |
1x ARGB Fan Hub |
|

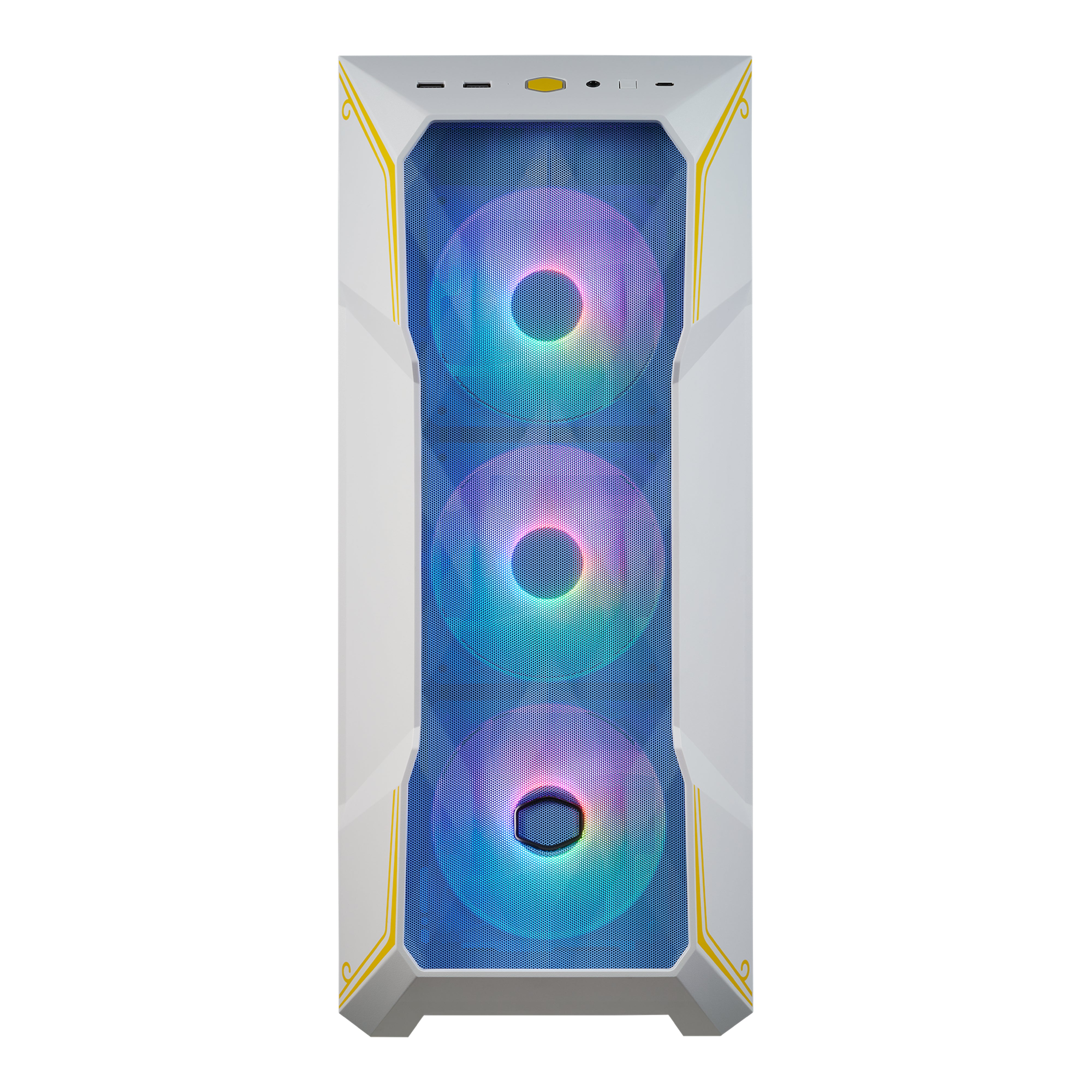

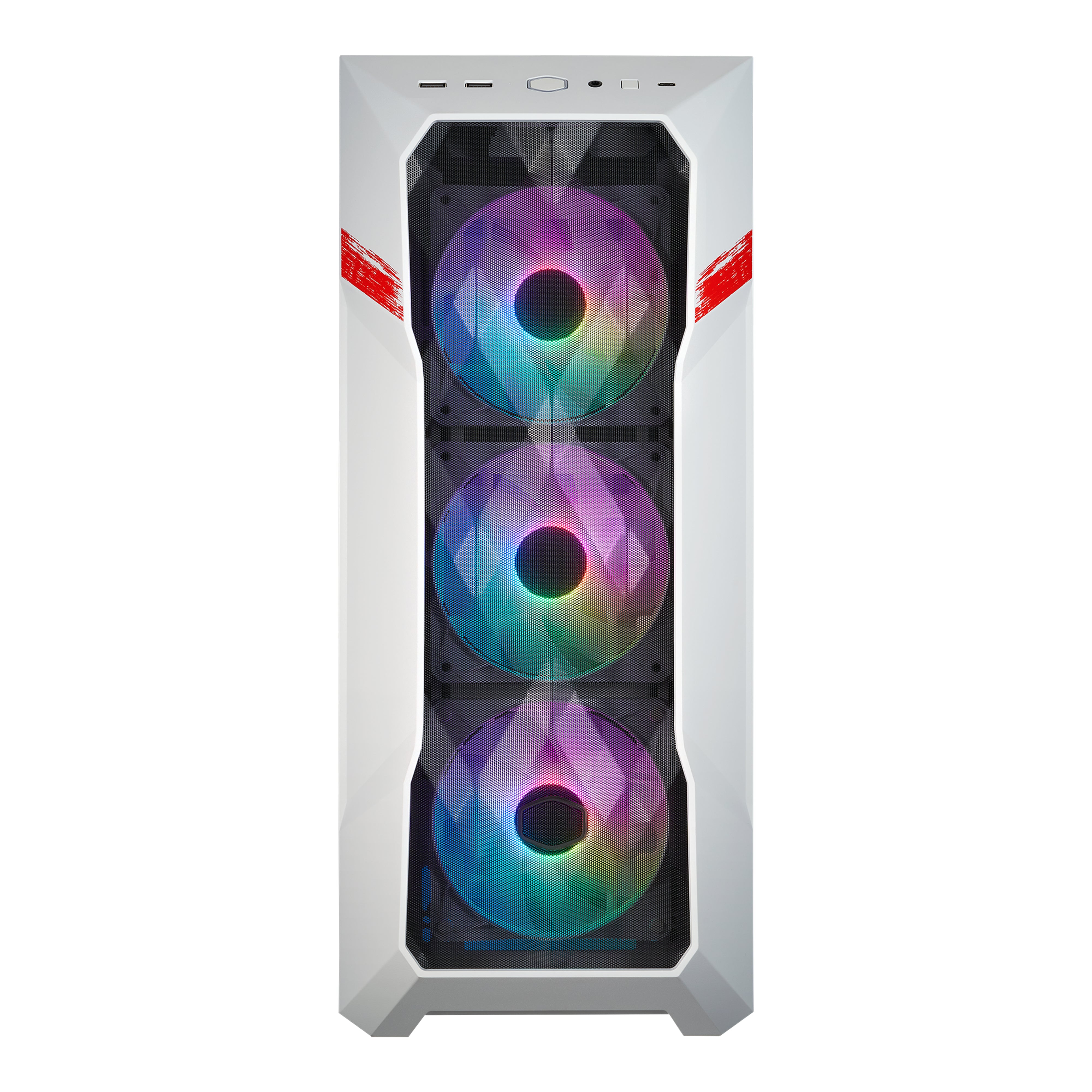

Pre-installed Fans - Front |
3x 120mm CF120 ARGB |
|
Pre-installed Fans - Rear |
1x 120mm CF120 ARGB |
|
Fan Support - Top |
3x 120mm, 2x 140mm |
|
Fan Support - Front |
3x 120mm, 2x 140mm |
|
Fan Support - Rear |
1x 120mm |
|
Radiator Support - Top |
120mm, 140mm, 240mm, 280mm, 360mm, (recommended maximum thickness -55mm) |
|
Radiator Support - Front |
120mm, 140mm, 240mm, 280mm, 360mm |
|
Radiator Support - Rear |
120mm |
|
Clearance - CPU Cooler |
165mm/6.49" |
|
Clearance - PSU |
200mm, (Recommended up to 170mm) |
|
Clearance - GFX |
410mm / 16.14" |
|
Cable Routing - Behind Motherboard Tray |
19mm / 0.74" |
|
Dust Filters |
Front, Top, Bottom |
|
Power Supply Support |
Bottom Mount, ATX |
|
Warranty |
2 years |
|
Series |
MasterBox Series |
|
Size |
Mid Tower |
