Description

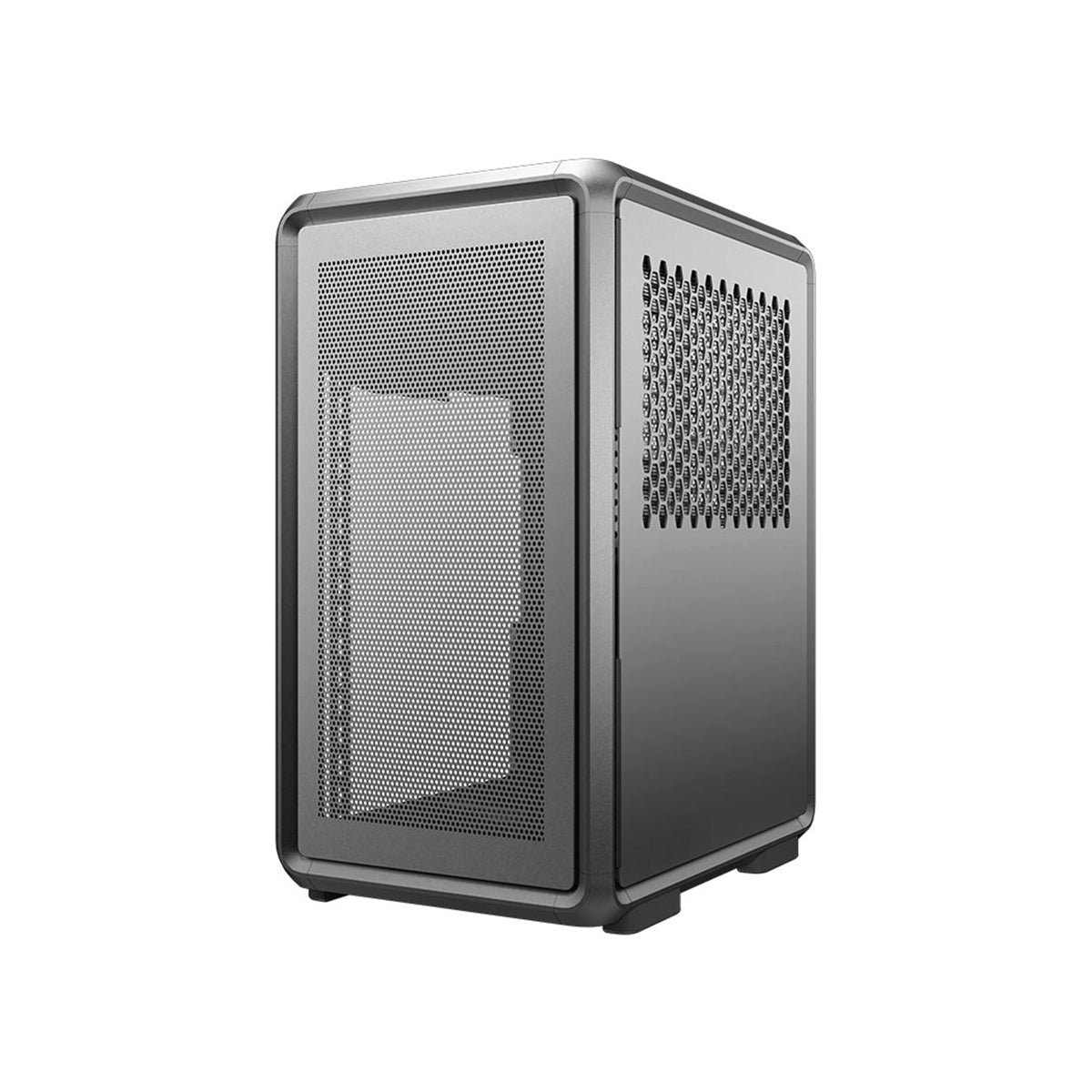

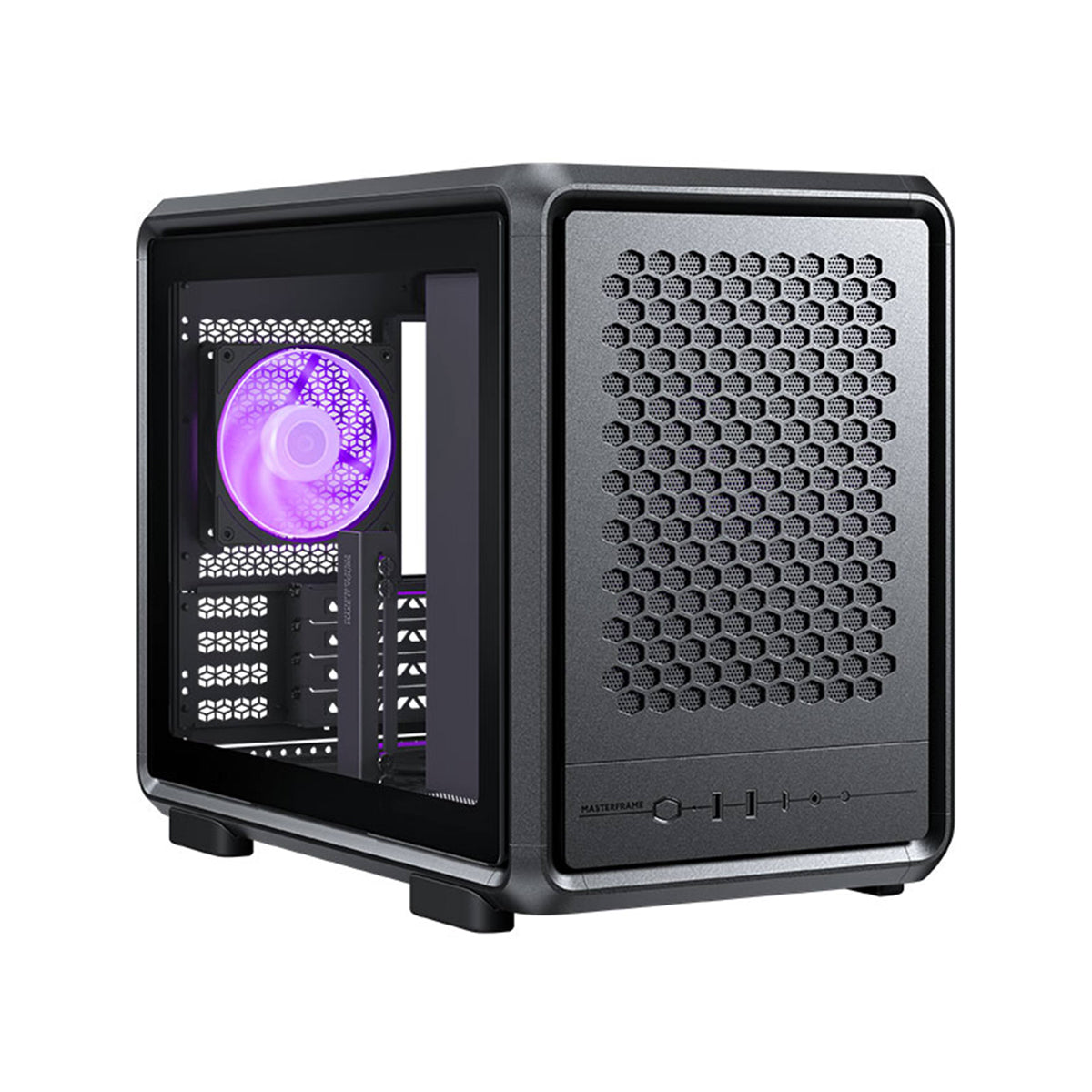

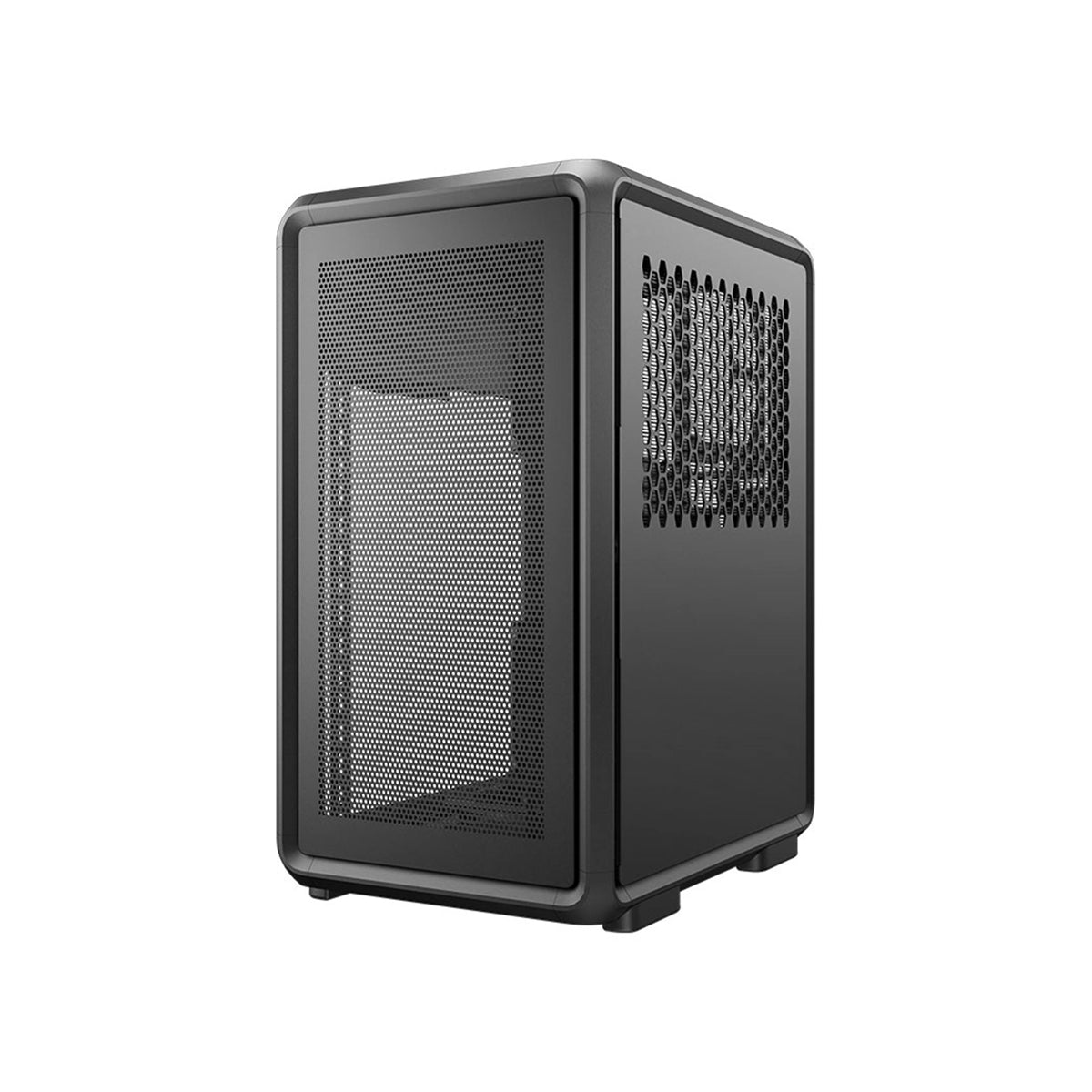

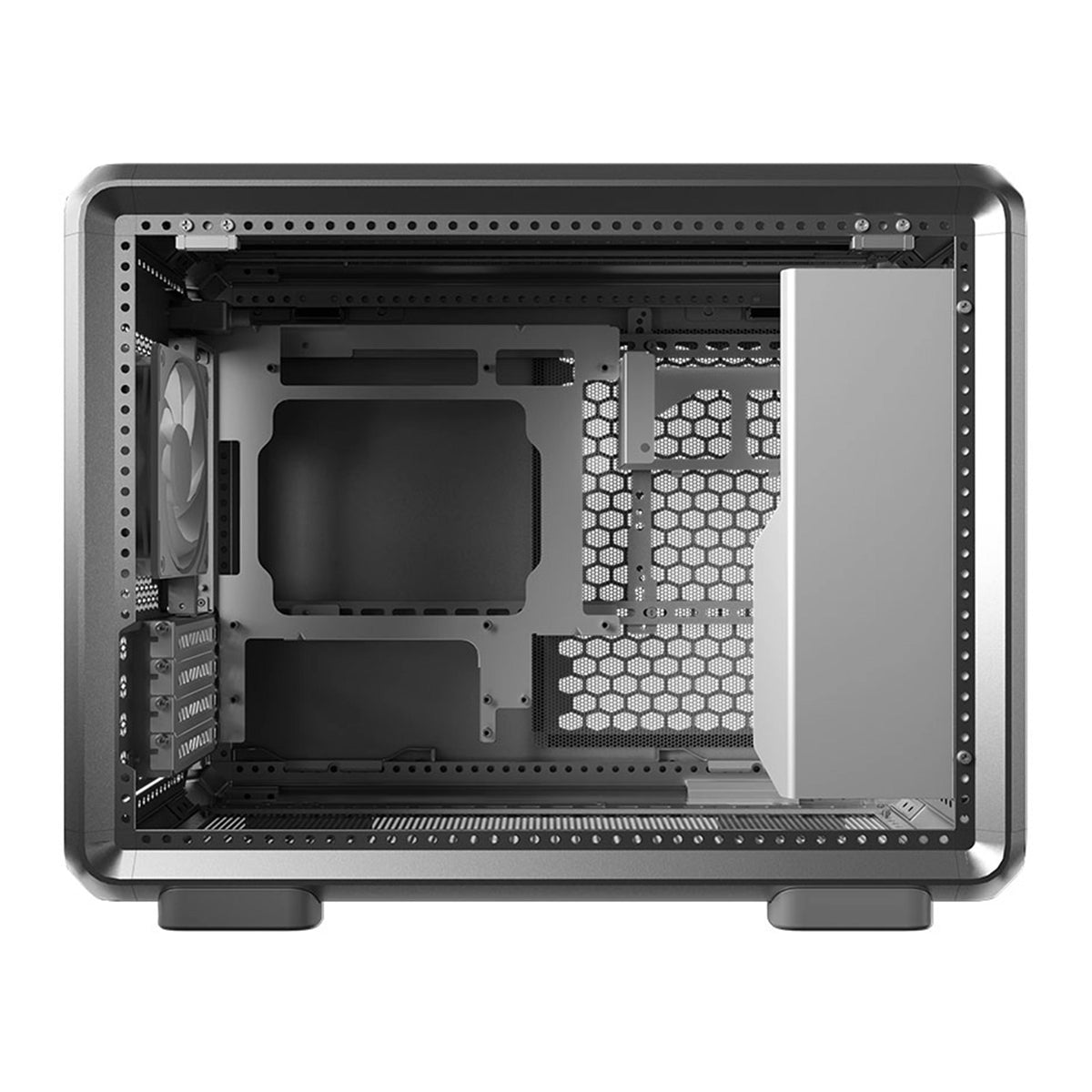

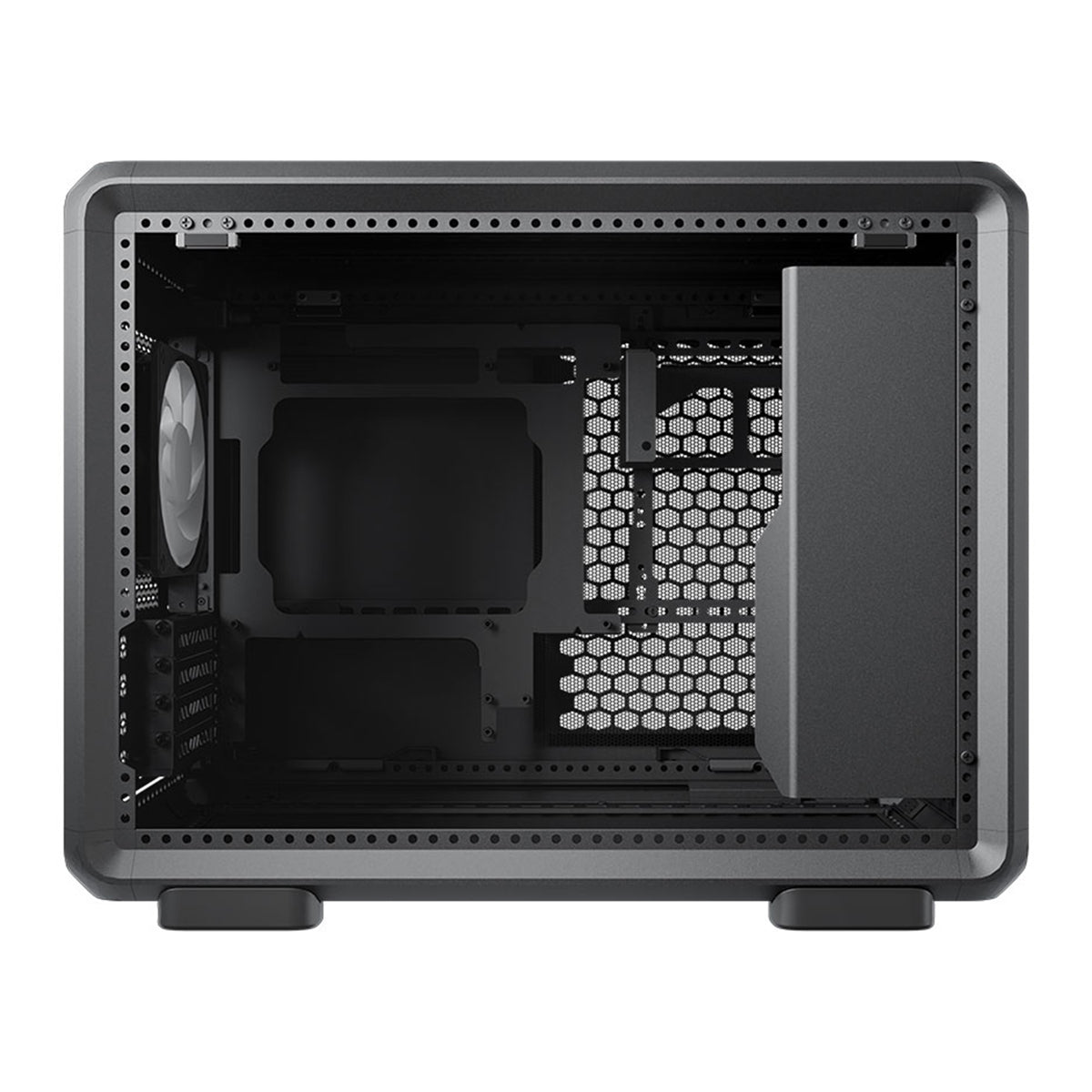

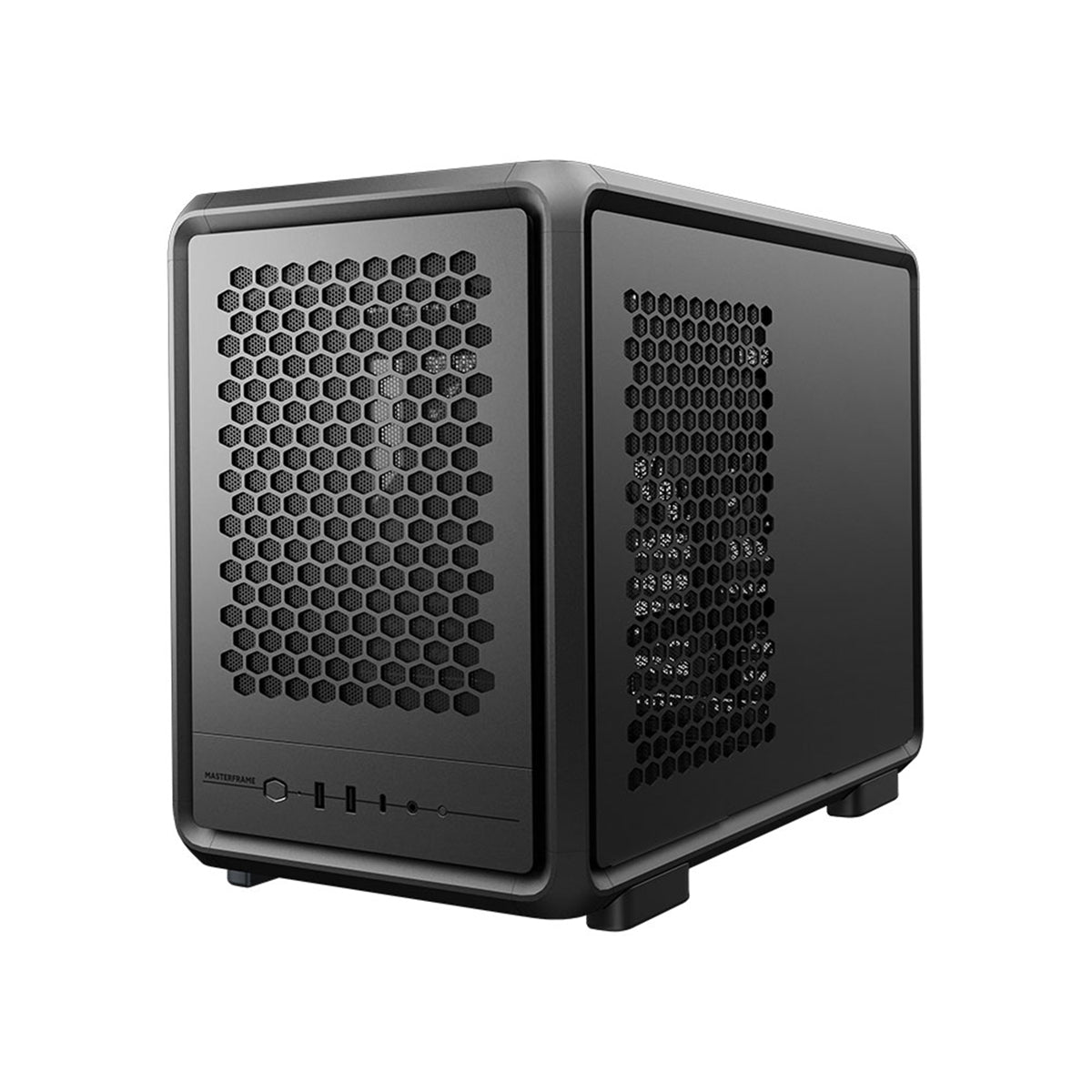

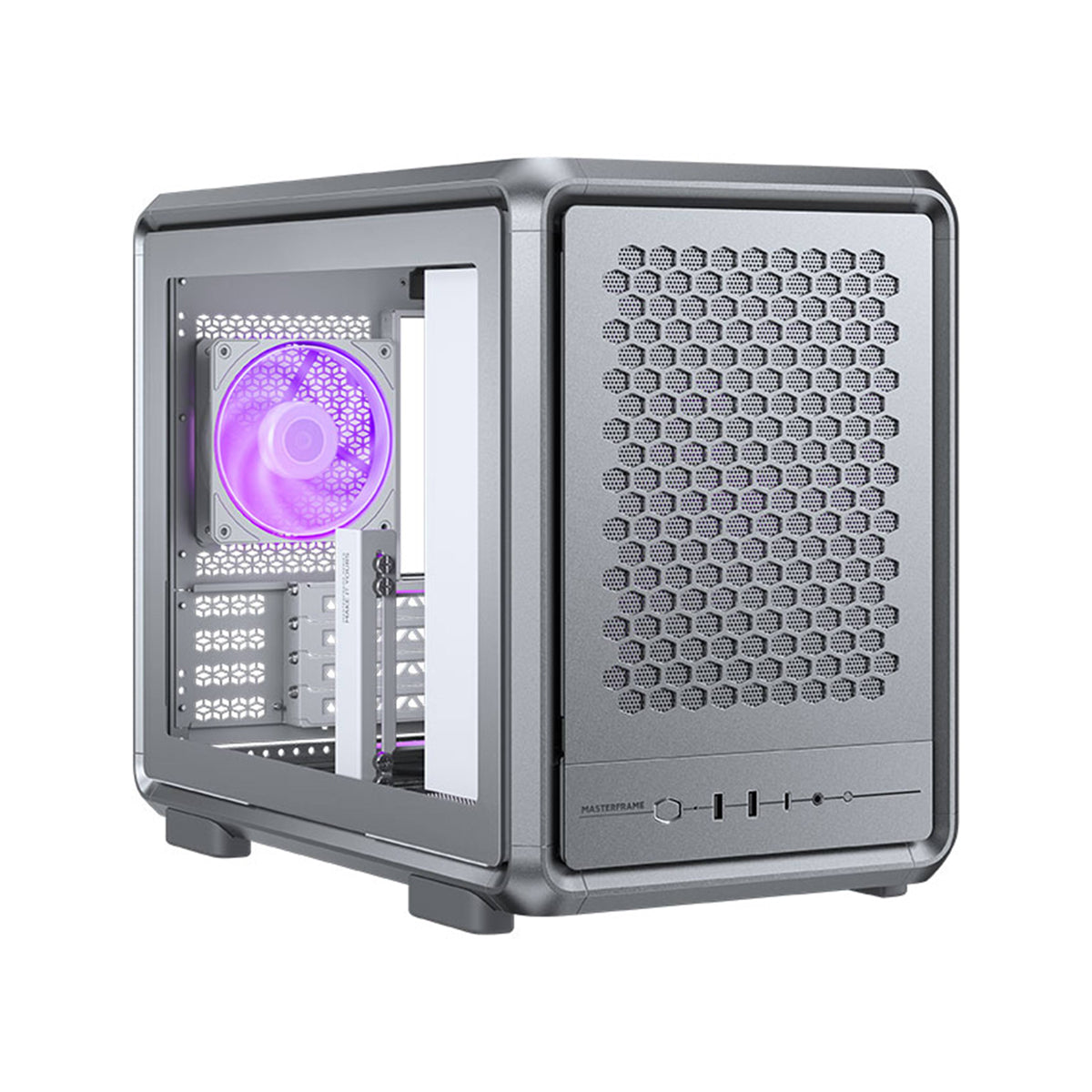

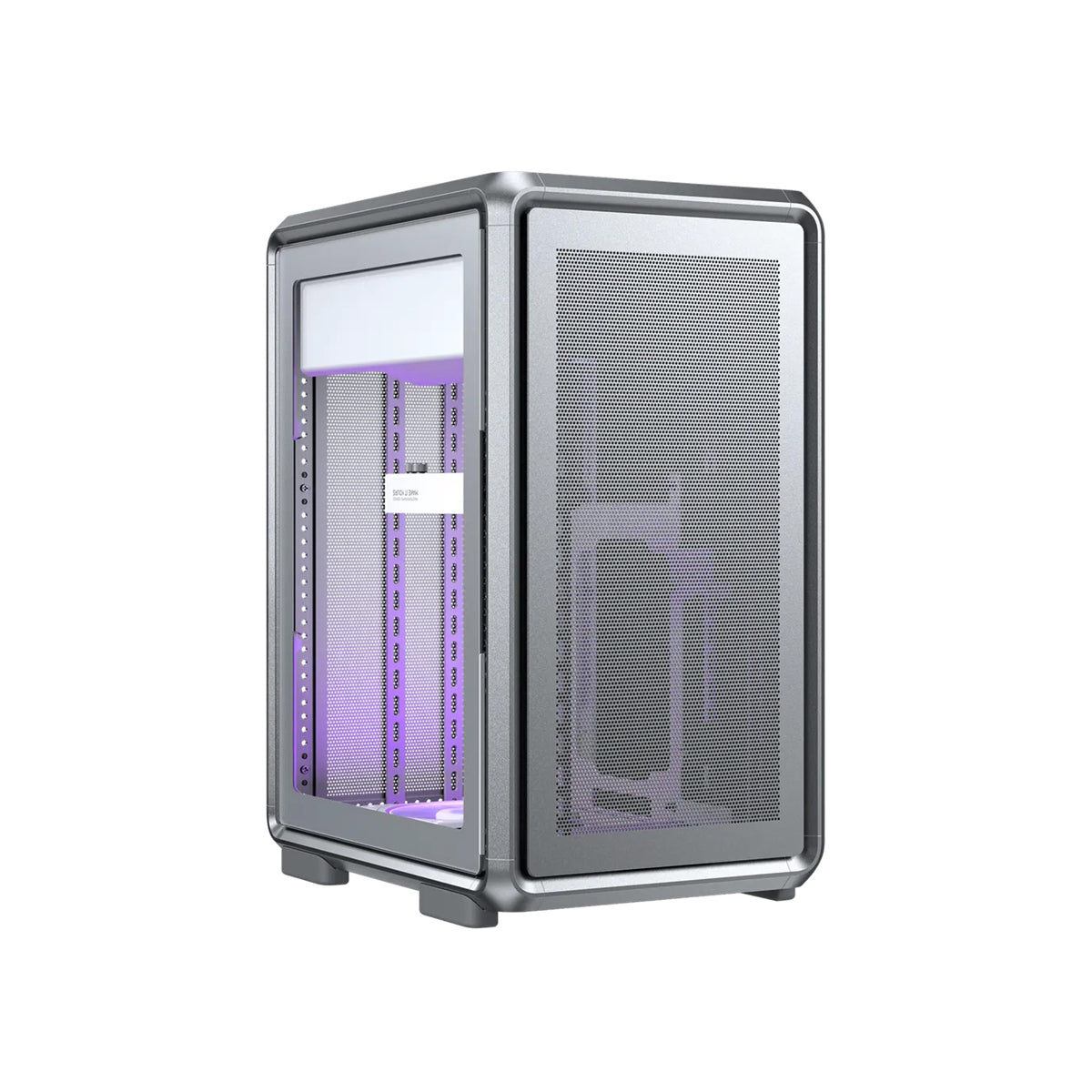

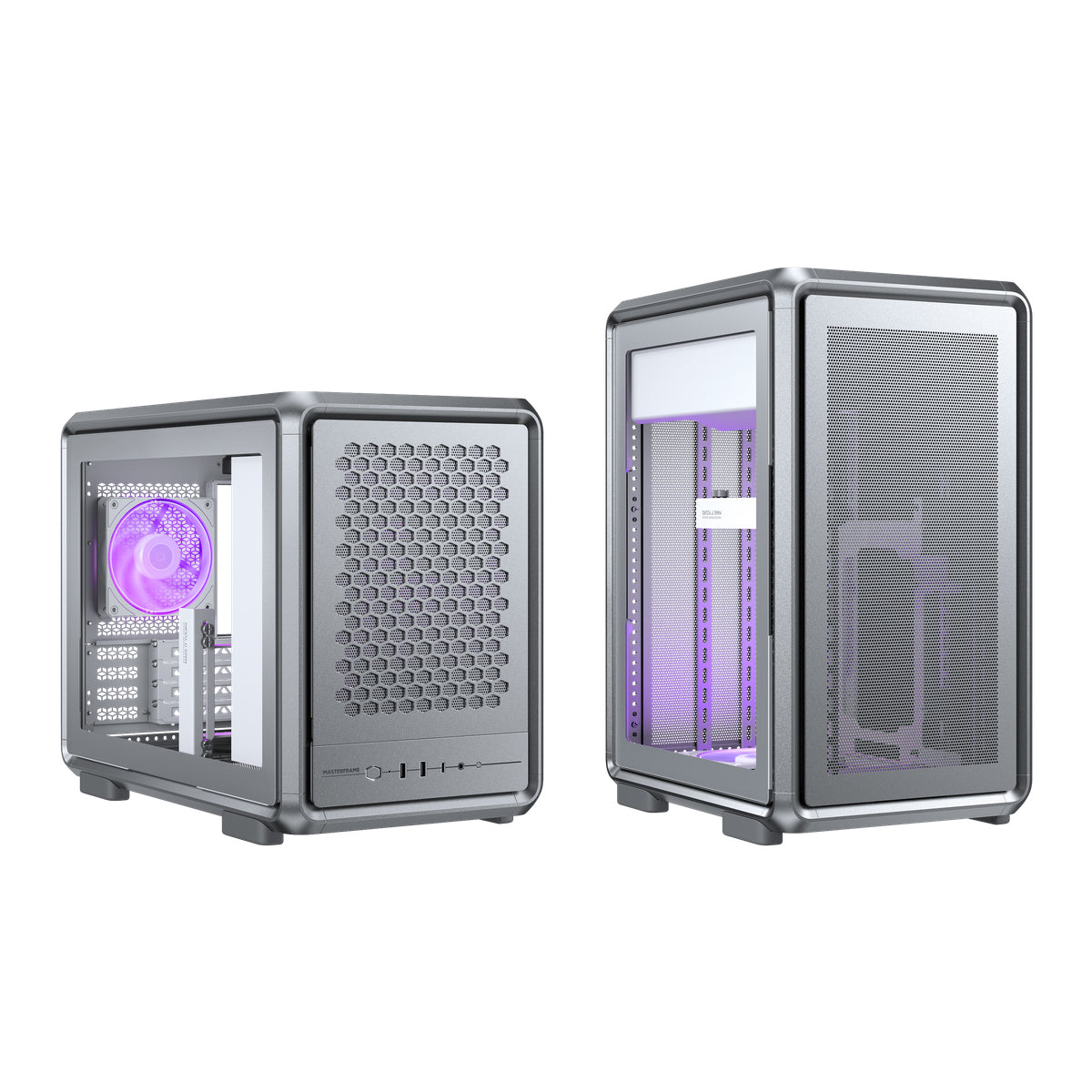

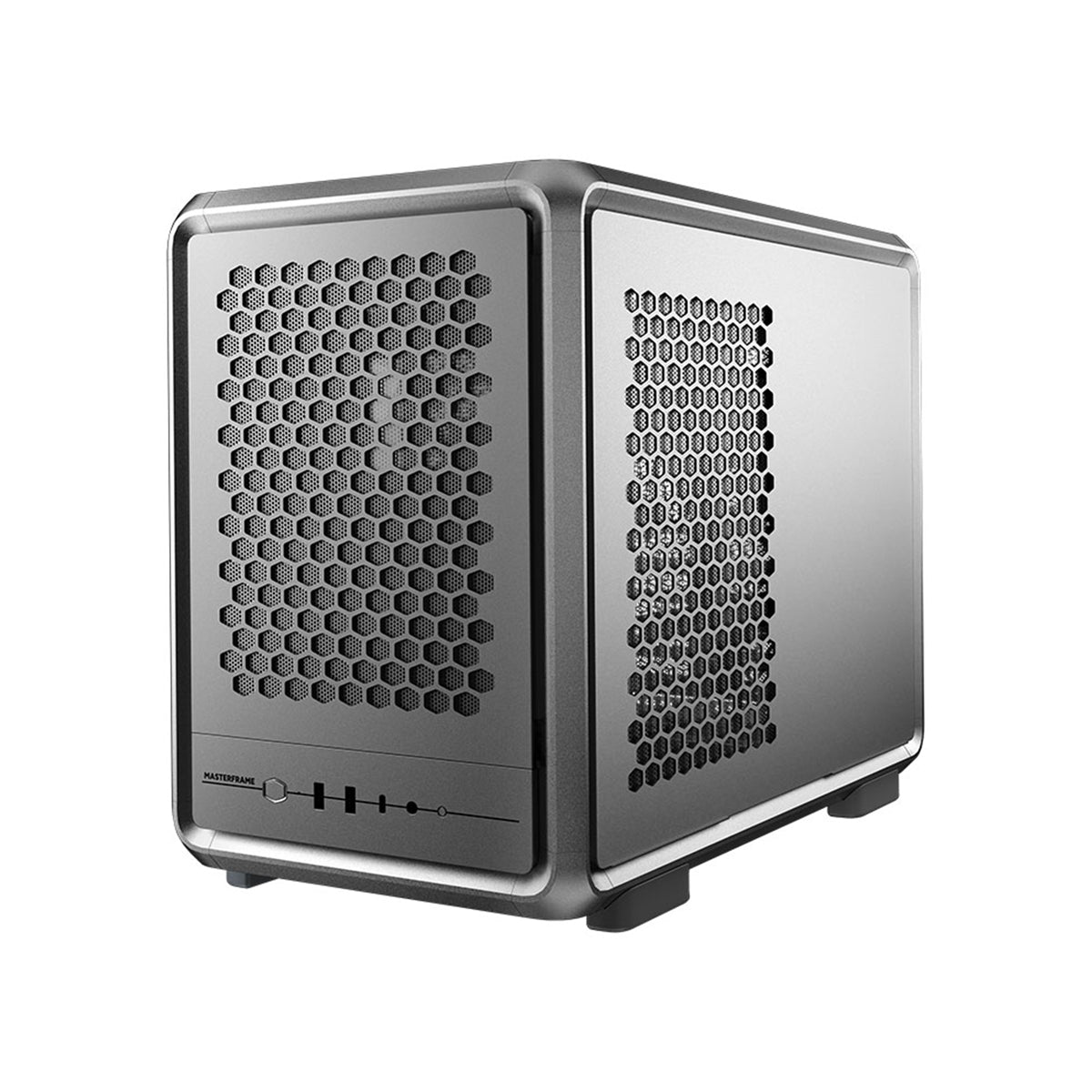

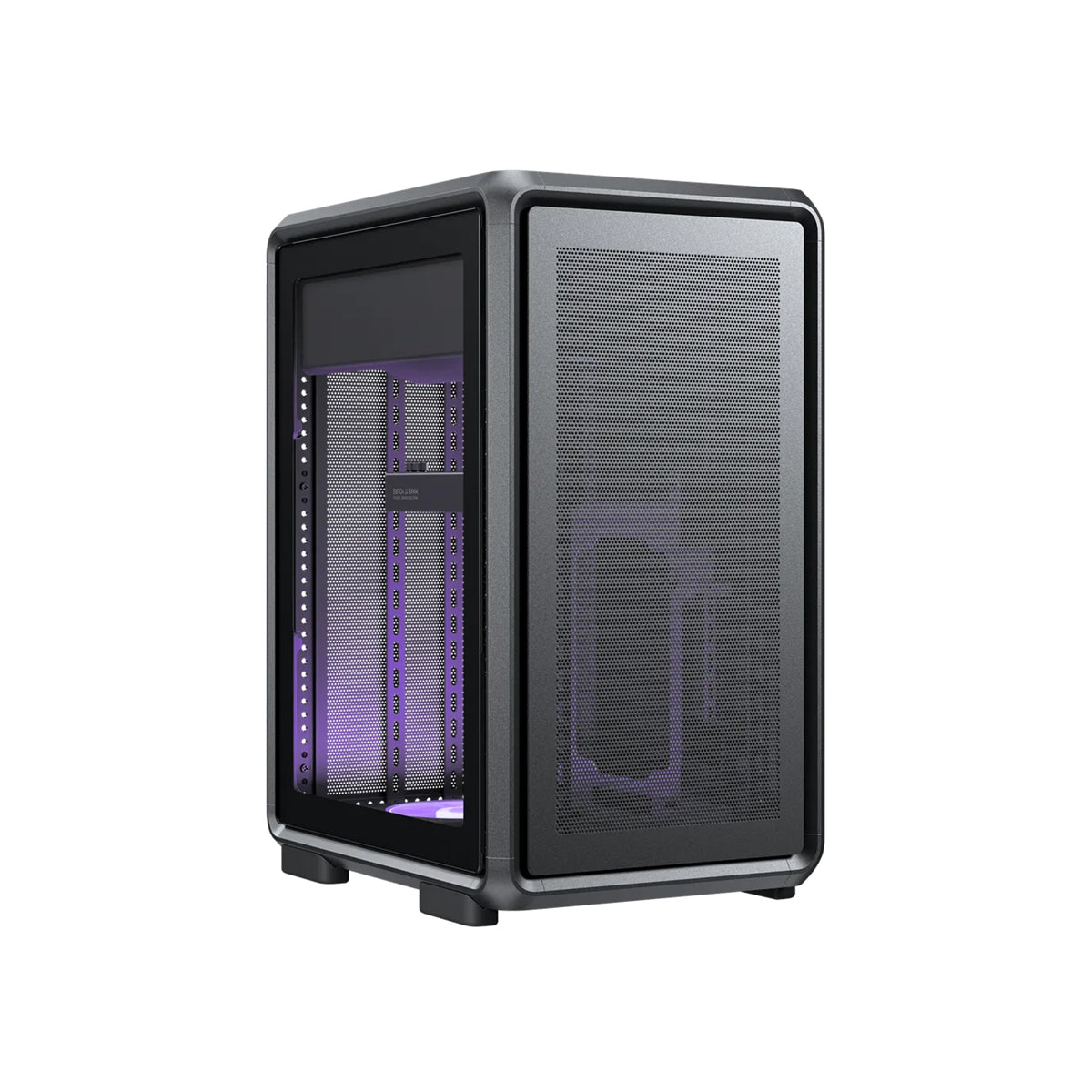

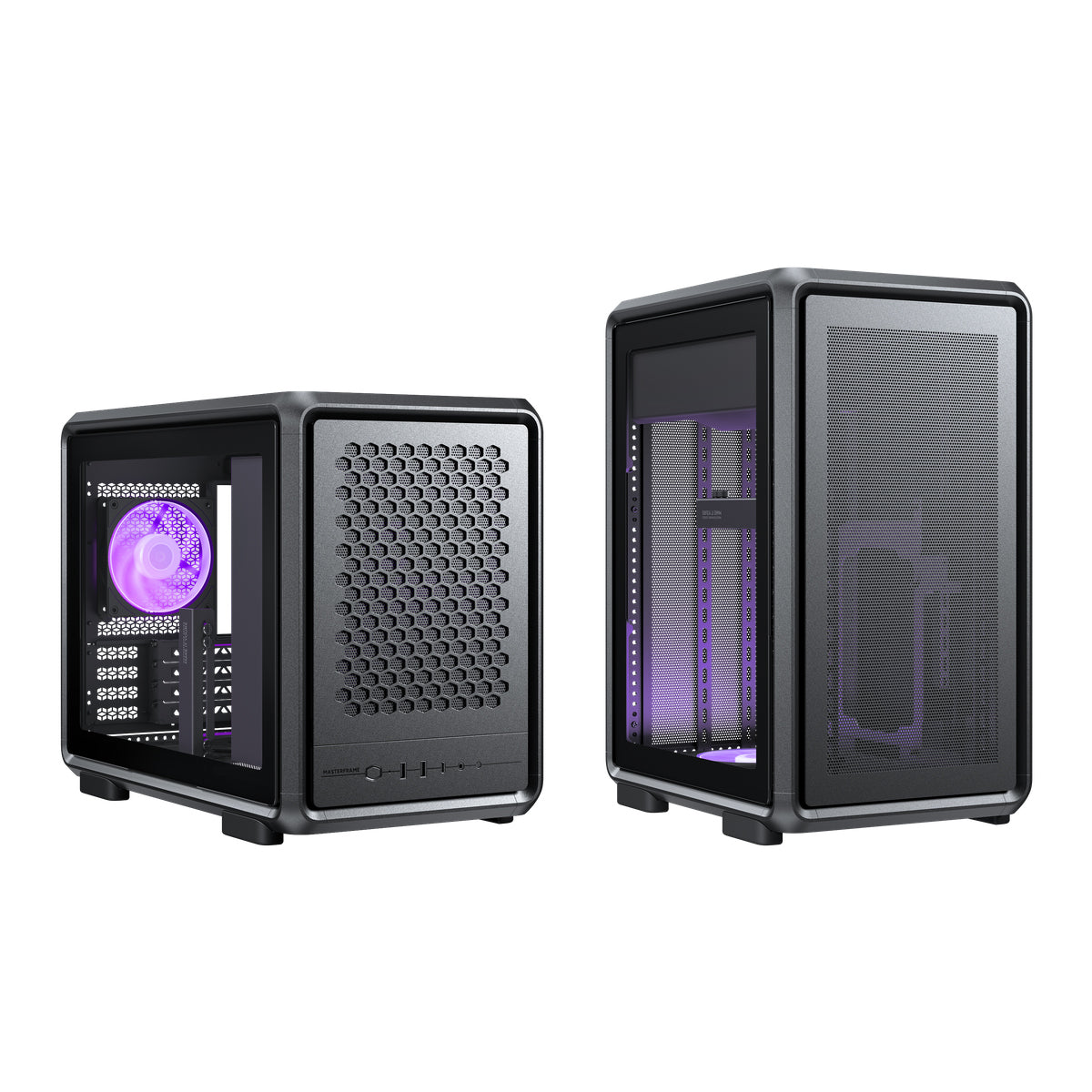

MasterFrame 400 Mesh

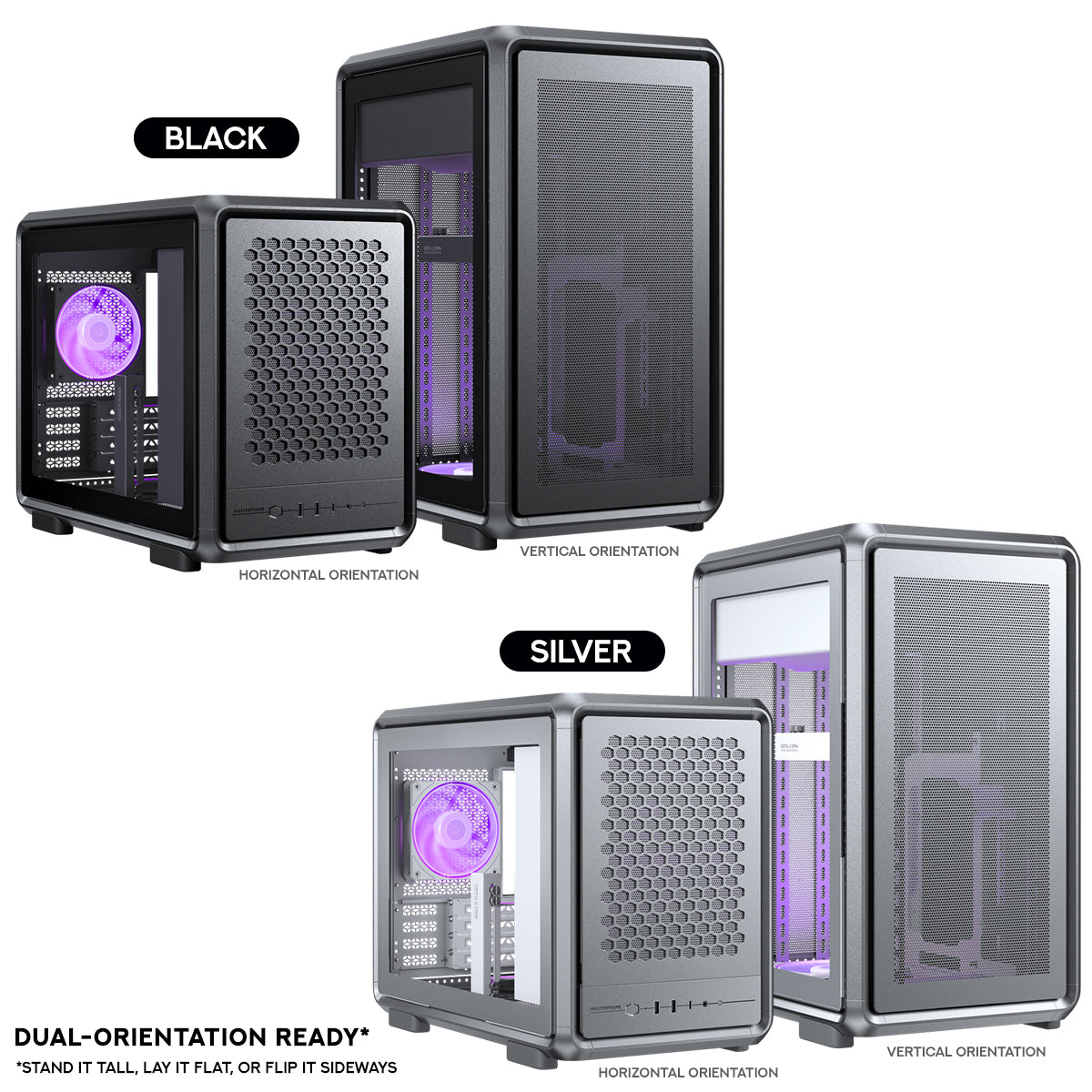

The MasterFrame 400 Mesh is a premium open-frame compact chassis crafted for Micro-ATX and Mini-ITX platforms. Embracing the FreeForm 2.0 design philosophy, it features a precision aluminum frame, dual-orientation support, and enhanced mesh airflow. With premium aesthetics and performance-grade clearance, it empowers creators and builders to push compact PC design further.
| Product Name | MasterFrame 400 Mesh |
|---|---|
| Color(s) | Black / Silver |
| Model Number | Black: MF400M-KHNN-S00, Silver: MF400M-SHNN-S00 |
| Materials | AL+ SGCC + TG / Mesh |
| Dimensions (L x W x H) | 471 x 261 x 373.8 mm (Incl. Protrusions), 471 x 261 x 361 mm (Excl. Protrusions) |
| Volume | 44.37 L (w/o protrusions), 46 L (with panel, protrusions and feet) |
| Motherboard Support | Mini-ITX, Micro-ATX |
| PCI Expansion Slots | 4 |
| Drive Bays - 5.25" ODD | N/A |
| Drive Bays - 3.5" HDD | 1 (Only supported without bottom fans. Shares 3.5" and 2.5" mounting positions.) |
| Drive Bays - 2.5" SSD | 1 (Only supported without bottom fans. Shares 3.5" and 2.5" mounting positions.) |
| I/O Panel - USB Ports | 2 x USB 3.2 Gen 1 Type A / 1 x USB 3.2 Gen 2 x 2 Type C |
| I/O Panel - Audio In / Out | 1 x 3.5 Mic / Audio Combo Jack |
| Pre-installed Fans - Rear | 1x SickleFlow 120 mm ARGB Black / 1x SickleFlow 120 mm ARGB White |
| Fan Support - Front | 2 x 120mm / 1 x 140mm*, 1 x 180mm*, 1 x 200mm* (*Conditional Support) |
| Fan Support - Top | 3 x 120mm / 2 x 140mm / 2 x 180mm*, 2 x 200mm* (*Fan thickness ≤ 25.5mm) |
| Fan Support - Rear | 1x 120mm |
| Fan Support - Bottom | 3x 120mm, 2x 140mm, 2x 180mm, 2x 200mm, and all fans up to 30mm thick. |
| Radiator Support - Front | N/A |
| Radiator Support - Top | 240 / 280 / 360 mm |
| Radiator Support - Rear | 120 mm |
| Radiator Support - Bottom | N/A |
| Clearances - CPU Cooler | 190 mm |
| Clearances - Power Supply | 160 mm |
| Clearances - Graphics Card | 390 mm |
| Cable Routing - Behind Motherboard Tray | 43 mm |
| Accessory | Graphics Card Holder |
| Dust Filters | Front, Side |
| Power Supply Support | ATX |
