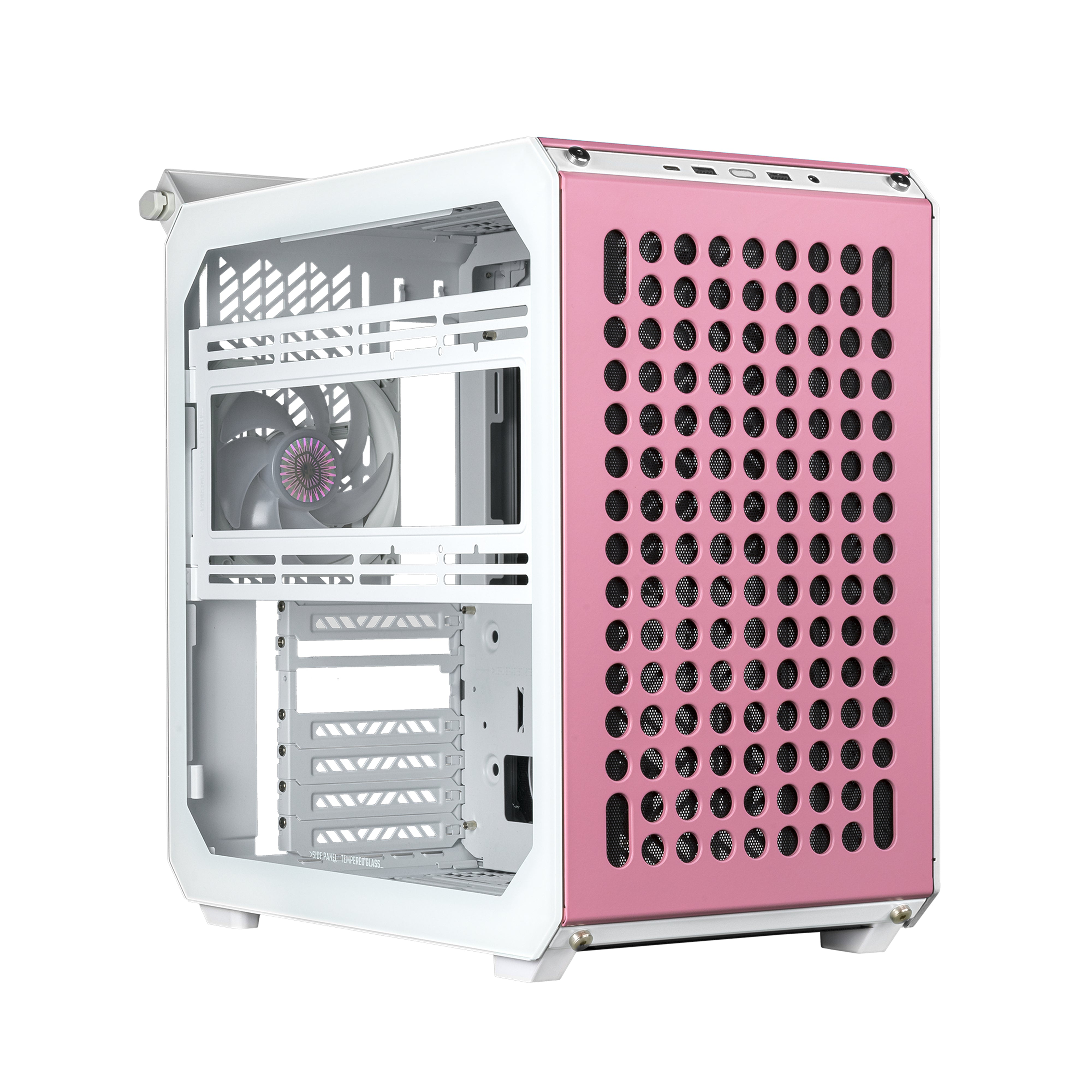

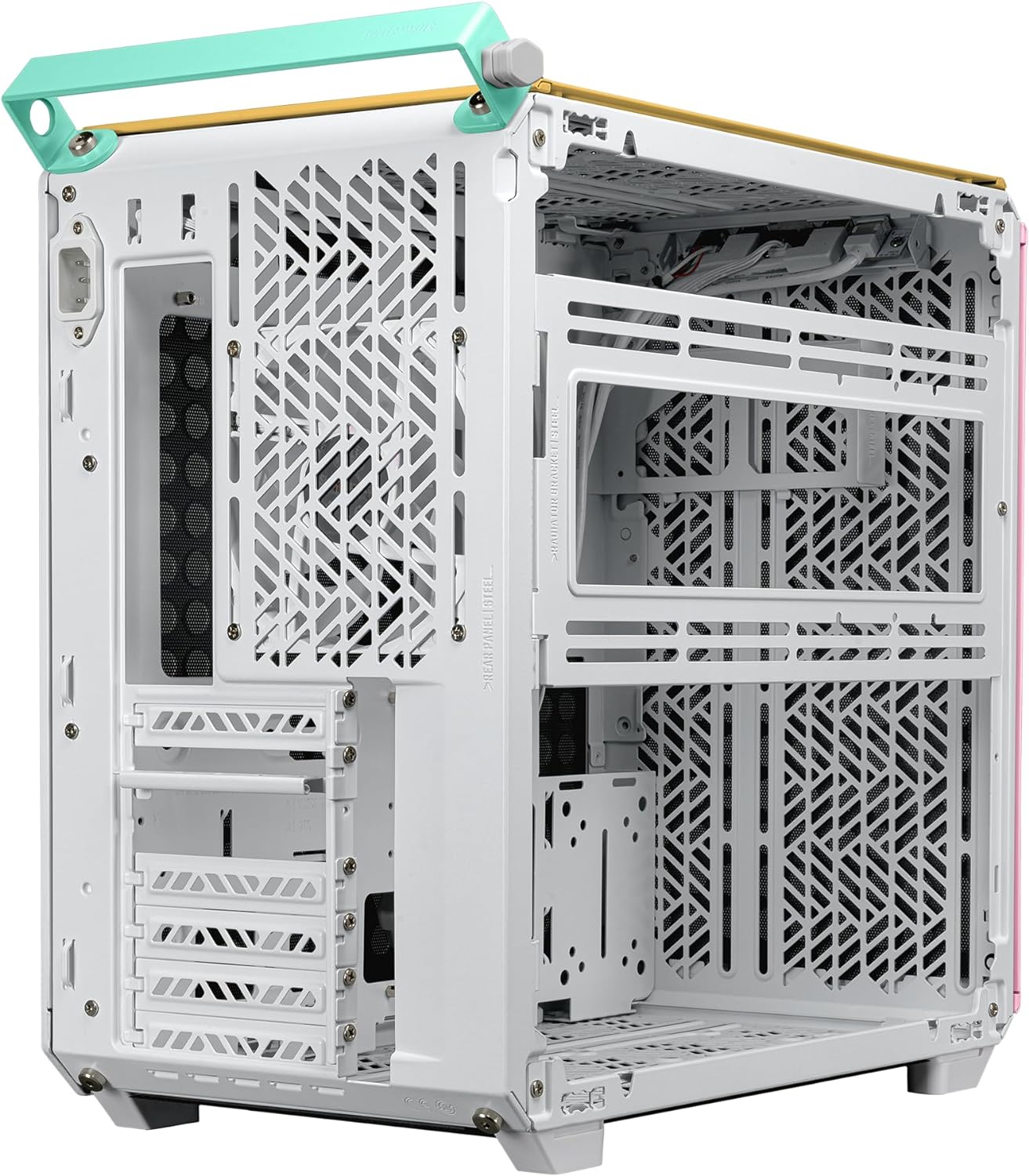

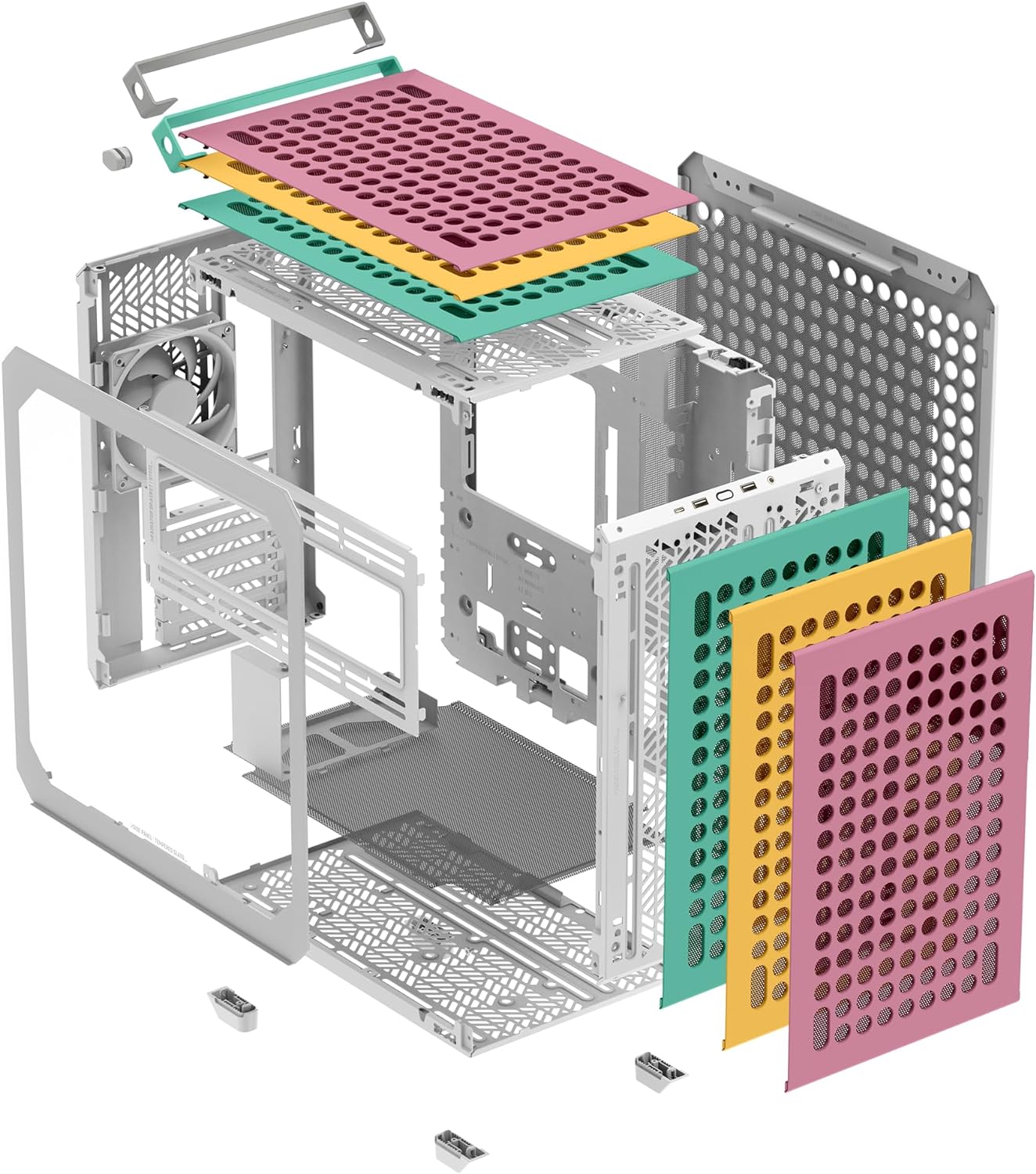

QUBE 500 FLATPACK MACARON EDITION
SPECIFICATIONS:
| Model Number | Q500-DGNN-S0 |

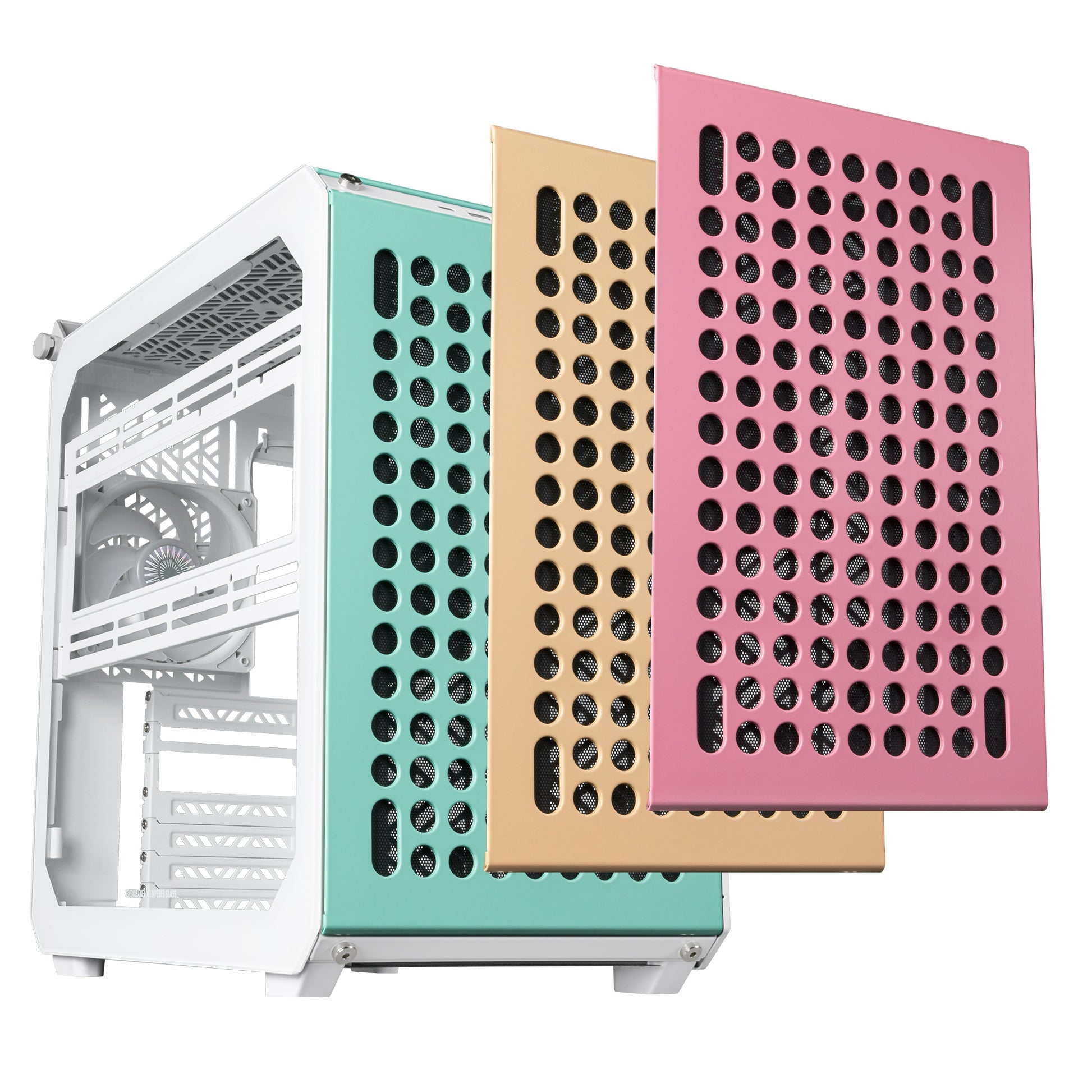

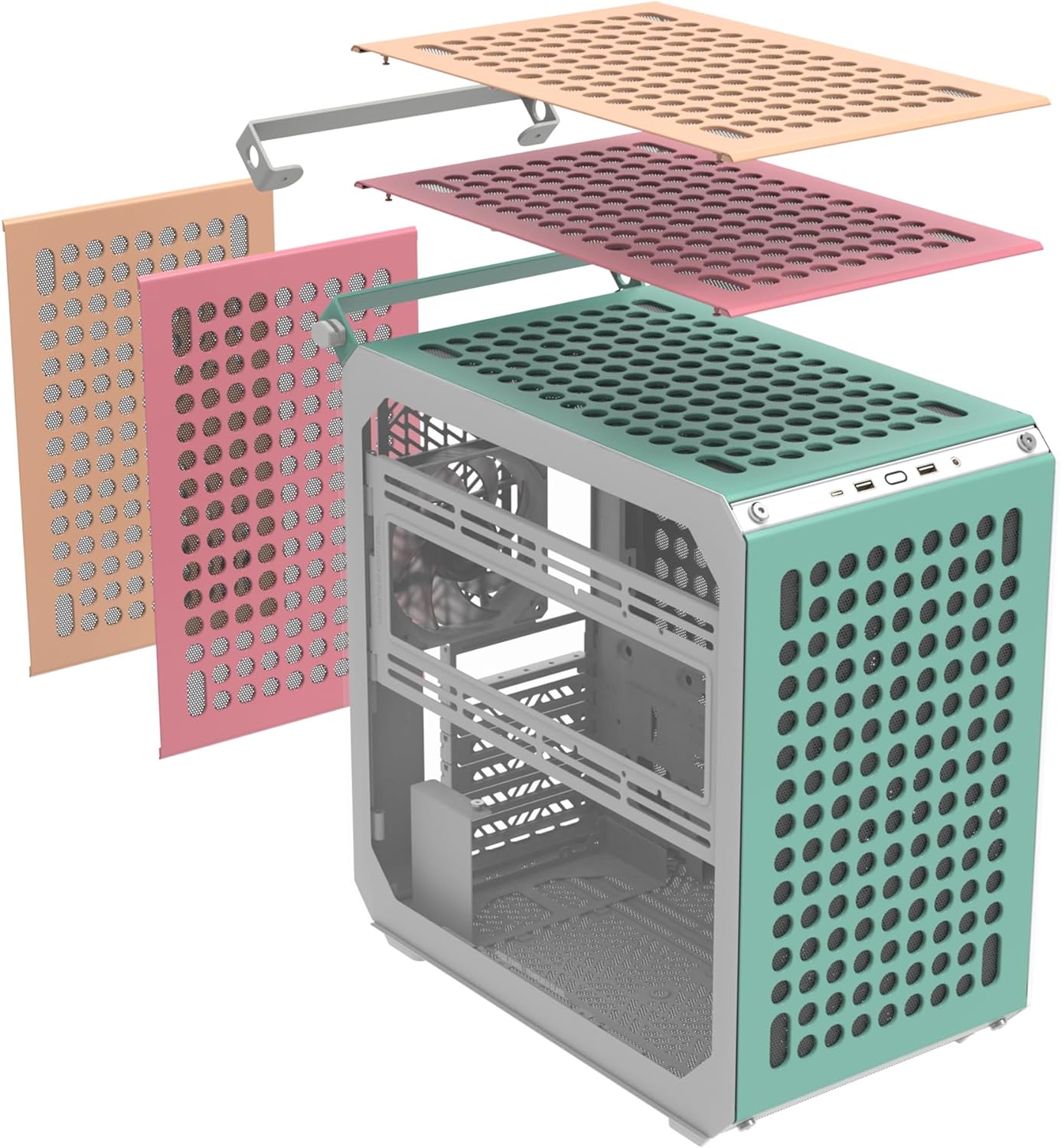

| Exterior Color | 3x set: Mint, Pink, Cream |
| Materials - Exterior | Steel, Plastic, Tempered Glass |
| Materials - Left Side Panel | Grey TG + Steel |
| Dimensions (L x W x H) | 406 x 231 x 415mm (Incl. Protrusions), 380 x 231 x 381mm (excl. Protrusions) |
| Volume | 33.44L (excl. Protrusions) |
| Motherboard Support | ITX, Micro ATX, ATX, E-ATX (Width up to 296mm w/ SFX PSU, up to 273 w/ ATX PSU) |
| Expansion Slots | 7 |
| 3.5" Drive Bays | 4 |
| 2.5" Drive Bays | 3 |

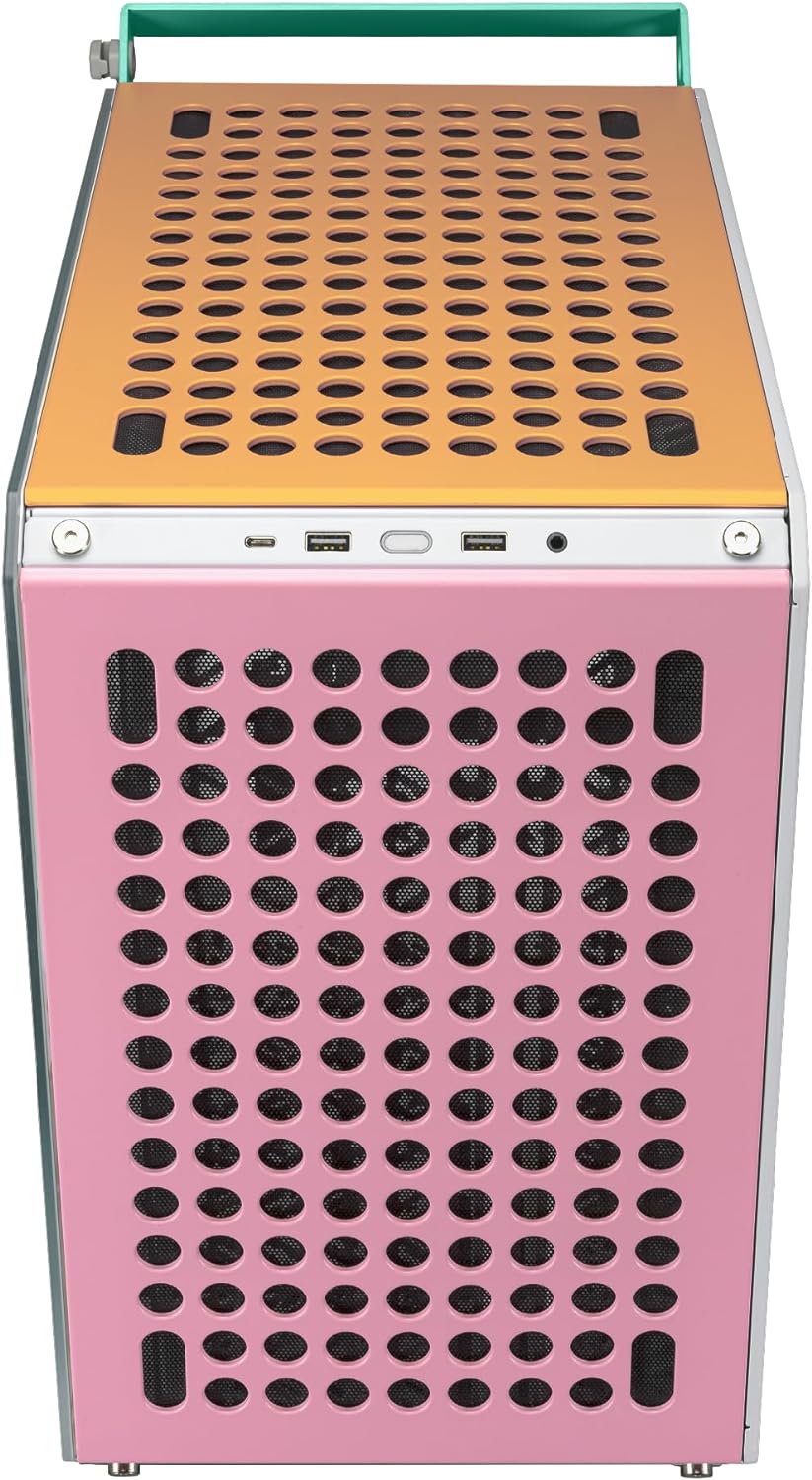

| I/O Panel - USB Ports | 2x USB 3.2 Gen 1 Type A, 1x USB 3.2 Gen 2 x 2 Type C |
| I/O Panel - Audio In / Out | 1x 3.5mm Combo |
| Pre-installed Fans - Rear | 1x 120mm (1800 RPM) SF ARGB White PWM |
| Fan Support - Front | 1x 120/140mm (x2 if PSU is mounted in bottom) |
| Fan Support - Top | 2x 120/140mm |
| Fan Support - Rear | 1x 120mm |
| Fan Support - Bottom | 2x 120/140mm |
| Fan Support - Left side | 2x 120/140mm |
| Radiator Support - Front | 120mm, 140mm, (240/280mm w/ PSU in bottom) |
| Radiator Support - Top | 120mm, 140mm, 240mm, 280mm, (280mm can be used within 53mm thickness) |
| Radiator Support - Rear | 120mm |
| Radiator Support - Bottom | 120mm, 140mm, 240mm, 280mm |
| Radiator Support - Left side | 120mm, 140mm, 240mm, 280mm |
| Clearance - CPU Cooler | 164mm-172mm (Remove the water cooling bracket) |
| Clearance - PSU | 173mm to first GPU slot, 216 maximum space (w/o cable management space), 332mm space mounted in bottom (w/o cable management space) |
| Clearance - GFX | 365mm |
| Cable Routing - Behind Motherboard Tray | 29-32mm |
| Handle | Mint x 1, Grey x 1 |
| Gem Mini | Grey x 1 |
| Accessory Hook | x 2 |
| Dust Filters | Front, Top, Bottom, Right side |
| Power Supply Support | SFX-L, SFX, ATX |
| Series | QUBE Series |
| Size | Mid Tower |
