Description
SMALL BUT MIGHTY

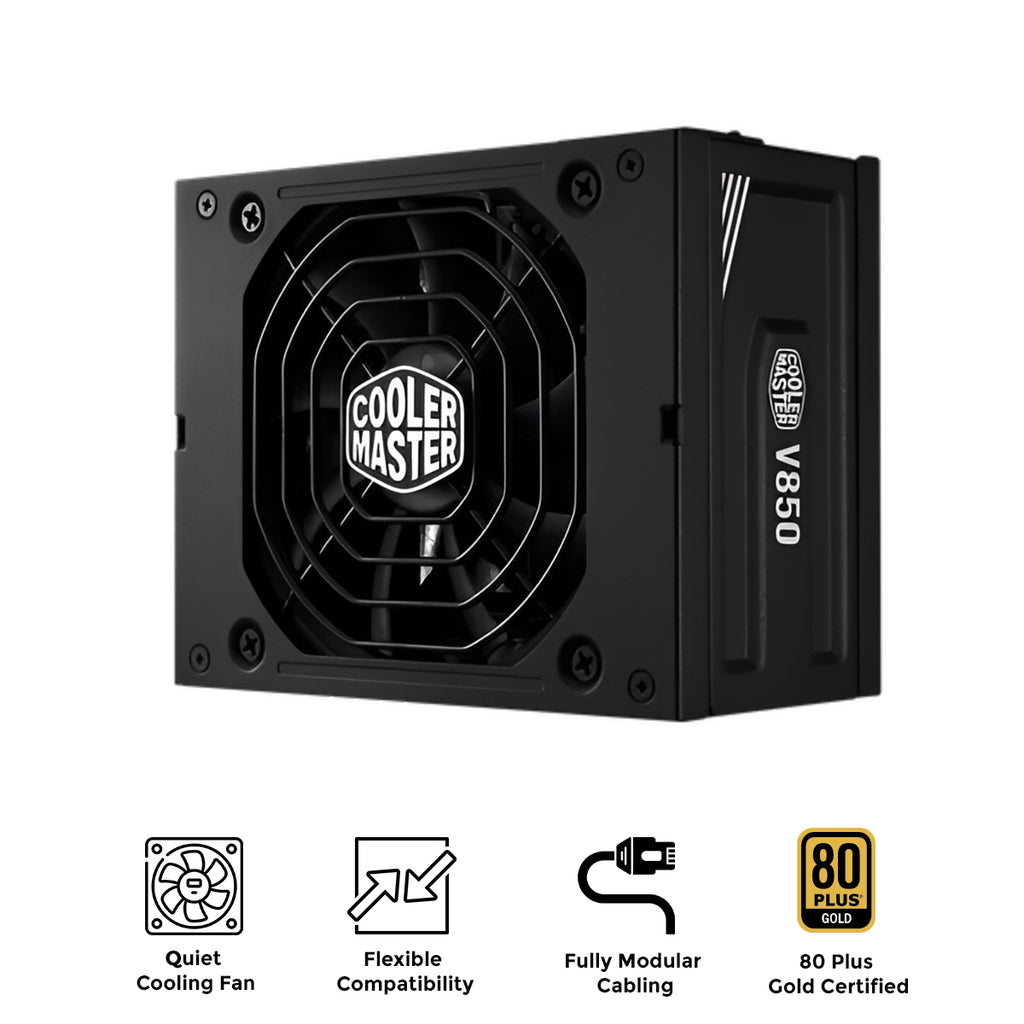

Welcome to the world of the V SFX Gold, a small but mighty PSU. The V SFX Gold has one of the highest power densities available today. Additionally, with an included ATX compatibility bracket, the V SFX Gold can support a PC of any size.
The V SFX Gold also features ATX 3.1 support, a durable 12V-2x6 cable, 80 Plus Gold efficiency, fully modular cables, an FDB fan, 16AWG PCIe high-efficiency cables, and a 10-year warranty. Deliver compact, mighty power to your build with the V SFX Gold.
Key Features:
- Compact SFX form factor: The ultra-compact dimensions of this SFX unit make it the perfect fit for a mini-ITX build.
- High power density: With 160% greater power density than the V Gold 850 V2, this is one of the highest power densities in the industry.
- Flexible compatibility: An included bracket ensures compatibility with both ITX and ATX cases.
- 80 Plus Gold efficiency certification: Achieves more than 90% efficiency at typical loads.
- Quiet FDB fan: A fluid dynamic bearing fan delivers long-lasting, quiet, and effective cooling.
- ATX 3.1 support & durable 12V-2x6 cable: Includes ATX 3.1 support and a 90-degree 12+4-pin (12V-2x6) PCIe 5.1 cable featuring lower temperatures, enhanced durability, and improved safety.
- Smart thermal control mode: Fan speed is automatically adjusted according to PSU operating temperature.
- Fully modular cabling: Efficiently reduces clutter, increases airflow, and improves overall efficiency and thermal performance.
- High-quality Japanese capacitors: Reduced ripple noise and enhanced reliability.
Specifications:
| Product Name | V SFX Gold 850 ATX 3.1 |
| Item Code | MPY-8501-SFHAGV-3E |
| ATX Version | ATX3.1 & SFX 12V Ver. 3.42 |
| PFC | Active PFC |
| Input Voltage | 100-240V |
| Input Current | 12-6A |
| Input Frequency | 50-60Hz |
| Dimensions (L x W x H) | 100 x 125 x 63.5mm |
| Fan Size | 92mm |
| Fan Bearing | FDB |
| Efficiency | 90% @ Typical Load |
| 80 PLUS Rating | 80 PLUS Gold |
| ErP 2014 Lot 3 | Yes |
| Operating Temperature | 0~50°C |
| Power Good Signal | 100-500ms |
| Hold Up Time | 16ms |
| MTBF | >100,000 hours |
| Protections | OVP / OPP / SCP / OCP / UVP / OTP / Surge and Inrush Protection |
| Regulatory | TUV, cTUVus, CE, BSMI, FCC, CCC, EAC, RCM, CB, UKCA |

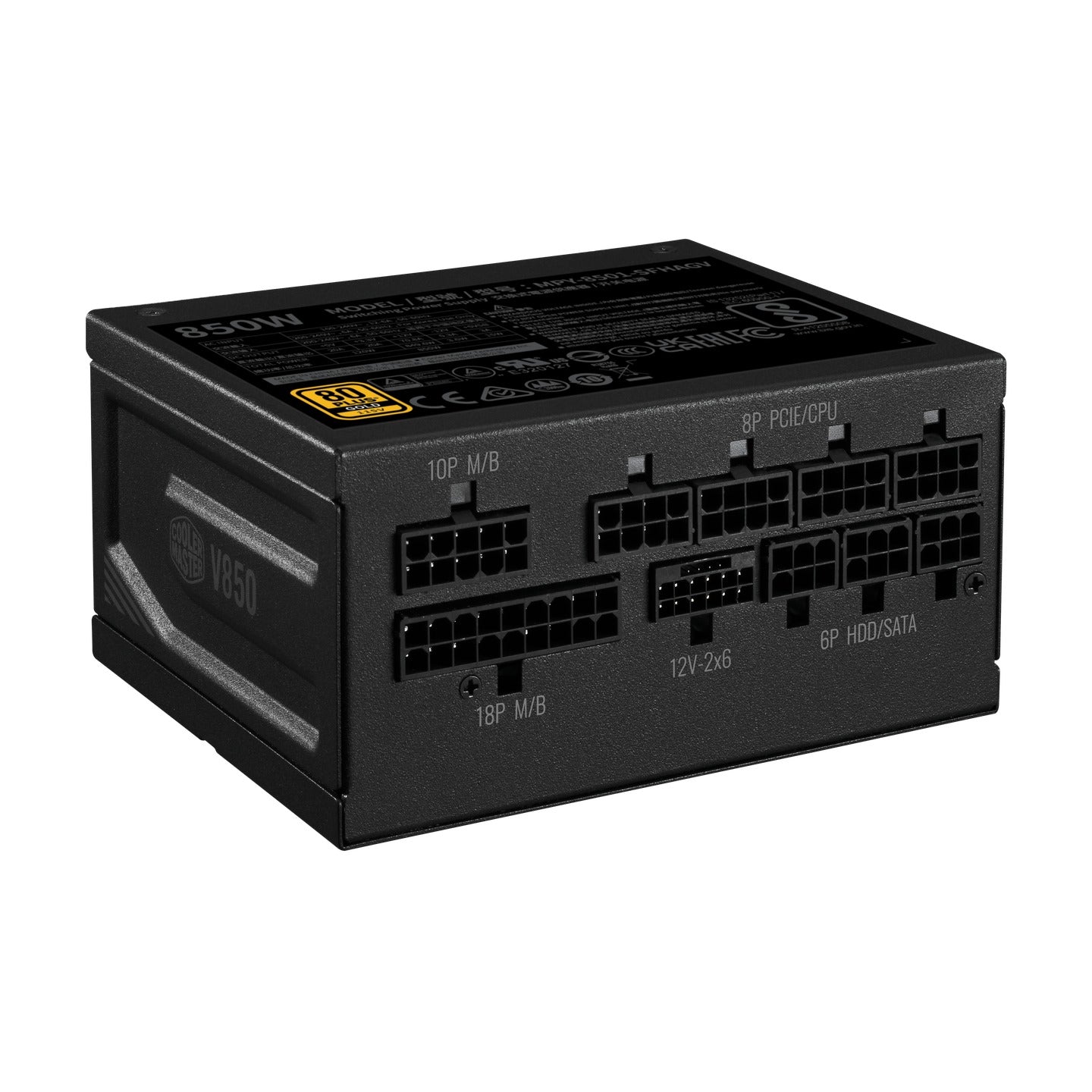

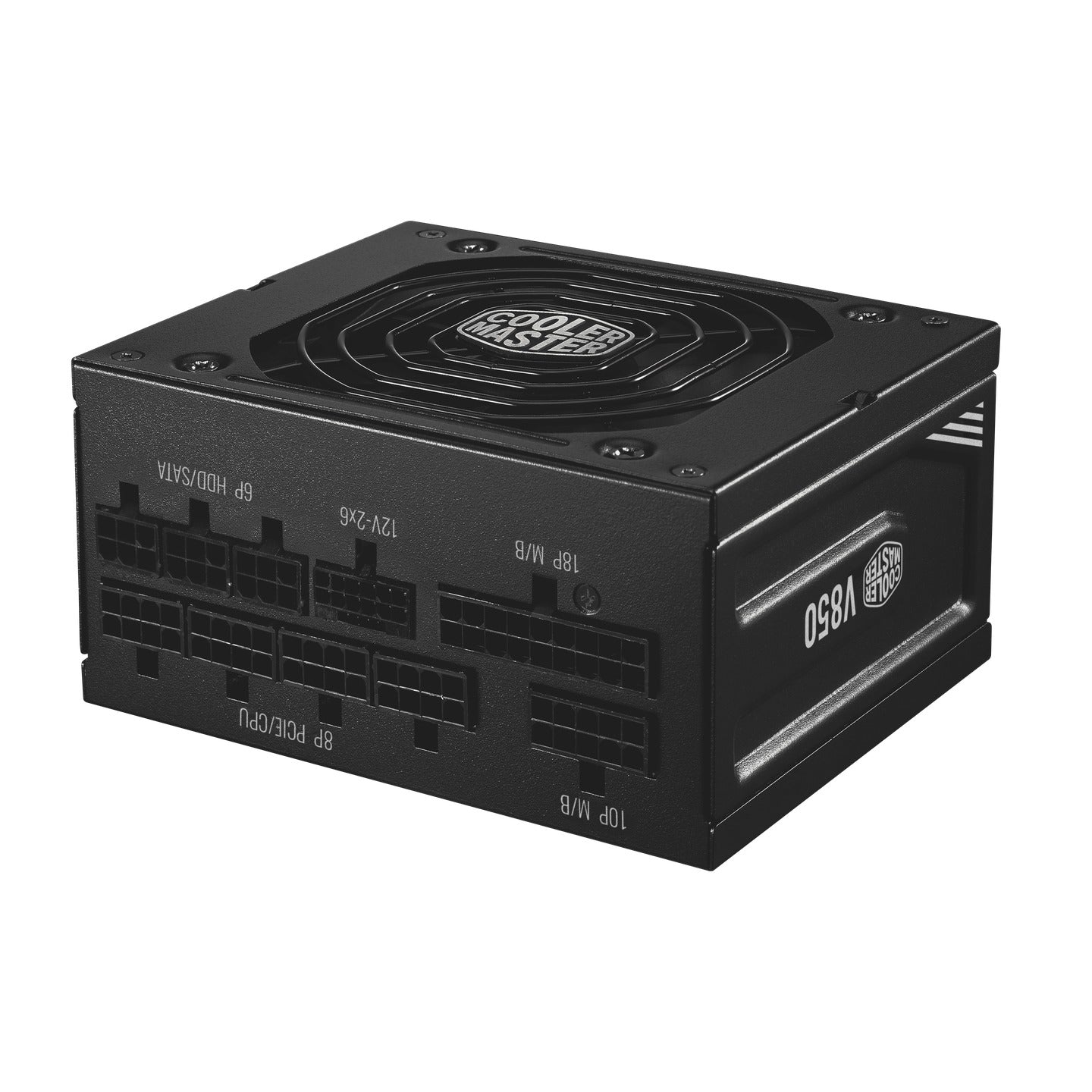

| Connectors |
ATX 24 Pin x1 (300mm) EPS 4+4 Pin x1 (450mm) EPS 8 Pin x1 (450mm) SATA x8 (100+115+115+115mm) Peripheral 4 Pin x4 (100+115+115+115mm) PCI-e 6+2 Pin x4 (400+120mm) 12V-2x6 x1 (400mm) |
| Package Content | Cable bag, Power cord, Zip ties x7, Velcro x3, Screw bag, ATX-ITX adapter bracket, Manual, Installation Guide |

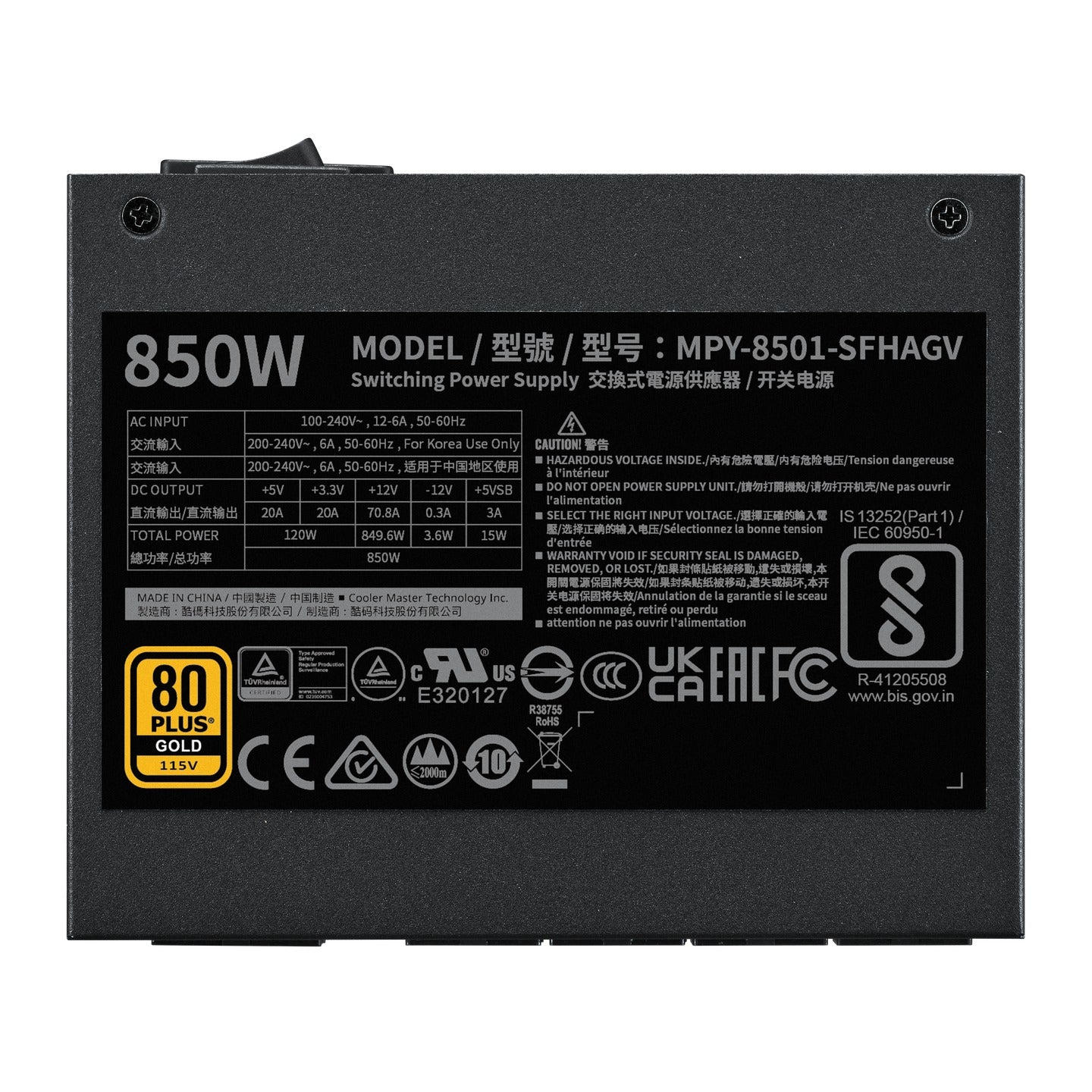

| DC Output | +3.3V (20A), +5V (20A), +12V (70.8A), -12V (0.3A), +5Vsb (3A) |
| Total Power | 850W |
