Description
Advanced Cooling, Elevated

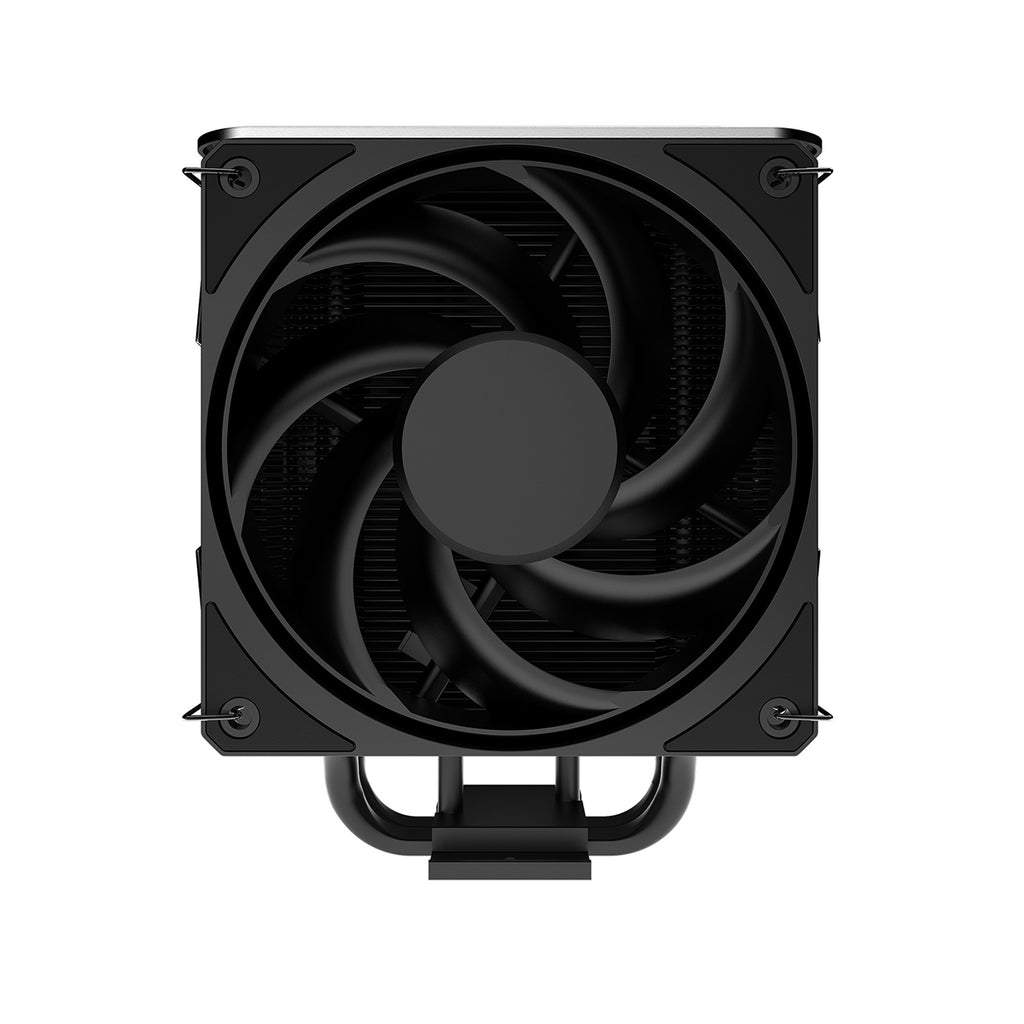

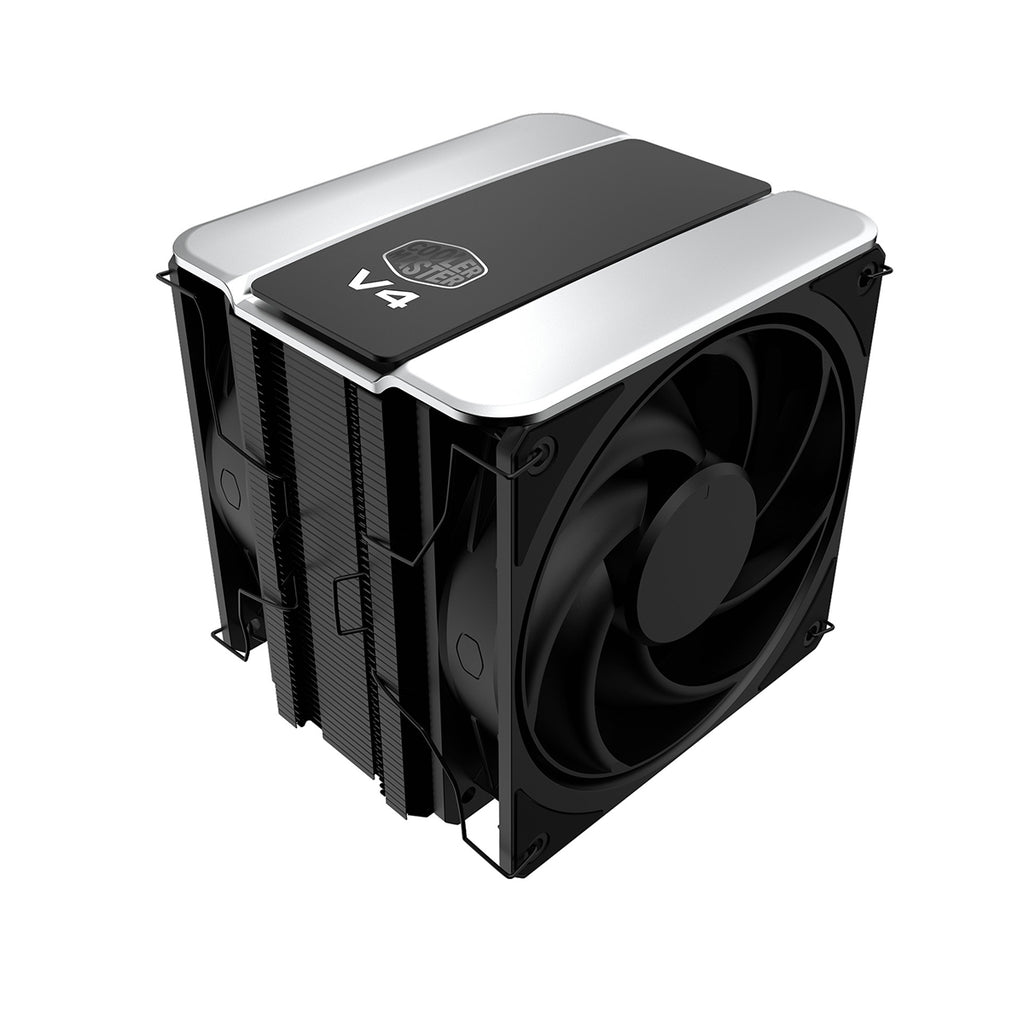

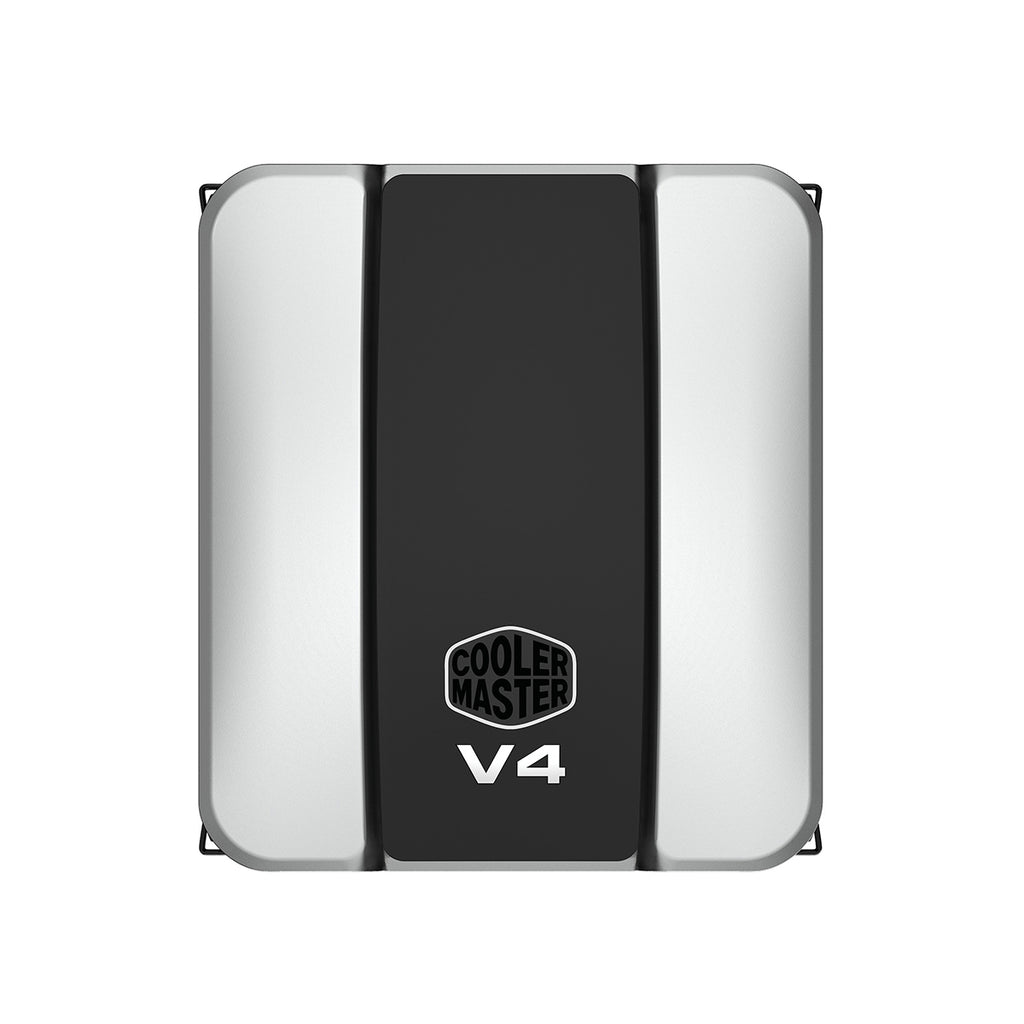

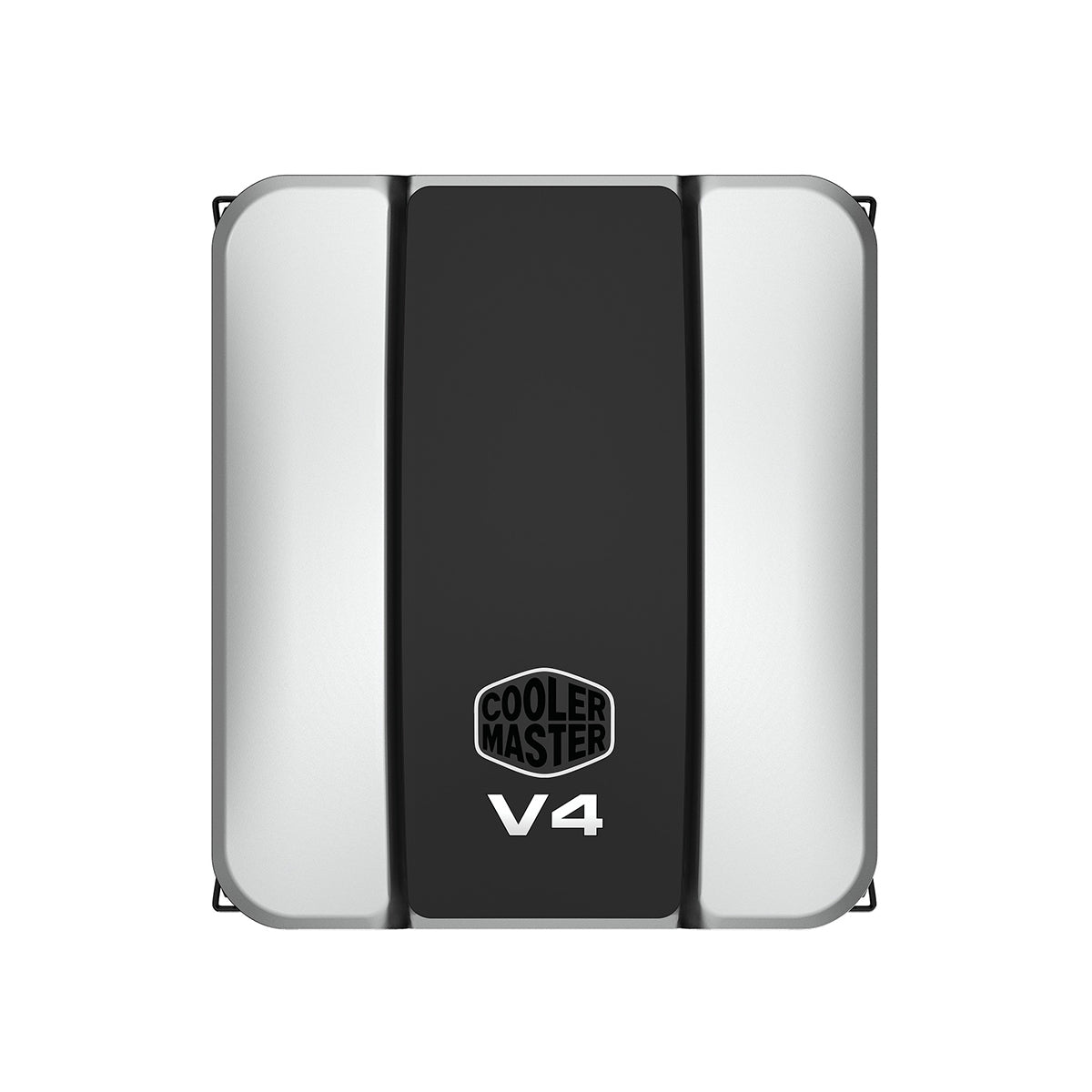

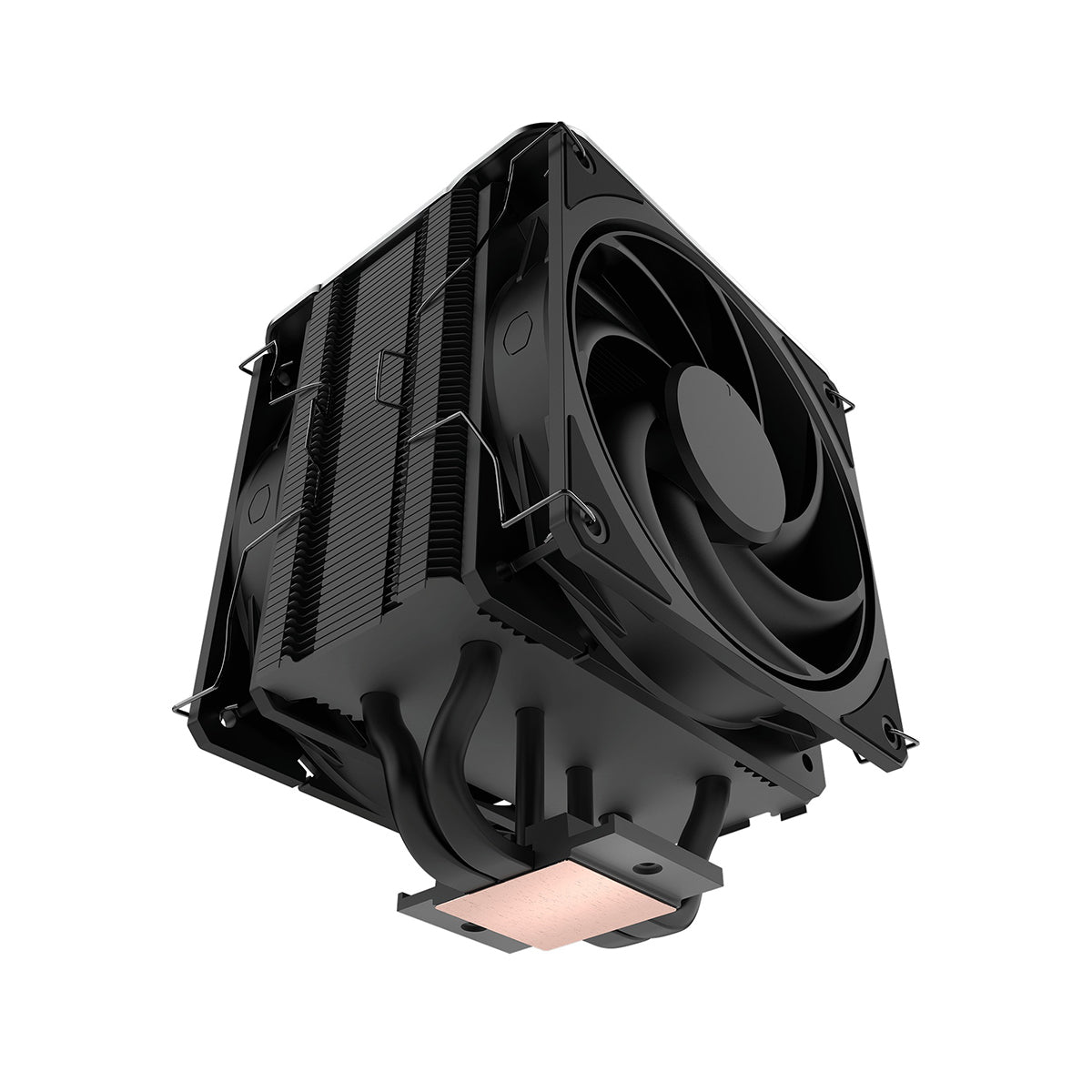

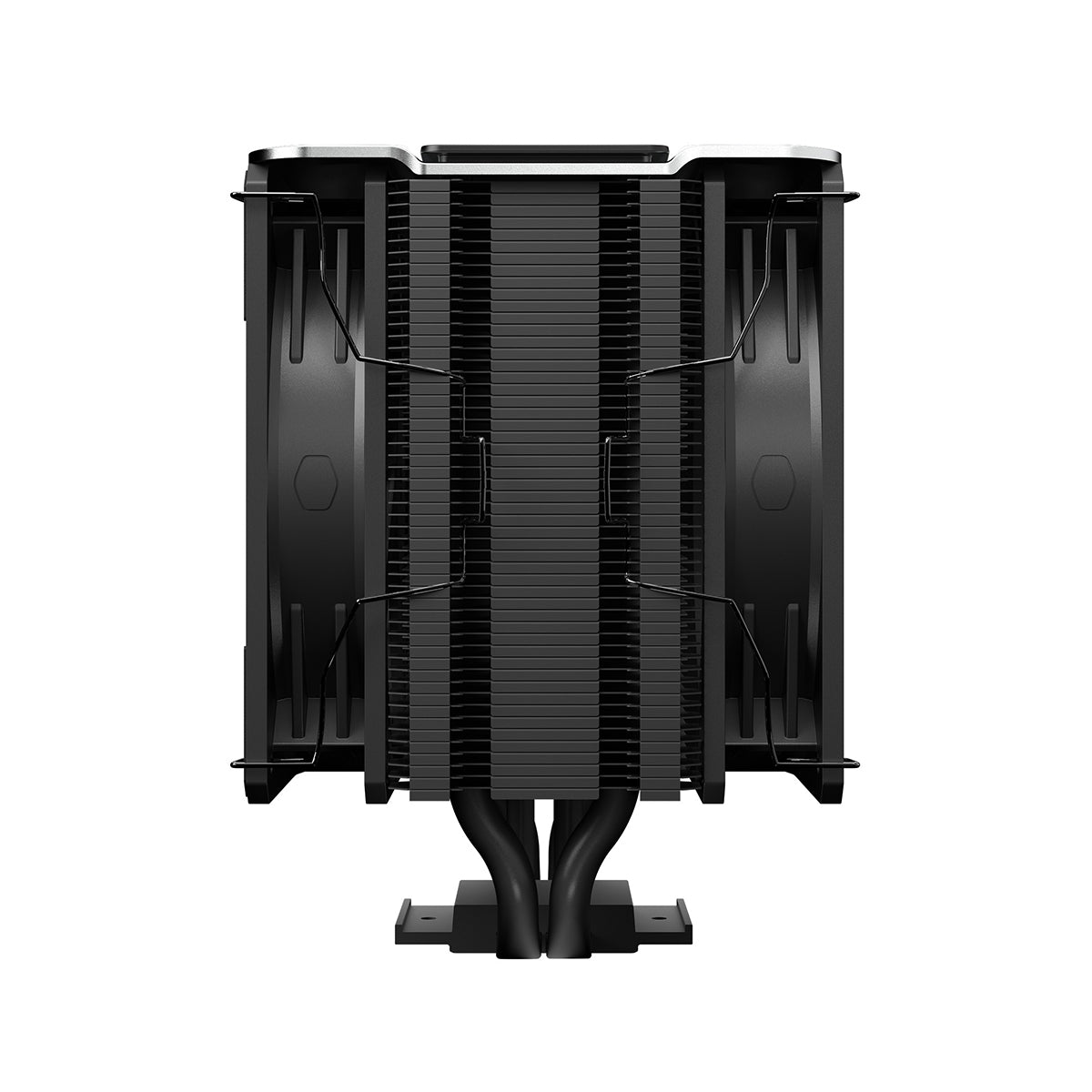

V4 Alpha 3DHP Black
- Cooler Master Proprietary 3DHP technology
- Excellent thermal dissipation
- Pre-installed ring blade fans
- Larger contact surface area
Specifications:
| Product Name | V4 Alpha 3DHP Black |
| Product Number | MAZ-T2HP-217PK-R1 |
| Exterior Color | Black |
| CPU Socket (Intel) | Intel® LGA 1851 / 1700 / 1200 / 1151 / 1150 / 1155 / 1156 |
| CPU Socket (AMD) | AMD® AM5 / AM4 |
| Dimensions | 133 × 114 × 161 mm (5.2 × 4.5 × 6.3 in) |
| Heatsink Material | 2 × 3DHP Heatpipes / Aluminum Fins |
| Fan Configuration | Front / Rear |
| Fan Dimensions | 120 × 120 × 25 mm |
| Fan LED | Non-LED |
| Fan Quantity | Front: 1, Rear: 1 |
| Fan Speed | Front: 0–2050 RPM ±10% Rear: 0–1850 RPM ±10% |
| Fan Airflow | Front: 107.2 m³/h (63.1 CFM) Rear: 85.8 m³/h (50.5 CFM) |
| Fan Air Pressure | Front: 2.69 mmH₂O Rear: 1.77 mmH₂O |
| Fan Noise Level | Front: 22.6 dBA Rear: 20 dBA |
| Fan MTTF | >200,000 Hours |
| Fan Bearing Type | Loop Dynamic Bearing |
| Fan Power Connector | 4-Pin PWM |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | Front: 0.12 A Rear: 0.08 A |
| Fan Safety Current | 0.35 A |
| Fan Power Consumption | Front: 1.44 W Rear: 0.96 W |
| Warranty | 5 Years |
| Series | V |
| Fan Size | 120 mm |
| Heatpipes | 2 |
| Cooler Type | Air Cooler |
