Description

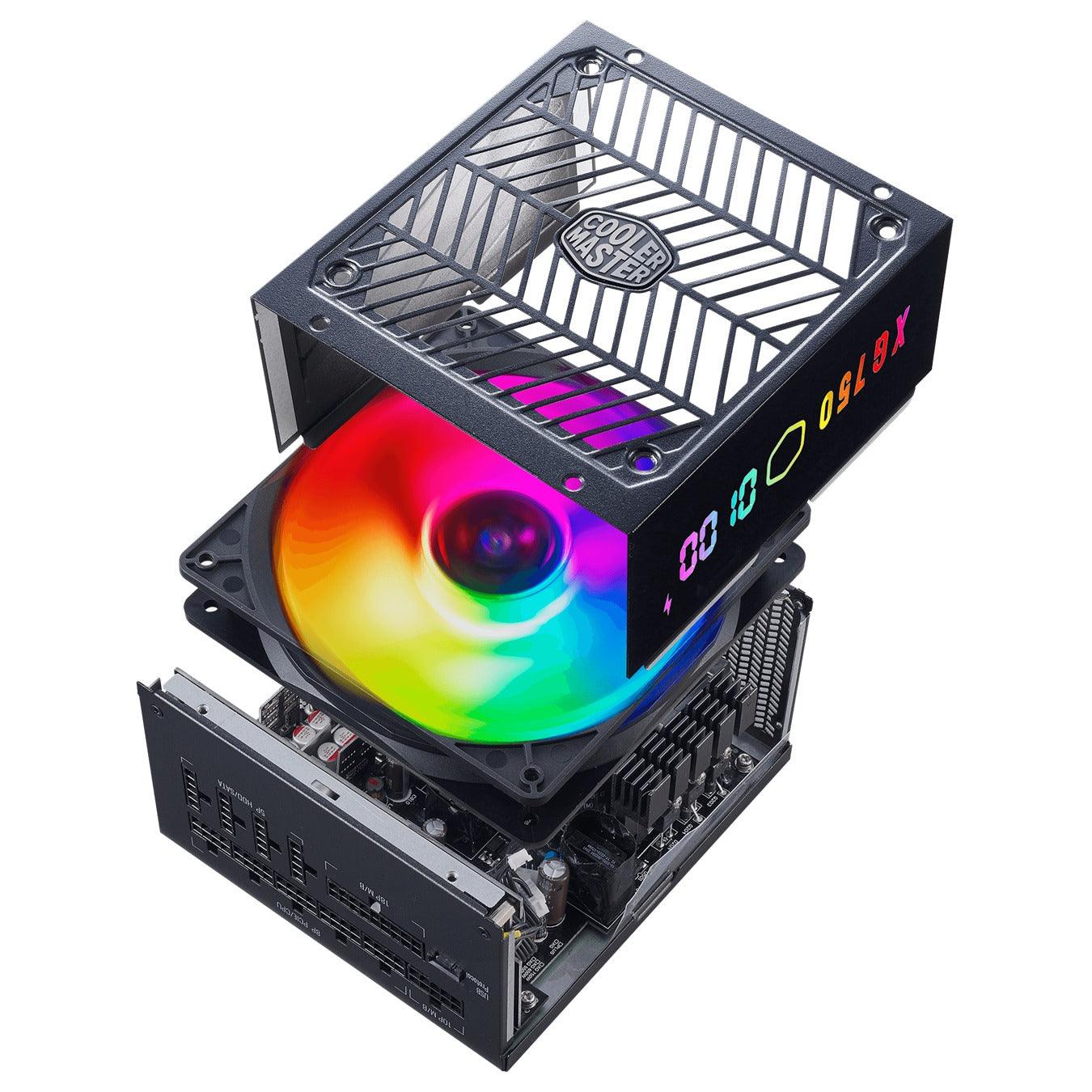

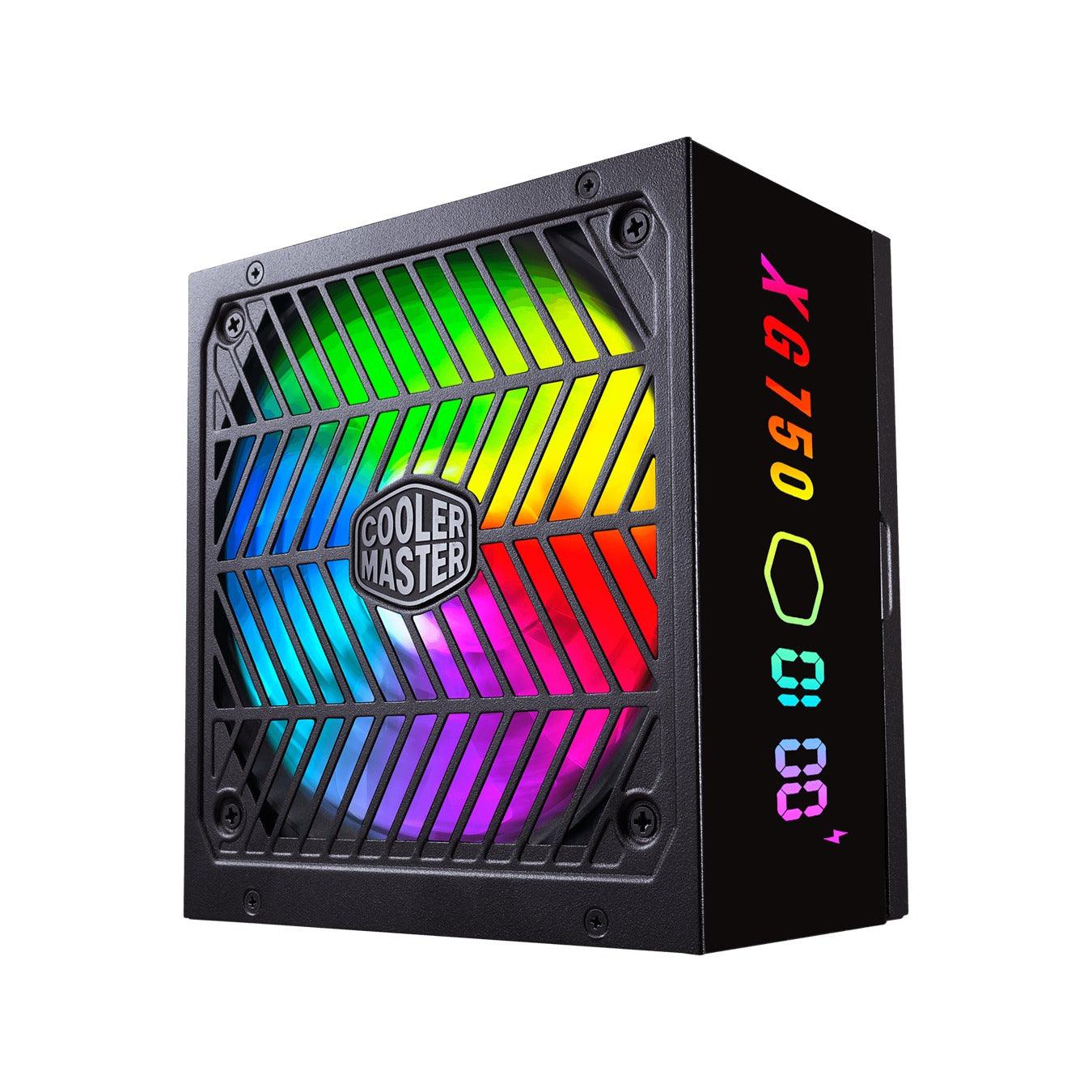

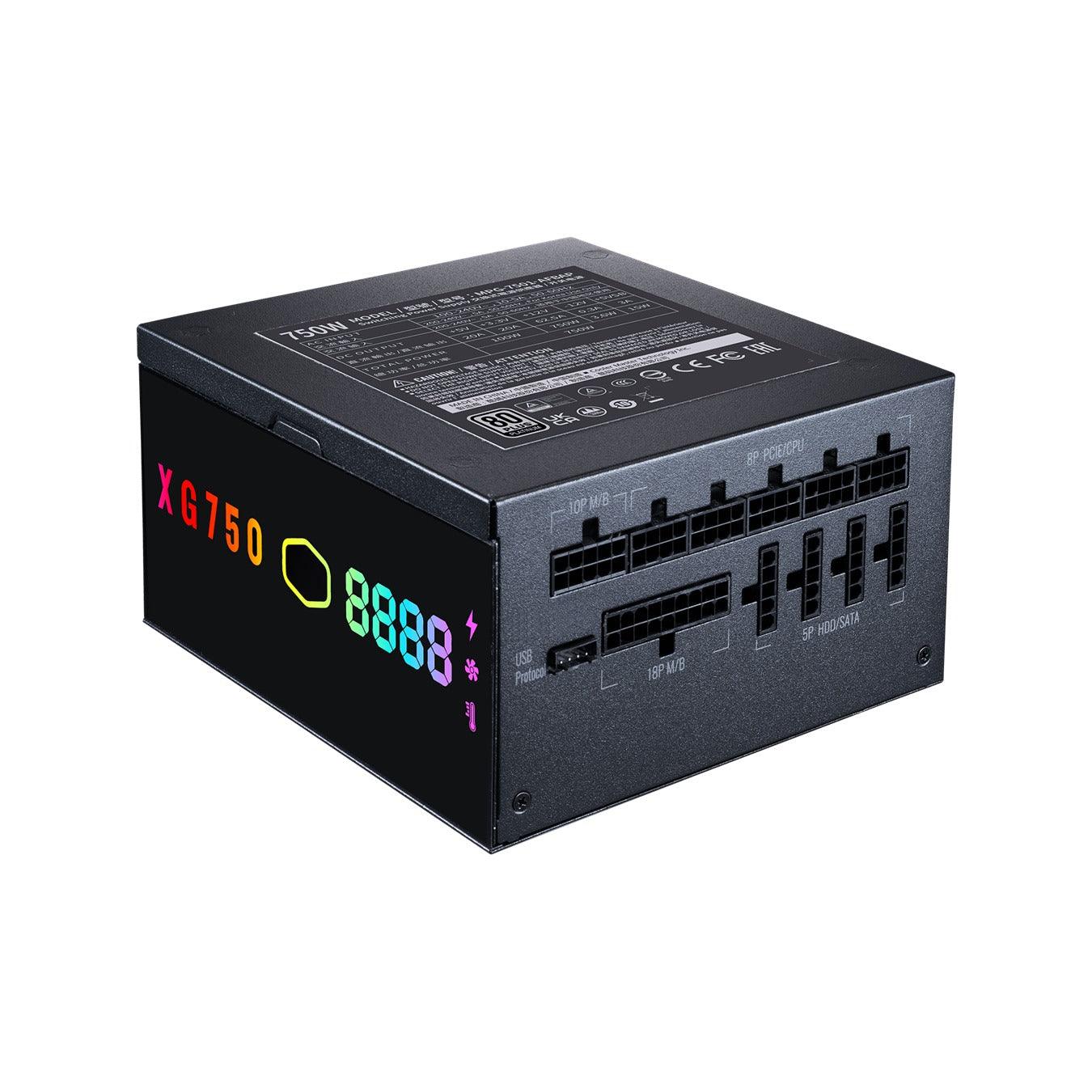

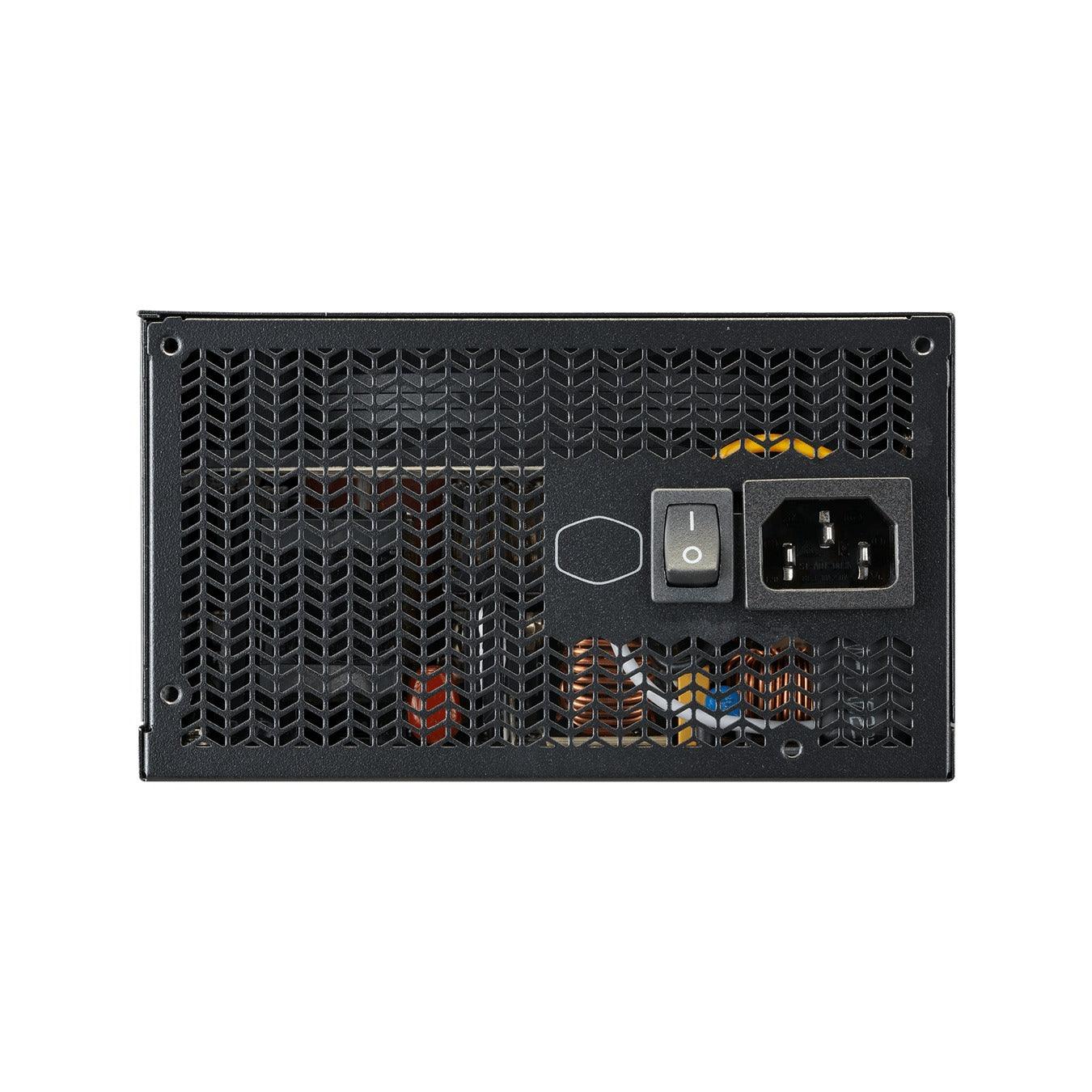

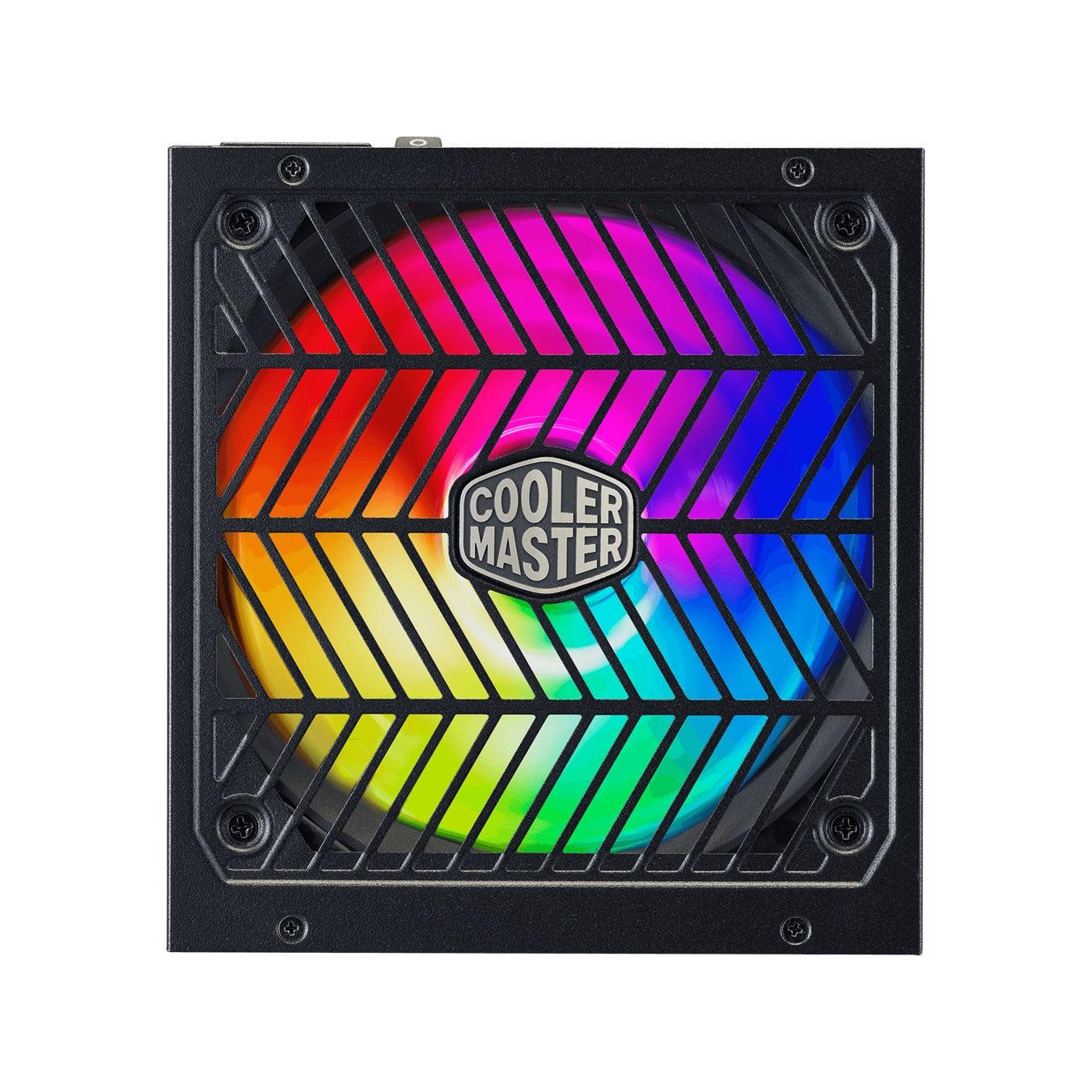

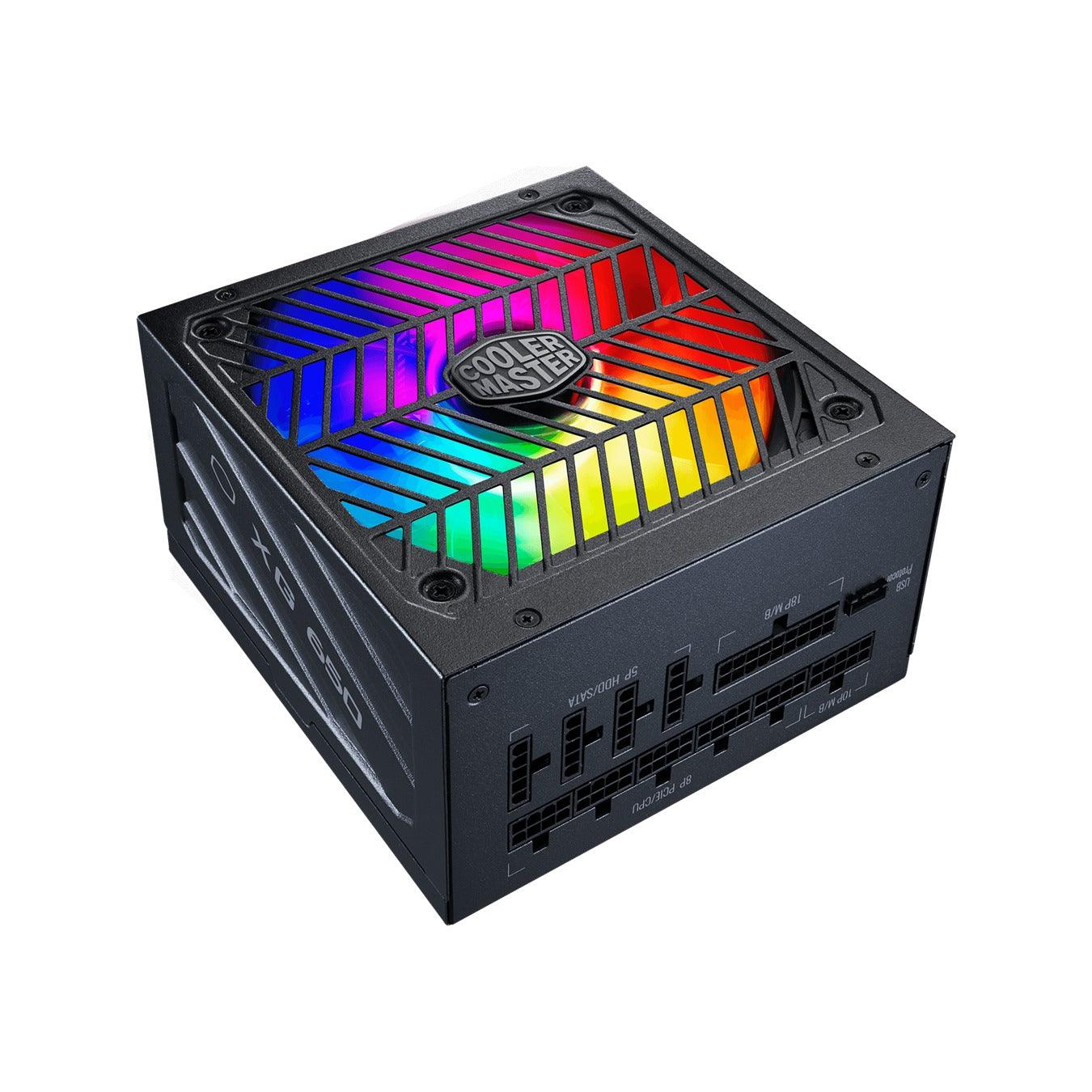

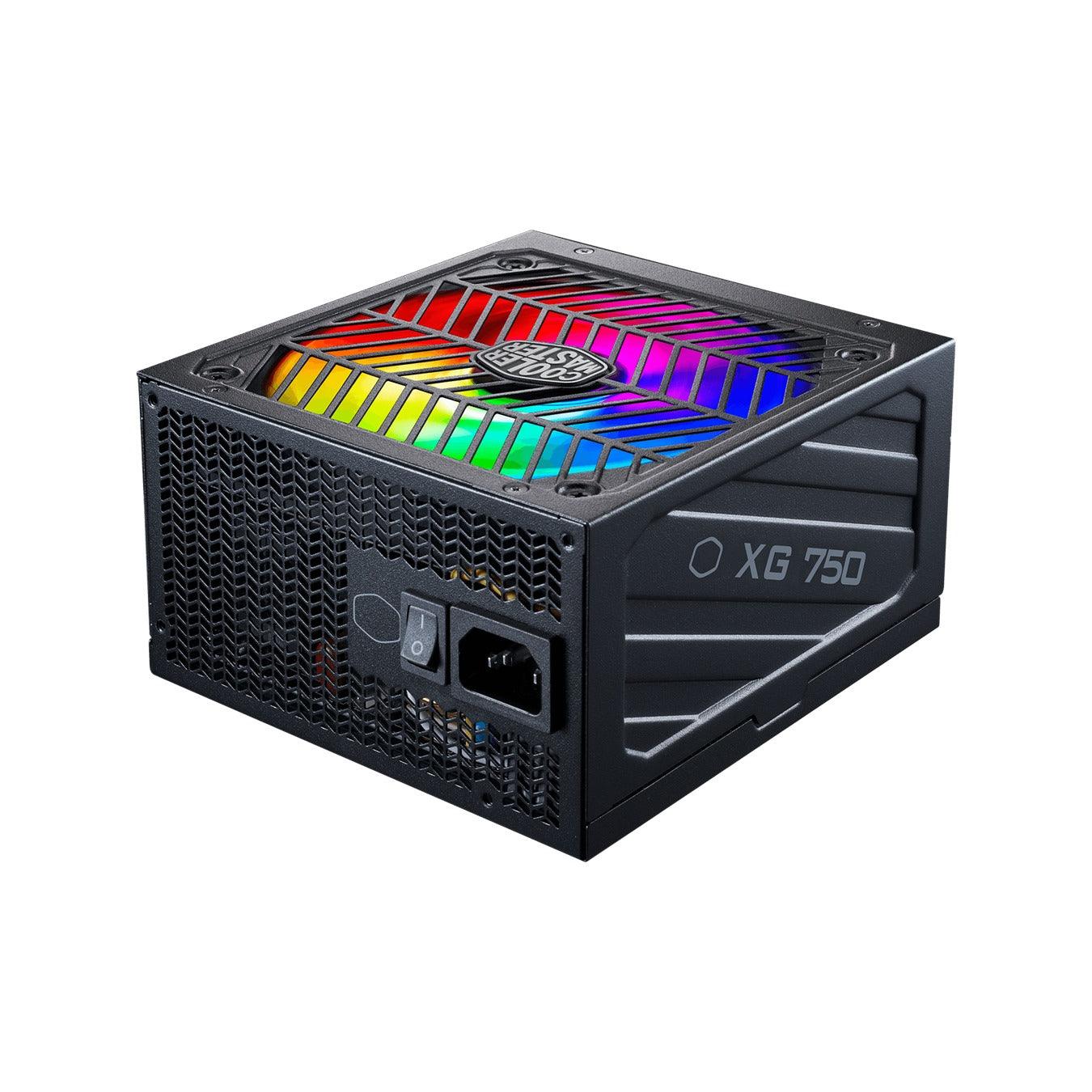

XG750 PLUS PLATINUM
FULL MODULAR 80 PLUS PLATINUM ARGB POWER SUPPLY WITH DIGITAL OPTIONS
Intel ATX 12V Version 2.53
80 PLUS Platinum Certified
Quiet ARGB 135mm silent Fan
Built-in Information Display Panel
Full-Modular Cabling with 100% Japanese In-Line Capacitors
10-Year Warranty
SPECIFICATIONS:
| Model | MPG-7501-AFBAP-X** |
| ATX Version | Intel ATX 12V Ver. 2.53 |
| PFC | Active PFC |
| Input Voltage | 100-240V |
| Input Current | 10-5A |
| Input Frequency | 50-60Hz |
| Dimensions (L x W x H) | 160 x 150 x 86 mm |
| Fan Size | 135mm |
| Fan Speed | 1800 RPM |
| Noise Level @ 100% | ≤ 25 dBA |
| Efficiency | ≥ 92% @ Typical Load |
| 80 PLUS Rating | 80 PLUS Platinum |
| ErP 2014 Lot 3 | Yes |
| Operating Temperature | 0-50°C |
| Power Good Signal | 100 - 150 ms |
| Hold Up Time | ≥ 16ms |
| MTBF | >100,000 Hours |
| Protections | OPP, OVP, OCP, UVP, SCP, OTP, Surge and Inrush Protection |
| Regulatory | TUV, cTUVus, CE, BSMI, FCC, CCC, EAC, UKCA |

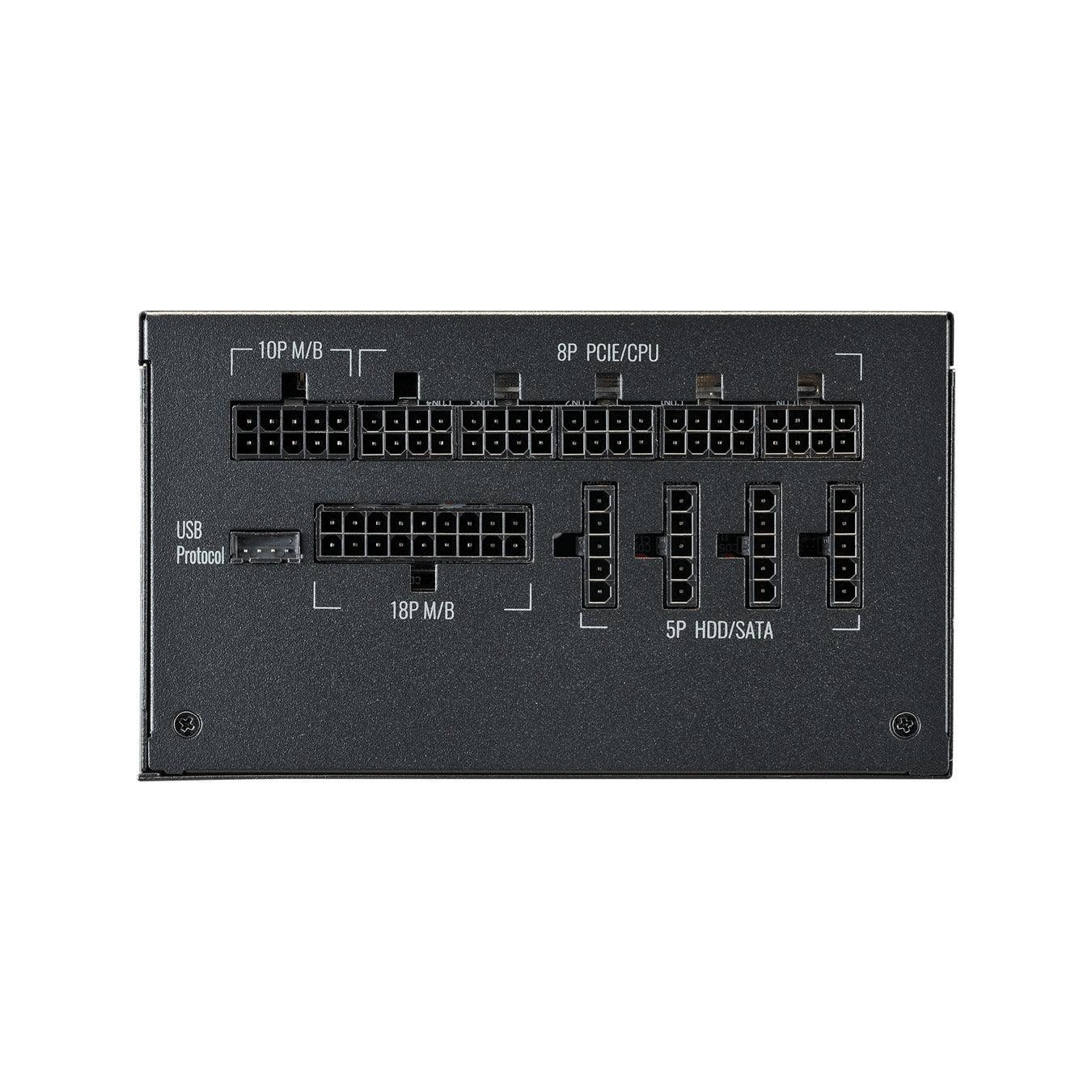

| ATX 24 Pin Connectors | 1 |
| EPS 4+4 Pin Connectors | 1 |
| EPS 8 Pin Connector | 1 |
| SATA Connectors | 12 |
| Peripheral 4 Pin Connectors | 4 |
| PCI-e 6+2 Pin Connectors | 4 |
| USB Protocol 10P | 1 |
| Series | XG Series |
| 80 Plus | Platinum |
| Modular | Full Modular |
| Wattage | 500 to 750W |
