Description

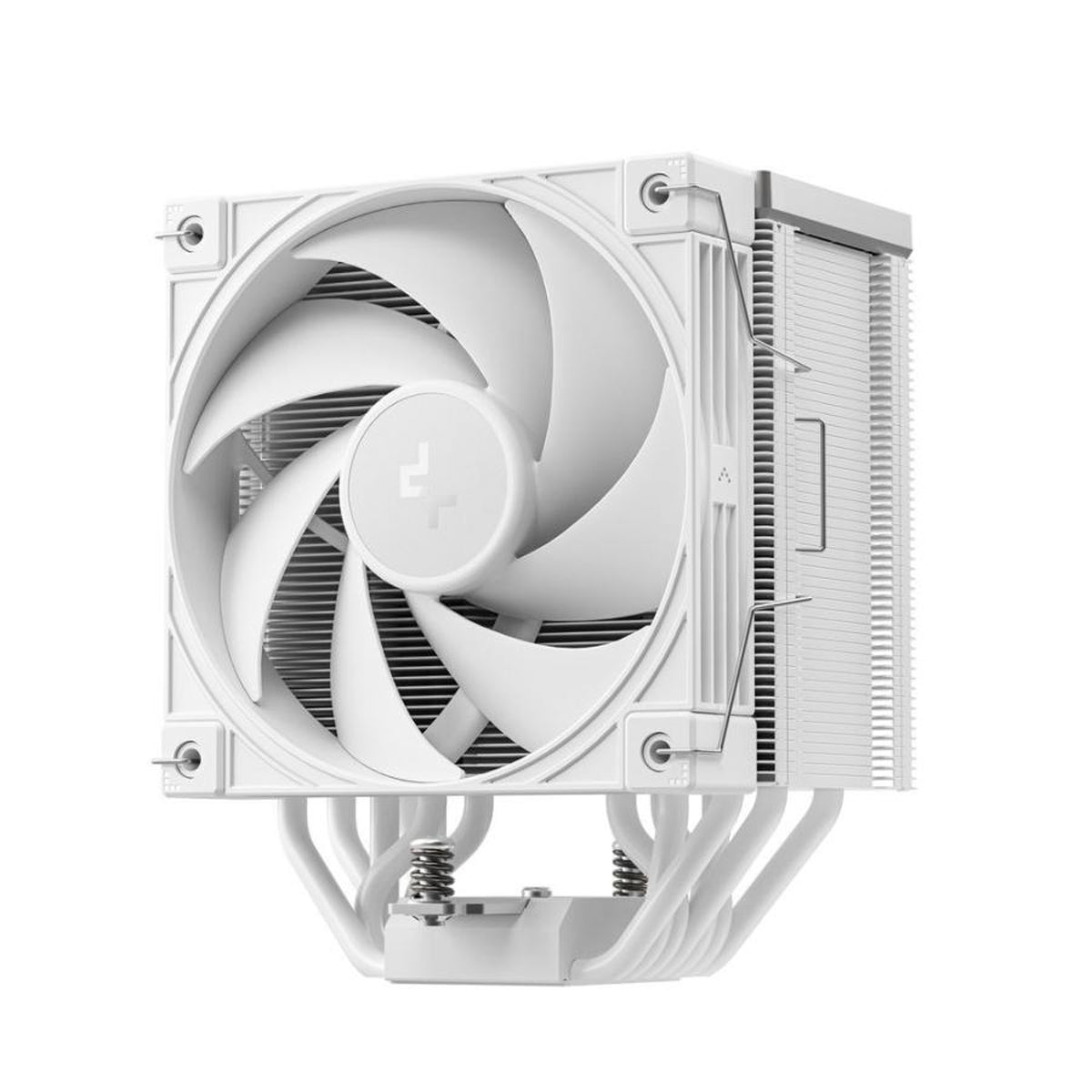

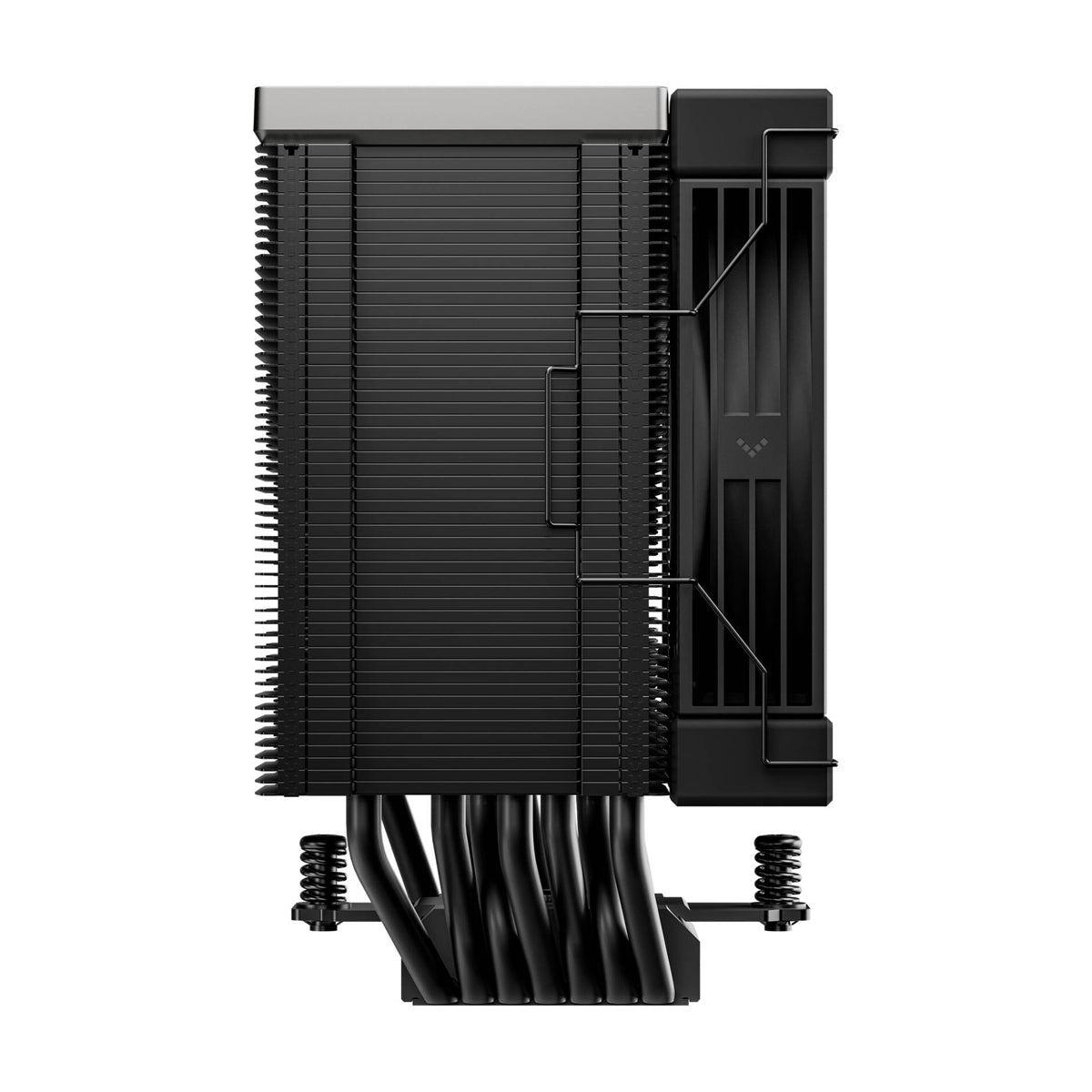

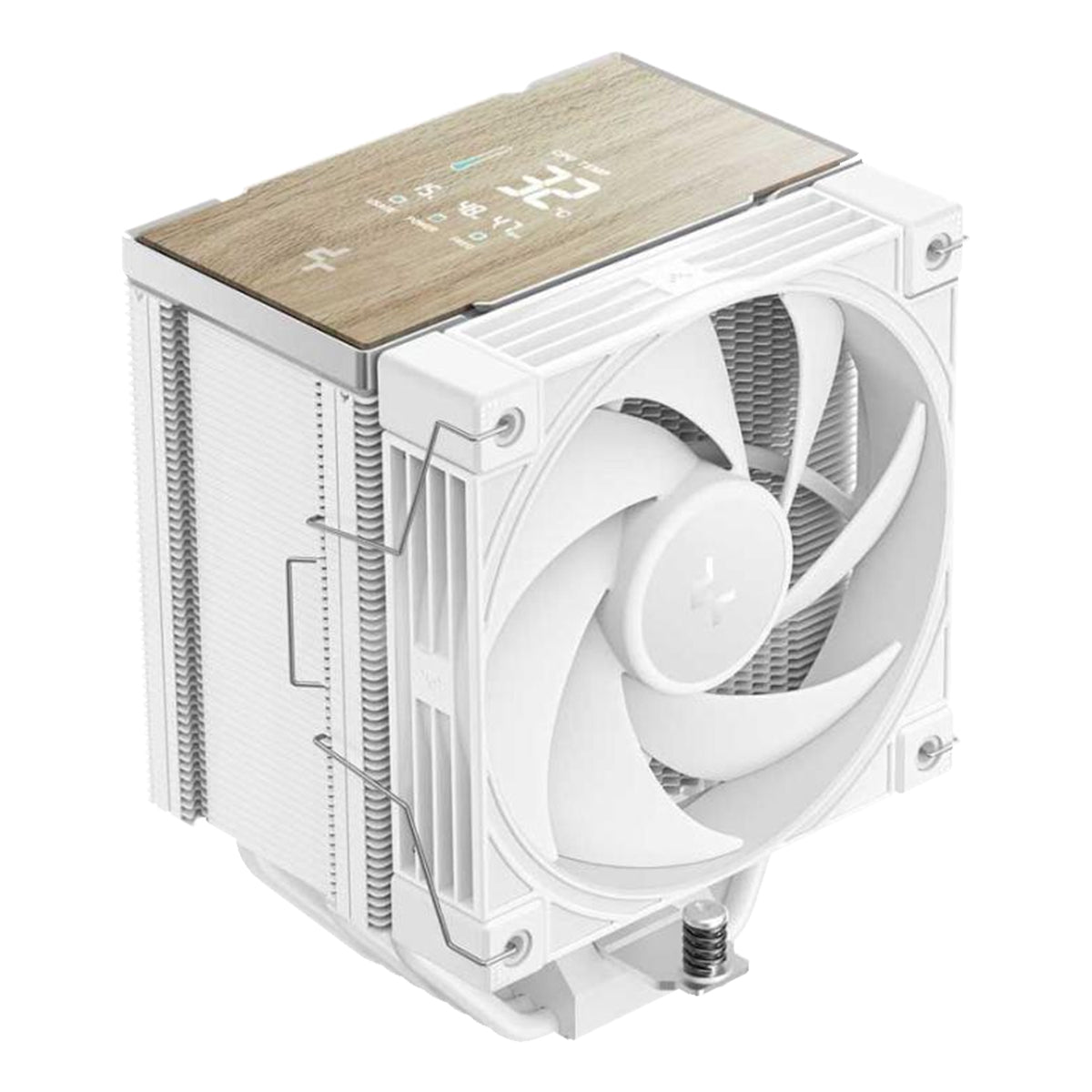

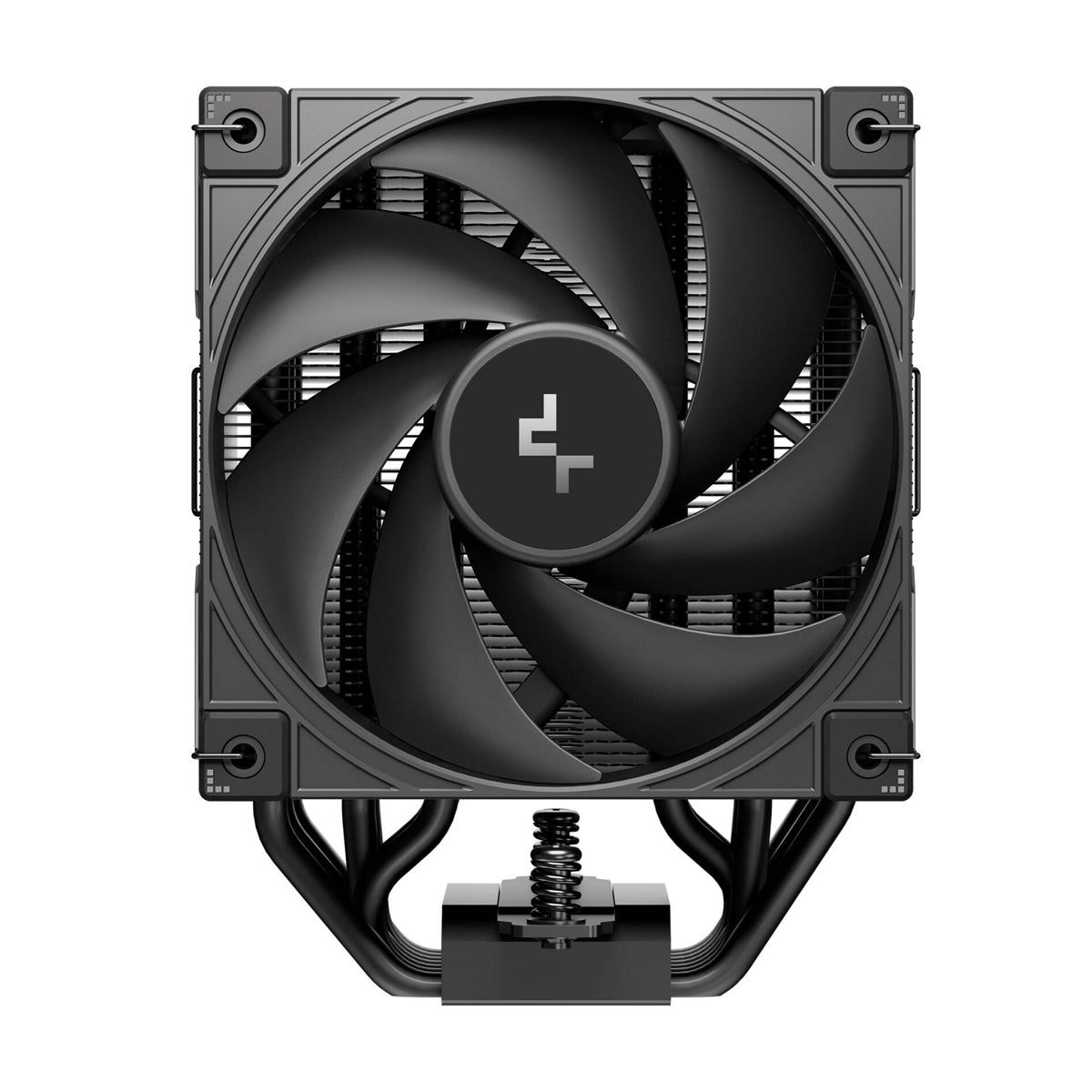

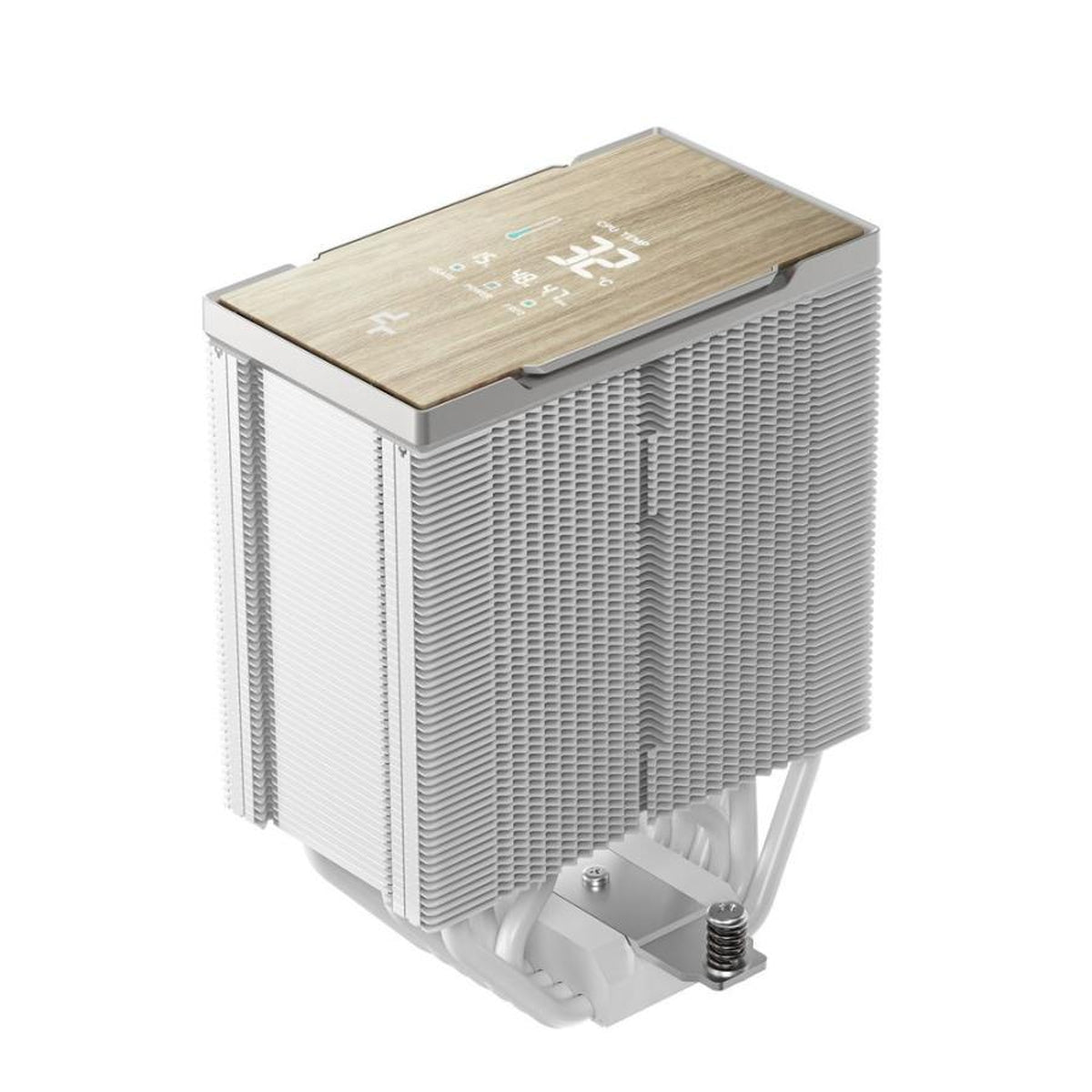

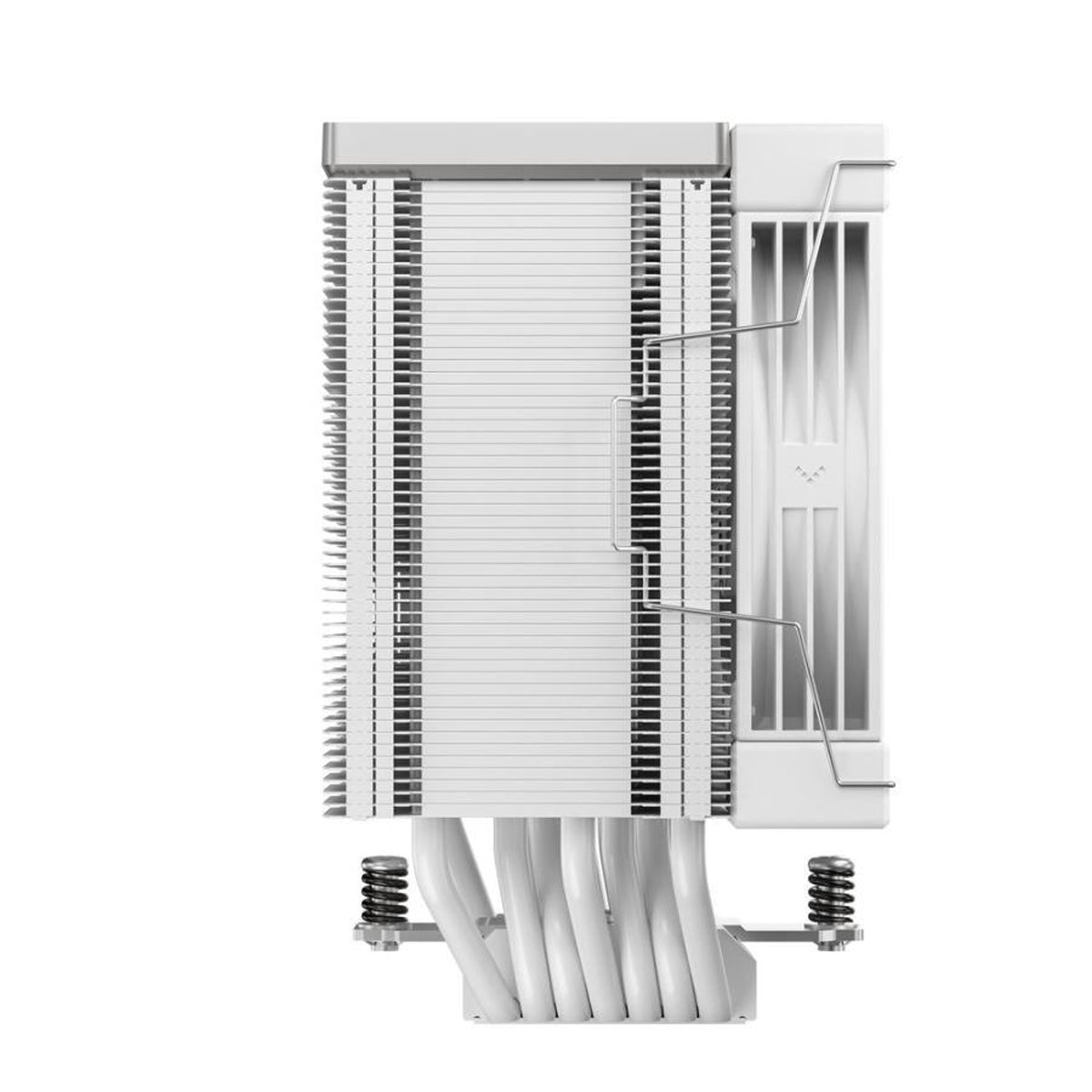

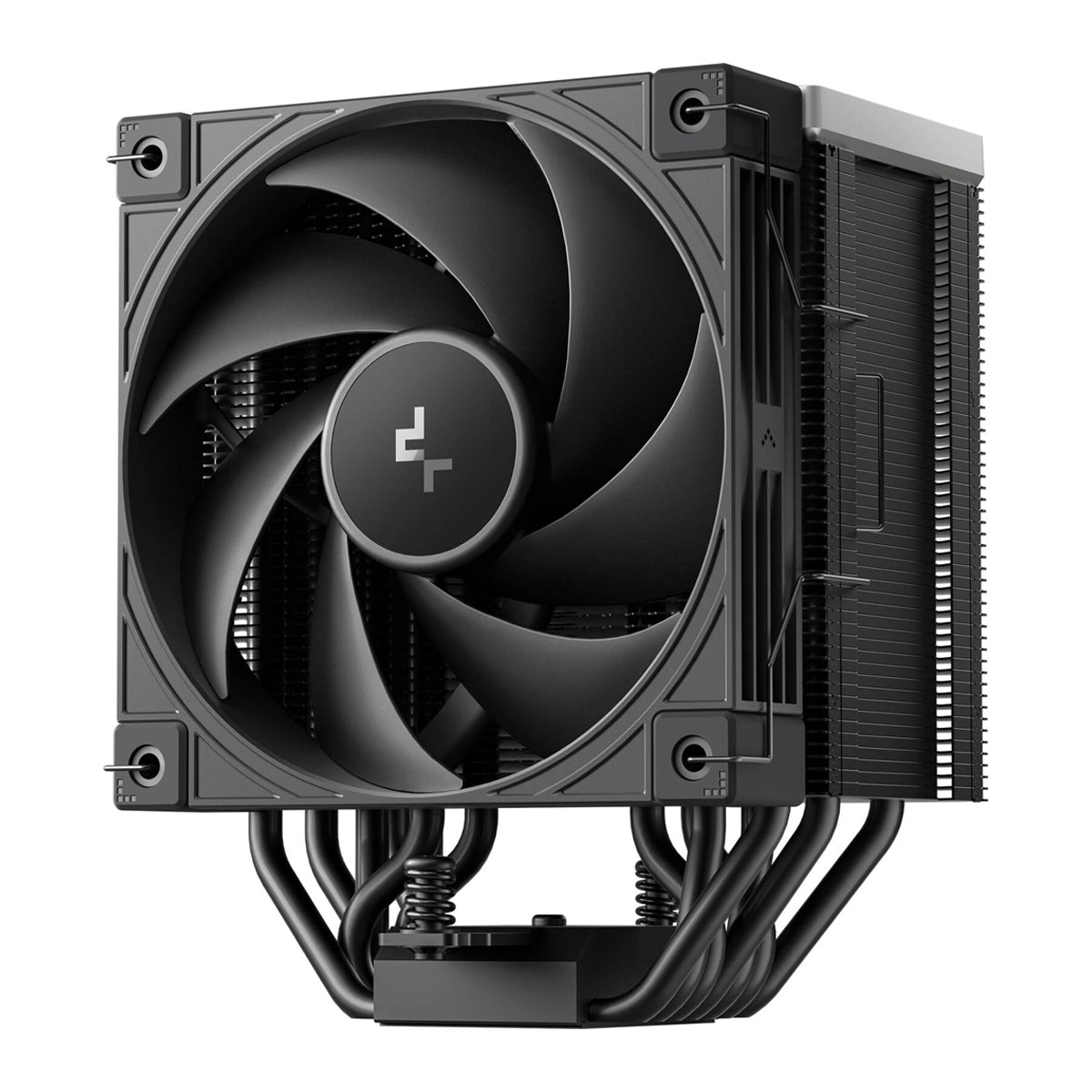

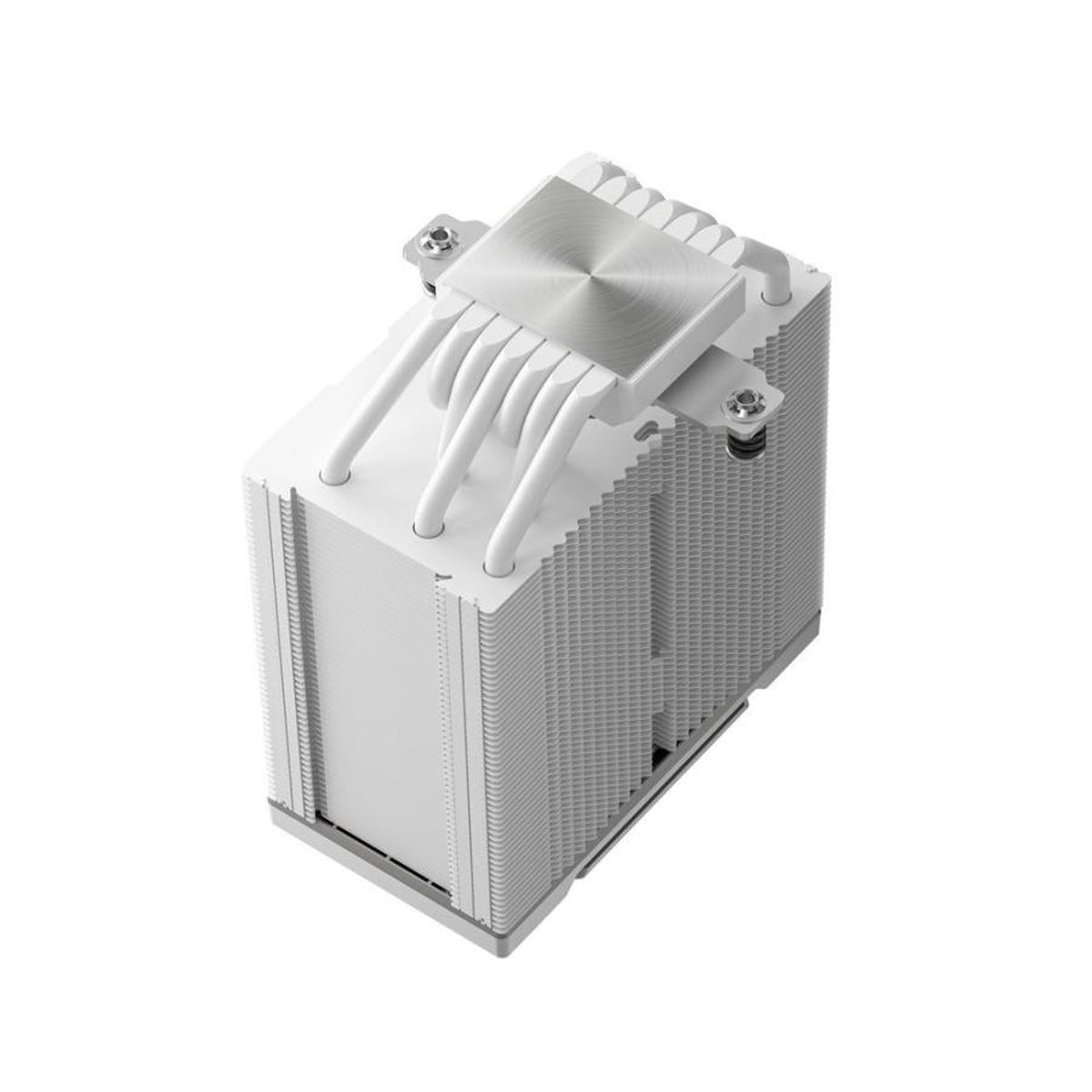

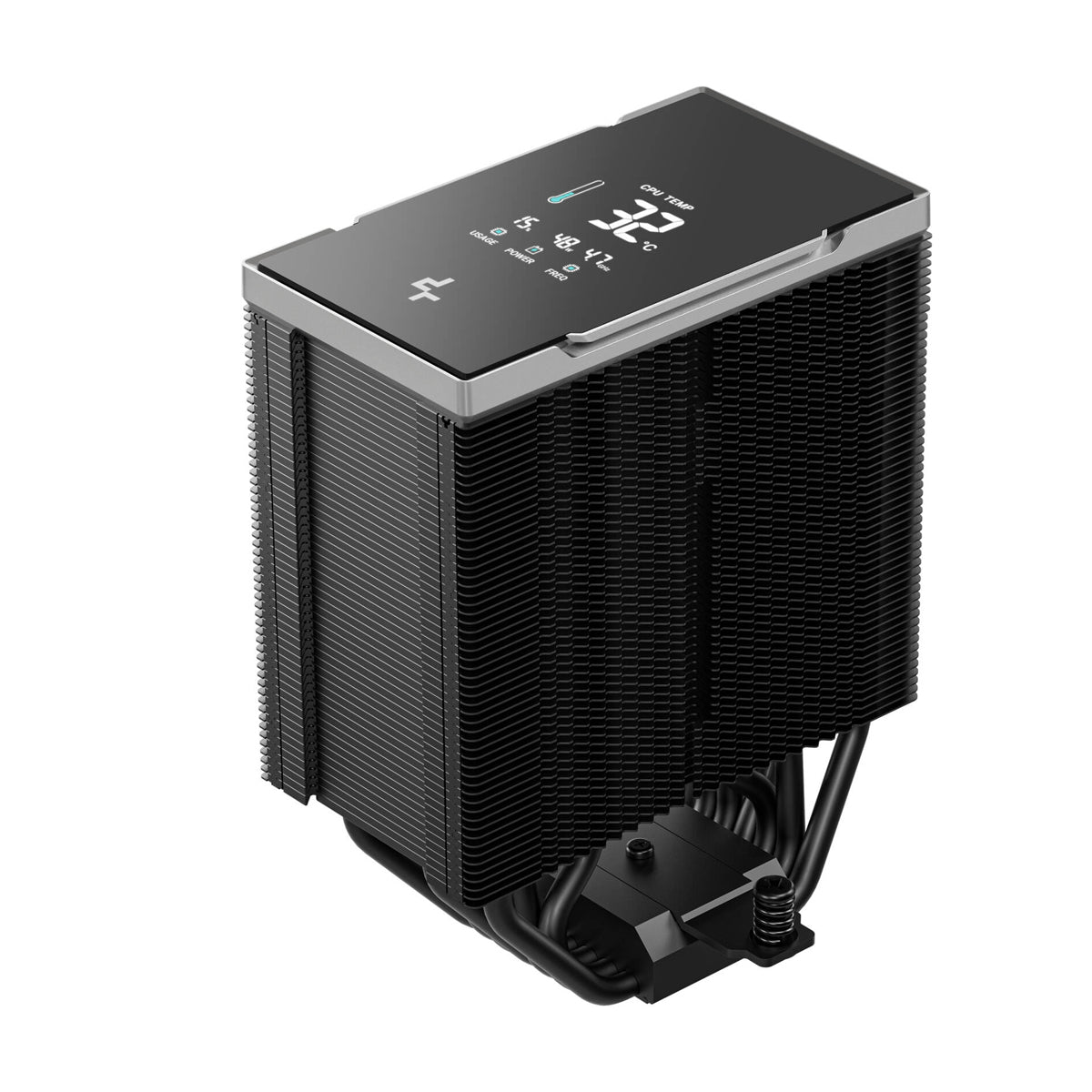

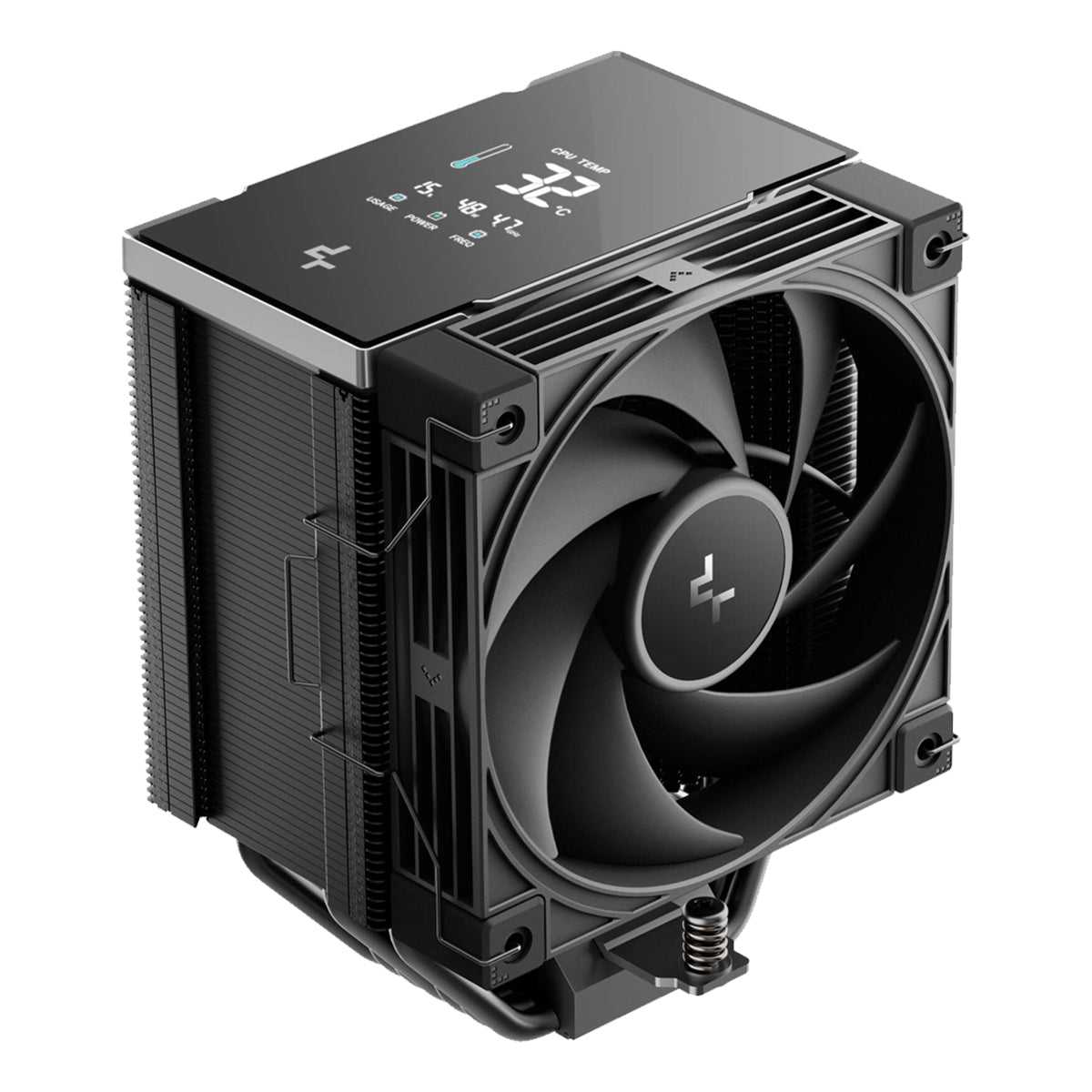

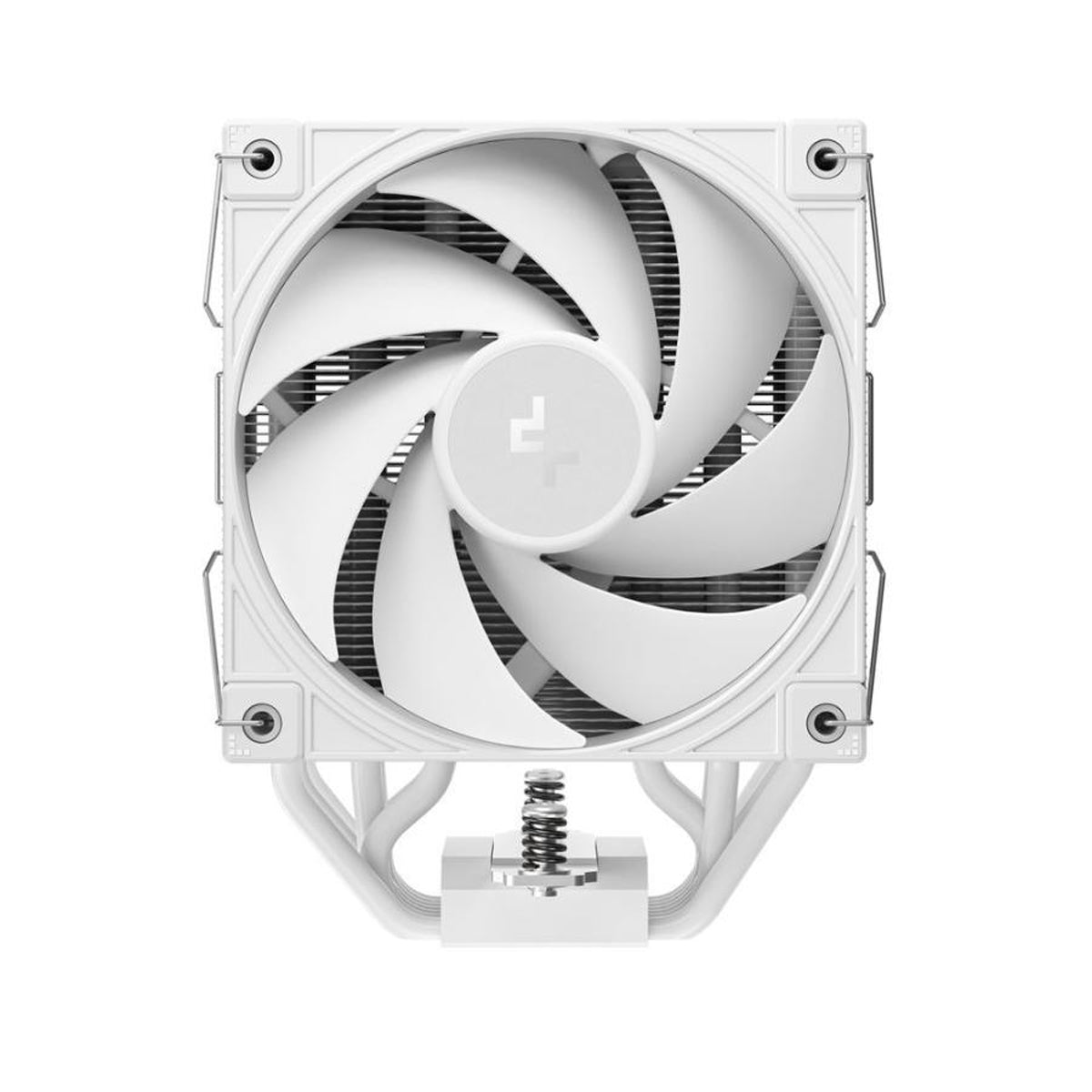

Building on the legendary AK DIGITAL lineup, the AK700 DIGITAL NYX delivers enhanced cooling and a bold new look. Equipped with seven advanced copper heat pipes, a dense single-tower heatsink, newly designed silent fan, and a high-end quad-segmented digital display, it offers top-tier performance and intuitive real-time monitoring.
Specifications:
| Product Dimensions | 126×98×157 mm (L×W×H) |
| Heatsink Dimensions | 124×76×151 mm (L×W×H) |
| Net Weight | 1252 g |

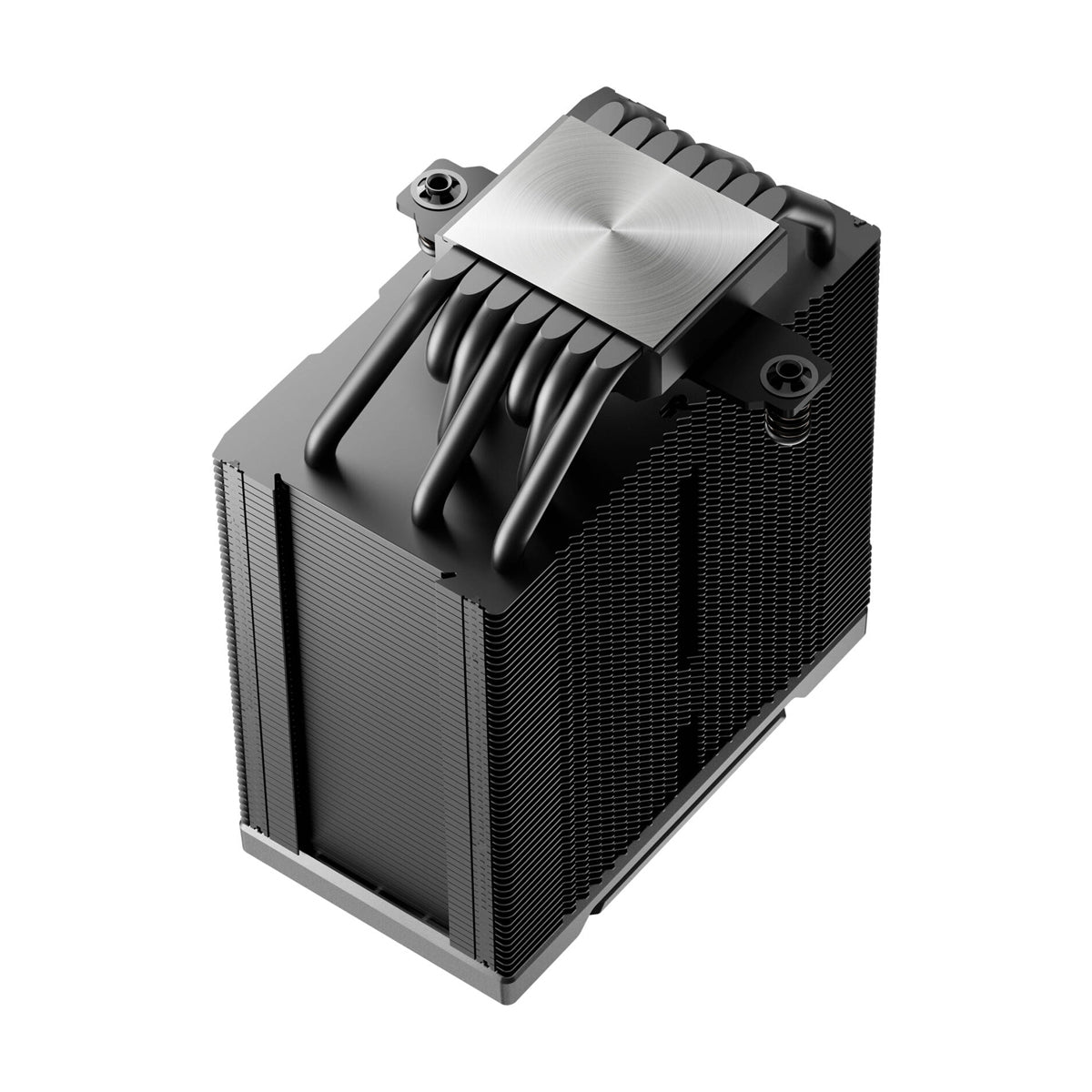

| Heatpipe | Ø6 mm × 7 pcs |

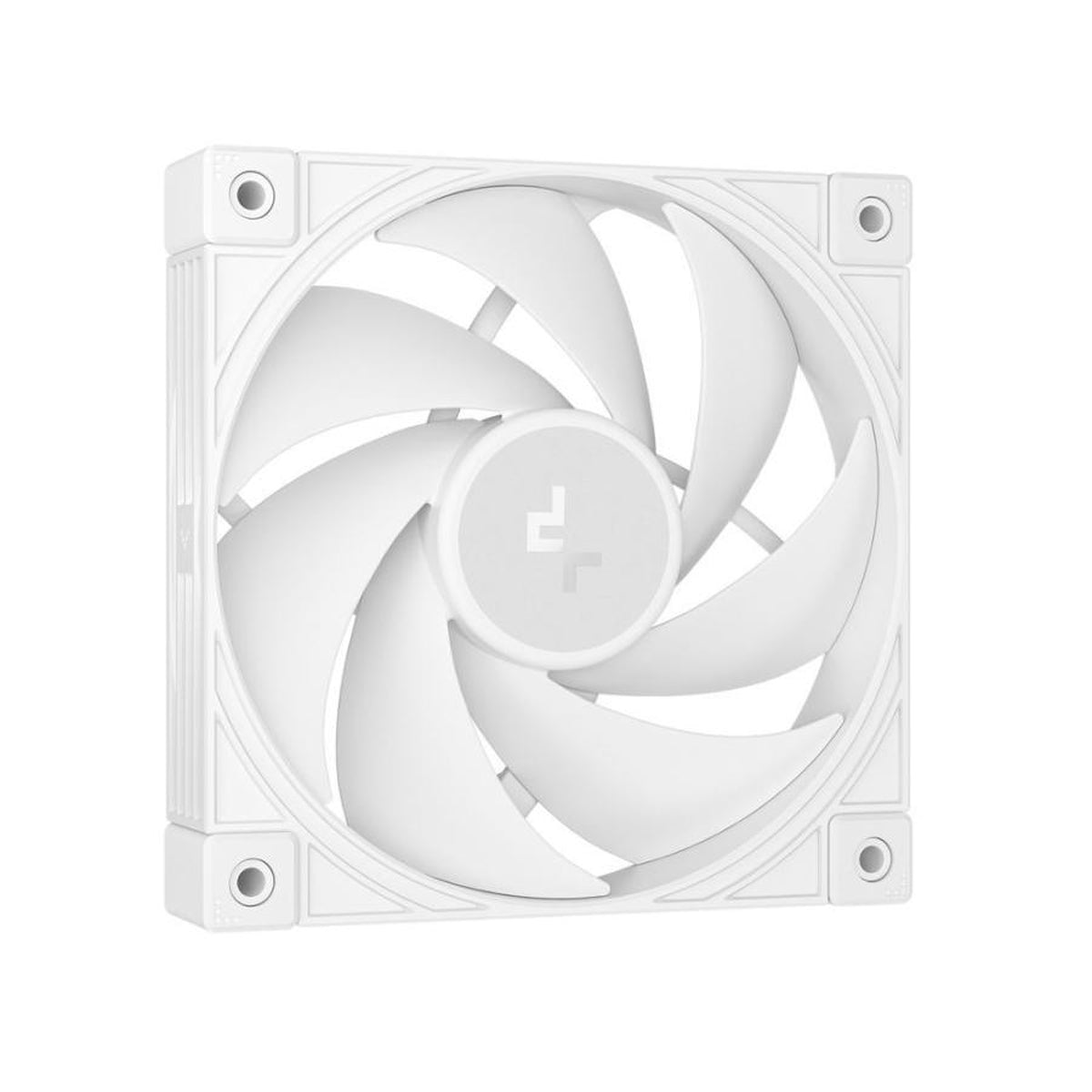

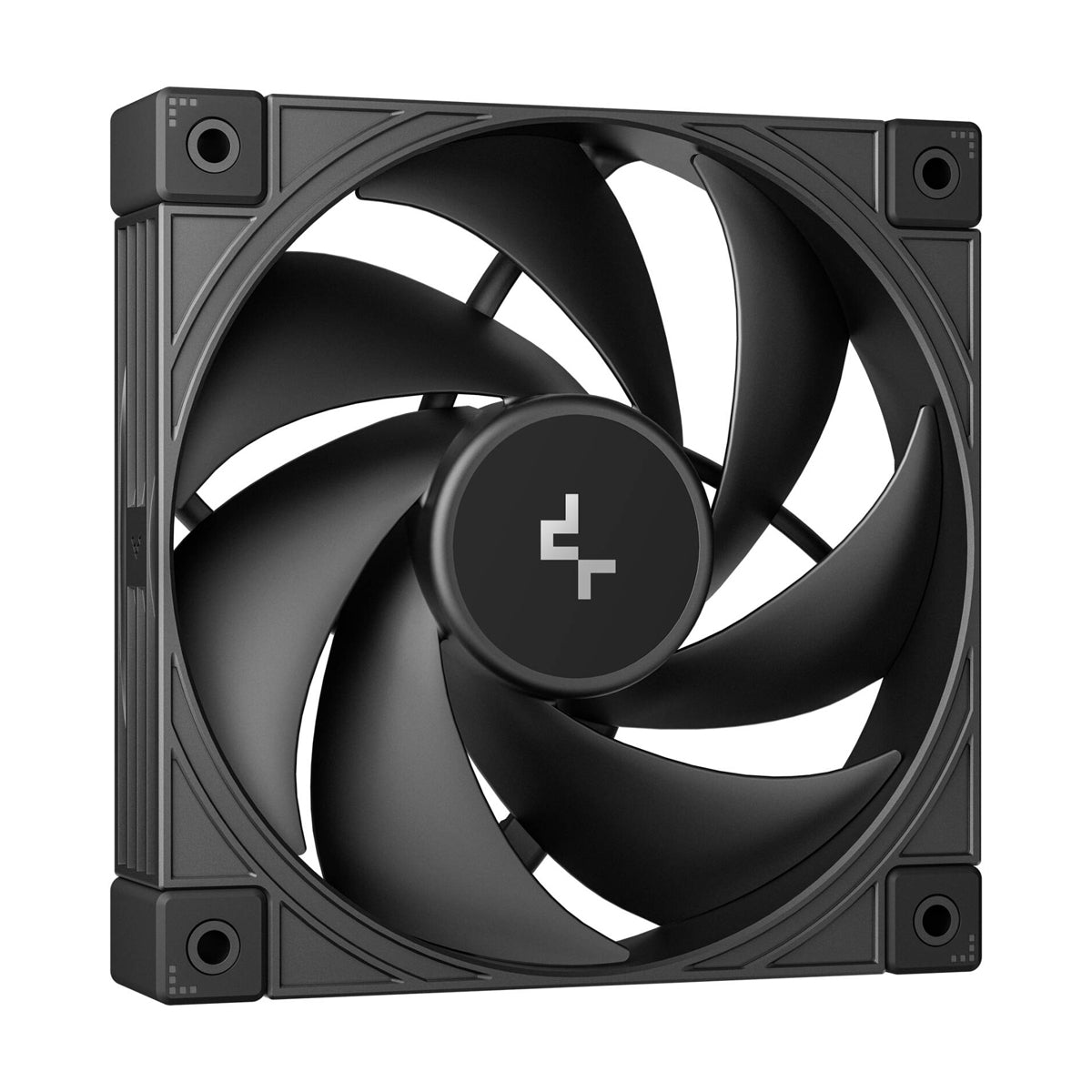

| Fan Dimensions | 120×120×25 mm (L×W×H) |
| Fan Speed | 2700 ±10% RPM (max) |
| Fan Airflow | 77.23 CFM |
| Fan Air Pressure | 5.13 mmAq |
| Fan Noise | 21.0 / 28.8 / 36.0 dB(A) |
| Fan Connector | 4-pin PWM |
| Bearing Type | Hydro Bearing |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.35 A |
| Fan Power Consumption | 4.2 W |
| Display Module Rated Current | 0.13 A ±10% |
| Display Module Rated Voltage | 5 VDC |
| Display Module Power Consumption | 0.65 W |
| Display Area | 29 × 39 mm |
