Description

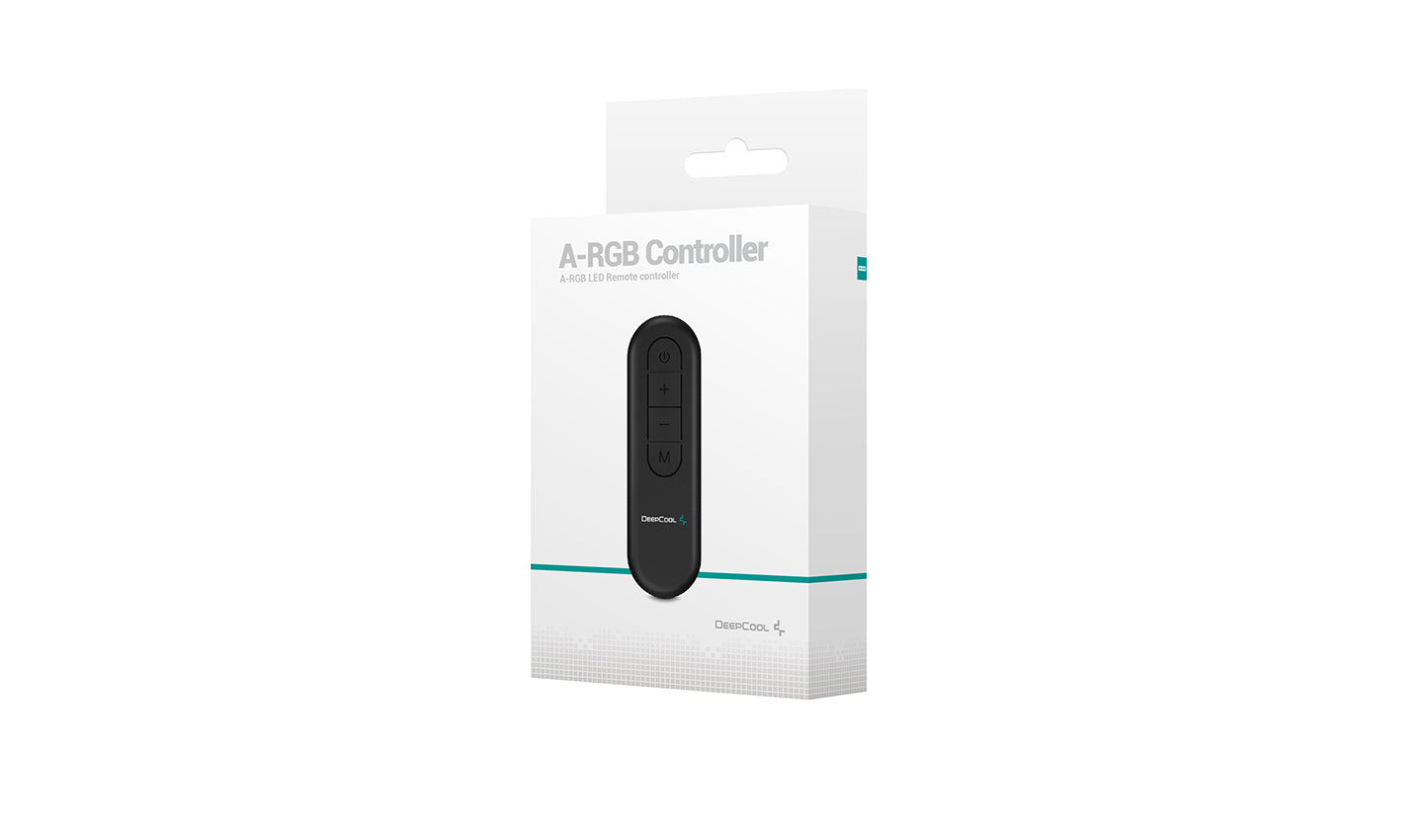

A-RGB Controller
The DeepCool A-RGB Controller is designed to remotely control addressable RGB lighting effects simply without having to install any clunky software.
HOW IT WORKS
The A-RGB Controller system includes a receiver unit and a magnetic remote controller to easily attach to any steel case.
Just plug in a 3-pin A-RGB wire and SATA power cable to the receiver and the remote controller can wirelessly control numerous lighting effect presets.
The remote controller is powered with a 3V button(CR2025) battery (2 included).
THE BACK UP PLAN
Just in case the battery runs out on the remote controller, the receiver unit features a button to manually switch lighting functions or turn on/off.
For added functionality, the receiver unit can also be attached to the front I/O reset button for convenient control outside the case.
SPECIFICATIONS:
| Product Dimension | Remote Control：90×27×9 mm Receiver：55×17×8 mm |
| Net Weight | 50 g |
| Port Type | SATA 5V×1 、3-pin(+5V-D-G)×1 |
| Extension Port | 2-pin |
| Length of HUB Strip Cable | SATA 5V×1：400 mm 3-pin(+5V-D-G)×1：170 mm |
| Mounting Method | Magnet |
