Description
AS500 PLUS WH
Optimized Efficiency. Unrivaled Compatibility
OVERVIEW

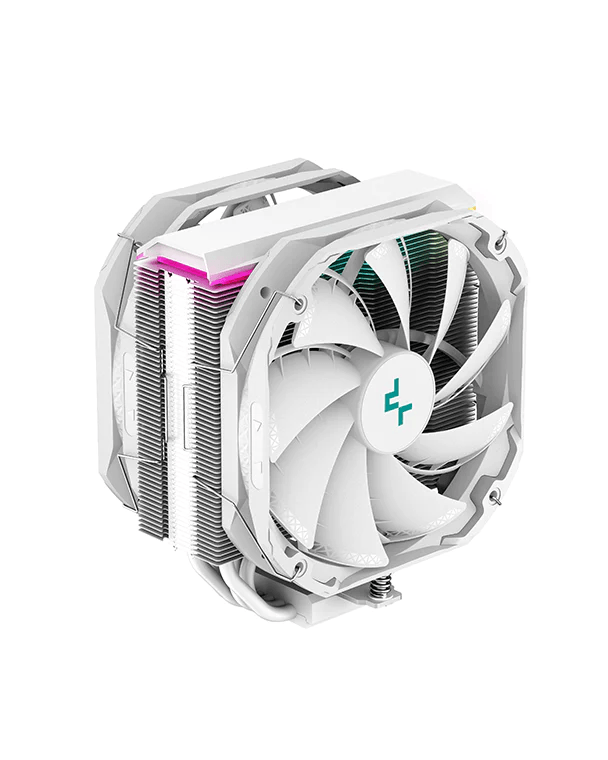

The DeepCool AS500 PLUS WH single tower CPU cooler boasts a five heat pipe, all white design with two 140mm PWM fans for great performance in a slim profile.
ELEVATED COOLING PERFORMANCE

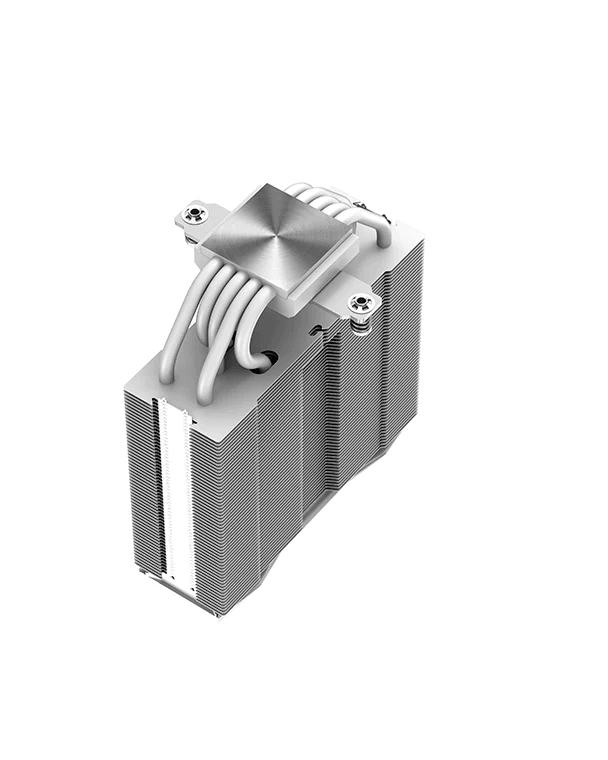

Optimize heat exchange through a solid copper base with optimal surface contact that runs five 6mm heat pipes in a single tower with high fin density
SIZED JUST RIGHT
Designed for maximum RAM height compatibility in a slim (48mm) profile.
CONTROL YOUR TEMPS

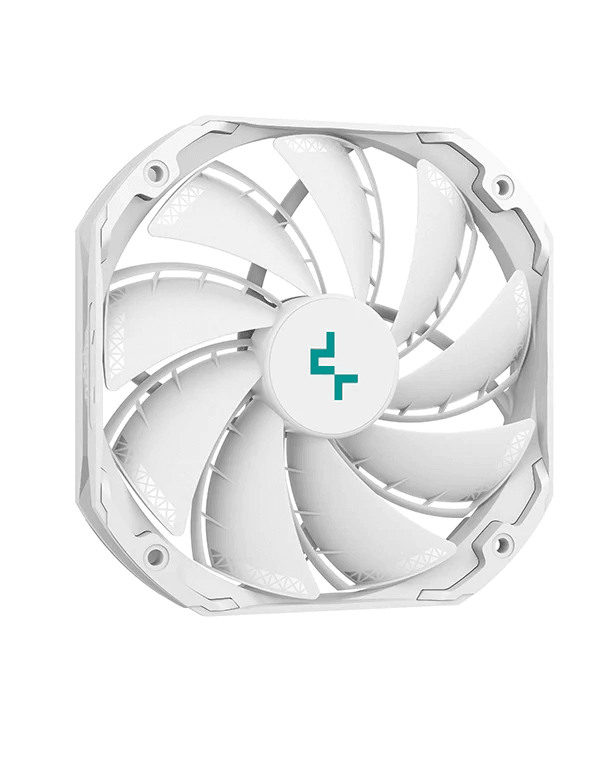

The high-performance 140mm PWM fans provide precise control between extreme cooling or low-noise operation with long-life durability.
A-RGB LED CONTROLLER
An included wired controller allows for a quick and easy way to adjust lighting effects without installing additional software.

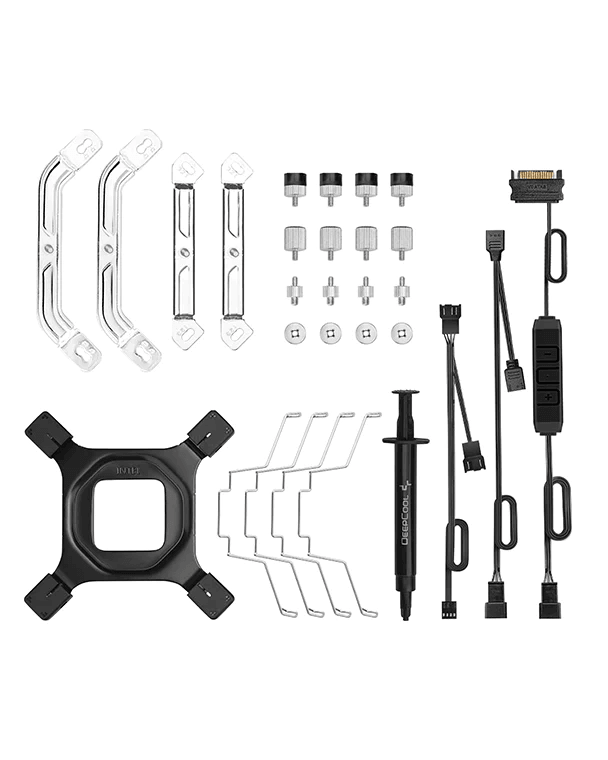

Appropriate A-RGB connector cables for motherboard control are also provided.
Application For
Intel
LGA2066/2011-v3/2011/1700/1200/1151/1150/1155
AMD
AM5/AM4
Technical Spec
| Product Dimensions | 142×102×164 mm |
| Heatsink Dimensions | 140×49×159 mm |
| Net Weight | 1198 g |
| Heatpipe | Ø6 mm×5 pcs |
| Fan Dimensions | 140×140×25 mm |
| Fan Speed | 500~1200 RPM±10% |
| Fan Airflow | 70.81 CFM |
| Fan Air Pressure | 1.14 mmAq |
| Fan Noise | ≤29.2dB(A) |
| Fan Connector | 4-pin PWM |
| Bearing Type | Fluid Dynamic Bearing |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.11 A |
| Fan Power Consumption | 1.32 W |
| LED Type | Addressable RGB LED |
| LED Connector | 3-pin(+5V-D-G) |
| LED Rated Voltage | 5 VDC |
| LED Power Consumption | 1.4 W |
| EAN | 6933412727347 |
| P/N | R-AS500-WHNLMP-G |
