Description

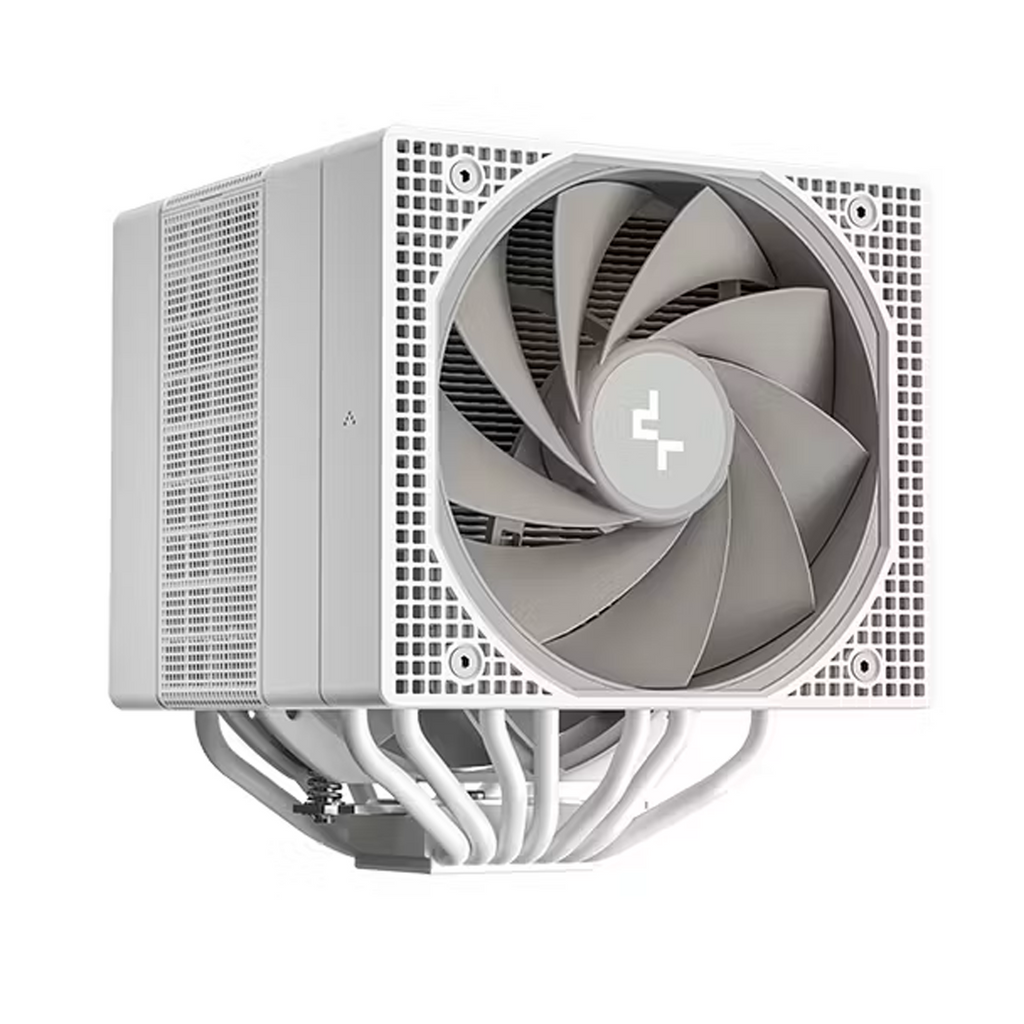

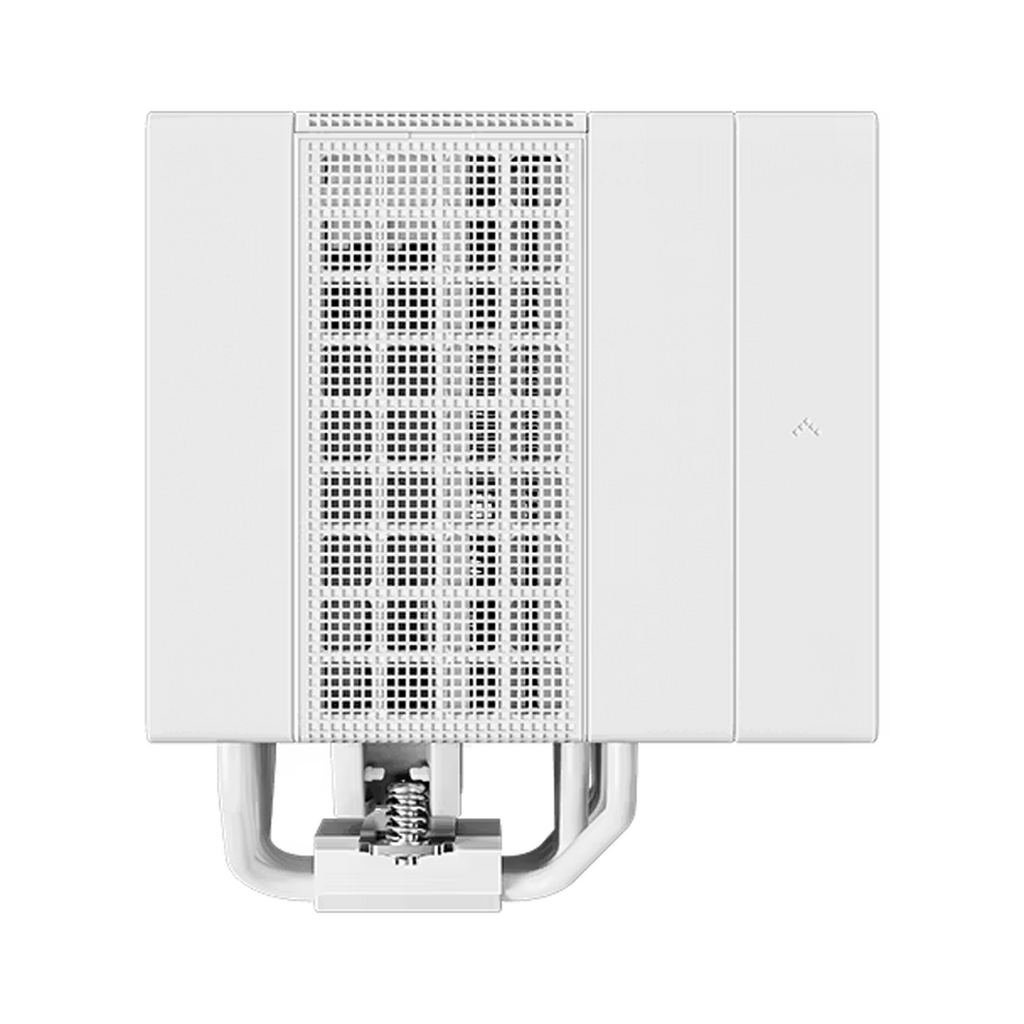

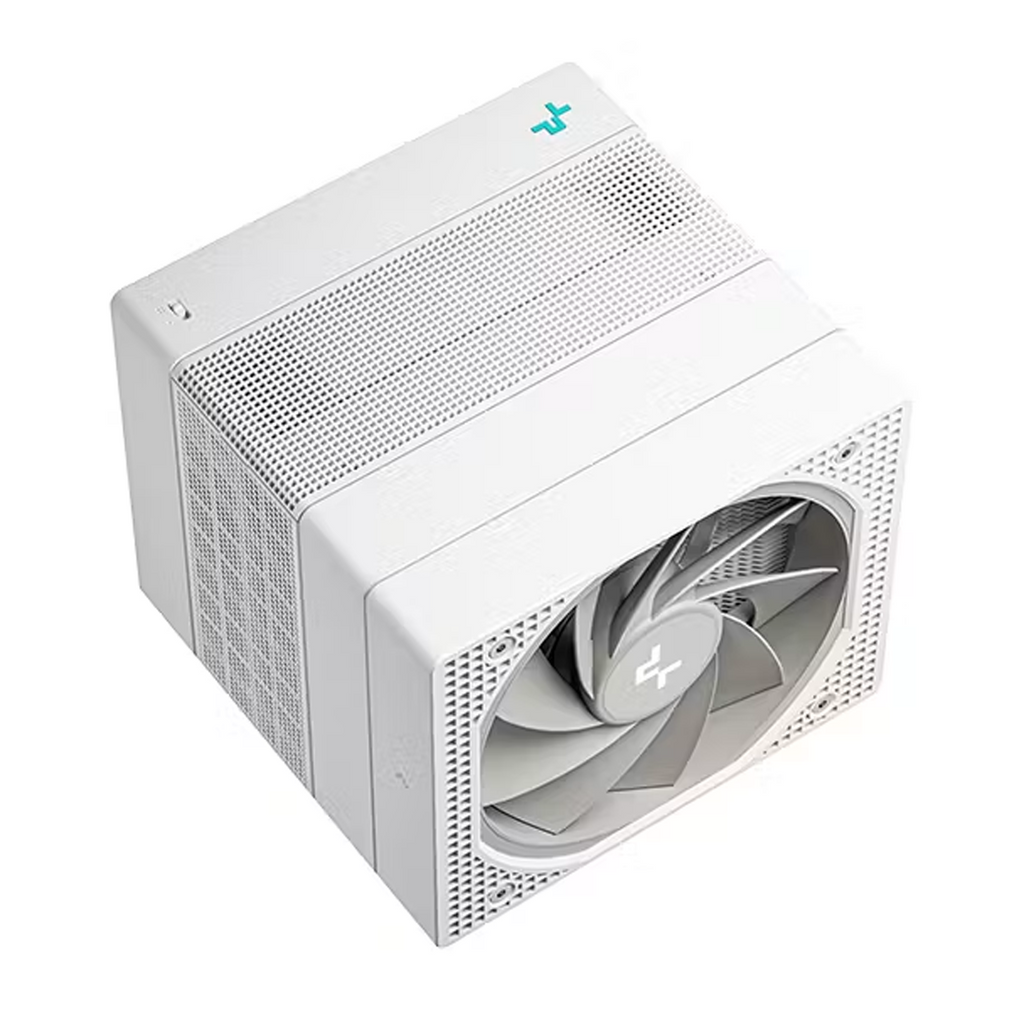

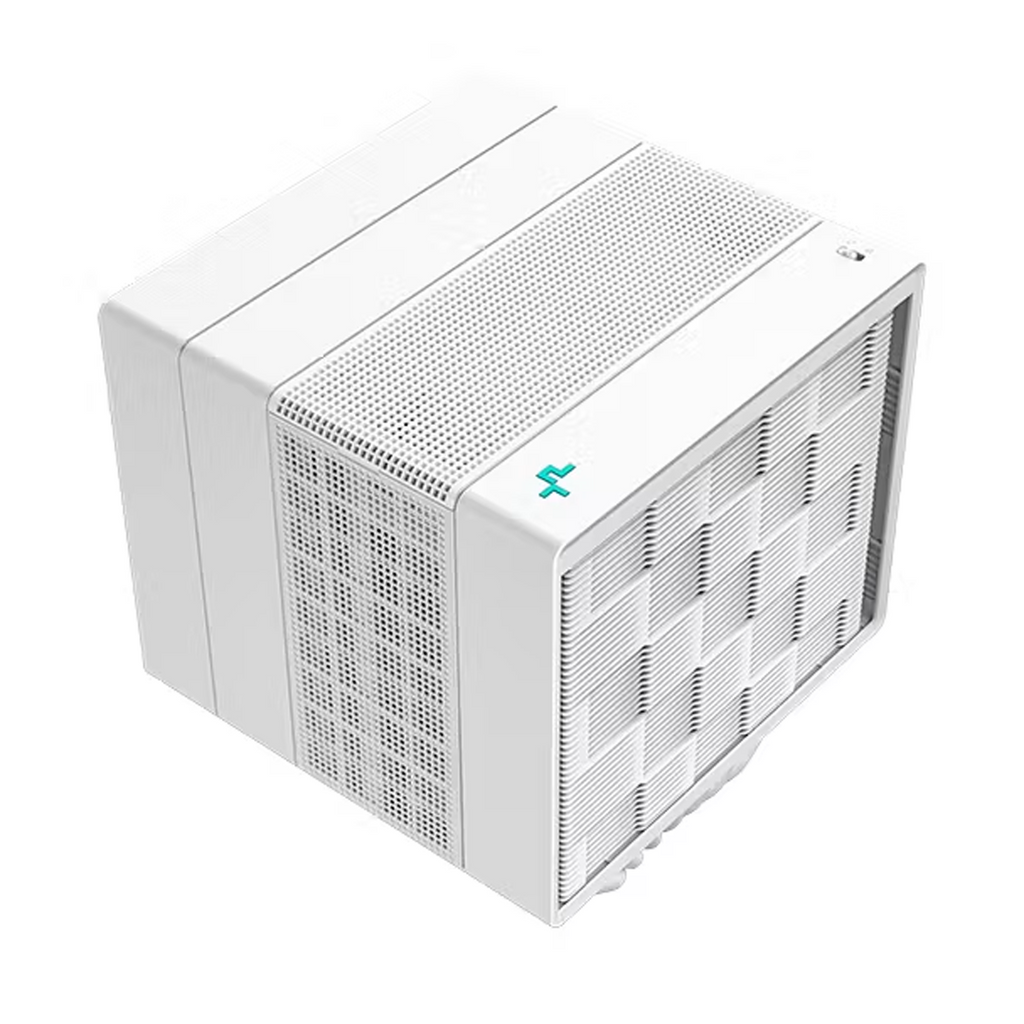

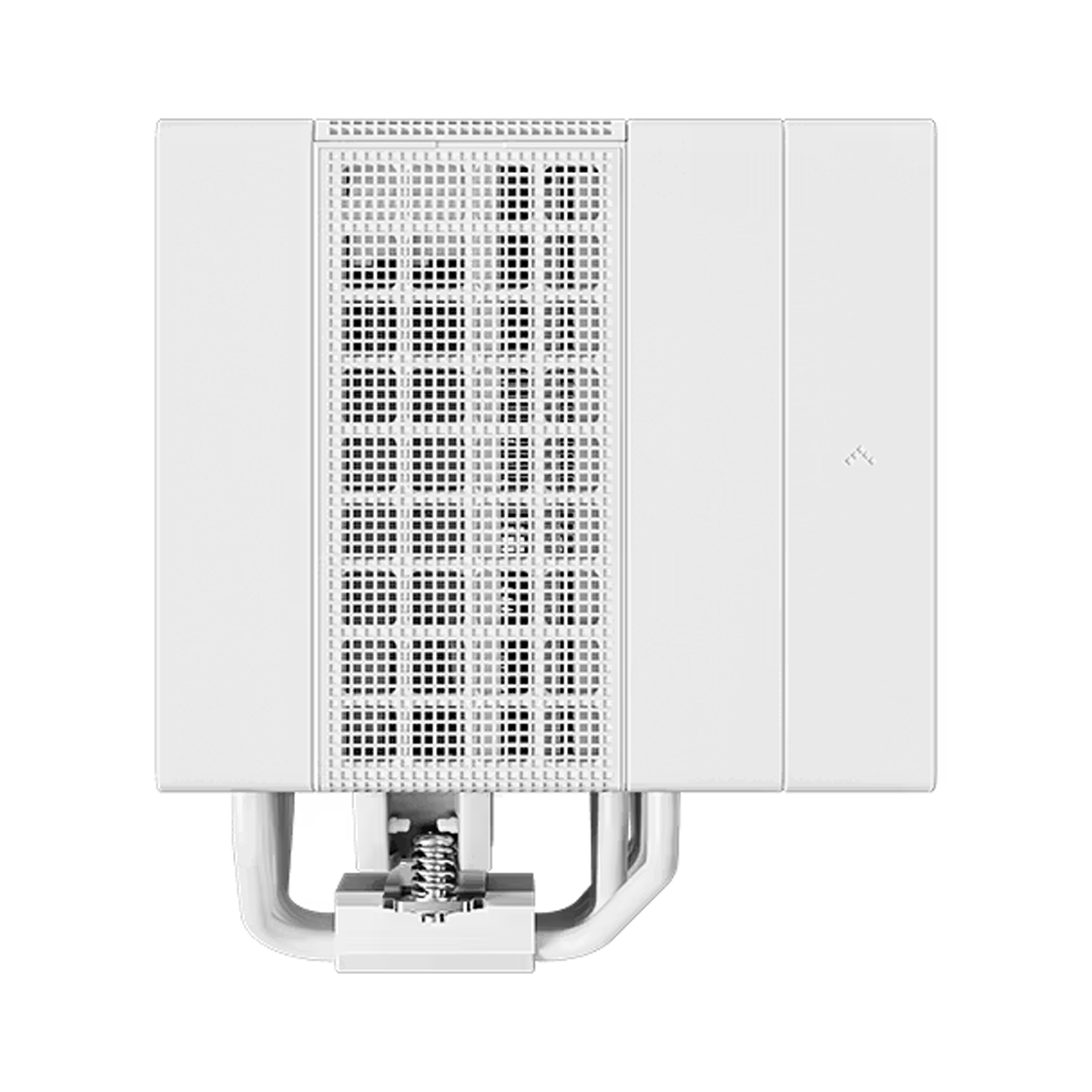

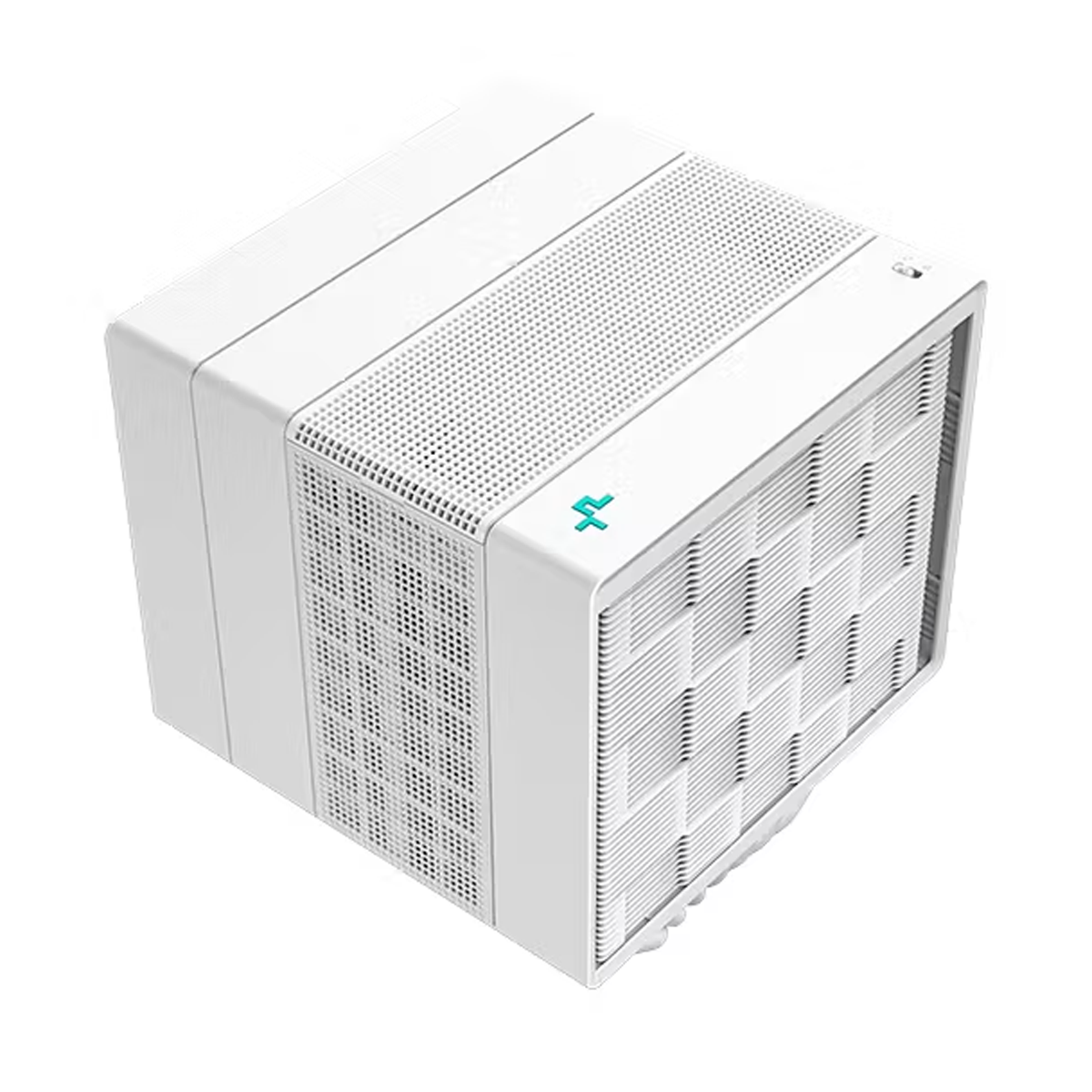

ASSASSIN IV WH
The ASSASSIN returns with a new white aesthetic and efficient cooling capacity. The ASSASSIN IV WH provides exceptional performance and is armed with seven heat pipes and newly designed 120 and 140mm FDB fans.
SPECIFICATIONS:
| Product Dimensions | 144×147×164 mm(L×W×H) |
| Heatsink Dimensions | 140×110×160 mm(L×W×H) |
| Net Weight | 1575 g |
| Heatpipe | Ø6 mm×7 pcs |
| Fan Dimensions | 140×140×25 mm(L×W×H) / 120×120×25 mm(L×W×H) |
| Fan Speed (Performance Mode) | 500~1700 RPM±10% |
| Fan Airflow (Performance Mode) | 79.1 CFM / 58.06 CFM |
| Fan Air Pressure (Performance Mode) | 2.44 mmAq / 2.1 mmAq |
| Overall Noise (Performance Mode) | ≤29.3 dB(A) |
| Fan Speed (Quiet Mode) | 500~1350 RPM±10% |
| Fan Airflow (Quiet Mode) | 63.76 CFM / 46.75 CFM |
| Fan Air Pressure (Quiet Mode) | 1.58 mmAq / 1.35 mmAq |
| Overall Noise (Quiet Mode) | ≤22.6 dB(A) |
| Fan Connector | 4-pin PWM |
| Bearing Type | Fluid Dynamic Bearing |
| Motor Type | 6-Pole Fan Motor |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.1 A / 0.07 A |
| Fan Power Consumption | 1.2 W / 0.84 W |
| Rated Voltage | 12 VDC |
| Power Consumption(Performance Mode) | 2.88 W |
| Power Consumption(Quiet Mode) | 1.56 W |
