Description

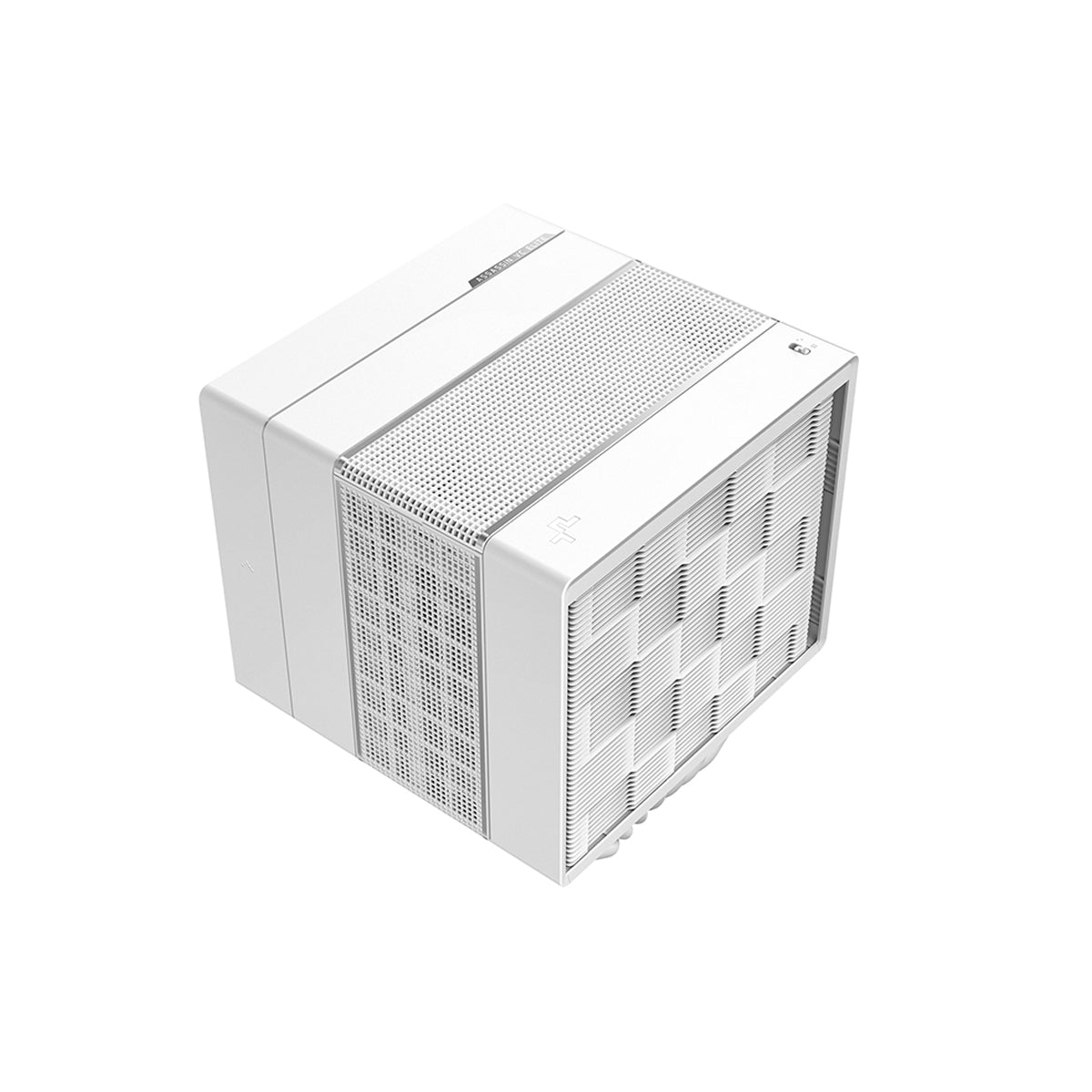

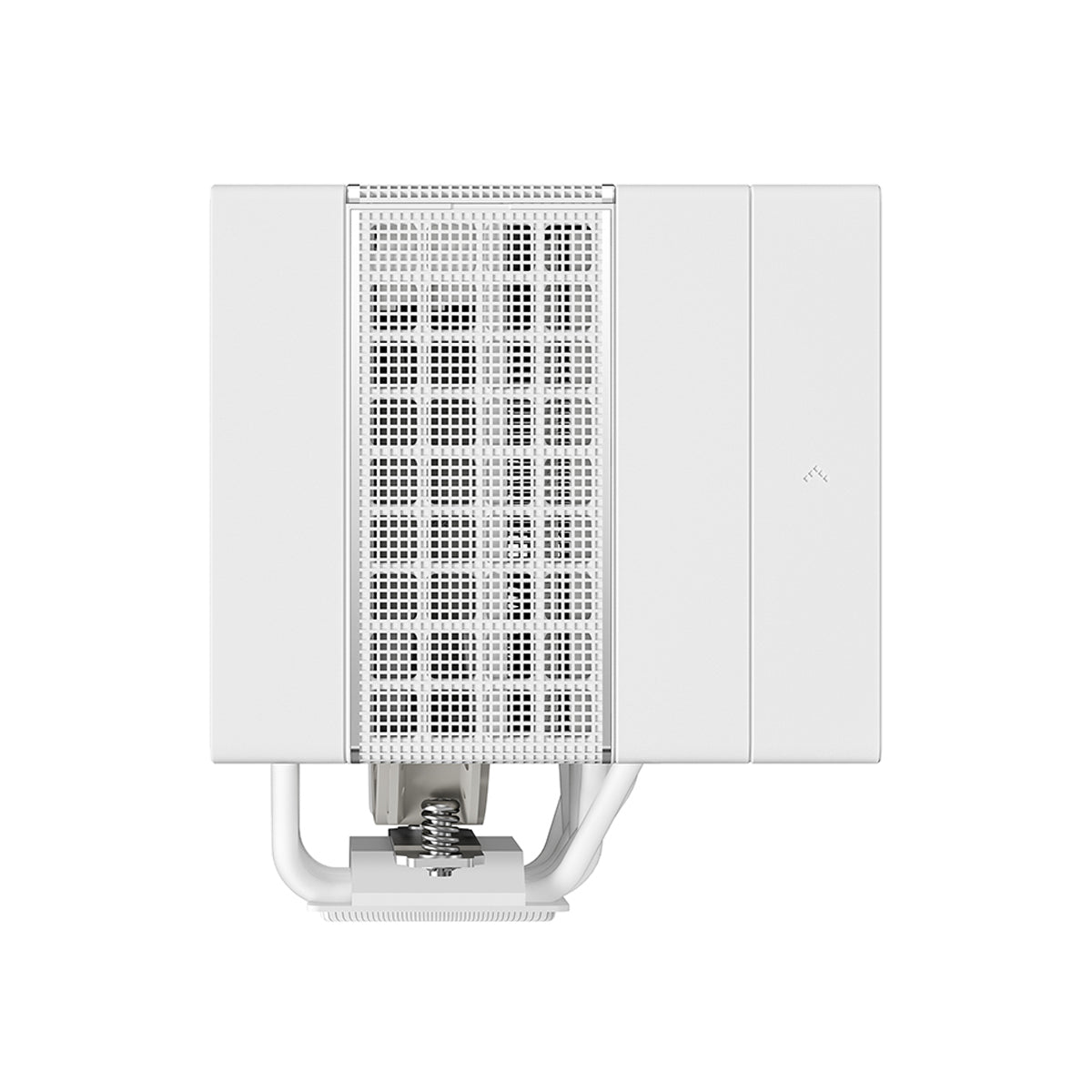

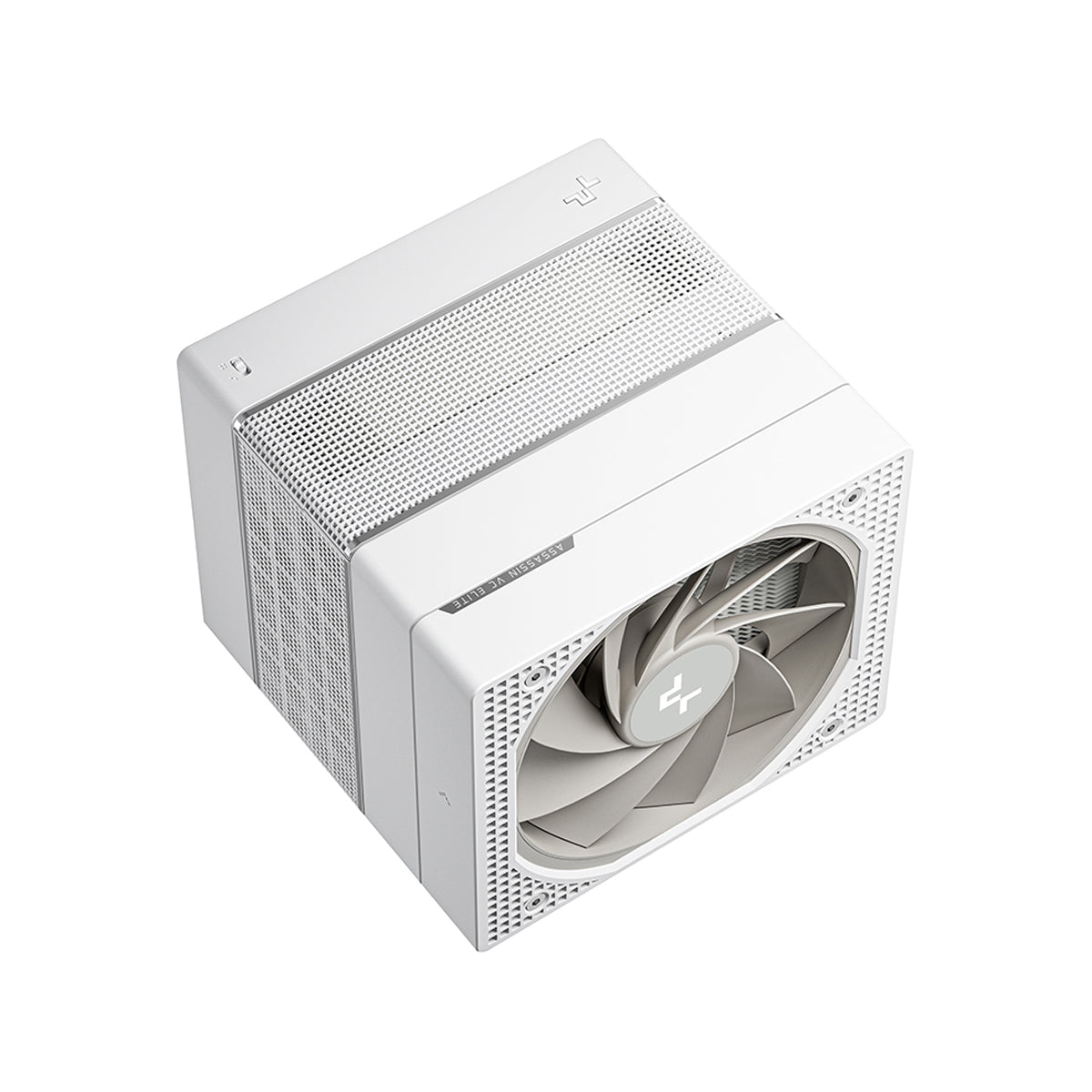

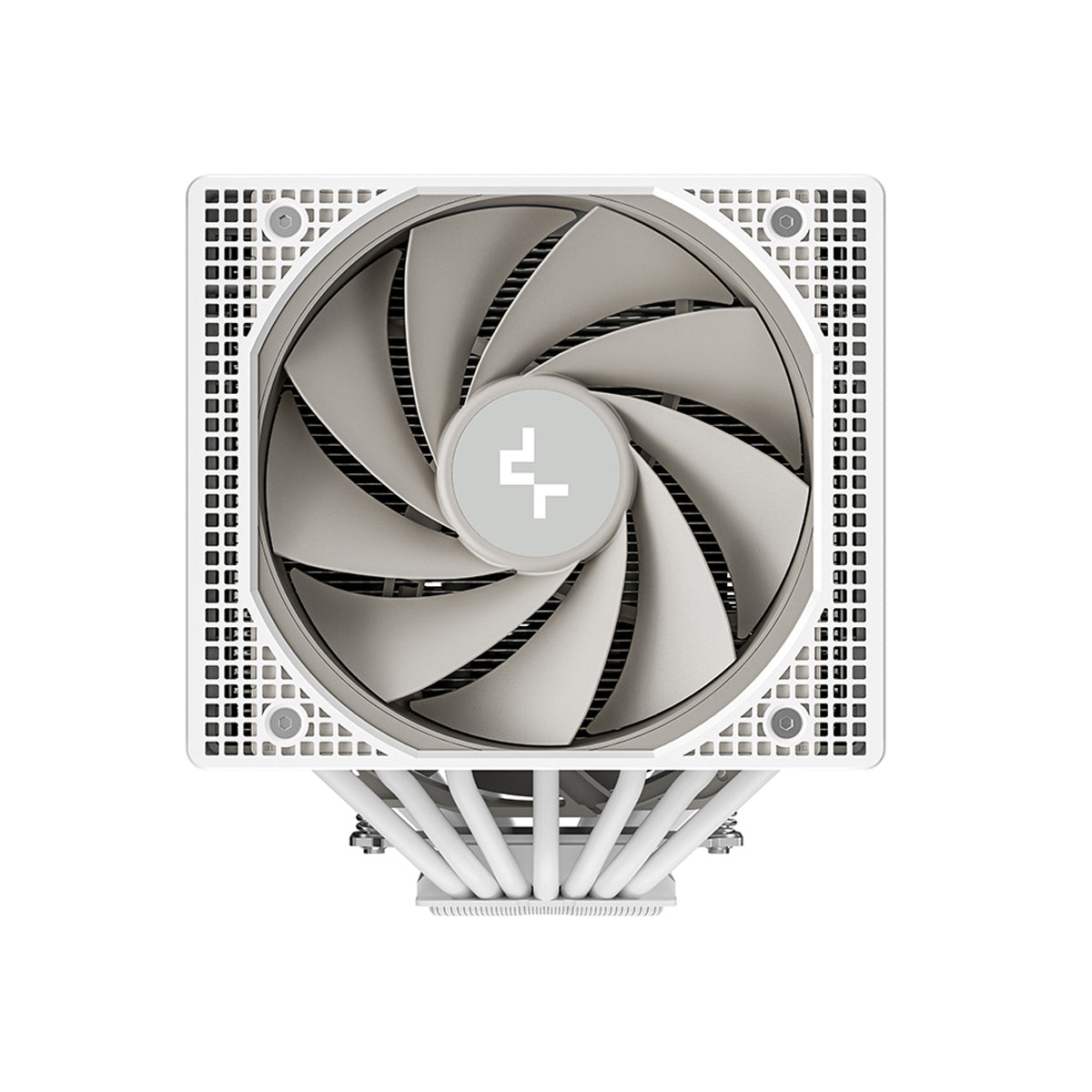

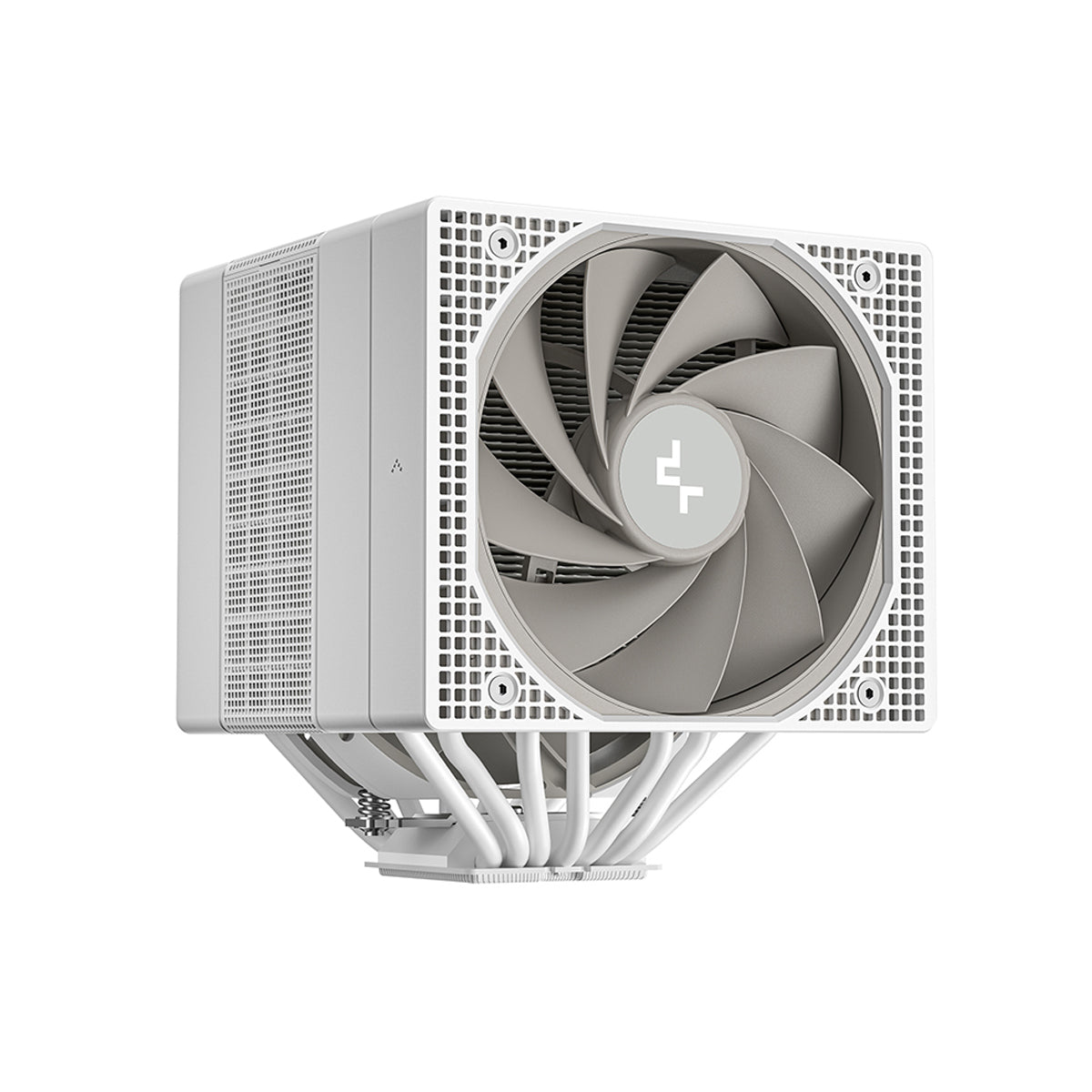

ASSASSIN VC ELITE WH

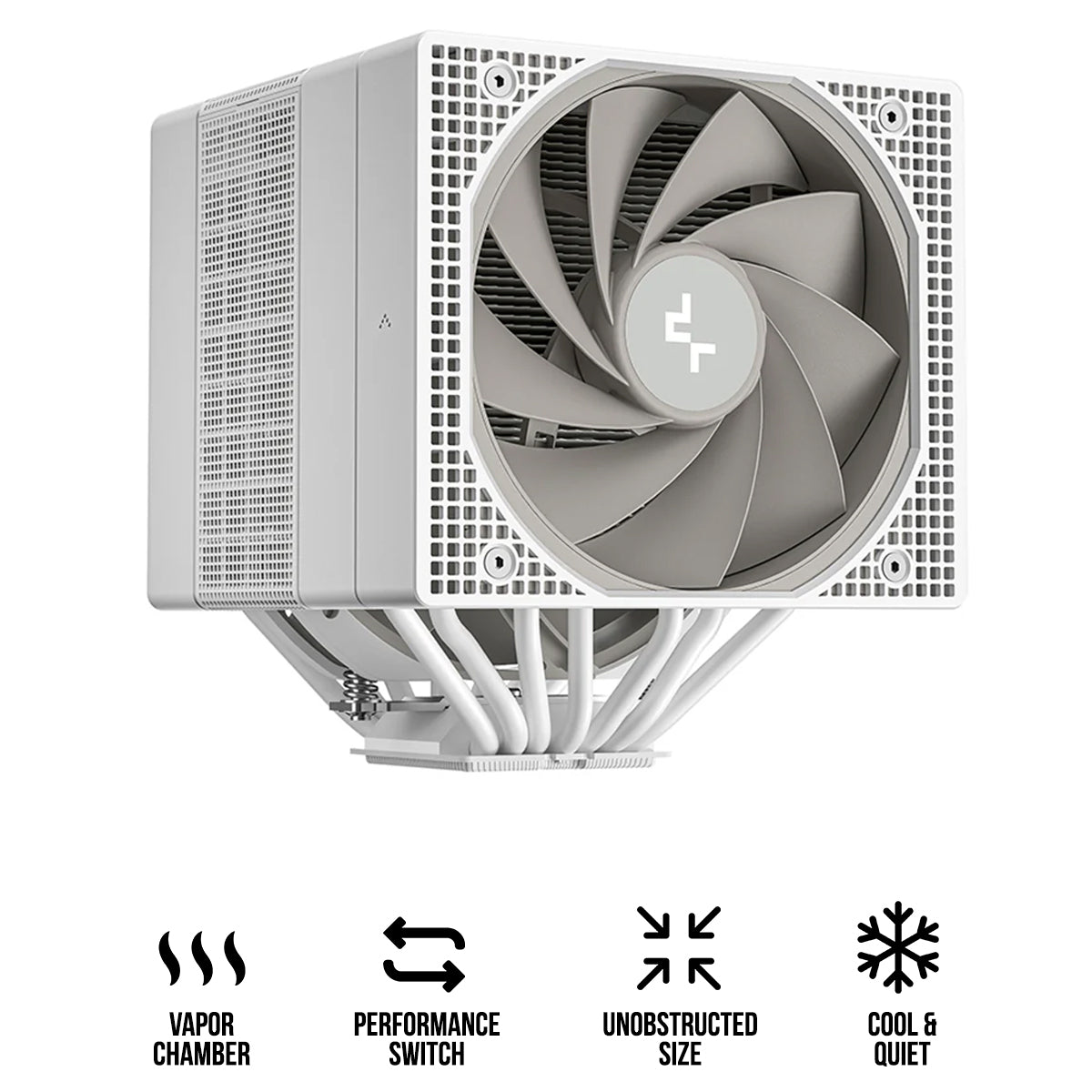

The ASSASSIN series adds to its impeccable cooling line with the ASSASSIN VC ELITE WH. With the new white aesthetic, the ASSASSIN VC ELITE WH includes a vapor chamber at the base that improves heat transfer dramatically while increasing the TDP to 300 watts!
| Technical Spec | |
| Product Dimensions | 144×147×164 mm(L×W×H) |

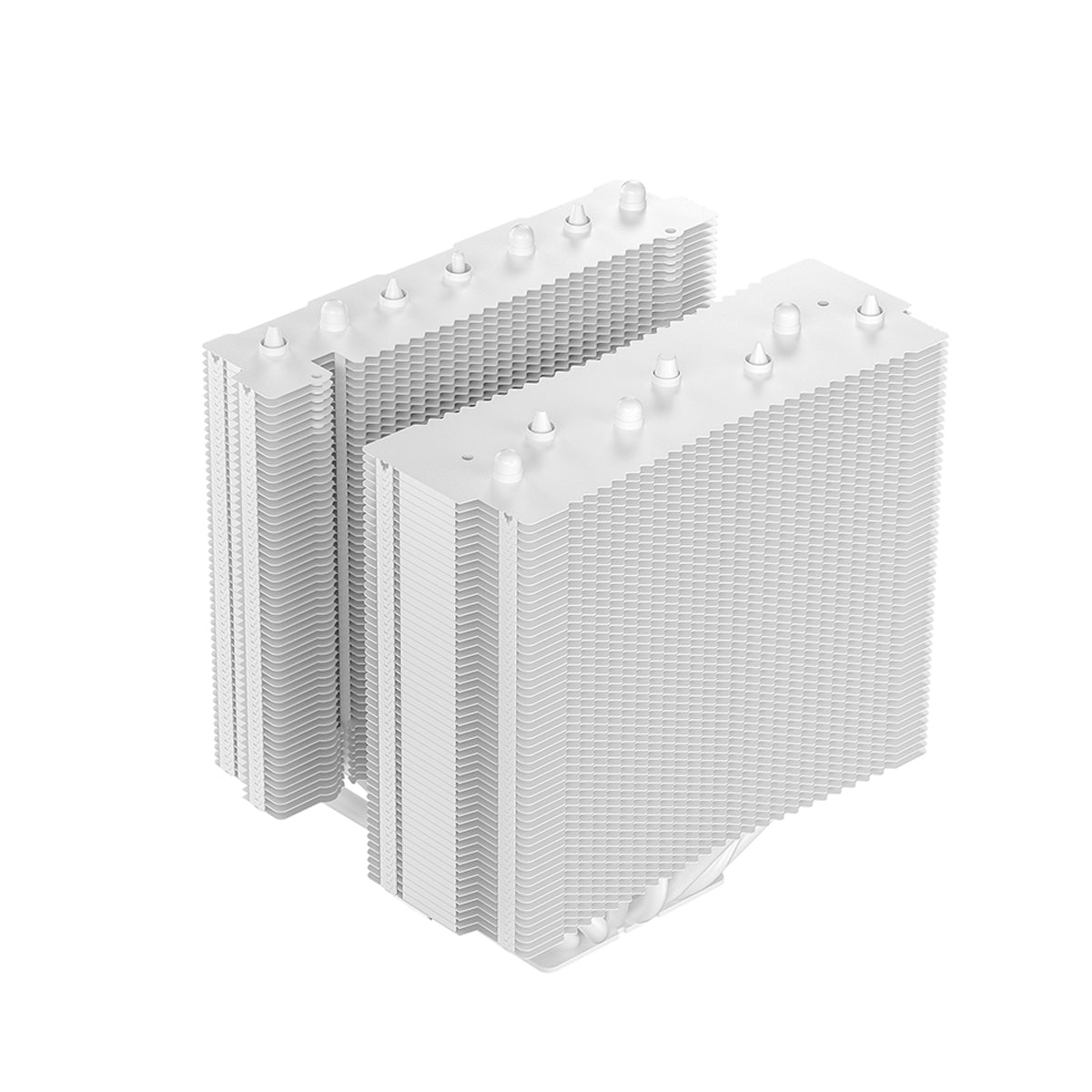

| Heatsink Dimensions | 140×110×160 mm(L×W×H) |
| Net Weight | 1772 g |

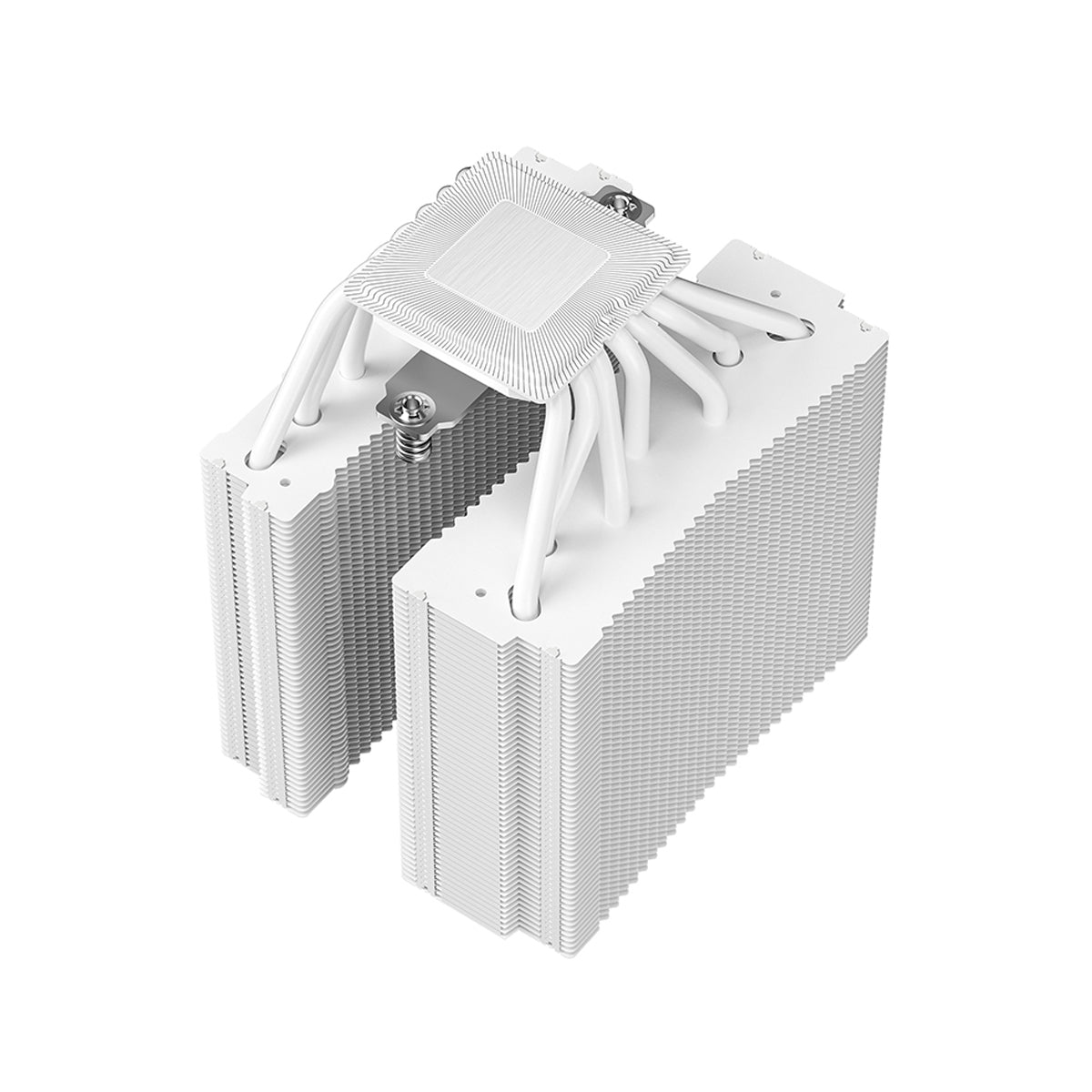

| Heatpipe | Ø6 mm×7 pcs |

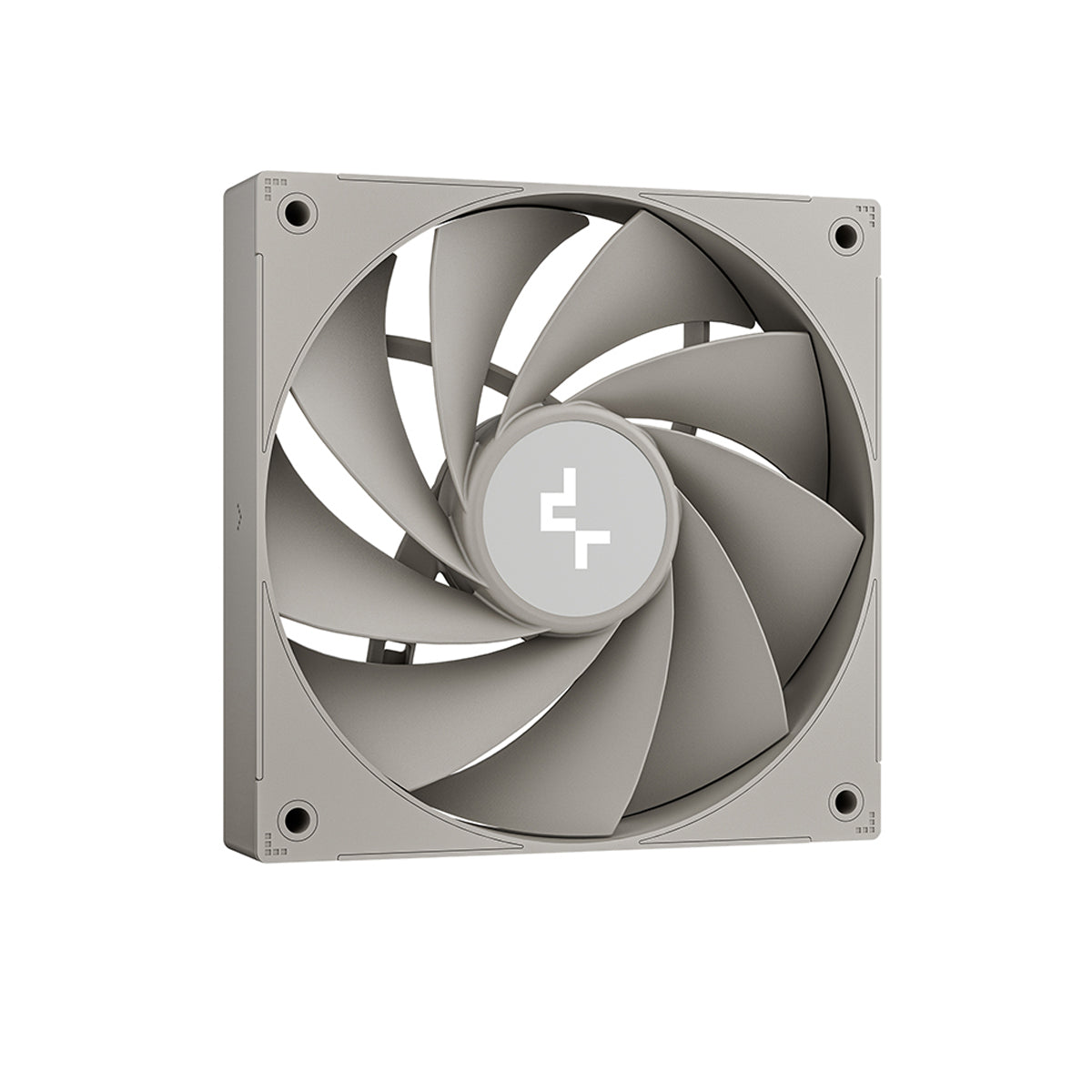

| Fan Dimensions | 140×140×25 mm(L×W×H) / 120×120×25 mm(L×W×H) |
| Fan Speed (Performance Mode) | 500~1800 RPM±10% / 500~1700 RPM±10% |
| Fan Airflow (Performance Mode) | 61.25 CFM / 58.06 CFM |
| Fan Air Pressure (Performance Mode) | 3.76 mmAq / 2.1 mmAq |
| Overall Noise (Performance Mode) | ≤29.3 dB(A) |
| Fan Speed (Quiet Mode) | 500~1450 RPM±10% / 500~1350 RPM±10% |
| Fan Airflow (Quiet Mode) | 48.55 CFM / 46.75 CFM |
| Fan Air Pressure (Quiet Mode) | 2.46 mmAq / 1.35 mmAq |
| Overall Noise (Quiet Mode) | ≤22.6 dB(A) |
| Fan Connector | 4-pin PWM |
| Bearing Type | Fluid Dynamic Bearing |
| Motor Type | 6-Pole Fan Motor |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.2 A / 0.2 A |
| Fan Power Consumption | 2.4W / 2.4 W |
| Rated Voltage | 12 VDC |
| Power Consumption (Performance Mode) | 4.8 W |
| Power Consumption (Quiet Mode) | 3.6 W |
| EAN | 6933412729433 |
| P/N | R-ASN4-WHNVNN-GJD |
