Description
CASTLE 240EX A-RGB

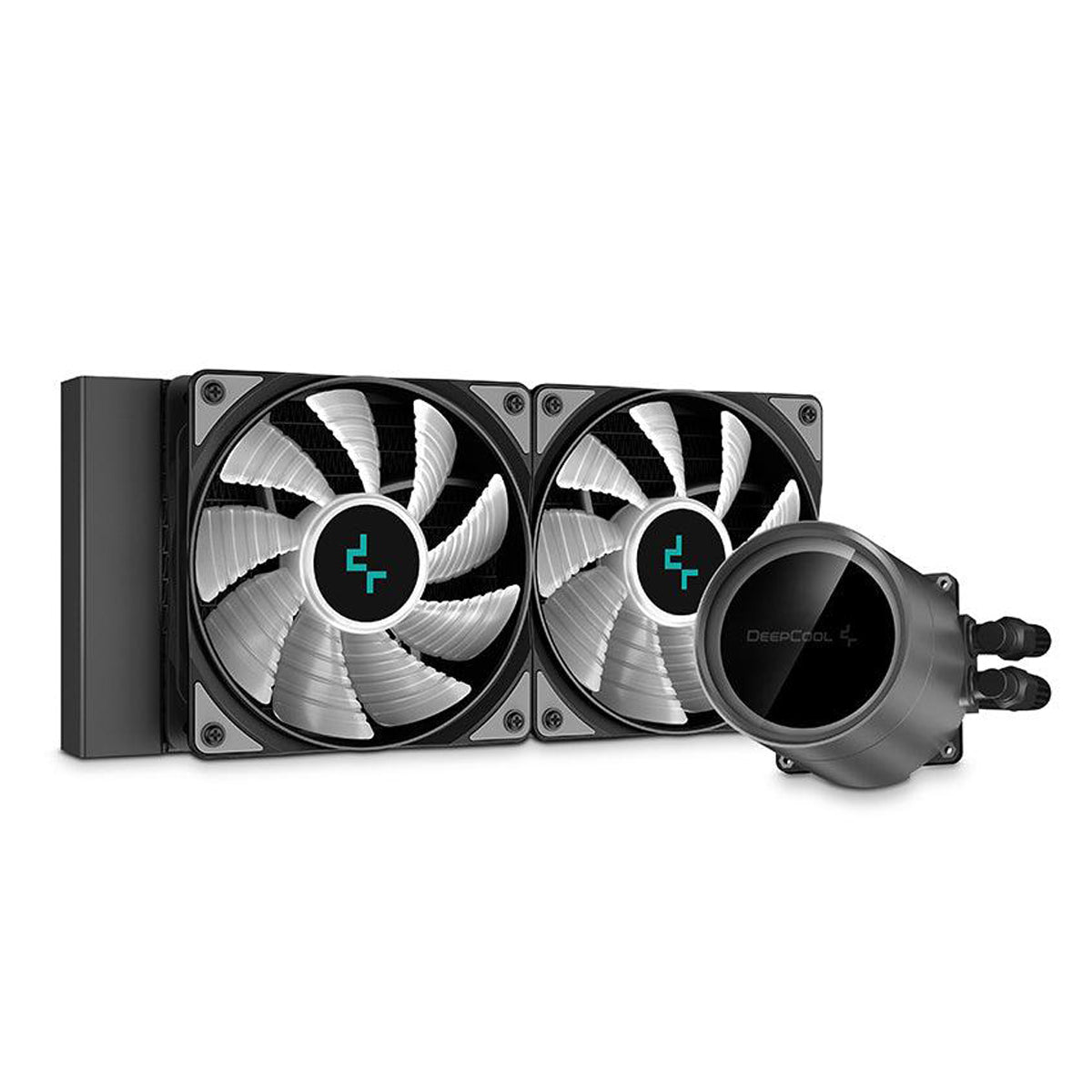

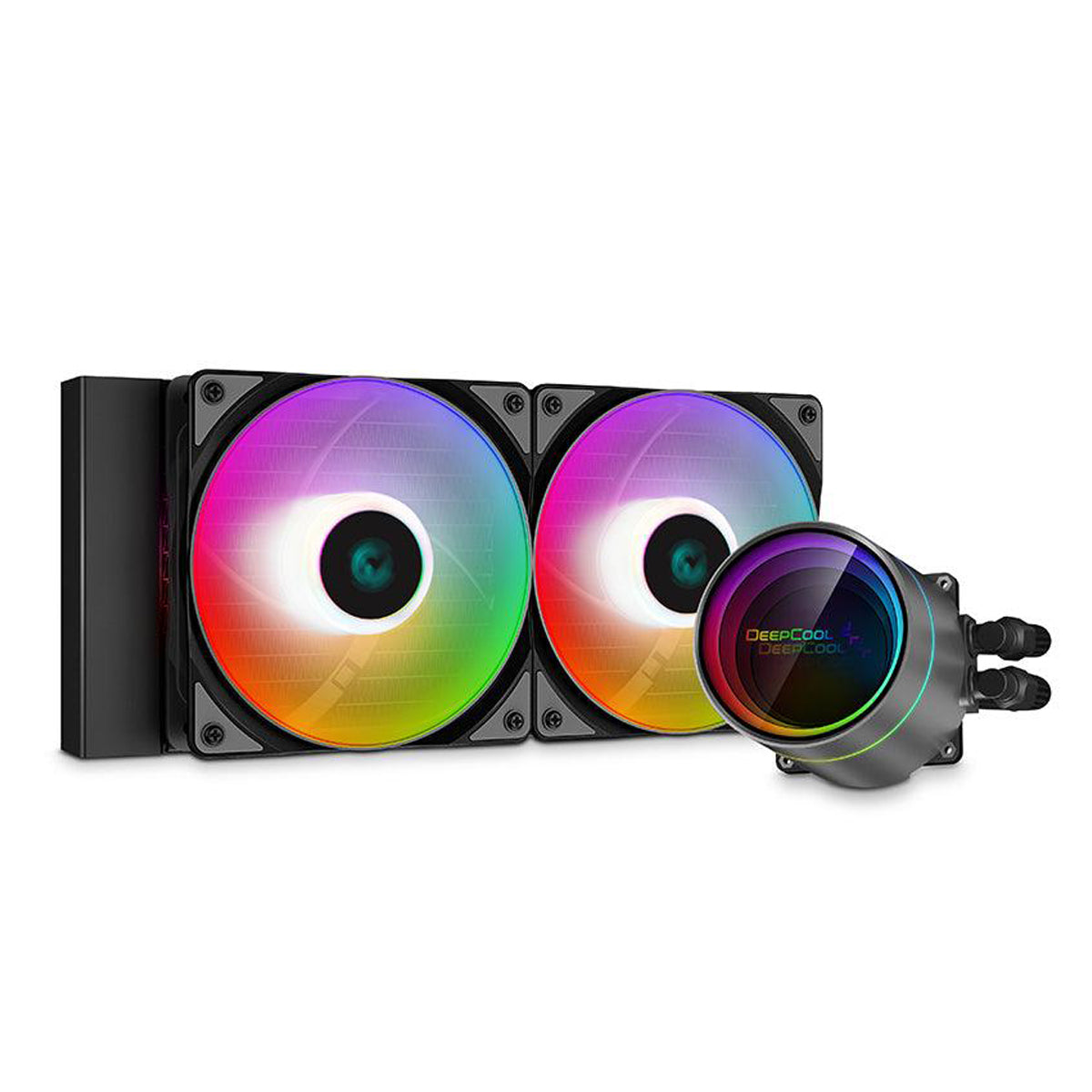

The DeepCool CASTLE 240EX A-RGB AIO liquid CPU cooler delivers fantastic RGB lighting with two DeepCool CF120 A-RGB PWM fans and our iconic infinity mirror in a 240mm radiator.
BETTER BY DESIGN

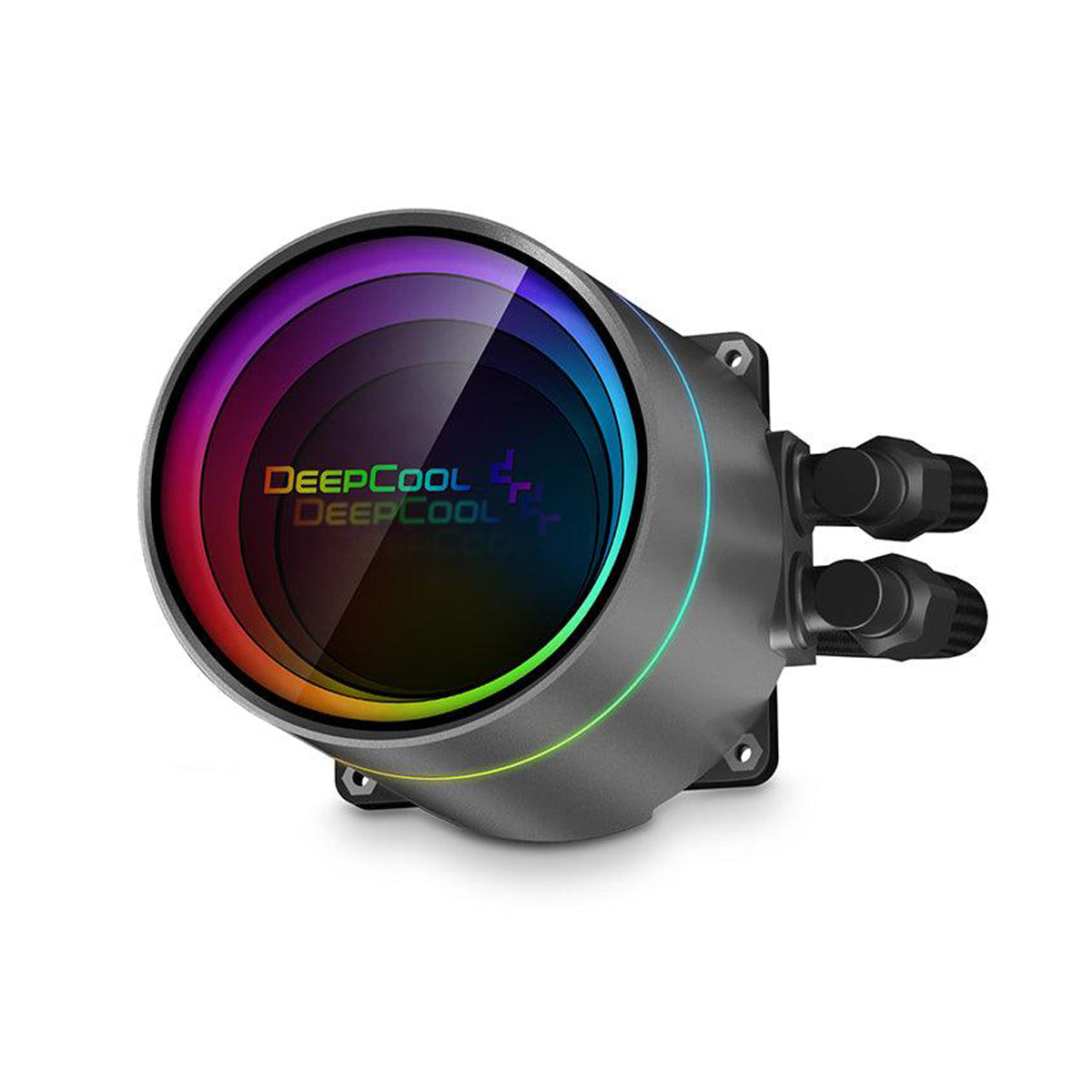

The iconic DeepCool Castle EX infinity mirror pump design with a new twist. See the new DeepCool logo on an enlarged mirror chip for a new instant classic.
SHINE ON

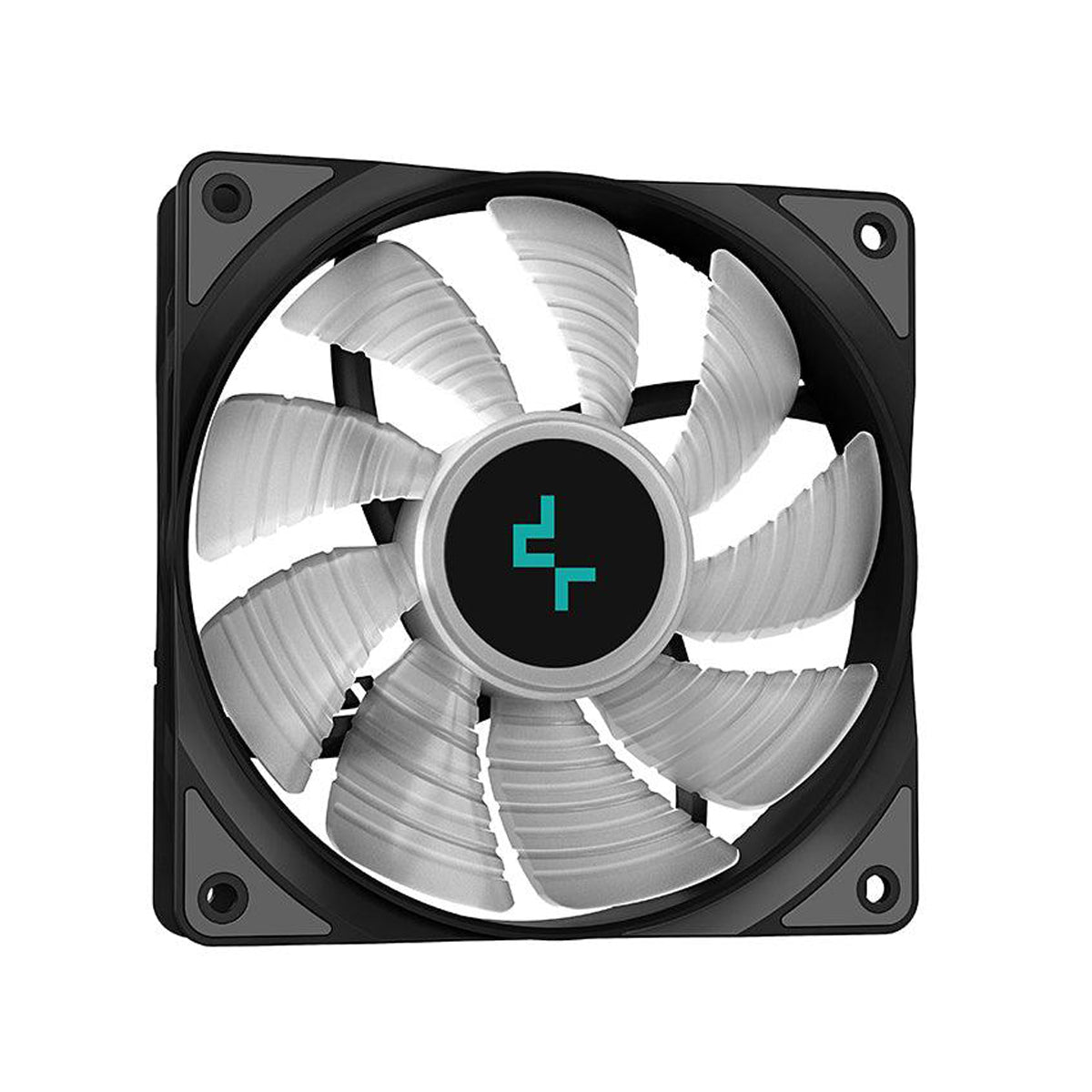

Two DeepCool CF120 series PWM fans output brilliant color with 12 RGB LEDs per fan.
EFFICIENT COOLING
Designed from the inside out, the new dual-chamber pump features an optimized flow route for better heat exchange.
POWERFUL AND QUIET
A stronger 3-phase motor provides higher cooling performance with an increased flow rate while keeping noise levels low.
MORE SURFACE AREA

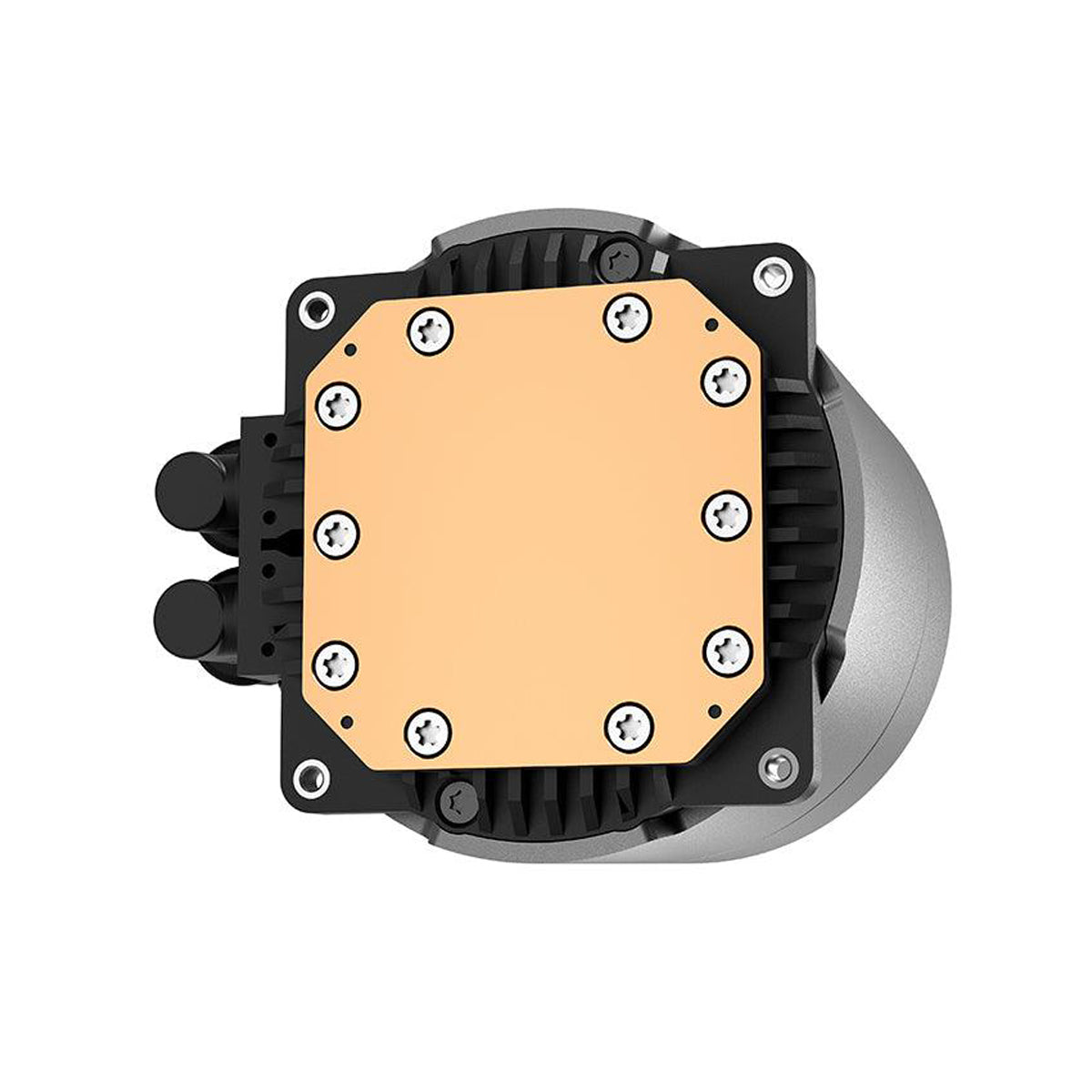

With 25% more skived fins on the copper cold plate, the larger surface area effectively dissipates heat.
PROTECT WHAT’S YOURS
| Net Weight | 1380 g |

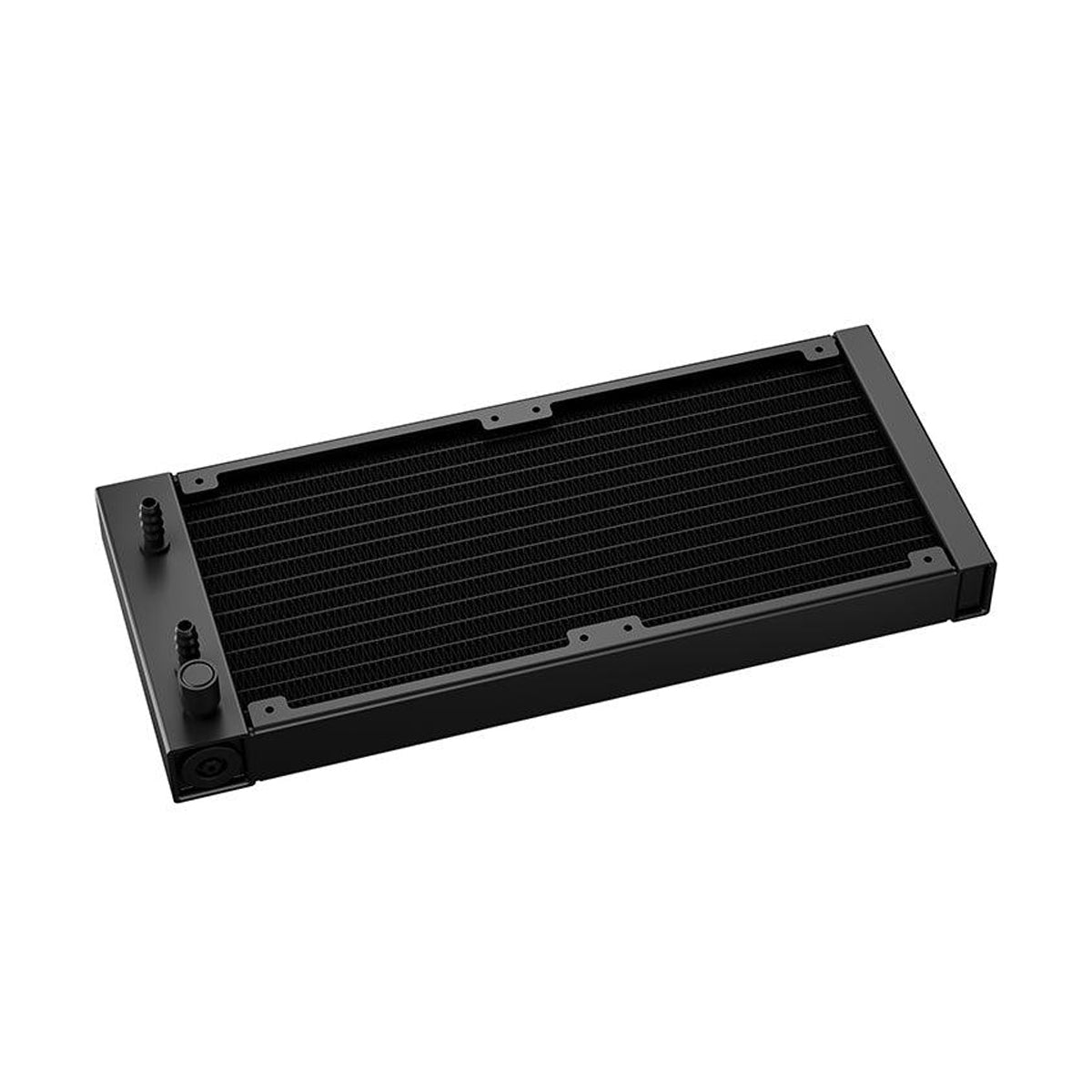

| Radiator Dimensions | 282×120×27 mm |
| Radiator Material | Aluminum |
| Tube length | 380 mm |
| Pump Dimensions | 86 ×75×71 mm |
| Pump Speed | 2550 RPM±10% |
| Pump Noise | 17.8 dB(A) |
| Pump Connector | 3-pin |
| Pump Rated Voltage | 12 VDC |
| Pump Rated Current | 0.2 A |
| Pump Power Consumption | 2.4 W |
| Fan Dimensions | 120×120×25 mm |
| Fan Speed | 500~1800 RPM±10% |
| Fan Airflow | 69.34 CFM |
| Fan Air Pressure | 2.42 mmAq |
| Fan Noise | ≤30 dB(A) |
| Fan Connector | 4-pin PWM |
| Bearing Type | Hydro Bearing |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.17 A |
| Fan Power Consumption | 2.04 W |
| LED Type | Addressable RGB LED |
| LED Connector | 3-pin(+5V-D-G) |
| LED Rated Voltage | 5 VDC |
| LED Power Consumption | 2.25 W（PUMP）/ 4.4 W（FAN×2） |
